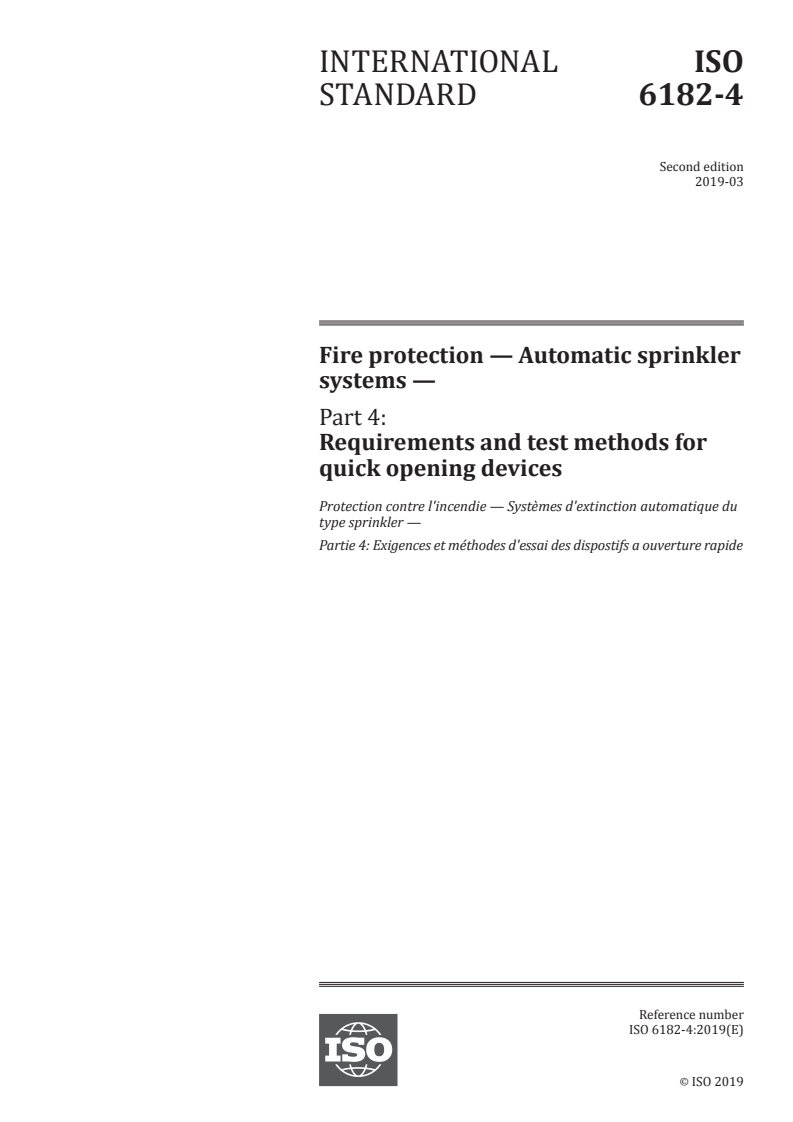

ISO 6182-4:2019

INTERNATIONAL ISO
STANDARD 6182-4
Second edition
2019-03
Fire protection — Automatic sprinkler
systems —
Part 4:
Requirements and test methods for
quick opening devices
Protection contre l'incendie — Systèmes d'extinction automatique du
type sprinkler —
Partie 4: Exigences et méthodes d'essai des dispostifs a ouverture rapide
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

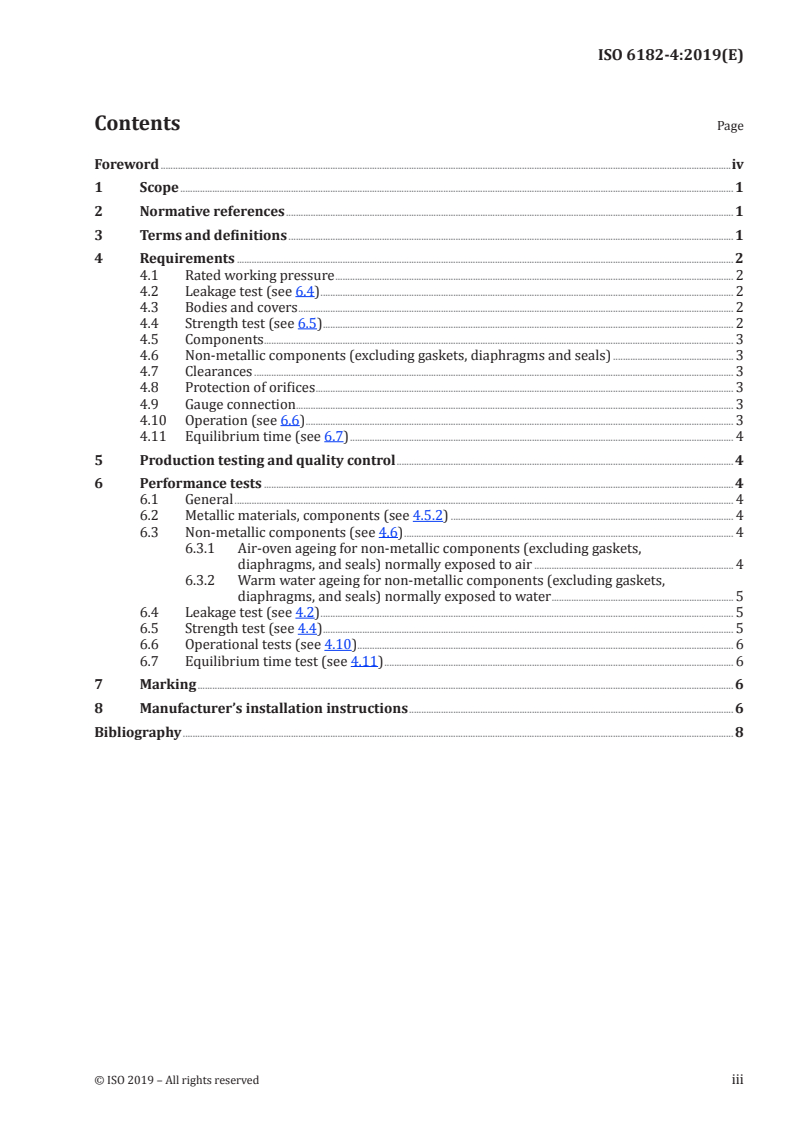

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements . 2
4.1 Rated working pressure . 2
4.2 Leakage test (see 6.4) . 2
4.3 Bodies and covers . 2
4.4 Strength test (see 6.5) . 2
4.5 Components . 3
4.6 Non-metallic components (excluding gaskets, diaphragms and seals) . 3
4.7 Clearances . 3
4.8 Protection of orifices . 3
4.9 Gauge connection. 3
4.10 Operation (see 6.6) . 3
4.11 Equilibrium time (see 6.7) . 4
5 Production testing and quality control . 4
6 Performance tests . 4
6.1 General . 4
6.2 Metallic materials, components (see 4.5.2) . 4
6.3 Non-metallic components (see 4.6) . 4
6.3.1 Air-oven ageing for non-metallic components (excluding gaskets,
diaphragms, and seals) normally exposed to air . 4
6.3.2 Warm water ageing for non-metallic components (excluding gaskets,
diaphragms, and seals) normally exposed to water . 5
6.4 Leakage test (see 4.2) . 5
6.5 Strength test (see 4.4) . 5
6.6 Operational tests (see 4.10) . 6
6.7 Equilibrium time test (see 4.11) . 6
7 Marking . 6
8 Manufacturer’s installation instructions . 6
Bibliography . 8

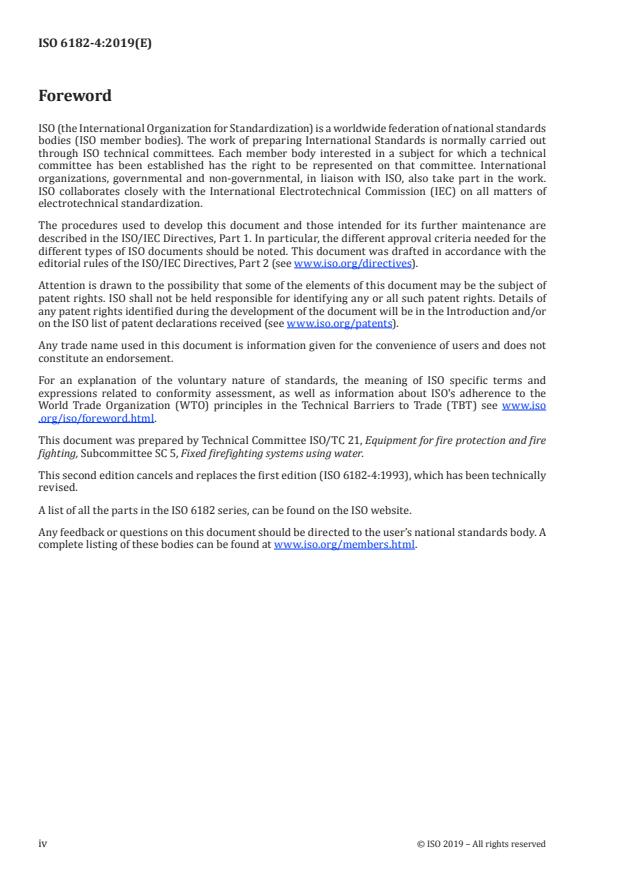

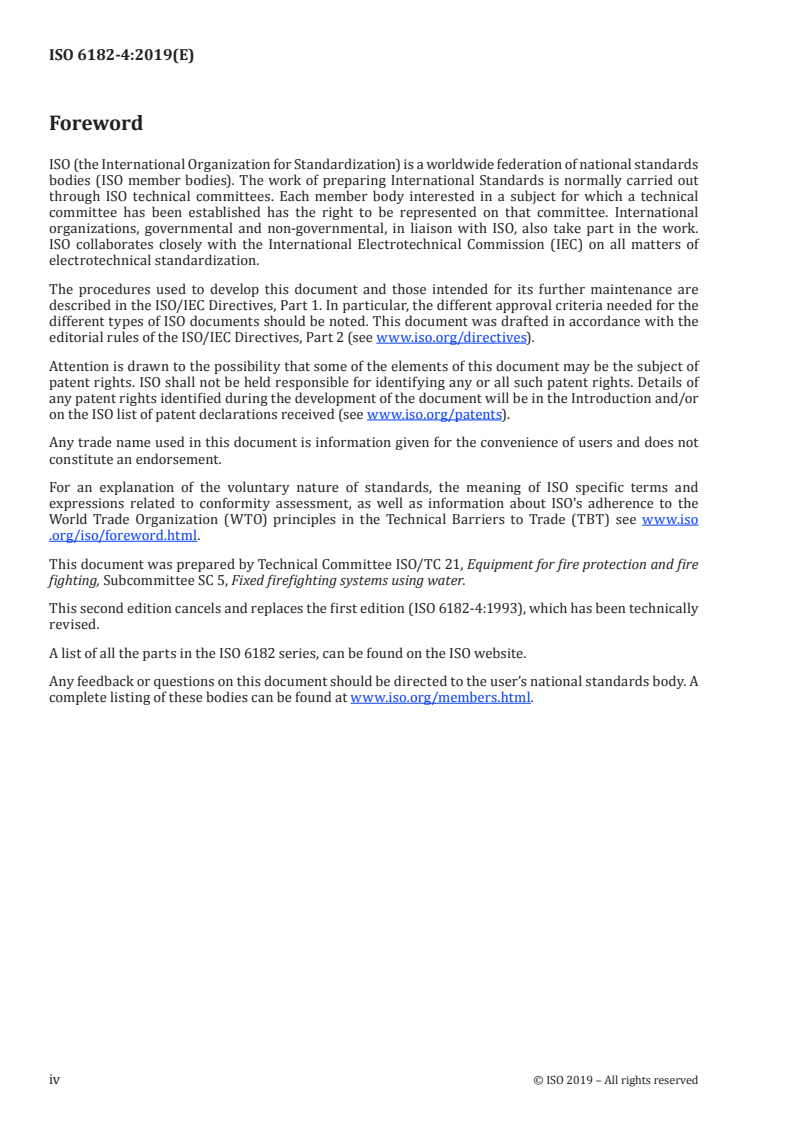

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and fire
fighting, Subcommittee SC 5, Fixed firefighting systems using water.
This second edition cancels and replaces the first edition (ISO 6182-4:1993), which has been technically
revised.
A list of all the parts in the ISO 6182 series, can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

INTERNATIONAL STANDARD ISO 6182-4:2019(E)
Fire protection — Automatic sprinkler systems —
Part 4:
Requirements and test methods for quick opening devices
1 Scope
This document specifies the performance and testing requirements for accelerators used with dry pipe
valves in fire protection systems to hasten the operation of the valves when one or more sprinklers
operate.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 49, Malleable cast iron fittings threaded to ISO 7-1
ISO 898-1, Mechanical properties of fasteners made of carbon steel and alloy steel — Part 1: Bolts, screws
and studs with specified property classes — Coarse thread and fine pitch thread
ISO 898-2, Mechanical properties of fasteners made of carbon steel and alloy steel — Part 2: Nuts with
specified property classes — Coarse thread and fine pitch thread
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at http: //www .iso .org/obp
3.1
accelerator
quick-opening device which hastens the operation of a dry pipe valve using mechanical means other
than by reducing installation pipework pressure
Note 1 to entry: For the purposes of this document, the term accelerator refers to an accelerator and any (internal
or external) antiflooding device (3.2).
3.2
antiflooding device
device intended to prohibit excessive water or other foreign matter from entering any relevant part or
parts of the accelerator where this might prevent subsequent operation
3.3
corrosion-resistant material
metallic material of bronze, brass, copper-nickel alloys metal, austenitic stainless steel, or equivalent,
or plastic material conforming with the requirements of this document
3.4
rated working pressures
maximum service pressure at which an accelerator is intended to operate
3.5
service pressure
static water pressure at the inlet to a dry pipe valve when the accelerator and the dry pipe valve are in
the ready condition
3.6
holding chamber
chamber pressurized with system air pressure which actuates an accelerator upon a sufficient rate of
loss of system air pressure
4 Requirements
4.1 Rated working pressure
The rated working pressure shall be not less than 1,2 MPa (12 bar).
4.2 Leakage test (see 6.4)
4.2.1 There shall be no leakage of an accelerator when a pneumatic pressure of 0,7 MPa (7 bar) is
applied for 1 min in accordance with 6.4.1.
4.2.2 There shall be no leakage of an accelerator when an internal hydrostatic pressure of twice the
rated working pressure is applied for 5 min when tested in accordance with 6.4.2.
4.3 Bodies and covers
4.3.1 Accelerator bodies and covers shall be made of a material having a corrosion resistance at least
equivalent to cast iron.
4.3.2 The dimension of all connections shall conform with the applicable requirements of international
standards. If international standards are not applicable, national standards shall be permitted to be used.
4.3.3 Non-metallic materials, other than gaskets and pipe seals, or metals with a melting point of less
than 650 °C (other than for pipe jointing purposes) shall not form part of the body of accelerators.
4.3.4 It shall not be possible to assemble the accelerator with any cover plate in a position which either
improperly indicates flow direction or prevents proper operation of the device.
4.4 Strength test (see 6.5)
4.4.1 All parts of an accelerator shall withstand a hydrostatic pressure of four times the rated working
pressure for 5 min, without permanent distortion when tested in accordance with 6.5.
4.4.2 If the test in accordance with 6.5 is not done with standard production fasteners, documentation
shall be provided to demonstrate that the calculated design load of any standard production fastener,
neglecting the force required to compress the gasket, does not exceed the minimum tensile strength
2 © ISO 2019 – All rights reserved

specified in ISO 898-1 and ISO 898-2 when the accelerator is pressurized to four times the rated working
pressure. The area of the application of pressure shall be calculated as follows:
a) if a full gasket is used, the area of force application is that extending out to a line defined by the
inner edge of the bolts;
b) if an “O”-ring seal or ring gasket is used, the area of force application is that extending out to the
centerline of the “O”-ring or gasket.
4.5 Components
4.5.1 It shall be possible to disassemble and
...
