Overview
ISO 9398-3:2003 is an international standard that specifies definitions and testing methods for capacity and consumption characteristics of industrial washing tunnels used in laundry operations. Developed by the International Organization for Standardization (ISO), this part of ISO 9398 focuses exclusively on washing tunnels, providing standardized test conditions and procedures to measure energy consumption, water usage, and hourly productivity at the machine's nominal capacity.
This standard serves as a fundamental reference for manufacturers, purchasers, and users of industrial laundry washing tunnels, ensuring consistent performance assessments and facilitating transparent procurement specifications. Importantly, ISO 9398-3:2003 does not cover safety requirements, which are addressed in ISO 10472-3.
Key Topics
Definitions
Clarifies terminology relevant to washing tunnels, including:- Washing tunnel: An automatic washing line processing laundry continuously or in batches.
- Nominal capacity: Maximum load of cotton fabric the tunnel’s compartments can process, expressed in kilograms at 8% moisture content.
- Residence time: Duration for laundry to pass completely through the tunnel.
Testing Conditions
To ensure uniformity, the standard stipulates:- Test loads consist of white bleached cotton sheets with specified dimensions and weight.
- Energy input types accepted include steam, gas, electricity, or heat transfer fluids as per manufacturer instructions.
- Control ambient parameters such as water temperature (typically 17 ± 3 °C), air temperature, and machine cleanliness.
Energy Consumption Measurement
Specifies methods to measure the thermal and mechanical energy consumption per kilogram of processed laundry under defined cycles and machine load conditions. Results are averaged over multiple test runs for accuracy.Water Consumption Measurement
Details procedures for quantifying total water usage-washing and rinsing water-per kilogram of laundry, measured at steady-state machine operation.Hourly Productivity Assessment
Defines calculation of washing tunnel output by measuring the mass of laundry processed per hour at nominal capacity using specified cycles.Machine Identification and Specifications
Requires comprehensive documentation of machine parameters including:- Manufacturer details
- Number of compartments and their individual capacities
- Physical dimensions and mass
- Steam pressure and maximum electric power
- Energy consumption figures in standard units
Applications
ISO 9398-3:2003 is essential for:
- Manufacturers designing and validating washing tunnels to meet industry benchmarks for energy and water efficiency, capacity, and output rates.
- Laundry service providers requiring specification standards for purchasing new equipment or evaluating operational costs.
- Procurement professionals drafting purchase orders for industrial washing tunnels, relying on objective, consistent performance data.
- Consultants and auditors assessing industrial laundry operations to optimize resource consumption and throughput efficiency.
Implementing this standard supports sustainability goals by enabling precise monitoring and management of energy and water usage in large-scale laundry facilities.
Related Standards
To complement ISO 9398-3:2003, the following standards provide additional specifications and safety requirements for industrial laundry equipment:
- ISO 9398-1:2002 – Specifications for industrial laundry machines: Dryers and finishing equipment definitions and capacity testing.
- ISO 10472-3:1997 – Safety requirements specifically covering washing tunnels and related industrial laundry machinery.
- ISO 7772 series – Methods for evaluating the effects of industrial washing machines on textile quality.
- Additional parts of ISO 9398 cover other industrial laundry machines like dryer-ironers (Part 1), rotary dryers (Part 2), and washer-extractors (Part 4).
Adherence to these standards ensures comprehensive assessment of performance, safety, and textile care for industrial laundry systems.
Keywords: ISO 9398-3, industrial laundry machines, washing tunnels, energy consumption, water consumption, hourly productivity, testing methods, nominal capacity, industrial laundry standards, washing tunnel specifications, laundry equipment testing, procurement standards.
ISO 9398-3:2003 - Specifications for industrial laundry machines -- Definitions and testing of capacity and consumption characteristics
ISO 9398-3:2003 - Spécifications pour les machines de blanchisserie industrielles -- Définitions et contrôle des caractéristiques de capacité et de consommation
Frequently Asked Questions
ISO 9398-3:2003 is a standard published by the International Organization for Standardization (ISO). Its full title is "Specifications for industrial laundry machines - Definitions and testing of capacity and consumption characteristics - Part 3: Washing tunnels". This standard covers: ISO 9398-3:2002 defines the characteristics of washing tunnels and gives the usual test methods for determining machine power consumption and hourly productivity. It is applicable for use as a reference in the drafting of purchasing orders for washing tunnels. It does not cover safety requirements (see ISO 10472-3).
ISO 9398-3:2002 defines the characteristics of washing tunnels and gives the usual test methods for determining machine power consumption and hourly productivity. It is applicable for use as a reference in the drafting of purchasing orders for washing tunnels. It does not cover safety requirements (see ISO 10472-3).
ISO 9398-3:2003 is classified under the following ICS (International Classification for Standards) categories: 97.060 - Laundry appliances. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 9398-3:2003 has the following relationships with other standards: It is inter standard links to ISO 105-J03:2009, ISO 9398-3:1993. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 9398-3:2003 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 9398-3
Second edition
2003-01-15
Specifications for industrial laundry
machines — Definitions and testing of
capacity and consumption
characteristics —
Part 3:
Washing tunnels
Spécifications pour les machines de blanchisserie industrielles —
Définitions et contrôle des caractéristiques de capacité et de
consommation —
Partie 3: Tunnels de lavage
Reference number
©
ISO 2003
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2003
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2003 — All rights reserved
Contents Page
Foreword. iv
1 Scope. 1
2 Normative references . 1
3 Terms and definitions. 1
4 General test conditions . 2
5 Energy consumption of machine . 2
6 Determination of water consumption . 3
7 Hourly productivity of machine . 3
8 Machine information. 4
Bibliography . 5

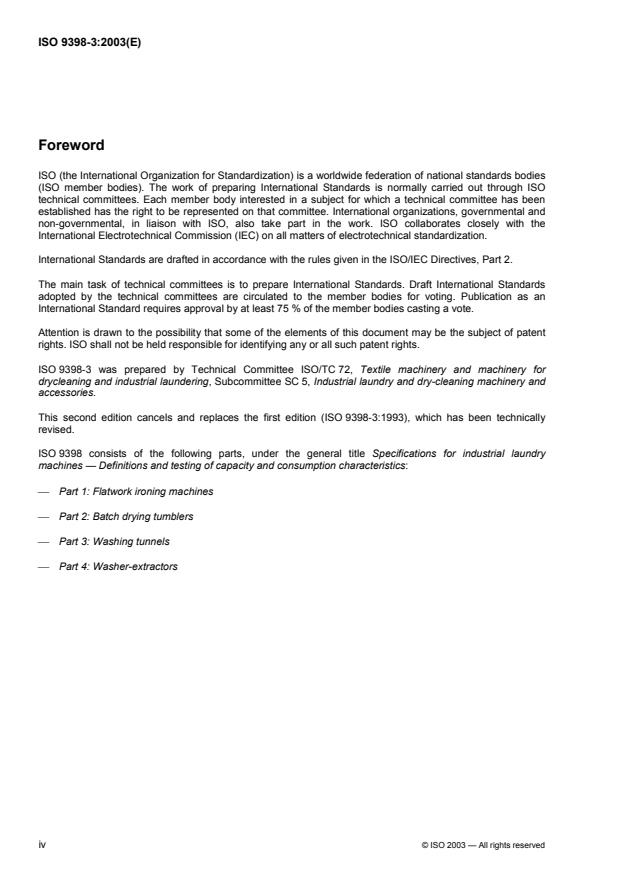

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 9398-3 was prepared by Technical Committee ISO/TC 72, Textile machinery and machinery for
drycleaning and industrial laundering, Subcommittee SC 5, Industrial laundry and dry-cleaning machinery and
accessories.
This second edition cancels and replaces the first edition (ISO 9398-3:1993), which has been technically
revised.
ISO 9398 consists of the following parts, under the general title Specifications for industrial laundry
machines — Definitions and testing of capacity and consumption characteristics:
Part 1: Flatwork ironing machines
Part 2: Batch drying tumblers
Part 3: Washing tunnels
Part 4: Washer-extractors
iv © ISO 2003 — All rights reserved
INTERNATIONAL STANDARD ISO 9398-3:2003(E)
Specifications for industrial laundry machines — Definitions
and testing of capacity and consumption characteristics —
Part 3:
Washing tunnels
1 Scope
This part of ISO 9398 defines the characteristics of washing tunnels and gives the usual test methods for
determining machine power consumption and hourly productivity. It is applicable for use as a reference in the
drafting of purchasing orders for washing tunnels. It does not cover safety requirements (see ISO 10472-3).
NOTE Where more detailed information on the effect of laundry machines on textiles is required, see ISO 7772 after
agreement between the parties involved.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 9398-1:2002, Specifications for industrial laundry machines — Definitions and testing of capacity and
consumption characteristics — Part 1: Flatwork ironing machines
3 Terms and definitions
For the purposes of this document, the terms and definitions given in
...
NORME ISO
INTERNATIONALE 9398-3
Deuxième édition
2003-01-15
Spécifications pour les machines de
blanchisserie industrielles — Définitions
et contrôle des caractéristiques de
capacité et de consommation —
Partie 3:
Tunnels de lavage
Specifications for industrial laundry machines — Definitions and testing
of capacity and consumption characteristics —
Part 3: Washing tunnels
Numéro de référence
©
ISO 2003
PDF – Exonération de responsabilité
Le présent fichier PDF peut contenir des polices de caractères intégrées. Conformément aux conditions de licence d'Adobe, ce fichier
peut être imprimé ou visualisé, mais ne doit pas être modifié à moins que l'ordinateur employé à cet effet ne bénéficie d'une licence
autorisant l'utilisation de ces polices et que celles-ci y soient installées. Lors du téléchargement de ce fichier, les parties concernées
acceptent de fait la responsabilité de ne pas enfreindre les conditions de licence d'Adobe. Le Secrétariat central de l'ISO décline toute
responsabilité en la matière.
Adobe est une marque déposée d'Adobe Systems Incorporated.
Les détails relatifs aux produits logiciels utilisés pour la création du présent fichier PDF sont disponibles dans la rubrique General Info
du fichier; les paramètres de création PDF ont été optimisés pour l'impression. Toutes les mesures ont été prises pour garantir
l'exploitation de ce fichier par les comités membres de l'ISO. Dans le cas peu probable où surviendrait un problème d'utilisation,
veuillez en informer le Secrétariat central à l'adresse donnée ci-dessous.
© ISO 2003
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous
quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit
de l'ISO à l'adresse ci-après ou du comité membre de l'ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax. + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse
ii © ISO 2003 — Tous droits réservés
Sommaire Page
Avant-propos. iv
1 Domaine d'application. 1
2 Références normatives. 1
3 Termes et définitions . 1
4 Conditions générales d'essai . 2
5 Consommation d'énergie de la machine .2
6 Détermination de la consommation d'eau.3
7 Production horaire d'un tunnel de lavage . 4
8 Informations . 4
Bibliographie . 5

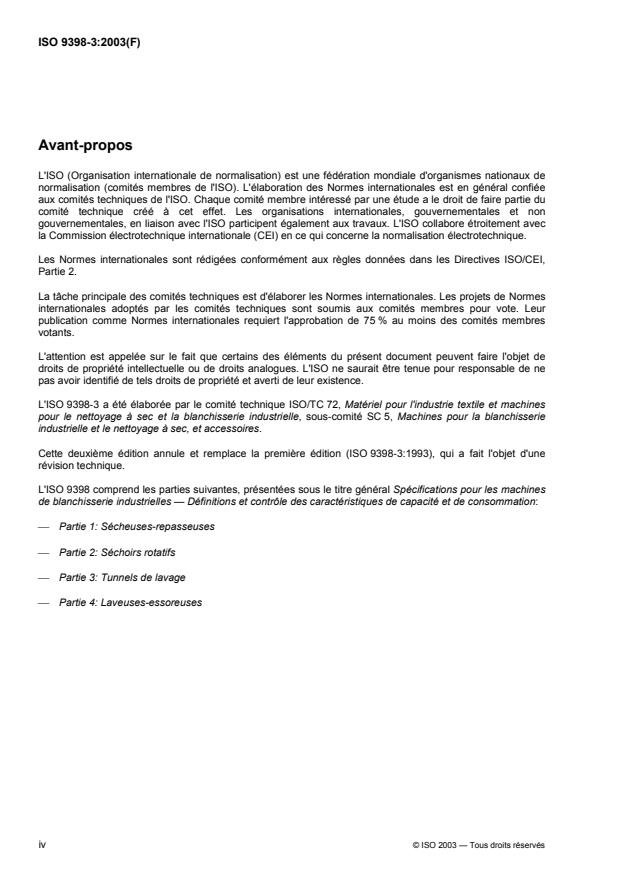

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée
aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du
comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI,
Partie 2.
La tâche principale des comités techniques est d'élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur
publication comme Normes internationales requiert l'approbation de 75 % au moins des comités membres
votants.
L'attention est appelée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable de ne
pas avoir identifié de tels droits de propriété et averti de leur existence.
L'ISO 9398-3 a été élaborée par le comité technique ISO/TC 72, Matériel pour l'industrie textile et machines
pour le nettoyage à sec et la blanchisserie industrielle, sous-comité SC 5, Machines pour la blanchisserie
industrielle et le nettoyage à sec, et accessoires.
Cette deuxième édition annule et remplace la première édition (ISO 9398-3:1993), qui a fait l'objet d'une
révision technique.
L'ISO 9398 comprend les parties suivantes, présentées sous le titre général Spécifications pour les machines
de blanchisserie industrielles — Définitions et contrôle des caractéristiques de capacité et de consommation:
Partie 1: Sécheuses-repasseuses
Partie 2: Séchoirs rotatifs
Partie 3: Tunnels de lavage
Partie 4: Laveuses-essoreuses
iv © ISO 2003 — Tous droits réservés
NORME INTERNATIONALE ISO 9398-3:2003(F)
Spécifications pour les machines de blanchisserie
industrielles — Définitions et contrôle des caractéristiques de
capacité et de consommation —
Partie 3:
Tunnels de lavage
1 Domaine d'application
La présente partie de l'ISO 9398 définit les caractéristiques des tunnels de lavage et spécifie les méthodes
d'essai usuelles pour déterminer la consommation d'énergie et la production horaire de ces machines. Elle
sert de référence pour la rédaction des offres d'achat et des commandes pour les tunnels de lavage. Elle ne
traite pas des exigences de sécurité (voir l'ISO 10472-3).
NOTE Si une information plus détaillée concernant les effets des machines à laver sur les textiles est requise, se
référer à l'ISO 7772 après accord entre les parties concernées.
2 Références normatives
Les documents de référence suivants sont indispensables pour l'application du présent document. Pour les
références datées, seule l'édition citée s'applique. Pour les références non datées, la dernière édition du
document de référence s'applique (y compris les éventuels amendements).
ISO 9398-1:2002, Spécifications pour les machines de blanchisserie industrielles — Définitions et contrôle
des caractéristiques de capacité et de consommation — Partie 1: Sécheuses-repasseuses
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions donnés
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
