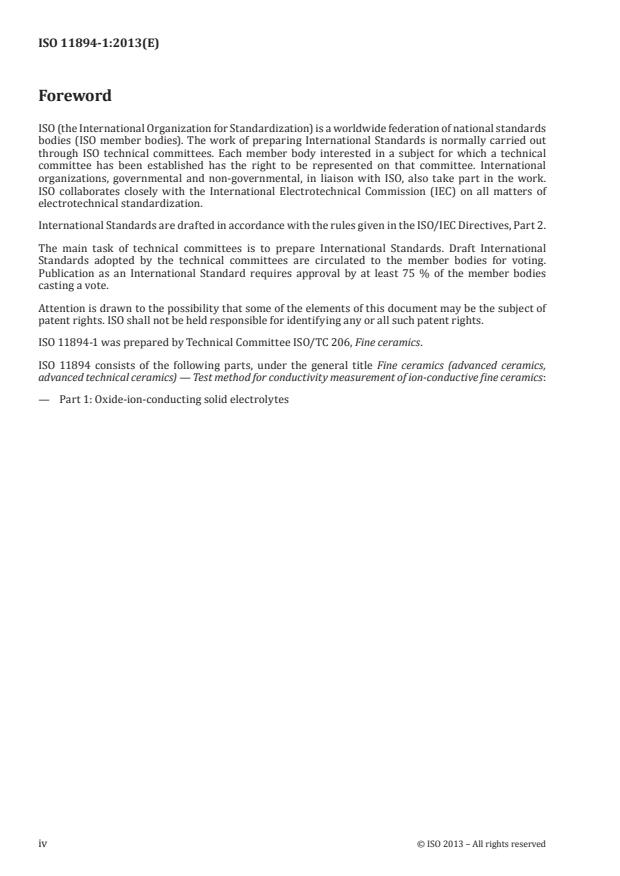

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 11894-1 was prepared by Technical Committee ISO/TC 206, Fine ceramics.
ISO 11894 consists of the following parts, under the general title Fine ceramics (advanced ceramics,
advanced technical ceramics) — Test method for conductivity measurement of ion-conductive fine ceramics:
— Part 1: Oxide-ion-conducting solid electrolytes
iv © ISO 2013 – All rights reserved

INTERNATIONAL STANDARD ISO 11894-1:2013(E)
Fine ceramics (advanced ceramics, advanced technical
ceramics) — Test method for conductivity measurement of
ion-conductive fine ceramics —
Part 1:
Oxide-ion-conducting solid electrolytes
1 Scope
This International Standard describes a test method for the determination of ionic conductivity of oxide-ion-
conducting solid electrolytes by the 4-terminal method with alternating current (AC 4-terminal method).
This International Standard applies to solid electrolytes which have oxide ionic transference numbers
−1
higher than 0,99. The applicable conductivity range shall be 1 to 1,000 S m .
Values expressed in this International Standard are in accordance with the International System of
Units (SI).
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 80000-1, Quantities and units — Part 0: General
ISO 554, Standard atmospheres for conditioning and/or testing — Specifications
ISO 3611, Geometrical product specifications (GPS) — Dimensional measuring equipment: Micrometers for
external measurements — Design and metrological characteristics
ISO 3599, Vernier callipers reading to 0,1 and 0,05 mm
ISO 4287, Geometrical Product Specifications (GPS) — Surface texture: Profile method — Terms, definitions
and surface texture parameters
ISO 6906, Vernier callipers reading to 0,02 mm
ISO 14704, Fine ceramics (advanced ceramics, advanced technical ceramics) — Test method for flexural
strength of monolithic ceramics at room temperature
ISO 15165, Fine ceramics (advanced ceramics, advanced technical ceramics) — Classification system
ISO 18754, Fine ceramics (advanced ceramics, advanced technical ceramics) — Determination of density
and apparent porosity
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
ionic conduction
electrical conduction where ions carry the electrical charges
3.2
electronic conduction
electrical conduction where electrons (or holes) carry the electrical charges
3.3
ionic transference number
ratio of ionic conductivity relative to total conductivity, which is the sum of ionic conductivity and
electronic (hole) conductivity
Note 1 to entry: The region in which an ionic transference number is higher than 0,5 is defined as the ion
conduction region, and the region in which an ionic transference number is higher than 0,99 is defined as the
electrolytic conduction region.
3.4
oxide ion conductor
a substance whose electrical conduction is primarily governed by ionic conduction of oxide ion
Note 1 to entry: In this standard, the term indicates an oxide solid electrolyte with an oxide ion transference
number higher than 0,99.
3.5
AC 4-terminal method
method for measuring electrical conductivity using AC (Figure 1)
Note 1 to entry: In this method, four electrodes are attached onto a test piece. The two outer electrodes which are
called current terminals supply AC to the test piece. The two inner electrodes which are called voltage terminals
measure the voltage. The electrical conductivity is determined with the applied current, the voltage measured
and the geometry of the test piece.
3.6
reversible electrode
electrode where the ionic species acting as the c
...
