ISO 19630:2025

International
Standard
ISO 19630
Second edition
Fine ceramics (advanced ceramics,
2025-11
advanced technical ceramics) —
Methods of test for reinforcements
— Determination of tensile
properties of filaments at ambient
temperature
Céramiques techniques — Méthodes d’essai pour renforts
— Détermination des propriétés en traction des filaments à
température ambiante
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

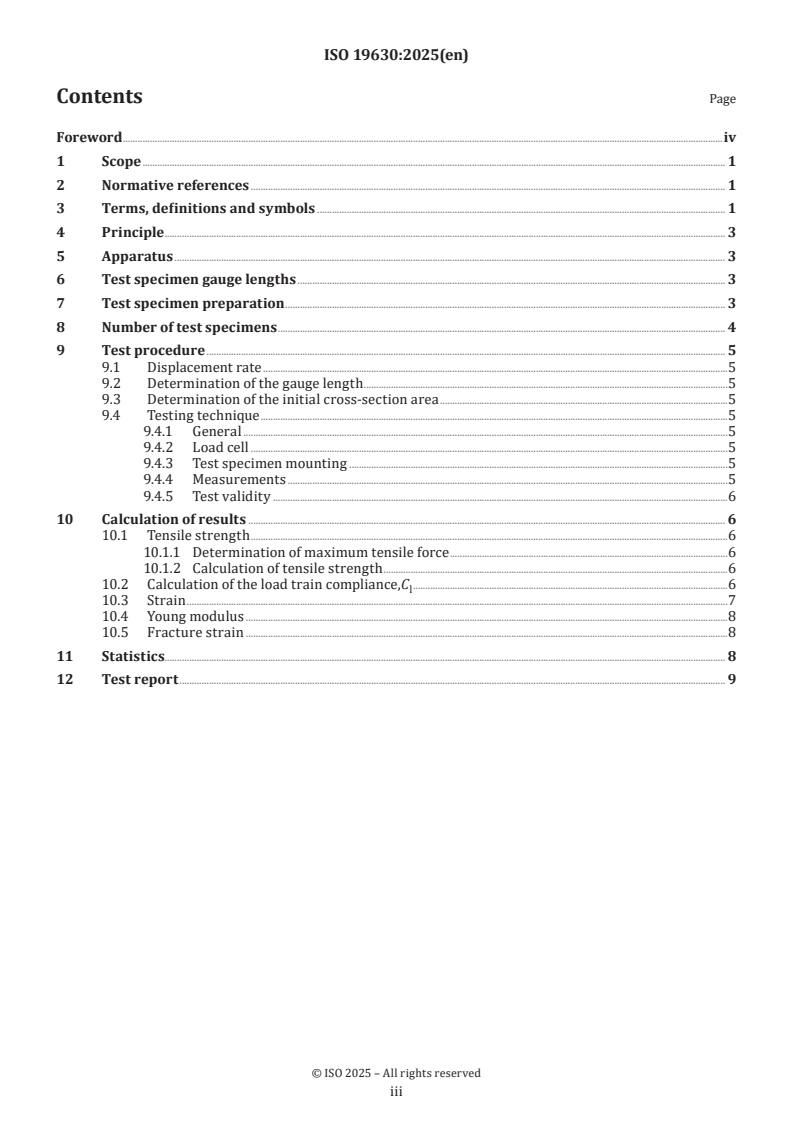

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and symbols . 1
4 Principle . 3
5 Apparatus . 3
6 Test specimen gauge lengths . 3
7 Test specimen preparation . 3
8 Number of test specimens . 4
9 Test procedure . 5
9.1 Displacement rate .5
9.2 Determination of the gauge length .5
9.3 Determination of the initial cross-section area .5
9.4 Testing technique .5
9.4.1 General .5
9.4.2 Load cell .5
9.4.3 Test specimen mounting .5
9.4.4 Measurements .5
9.4.5 Test validity .6
10 Calculation of results . 6
10.1 Tensile strength .6
10.1.1 Determination of maximum tensile force .6
10.1.2 Calculation of tensile strength .6
10.2 Calculation of the load train compliance,C .6
l
10.3 Strain .7
10.4 Young modulus .8
10.5 Fracture strain .8
11 Statistics . . 8
12 Test report . 9

iii

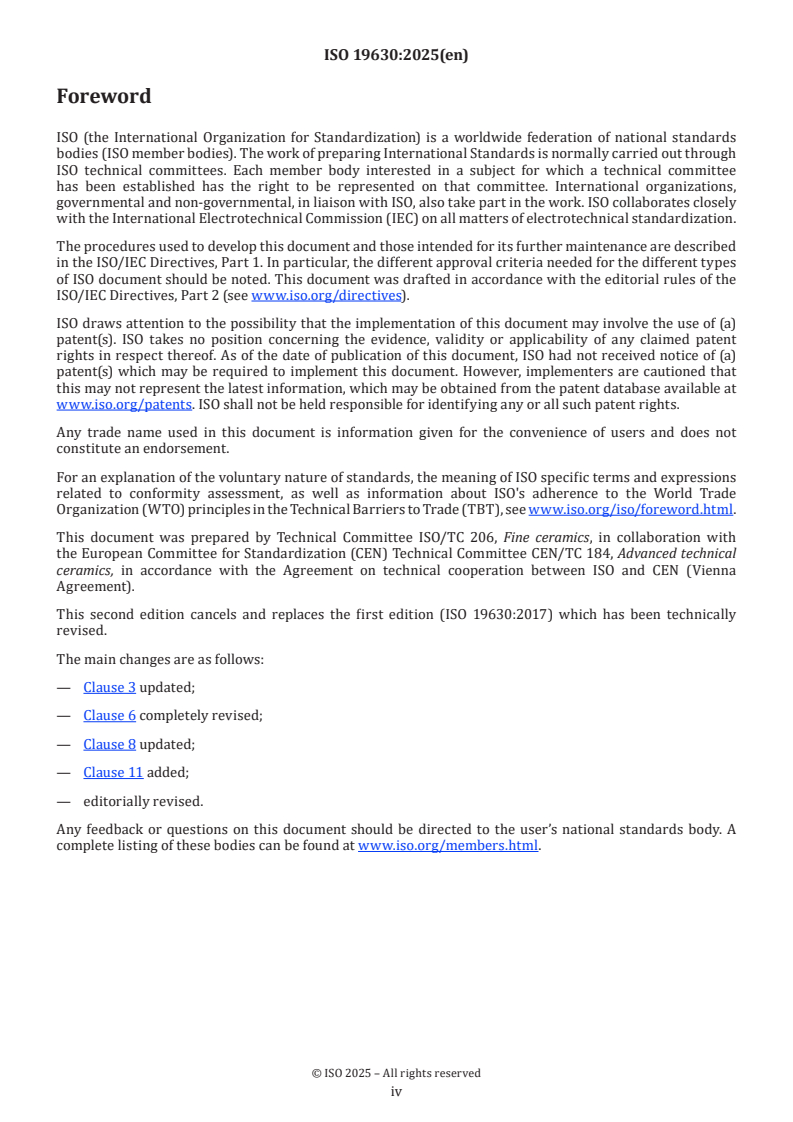

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 206, Fine ceramics, in collaboration with
the European Committee for Standardization (CEN) Technical Committee CEN/TC 184, Advanced technical
ceramics, in accordance with the Agreement on technical cooperation between ISO and CEN (Vienna
Agreement).
This second edition cancels and replaces the first edition (ISO 19630:2017) which has been technically
revised.
The main changes are as follows:
— Clause 3 updated;
— Clause 6 completely revised;
— Clause 8 updated;
— Clause 11 added;
— editorially revised.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
International Standard ISO 19630:2025(en)
Fine ceramics (advanced ceramics, advanced technical
ceramics) — Methods of test for reinforcements —
Determination of tensile properties of filaments at ambient
temperature
1 Scope
This document specifies the conditions for determination of the tensile properties of single filaments of
ceramic fibre such as the tensile strength, Young modulus and fracture strain.
This document applies to continuous ceramic filaments taken from tows, yarns, braids and knittings, which
have strain to fracture less than or equal to 5 %.
This document does not apply to carbon fibres that exhibit a nonlinear stress-strain curve. This document
does not apply to checking the homogeneity of strength properties of fibres, or to assessing the effects of
volume under stress. Methods of estimation of strength statistical parameters are indicated.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 7500-1, Metallic materials — Calibration and verification of static uniaxial testing machines — Part 1:
Tension/compression testing machines — Calibration and verification of the force-measuring system
ISO 19634, Fine ceramics (advanced ceramics, advanced technical ceramics) — Ceramic composites — Notations
and symbols
ISO 20501, Fine ceramics (advanced ceramics, advanced technical ceramics) — Weibull statistics for strength data
EN 1007-3, Advanced technical ceramics — Ceramic composites — Methods of test for reinforcements — Part 3:
Determination of filament diameter and cross-section area
3 Terms, definitions and symbols
For the purposes of this document, the terms and definitions given in ISO 19634 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
gauge length
L
initial distance between two reference points on the filament
3.2
test specimen length
L
f
initial inner distance between the gripped ends of the filament

3.3
initial cross-section area
S
initial area of the cross section of the filament within the gauge length (3.1)
3.4
maximum tensile force
F
m
highest recorded force during a tensile test on the specimen when tested to failure
3.5
tensile stress
σ
ratio of the force carried by the test piece by the initial cross-section area (3.3)
3.6
tensile strength
σ
m
ratio of the maximum tensile force (3.4) to the initial cross-section area (3.3)
3.7
longitudinal deformation
A
increase of the gauge length caused by an applied load
3.8
total compliance
C
t
ratio of deformation to the corresponding force during the tensile test
3.9
load train compliance
C
l
ratio of the cross-head displacement excluding any test specimen contribution to the corresponding force
during the tensile test
3.10
strain
ε
ratio of longitudinal deformation (3.7) to gauge length (3.1) defined as the ratio A/L
3.11
fracture strain
ε
m
strain (3.10) at failure of the test specimen
3.12
Young modulus
E
slope of the linear part of the stress-strain curve when the linear part starts at the origin
3.13
elementary unit
smallest commercially available unit of a given product
Note 1 to entry: For fibre, this is usually a spool.

4 Principle
A ceramic filament is loaded in tension. The test is performed at constant displacement rate up to
failure. Force and cross-head displacement are measured and recorded simultaneously. The longitudinal
deformation is derived from the cross-head displacement using a compliance correction, when required.
5 Apparatus
5.1 Test machine, shall be equipped with a system for measuring the force applied to the test specimen
which shall conform to grade 1 in accordance with ISO 7500-1. Additionally, the machine shall be equipped
with a system for measuring the cross-head displacement with accuracy better than 1 µm.
5.2 Load train, in which the grips
...
