ISO/IEC 14496-16:2004/Amd 1:2006

INTERNATIONAL ISO/IEC
STANDARD 14496-16
First edition
2004-02-01
AMENDMENT 1
2006-01-15
Information technology — Coding of
audio-visual objects —
Part 16:
Animation Framework eXtension (AFX)
AMENDMENT 1: Morphing and textures
Technologies de l'information — Codage des objets audiovisuels —
Partie 16: Extension du cadre d'animation (AFX)
AMENDEMENT 1: Morphage et textures

Reference number
ISO/IEC 14496-16:2004/Amd.1:2006(E)
©
ISO/IEC 2006
ISO/IEC 14496-16:2004/Amd.1:2006(E)

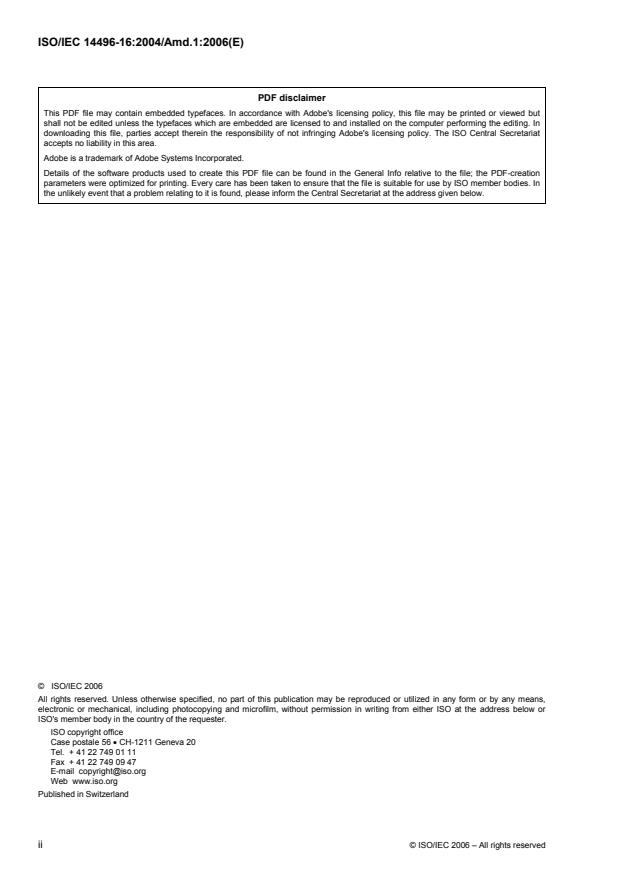

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2006 – All rights reserved

ISO/IEC 14496-16:2004/Amd.1:2006(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to ISO/IEC 14496-16:2004 was prepared by Joint Technical Committee ISO/IEC JTC 1,
Information technology, Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia
information.
© ISO/IEC 2006 – All rights reserved iii

ISO/IEC 14496-16:2004/Amd.1:2006(E)

Information technology — Coding of audio-visual objects —
Part 16:
Animation Framework eXtension (AFX)
AMENDMENT 1: Morphing and textures
Add subclause 4.3.6 MorphSpace:

4.3.6 MorphSpace
4.3.6.1 Introduction
Morphing is mainly an interpolation technique used to create from two objects a series of intermediate objects
that change continuously, in order to make a smooth transition from the source to the target. A straight
extension of the morphing between two elements –the source and the target- consists in considering a
collection of possible targets and compose a virtual object configuration by weighting those targets. This
collection represents a basis of animation space and animation is performed by simply updating the weight
vector. The following node allows the representation of a mesh as a combination of a base shape and a
collection of target geometries.
4.3.6.2 Node interface
MorphShape{ #%NDT=SF3DNode,SF2DNode
exposedField SFInt32 morphID
exposedField SFShapeNode baseShape
exposedField MFShapeNode targetShapes [ ]
exposedField MFFloat weights [ ]
}
4.3.6.3 Semantics
morphID - a unique identifier between 0 and 1023 which allows that the morph to be addressed at animation
run-time.
baseShape – a Shape node that represent the base mesh. The geometry field of the baseShape can be any
geometry supported by ISOIEC 14496 (e.g. IndexedFaceSet, IndexedLineSet, SolidRep).
targetShapes – a vector of Shapes nodes representing the shape of the target meshes. The tool used for
definig an appearance and a geometry of a target shape must be the same as the tool used for defining the
appearance and the geometry of the base shape (e.g. if the baseShape is defined by using IndexedFaceSet,
all the target shapes must be defined by using IndexedFaceSet).
weights – a vector of integers of the same size as the targetShapes. The morphed shape is obtained
according to the following formula:
© ISO/IEC 2006 – All rights reserved 1

ISO/IEC 14496-16:2004/Amd.1:2006(E)
n
M=+BT()−B*w
(ADM1-1)
∑ii
i=1
with
M –morphed shape,
B – base shape,
T – target shape i,
i
W – weight of the T .
i i
The morphing is performed for all the components of the Shape (Appearance and Geometry) that have
different values in the base shape and the target shapes [e.g. if the base shape and the target shapes are
definined by using IndexedFaceSet and the coord field contains different values in the base shape and in the
target geometries, the coord component of the morph shape is obtained by using Equation (ADM1-1)] applied
to the coord field. Note that the size of the coord field must be the same for the base shapes and the target
shapes).
If the shapes (base and targets) are defined by using IndexedFaceSet, a tipical decoder should support
morphing of the following geometry components: coord, normals, color, texCoord.

Add subclause 4.5.4 Depth Image-based Representation Version 2:

4.5.4 Depth Image-based Representation Version 2
4.5.4.1 Introduction
Version 1 of DIBR introduced depth image-based representations (DIBR) of still and animated 3D objects.
Instead of a complex polygonal mesh, which is hard to construct and handle for realistic models, image- or
point-based methods represent a 3D object (scene) as a set of reference images completely covering its
visible surface. This data is usually accompanied by some kind of information about the object geometry. To
that end, each reference image comes with a corresponding depth map, an array of distances from the pixels
in the image plane to the object surface. Rendering is achieved by either forward warping or splat rendering.
But with Version 1 of the specification of DIBR nodes no high-quality rendering can be achieved.
Version 2 nodes allow for high-quality rendering of depth image-based representations. High-quality rendering
is based on the notion of point-sampled surfaces as non-uniformly sampled signals. Point-sampled surfaces
can be easily constructed from the DIBR nodes by projecting the pixels with depth into 3D-space. The discrete
signals are rendered by reconstructing and band-limiting a continuous signal in image space using so called
resampling filters.
A point-based surface consists of a set of non-uniformly distributed samples of a surface; hence we interpret it
as a non-uniformly sampled signal. To continuously reconstruct this signal, we have to associate a 2D
reconstruction kernel ru() with each sample point p . The kernels are defined in a local tangent frame with
k k
coordinates (uu= ,v) at the point p , as illustrated on the left in Figure AMD1-1. The tangent frame is defined
k
by the splat and normal extensions of the DIBR structures Version 2 [1].

2 © ISO/IEC 2006 – All rights reserved

ISO/IEC 14496-16:2004/Amd.1:2006(E)

Figure AMD1-1 — Local tangent planes and reconstruction kernels
4.5.4.2 DepthImageV2 Node
4.5.4.2.1 Node interface
DepthImageV2 { #%NDT=SF3DNode
exposedField SFVec3f position  0 0 10
exposedField SFRotation orientation  0 0 1 0
exposedField SFVec2f fieldOfView π/4 π/4
exposedField SFFloat nearPlane  10
exposedField SFFloat farPlane  100
field  SFVec2f splatMinMax 0.1115 0.9875
exposedField SFBool orthographic TRUE
field  SFDepthTextureNode diTexture  NULL
}
4.5.4.2.2 Functionality and semantics

The DepthImageV2 node defines a single IBR texture. When multiple DepthImage nodes are related to each
other, they are processed as a group, and thus, should be placed under the same Transform node.
The diTexture field specifies the texture with depth, which shall be mapped into the region defined in the
DepthImageV2 node. It shall be one of the various types of depth image texture (SimpleTextureV2 or
PointTextureV2).
The position and orientation fields specify the relative location of the viewpoint of the IBR texture in the local
coordinate system. position is relative to the coordinate system’s origin (0, 0, 0), while orientation specifies a
rotation relative to the default orientation. In the default position and orientation, the viewer is on the Z-axis
looking down the –Z-axis toward the origin with +X to the right and +Y straight up. However, the
transformation hierarchy affects the final position and orientation of the viewpoint.
The fieldOfView field specifies a viewing angle from the camera viewpoint defined by position and
orientation fields. The first value denotes the angle to the horizontal side and the second value denotes the
angle to the vertical side. The default values are 45 degrees in radians. However, when orthographic field is
set to TRUE, the fieldOfView field denotes the width and height of the near plane and far plane.
The nearPlane and farPlane fields specify the distances from the viewpoint to the near plane and far plane of
the visibility area. The texture and depth data shows the area closed by the near plane, far plane and the
fieldOfView. The depth data are scaled to the distance from nearPlane to farPlane.
© ISO/IEC 2006 – All rights reserved 3

ISO/IEC 14496-16:2004/Amd.1:2006(E)
The splatMinMax field specifies the minimum and maximum splat vector lengths. The splatU and splatV data
of SimpleTextureV2 is scaled to the interval defined by the splatMinMax field.
The orthographic field specifies the view type of the IBR texture. When set to TRUE, the IBR texture is based
on orthographic view. Otherwise, the IBR texture is based on perspective view.
The position, orientation, fieldOfView, nearPlane, farPlane, and orthographic fields are exposedField
types, which are for extrinsic parameters. The DepthImage node supports the camera movement and
changeable view frustum corresponding to movement or deformation of a DIBR object.
Reference images that are suitable to the characteristic of a DIBR model are obtained in the modeling stage.
Therefore, the fields that reflect the camera movement and the changeable view frustum and the reference
images in the modeling stage are used to create a view frustum and a DIBR object in the rendering stage.
4.5.4.3 SimpleTextureV2 node
4.5.4.3.1 Node interface
SimpleTextureV2 { #%NDT=SFDepthTextureNode
field SFTextureNode texture NULL
field SFTextureNode depth NULL
field SFTextureNode normal NULL
field SFTextureNode splatU NULL
field SFTextureNode splatV NULL
}
4.5.4.3.2 Functionality and semantics

The SimpleTextureV2 node defines a single layer of IBR texture.
The texture field specifies the flat image that contains color for each pixel. It shall be one of the various types
of texture nodes (ImageTexture, MovieTexture or PixelTexture).
The depth field specifies the depth for each pixel in the texture field. The size of the depth map shall be the
same size as the image or movie in the texture field. Depth field shall be one of the various types of texture
nodes (ImageTexture, MovieTexture or PixelTexture), where only the nodes representing gray scale images
are allowed. If the depth field is unspecified, the alpha channel in the texture field shall be used as the depth
map. If the depth map is not specified through depth field or alpha channel, the result is undefined.
Depth field allows to compute the actual distance of the 3D points of the model to the plane which passes
through the viewpoint and parallel to the near plane and far plane:

⎛⎞
d−1
dist=+nearPlane1.− farPlane−nearPlane
() (AMD1-2)
⎜⎟
d −1
⎝⎠max
where d is depth value and d is maximum allowed depth value. It is assumed that for the points of the
max
model, d>0, where d=1 corresponds to far plane, d=d corresponds to near plane.
max
This formula is valid for both perspective and orthographic case, since d is distance between the point and the
plane. max d is the largest d value that can be represented by the bits used for each pixel:
(1) If the depth is specified through depth field, then depth value d equals to the gray scale.
(2) If the depth is specified through alpha channel in the image defined via texture field, then the depth
value d is equal to alpha channel value.
4 © ISO/IEC 2006 – All rights reserved

ISO/IEC 14496-16:2004/Amd.1:2006(E)
The depth value is also used to indicate which points belong to the model: only the point for which d is
nonzero belong to the model.
For animated DepthImage-based model, only DepthImage with SimpleTextures as diTextures are used.
Each of the Simple Textures can be animated in one of the following ways:
(1) depth field is still image satisfying the above condition, texture field is arbitrary MovieTexture
(2) depth field is arbitrary MovieTexture satisfying the above condition on the depth field, texture field is
still image
(3) both depth and texture are MovieTextures, and depth field satisfies the above condition
(4) depth field is not used, and the depth information is retrieved from the alpha channel of the
MovieTexture that animates the texture field
The normal field specifies the normal vector for each pixel in the texture field. The normal vector should be
assigned to the object-space point sample derived from extruding the pixel with depth to 3-space. The normal
map shall be the same size as the image or movie in the texture field. Normal field shall be one of the
various types of texture nodes (ImageTexture, MovieTexture, or PixelTexture), where only the nodes
representing color images are allowed. If the normal map is not specified through the normal field, the decoder
can calculate a normal field by evaluating the cross-product of the splatU and splatV fields. If neither the
normal map nor the splatU and splatV fields are specified, only basic rendering is possible.
The splatU and splatV fields specify the tangent plane and reconstruction kernel needed for high-quality
point-based rendering. Both splatU and splatV fields have to be scaled to the interval defined by the
splatMinMax field.
The splatU field specifies the splatU vector for each pixel in the texture field. The splatU vector should be
assigned to the object-space point sample derived from extruding the pixel with depth to 3-space. The splatU
map shall be the same size as the image or movie in the texture field. splatU field shall be one of the various
types of texture nodes (ImageTexture, MovieTexture, or PixelTexture), where the nodes either representing
color or gray scale images are allowed. If the splatU map is specified as gray scale image the decoder can
calculate a circular splat by using the normal map to produce a tangent plane and the splatU map as radius. In
this case, if the normal map is not specified, the result is undefined. If the splatU map is specified as color
image, it can be used in conjunction with the splatV map to calculate a tangent frame and reconstruction
kernel for high-quality point-based rendering. If neither the normal map nor the splatV map is specified, the
result is undefined.
The splatV field specifies the splatV vector for each pixel in the texture field. The splatV vector should be
assigned to the object-space point sample derived from extruding the pixel with depth to 3-space. The splatV
map shall be the same size as the image or movie in the texture field. splatV field shall be one of the various
types of texture nodes (ImageTexture, MovieTexture, or PixelTexture), where only the nodes representing
color images are allowed. If the splatU map is not specified as well, the result is undefined.
4.5.4.4 PointTextureV2 node
4.5.4.4.1 Node interface
PointTextureV2 { #%NDT=SFDepthTextureNode
field  SFInt32 width 256
field  SFInt32  height 256
field  SFInt32  depthNbBits 7
field MFInt32 depth []
field MFColor color []
field SFNormalNode normal
field MFVec3f splatU []
field MFVec3f splatV []
}
© ISO/IEC 2006 – All rights reserved 5

ISO/IEC 14496-16:2004/Amd.1:2006(E)
4.5.4.4.2 Functionality and semantics

The PointTextureV2 node defines multiple layers of IBR points.
The width and height field specify the width and height of the texture.
Geometrical meaning of the depth values, and all the conventions on their interpretation adopted for the
SimpleTexture, apply here as well.
The depth field specifies a multiple depths of each point in the projection plane, which is assumed to be
farPlane (see above) in the order of traversal, which starts from the point in the lower left corner and traverses
to the right to finish the horizontal line before moving to the upper line. For each point, the number of depths
(pixels) is first stored and that number of depth values shall follow.
The color field specifies color of current pixel. The order shall be the same as the depth field except that
number of depths (pixels) for each point is not included.
The depthNbBits field specifies the number of bits used for the original depth data. The value of depthNbBits
ranges from 0 to 31, and the actual number of bits used in the original data is depthNbBits+1. The d used in
max
the distance equation is derived as follows:
depthNbBits+1
( )
(AMD1-3)
d=−21.
max
The normal field specifies normals for each specified depth of each point in the projection plane in the same
order. The normal vector should be assigned to the object-space point sample derived from extruding the pixel
with depth to 3-space. If the normals are not specified through the normal field, the decoder can calculate a
normal field by evaluating the cross-product of the splatU and splatV fields. If neither the normals nor the
splatU and splatV fields are specified, only basic point rendering is possible. Normals can be quantized by
using the SFNormalNode functionality.
The splatU field specifies splatU vectors for each specified depth of each point in the projection plane in the
same order. The splatU vector should be assigned to the object-space point sample derived from extruding
the pixel with depth to 3-space. If the splatV vectors are not specified the decoder can calculate a circular
splat by using the normals to produce a tangent plane and the length of the splatU vectors as radius. In this
case, if the normals are not specified, the result is undefined. If the splatU vectors are specified, it can be used
in conjunction with the splatV vectors to calculate a tangent frame and reconstruction kernel for high-quality
point-based rendering. If neither the normals nor the splatV vectors are specified, the result is undefined.
The splatV field specifies splatV vectors for each specified depth of each point in the projection plane in the
same order. The splatV vector should be assigned to the object-space point sample derived from extruding
the pixel with depth to 3-space. If the splatU vectors are not specified as well, the result is undefined.
Add subclause 4.5.5 Multitexturing:
4.5.5 Multitexturing
4.5.5.1 MultiTexture Node
4.5.5.1.1 Node interface
MultiTexture { #%NDT=SFTextureNode
exposedField SFFloat  alpha       1   #[0,1]
exposedField SFColor  color       1 1 1 #[0,1]
exposedField MFInt  function     []
exposedField MFInt  mode       []
exposedField MFInt  source      []
6 © ISO/IEC 2006 – All rights reserved

ISO/IEC 14496-16:2004/Amd.1:2006(E)
exposedField MFTextureNode texture      []
exposedField MFVec3f  cameraVector []
exposedField SFBool  transparent    FALSE
}
4.5.5.1.2 Functionality and semantics

MultiTexture enables the application of several individual textures to a 3D object to achieve a more complex
visual effect. MultiTexture can be used as a value for the texture field in an Appearance node.
The texture field contains a list of texture nodes (e.g., ImageTexture, PixelTexture, MovieTexture). The
texture field may not contain another MultiTexture node.
The cameraVector field contains a list of camera vectors in 3D for each texture in the texture field. These
vectors point from each associated camera to the 3D scene center. The view vectors are used to calculate
texture weights according to the unstructured lumigraph approach from [1] for each render cycle, to weight all
textures according to the actual scene viewpoint.
The color and alpha fields define base RGB and alpha values for SELECT mode operations.
The mode field controls the type of blending operation. The available modes include MODULATE for a lit
Appearance, REPLACE for an unlit Appearance and several variations of the two. However, for view-
dependent Multitexturing the default mode MODULATE shall be used in conjuction with the source field value
“FACTOR”.
Table AMD1-1 lists possible multitexture modes.
Table AMD1-1 — Multitexture modes
VALUE MODE Description
Multiply texture color with current color
00000 MODULATE
Arg1 × Arg2
Replace current color
00001 REPLACE
Arg2
Multiply the components of the arguments, and shift
00010 MODULATE2X the products to the left 1 bit (effectively multiplying
them by 2) for brightening.
Multiply the components of the arguments, and shift
00011 MODULATE4X the products to the left 2 bits (effectively multiplying
them by 4) for brightening.
Add the components of the arguments
00100 ADD
Arg1 + Arg2
Add the components of the arguments with a -0.5 bias,
00101 ADDSIGNED making the effective range of values from −0.5 through
0.5.
Add the components of the arguments with a -0.5 bias,
00110 ADDSIGNED2X
and shift the products to the left 1 bit.
Subtract the components of the second argument from
00111 SUBTRACT those of the first argument.
Arg1 − Arg2
Add the first and second arguments, then subtract their
01000 ADDSMOOTH product from the sum.
Arg1 + Arg2 − Arg1 × Arg2 = Arg1 + (1 − Arg1) × Arg2
Linearly blend this texture stage, using the interpolated
01001 BLENDDIFFUSEALPHA alpha from each vertex.
Arg1 × (Alpha) + Arg2 × (1 − Alpha)
© ISO/IEC 2006 – All rights reserved 7

ISO/IEC 14496-16:2004/Amd.1:2006(E)
VALUE MODE Description
Linearly blend this texture stage, using the alpha from
01010 BLENDTEXTUREALPHA this stage's texture.
Arg1 × (Alpha) + Arg2 × (1 − Alpha)
Linearly blend this texture stage, using the alpha factor
01011 BLENDFACTORALPHA from the MultiTexture node.
Arg1 × (Alpha) + Arg2 × (1 − Alpha)
Linearly blend this texture stage, using the alpha taken
01100 BLENDCURRENTALPHA from the previous texture stage.
Arg1 × (Alpha) + Arg2 × (1 − Alpha)
Modulate the color of the second argument, using the
alpha of the first argument; then add the result to
01101 MODULATEALPHA_ADDCOLOR
argument one.
Arg1.RGB + Arg1.A × Arg2.RGB
Similar to MODULATEALPHA_ADDCOLOR, but use
01110 MODULATEINVALPHA_ADDCOLOR the inverse of the alpha of the first argument.
(1 − Arg1.A) × Arg2.RGB + Arg1.RGB
Similar to MODULATECOLOR_ADDALPHA, but use
01111 MODULATEINVCOLOR_ADDALPHA the inverse of the color of the first argument.
(1 − Arg1.RGB) × Arg2.RGB + Arg1.A
10000 OFF Turn off the texture unit
Use color argument 1
10001 SELECTARG1
Arg1
Use color argument 1
10010 SELECTARG2
Arg2
Modulate the components of each argument (as
signed components), add their products, then replicate
the sum to all color channels, including alpha.
This can do either diffuse or specular bump mapping
10011 DOTPRODUCT3 with correct input. Performs the function (Arg1.R ×
Arg2.R + Arg1.G × Arg2.G + Arg1.B × Arg2.B) where
each component has been scaled and offset to make it
signed. The result is replicated into all four (including
alpha) channels.
10100 –
Reserved for future use
The source field determines the color source for the second argument. Table AMD1-2 lists valid values for the
source field. For view-dependent Multitexturing “FACTOR” shall be used in conjuction with the mode field
value MODULATE.
Table AMD1-2 — Values for the source field
VALUE MODE Description
The second argument color (ARG2) is the color from the previous rendering
000 "" (default)
stage (DIFFUSE for first stage).
The texture argument is the diffuse color interpolated from vertex components
001 "DIFFUSE"
during Gouraud shading.
The texture argument is the specular color interpolated from vertex
010 "SPECULAR"
components during Gouraud shading.
011 "FACTOR" The texture argument is the factor (color, alpha) from the MultiTexture node.
100-111 Reserved for future use

The function field defines an optional function to be applied to the argument after the mode has been
evaluated. Table AMD1-3 lists valid values for the function field.

8 © ISO/IEC 2006 – All rights reserved

ISO/IEC 14496-16:2004/Amd.1:2006(E)
Table AMD1-3 — Values for the function field
VALUE MODE Description
000 "" (default) No function is applied.
Invert the argument so that, if the result of the argument were referred
001 "COMPLEMENT"
to by the variable x, the value would be 1.0 minus x.
Replicate the alpha information to all color channels before the
010 "ALPHAREPLICATE"
operation completes.
011-111 Reserved for future use

Mode may contain an additional Blending mode for the alpha channel; e.g., "MODULATE,REPLACE"
specifies Color = (Arg1.color × Arg2.color, Arg1.alpha).
The number of used texture stages is determined by the length of the texture field. If there are fewer mode
values, the default mode is "MODULATE".
Note: Due to the texture stage architecture and its processing order of textures in common graphic cards, the
result of general texture weighting depends on the order of textures if more than two textures are used. If
order-independent texture mapping is required, the proposed settings can be used, i.e. MODULATE for the
mode field and “TFACTOR” for the source field.
Beside the MultiTexture-Node that assigns the actual 2D images to the scene, contains blending modes and
transform parameters, the second component of Multi-Texturing is the MultiTextureCoordinate-Node. This
node addresses the relative 2D coordinates of each texture, which are combined with the 3D points of the
scene geometry. In Multi-Texturing, one 3D point is associated with n 2D texture points with n being the
number of views. The node syntax for MultiTextureCoordinate in X3D is as follows and can be used as is.
4.5.5.2 MultiTextureCoordinate Node

MultiTextureCoordinate node supplies multiple texture coordinates per vertex. This node can be used to set
the texture coordinates for the different texture channels.
4.5.5.2.1 Node interface
MultiTextureCoordinate { #%NDT=SFTextureCoordinateNode
exposedField MFTextureCoordinateNode texCoord []
}
4.5.5.2.2 Functionality and semantics

Each entry in the texCoord field may contain a TextureCoordinate or TextureCoordinateGenerator node.
By default, if using MultiTexture with an IndexedFaceSet without a MultiTextureCoordinate texCoord node,
texture coordinates for channel 0 are replicated along the other channels. Likewise, if there are too few entries
in the texCoord field, the last entry is replicated.
Example:
Shape {
appearance Appearance {
texture MultiTexture {
mode [ 0 0 0 0 ]
source [ 3 3 3 3 ]
texture [
ImageTexture { url "np00.jpg" }
ImageTexture { url "np01.jpg" }
ImageTexture { url "np02.jpg" }
ImageTexture { url "np03.jpg" }
© ISO/IEC 2006 – All rights reserved 9

ISO/IEC 14496-16:2004/Amd.1:2006(E)
]
}
}
geometry IndexedFaceSet {
...
texCoord MultiTextureCoord {
texCoord [
TextureCoordinate { . }
TextureCoordinate { . }
TextureCoordinate { . }
TextureCoordinate { . }
]
}
}
}
Add subclause 4.7.1.7, SBVCAnimationV2:

4.7.1.7.1 Introduction
This node is an extension of the SBVCAnimation node and the added functionality consists in streaming
control and animation data collection. The BBA stream can be controlled as a elementary media stream, and
can be used in connection with the MediaControl node.

4.7.1.7.2 Syntax
SBVCAnimationV2{ #%NDT=SF3DNode,SF2DNode
exposedField  MFNode virtualCharacters [ ]
exposedField  MFURL  url   [ ]
exposedField SFBool loop   FALSE
exposedField SFFloat speed   1.0
exposedField SFTime startTime  0
exposedField SFTime stopTime  0
eventOut  SFTime duration_changed
eventOut  SFBool isActive
exposedField MFInt activeUrlIndex []
exposedField SFFloat transitionTime 0
}
4.7.1.7.3 Semantics
The virtualCharacters field specifies a list of SBSkinnedModel nodes. The length of the list can be 1 or
greater.
The url field refers to the BBA stream which contains encoded animation data related to the SBSkinnedModel
nodes from the virtualCharacters list and is used for outband bitstreams. The animation will be extracted from
the first element of the animation URL list and if the case when it is not available the following element will be
used.
The loop, startTime, and stopTime exposedFields and the isActive eventOut, and their effects on the
SBVCAnimationV2 node, are similar with the ones described by VRML specifications (ISO/IEC 14772-1:1997)
for AudioClip, MovieTexture, and TimeSensor nodes and are described as follows.
The values of the exposedFields are used to determine when the node becomes active or inactive.
10 © ISO/IEC 2006 – All rights reserved

ISO/IEC 14496-16:2004/Amd.1:2006(E)
The SBVCAnimationV2 node can execute for 0 or more cycles. A cycle is defined by field data within the
node. If, at the end of a cycle, the value of loop is FALSE, execution is terminated. Conversely, if loop is
TRUE at the end of a cycle, a time-dependent node continues execution into the next cycle. A time-dependent
node with loop TRUE at the end of every cycle continues cycling forever if startTime >= stopTime, or until
stopTime if startTime < stopTime.
The SBVCAnimationV2 node generates an isActive TRUE event when it becomes active and generates an
isActive FALSE event when it becomes inactive. These are the only times at which an isActive event is
generated. In particular, isActive events are not sent at each tick of a simulation.
The SBVCAnimationV2 node is inactive until its startTime is reached. When time now becomes greater than
or equal to startTime, an isActive TRUE event is generated and the SBVCAnimationV2 node becomes
active (now refers to the time at which the player is simulating and displaying the virtual world). When a
SBVCAnimationV2 node is read from a mp4 file and the ROUTEs specified within the mp4 file have been
established, the node should determine if it is active and, if so, generate an isActive TRUE event and begin
generating any other necessary events. However, if a SBVCAnimationV2 node would have become inactive at
any time before the reading of the mp4 file, no events are generated upon the completion of the read.
An active SBVCAnimationV2 node will become inactive when stopTime is reached if stopTime > startTime.
The value of stopTime is ignored if stopTime <= startTime. Also, an active SBVCAnimationV2 node will
become inactive at the end of the current cycle if loop is FALSE. If an active SBVCAnimationV2 node
receives a set_loop FALSE event, execution continues until the end of the current cycle or until stopTime (if
stopTime > startTime), whichever occurs first. The termination at the end of cycle can be overridden by a
subsequent set_loop TRUE event.
Any set_startTime events to an active SBVCAnimationV2 node are ignored. Any set_stopTime event where
stopTime <= startTime sent to an active SBVCAnimationV2 node is also ignored. A set_stopTime event
where startTime < stopTime <= now sent to an active SBVCAnimationV2 node results in events being
generated as if stopTime has just been reached. That is, final events, including an isActive FALSE, are
generated and the node becomes inactive. The stopTime_changed event will have the set_stopTime value.
A SBVCAnimationV2 node may be restarted while it is active by sending a set_stopTime event equal to the
current time (which will cause the node to become inactive) and a set_startTime event, setting it to the current
time or any time in the future. These events will have the same time stamp and should be processed as
set_stopTime, then set_startTime to produce the correct behaviour.
The speed exposedField controls playback speed. It does not affect the delivery of the stream attached to the
SBVCAnimationV2 node. For streaming media, value of speed other than 1 shall be ignored.
A SBVCAnimationV2 shall display first frame if speed is 0. For positive values of speed, the frame that an
active SBVCAnimationV2 will display at time now corresponds to the frame at animation time (i.e., in the
animation’s local time base with frame 0 at time 0, at speed = 1):
fmod (now - startTime, duration/speed)
If speed is negative, then the frame to display is the frame at animation time:
duration + fmod(now - startTime, duration/speed).
When a SBVCAnimationV2 becomes inactive, the frame corresponding to the time at which the
SBVCAnimationV2 became inactive shall persist. The speed exposedField indicates how fast the movie
shall be played. A speed of 2 indicates the animation plays twice as fast. Note that the duration_changed
eventOut is not affected by the speed exposedField. set_speed events shall be ignored while the animation
is playing.
An event shall be generated via the duration_changed field whenever a change is made to the startTime or
stopTime fields. An event shall also be triggered if these fields are changed simultaneously, even if the
duration does not actually change.
activeUrlIndex allows to select or to combine specific animation resource referred in the url[] field. When this
field is instantiated the behavior of the url[] field changes from the alternative selection into a combined
selection. In the case of alternative mode, if the first resource in the url[] field is not available, the second one
will be used, and so on. In the combined mode the following cases can occur:
© ISO/IEC 2006 – All rights reserved 11

ISO/IEC 14496-16:2004/Amd.1:2006(E)
(1) activeUrlIndex has one field: the resource from url[] that has this index is used for animation. When
the activeUrlIndex is updated a transition between to the old animation (frame) and the new one is
performed. The transition use linear interpolation for translation, center and scale and SLERP for
spherical data as rotation and scaleOrientation. The time of transition is specified by using the
transitionTime field.
(2) activeUrlIndex has several fields: a composition between the two resources is performed by the
terminal: for the bones that are common in two or more resources a mean procedure has to be applied.
The mean is computed by using linear interpolation for translation, center and scale and SLERP for
spherical data as rotation and scaleOrientation.
In all the cases, when a transition between two animation resources is needed, when the transitionTime is
not zero, a interpolation must be performed by the player. The transitionTime is specified in miliseconds.

In subclause 5.4.2.1 replace:
The BBA stream is an extended form of the FBA stream [2]. See ISO/IEC 14496-2, Coding of Audio-Visual
Objects:Visual [2] for details on FBA stream. A BBA Object plane contains the update values for Skin&Bones
components (SBC) which can be translations in one direction, rotation angles, scale factors in an arbitrary
direction (for bones) and control points translation, control points weights factors or (and) knots (for muscles).

with:
The BBA stream is an extended form of the FBA stream [2]. See ISO/IEC 14496-2, Coding of Audio-Visual
Objects:Visual [2] for details on FBA stream. A BBA Object plane contains the update values for Skin&Bones
components (SBC) which can be translations, rotation angles, scale factors in an arbitrary direction - for
bones, control points translation, control points weights factors, knots - for muscles, and weights of the target
meshes – for morphing.
In subclause 5.4.2.3.2 replace:
The bba_object_plane is the access unit of the BBA stream. It contains the bba_object_plane_header, which
specifies timing, and the bba_object_plane_data, which contains the data for all nodes (bones & muscles)
being animated.
with:
The bba_object_plane is the access unit of the BBA stream. It contains the bba_object_plane_header, which
specifies timing, and the bba_object_plane_data, which contains the data for all nodes (bones, muscles and
morphs) being animated.
Replace subclause 5.4.2.8.1 with:
class bba_object_plane_mask() {
bit(5) NumberOfInterpolatedFrames; //NIF
if (isIntra){
bit(5) bba_quant;
bit(3) pow2quant;
bit(3) noOfControllerTypes;
bit(10) NumberOfBones; //NSBB
bit(10) NumberOfMuscles;//NSBM
bit(10) NumberOfMorphs;//NMF
for (bone=1;bone bit(10) BoneIdentifier; //IDB
bone_mask bnmask();
}
for (ms=1;ms< NumberOfMuscles;ms+){
bit(10) MuscleIdentifier; //IDM
12 © ISO/IEC 2006 – All rights reserved

ISO/IEC 14496-16:2004/Amd.1:2006(E)
bit(6) NumberControlPoints; //NCP
bit(6) NumberKnots; //NK
muscle_mask msmask();
}
for (mf=1;mf< NumberOfMorphs;mf+){
bit(10) MorphIdentifier; //IDMF
bit(6) NumberOfWeights; //NW
morph_mask mfmask();
}
}
}
In subclause 5.4.2.8.2, add:
noOfControllerTypes – a 3 bits integer indicating the number of controller types in this version of the BBA
stream (here this value must be “3”)
NumberOfMorphs – a 10 bits integer indicating the number of morph objects that are animated in the current
frame
MorphIdentifier – a 10 bits unique identifier that indicate what morph is currently animated; this value must
be identical with the MorphID field from the MorphShape Node
NumberOfWeights – a 6 bits integer indicating the number the weights of the current morph objects

Add subclause 5.4.2.11 morph_mask:
5.4.2.11 morph_mask
5.4.2.11.1 Syntax
class morph_mask() {
for (w=1;w<=NW;w++){
bit(1) marker_bit;
bit(1) IsWeight_changed[w];
}
}
5.4.2.11.2 Semantics
IsWeight_changed – a vector with the same dimention as the weights field from the MorphShape node
indicating if the weight of a target shape is changed in the current animation frame.

Change subclause 5.4.2.11 bba_object_plane_values with 5.4.2.12 bba_object_plane_values.

© ISO/IEC 2006 – All rights reserved 13

ISO/IEC 14496-16:2004/Amd.1:2006(E)
In subclause 5.4.2.12.2 Semantics, replace:
NUM_SBCs=NSBB*16+NSBM*(NCP*3+NCP+NK)
with:
NSBM NMF
NUM_*SBCs=+NSBB16 (3*NCP+ NCP+ NK)+ NW
(ADM1-4)
∑∑ms ms ms mf
ms==11mf
Change subclause 5.4.2.12 bba_new_minmax with 5.4.2.13 bba_new_minmax.
Change subclause 5.4.2.13 bba_i_frame with 5.4.2.14 bba_i_frame.
Change subclause 5.4.2.14 bba_p_frame with 5.4.2.15 bba_p_frame.
Change subclause 5.4.2.15 bba_i_segment with 5.4.2.16 bba_i_segment.

In subclause 5.4.2.16.2 Semantics, replace:
See subclause 5.4.2.15
with:
See subclause 5.4.2.16
Change subclause 5.4.2.16 bba_p_segment with 5.4.2.17 bba_p_segment.

In subclause 5.4.2.17.2 Semantics, replace:
See subclause 5.4.2.15
with:
See subclause 5.4.2.16
Change subclause 5.4.2.17 decode_i_dc with 5.4.2.18 decode_i_dc.

In subclause 5.4.2.18.2 Semantics, replace:
See subclause 5.4.2.15
with:
See subclause 5.4.2.16
Change subclause 5.4.2.18 decode_p_dc with 5.4.2.19 decode_p_dc.

In subclause 5.4.2.19.2 Semantics replace:
See subclause 5.4.2.15
14 © ISO/IEC 2006 – All rights reserved

ISO/IEC 14496-16:2004/Amd.1:2006(E)
with:
See subclause 5.4.2.16
Change subclause 5.4.2.19 decode_ac with 5.4.2.20 decode_ac.

Add subclause 5.3.2 PointTexture Compression Specification:
5.3.2 PointTexture Compression
5.3.2.1 Overview
The PointTexture compression is a tool to compress the PointTexture node efficiently. The decoder structure
of the PointTexture compression is shown in Figure AMD1-2. The PointTexture decoder consists of header
decoder and node decoder. The header information is decoded in the header decoder and is used in node
decoder. The PointTexture decoder receives the arithmetic coded bitstream and restores the PointTexture
node. The decoded PointTexture node in ISO/IEC 14496-16 has the depth information and the color
information.
PPoointintTTexexttuurree Node Node DDeecocodederr
AdjustAdjustaabbllee
CCoommppreressessedd EEnnttrropyopy TrTreeee Node Node VoVoxxeell DDaattaa DecDecoodedded
OcOcttrreeee
BiBitststrtreeaamm DecoderDecoder DecDecooderder ReconsReconsttrructuctoorr PointPointTTeexxturturee
RecRecoonstnstrructuctoorr
PoPointintTTexexttuurree Head Headerer Decod Decodeerr
nWnWiiddtthh//nnHeightHeight//nnDepDeptthNbBithNbBitss
/n/nPPeerrcceenntOtOfDfDeeccooddiinngg

Figure AMD1-2 — Block diagram of decoder for PointTexture compression
5.3.2.2 PointTexture class
5.3.2.2.1 Syntax
class PointTexture ()
{
PointTextureHeader ();
PointTextureTreeNodes ();
}
5.3.2.2.2 Semantics
This is a top class for reading the compressed bitstream of PointTexture. PointTextureHeader is the class for
reading header information from the bitstream. PointTextureTreeNodes is the class for reading tree node
information progressively from low to high resolution.
© ISO/IEC 2006 – All rights reserved 15

ISO/IEC 14496-16:2004/Amd.1:2006(E)
5.3.2.3 PointTextureHeader class
5.3.2.3.1 Syntax
class PointTextureHeader ()
{
unsigned int(5) nBitSizeOfWidth;
unsigned int(nBitSizeOfWidth) nWidth;
unsigned int(5) nBitSizeOfHeight;
unsigned int(nBitSizeOfHeight) nHeight;
unsigned int(5) nDepthNbBits;
unsigned int(7) nPercentOfDecoding;
}
5.3.2.3.2 Semantics
nBitSizeOfWidth: This value indicates the bit size of nWidth.
nWidth: This value indicates the width of the PointTexture.
nBitSizeOfHeight: This value indicates the bit size of nHeight.
nHeight: This value indicates the height of the PointTexture.
nDepthNbBits: This value indicates the number of bits used for representing the original depth data. The value
of nDepthNbBits ranges from 0 to 31
...
