Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 6: Secure authentication and acknowledgement message (message type - AUTACK)

This part of ISO 9735 for EDIFACT security defines the secure authentication and acknowledgement message AUTACK.

Échange de données informatisé pour l'administration, le commerce et le transport (EDIFACT) — Règles de syntaxe au niveau de l'application (numéro de version de syntaxe: 4, numéro d'édition de syntaxe: 1) — Partie 6: Message sécurisé pour l'authentification et accusé de réception (type de message AUTACK)

Elektronska menjava podatkov (-računalniška-) v administraciji (upravi), trgovini in transportu (prevozništvu) EDIFACT - Pravila sintakse za uporabniški nivo (izvedbena oblika sintakse: 4, zaporedna št. izdaje 1) Šesti del: varnostna potrditev (avtentizacija) in priznanje sporočila (Vrsta sporočila AUTACK)

General Information

Status
Published
Publication Date
03-Jul-2002
Current Stage
9093 - International Standard confirmed
Completion Date
05-Jun-2019

Relations

Buy Standard

Standard
ISO 9735-6:2002 - Electronic data interchange for administration, commerce and transport (EDIFACT) -- Application level syntax rules (Syntax version number: 4, Syntax release number: 1)
English language
28 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 9735-6:2004
English language
28 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 9735-6
Second edition
2002-07-01


Electronic data interchange for
administration, commerce and transport
(EDIFACT) — Application level syntax rules
(Syntax version number: 4, Syntax release
number: 1) —
Part 6:
Secure authentication and
acknowledgement message (message
type — AUTACK)
Échange de données informatisé pour l'administration, le commerce
et le transport (EDIFACT) — Règles de syntaxe au niveau de l'application
(numéro de version de syntaxe: 4, numéro d'édition de syntaxe: 1) —
Partie 6: Message sécurisé pour l'authentification et accusé de réception
(type de message AUTACK)




Reference number
ISO 9735-6:2002(E)
©
 ISO 2002

---------------------- Page: 1 ----------------------
ISO 9735-6:2002(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2002
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland

ii © ISO 2002 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 9735-6:2002(E)
Contents Page
Foreword.iv
Introduction.vi
1 Scope .1
2 Conformance.1
3 Normative references.2
4 Terms and definitions .2
5 Rules for the use of the secure authentication and acknowledgement message.2
Annex A (informative) AUTACK message examples.9
Annex B (informative) Security services and algorithms .22
Bibliography.28

© ISO 2002 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 9735-6:2002(E)

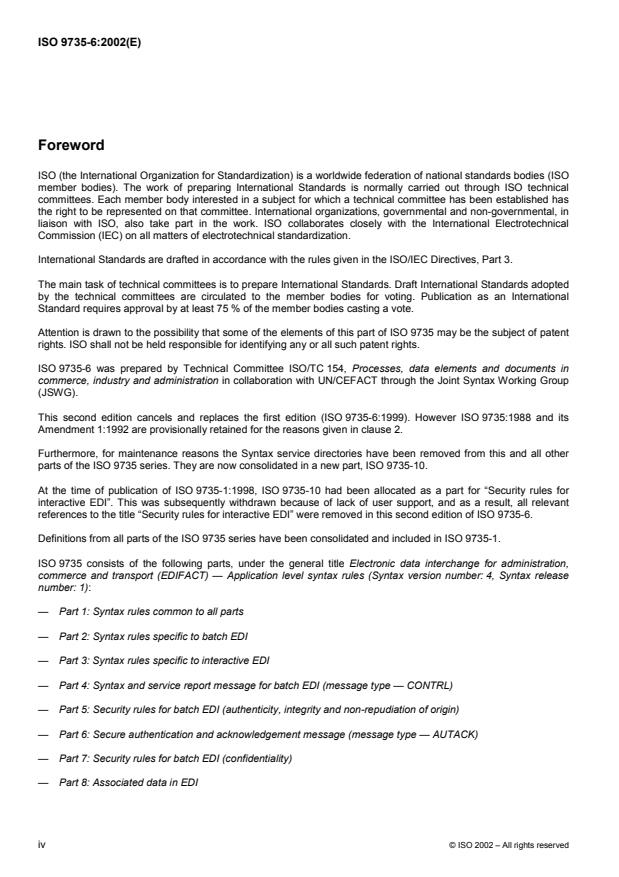

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
The main task of technical committees is to prepare International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 9735 may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 9735-6 was prepared by Technical Committee ISO/TC 154, Processes, data elements and documents in
commerce, industry and administration in collaboration with UN/CEFACT through the Joint Syntax Working Group
(JSWG).
This second edition cancels and replaces the first edition (ISO 9735-6:1999). However ISO 9735:1988 and its
Amendment 1:1992 are provisionally retained for the reasons given in clause 2.
Furthermore, for maintenance reasons the Syntax service directories have been removed from this and all other
parts of the ISO 9735 series. They are now consolidated in a new part, ISO 9735-10.
At the time of publication of ISO 9735-1:1998, ISO 9735-10 had been allocated as a part for “Security rules for
interactive EDI”. This was subsequently withdrawn because of lack of user support, and as a result, all relevant
references to the title “Security rules for interactive EDI” were removed in this second edition of ISO 9735-6.
Definitions from all parts of the ISO 9735 series have been consolidated and included in ISO 9735-1.
ISO 9735 consists of the following parts, under the general title Electronic data interchange for administration,
commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release
number: 1):
— Part 1: Syntax rules common to all parts
— Part 2: Syntax rules specific to batch EDI
— Part 3: Syntax rules specific to interactive EDI
— Part 4: Syntax and service report message for batch EDI (message type — CONTRL)
— Part 5: Security rules for batch EDI (authenticity, integrity and non-repudiation of origin)
— Part 6: Secure authentication and acknowledgement message (message type — AUTACK)
— Part 7: Security rules for batch EDI (confidentiality)
— Part 8: Associated data in EDI
iv © ISO 2002 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 9735-6:2002(E)
— Part 9: Security key and certificate management message (message type — KEYMAN)
— Part 10: Syntax service directories
Further parts may be added in the future.
Annexes A to C of this part of ISO 9735 are for information only.
© ISO 2002 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 9735-6:2002(E)
Introduction
This part of ISO 9735 includes the rules at the application level for the structuring of data in the interchange of
electronic messages in an open environment, based on the requirements of either batch or interactive processing.
These rules have been agreed by the United Nations Economic Commission for Europe (UN/ECE) as syntax rules
for Electronic Data Interchange for Administration, Commerce and Transport (EDIFACT) and are part of the United
Nations Trade Data Interchange Directory (UNTDID) which also includes both batch and interactive Message
Design Guidelines.
Communications specifications and protocols are outside the scope of this part of ISO 9735.
This is a new part, which has been added to ISO 9735. It provides an optional capability of securing batch
EDIFACT structures, i.e. messages, packages, groups or interchanges, by means of a secure authentication and
acknowledgement message.
vi © ISO 2002 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 9735-6:2002(E)

Electronic data interchange for administration, commerce and
transport (EDIFACT) — Application level syntax rules (Syntax
version number: 4, Syntax release number: 1) —
Part 6:
Secure authentication and acknowledgement message (message
type — AUTACK)
1 Scope
This part of ISO 9735 for EDIFACT security defines the secure authentication and acknowledgement message
AUTACK.
2 Conformance
Whereas this part shall use a version number of “4” in the mandatory data element 0002 (Syntax version number),
and shall use a release number of “01” in the conditional data element 0076 (Syntax release number), each of
which appear in the segment UNB (Interchange header), interchanges continuing to use the syntax defined in the
earlier published versions shall use the following Syntax version numbers, in order to differentiate them from each
other and from this part:
 ISO 9735:1988 — Syntax version number: 1
 ISO 9735:1988 (amended and reprinted in 1990) — Syntax version number: 2
 ISO 9735:1988 and its Amendment 1:1992 — Syntax version number: 3
 ISO 9735:1998 — Syntax version number: 4
Conformance to a standard means that all of its requirements, including all options, are supported. If all options are
not supported, any claim of conformance shall include a statement which identifies those options to which
conformance is claimed.
Data that is interchanged is in conformance if the structure and representation of the data conform to the syntax
rules specified in this part of ISO 9735.
Devices supporting this part of ISO 9735 are in conformance when they are capable of creating and/or interpreting
the data structured and represented in conformance with this part of ISO 9735.
Conformance to this part of ISO 9735 shall include conformance to parts 1, 2, 5 and 10 of ISO 9735.
When identified in this part of ISO 9735, provisions defined in related standards shall form part of the conformance
criteria.
© ISO 2002 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 9735-6:2002(E)
3 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this part of ISO 9735. For dated references, subsequent amendments to, or revisions of, any of these publications
do not apply. However, parties to agreements based on this part of ISO 9735 are encouraged to investigate the
possibility of applying the most recent editions of the normative documents indicated below. For undated
references, the latest edition of the normative document referred to applies. Members of ISO and IEC maintain
registers of currently valid International Standards.
ISO 9735-1:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) —
Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 1: Syntax rules
common to all parts
ISO 9735-2:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) —
Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 2: Syntax rules specific
to batch EDI
ISO 9735-5:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) —
Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 5: Security rules for
batch EDI (authenticity, integrity and non-repudiation of origin)
ISO 9735-10:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) —
Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 10: Syntax service
directories
4 Terms and definitions
For the purposes of this part of ISO 9735, the terms and definitions given in ISO 9735-1 apply.
5 Rules for the use of the secure authentication and acknowledgement message
5.1 Functional definition
AUTACK is a message authenticating sent, or providing secure acknowledgement of received interchanges,
groups, messages or packages.
A secure authentication and acknowledgement message can be used to:
a) give secure authentication, integrity or non-repudiation of origin to messages, packages, groups or
interchanges;
b) give secure acknowledgement or non-repudiation of receipt to secured messages, packages, groups or
interchanges.
5.2 Field of application
The secure authentication and acknowledgement message (AUTACK) may be used for both national and
international trade. It is based on universal practice related to administration, commerce and transport, and is not
dependent on the type of business or industry.
5.3 Principles
5.3.1 General
The applied security procedures shall be agreed to by trading partners and specified in an interchange agreement.
2 © ISO 2002 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 9735-6:2002(E)
The secure authentication and acknowledgement message (AUTACK) applies security services to other EDIFACT
structures (messages, packages, groups or interchanges) and provides secure acknowledgement to secured
EDIFACT structures. It can be applied to combinations of EDIFACT structures that need to be secured between
two parties.
The security services are provided by cryptographic mechanisms applied to the content of the original EDIFACT
structures. The results of these mechanisms form the body of the AUTACK message, supplemented by relevant
data such as references of the cryptographic methods used, the reference numbers for the EDIFACT structures
and the date and time of the original structures.
The AUTACK message shall use the standard security header and trailer groups.
The AUTACK message can apply to one or more messages, packages or groups from one or more interchanges,
or to one or more interchanges. As one example, Figure 1 describes an interchange when using the AUTACK
message together with one or more messages.


Figure 1 — Interchange showing security by using the AUTACK message at message level (schematic)

5.3.2 Use of AUTACK for the authentication function
5.3.2.1 General
An AUTACK message used as an authentication message shall be sent by the originator of one or more other
EDIFACT structures, or by a party having authority to act on behalf of the originator. Its purpose is to facilitate the
security services defined in ISO 9735-5, i.e. authenticity, integrity, and non-repudiation of origin of its associated
EDIFACT structures.
An AUTACK authentication message can be implemented in two ways. The first method conveys the hashed
values of the referenced EDIFACT structures secured by the AUTACK itself; the second uses the AUTACK only to
convey digital signatures of the referenced EDIFACT structures.
5.3.2.2 Authentication using hash values of the referenced EDIFACT structures
The secured EDIFACT structure shall be referenced in an occurrence of the USX (security references) segment.
For each USX there shall be at least one corresponding USY (security on references) segment which contains the
security result, for example the hash value, of the security function performed on the referenced EDIFACT
structure.
© ISO 2002 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO 9735-6:2002(E)
Details about the security function performed shall be contained in the AUTACK security header group. The USY
and USH segments for the referenced EDIFACT structure shall be linked using security reference number data
elements in both segments.
As a final step, all the information conveyed in the AUTACK shall be secured using at least one pair of security
header and security trailer groups.
NOTE AUTACK uses the USX segment to reference one or more messages, packages or groups in one or more
interchanges, or to reference an entire interchange. For each USX segment a corresponding USY segment contains the result
of the hashing, authentication or non-repudiation method applied to the referenced EDIFACT structure.
5.3.2.3 Authentication using digital signatures of the referenced EDIFACT structures
The secured EDIFACT structure shall be referenced in an occurrence of the USX (security references) segment.
For each USX at least one corresponding USY (security on references) segment, which contains the digital
signature of the referenced EDIFACT structure, shall be present. Details about the security function performed
shall be contained in the AUTACK security header group. Because a single referenced EDIFACT structure may be
secured more than once, the related USY and security header group shall be linked using security reference
number data elements in both segments.
If the digital signature of the referenced EDIFACT structure is contained in AUTACK (rather than just a hash value),
the AUTACK does not itself require to be secured.
5.3.3 The use of AUTACK for the acknowledgement function
An AUTACK message used as an acknowledgement message shall be sent by the recipient of one or more
previously received secured EDIFACT structures, or by a party having authority to act on behalf of the recipient. Its
purpose is to facilitate confirmation of receipt, validation of integrity of content, validation of completeness and/or
non-repudiation of receipt of its associated EDIFACT structures.
The acknowledgement function shall be applied only to secured EDIFACT structures. The secured EDIFACT
structure shall be referenced in an occurrence of the USX (security references) segment. For each USX there shall
be at least one corresponding USY (security on references) segment which contains either the hash value or the
digital signature of the referenced EDIFACT structure. The USY shall be linked to a security header group of the
referenced EDIFACT structure, or of an AUTACK message securing it, by using security reference number data
element. The corresponding security header related to the referenced EDIFACT structure contains the details of
the security function performed on the referenced EDIFACT structure by the sender of the original message.
As a final step in generation of the acknowledgement message, all the information conveyed in the AUTACK shall
be secured using at least one pair of security header and security trailer groups.
AUTACK may also be used for non-acknowledgement in case of problems with the verification of the security
results.
NOTE Secure acknowledgement is only meaningful for secured EDIFACT structures. Securing EDIFACT structures is
accomplished by the use of either integrated security segments (see ISO 9735-5) or AUTACK authentication.
To prevent endless loops, an AUTACK used for the acknowledgement function shall not require its recipient to
send back an AUTACK acknowledgement message.
5.4 Message definition
5.4.1 Data segment clarification
0010 UNH, Message header
A service segment starting and uniquely identifying a message.
The message type code for the secure authentication and acknowledgement message is AUTACK.
4 © ISO 2002 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 9735-6:2002(E)
The data element message type sub-function identification shall be used to indicate the usage of the
AUTACK function as either authentication, acknowledgement or refusal of acknowledgement.
Secure authentication and acknowledgement messages conforming to this document must contain the
following data in segment UNH, composite S009:
Data element 0065 AUTACK
0052 4
0054 1
0051 UN
0020 Segment Group 1: USH-USA-SG2 (security header group)
A group of segments identifying the security service and security mechanisms applied and containing the
data necessary to carry out the validation calculations (as defined in ISO 9735-5).
This segment group shall specify the security service and algorithm(s) applied to the AUTACK message or
applied to the referenced EDIFACT structure.
Each security header group shall be linked to a security trailer group, and some may be linked additionally
to USY segments.
0030 USH, Security header
A segment specifying a security service applied to the message/package in which the segment is included,
or to the referenced EDIFACT structure (as defined in ISO 9735-5).
The security service data element shall specify the security function applied to the AUTACK message or
the referenced EDIFACT structure:
 the security services: message origin authentication and non-repudiation of origin shall only be used
for the AUTACK message itself;
 the security services: referenced EDIFACT structure integrity, referenced EDIFACT structure origin
authentication and referenced EDIFACT structure non-repudiation of origin shall only be used by the
sender to secure the AUTACK referenced EDIFACT structures;
 the security services: receipt authentication and non-repudiation of receipt shall only be used by the
receiver of secured EDIFACT structures to secure the acknowledgement.
The scope of security application of the security service shall be specified, as defined in ISO 9735-5. In an
AUTACK message, there are four possible scopes of security application:
 the first two scopes are as defined in ISO 9735-5:2002, clause 5;
 the third scope includes the whole EDIFACT structure, in which the scope of the security application is
from the first character of the referenced message, package, group or interchange (namely a “U”) to
the last character of the message, package, group or interchange, inclusive;
 the fourth scope is user defined, in which scope the security application is defined in an agreement
between sender and receiver.
0040 USA, Security algorithm
A segment identifying a security algorithm, the technical usage made of it, and containing the technical
parameters required (as defined in ISO 9735-5).
© ISO 2002 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO 9735-6:2002(E)
0050 Segment Group 2: USC-USA-USR (certificate group)
A group of segments containing the data necessary to validate the security methods applied to the
message/package, when asymmetric algorithms are used (as defined in ISO 9735-5).
0060 USC, Certificate
A segment containing the credentials of the certificate owner and identifying the certification authority which
has generated the certificate (as defined in ISO 9735-5).
0070 USA, Security algorithm
A segment identifying a security algorithm, the technical usage made of it, and containing the technical
parameters required (as defined in ISO 9735-5).
0080 USR, Security result
A segment containing the result of the security functions applied to the certificate by the certification
authority (as defined in ISO 9735-5).
0090 USB, Secured data identification
This segment shall contain identification of the interchange sender and interchange recipient, a security
related timestamp of the AUTACK and it shall specify whether a secure acknowledgement from the
AUTACK message recipient is required or not. If one is required, the message sender will expect an
AUTACK acknowledgement message to be sent back by the message recipient.
The interchange sender and interchange recipient in USB shall refer to the sender and the recipient of the
interchange in which the AUTACK is present, in order to secure this information.
0100 Segment group 3: USX-USY
This segment group shall be used to identify a party in the security process and to give security information
on the referenced EDIFACT structure.
0110 USX, Security references
This segment shall contain references to the party involved in the security process.
The composite data element security date and time may contain the original generation date and time of
the referenced EDIFACT structure.
If data element 0020 is present and none of: 0048, 0062 and 0800 are present, the whole interchange is
referenced.
If data elements 0020 and 0048 are present and none of: 0062 and 0800 are present, the group is
referenced.
0120 USY, Security on references
A segment containing a link to a security header group and the result of the security services applied to the
referenced EDIFACT structure as specified in this linked security header group.
When the referenced EDIFACT structures are secured by the same security service, with the same related
security parameters many USY segments may be linked to the same security header group. In this case
the link value between the security header group and the related USYs shall be the same.
6 © ISO 2002 – All rights reserved

---------------------- Page: 12 ----------------------
ISO 9735-6:2002(E)
When AUTACK is used for the acknowledgement function, the corresponding security header group shall
be either one of the referenced EDIFACT structure or of an AUTACK message that is used to provide the
referenced EDIFACT structure with the authentication function.
In a USY segment the value of data element 0534 shall be identical to the value in 0534 in the
corresponding USH segment of either:
 the current AUTACK, if the authentication function is used (security services: referenced EDIFACT
structure origin authenticity, referenced EDIFACT structure integrity or referenced EDIFACT structure
non-repudiation of origin);
 the referenced EDIFACT structure itself, or an AUTACK message providing the referenced EDIFACT
structure with the authentication function, if the acknowledgement function is used (security services:
non-repudiation of receipt or receipt authentication).
0130 Segment Group 4: UST-USR (security trailer group)
A group of segments containing a link with security header segment group and the result of the security
functions applied to the message/package (as defined in ISO 9735-5).
USR segment may be omitted if the security trailer group is linked to a security header group related to a
referenced EDIFACT structure. In this case the corresponding results of the security function shall be found
in the USY segments which are linked to the relevant security header group.
0140 UST, Security trailer
A segment establishing a link between security header and security trailer segment group and stating the
number of security segments contained in these groups (as defined in ISO 9735-5).
0150 USR, Security result
A segment containing the result of the security functions applied to the message/package as specified in
the linked security header group (as defined in ISO 9735-5). The security result in this segment shall be
applied to the AUTACK message itself.
0160 UNT, Message trailer
A service segment ending a message, giving the total number of segments and the control reference
number of the message.
© ISO 2002 – All rights reserved 7

---------------------- Page: 13 ----------------------
ISO 9735-6:2002(E)
5.4.2 Message structure
Table 1 — Segment table
POS TAG Name S R Notes
0010 UNH Message header M 1

0020 ---- Segment group 1 ------------- M 99 -------+
0030 USH Security header M 1    |
0040 USA Security algorithm C 3    |
    |
0050 ----- Segment group 2 ------------- C 2 ----+ |
0060 USC Certificate M 1   | |
0070 USA Security algorithm C 3   | |
0080 USR Security result C 1 ----+--+
0090 USB Secured data identification M 1

0100 ----- Segment group 3 ------------- M 9999 ----+
0110 USX Security references M 1   |
0120 USY Security on references M 9 ----+

0130 ----- Segment group 4 ------------- M 99 ----+
0140 UST Security trailer M 1   |
0150 USR Security result C 1 ----+
0160 UNT Message trailer M 1

NOTE The message body of the AUTACK message comprises the USB segment and segment group 3.
8 © ISO 2002 – All rights reserved

---------------------- Page: 14 ----------------------
ISO 9735-6:2002(E)
Annex A
(informative)

AUTACK message examples
A.1 Introduction
Three examples are provided in this annex to illustrate different applications of the AUTACK message.
The first one shows how to use an AUTACK message to secure a previously sent message, in order to provide the
security service of non-repudiation of origin. An AUTACK acknowledgement message is required.
The second example shows how an AUTACK message may secure two messages with different security services:
non-repudiation of origin for one message, message origin authentication for another message.
The third example illustrates the usage of AUTACK message for secure acknowledgement. It shows the AUTACK
acknowledgement message required by the AUTACK in the first example.
A.2 Example 1: Non-repudiation of origin service provided by an AUTACK message
A.2.1 Narrative
Bank A wants the security service of non-repudiation of origin on the payment orders from Company A, performed
by Mr. Smith when they exceed a certain amount.
The interchange agreement between the parties establishes that the security service of non-repudiation of origin,
required by Bank A, shall be achieved for these payment orders, by Mr. Smith of Company A, with the use of one
digital signature.
Both parties agree that this digital signature is computed by 512 bit RSA (asymmetric algorithm) upon a hashing
value computed using the MD5 algorithm.
The certificate identifying the public key of Mr. Smith is issued by an authority trusted by both parties, the certificate
issuer.
In these conditions, because the digital signature of the PAYORD is inclu
...

OSIST ISO 9735-6:2004SLOVENSKImaj 2004
PREDSTANDARDElektronska menjava podatkov (-računalniška-) v administraciji (upravi), trgovini in transportu (prevozništvu) EDIFACT
- Pravila sintakse za uporabniški nivo (izvedbena oblika sintakse: 4, zaporedna št. izdaje 1) Šesti del: varnostna potrditev (avtentizacija) in priznanje sporočila (Vrsta sporočila AUTACK)Electronic data interchange for administration,
commerce and transport (EDIFACT) - Application
level syntax rules (Syntax version number: 4,
Syntax release number: 1) - Part 6: Secure
authentication and acknowledgement message
(Message type: AUTACK)©
Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljenoReferenčna številkaOSIST ISO 9735-6:2004(en)ICS35.240.60







Reference numberISO 9735-6:2002(E)© ISO 2002
INTERNATIONAL STANDARD ISO9735-6Second edition2002-07-01Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 6: Secure authentication and acknowledgement message (message type — AUTACK) Échange de données informatisé pour l'administration, le commerce
et le transport (EDIFACT) — Règles de syntaxe au niveau de l'application (numéro de version de syntaxe: 4, numéro d'édition de syntaxe: 1) — Partie 6: Message sécurisé pour l'authentification et accusé de réception (type de message AUTACK)



ISO 9735-6:2002(E) PDF disclaimer This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this area. Adobe is a trademark of Adobe Systems Incorporated. Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
©
ISO 2002 All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body in the country of the requester. ISO copyright office Case postale 56 • CH-1211 Geneva 20 Tel.
+ 41 22 749 01 11 Fax
+ 41 22 749 09 47 E-mail
copyright@iso.ch Web
www.iso.ch Printed in Switzerland
ii © ISO 2002 – All rights reserved



ISO 9735-6:2002(E) © ISO 2002 – All rights reserved iii Contents Page Foreword.iv Introduction.vi 1 Scope.1 2 Conformance.1 3 Normative references.2 4 Terms and definitions.2 5 Rules for the use of the secure authentication and acknowledgement message.2 Annex A (informative)
AUTACK message examples.9 Annex B (informative)
Security services and algorithms.22 Bibliography.28



ISO 9735-6:2002(E) iv © ISO 2002 – All rights reserved
Foreword ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO member bodies). The work of preparing International Standards is normally carried out through ISO technical committees. Each member body interested in a subject for which a technical committee has been established has the right to be represented on that committee. International organizations, governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization. International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3. The main task of technical committees is to prepare International Standards. Draft International Standards adopted by the technical committees are circulated to the member bodies for voting. Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote. Attention is drawn to the possibility that some of the elements of this part of ISO 9735 may be the subject of patent rights. ISO shall not be held responsible for identifying any or all such patent rights. ISO 9735-6 was prepared by Technical Committee ISO/TC 154, Processes, data elements and documents in commerce, industry and administration in collaboration with UN/CEFACT through the Joint Syntax Working Group (JSWG). This second edition cancels and replaces the first edition (ISO 9735-6:1999). However ISO 9735:1988 and its Amendment 1:1992 are provisionally retained for the reasons given in clause 2. Furthermore, for maintenance reasons the Syntax service directories have been removed from this and all other parts of the ISO 9735 series. They are now consolidated in a new part, ISO 9735-10. At the time of publication of ISO 9735-1:1998, ISO 9735-10 had been allocated as a part for “Security rules for interactive EDI”. This was subsequently withdrawn because of lack of user support, and as a result, all relevant references to the title “Security rules for interactive EDI” were removed in this second edition of ISO 9735-6. Definitions from all parts of the ISO 9735 series have been consolidated and included in ISO 9735-1. ISO 9735 consists of the following parts, under the general title Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release number: 1): — Part 1: Syntax rules common to all parts — Part 2: Syntax rules specific to batch EDI — Part 3: Syntax rules specific to interactive EDI — Part 4: Syntax and service report message for batch EDI (message type — CONTRL) — Part 5: Security rules for batch EDI (authenticity, integrity and non-repudiation of origin) — Part 6: Secure authentication and acknowledgement message (message type — AUTACK) — Part 7: Security rules for batch EDI (confidentiality) — Part 8: Associated data in EDI



ISO 9735-6:2002(E) © ISO 2002 – All rights reserved v — Part 9: Security key and certificate management message (message type — KEYMAN) — Part 10: Syntax service directories Further parts may be added in the future. Annexes A to C of this part of ISO 9735 are for information only.



ISO 9735-6:2002(E) vi © ISO 2002 – All rights reserved
Introduction This part of ISO 9735 includes the rules at the application level for the structuring of data in the interchange of electronic messages in an open environment, based on the requirements of either batch or interactive processing. These rules have been agreed by the United Nations Economic Commission for Europe (UN/ECE) as syntax rules for Electronic Data Interchange for Administration, Commerce and Transport (EDIFACT) and are part of the United Nations Trade Data Interchange Directory (UNTDID) which also includes both batch and interactive Message Design Guidelines. Communications specifications and protocols are outside the scope of this part of ISO 9735. This is a new part, which has been added to ISO 9735. It provides an optional capability of securing batch EDIFACT structures, i.e. messages, packages, groups or interchanges, by means of a secure authentication and acknowledgement message.



INTERNATIONAL STANDARD ISO 9735-6:2002(E) © ISO 2002 – All rights reserved 1 Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 6: Secure authentication and acknowledgement message (message type — AUTACK) 1 Scope This part of ISO 9735 for EDIFACT security defines the secure authentication and acknowledgement message AUTACK. 2 Conformance Whereas this part shall use a version number of “4” in the mandatory data element 0002 (Syntax version number), and shall use a release number of “01” in the conditional data element 0076 (Syntax release number), each of which appear in the segment UNB (Interchange header), interchanges continuing to use the syntax defined in the earlier published versions shall use the following Syntax version numbers, in order to differentiate them from each other and from this part:  ISO 9735:1988 — Syntax version number: 1  ISO 9735:1988 (amended and reprinted in 1990) — Syntax version number: 2  ISO 9735:1988 and its Amendment 1:1992 — Syntax version number: 3  ISO 9735:1998 — Syntax version number: 4 Conformance to a standard means that all of its requirements, including all options, are supported. If all options are not supported, any claim of conformance shall include a statement which identifies those options to which conformance is claimed. Data that is interchanged is in conformance if the structure and representation of the data conform to the syntax rules specified in this part of ISO 9735. Devices supporting this part of ISO 9735 are in conformance when they are capable of creating and/or interpreting the data structured and represented in conformance with this part of ISO 9735. Conformance to this part of ISO 9735 shall include conformance to parts 1, 2, 5 and 10 of ISO 9735. When identified in this part of ISO 9735, provisions defined in related standards shall form part of the conformance criteria.



ISO 9735-6:2002(E) 2 © ISO 2002 – All rights reserved
3 Normative references The following normative documents contain provisions which, through reference in this text, constitute provisions of this part of ISO 9735. For dated references, subsequent amendments to, or revisions of, any of these publications do not apply. However, parties to agreements based on this part of ISO 9735 are encouraged to investigate the possibility of applying the most recent editions of the normative documents indicated below. For undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC maintain registers of currently valid International Standards. ISO 9735-1:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 1: Syntax rules common to all parts ISO 9735-2:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 2: Syntax rules specific to batch EDI ISO 9735-5:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 5: Security rules for batch EDI (authenticity, integrity and non-repudiation of origin) ISO 9735-10:2002, Electronic data interchange for administration, commerce and transport (EDIFACT) — Application level syntax rules (Syntax version number: 4, Syntax release number: 1) — Part 10: Syntax service directories 4 Terms and definitions For the purposes of this part of ISO 9735, the terms and definitions given in ISO 9735-1 apply. 5 Rules for the use of the secure authentication and acknowledgement message 5.1 Functional definition AUTACK is a message authenticating sent, or providing secure acknowledgement of received interchanges, groups, messages or packages. A secure authentication and acknowledgement message can be used to: a) give secure authentication, integrity or non-repudiation of origin to messages, packages, groups or interchanges; b) give secure acknowledgement or non-repudiation of receipt to secured messages, packages, groups or interchanges. 5.2 Field of application The secure authentication and acknowledgement message (AUTACK) may be used for both national and international trade. It is based on universal practice related to administration, commerce and transport, and is not dependent on the type of business or industry. 5.3 Principles 5.3.1 General The applied security procedures shall be agreed to by trading partners and specified in an interchange agreement.



ISO 9735-6:2002(E) © ISO 2002 – All rights reserved 3 The secure authentication and acknowledgement message (AUTACK) applies security services to other EDIFACT structures (messages, packages, groups or interchanges) and provides secure acknowledgement to secured EDIFACT structures. It can be applied to combinations of EDIFACT structures that need to be secured between two parties. The security services are provided by cryptographic mechanisms applied to the content of the original EDIFACT structures. The results of these mechanisms form the body of the AUTACK message, supplemented by relevant data such as references of the cryptographic methods used, the reference numbers for the EDIFACT structures and the date and time of the original structures. The AUTACK message shall use the standard security header and trailer groups. The AUTACK message can apply to one or more messages, packages or groups from one or more interchanges, or to one or more interchanges. As one example, Figure 1 describes an interchange when using the AUTACK message together with one or more messages.
Figure 1 — Interchange showing security by using the AUTACK message at message level (schematic)
5.3.2 Use of AUTACK for the authentication function 5.3.2.1 General An AUTACK message used as an authentication message shall be sent by the originator of one or more other EDIFACT structures, or by a party having authority to act on behalf of the originator. Its purpose is to facilitate the security services defined in ISO 9735-5, i.e. authenticity, integrity, and non-repudiation of origin of its associated EDIFACT structures. An AUTACK authentication message can be implemented in two ways. The first method conveys the hashed values of the referenced EDIFACT structures secured by the AUTACK itself; the second uses the AUTACK only to convey digital signatures of the referenced EDIFACT structures. 5.3.2.2 Authentication using hash values of the referenced EDIFACT structures The secured EDIFACT structure shall be referenced in an occurrence of the USX (security references) segment. For each USX there shall be at least one corresponding USY (security on references) segment which contains the security result, for example the hash value, of the security function performed on the referenced EDIFACT structure.



ISO 9735-6:2002(E) 4 © ISO 2002 – All rights reserved
Details about the security function performed shall be contained in the AUTACK security header group. The USY and USH segments for the referenced EDIFACT structure shall be linked using security reference number data elements in both segments. As a final step, all the information conveyed in the AUTACK shall be secured using at least one pair of security header and security trailer groups. NOTE AUTACK uses the USX segment to reference one or more messages, packages or groups in one or more interchanges, or to reference an entire interchange. For each USX segment a corresponding USY segment contains the result of the hashing, authentication or non-repudiation method applied to the referenced EDIFACT structure. 5.3.2.3 Authentication using digital signatures of the referenced EDIFACT structures The secured EDIFACT structure shall be referenced in an occurrence of the USX (security references) segment. For each USX at least one corresponding USY (security on references) segment, which contains the digital signature of the referenced EDIFACT structure, shall be present. Details about the security function performed shall be contained in the AUTACK security header group. Because a single referenced EDIFACT structure may be secured more than once, the related USY and security header group shall be linked using security reference number data elements in both segments. If the digital signature of the referenced EDIFACT structure is contained in AUTACK (rather than just a hash value), the AUTACK does not itself require to be secured. 5.3.3 The use of AUTACK for the acknowledgement function An AUTACK message used as an acknowledgement message shall be sent by the recipient of one or more previously received secured EDIFACT structures, or by a party having authority to act on behalf of the recipient. Its purpose is to facilitate confirmation of receipt, validation of integrity of content, validation of completeness and/or non-repudiation of receipt of its associated EDIFACT structures. The acknowledgement function shall be applied only to secured EDIFACT structures. The secured EDIFACT structure shall be referenced in an occurrence of the USX (security references) segment. For each USX there shall be at least one corresponding USY (security on references) segment which contains either the hash value or the digital signature of the referenced EDIFACT structure. The USY shall be linked to a security header group of the referenced EDIFACT structure, or of an AUTACK message securing it, by using security reference number data element. The corresponding security header related to the referenced EDIFACT structure contains the details of the security function performed on the referenced EDIFACT structure by the sender of the original message. As a final step in generation of the acknowledgement message, all the information conveyed in the AUTACK shall be secured using at least one pair of security header and security trailer groups. AUTACK may also be used for non-acknowledgement in case of problems with the verification of the security results. NOTE Secure acknowledgement is only meaningful for secured EDIFACT structures. Securing EDIFACT structures is accomplished by the use of either integrated security segments (see ISO 9735-5) or AUTACK authentication. To prevent endless loops, an AUTACK used for the acknowledgement function shall not require its recipient to send back an AUTACK acknowledgement message. 5.4 Message definition 5.4.1 Data segment clarification 0010 UNH, Message header A service segment starting and uniquely identifying a message. The message type code for the secure authentication and acknowledgement message is AUTACK.



ISO 9735-6:2002(E) © ISO 2002 – All rights reserved 5 The data element message type sub-function identification shall be used to indicate the usage of the AUTACK function as either authentication, acknowledgement or refusal of acknowledgement. Secure authentication and acknowledgement messages conforming to this document must contain the following data in segment UNH, composite S009: Data element 0065 AUTACK
0052 4
0054 1
0051 UN 0020 Segment Group 1: USH-USA-SG2 (security header group) A group of segments identifying the security service and security mechanisms applied and containing the data necessary to carry out the validation calculations (as defined in ISO 9735-5). This segment group shall specify the security service and algorithm(s) applied to the AUTACK message or applied to the referenced EDIFACT structure. Each security header group shall be linked to a security trailer group, and some may be linked additionally to USY segments. 0030 USH, Security header A segment specifying a security service applied to the message/package in which the segment is included, or to the referenced EDIFACT structure (as defined in ISO 9735-5). The security service data element shall specify the security function applied to the AUTACK message or the referenced EDIFACT structure:  the security services: message origin authentication and non-repudiation of origin shall only be used for the AUTACK message itself;  the security services: referenced EDIFACT structure integrity, referenced EDIFACT structure origin authentication and referenced EDIFACT structure non-repudiation of origin shall only be used by the sender to secure the AUTACK referenced EDIFACT structures;  the security services: receipt authentication and non-repudiation of receipt shall only be used by the receiver of secured EDIFACT structures to secure the acknowledgement. The scope of security application of the security service shall be specified, as defined in ISO 9735-5. In an AUTACK message, there are four possible scopes of security application:  the first two scopes are as defined in ISO 9735-5:2002, clause 5;  the third scope includes the whole EDIFACT structure, in which the scope of the security application is from the first character of the referenced message, package, group or interchange (namely a “U”) to the last character of the message, package, group or interchange, inclusive;  the fourth scope is user defined, in which scope the security application is defined in an agreement between sender and receiver. 0040 USA, Security algorithm A segment identifying a security algorithm, the technical usage made of it, and containing the technical parameters required (as defined in ISO 9735-5).



ISO 9735-6:2002(E) 6 © ISO 2002 – All rights reserved
0050 Segment Group 2: USC-USA-USR (certificate group) A group of segments containing the data necessary to validate the security methods applied to the message/package, when asymmetric algorithms are used (as defined in ISO 9735-5). 0060 USC, Certificate A segment containing the credentials of the certificate owner and identifying the certification authority which has generated the certificate (as defined in ISO 9735-5). 0070 USA, Security algorithm A segment identifying a security algorithm, the technical usage made of it, and containing the technical parameters required (as defined in ISO 9735-5). 0080 USR, Security result A segment containing the result of the security functions applied to the certificate by the certification authority (as defined in ISO 9735-5). 0090 USB, Secured data identification This segment shall contain identification of the interchange sender and interchange recipient, a security related timestamp of the AUTACK and it shall specify whether a secure acknowledgement from the AUTACK message recipient is required or not. If one is required, the message sender will expect an AUTACK acknowledgement message to be sent back by the message recipient. The interchange sender and interchange recipient in USB shall refer to the sender and the recipient of the interchange in which the AUTACK is present, in order to secure this information. 0100 Segment group 3: USX-USY This segment group shall be used to identify a party in the security process and to give security information on the referenced EDIFACT structure. 0110 USX, Security references This segment shall contain references to the party involved in the security process. The composite data element security date and time may contain the original generation date and time of the referenced EDIFACT structure. If data element 0020 is present and none of: 0048, 0062 and 0800 are present, the whole interchange is referenced. If data elements 0020 and 0048 are present and none of: 0062 and 0800 are present, the group is referenced. 0120 USY, Security on references A segment containing a link to a security header group and the result of the security services applied to the referenced EDIFACT structure as specified in this linked security header group. When the referenced EDIFACT structures are secured by the same security service, with the same related security parameters many USY segments may be linked to the same security header group. In this case the link value between the security header group and the related USYs shall be the same.



ISO 9735-6:2002(E) © ISO 2002 – All rights reserved 7 When AUTACK is used for the acknowledgement function, the corresponding security header group shall be either one of the referenced EDIFACT structure or of an AUTACK message that is used to provide the referenced EDIFACT structure with the authentication function. In a USY segment the value of data element 0534 shall be identical to the value in 0534 in the corresponding USH segment of either:  the current AUTACK, if the authentication function is used (security services: referenced EDIFACT structure origin authenticity, referenced EDIFACT structure integrity or referenced EDIFACT structure non-repudiation of origin);  the referenced EDIFACT structure itself, or an AUTACK message providing the referenced EDIFACT structure with the authentication function, if the acknowledgement function is used (security services: non-repudiation of receipt or receipt authentication). 0130 Segment Group 4: UST-USR (security trailer group) A group of segments containing a link with security header segment group and the result of the security functions applied to the message/package (as defined in ISO 9735-5). USR segment may be omitted if the security trailer group is linked to a security header group related to a referenced EDIFACT structure. In this case the corresponding results of the security function shall be found in the USY segments which are linked to the relevant security header group. 0140 UST, Security trailer A segment establishing a link between security header and security trailer segment group and stating the number of security segments contained in these groups (as defined in ISO 9735-5). 0150 USR, Security result A segment containing the result of the security functions applied to the message/package as specified in the linked security header group (as defined in ISO 9735-5). The security result in this segment shall be applied to the AUTACK message itself. 0160 UNT, Message trailer A service segment ending a message, giving the total number of segments and the control reference number of the message.



ISO 9735-6:2002(E) 8 © ISO 2002 – All rights reserved
5.4.2 Message structure Table 1 — Segment table POS TAG Name S R Notes 0010 UNH Message header M 1
0020 ---- Segment group 1 ------------- M 99 -------+ 0030 USH Security header M 1
| 0040 USA Security algorithm C 3
|
| 0050 ----- Segment group 2 ------------- C 2 ----+
| 0060 USC Certificate M 1
|
| 0070 USA Security algorithm C 3
|
| 0080 USR Security result C 1 ----+--+ 0090
USB Secured data identification M 1
0100 ----- Segment group 3 ------------- M 9999 ----+ 0110 USX Security references M 1
| 0120
USY Security on references M 9 ----+ 0130 ----- Segment group 4 ------------- M 99 ----+ 0140 UST Security trailer M 1
| 0150 USR Security result C 1 ----+ 0160 UNT Message trailer M 1
NOTE The message body of the AUTACK message comprises the USB segment and segment group 3.



ISO 9735-6:2002(E) © ISO 2002 – All rights reserved 9 Annex A (informative)
AUTACK message examples A.1 Introduction Three examples are provided in this annex to illustrate different applications of the AUTACK message. The first one shows how to use an AUTACK message to secure a previously sent message, in order to provide the security service of non-repudiation of origin. An AUTACK acknowledgement message is required. The second example shows how an AUTACK message may secure two messages with different security services: non-repudiation of origin for one message, message origin authentication for another message.
The third example illustrates the usage of AUTACK message for secure acknowledgement. It shows the AUTACK acknowledgement message required by the AUTACK in the first example. A.2 Example 1: Non-repudiation of origin service provided by an AUTACK message A.2.1 Narrative Bank A wants the security service of non-repudiation of origin on the payment orders from Company A, performed by Mr. Smith when they exceed a certain amount. The interchange agreement between the parties establishes that the security service of non-repudiation of origin, required by Bank A, shall be achieved for these payment orders, by Mr. Smith of Company A, with the use of one digital signature. Both parties agree that this digital signature is computed by 512 bit RSA (asymmetric algorithm) upon a hashing value computed using the MD5 algorithm. The certificate identifying the public key of Mr. Smith is issued by an authority trusted by both parties, the certificate issuer. In these conditions, because the digital signature of the PAYORD is included in the AUTACK message, the AUTACK itself does not need to be signed. The PAYORD message secured by AUTACK was the third message of the first interchange sent by Mr. Smith to the Bank A. It was generated in 1996.01.15 at 10:00:00. The AUTACK itself was the fifth message of the interchange and it was generated in 1996.01.15 at 10:05:32. The appearing security segments are the following ones:  USH to indicate the secur
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
