ISO/IEC 24727-6:2010

INTERNATIONAL ISO/IEC
STANDARD 24727-6
First edition
2010-12-15


Identification cards — Integrated circuit
card programming interfaces —
Part 6:
Registration authority procedures for the
authentication protocols for
interoperability
Cartes d'identification — Interfaces programmables de cartes à puce —
Partie 6: Procédures de l'autorité d'enregistrement des protocoles
d'authentification pour l'interopérabilité





Reference number
ISO/IEC 24727-6:2010(E)
©
ISO/IEC 2010

---------------------- Page: 1 ----------------------
ISO/IEC 24727-6:2010(E)

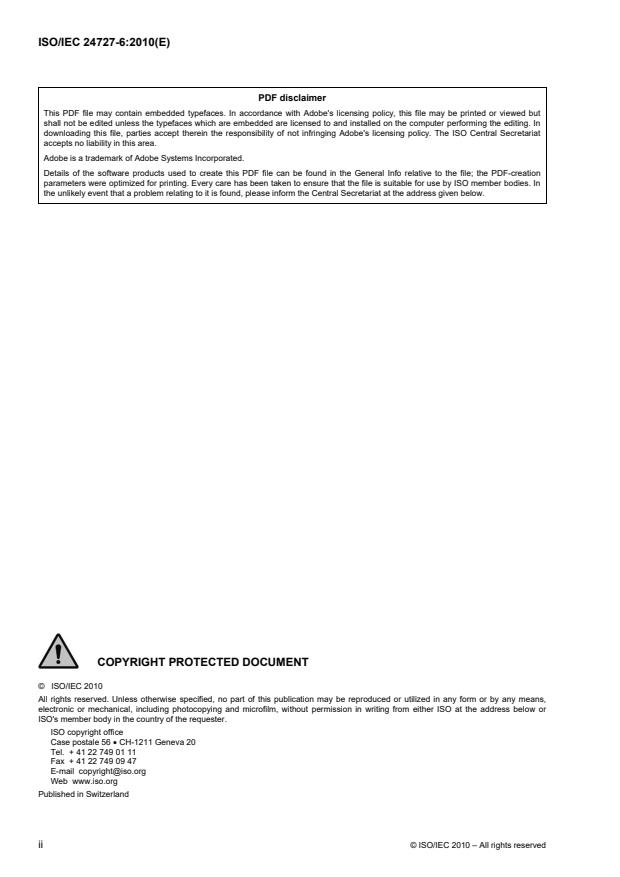

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO/IEC 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO/IEC 2010 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 24727-6:2010(E)
Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Normative references.1
3 Terms and definitions .1
4 Symbols (and abbreviated terms).2
5 General .2
5.1 Purpose .2
5.2 Dependencies .2
5.3 Authentication protocol OID arcs .3
5.4 Authentication protocol registration.3
5.5 Authentication protocol adoption registration.4
6 Appointment of the registration authority .4
7 Review of applications.5
7.1 Procedure.5
7.2 Response time .5
7.3 Confirmation process .5
8 Content of applications.5
8.1 General .5
8.2 Applications .5
8.3 Maintenance of a web-based register .6
Annex A (normative) Application for registration of an ISO 24727 registered authentication
protocol .7
Annex B (normative) Authentication protocol template .11
Annex C (normative) Authentication protocol certification form .15
Annex D (normative) Registration of authentication protocol adoption application.18
Annex E (informative) Registration Authority.22

© ISO/IEC 2010 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 24727-6:2010(E)

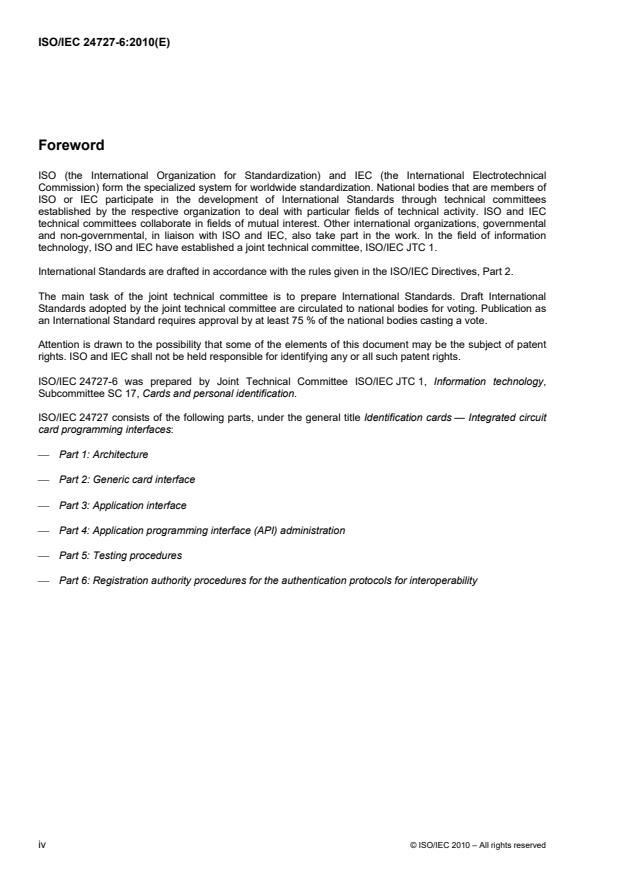

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 24727-6 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 17, Cards and personal identification.
ISO/IEC 24727 consists of the following parts, under the general title Identification cards — Integrated circuit
card programming interfaces:
⎯ Part 1: Architecture
⎯ Part 2: Generic card interface
⎯ Part 3: Application interface
⎯ Part 4: Application programming interface (API) administration
⎯ Part 5: Testing procedures
⎯ Part 6: Registration authority procedures for the authentication protocols for interoperability

iv © ISO/IEC 2010 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 24727-6:2010(E)
Introduction
ISO/IEC 24727 is a set of programming interfaces for interactions between integrated circuit cards and
external applications to include generic services for multi-sector use. The organization and the operation of
the ICC conform to ISO/IEC 7816-4.
ISO/IEC 24727 is relevant to ICC applications desiring interoperability among diverse application domains.
This document specifies a language independent and implementation independent application level interface
that allows information and transaction interchange with a card. The Open Systems Interconnect Reference
Model [ISO/IEC 7498-1:1994] is used as the layered architecture of the Application Interface. That is, the
Application Interface assumes that there is a protocol stack through which it will exchange information and
transactions among cards using commands conveyed through the message structures defined in ISO 7816.
The semantics of commands accessed by the Application Interface refers to application protocol data units
(APDUs) as characterized in ISO/IEC 24727-2, and in the following International Standards:
⎯ ISO/IEC 7816-4:2005, Identification cards — Integrated circuit cards — Part 4: Organization, security and
commands for interchange.
⎯ ISO/IEC 7816-8:2004, Identification cards — Integrated circuit cards — Part 8: Commands for security
operations.
⎯ ISO/IEC 7816-9:2004, Identification cards — Integrated circuit cards — Part 9: Commands for card
management.
The purpose of this part of ISO/IEC 24727 is to maximize the applicability and solution space of software tools
that provide Application Interface support to card-aware applications. This effort includes supporting the
evolution of card systems as the cards become more powerful peer-level partners with existing and future
applications while minimizing the impact to existing solutions conforming to this part of ISO/IEC 24727.
This part of ISO/IEC 24727 extends the function of ISO/IEC 24727-3, Annex A authentication protocols (APs),
by providing a means for publication and management of an interoperable framework for new or modified APs
using a standardized ISO/IEC registration authority (RA).
APs submitted carry no warranty or guarantee in regard to their fitness for any purpose including security. It is
incumbent on the end user to ascertain the APs suitability for the purpose proposed, including the validity of
any claims made by the applicant.

© ISO/IEC 2010 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 24727-6:2010(E)

Identification cards — Integrated circuit card programming
interfaces —
Part 6:
Registration authority procedures for the authentication
protocols for interoperability
1 Scope
This part of ISO/IEC 24727 defines the procedures for
⎯ registration of APs, including related cryptographic algorithms, test methods and conformance
assessment criteria, and
⎯ registration of the adoption of ISO/IEC 24727 APs by parties desiring to advertise AP interoperability.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 24727-3, Identification cards — Integrated circuit card programming interfaces — Part 3: Application
interface
ISO/IEC 9834-2, Information technology — Open Systems Interconnection — Procedures for the operation of
OSI Registration Authorities — Part 2: Registration procedures for OSI document types
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 24727-3, and the following,
apply.
3.1
applicant
organization or person requesting registration
3.2
authentication-protocol-adoption
use of ISO/IEC 24727-3 or ISO/IEC 24727-6 APs (either in operations or referenced in dependent
specifications or standards or recommendations)
3.3
registration authority
organization nominated and appointed by the ISO/IEC Technical Management Board to prepare and maintain
ISO/IEC 24727-6 registers
© ISO/IEC 2010 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/IEC 24727-6:2010(E)
3.4
registrant
organization or person that has either registered an authentication protocol or registered the adoption of an
authentication protocol
4 Symbols (and abbreviated terms)
For the purposes of this document, the symbols and abbreviated terms given in ISO/IEC 24727-3, and the
following, apply.
AP authentication protocol
APDU application protocol data unit
APT authentication protocol template
APTP authentication protocol test plan
OID object identifier
RA registration authority
RAP registered authentication protocol
URL uniform resource locator
5 General
5.1 Purpose
This part of ISO/IEC 24727 defines the ISO procedures for:
⎯ the registration of new or revised APs in accordance with ISO/IEC 24727-3 and this part. These APs are
extensions to the ISO/IEC 24727-3, Annex A suite of APs;
⎯ registration of related cryptographic algorithms, APTP and conformance assessment criteria;
⎯ registration of the adoption of ISO/IEC 24727 APs by parties desiring to advertise AP interoperability.
5.2 Dependencies
This part of ISO/IEC 24727 relies on two other parts of the ISO/IEC 24727 standards suite:
⎯ ISO/IEC 24727-3:
⎯ a standardized method for the un-ambiguous description of a range of differing APs;
⎯ a standardized method for the un-ambiguous description of a range of differing cryptographic
algorithms used by the APs.
⎯ ISO/IEC 24727-5: [to be published]
⎯ a standardized method for the conformance testing of a range of differing APs;
⎯ the testing requirements for an authentication protocol.
2 © ISO/IEC 2010 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/IEC 24727-6:2010(E)
5.3 Authentication protocol OID arcs
The OID method set out in ISO/IEC 24727-3 is limited to the standards arc of ISO/IEC 9834-2 and does not
support the extension of the arc by registration authority procedures.
This part extends these capabilities using a registration authority arc in order to manage the full extensibility
and interoperability requirements for new ISO/IEC 24727 APs under the ISO/IEC 9834-2 registration authority
arc.
The ISO 24727-6 Registration Authority arc is {iso(1) registration-authority (1) iso24727(24727) part6(6)
new-protocol-short-name (new-protocol-number)}
5.4 Authentication protocol registration
In order for implementations of ISO/IEC 24727 using different APs to achieve interoperability, there is a need
to unambiguously identify the implemented APs.
In order to achieve interoperability with a range of APs, implementers require the details of APs to be
published in a form which may be referenced. This clause provides a procedure for the registration of APs,
and for those registration details to be made publicly available at a URL, in a format managed by an ISO/IEC
RA.
5.4.1 Authentication protocol registration procedures
The procedure supported by this part is compliant with the ISO/IEC 9834-2 ASN.1 Object Identifier (OID)
method. The registration and procedural requirements for registration of APs are as follows and occur in
sequence:
⎯ the applicant duly completes all documents which form part of the AP registration;
⎯ the RA checks the AP registration for completeness and that the documentation provided indicates
compliance with this standard. The RA is only responsible for the administrative operations for the
purpose of maintenance of the register which does not include technical content contained in the
applicant’s application;
⎯ should there be doubt about any data submitted, or the completeness or accuracy or consistency or
ownership of the application then the RA shall initiate an investigation where any doubt exists. The RA
should initially consult with the applicant;
⎯ if all requirements are met then the application is accepted and the applicant so advised by the RA;
⎯ if the RA determines that the AP application is not complete or does not meet the requirements of this
standard then the applicant is so advised and given the opportunity to revise and re-apply subject to
conditions set out in the conditions for application set by the Registration Authority;
⎯ when the application is successful the RA allocates an OID using ISO/IEC 9834 procedures and advises
the applicant that they are the formal registrant of the allocated OID from the date of first publication;
⎯ the RA includes the new AP and registrant details in a publicly available and up-to-date database of
registered OIDs and ISO/IEC 24727-6 APs on the Internet in a web based service. Details are provided in
Annex E;
⎯ once the registration has been successful, the registrant may optionally flag the registration as “Draft
Only”, for a period determined by the registrant. In this case, details of the AP set out in Annex B may be
changed by the registrant until such time that the registrant advises the RA that the AP should be
published as “Final”. Once the AP been published as “Final” there shall be no further changes to the
applicants technical representation of the AP (as set out in Annex B);
© ISO/IEC 2010 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/IEC 24727-6:2010(E)
⎯ the public records of the registered authentication protocol shall remain until such time as the registrant
requests that they be withdrawn subject to the terms of the conditions for application of the Registration
Authority;
⎯ subject to the conditions for application of the Registration Authority registration status may be changed
to "pending de-registration". The RA shall advise all registrants of any procedures relating to the status
change of the protocol”.
5.5 Authentication protocol adoption registration
In order for operations, specifications, standards or recommendations to achieve interoperability under
ISO/IEC 24727 it is necessary for interchangeable components to utilise standardized authentication protocols
and applicable cryptographic algorithms.
This clause provides a procedure for the registration of authentication-protocol-adoption by a party, parties or
groups including communities of interest.
5.5.1 Authentication protocol adoption registration procedures
The method supported by this part is compliant with the ISO/IEC 9834-2 ASN.1 Object Identifier (OID) method.
The registration and procedural requirements for registration of authentication-protocol-adoption are as follows
and occur in sequence:
⎯ the applicant completes the application form in Annex D and submits it in accordance with the conditions
for application of the RA;
⎯ the RA evaluates the application to determine if it is both complete and the documentation provided
indicates compliance with this standard. If it meets all requirements then it shall be accepted and the
applicant so advised;
⎯ if the RA determines that the application is not complete or does not meet the requirements of this
standard then the applicant is advised and given the opportunity to revise and re-apply subject to any
additional conditions for application set by the Registration Authority;
⎯ if the application is successful the RA updates a public database (accessible at the RA URL address) with
the applicant's details to include the RAP OIDs. The applicant shall be so advised;
⎯ the RA maintains a publicly available and up-to-date copy of the registrants details and adopted RAP
OIDs on the Internet in a web based service at the URL address set out in Annex E;
⎯ the public records of the authentication-protocol-adoption will remain current until such time as the
registrant requests that they be withdrawn or subject to the conditions for registration of the Registration
Authority;
⎯ subject to the conditions for application of the Registration Authority the authentication-protocol-adoption
registration status may be changed to "pending de-registration" The Registration Authority shall advise all
registrants of any procedures relating to the status change of the authentication-protocol-adoption
registration status.
6 Appointment of the registration authority
It is within the mandate of ISO/IEC to organize registration as specified in this standard. In order to do this,
ISO/IEC appoints, according to their internal requirements and rules, an organization to act as the RA for this
standard.
Contact information for the RA can be found in Annex E.
4 © ISO/IEC 2010 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/IEC 24727-6:2010(E)
From time to time RA details may change; consequently ISO also maintains an up-to-date listing of
maintenance agencies and registration authorities at the following URL:
http://www.iso.org/iso/standards_development/maintenance_agencies.htm
7 Review of applications
7.1 Procedure
In order for an application to be processed, it shall contain sufficient information to enable the applicant to be
identified as a bona-fide organization and able to comply with the conditions for application set by the
Registration Authority.
The Registration Authority may investigate unclear or incomplete applications which do not follow its
conditions for application. If the applicant does not agree to the investigation, the application is rejected.
If the application does not contain the information specified in the conditions for application, the application
may be rejected and the applicant notified, citing this sub clause and the specific missing information as the
reason for rejection.
If the RA determines that the application is appropriate, then it is put into the confirmation process at clause
7.3.
If the RA determines that the application may not be appropriate, then it shall take any steps contained in its
conditions for application.
7.2 Response time
The review of an application under the procedures specified in 7.1 shall normally be completed within 10
working days of the receipt of the application.
7.3 Confirmation process
Details of the successful application shall be recorded on a website maintained by the RA, and the applicant
shall be informed of the URL of this site and the OIDs registered.
8 Content of applications
8.1 General
Information required by the RA to conduct the registration process may be submitted by e-mail, facsimile,
compact disk or paper copy, or (should the RA chooses to support these options) as a Web-based form or
using Web Services protocols. Additional information regarding obligations of the applicants and information
regarding applicable laws are contained in the conditions for application of the Registration Authority.
8.2 Applications
The application shall include all the information required by Annexes A, B and C for AP registration and
Annex D for AP adoption registration including associated requirements stated in those annexes for the
inclusion of documents, indemnities and diagrams.
For AP registration the application forms collect the following information:
1) contact and commercial identification information of the applicant;
© ISO/IEC 2010 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/IEC 24727-6:2010(E)
2) a completed authentication-protocol-template (derived from ISO/IEC 24727-3 Annex A and B)
populated with specific details of the authentication protocol proposed and cryptographic algorithms
supported;
3) intellectual property details of the applicant and the AP including patent country and patent number
and ownership;
4) an authentication-protocol-test-plan (APTP) populated with specific details required to test the
proposed AP according to ISO/IEC 24727-5 [to be published];
5) the Certification form, see Annex C;
6) other comments the applicant requires for publication.
For AP adoption registration the application form collects the following information:
1) contact and commercial information of the applicant;
2) name of the operation, specification, standard or recommendation which uses the RAP OID;
3) the RAP OID to be used;
4) the cryptographic algorithms supported;
5) the ISO/IEC 24727-4 Stack Model supported;
6) other comments the applicant requires for publication.
8.3 Maintenance of a web-based register
The RA shall maintain two registers to include the following:
⎯ registered authentication protocol including the registered OID;
⎯ a register of authentication-protocol-adoption including the OID adopted.
Each entry shall give the identifier information, together with a link to the full details provided in the approved
application with the exception of payment related information and signatures.
The RA shall provide a website which displays the contents of the registers. The RA shall be responsible for
determining the internal procedures necessary for the maintenance of the register in a timely and appropriate
manner.
The RA provides annual reports to the ISO/IEC JTC1/SC 17 Sub-Committee and ISO Secretariat. These are
available by request from the Sub-Committee.

6 © ISO/IEC 2010 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/IEC 24727-6:2010(E)
Annex A
(normative)

Application for registration of an ISO 24727 registered authentication
protocol
To: ISO 24727-6 Authentication Protocol Registration Authority.
Applicants should note that all information provided via this form including all attached details but excluding
payments details will be published on the RA web site.
A.1 Contact information of organization requesting RAP
Organization Name:
_______________________________________________________________________________________
National Business Identification Number:
_______________________________________________________________________________________
Country and State/Region for business identification purposes:
_______________________________________________________________________________________
Address:
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________

© ISO/IEC 2010 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO/IEC 24727-6:2010(E)
Telephone:
______________________________________________________________________________________
Fax:
______________________________________________________________________________________
E-mail:
______________________________________________________________________________________
A.2 Authorized representative
Name:
______________________________________________________________________________________
Title:
______________________________________________________________________________________
Address:
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
E-mail:
______________________________________________________________________________________
Signature _______________________________________________
A.3 Short Identifying name of the RAP proposed
______________________________________________________________________________________
Use the same identifier used in the Registered Authentication-protocol-template.
8 © ISO/IEC 2010 – All rights reserved

---------------------- Page: 13 ----------------------
ISO/IEC 24727-6:2010(E)
A.4 Short functional description of the RAP proposed
_______________________________________________________________________________________
_______________________________________________________________________________________
Full details are separately required in the Registered Authentication-protocol-template.
A.5 Patents applicable to RAP proposed
Is the proposed authentication protocol subject to any patents ?
Subject to patent numbers in countries noted below Public Domain Not subject to patent
ISO/IEC Protocol
A.5.1 Patent countries/numbers which apply to the RAP
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
All known patents should be listed.
A.6 Licence conditions
Are there any conditions which an implementer must comply with in order to utilise the proposed
authentication protocol ?
See below No - Public Domain Yes – Contact Licensee Yes - Refer ISO/IEC Standard as set
out below Yes – open source – refer details of licence below.
A.6.1 Licence conditions
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________
...
