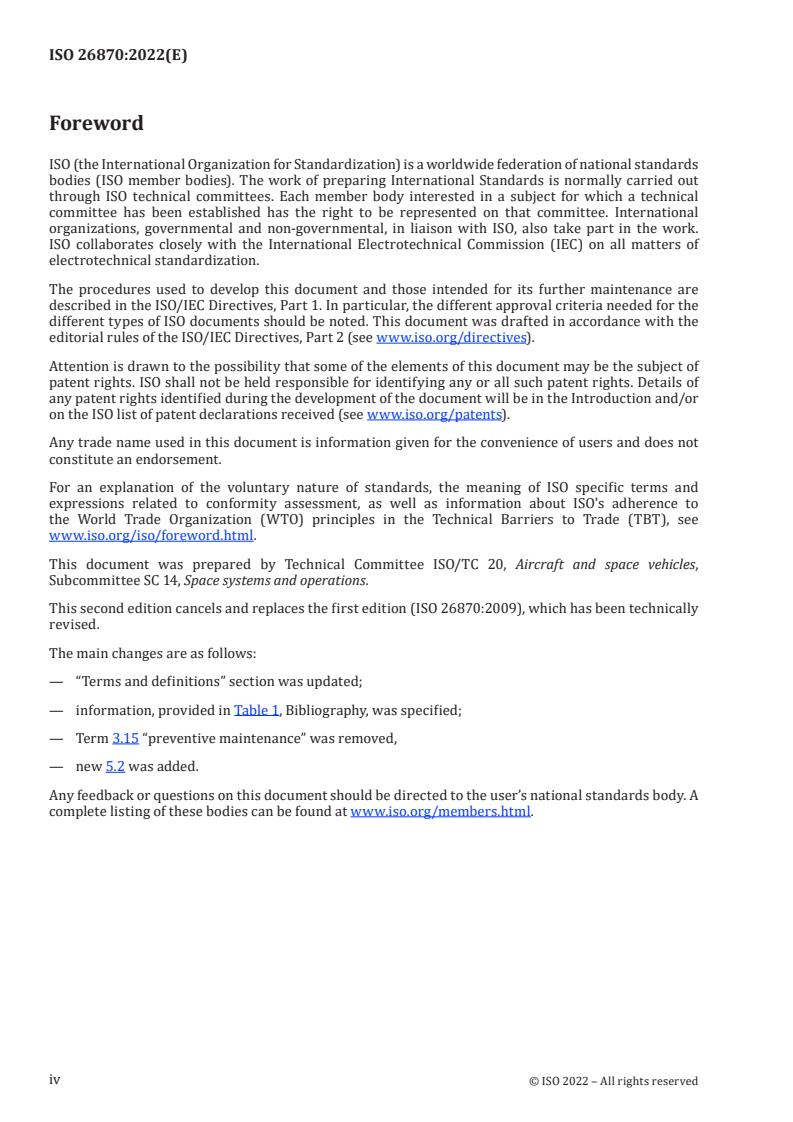

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 20, Aircraft and space vehicles,
Subcommittee SC 14, Space systems and operations.
This second edition cancels and replaces the first edition (ISO 26870:2009), which has been technically
revised.
The main changes are as follows:
— “Terms and definitions” section was updated;
— information, provided in Table 1, Bibliography, was specified;
— Term 3.15 “preventive maintenance” was removed,
— new 5.2 was added.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
This document establishes a list of documents that personnel are intended to use during operation
of the launch pad and the integration site, when multiple nations cooperate and participate in the
development or operation of these sites. This document also establishes requirements for the structure
and contents of operational documents and rules for their preparation. The purposes of this document
are:
— to provide personnel with standardized documents containing the information and procedures
necessary for effective and safe operation of the launch pad and integration site;
— to provide a procedure for applying these documents;
— to provide organizations and corporations that develop the operational documents with the common
rules of their development.
v
INTERNATIONAL STANDARD ISO 26870:2022(E)
Space systems — Launch pad and integration site
operational documents
1 Scope
This document establishes requirements for the nomenclature, structure and contents of operational
documents used at a launch pad or integration site.
When there is international participation, partnership or cooperation in the design, development,
installation, test, activation or operation of a launch pad or integration site, this document applies to
the development of the operational documents required for the following circumstances:
— installation, testing, activation or operation within the territory of one country of a launch pad or
integration site manufactured in another country;
— joint installation, testing, activation or operation when the equipment designed and manufactured
in one country is part of the launch pad or integration site designed by another country;
— training of the launch pad or integration site personnel of one country by the experts from another
country.
The development and use of the operational documents described in this document are applicable to
the following international launch pad or integration site operations:
a) preparation of integration site equipment to receive space vehicles and spacecraft;
b) preparation of launch pad equipment and the space complex for the launch of space vehicles;
c) space vehicle launch;
d) post-launch maintenance of the integration site and launch pad;
e) periodic maintenance of the integration site and launch pad.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 23041, Space systems — Unmanned spacecraft operational procedures — Documentation
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
assembly, repair and regulation manual
AM
document containing detailed descriptions of the complex (3.2), system operations or tests required for
assembly, repair and regulation
3.2
complex
launch pad (3.7) or integration site (3.6)
3.3
customer
person or organization that could or does receive a product or a service that is intended for or required
by this person or organization
[SOURCE: ISO 10795:2019, 3.78, modified — EXAMPLE and note 1 to entry have been removed.]
3.4
data log book
DLB
collection of documents that define the initial and current technical condition of a facility, system or
item of equipment
3.5
hazard analysis
HA
determination of potential sources of danger, causes, effects, hazard level, and recommended resolution
for those conditions found in either the hardware/software system, the person-machine relationship,
or both, that can cause loss of personnel capability, loss of system, or loss of life/injury to the public
[SOURCE: ISO 10795:2019, 3.121, modified — The abbrevaited term "HA" has been added.]
3.6
integration site
equipment and facility designed for launch vehicle storage, assembly and testing, and launch vehicle
(space rocket) and spacecraft/payload(s) integration, post-integration testing, and launch preparation,
maintenance, servicing and preparation for transportation to the launch pad (3.7)
[SOURCE: ISO/TR 17400:2021, 3.1]
3.7
launch pad
equipment and facility designed to provide for the pre-launch and launch operations of spacecraft
[SOURCE: ISO/TR 17400:2021, 3.3]
3.8
main system
constituent part of launch pad (3.7) or constituent part of integration site (3.6) primarily responsible for
providing preparation and launch of a launch vehicle or spacecraft
[SOURCE: ISO/TR 17400:2021, 3.6]
3.9
main system field testing
launch pad (3.7) or integration site (3.6) developm
...
