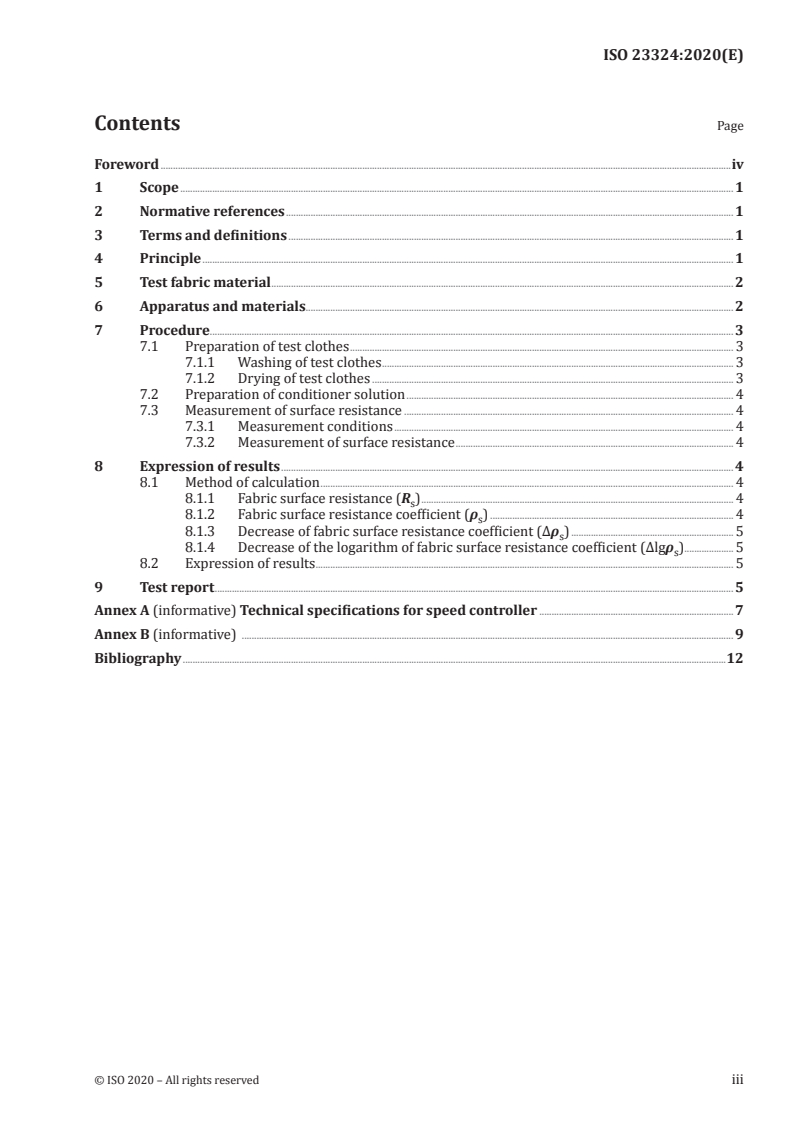

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Material . 2
6 Apparatus . 2
7 Procedure. 3
7.1 Preparation of test clothes . 3
7.1.1 Washing of test clothes . 3
7.1.2 Drying of test clothes . 3
7.2 Preparation of conditioner solution . 3
7.3 Measurement of surface resistance . 4
7.3.1 measurement conditions . 4
7.3.2 Preparation of ultra-high resistance meter . 4
7.3.3 Measurement of surface resistance . 4
8 Expression of results . 4
8.1 Method of calculation . 4
8.1.1 Fabric surface resistance (R ) . 4
s
8.1.2 Fabric surface resistance coefficient (ρ ) . 4
s
8.1.3 Decrease of fabric surface resistance coefficient (Δρ ) . 5
s
8.1.4 Decrease of fabric surface resistance coefficient (Δρ ) . 5
s
8.2 Expression of results . 5
9 Test report . 5
Annex A (normative) Technical Requirements for Speed Controller . 7
Annex B (informative) . 9
Bibliography .12
© ISO 2020 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/DIS 23324:2020(E)

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 23324 was prepared by Technical Committee ISO/TC 91 surface active agents.
iv © ISO 2020 – All rights reserved

---------------------- Page: 4 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 23324:2020(E)
Surface active agents — Fabric conditioners —
Determination of antistatic performance
1 Scope
This document specifies a method for the determination of static electricity elimination performance
for fabric conditioners.
This document is applicable to assessment of static electricity elimination performance for fabric
conditioners and antistatic agents.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1 fabric electrostatic
relatively stable electric charges accumulating within or on the surface of fabric, created by some
external influences, such as friction
3.2 the fabric surface resistance (R )
s
the resistance measured when electric current flows through the surface of fabric
3.3 the fabric surface resistance coefficient (ρ )
s
the surface resistance of fabric measured with two electrodes placed on its surface, the length of the
two electrodes and the distance between them are unit length (cm).
3.4 antistatic agent
products used to treat fabric for eliminating static electricity
3.5 fabric conditioners
products of both antistatic and softening function, which generally contain cationic surface active agents
4 Principle
The electrostatic effect of fabric is subject to not only the amount of static electricity generated, but
also the dissipation capacity of electrostatic charge. The fabric surface resistance is a physical quantity
characterising the electrostatic charge attenuation velocity of fabric. Soak the polyester in fabric
conditioner solution under specified conditions. Measure the surface resistance of the polyester with
ultra-high resistance meter before and after soaking. Assess the antistatic performance for fabric
conditioner with the decrease of the surface resistance coefficient (△ρ ) or the decrease of the logarithm
s
of the surface resistance coefficient (△lgρ ).
s
© ISO 2020 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO/DIS 23324:2020(E)

5 Material
Polyester: white or milky woven twill. Warp - 428 threads per decimeter. Weft - 242 threads per
decimeter.
Note: Polyester of other specifications or cloth of other textures can be used. However, only the
comparative test result of antistatic performance for different fabric conditioners can be provided,
which shall be included in the test report.
6 Apparatus
6.1 Digital ultra-high resistance meter
3 16
Three coaxial electrodes. Measuring range: 1×10 Ω~1×10 Ω. The intrinsic error within limits shall
2
not exceed 10 % of the indicated value. The pressure that the electrodes press on sample is 100 g/cm .
Structure size of coaxial-electrode system, see Figure 1.
Note: Commercial instruments for ultra-high resistance meter
Key
1 measuring electrode
2 shield electrode
3 test sample
4 high-voltage electrode
Figure 1 — Coaxial-electrode system
o
6.2 Oven, controllable at (45± 2) C.
6.3 Humidistat. Glass desiccator that containing potassium carbonate-saturated solution can be used.
o o
The relative humidity (RH) of air after equilibrium is 43% at 10 C~30 C.
2 © ISO 2020 – All rights reserved

---------------------- Page: 6 ----------------------
ISO/DIS 23324:2020(E)

6.4 Vegetable dehydrator (see Figure 2). Diameter of the upper rim of outer basket is (26±3) cm, and
the height is (17±2) cm.
Figure 2 — Vegetable dehydrator
6.5 Speed controller (optional) for use with the vegetable dehydrator (6.4),see Annex A.
6.6 Other tools: scissors, ruler, filter paper, plastic tweezers, plastic clip and thermometer.
7 Procedure
7.1 Preparation of test clothes
7.1.1 Washing of test clothes
Cut 10 cm selvage off the polyester, then cut it into 100 mm × 100 mm test clothes.
Dissolve soap flakes (neat soaps, soap powder or soap base, with dried sodium soap content ≥ 54 %)
in distilled water or deionized water to make the concentration of dried sodium soap in soap solution
o o
1g/l. Keep the temperature between 40 C and 45 C.
Transfer 2 l of the soap solution to the vegetable dehydrator (6.4). Put 20 pieces of the 100 mm × 100
mm test clothes into it, cover and spin for 15 min. During the spinning, turn clockwise five times then
anticlockwise five times for 3 min at a speed of 18 r/min to 22 r/min under control or monitoring (6.5),
then stop for 2 min. Repeat 2 times. Discard the water and spin fast for 30 s.
o o
Transfer 2 l of 40 C to 45 C distilled water or deionized water to the vegetable dehydrator (6.4). Cover
and spin for 3 min. During the spinning, turn clockwise five times then anticlockwise five times. Discard
the water and spin fast for 30 s. Then, repeat the rinse 2 times.
7.1.2 Drying of test clothes
Pick the washed test clothes with plastic tweezers. Cl
...
