ISO 15643:2002

INTERNATIONAL ISO
STANDARD 15643
First edition
2002-03-01


Road construction and maintenance
equipment — Bituminous binder
spreaders/sprayers — Terminology and
commercial specifications
Équipement pour la construction et l'entretien des routes —
Épandeuses/pulvérisatrices de liants bitumineux — Terminologie et
spécifications commerciales




Reference number
ISO 15643:2002(E)
©
ISO 2002

---------------------- Page: 1 ----------------------
ISO 15643:2002(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2002
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland

ii © ISO 2002 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 15643:2002(E)
Contents Page
Foreword.iv
1 Scope.1
2 Terms and definitions .1
3 Description of spreader components.3
3.1 Transport vehicle.3
3.2 Tank.3
3.3 Binder transfer device.3
3.4 Spray bar.3
3.5 Control station.3
4 Commercial specifications.4
4.1 Spreader components list.4
4.2 Vehicle characteristics.4
4.3 Tank: performance and characteristics .5
4.4 Burner.7
4.5 Binder transfer unit: bitumen pumping and transmission characteristics .8
4.6 Spray bar: performance and characteristics .9
4.7 Control station performance .13
Bibliography.14


© ISO 2002 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 15643:2002(E)

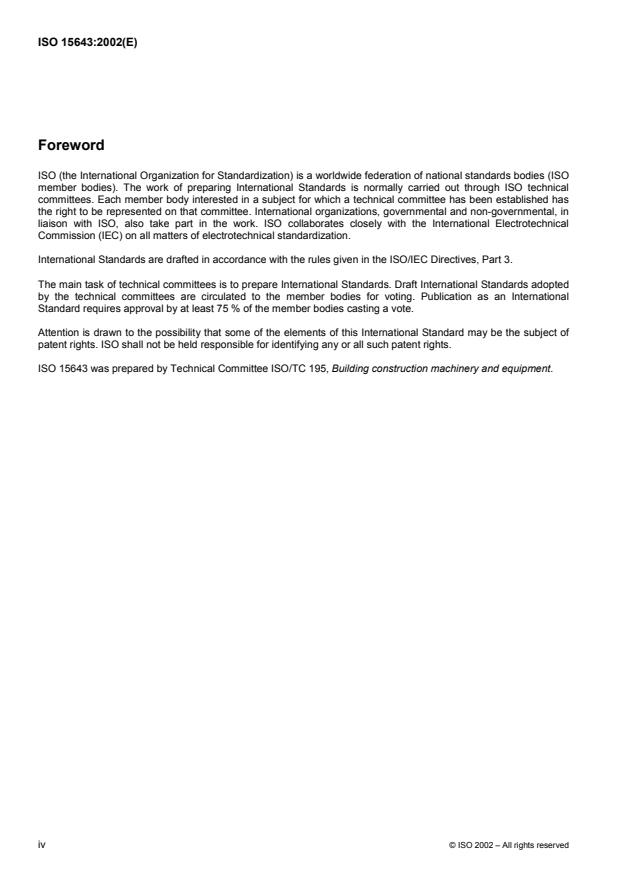

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
The main task of technical committees is to prepare International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 15643 was prepared by Technical Committee ISO/TC 195, Building construction machinery and equipment.

iv © ISO 2002 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 15643:2002(E)

Road construction and maintenance equipment — Bituminous
binder spreaders/sprayers — Terminology and commercial
specifications
1 Scope
This International Standard establishes the terminology for soil stabilizers used in road construction and pavement
works. It provides the terminology for the machine and its components, also the definitions of operation principles
and parameters.
This International Standard also establishes the parameters required for the technical characteristics of the whole
machine and its components, such as the transport vehicle and mixing device, for commercial specifications.
2 Terms and definitions
For the purposes of this International Standard, the following terms and definitions apply.
2.1
bituminous binder spreader
machine used to apply a film of binder on a pavement at a predetermined application rate
NOTE The particular spreader types may be defined by associating the operating principle, the shape of the components,
the type of binder, and by specifying the spreading performances.
2.2
displacement pump spreader
machine in which binder transfer from the storage tank to the spray bar is provided by a pump
NOTE The pump's output is proportional to its rotating speed which may be controlled by the vehicle movement speed.
2.3
constant pressure spreader
machine in which binder transfer from the storage tank to the spray bar is provided by pressurizing the binder
NOTE The binder may be pressurized directly by compressed air above the binder, or by a pump and regulating valve
maintaining a constant binder pressure in the spray bar feeder circuit.
2.4
fixed assembly spreader
machine in which the tank and its attachments are fixed to the transport vehicle
2.5
removable assembly spreader
machine in which the tank and its attachments are fixed to a removable chassis
2.6
heat-insulated spreader
machine in which the tank is equipped with thermal insulation to avoid heat loss
© ISO 2002 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 15643:2002(E)
2.7
directly heated spreader
machine with heating provided by circulation of hot gases in a tube or by an electrical resistor in contact with the
binder
2.8
indirectly heated spreader
machine with heating provided by circulation of a hot liquid supplied by a generator outside or inside the spreader
2.9
hot binder spreader
machine which enables application of binder at a temperature greater than 80 °C
2.10
cold binder spreader
machine which spreads binders at a temperature lower than 80 °C
2.11
high-viscosity-binder spreader
machine which enables application of a binder with a viscosity greater than 300 cSt at the application temperature
2.12
high-binder-pressure spreader
machine in which the binder pressure in the spray bar during spreading is greater than 0,2 MPa
2.13
medium-binder-pressure spreader
machine in which the binder pressure in the spray bar during spreading is between 0,02 MPa and 0,2 MPa
2.14
low-binder-pressure spreader
machine in which the binder pressure in the spray bar during spreading is less than 0,02 MPa
2.15
tank volume
internal volume of the tank
NOTE It is expressed in cubic metres.
2.16
rated capacity
volume of binder which can be carried
NOTE It is expressed in cubic metres.
2.17
nominal loading of tank
loading using the available capacity of the binder with the highest density
NOTE It is expressed in kilograms.
2.18
spray bar width
distance between end flow points
NOTE It is expressed in metres.
2 © ISO 2002 – All rights reserved
