ISO/TS 14815:2000

TECHNICAL ISO/TS
SPECIFICATION 14815
First edition
2000-06-01
Road transport and traffic telematics —
Automatic vehicle and equipment
identification — System specifications
Télématique de la circulation et du transport routier — Identification
automatique des véhicules et équipements — Spécification des systèmes
Reference number
©
ISO 2000
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 734 10 79
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
The main task of technical committees is to prepare International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a technical
committee may decide to publish other types of normative document:
— an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical experts in an
ISO working group and is accepted for publication if it is approved by more than 50 % of the members of the
parent committee casting a vote;
— an ISO Technical Specification (ISO/TS) represents an agreement between the members of a technical
committee and is accepted for publication if it is approved by 2/3 of the members of the committee casting a
vote.
An ISO/PAS or ISO/TS is reviewed every three years with a view to deciding whether it can be transformed into an
International Standard.
Attention is drawn to the possibility that some of the elements of this Technical Specification may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TS 14815 was prepared by the European Committee for Standardization (CEN) in collaboration with ISO
Technical Committee TC 204, Transport information and control systems, in accordance with the Agreement on
technical cooperation between ISO and CEN (Vienna Agreement).
Throughout the text of this document, read ".this European pre-Standard." to mean ".this Technical
Specification.".
Annexes A to E of this Technical Specification are for information only.

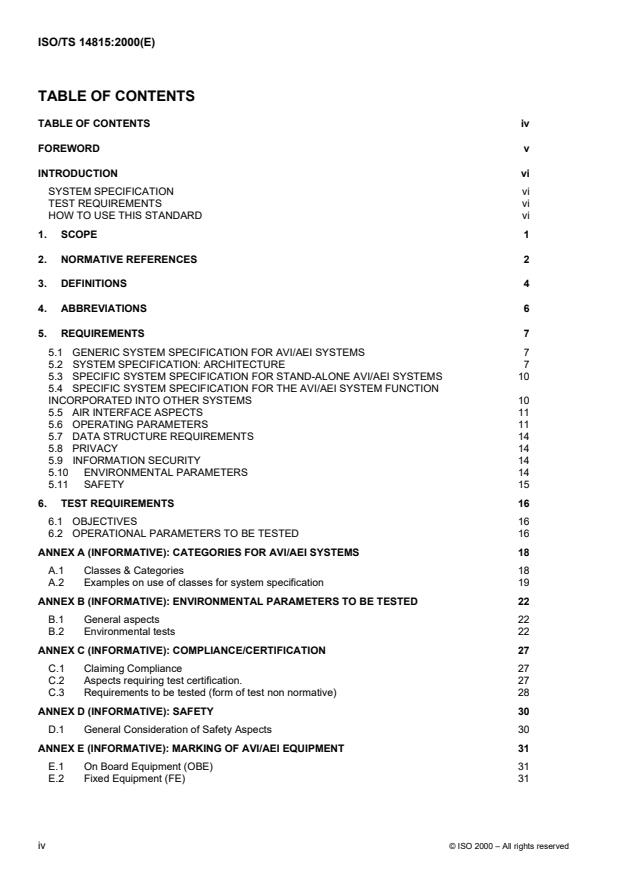

TABLE OF CONTENTS
TABLE OF CONTENTS iv
FOREWORD v
INTRODUCTION vi
SYSTEM SPECIFICATION vi
TEST REQUIREMENTS vi
HOW TO USE THIS STANDARD vi
1. SCOPE 1
2. NORMATIVE REFERENCES 2
3. DEFINITIONS 4
4. ABBREVIATIONS 6
5. REQUIREMENTS 7
5.1 GENERIC SYSTEM SPECIFICATION FOR AVI/AEI SYSTEMS 7
5.2 SYSTEM SPECIFICATION: ARCHITECTURE 7
5.3 SPECIFIC SYSTEM SPECIFICATION FOR STAND-ALONE AVI/AEI SYSTEMS 10
5.4 SPECIFIC SYSTEM SPECIFICATION FOR THE AVI/AEI SYSTEM FUNCTION
INCORPORATED INTO OTHER SYSTEMS 10
5.5 AIR INTERFACE ASPECTS 11
5.6 OPERATING PARAMETERS 11
5.7 DATA STRUCTURE REQUIREMENTS 14
5.8 PRIVACY 14
5.9 INFORMATION SECURITY 14
5.10 ENVIRONMENTAL PARAMETERS 14
5.11 SAFETY 15
6. TEST REQUIREMENTS 16
6.1 OBJECTIVES 16
6.2 OPERATIONAL PARAMETERS TO BE TESTED 16
ANNEX A (INFORMATIVE): CATEGORIES FOR AVI/AEI SYSTEMS 18
A.1 Classes & Categories 18
A.2 Examples on use of classes for system specification 19
ANNEX B (INFORMATIVE): ENVIRONMENTAL PARAMETERS TO BE TESTED 22
B.1 General aspects 22
B.2 Environmental tests 22
ANNEX C (INFORMATIVE): COMPLIANCE/CERTIFICATION 27
C.1 Claiming Compliance 27
C.2 Aspects requiring test certification. 27
C.3 Requirements to be tested (form of test non normative) 28
ANNEX D (INFORMATIVE): SAFETY 30
D.1 General Consideration of Safety Aspects 30
ANNEX E (INFORMATIVE): MARKING OF AVI/AEI EQUIPMENT 31
E.1 On Board Equipment (OBE) 31
E.2 Fixed Equipment (FE) 31
iv © ISO 2000 – All rights reserved

FOREWORD
This European Prestandard has been prepared by Technical Committee CEN/TC 278 "Road
transport and traffic telematics ", the secretariat of which is held by NNI, in collaboration with
Technical Committee ISO/TC 204 "Transport information and control systems".
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Czech Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy,
Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United
Kingdom.
INTRODUCTION
SYSTEM SPECIFICATION
This pre-Standard is designed to enable users and suppliers of AVI/AEI systems to specify
system specification that will enable a nominal interoperability based on a DSRC link (see
clause 5.5).
The terms “AVI” and “AEI” are used both to describe “independently functioning AVI/AEI
systems” and as “the function of identification within other RTTT/TICS systems”. Both such
uses are supported by this pre-Standard where no other application or sector standard applies.
Whilst it may be desirable to determine a single set of requirements for operation in all
environments and under all operating conditions, this could impose unacceptable costs.
This pre-Standard therefore provides standard “classes” for different aspects of system
specification, such that a system specifier may select the appropriate performance parameters
to meet a particular requirement. Supporting (informative) annexes also provide a number of
general use “categories” which may be used to specify the environmental and operating
parameters to support interoperable applications.
The architecture descriptions provided in this pre-Standard are in compliance with the
guidelines provided by CEN TC 278 WG13/ISO TC 204 WG1.
For the data structure elements, Abstract Syntax Notation One (ASN.1) Packed Encoding Rules
(PER) (ref. ISO/IEC 8824:1998 and ISO/IEC 8825-1:1998, ISO/IEC 8825-2:1998 and ISO/IEC
DIS 8825-3:1992) are used. This usage provides maximum interoperability and conformance to
existing Standards.
For detailed information on the use of ASN.1 PER for AVI/AEI applications reference is made to
pre-Standard ENV ISO 14816 (AVI/AEI Numbering and Data Structures).
This pre-Standard (ENV ISO 14815) provides classification procedures and details test
requirements needed to support system definition. These requirements are, wherever possible,
determined by reference to existing Standards and established practices.
TEST REQUIREMENTS
Test Requirements are determined for AVI/AEI system components. The requirements to meet
this pre-Standard encompass general performance measurement, operational, and
environmental aspects.
HOW TO USE THIS STANDARD
It is also an objective to provide users with different applications and in different environmental
circumstances a useful tool that is flexible enough to serve the various different needs. The
categorisation and classification system in this pre-Standard provides for this.
A brief guide showing how to use this pre-Standard is provided at the end of Annex A of this
pre-Standard.
COMPLIANCE
In order to claim compliance with this pre-Standard, a supplier shall
provide, for each physically separated component, detail of the
classification of its product for all relevant (environmental and
operational) parameters determined within this pre-Standard.
vi © ISO 2000 – All rights reserved

1. SCOPE
This pre-Standard defines a generic AVI/AEI System specification for nominal AVI/AEI to
provide an enabling Standard, which, whilst allowing the system specifier to determine the
performance levels and operating conditions, provides a framework for nominal interoperability.
Within the Road context of the Transport and Traffic Telematics Sector, AVI and AEI systems
have the specific objective of achieving a unique or unambiguous positive identification of a
vehicle or item of equipment, and to make that identification automatically.
Whilst AVI may also be seen as an essential component of some applications, the particular
needs of such systems are outside the scope of this pre-Standard. As far as is possible, care is
still taken to provide a useful tool for such applications.
This pre-Standard only refers to AVI/AEI in the road environment. Multimodal and intermodal
exchanges of AVI/AEI are outside the scope of this pre-Standard
Where AVI/AEI applications are part of a larger system, and where no standardised application
specific test requirements exist, these test requirements shall apply.
Anonymity and privacy issues are not handled in this part standard. Please refer to ENV ISO
14816.
This pre-Standard is designed for system specification that will enable a nominal interoperability
based on a DSRC link (as defined by prENV ISO 17264 and referred to in clause 5.5). AVI/AEI
systems that are relying on other link types are outside the scope of this pre-Standard for those
parameters where the link type influences parameters.
The Scope of this pre-Standard is confined to Generic AVI/AEI System specification for systems
that have the following ‘core’ components:
A means of communication between the vehicle/equipment and the reading station (e.g. a
DSRC link, reference prENV ISO 17264 )
Operation within a reference architecture which enables compatible systems to read and
interpret the identification (See ENV 12314-1)
Compliance to commonly understood data structures that enable meaningful interpretation of
the data exchanged in the identification sequence (See ENV ISO 14816)
The provision of operating and environmental parameters (or classes of operating parameters)
within which such systems must successfully function without impairing interoperability. This to
ensure that the System specifier can state his requirements clearly to Implementation Designers
and Integrators, and measure the performance of such systems (This standard, ENV ISO
14815)
2. NORMATIVE REFERENCES
This pre-Standard incorporates by dated or undated reference provisions from other
publications.
For dated references, subsequent amendments to or revisions of any of these publications apply to this
pre-Standard only when incorporated in it by amendment or revision. For undated references the latest
edition of the publication referred to applies.
These normative references are cited at the appropriate places in the text (in order of appearance) and
the publications are listed hereafter (including amendments).
ENV 12314-1 Road Transport and Traffic Telematics - Automatic vehicle and
equipment identification - Part 1: Reference architectures and
terminology (ISO TR 14814)
ENV 12795 Road Transport and Traffic Telematics - Dedicated Short-Range
Communication (DSRC) - DSRC Data link layer: Medium Access
and Logical Link Control
ENV ISO 14816 Road Transport and Traffic Telematics - Automatic vehicle and
equipment identification - Numbering and data structures
ENV ISO 17264 Road Transport and Traffic Telematics - Automatic Vehicle and
Equipment Identification (AVI/AEI) - AVI/AEI Interfaces
EN 50081 Electromagnetic compatibility – Generic emission Standard
EN 300 674 Electromagnetic compatibility and Radio spectrum Matters (ERM) -
Road Transport and Traffic Telematics (RTTT) - Technical
characteristics and test methods for data transmission equipment
operating in the 5, 8 GHz Industrial, Scientific and Medical (ISM)
band
IEC 60068-1:1988 Environmental Testing Procedures - Part 1: General and Guidance
IEC 60068-4:1987 Basic Environmental Testing Procedures -Part 4: Information for
specification writers - Test Summaries
IEC 60215:1987 Safety requirements for radio transmitting equipment
IEC 60721-3-4:1995 Classification of environmental conditions - Part 3: Classification
of groups of environmental parameters and their severities –
Section 4: Stationary use at non-weather protected locations
IEC 60721-3-5:1988 Classification of environmental conditions - Part 3: Classification
of groups of environmental parameters and their severities –
Section 5: Ground vehicle installations
IEC 61000-4-2 Electromagnetic compatibility (EMC) – Part 4: Testing and
measuring techniques – Section 2: Electrostatic discharge
immunity test – Basic EMC Publication
IEC 61000-4-6 Electromagnetic compatibility (EMC) - Part 4: Testing and
measuring techniques – Section 6: Immunity to conducted
disturbances, induced by radio-frequency fields
ISO 7637-1:1990 Road vehicles - electrical disturbance by conduction and coupling -
Part 1: Passenger cars and light commercial vehicle with nominal
12V supply voltage - Electrical transient conduction along supply
lines only
ISO/IEC 8824-1:1998 Information technology - Abstract Syntax Notation One (ASN.1) -
Part 1: Specification of the basic notation
ISO/IEC 8824-2:1998 Information technology - Abstract Syntax Notation One (ASN.1) -
Part 2: Information object specification
2 © ISO 2000 – All rights reserved

ISO/IEC 8824-3:1998 Information technology - Abstract Syntax Notation One (ASN.1) -
Part 3: Constraint Specification
ISO/IEC 8824-4:1998 Information technology - Abstract Syntax Notation One (ASN.1) -
Part 4: Parameterization of the ASN.1 specifications
ISO/IEC 8825-1:1998 Information technology - ASN.1 encoding rules - Part 1:
Specification of Basic Encoding Rules (BER), Canonical Encoding
Rules (CER) and Distinguished Encoding Rules (DER)
ISO/IEC 8825-2:1998 Information technology - ASN.1 encoding rules - Part 2:
Specification of Packed Encoding Rules (PER)
ISO/IEC DIS 8825-3:1992 Information technology - ASN.1 encoding rules – Part 3:
Distinguished canonical encoding rules
CEPT/ERC T/R 22/04 : 1991 Harmonisation of Frequency Bands for Road Transport Information
Systems
US MIL-STD-721 Definition of Terminology
3. DEFINITIONS
The Glossary of Definitions used is maintained within the pre-Standard ENV ISO 14815 Reference
Architectures and Terminology.
For the purpose of this pre-Standard, the following definitions apply.
AVI/AEI System: With the term "AVI/AEI System" is meant the AVI/AEI
application in a RTTT system either as a stand-alone system
or as part of a RTTT application.
Bi-directional monologue: A "Read only" functionality with a start signal from the FE
side.
Category: In the Informative Annexes supporting this pre-Standard
‘Category’ is used to provide groupings of common class
requirements to support interoperability between AVI/AEI
systems of common purpose (e.g. a "Ruggedised" category
versus a "Standard" category).
Class: In this pre-Standard used to differentiate between System
components with different "grades" of requirements for
parameters. (e.g. class 1 for "extreme" operational and
environmental requirements).
Environmental parameters: In this pre-Standard used to describe different environmental
component properties/specifications
Extreme: Term used in this pre-Standard to refer to class 1
requirements for the "Ruggedised" system category "A".
Fixed Equipment (FE): Equipment required to interrogate, receive and interpret the
data in the On-Board Equipment (OBE) in order to present
the identification.
Lifetime: The period of time during which an item of equipment exists
and functions according to the relevant requirements of this
pre-Standard.
Maintainability: The ability to keep in a condition of good repair or efficiency
Mean Time to Failure: The average time that a system functions before first failure.
Mean Time between Failures: The mean cycle (one failure and one repair) time of a
maintained system.
Nominal Interoperability: Stands for “ Application Area Interoperability” in a region
spanning two or more areas with cross-border operation
between operator domains, districts or nations. The
capability for a nominal AVI/AEI System FE to operate with a
nominal AVI/AEI System OBE.
Normal: Term used in this pre-Standard to refer to class 2
requirements for the "Standard" system category "B".
On-Board Equipment (OBE): Equipment fitted to the vehicle or item to be identified and
containing the unique or unambiguous positive identification.
Operational parameters: In this pre-Standard used to describe different operational
component properties/specifications
Physical Architecture: The physical configuration and physical interconnection of
equipment to achieve its function (not the equipment itself)
Selected: Term used in this pre-Standard to refer to class 1-6
requirements for the system categories "3 - 6".
4 © ISO 2000 – All rights reserved

Shadowing: A condition where the close proximity of a vehicle/equipment
interposed between FE and OBE obscures the signals thus
preventing a successful AVI/AEI transaction. The shadowing
caused by normal traffic behaviour is taken into account and
overcome to provide a successful transaction. Abnormal
shadowing may be caused by large or unusually shaped
vehicles/equipment or by vehicles travelling too closely
together.
(AVI/AEI) Transaction A completed cycle of communication (across the air
interface at reference point delta) wherein a message
identifying a vehicle or item of equipment is successfully
received and understood by the receiver during one passage
through the read zone. The number of attempts, retries and
repeats is not relevant, it is only that one fully completed
identification process communication cycle is successfully
completed to the extent that no communications error could
be detected.
4. ABBREVIATIONS
The following abbreviations are used in this pre-Standard:
AEI Automatic Equipment Identification
AIB Accredited, Independent, Testing Body
ASN.1 Abstract Syntax Notation One
AVI Automatic Vehicle Identification
CEPT Comité Européenne de Postes et Telecommunication (Fr.)
European Committee for Post and Telecommunication
DSRC Dedicated Short Range Communication
FE Fixed Equipment
MTBF Mean Time Between Failure
OBE On Board Equipment
OSI Open Systems Interconnection
RTTT Road Transport and Traffic Telematics (CEN TC278)
TICS Transport Information and Control Systems (ISO TC204)
The following abbreviations are used to designate the IEC 60721 - Environmental classes :
B - Biological
C - Chemical substances
F - Contaminating fluids
K -Climatic
M - Mechanical
S - Mechanical substances
Z - Special Climatic conditions
6 © ISO 2000 – All rights reserved

5. REQUIREMENTS
5.1 GENERIC SYSTEM SPECIFICATION FOR AVI/AEI SYSTEMS
This clause summarises the Generic System specification for AVI/AEI Systems in terms of
functions supported, data exchanges, categorisation and classification. The requirements
defined in this clause:
� provide operation within the Reference Architecture defined in ENV 12314-1
� allocate application data in accordance with ENV ISO 14816
� enable nominal interoperability.
To obtain interoperability, it is a requirement that nominal AVI/AEI System FE shall have the
capability to operate with nominal AVI/AEI System OBE albeit of different capability using a air
interface as referenced in clause 5.5.
However, the environmental and operating conditions within which such equipment has to
function may be different according to geographical location, traffic operating conditions, etc.
This pre-Standard provides environmental/operational classes grouped into categories to
enable the market place to decide the most appropriate FE for individual fixed locations. This is
with the knowledge that, within the operating/environmental constraints selected, any properly
configured Standard Compliant AVI/AEI System OBE shall have the capability to be identified
by all Standard Compliant AVI/AEI System FE.
To obtain nominal AVI/AEI System interoperability, it is a requirement that OBE’s shall have the
capability to operate with nominal AVI/AEI System FE.
However, the environmental and operating conditions within which on board equipment has to
function may be different according to geographical location, vehicle or equipment type, OBE
location, etc. This pre-Standard provides options and environmental/operational classes to
enable the market place to select the most appropriate OBE equipment, with the knowledge
that, within the operating/environmental constraints selected, any properly configured Standard
compliant AVI/AEI System FE shall have the capability to identify all Standard compliant
AVI/AEI OBE’s passing within its compass.
These Generic System specifications provide a migration path to later generations of equipment
and to equipment of greater capability.
In order to enable an AVI/AEI system to operate across wide areas, it is necessary for the
system to use the Standardised interfaces architecture and data structures normalised in this
family of AVI/AEI pre-Standards. As particular system specification will vary, well declared and
flexible structures are used. It is important, for example, that AVI/AEI System FE facilities can
effectively operate different variants of OBE. The System specification defined in this pre-
Standard support the numbering schemes and data structuring defined in ENV ISO 14816.
5.2 SYSTEM SPECIFICATION: ARCHITECTURE
It is the Vision of the AVI/AEI System specification pre-Standard to:
“provide a method (trans-national and interoperable) of automatically identifying a vehicle or
item of equipment using a standard DSRC link.”
Other subsequent Standards may determine Requirements for AVI/AEI Systems working at
other air interfaces.
It is the Mission of the AVI/AEI System specification pre-Standard to:
“Define the functionality, environmental and operating parameters (System specification for
AVI/AEI) such that they may achieve the objectives of the Vision Statement in an Open Systems
Environment, enabling interoperability, whilst retaining the ability for different equipment to
coexist.”
According to the operational situation, AVI/AEI Systems may be viewed either as a service to
support an application (such as the vehicle identification component in a public transport system
or freight management system), or as an application in itself (for example, the identification of a
‘probe’ vehicle in a traffic management situation or in an enforcement situation). As such the
(such as
AVI/AEI System function may be achieved using purpose specific dedicated equipment
an AVI/AEI System transponder), or may be achieved using equipment installed for the
application that it supports, or indeed, using existing equipment installed for another application
(such as a freight logistics system utilising AVI techniques). Such multi-application support and
interoperability will be particularly common in respect of the OBE, although will also be required
in respect of the FE.
5.2.1 Conceptual Architecture
See ENV 12314-1.
5.2.2 Logical Architecture
See ENV 12314-1.
5.2.3 Functional Architecture
See ENV 12314-1.
5.2.4 Control Architecture
See ENV 12314-1.
5.2.5 Identification Principles
This pre-Standard adheres to the Open Systems Interconnection (OSI) philosophy, i.e. the
definition is concerned with the exchange of information between systems and not the internal
functioning of each individual system component.
In order to co-operate, entities in any OSI layer, other than the lowest layer, communicate by
means of the set of services provided by the next lower OSI layer.
This pre-Standard references the series of pre-Standards developed by CEN TC 278/WG9.
The work of ISO/TC 204, especially WG1/SG3, is taken into account as far as possible as are
other existing relevant definitions of data elements (such as the 'Data elements to be used in
surface transport applications of machine readable cards' (CEN TC 224/WG11)).
Where the RTTT/TICS system service has to support devices in an interoperable environment,
it is essential that the devices are capable of 'upwards migration', either to accommodate
different types of devices in the emerging specifications, or as new generations of systems are
developed.
5.2.6 Information Architecture
See ENV 12314-1 and ENV ISO 14816.
5.2.7 Physical (Application) Architecture
This Clause describes the physical configuration and physical interconnection of equipment to
achieve its function (not the equipment itself).
The physical architecture shall be as defined in pre-Standard ENV 12314-1 clause 4.5.
The following clauses provide a summary of the Application Architecture.
In the majority of situations the objective of the AVI/AEI System function is to uniquely identify
vehicles or equipment. In some circumstances the position may be reversed and it may be for a
moving vehicle or equipment to identify a static or moving object (such as a location identifier, or
another moving vehicle or equipment).
In some cases it is necessary to protect the identity of a vehicle or equipment for reasons of
privacy or security. In these cases the AVI/AEI System shall provide an alias or temporary
8 © ISO 2000 – All rights reserved

unambiguous identification that does not necessarily provide the permanent identification of the
vehicle or equipment. (It may, for example, identify a smart card temporarily located in an on
board unit). However, such identifications are supported within this pre-Standard.
Figure 5-1: Example of physical architecture model
The example in Figure 5-1 shows one central FE system with a number of local FE systems.
Each local system may have one or multiple FE connections. The example also shows OBE of
two different types, without indication of the exact number of each.
The AVI/AEI System may be a stand alone function using dedicated equipment, or may be an
application service within a more complex service (such as fee collection, route guidance, fleet
management, etc.) achieved using the equipment provided for that service. The FE used may
provide the functions of more than one service, or indeed the function may be performed by a
combination of equipment (such as an interrogator plus an antenna).
The general application configuration shall comprise of FE and OBE (OBE) making use of the
DSRC to communicate.
The FE shall utilise an antenna targeted on the identification zone. The FE shall normally, but
not necessarily, be connected to either a local and/or a central computer system.
The OBE, shall utilise an antenna located such that it will pass through the identification zone.
As the OBE passes through the Identification Zone, communication shall be effected using a
DSRC link (see clause 5.5 and prENV ISO 17264). All AVI/AEI System application specific data
shall comprise of one or more Numbering Scheme(s) determined in ENV ISO 14816, or a
‘Private’ class data construct supported within that pre-Standard.
The AVI/AEI System identification component specified within this pre-Standard may be
described as a ‘bi-directional Monologue’. Bi-directional in that there shall be a communication
phase where contact is established with the OBE and the OBE responds; a Monologue, in that
the AVE/AEI identification is a data structure (or group of data structures) sent from the OBE to
the FE.
Additional bi-directional data exchanges are permissible (and indeed are essential to support
many application services) but are outside the domain of this AVI/AEI System pre-Standard.
Other Standards for the Sector shall prescribe the form of these data exchanges.
An AVI/AEI System identification, or AVI/AEI System component of a more complex RTTT/TICS
identification, shall only be regarded as a Standard compliant identification if it complies with the
System specification determined in this pre-Standard. In order to ensure interoperability within
the sector, no form of AVI/AEI System, other than that determined in this pre-Standard (and in
its related pre-Standards ENV 12314-1 and ENV ISO 14816), may claim to be compliant with
CEN TC278 RTTT Standards for AVI/AEI Systems or ISO TC204 TICS Standards for AVI/AEI
Systems.
5.2.8 Deployment (Implementation) Design
The Deployment Architecture for AVI/AEI Systems is not considered appropriate for
Standardisation.
5.3 SPECIFIC SYSTEM SPECIFICATION FOR STAND-ALONE AVI/AEI
SYSTEMS
This clause defines the specific data exchange operation to achieve the AVI/AEI transaction.
The AVI/AEI transaction is an essentially simple bi-directional monologue transaction in which
the FE requests the data from the OBE and the OBE provides its data.
The data shall comprise one or more Standardised data constructs as defined in ENV ISO
14816.
The transaction shall conform to prENV ISO 17264 and ENV 12795. The Clause below defines
the description method used in describing the specific system specification for an AVI/AEI
transaction.
5.3.1 GET function
The principal function to support access to the AVI/AEI data structures (defined in ENV ISO
14816) is:
GET
Note: This is the only standardised function required to perform AVI/AEI.
GET is an AVI/AEI System function used to initiate a read operation of AVI/AEI System
information. i.e. AVI/AEI System application data
Usage:GET(, Data)
5.3.2 Further (optional) functions
Some AVI/AEI systems may additionally provide further functions. The following functions are
not mandatory, but if present shall conform to the following general form and to the definition to
be specified in the AVI/AEI System Interface pre-Standard. This function requires a full bi-
directional link.
5.3.2.1 SET
SET is an AVI/AEI System function used to put data into the memory of an on board equipment
(OBE).
Usage:SET(.[DataElementIdentifier], data
to be written,[]).
5.4 SPECIFIC SYSTEM SPECIFICATION FOR THE AVI/AEI SYSTEM
FUNCTION INCORPORATED INTO OTHER SYSTEMS
The AVI/AEI System may be used as an identification element within another application (e.g.
fleet management, parking management, etc.).
10 © ISO 2000 – All rights reserved

Where an application requires simply an AVI/AEI System identification transaction it shall use
the method defined in 5.3. above. In cases where there is an application-defined transaction
using a standardised DSRC interface, this standard (ENV ISO 14815) does not apply.
5.5 AIR INTERFACE ASPECTS
This pre-Standard assumes the provision of adequate DSRC interface pre-Standards provided by ETSI
(EN 300 674) and CEN (ENV 12253, 12795, 12834). The provisions and determinations specified
within this pre-Standard assume a DSRC link at 5.795-5.805GHz as recommended by CEPT/ERC
22/04 or other frequencies as may be specified in such ETSI and CEN Standards. The air interface
parameters will also be referenced in ENV ISO 17264.
Note 1: Whilst many of the system specification determined in this pre-Standard may be
applicable regardless of the frequency, it will be necessary to reconsider each of the provisions
of this pre-Standard in situations where new frequency ranges are to be used. Where
appropriate, new Standards may need to be developed for specific frequency ranges.
Note 2: For the ISO parallel voting, the relevant ITU reference will be replacing or added to this clause
as soon as available.
5.6 OPERATING PARAMETERS
5.6.1 AVI/AEI SYSTEM OPERATING PARAMETERS
In order to claim compliance a declaration for ALL tables, and table combinations shall
be made. Omission of declaration of any one table or any table combination in this
section shall constitute non conformance to the Standard.
Example: Where speed is claimed, the maximum number of transponders in zone must be declared;
where life of transponders is claimed, the number of reads per period shall be declared.
5.6.1.1 Reliability, Availability, Lifetime, Maintainability.
The operational requirements for reliability, availability and maintainability on the AVI/AEI
System level are formulated in a qualitative way, not quantitatively.
5.6.1.1.1 Reliability
This clause relates to the reliability requirements between reference points “alpha” and “delta”
determined in ENV 12314-1.
In order to be considered reliable, a compliant AVI/AEI system shall deliver a declared
maximum of undetected erroneous identification results under nominal operational conditions at
reference point Beta.
5.6.1.1.2 Maintainability
The FE shall be designed to facilitate maintenance.
The OBE (excluding exchangeable batteries or external power source) shall not require
maintenance.
5.6.1.1.3 Minimum number of identifications per year for the OBE
Table 5-1: Identification per year for OBE
CLASS IDENTIFICATIONS PER YEAR *
A1 20,000
A2 10,000
A3 4,000
A4 2,000
* Where an internal battery is used in the OBE, Class A is to be considered in conjunction with Class B
below. In order to claim compliance with a particular ‘Class A’ Classification, the OBE shall also meet
the claimed OBE lifetime classification.
5.6.1.1.4 Lifetime of OBE
The minimum lifetime of the OBE shall be as determined in Table 5-2.
Table 5-2: Minimum lifetime of OBE
CLASS OBE LIFETIME
B1 15 years
B2 10 years
B3 5 years
B4 3 years
B5 2 years
B6 1 year
B7 6 Months
B8 3 Months
B9 1 Month
Note: In the case of using an exchangeable battery in the OBEs, the lifetime of the battery shall
be as determined in Table 5-3.
Table 5-3: OBE battery lifetime
CLASS BATTERY LIFETIME*
BB1 15 years
BB2 10 years
BB3 5 years
BB4 3 years
BB5 2 years
BB6 1 year
BB7 6 Months
BB8 3 Months
BB9 1 Month
*Based on 500 transactions per month.
5.6.1.1.5 Distance between FE and OBE antennas
Table 5-4: Distance between FE and OBE antennas
CLASS READING DISTANCE TEST POINTS
C1 20m
C2 10m
C3 6m
C4 3m
C5 1m
C6 0.5m
Note 1: To achieve Class C1, it shall read at all test point, Class C2, all test points up to 10m
etc.
12 © ISO 2000 – All rights reserved

Note 2: Where EN 300 674 applies, distance shall be measured according to power levels as
defined by EN 300 674. The power class, where applicable, shall be documented (e.g. Class C1/1,
Class C1/2.etc). Applicable ETSI power classes shall not be exceeded.
5.6.1.2 OBE Installation
The technology adopted for an AVI/AEI System shall not preclude OBEs that can be installed by
the user, without any aid from any expert.
Installation is to be effected according to an approved, documented procedure provided by the
manufacturer.
When being fitted to a vehicle, the equipment and the whole installation must comply with the
provisions relating to maximum tolerances laid down by the manufacturer specifications.
The equipment shall be immune to damage caused by the normal handling, connection and
disconnection that are necessary for installation and maintenance activities.
This shall not preclude OBE's which are specifically designed to cease functioning upon removal or
tampering.
5.6.1.3 Electromagnetic Disturbance
The AVI/AEI System shall be able to perform identifications in an environment with
electromagnetic disturbance in accordance with IEC 61000-4-2 and EN 50081. For the radio link
part EN 300 674 applies.
5.6.1.4 Emissions
The electric or magnetic fields produced by the AVI/AEI System shall not exceed the levels as
specified in IEC 60215. This clause applies to both FE and OBE. For the radio link part
EN 300 674 applies.
Example: Specifically IEC 60215 requires that the transmitted electric and magnetic fields
shall not exceed 200V/m or 0.5 A/m, respectively over the frequency range 30 MHz to 30 GHz.
2 2
This approximately corresponds to a radiation power density of 100 W/m (10 mW / cm ) and
applies to distance greater than 5 cm from accessible surfaces of the equipment.
Note: For the ISO parallel voting, the relevant ITU reference will be replacing or added to this
clause as soon as available.
5.6.2 AVI/AEI SYSTEM SPECIFIC OPERATING PARAMETERS
Due to the variations in size and loading configurations of items of equipment that may be
encountered in an RTTT/TICS environment, references to distance detailed in this clause refer
to distances between the OBE antennas.
The system must be able to operate within the limits as specified in the following tables.
Table 5-5: Maximum number of OBE antennas per cubic metre
CLASS OBE’s per m
D1 0.1
D2 1
D3 10
D4 25
D5 50
D6 100 and above
Note: Depending on technical solution, there may be a requirement to specify the maximum
number of OBE in the read zone as a factor of passing speed
Table 5-6: Minimum distance between OBE antennas
CLASS Clearance between OBE’s
E1 1 cm
E2 5 cm
E3 10 cm
E4 25 cm and above
Note: This will normally reference distance between monolithic OBEs when mounted according
to manufacturers specification.
Table 5-7: Passing speed
CLASS Speed Test Point
Km/h m/s
F1 240 66
F2 160 44
F3 120 33
F4 72 20
F5 18 5
F6 9 2.5
F7 3.6 1
Note 1: To achieve Class F1, it shall read at all test point, Class F2, all test points from 1m/s up
to 66m/s etc.
Note 2: F5 to F7 are applicable classes for use in low-speed AEI environments such as
inventory management etc., but are also used as stop-and-go traffic test points.
5.7 DATA STRUCTURE REQUIREMENTS
The overall requirements for AVI/AEI System data are determined within ENV ISO 14816.
5.8 PRIVACY
Privacy is not a mandatory requirement for a nominal AVI system (or system service) as its
principle objective is to positively identify vehicles/equipment. Reference ENV ISO 14816 for
further details.
5.9 INFORMATION SECURITY
Security data at the message level and the security information objects (such as cryptographic
checksums) can optionally be provided by adequate measures, but do not form part of this pre-
Standard. Reference ENV ISO 14816 for further details.
5.10 ENVIRONMENTAL PARAMETERS
This clause is applicable for all parameters of operation, transport, and storage
The following abbreviations are used to designate the environmental classes defined in IEC 60721:
B - Biological
C - Chemical substances
F - Contaminating fluids
K- Climatic
M - Mechanical
14 © ISO 2000 – All rights reserved

S - Mechanical substances
Z - Special Climatic conditions
5.10.1 FE environmental parameters
FE environmental parameters are classified in accordance to IEC 60721-3-4.
Table 5-8: Environmental conditions for the FE
CLASS REFERENCE CATEGORY
G1 IEC 60721-3-4 4K4/4Z2/4Z5/4Z8/4B1/4C2/4S3/4M4
IEC 60721-3-4
G2 4K3/4Z7/4B1/4C2/4S3/4M4
G3 IEC 60721-3-4 4K2/4Z7/4B1/4C2/4S3/4M4
G4 IEC 60721-3-4 4K1/4Z7/4B1/4C2/4S3/4M4
5.10.2 OBE environmental parameters
OBE environmental parameters are classified in accordance IEC 60721-3-5.
Table 5-9: Environmental conditions for the OBE
CLASS REFERENCE CATEGORY
H1 IEC 60721-3-5 5K4/5B1/5C1/5S1/5F1/5M3
H2 IEC 60721-3-5 5K3/5B1/5C1/5S1/5F1/5M2
H3 IEC 60721-3-5 5K2/5B1/5C1/5S1/5F1/5M2
5.11 SAFETY
As this pre-Standard does not deal with any single defined application and as the
implementation architecture is not part of the pre-Standard it is not possible to include strict
quantitative requirements on safety. However it is expected that manufacturers take account of
safety aspects in product design. Annex D details some aspects that should be considered by
manufacturers as a minimum.
6. TEST REQUIREMENTS
6.1 OBJECTIVES
It is the objective of this pre-Standard to provide specific reference criteria for test requirements
and reference tests for equipment claiming conformance with this family of pre-Standards for
AVI/AEI Systems.
Wherever possible, the test requirements determined in this pre-Standard are formulated and
referenced to existing Standards. This pre-Standard provides references to such Standards by
classes.
All normative testing required in order to claim compliance with this Standard shall be certified
by an Accredited, Independent, Testing Body (AIB), approved by the Nation State.
6.2 OPERATIONAL PARAMETERS TO BE TESTED
6.2.1 General Test Requirements
6.2.1.1 Reliability
(Refer to 5.6.1.1.1).
6.2.1.1.1 Error Rates
The manufacturer shall satisfy the AIB (e.g. by means of calculation) that the system
components have been designed such that any relevant accuracy (maximum tolerated error
rate) requirements determined in this pre-Standard for a particular classification are met. (The
form of such calculation is not predetermined).
6.2.1.1.2 Failure Rates
The manufacturer shall satisfy the AIB (e.g. by means of calculation) that the system
components have been designed such that any relevant MTBF (Mean Time Between Failure)
requirement determined or advised in this pre-Standard for a particular classification are met.
(The form of such calculation is not predetermined).
6.2.1.2 Availability
(The form of availability check is not predetermined).
6.2.1.3 Lifetime
6.2.1.3.1 FE Lifetime
The manufacturer shall satisfy the AIB (e.g. by means of accelerated life cycle tests and/or
calculation) that the FE is expected to meet its claimed expected lifetime.
6.2.1.3.2 OBE Lifetime
The manufacturer shall satisfy the AIB (e.g. by means of accelerated life cycle tests and/or
calculation ) that the OBE is expected to meet its claimed lifetime. (refer to 5.6.1.1.4).
6.2.1.4 Maintainability
(Refer to 5.6.1.1.2).
The OBE (excluding replaceable battery or external power source) shall not require
maintenance throughout its claimed lifetime.
Note: Maintainability requirements for Fixed Equipment is considered to be a commercial
agreement between Vendor and Purchaser, and is not covered by this standard.
6.2.1.5 Number of transactions/identifications per year (OBE):
The AIB shall ascertain to its satisfaction that the OBE shall, at the minimum, achieve the
number of transactions/identifications per year in accordance to classification (a
...
