ISO/IEC 14496-15:2019

INTERNATIONAL ISO/IEC
STANDARD 14496-15
Fifth edition
2019-09
Information technology — Coding of
audio-visual objects —
Part 15:
Carriage of network abstraction layer
(NAL) unit structured video in the ISO
base media file format
Technologies de l'information — Codage des objets audiovisuels —
Partie 15: Transport de vidéo structurée en unités NAL sur la couche
réseau au format ISO de base pour les fichiers médias
Reference number
©
ISO/IEC 2019
© ISO/IEC 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2019 – All rights reserved

Contents Page
Foreword .vi
Introduction .vii
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and abbreviated terms . 1
3.1 Terms and definitions . 1
3.2 Abbreviated terms . 7
4 General definitions . 8
4.1 Overview . 8
4.2 Elementary stream structure . 8
4.3 Sample and configuration definition . 9
4.3.1 General. 9
4.3.2 Canonical order and restrictions . 9
4.3.3 Sample format .10
4.3.4 Optional boxes in the sample entry .11
4.4 Video track structure .11
4.5 Template fields used.11
4.6 Visual width and height .11
4.7 Decoding time (DTS) and composition time (CTS) .12
4.8 Sample groups on random access recovery points 'roll' and random access
points 'rap ' .12
4.9 Hinting .12
4.10 On change of sample entry .12
4.11 SEI information box .14
4.11.1 Definition .14
4.11.2 Syntax .14
4.11.3 Semantics .14
4.12 Post-decoder requirements scheme for signalling of SEI .14
4.12.1 General.14
4.12.2 Definition .15
5 AVC elementary streams and sample definitions .15
5.1 Overview .15
5.2 Elementary stream structure .15
5.3 Sample and configuration definition .18
5.3.1 Overview .18
5.3.2 Canonical order and restrictions .18
5.3.3 Decoder configuration information .19
5.4 Derivation from ISO base media file format .22
5.4.1 AVC file type and identification .22
5.4.2 AVC video stream definition.23
5.4.3 AVC parameter set stream definition .24
5.4.4 Parameter sets .25
5.4.5 Sync sample .26
5.4.6 Shadow sync .26
5.4.7 Layering and sub-sequences .27
5.4.8 Alternate streams and switching pictures .30
5.4.9 Definition of a sub-sample for AVC .33
6 SVC elementary stream and sample definitions .33
6.1 Overview .33
6.2 Elementary stream structure .34
6.3 Use of the plain AVC file format .35
6.4 Sample and configuration definition .35
© ISO/IEC 2019 – All rights reserved iii

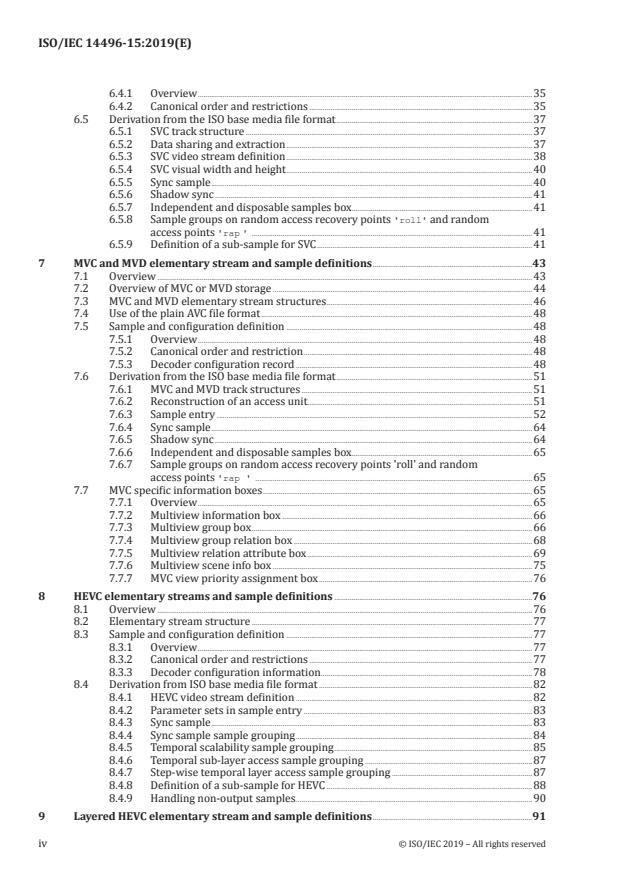

6.4.1 Overview .35
6.4.2 Canonical order and restrictions .35
6.5 Derivation from the ISO base media file format .37
6.5.1 SVC track structure .37
6.5.2 Data sharing and extraction .37
6.5.3 SVC video stream definition .38
6.5.4 SVC visual width and height .40
6.5.5 Sync sample .40
6.5.6 Shadow sync .41
6.5.7 Independent and disposable samples box.41
6.5.8 Sample groups on random access recovery points 'roll' and random
access points 'rap ' .41
6.5.9 Definition of a sub-sample for SVC .41
7 MVC and MVD elementary stream and sample definitions .43
7.1 Overview .43
7.2 Overview of MVC or MVD storage .44
7.3 MVC and MVD elementary stream structures .46
7.4 Use of the plain AVC file format .48
7.5 Sample and configuration definition .48
7.5.1 Overview .48
7.5.2 Canonical order and restriction .48
7.5.3 Decoder configuration record .48
7.6 Derivation from the ISO base media file format .51
7.6.1 MVC and MVD track structures .51
7.6.2 Reconstruction of an access unit.51
7.6.3 Sample entry .52
7.6.4 Sync sample .64
7.6.5 Shadow sync .64
7.6.6 Independent and disposable samples box.65
7.6.7 Sample groups on random access recovery points 'roll' and random
access points 'rap ' .65
7.7 MVC specific information boxes .65
7.7.1 Overview .65
7.7.2 Multiview information box .66
7.7.3 Multiview group box .66
7.7.4 Multiview group relation box .68
7.7.5 Multiview relation attribute box .69
7.7.6 Multiview scene info box .75
7.7.7 MVC view priority assignment box .76
8 HEVC elementary streams and sample definitions .76
8.1 Overview .76
8.2 Elementary stream structure .77
8.3 Sample and configuration definition .77
8.3.1 Overview .77
8.3.2 Canonical order and restrictions .77
8.3.3 Decoder configuration information .78
8.4 Derivation from ISO base media file format .82
8.4.1 HEVC video stream definition .82
8.4.2 Parameter sets in sample entry .83
8.4.3 Sync sample .83
8.4.4 Sync sample sample grouping .84
8.4.5 Temporal scalability sample grouping .85
8.4.6 Temporal sub-layer access sample grouping .87
8.4.7 Step-wise temporal layer access sample grouping .87
8.4.8 Definition of a sub-sample for HEVC .88
8.4.9 Handling non-output samples .90
9 Layered HEVC elementary stream and sample definitions .91
iv © ISO/IEC 2019 – All rights reserved

9.1 Overview .91
9.2 Overview of L-HEVC storage .92
9.3 L-HEVC elementary stream structure .92
9.4 Sample and configuration definition .93
9.4.1 Overview .93
9.4.2 Canonical order and restrictions .93
9.4.3 Decoder configuration record .93
9.5 Derivation from the ISO base media file format and the HEVC file format (Clause 8) .94
9.5.1 L-HEVC track structure.94
9.5.2 Data sharing and reconstruction of an L-HEVC bitstream .95
9.5.3 L-HEVC video stream definition .97
9.5.4 L-HEVC visual width and height .100
9.5.5 Sync sample .100
9.5.6 Independent and disposable samples box.101
9.5.7 Stream access point sample group .101
9.5.8 The 'roll', 'rap ', 'sync', 'tsas' and 'stsa' sample groups .102
9.5.9 Definition of a sub-sample for L-HEVC .102
9.5.10 Handling non-output samples .102
9.6 L-HEVC specific structures .103
9.6.1 External base layer sample group .103
9.6.2 The operating points information sample group.103
9.6.3 The layer information sample group .107
9.6.4 The layer information sample group .108
10 Storage of tiled HEVC and L-HEVC video streams .109
10.1 Overview .109
10.2 NAL unit map entry .110
10.2.1 Definition .110
10.2.2 Syntax .110
10.2.3 Semantics .111
10.3 Tile region group entry .111
10.3.1 Definition .111
10.3.2 Syntax .112
10.3.3 Semantics .112
10.4 Tile sub track definition .114
10.4.1 Overview .114
10.4.2 TileSubTrackGroupBox .114
10.5 HEVC and L-HEVC tile track .115
10.5.1 Overview .115
10.5.2 Sample entry name and format for HEVC tile tracks .116
10.5.3 Sample entry name and format for L-HEVC tile tracks .117
10.5.4 Bitstream reconstruction from tile base and tile tracks .117
10.5.5 Sample entry names for tile base tracks.118
Annex A (normative) In-stream structures .119
Annex B (normative) SVC, MVC, and MVD sample group and sub-track definitions .128
Annex C (normative) Temporal metadata support.152
Annex D (normative) File format toolsets and brands .162
Annex E (normative) Sub-parameters for the MIME type ‘codecs’ parameter .165
Annex F (informative) Unspecified nal_unit_type value management .170
© ISO/IEC 2019 – All rights reserved v

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that
are members of ISO or IEC participate in the development of International Standards through
technical committees established by the respective organization to deal with particular fields of
technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/patents) or the IEC
list of patent declarations received (see http: //patents .iec .ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
This fifth edition cancels and replaces the fourth edition (ISO/IEC 14496-15:2017), which has been
technically revised. It also incorporates Amendments ISO/IEC 14496-15:2017/Amd.1:2018 and
ISO/IEC 14496-15:2017/Amd.2:2019.
The main changes compared to the previous edition are as follows:
— additional content incorporated as subclauses 4.11, 4.12, 9.6.4, D.4.3, D.4.4 and D.4.5 and Annex F;
— corrections in Tables 2, 3 and 6 and subclause A.1;
— deletion of subclause 5.4.10;
— minor editorial changes to align the document with the drafting rules in ISO/IEC Directives Part 2.
A list of all parts in the ISO/IEC 14496 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
vi © ISO/IEC 2019 – All rights reserved

Introduction
This document defines a storage format based on, and compatible with, the ISO base media file format
(ISO/IEC 14496-12), which is used by the MP4 file format (ISO/IEC 14496-14) and the motion JPEG 2000
file format (ISO/IEC 15444-3) among others. This document enables video streams formatted as
network adaptation layer units (NAL units) to
a) be used in conjunction with other media streams, such as audio,
b) be used in an MPEG-4 systems environment, if desired,
c) be formatted for delivery by a streaming server, using hint tracks, and
d) inherit all the use cases and features of the ISO base media file format on which MP4 and MJ2
are based.
This document can be used as a standalone specification; it specifies how NAL unit structured video
content is stored in an ISO base media file format compliant format. However, it is normally used in the
context of a specification, such as the MP4 file format, derived from the ISO base media file format, that
permits the use of NAL unit structured video such as AVC (ISO/IEC 14496-10) video and high efficiency
video coding (HEVC, ISO/IEC 23008-2) video.
The ISO base media file format is becoming increasingly common as a general-purpose media container
format for the exchange of digital media, and its use in this context should accelerate both adoption and
interoperability.
The International Organization for Standardization (ISO) and International Electrotechnical
Commission (IEC) draw attention to the fact that it is claimed that compliance with this document may
involve the use of patents.
ISO and IEC take no position concerning the evidence, validity and scope of these patent rights. The
holders of these patent rights have assured ISO and IEC that they are willing to negotiate licences
under reasonable and non-discriminatory terms and conditions with applicants throughout the world.
In this respect, the statements of the holders of these patent rights are registered with ISO and IEC.
Informstion may be obtained from:
Fraunhofer-Gesellschaft Qualcomm Incorporated
Hansastr. 27c 5775 Morehouse Drive,
80686 München San Diego, CA 92121
Germany USA
Nokia Corporation Huawei Technologies Co., Ltd.
PO Box 86 Bantian Longgang District,
FIN-24101 Salo Shenzhen 518129
Finland China
TDVision Systems, Inc. Telefonaktiebolaget LM Ericsson (publ)
8001 Irvine Center Drive, Suite 400 Ericsson AB,
Irvine, CA 92618 SE-164 80 Stockholm
USA Sweden
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights other than those identified above. ISO and IEC shall not be held responsible for identifying
any or all such patent rights.
© ISO/IEC 2019 – All rights reserved vii

INTERNATIONAL STANDARD ISO/IEC 14496-15:2019(E)
Information technology — Coding of audio-visual
objects —
Part 15:
Carriage of network abstraction layer (NAL) unit
structured video in the ISO base media file format
1 Scope
This document specifies the storage format for streams of video that is structured as NAL units, such as
AVC (ISO/IEC 14496-10) and HEVC (ISO/IEC 23008-2) video streams.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 14496-10:2014, Information technology — Coding of audio-visual objects — Part 10: Advanced
Video Coding
ISO/IEC 14496-12:2015, Information technology — Coding of audio-visual objects — Part 12: ISO base
media file format
ISO/IEC 23008-2:2017, Information technology — High efficiency coding and media delivery in
heterogeneous environments — Part 2: High efficiency video coding
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 14496-10, ISO/IEC 23008-2
and the following apply.
3.1.1
3D-AVC NAL unit
3D-AVC VCL NAL unit
NAL unit with type 21 with avc_3d_extension_flag equal to 1
Note 1 to entry: As specified in ISO/IEC 14496-10:2014, Annex J.
3.1.2
aggregator
in-stream structure (3.1.11) using a NAL unit header for grouping of NAL units belonging to the
same sample
3.1.3
AVC base layer
maximum subset of a bitstream that is AVC compatible
Note 1 to entry: This can also be expressed as a bitstream not using any of the functionality of
ISO/IEC 14496-10:2014 Annex G, Annex H, Annex I, or Annex J.
© ISO/IEC 2019 – All rights reserved 1

Note 2 to entry: The AVC base layer is represented by AVC VCL NAL units and associated non-VCL NAL units.
Note 3 to entry: The AVC base layer itself can be a temporal scalable bitstream.
3.1.4
AVC NAL unit
AVC VCL NAL unit (3.1.5) and its associated non-VCL NAL units in a bitstream
3.1.5
AVC VCL NAL unit
NAL unit with type 1 to 5 (inclusive) Note 1 to entry: As specified in ISO/IEC 14496-10.
3.1.6
complete subset
minimal set of tracks that contain all the information in the original bitstream
3.1.7
cropped frame dimensions
width and height of the decoded frame after applying the output cropping parameters specified by the
active SPS
3.1.8
extraction path
set of operations on the original bitstream, each yielding a subset bitstream, ordered such that the
complete bitstream is first in the set, and the base layer is last, and all the bitstreams are in decreasing
complexity (along one of the scalability axes, such as resolution), and where every bitstream is a valid
operating point
Note 1 to entry: An extraction path can be represented by the values of priority_id in the NAL unit headers.
Alternatively, an extraction path can be represented by the run of tiers or by a set of hierarchically dependent tracks.
3.1.9
extractor
in-stream structure (3.1.11) using a NAL unit header for extraction of data from other tracks
Note 1 to entry: Extractors contain instructions on how to extract data from other tracks. Logically an Extractor
can be seen as a pointer to data. While reading a track containing Extractors, the Extractor is replaced by the
data it is pointing to.
3.1.10
implicit reconstruction
reconstruction of a stream of access units from two or more tracks not using extractors
3.1.11
in-stream structure
structure residing within sample data
3.1.12
layer set
set of layers represented within a bitstream created from another bitstream by operation of the sub-
bitstream extraction process
Note 1 to entry: As specified in ISO/IEC 23008-2.
3.1.13
MVC NAL unit
MVC VCL NAL unit (3.1.14) and its associated non-VCL NAL units in an MVC streamNote 1 to entry: As
specified in ISO/IEC 14496-10:2014, Annex H.
2 © ISO/IEC 2019 – All rights reserved

3.1.14
MVC VCL NAL unit
NAL unit with type 20, and NAL units with type 14 when the immediately following NAL units are AVC
VCL NAL units
Note 1 to entry: As specified in ISO/IEC 14496-10.
Note 2 to entry: MVC VCL NAL units do not affect the decoding process of a legacy AVC decoder.
3.1.15
MVC+D depth NAL unit
MVC+D depth VCL NAL unit
NAL unit with type 21 containing a coded slice extension for a depth view component Note 1 to entry:
As specified in ISO/IEC 14496-10:2014 Annex I.
3.1.16
MVD NAL unit
MVD VCL NAL unit
NAL unit with type 21, containing a coded slice extension for a depth view component coded with
MVC+D or 3D-AVC, or a 3D-AVC texture view component
Note 1 to entry: As specified in ISO/IEC 14496-10:2014, Annex I or J.
3.1.17
NAL-unit-like structure
data structure that is similar to NAL units in the sense that it also has a NAL unit header and a payload,
with a difference that the payload might not follow the start code emulation prevention mechanism
required for the NAL unit syntax
Note 1 to entry: As specified in ISO/IEC 14496-10 or ISO/IEC 23008-2.
3.1.18
natively present
not included in an aggregator (3.1.2) or an extractor (3.1.9)
Note 1 to entry: Data referred to by (hence not included in) an aggregator is considered as natively present. Data
included in an aggregator is not considered as natively present.
3.1.19
operating point
independently decodable subset of a layered bitstream
Note 1 to entry: Each operating point consists of all the data needed to decode this particular bitstream subset.
Note 2 to entry: In an SVC stream an operating point represents a particular spatial resolution, temporal
resolution, and quality, and can be represented either by (i) specific values of DTQ (dependency_id, temporal_id
and quality_id) or (ii) specific values of P (priority_id) or (iii) combinations of them (e.g. PDTQ). Note that the
usage of priority_id is defined by the application. In an SVC file a track represents one or more operating points.
Within a track tiers can be used to define multiple operating points.
Note 3 to entry: The bitstream subset of an MVC or MVD operating point represents a particular set of target
output views at a particular temporal resolution and consists of all the data needed to decode this particular
bitstream subset. In MVD each target output view in the bitstream subset of an MVD operating point can contain
a texture view, a depth view or both.
Note 4 to entry: An operating point is referred to as an operation point in ISO/IEC 14496-10:2014, Annex H or an
output operation point in ISO/IEC 23008-2.
© ISO/IEC 2019 – All rights reserved 3

3.1.20
operating point
independently decodable subset of a layered
bitstream, where one or more layers in the set of layers are indicated to be output layers
Note 1 to entry: Each operating point consists of all the data needed to decode this particular bitstream subset.
Note 2 to entry: In an SVC stream an operating point represents a particular spatial resolution, temporal
resolution, and quality, and can be represented either by (i) specific values of DTQ (dependency_id, temporal_id
and quality_id) or (ii) specific values of P (priority_id) or (iii) combinations of them (e.g. PDTQ). Note that the
usage of priority_id is defined by the application. In an SVC file a track represents one or more operating points.
Within a track tiers can be used to define multiple operating points.
Note 3 to entry: The bitstream subset of an MVC or MVD operating point represents a particular set of target
output views at a particular temporal resolution and consists of all the data needed to decode this particular
bitstream subset. In MVD each target output view in the bitstream subset of an MVD operating point can contain
a texture view, a depth view or both.
Note 4 to entry: An operating point is referred to as an operation point in ISO/IEC 14496-10:2014, Annex H or an
output operation point in ISO/IEC 23008-2.
3.1.21
output layer set
set of layers consisting of the layers of one of the specified layer sets (3.1.12), where one or more layers
in the set of layers are indicated to be output layers
Note 1 to entry: As specified in ISO/IEC 23008-2.
3.1.22
parameter set
video parameter set, sequence parameter set or picture parameter set
Note 1 to entry: As defined in the applicable video standard (e.g. ISO/IEC 14496-10 or ISO/IEC 23008-2).
Note 2 to entry: This term is used to refer to all types of parameter sets.
3.1.23
parameter set elementary stream
elementary stream containing samples made up of only sequence and picture parameter set NAL units
synchronized with the video elementary stream (3.1.40)
3.1.24
picture unit
set of VCL NAL units and their associated non-VCL NAL units
Note 1 to entry: As specified in ISO/IEC 23008-2.
3.1.25
prefix NAL unit
NAL units with type 14
Note 1 to entry: As specified in ISO/IEC 14496-10.
Note 2 to entry: Prefix NAL units provide scalability information about AVC VCL NAL units and filler data NAL
units. Prefix NAL units do not affect the decoding process of a legacy AVC decoder. The behaviour of a legacy AVC
file reader as a response to prefix NAL units is undefined.
3.1.26
reference layer
layer that is indicated as possibly needed for decoding of another layer
Note 1 to entry: As specified in ISO/IEC 23008-2 and as specified by the 'oinf' sample group defined in
subclause 9.6.2.
4 © ISO/IEC 2019 – All rights reserved

3.1.27
scalable layer
layer
set of VCL NAL units with the same values of dependency_id, quality_
id, and temporal_id, and the associated non-VCL NAL units
Note 1 to entry: As specified in ISO/IEC 14496-10.
Note 2 to entry: A scalable layer with any of dependency_id, quality_id, and temporal_id not equal to 0 enhances
the video by one or more scalability levels in at least one direction (temporal, quality or spatial resolution).
Note 3 to entry: SVC uses a “layered” encoder design that results in a bitstream representing “coding layers”. In
some publications the ‘base layer’ is the first quality layer of a specific coding layer. In some publications the base
layer is the scalable layer with the lowest priori
...
