Rubber and plastics hoses and hose assemblies, wire or textile reinforced types with working pressure equal or above 70 MPa (700 bar) — Specification

This document specifies requirements for two types of reinforced hoses and hose assemblies of nominal size from 3,2 to 25, dependent on relation of minimum burst pressure to maximum working pressure. Each type is divided into classes dependent on maximum working pressure. They are suitable for use with: — oil-based hydraulic fluids HH, HL, HM, HR and HV as defined in ISO 6743-4 at temperatures ranging from −40 °C to +100 °C; — water-based fluids HFC, HFAE, HFAS and HFB as defined in ISO 6743-4 at temperatures ranging from 0 °C to +70 °C; — water at temperatures ranging from 0 °C to +70 °C. Such hoses and hose assemblies are intended to be used for: — water jetting and water blasting applications; — hydraulic applications. This document does not include requirements for end fittings. It is limited to the performance of hoses and hose assemblies. NOTE 1 It is the responsibility of the user, in consultation with the hose manufacturer, to establish the compatibility of the hose with the fluid to be used. NOTE 2 For hydraulic jacks with manually driven pumps, hoses and hose assemblies per ISO 16301 can be used.

Tuyaux et flexibles en caoutchouc et en plastique, types à armature métallique ou textile pour pression de service supérieure ou égale à 70 MPa (700 bar) — Spécifications

General Information

Status
Published
Publication Date
22-Apr-2021
Current Stage
6060 - International Standard published
Start Date
23-Apr-2021
Due Date
25-Sep-2021
Completion Date
23-Apr-2021
Ref Project

Relations

Buy Standard

Standard
ISO 23384:2021 - Rubber and plastics hoses and hose assemblies, wire or textile reinforced types with working pressure equal or above 70 MPa (700 bar) -- Specification
English language
13 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
ISO/FDIS 23384:Version 16-jan-2021 - Rubber and plastics hoses and hose assemblies, wire or textile reinforced types with working pressure equal or above 70 MPa (700 bar) -- Specification
English language
13 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

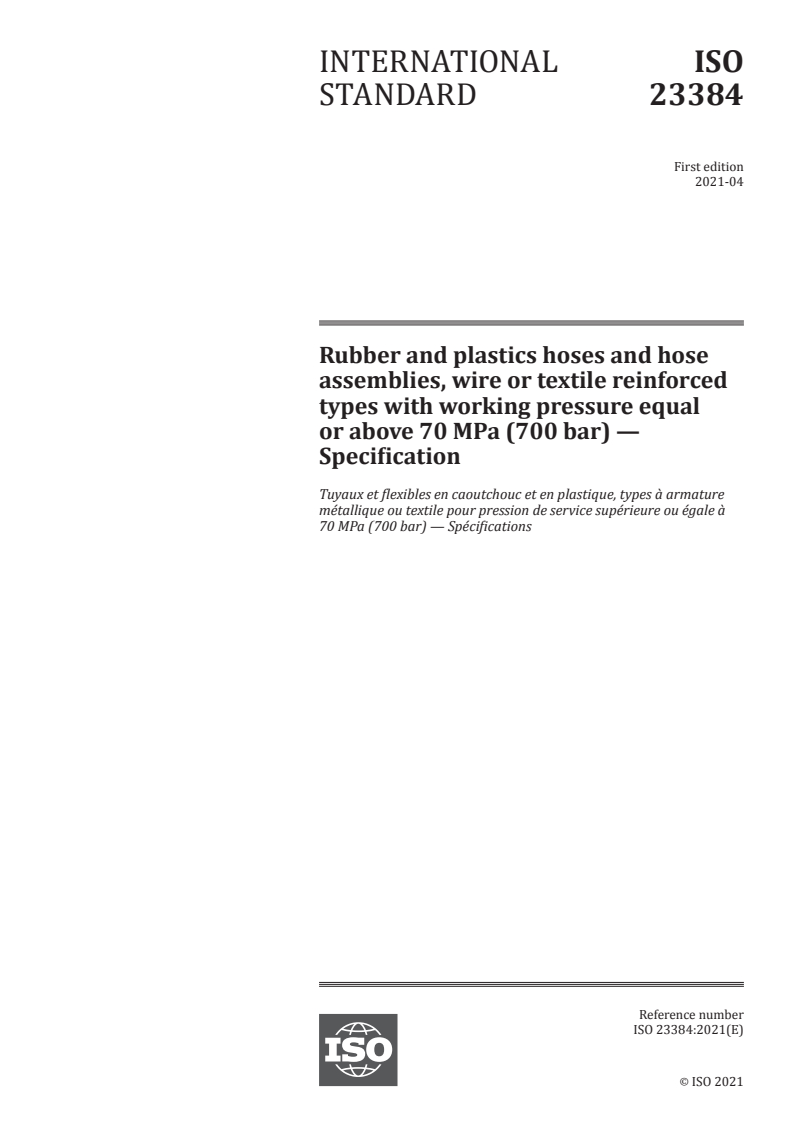

INTERNATIONAL ISO
STANDARD 23384
First edition
2021-04
Rubber and plastics hoses and hose
assemblies, wire or textile reinforced
types with working pressure equal
or above 70 MPa (700 bar) —
Specification
Tuyaux et flexibles en caoutchouc et en plastique, types à armature
métallique ou textile pour pression de service supérieure ou égale à
70 MPa (700 bar) — Spécifications
Reference number
ISO 23384:2021(E)
©
ISO 2021

---------------------- Page: 1 ----------------------
ISO 23384:2021(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 23384:2021(E)

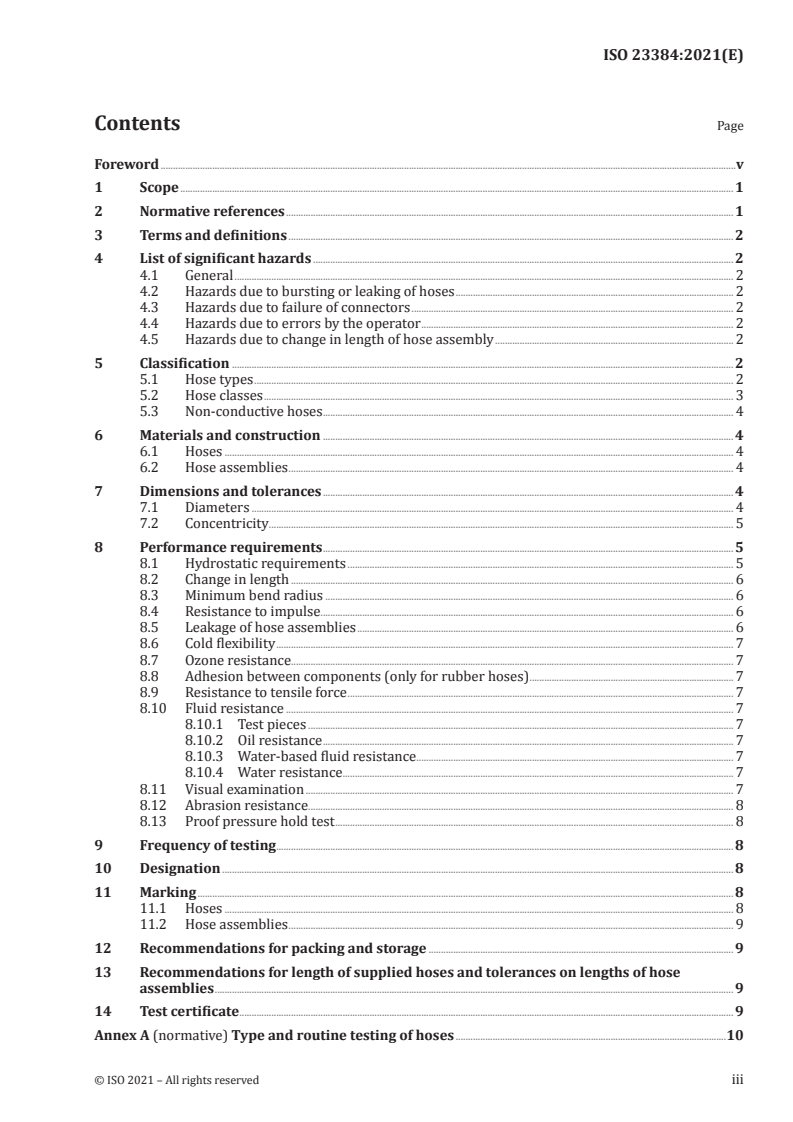

Contents Page
Foreword .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 List of significant hazards . 2
4.1 General . 2
4.2 Hazards due to bursting or leaking of hoses . 2
4.3 Hazards due to failure of connectors . 2
4.4 Hazards due to errors by the operator . 2
4.5 Hazards due to change in length of hose assembly . 2
5 Classification . 2
5.1 Hose types . 2
5.2 Hose classes . 3
5.3 Non-conductive hoses . 4
6 Materials and construction . 4
6.1 Hoses . 4
6.2 Hose assemblies . 4
7 Dimensions and tolerances . 4
7.1 Diameters . 4
7.2 Concentricity. 5
8 Performance requirements . 5
8.1 Hydrostatic requirements . 5
8.2 Change in length . 6
8.3 Minimum bend radius . 6
8.4 Resistance to impulse . 6
8.5 Leakage of hose assemblies . 6
8.6 Cold flexibility . 7
8.7 Ozone resistance. 7
8.8 Adhesion between components (only for rubber hoses) . 7
8.9 Resistance to tensile force . 7
8.10 Fluid resistance . 7
8.10.1 Test pieces . 7
8.10.2 Oil resistance . 7
8.10.3 Water-based fluid resistance . 7
8.10.4 Water resistance . . . 7
8.11 Visual examination . 7
8.12 Abrasion resistance . 8
8.13 Proof pressure hold test . 8
9 Frequency of testing . 8
10 Designation . 8
11 Marking . 8
11.1 Hoses . 8
11.2 Hose assemblies . 9
12 Recommendations for packing and storage . 9
13 Recommendations for length of supplied hoses and tolerances on lengths of hose
assemblies . 9
14 Test certificate . 9
Annex A (normative) Type and routine testing of hoses .10
© ISO 2021 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 23384:2021(E)

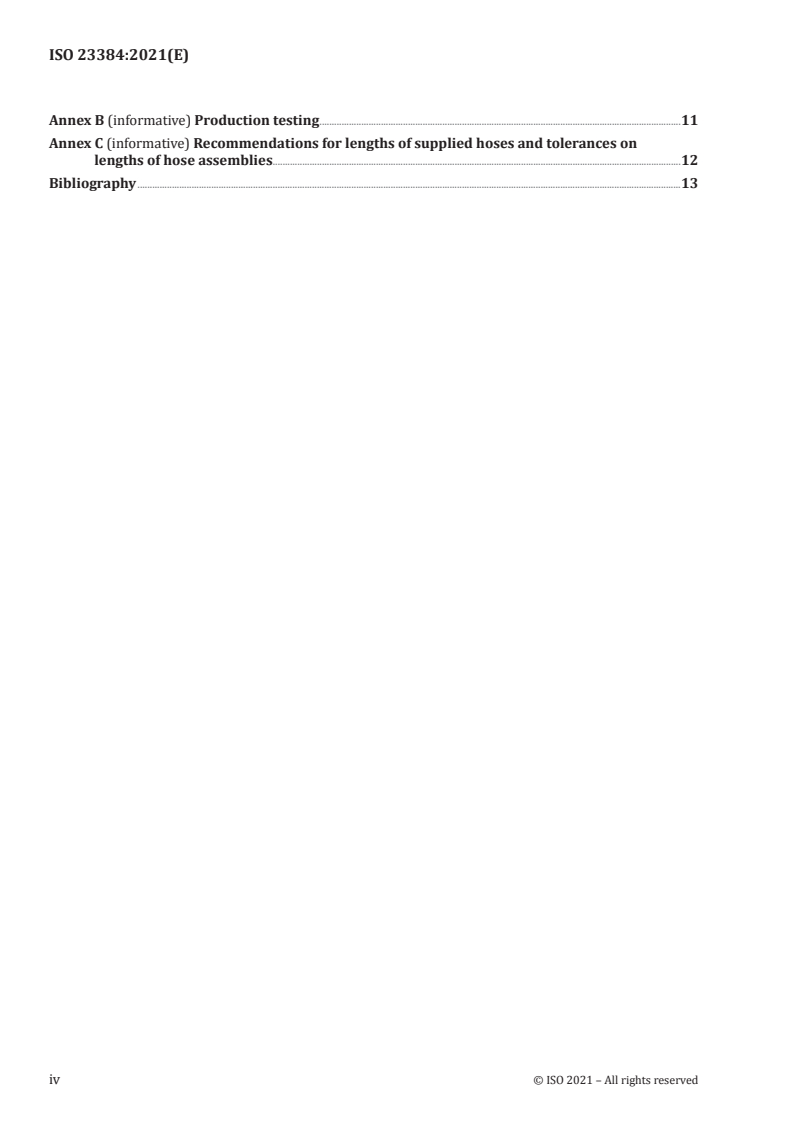

Annex B (informative) Production testing .11
Annex C (informative) Recommendations for lengths of supplied hoses and tolerances on
lengths of hose assemblies .12
Bibliography .13
iv © ISO 2021 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 23384:2021(E)

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
The committee responsible for this document is ISO/TC 45, Rubber and rubber products, Subcommittee
SC 1, Rubber and plastics hoses and hose assemblies.
This first edition of ISO 23384 cancels and replaces ISO 19385:2017, which has been technically revised.
It also incorporates the Amendment ISO 19385:2017/Amd.1:2019.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2021 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 23384:2021(E)
Rubber and plastics hoses and hose assemblies, wire or
textile reinforced types with working pressure equal or
above 70 MPa (700 bar) — Specification
1 Scope
This document specifies requirements for two types of reinforced hoses and hose assemblies of nominal
size from 3,2 to 25, dependent on relation of minimum burst pressure to maximum working pressure.
Each type is divided into classes dependent on maximum working pressure.
They are suitable for use with:
— oil-based hydraulic fluids HH, HL, HM, HR and HV as defined in ISO 6743-4 at temperatures ranging
from −40 °C to +100 °C;
— water-based fluids HFC, HFAE, HFAS and HFB as defined in ISO 6743-4 at temperatures ranging
from 0 °C to +70 °C;
— water at temperatures ranging from 0 °C to +70 °C.
Such hoses and hose assemblies are intended to be used for:
— water jetting and water blasting applications;
— hydraulic applications.
This document does not include requirements for end fittings. It is limited to the performance of hoses
and hose assemblies.
NOTE 1 It is the responsibility of the user, in consultation with the hose manufacturer, to establish the
compatibility of the hose with the fluid to be used.
NOTE 2 For hydraulic jacks with manually driven pumps, hoses and hose assemblies per ISO 16301 can be
used.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1402, Rubber and plastics hoses and hose assemblies — Hydrostatic testing
ISO 1817, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids
ISO 4671, Rubber and plastics hoses and hose assemblies — Methods of measurement of the dimensions of
hoses and the lengths of hose assemblies
ISO 6803, Rubber or plastics hoses and hose assemblies — Hydraulic-pressure impulse test without flexing
ISO 7326:2016, Rubber and plastics hoses — Assessment of ozone resistance under static conditions
ISO 8031, Rubber and plastics hoses and hose assemblies — Determination of electrical resistance and
conductivity
ISO 8033, Rubber and plastics hoses — Determination of adhesion between components
© ISO 2021 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 23384:2021(E)

ISO 8330, Rubber and plastics hoses and hose assemblies — Vocabulary
ISO 10619-1:2017, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness —
Part 1: Bending tests at ambient temperature
ISO 10619-2:2017, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness —
Part 2: Bending tests at sub-ambient temperatures
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 8330 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at https:// www .iso .org/ obp
4 List of significant hazards
4.1 General
This clause contains some of the significant hazards, hazardous situations and events, as far as they are
dealt with in this document, identified by risk assessment as significant for this type of machinery and
which require action to eliminate or reduce the risk.
4.2 Hazards due to bursting or leaking of hoses
Hazards can occur when a hose bursts or leaks. The escaping stream of liquid can cause physical
damage and a sudden repositioning of the hose line in a dangerous manner (whip).
4.3 Hazards due to failure of connectors
Hazards can occur when a connector fails. The escaping stream of liquid can cause physical damage
and a sudden repositioning of the hose line in a dangerous manner (whip).
4.4 Hazards due to errors by the operator
Hazards can occur if the operator uses incompatible substances or incompatible components. Hazards
can also occur if the operator exceeds the limits of use specified by the manufacturer (e.g. too high
pressure, too high tensile stress), also pinhole caused by kink may result in a significant injury.
4.5 Hazards due to change in length of hose assembly
Hazardous situations occur when there is a sudden change of pressure in the hose line causing a change
in length resulting in the operators losing their firm hold.
5 Classification
5.1 Hose types
Two types of hose a
...

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 23384
ISO/TC 45/SC 1
Rubber and plastics hoses and hose
Secretariat: DIN
assemblies, wire or textile reinforced
Voting begins on:
2021­01­21 types with working pressure equal
or above 70 MPa (700 bar) —
Voting terminates on:
2021­03­18
Specification
Tuyaux et flexibles en caoutchouc et en plastique, types à armature
métallique ou textile pour pression de service supérieure ou égale à
70 MPa (700 bar) — Spécifications
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
ISO/FDIS 23384:2021(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN­
DARDS TO WHICH REFERENCE MAY BE MADE IN
©
NATIONAL REGULATIONS. ISO 2021

---------------------- Page: 1 ----------------------
ISO/FDIS 23384:2021(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH­1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/FDIS 23384:2021(E)

Contents Page
Foreword .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 List of significant hazards . 2
4.1 General . 2
4.2 Hazards due to bursting or leaking of hoses . 2
4.3 Hazards due to failure of connectors . 2
4.4 Hazards due to errors by the operator . 2
4.5 Hazards due to change in length of hose assembly . 2
5 Classification . 2
5.1 Hose types . 2
5.2 Hose classes . 3
5.3 Non­conductive hoses . 4
6 Materials and construction . 4
6.1 Hoses . 4
6.2 Hose assemblies . 4
7 Dimensions and tolerances . 4
7.1 Diameters . 4
7.2 Concentricity. 5
8 Performance requirements . 5
8.1 Hydrostatic requirements . 5
8.2 Change in length . 6
8.3 Minimum bend radius . 6
8.4 Resistance to impulse . 6
8.5 Leakage of hose assemblies . 6
8.6 Cold flexibility . 7
8.7 Ozone resistance. 7
8.8 Adhesion between components (only for rubber hoses) . 7
8.9 Resistance to tensile force . 7
8.10 Fluid resistance . 7
8.10.1 Test pieces . 7
8.10.2 Oil resistance . 7
8.10.3 Water-based fluid resistance . 7
8.10.4 Water resistance . . . 7
8.11 Visual examination . 7
8.12 Abrasion resistance . 8
8.13 Proof pressure hold test . 8
9 Frequency of testing . 8
10 Designation . 8
11 Marking . 8
11.1 Hoses . 8
11.2 Hose assemblies . 9
12 Recommendations for packing and storage . 9
13 Recommendations for length of supplied hoses and tolerances on lengths of hose
assemblies . 9
14 Test certificate . 9
Annex A (normative) Type and routine testing of hoses .10
© ISO 2021 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/FDIS 23384:2021(E)

Annex B (informative) Production testing .11
Annex C (informative) Recommendations for lengths of supplied hoses and tolerances on
lengths of hose assemblies .12
Bibliography .13
iv © ISO 2021 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/FDIS 23384:2021(E)

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non­governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
The committee responsible for this document is ISO/TC 45, Rubber and rubber products, Subcommittee
SC 1, Rubber and plastics hoses and hose assemblies.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2021 – All rights reserved v

---------------------- Page: 5 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 23384:2021(E)
Rubber and plastics hoses and hose assemblies, wire or
textile reinforced types with working pressure equal or
above 70 MPa (700 bar) — Specification
1 Scope
This document specifies requirements for two types of reinforced hoses and hose assemblies of nominal
size from 3,2 to 25, dependent on relation of minimum burst pressure to maximum working pressure.
Each type is divided into classes dependent on maximum working pressure.
They are suitable for use with:
— oil-based hydraulic fluids HH, HL, HM, HR and HV as defined in ISO 6743-4 at temperatures ranging
from −40 °C to +100 °C;
— water-based fluids HFC, HFAE, HFAS and HFB as defined in ISO 6743-4 at temperatures ranging
from 0 °C to +70 °C;
— water at temperatures ranging from 0 °C to +70 °C.
Such hoses and hose assemblies are intended to be used for:
— water jetting and water blasting applications;
— hydraulic applications.
This document does not include requirements for end fittings. It is limited to the performance of hoses
and hose assemblies.
NOTE 1 It is the responsibility of the user, in consultation with the hose manufacturer, to establish the
compatibility of the hose with the fluid to be used.
NOTE 2 For hydraulic jacks with manually driven pumps, hoses and hose assemblies per ISO 16301 can be used.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1402, Rubber and plastics hoses and hose assemblies — Hydrostatic testing
ISO 1817, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids
ISO 4671, Rubber and plastics hoses and hose assemblies — Methods of measurement of the dimensions of
hoses and the lengths of hose assemblies
ISO 6803, Rubber or plastics hoses and hose assemblies — Hydraulic-pressure impulse test without flexing
ISO 7326:2016, Rubber and plastics hoses — Assessment of ozone resistance under static conditions
ISO 8031, Rubber and plastics hoses and hose assemblies — Determination of electrical resistance and
conductivity
ISO 8033, Rubber and plastics hoses — Determination of adhesion between components
ISO 8330, Rubber and plastics hoses and hose assemblies — Vocabulary
© ISO 2021 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/FDIS 23384:2021(E)

ISO 10619­1:2017, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness —
Part 1: Bending tests at ambient temperature
ISO 10619­2:2017, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness —
Part 2: Bending tests at sub-ambient temperatures
1)
ISO 20444 , Rubber and plastics hoses — Determination of abrasion resistance of the outer cover
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 8330 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at https:// www .iso .org/ obp
4 List of significant hazards
4.1 General
This clause contains some of the significant hazards, hazardous situations and events, as far as they are
dealt with in this document, identified by risk assessment as significant for this type of machinery and
which require action to eliminate or reduce the risk.
4.2 Hazards due to bursting or leaking of hoses
Hazards can occur when a hose bursts or leaks. The escaping stream of liquid can cause physical
damage and a sudden repositioning of the hose line in a dangerous manner (whip).
4.3 Hazards due to failure of connectors
Hazards can occur when a connector fails. The escaping stream of liquid can cause physical damage
and a sudden repositioning of the hose line in a dangerous manner (whip).
4.4 Hazards due to errors by the operator
Hazards can occur if the operator uses incompatible substances or incompatible components. Hazards
can also occur if the operator exceeds the limits of use specified by the manufacturer (e.g. too high
pressure, too high tensile stress), also pinhole caused by kink may result in a significant injur
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
