ISO 16429:2004

INTERNATIONAL ISO
STANDARD 16429
First edition
2004-07-01
Implants for surgery — Measurements of
open-circuit potential to assess corrosion
behaviour of metallic implantable
materials and medical devices over
extended time periods
Implants chirurgicaux — Mesurages sur de longues périodes du
potentiel en circuit ouvert pour l'évaluation du comportement à la
corrosion des matériaux métalliques et dispositifs médicaux
implantables
Reference number
©
ISO 2004

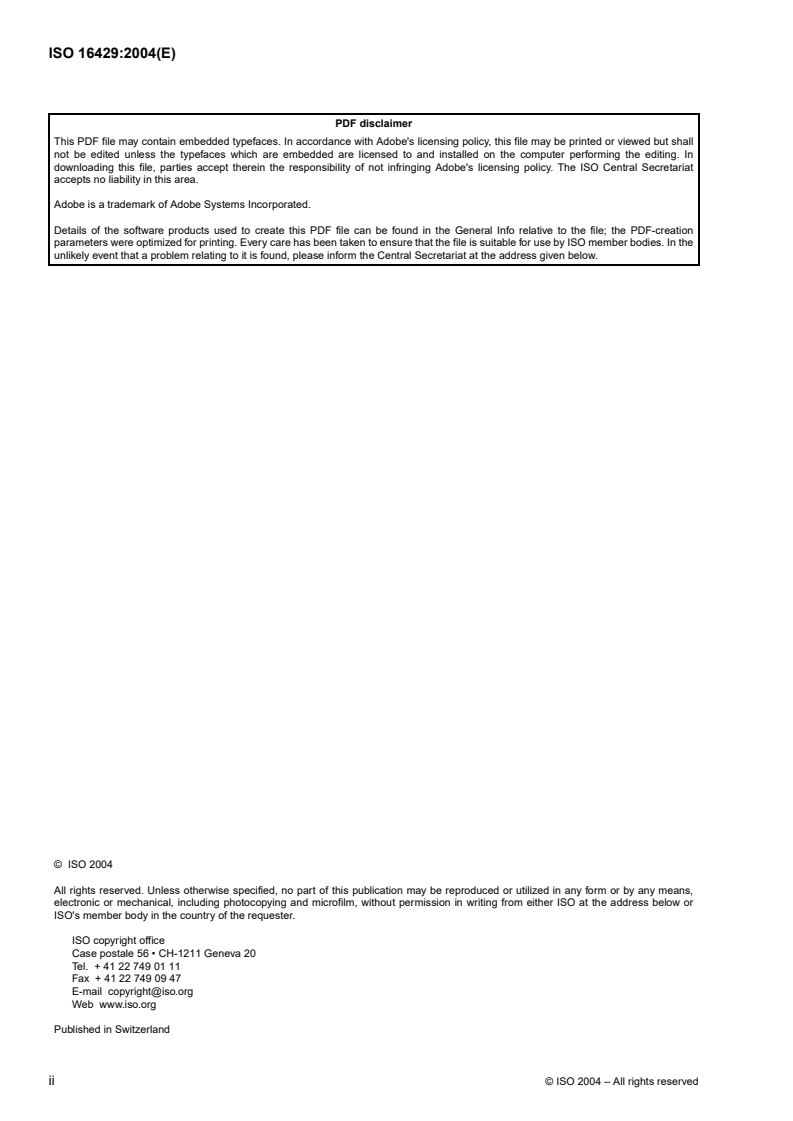

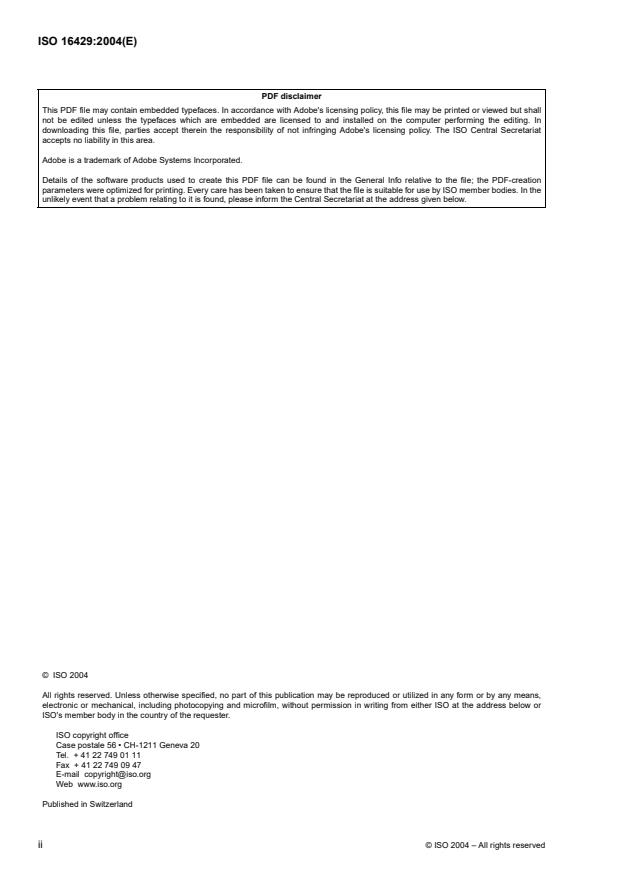

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
©
ii ISO 2004 – All rights reserved

Contents Page
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Significance and application . 2
4.1 Principle . 2
4.2 Significance of the measurements . 4
4.3 Application . 4
5 Apparatus . 5
6 Specimen preparation . 5
6.1 Type of specimen . 5
6.2 Surface preparation . 6
6.3 Specimen mounting . 6
7 Environmental conditions . 6
7.1 General . 6
7.2 Testing solution . 6
7.3 Testing temperature . 6
7.4 pH value . 7
7.5 Aeration . 7
7.6 Volume of testing solution . 7
8 Test procedure . 7
8.1 Set-up of test . 7
8.2 Duration of test . 7
8.3 Observations . 7
9 Test report . 8
Annex A (informative) Additional test solutions . 9
Bibliography . 10
©
ISO 2004 – All rights reserved iii

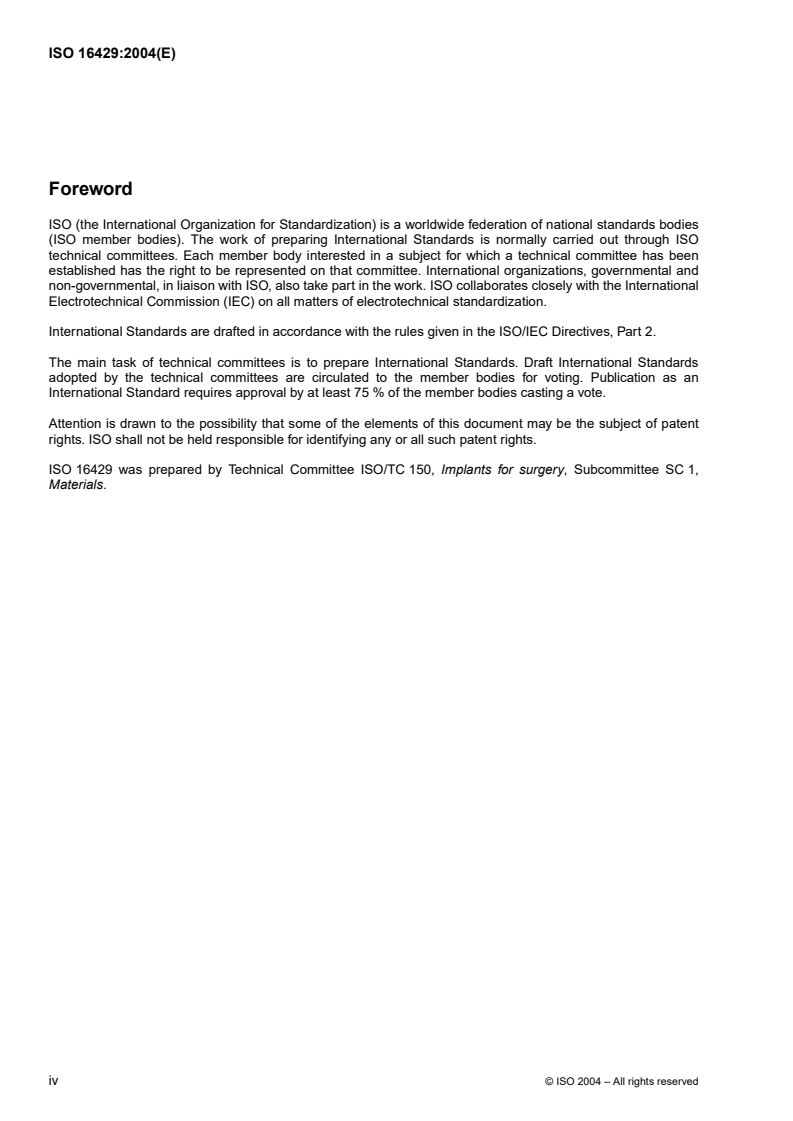

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 16429 was prepared by Technical Committee ISO/TC 150, Implants for surgery, Subcommittee SC 1,
Materials.
©
iv ISO 2004 – All rights reserved

Introduction
This International Standard was developed because, in contrast to polarization measurements which are well
[6]
described in ASTMG5 and literature, there is no standard available on typical open-circuit potential
measurements over extended time periods.
Relating to corrosion behaviour of implant materials and surgical implant devices, the long-term electrochemical
behaviour in the body environment is of interest.
Metal surfaces undergo spontaneous changes at their interface with an electrolytic environment to reach a state
of equilibrium. Depending on the conditions, the corresponding physico-chemical and electrochemical reactions
can be highly active and corrosive, or very sluggish and passive. For passivating metals such as those usually
used for surgical implants, the formation and stability of the passive film is an important prerequisite for
corrosion resistance of these materials, under given conditions.
With the measurement of the open-circuit potential over a longer time period, the spontaneous reaction to the
environment (electrolyte) in the form of passivation or activation, the formation of a steady state potential and its
stability can be assessed. Regarding surgical implant materials and devices, the measurements of these
properties is of interest because they help to characterize implant material systems and to optimize processing,
surface treatments and properties. Furthermore, measurements of the long-term open-circuit potential in
combination with mechanical loading give information on the effect of mechanical, dynamic conditions on the
electrochemical potential, passivity and corrosion behaviour.
This International Standard specifies conditions for the measurement of the open-circuit potential over extended
periods of time. Isotonic 0,9 % NaCl (see 3.5) is used as the electrolyte (testing solution). This solution is related
to body fluid in that it contains approximately the same concentration of Cl ions, and Cl ions are the most likely
species in this solution to cause metal corrosion due to their aggressivity. For more stringent testing conditions,
solutions with higher concentrations of Cl ions are given in Annex A.
©
ISO 2004 – All rights reserved v

.
vi
INTERNATIONAL STANDARD ISO 16429:2004(E)
Implants for surgery — Measurements of open-circuit potential
to assess corrosion behaviour of metallic implantable materials
and medical devices over extended time periods
1Scope
This International Standard specifies a test method for measurements over extended time periods of the open-
circuit potential of implant materials and surgically implantable devices immersed in a test environment related
to body fluid, using a standard corrosion test cell to study the electrochemical corrosion properties of the
devices.
This method of monitoring the open-circuit potential can also be combined with mechanical static or dynamic
loading tests.
This International Standard is applicable in particular to metallic materials which form passive layers with
protective properties against corrosion, as typical for surgical implant materials.
This test method is intended for the investigation of single metallic materials or alloys. It is not applicable to
dissimilar material combinations, which require particular considerations in measuring and interpreting the
results.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO 3696, Water for analytical laboratory use — Specification and test methods
ISO 16428, Implants for surgery — Test solution and environmental conditions for static and dynamic corrosion
and wear tests on implantable materials and medical devices
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
corrosion potential
electrode potential of a metal in a given corrosion system
3.2
corrosion system
system consisting of one or more metals and those parts of the environment (including specimen, electrolyte,
electrodes) that influence corrosion
3.3
environmental test conditions
conditions under which a sample (specimen) is tested, including temperature, aerating elements, pH, and
identification, volume and exchange rate of the contacting fluid
©
ISO 2004 – All rights reserved 1

3.4
free corrosion potential
corrosion potential in the absence of net (external) electrical current flowing to or from the metal surface
[ISO 8044]
3.5
isotonic NaCl solution
aqueous solution of NaCl (0,9 % mass fraction) which has the same surface tension as living tissues
NOTE In surgical applications it prevents the collapsing of tissues.
3.6
open-circuit potential
potential of an electrode measured with respect to a reference electrode or another electrode when no current
flows to or from it
[ASTM G 15]
cf. free corrosion potential (3.4).
3.7
passive layer
surface layer on a metal that forms as result of the reaction with the environment, or spontaneously under given
conditions, and has the capacity to protect the metal against corrosion
NOTE Passive layers are usually adherent and of submicroscopical thickness (see ISO 8044).
3.8
reference electrode
electrode having a stable and reproducible potential that is used as a reference in the measurement of electrode
potentials
3.9
working electrode
test or working electrode in an electrochemical cell; the test specimen in the context of this standard
4 Significance and application
4.1 Principle
In this electrochemical test method, the test specimens (samples) are immersed in an isotonic test solution of
[9]
NaCl , which relates to the physiological environment of the body as described in ISO 16428. Other test
solutions and the other environmental conditions are also described in ISO 16428. For more stringent test
conditions, more acidic test solutions (lower pH) are suggested in Annex A.
[6]
The tests are carried out in an electrochemical test cell similar to that described in the ASTM G 5 . The test
cell provides access for the electrodes and other necessary equipment (Figure 1).
While the specimen is exposed to the environment for a specified period of time, the open-circuit potential is
recorded continuously as a function of time. The specimen functions as the working electrode and its behaviour
is measured against a reference electrode (Figure 2).
©
2 ISO 2004 – All rights reserved

Key
1 working electrode (test specimen)
2 gas inlet
3 gas outlet
4 water outlet
5 test solution (electrolyte)
6 water inlet
7 Luggin pr
...
