ISO 8036-1:1986

International Standard @ 803611
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION*ME~KnYHAPOKnHAR OPrAHMJAUMA no CTAHLiAPTM3AUMM*ORGANlSATlON INTERNATIONALE DE NORMAI ISATION
I
Optics and optical instruments - Microscopes -
art I: Immersion oil for general use in light microscopy
Optique et instruments d'optique - Microscopes - Partie 1: Huile d'immersion pour usage gbnéral en microscopie optique
First edition - 1986-09-15
UDC 665.7:681.723 Ref. No. IS0 8036/1-1986 (E)
Descriptors : optical equipment, microscopes, immersion oil, optical properties, transmittance, viscosity, marking.
Price based on 2 pages

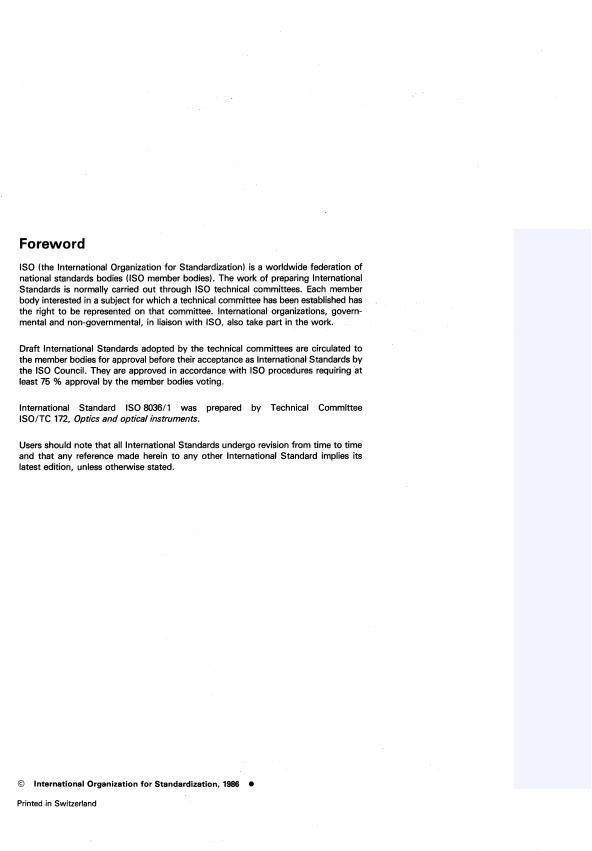

Foreword
IS0 (the International Organization for Standardization) is a worldwide federation of
national standards bodies (IS0 member bodies). The work of preparing International
Standards is normally carried out through IS0 technical committees. Each member
body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, govern-
mental and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the technical committees are circulated to
the member bodies for approval before their acceptance as International Standards by
the IS0 Council. They are approved in accordance with IS0 procedures requiring at
least 75 % approval by the member bodies voting.
International Standard IS0 8036/ 1 was prepared by Technical Committee
ISO/TC 172, Optics and optical instruments.
Users should note that all International Standards undergo revision from time to time
and that any reference made herein to any other International Standard implies its
latest edition, unless otherwise stated.
O International Organization for Standardization, 1986 O
Printed in Switzerland
INTERNATIONAL STANDARD IS0 8036/1-1986 (E)
Optics and optical instruments - Microscopes -
Part 1: Immersion oil for general use in light microscopy
O Introduction Principal refractive index: ne = 1,518 O f 0,000 5
The image quality of microscopes with oil immersion objectives Abbe number: v, = 44 f 3
is dependent on the optical properties of the immersion oil
used. In order to guarantee a certain minimum quality, this
NOTES
International Standard specifies the relevant properties of im-
Highest optical quality, particularly with large objective aperture,
mersion oil for general use with the purpose of making im-
will be obtained at a temperature of use of 23 OC.
mersion oil with the specified properties available throughout
k the world.
2 The principal refractive index, ne, is the refractive index of light at
the green mercury e-line (A, = 546,07 nm; see IS0 7944). This
The optical and physical requirements for immersion oil have
wavelength is close to the
...
