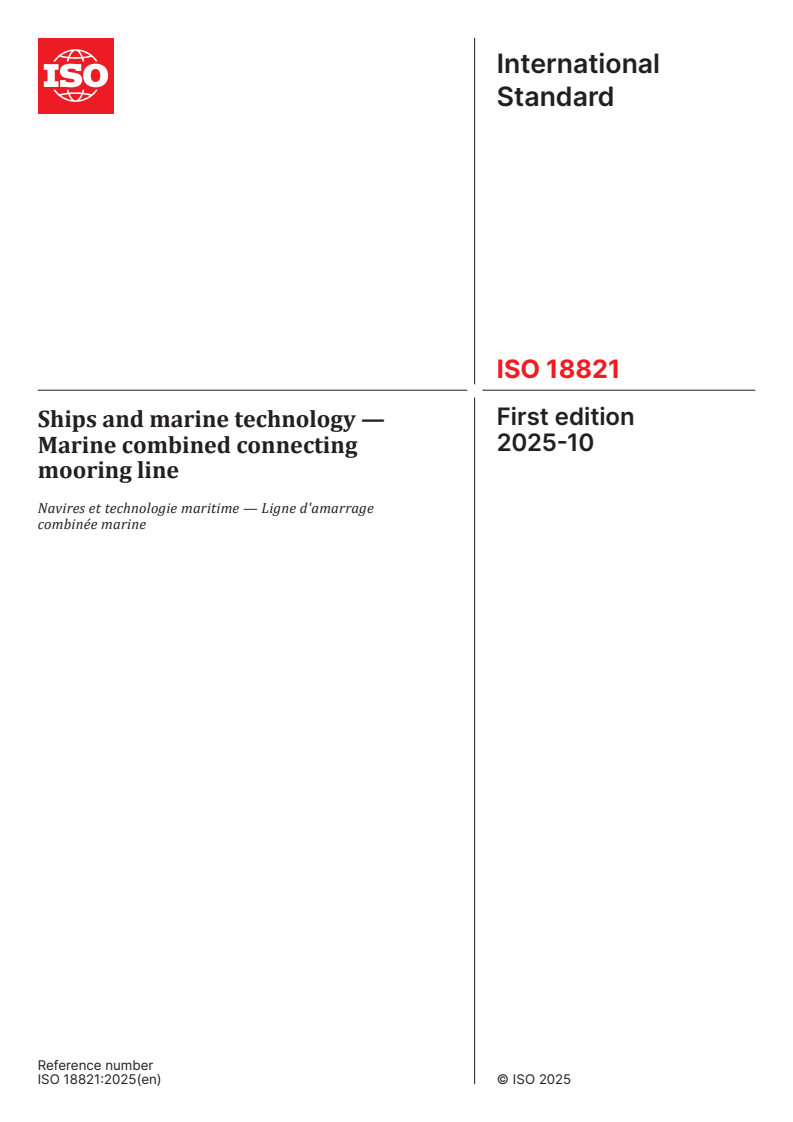

ISO 18821:2025

International
Standard
ISO 18821
First edition
Ships and marine technology —
2025-10
Marine combined connecting
mooring line
Navires et technologie maritime — Ligne d'amarrage
combinée marine
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Classification, structure and code . 2
4.1 Classification .2
4.2 Structure .3
4.3 Codes .4
5 Design requirements . 4
5.1 General .4
5.2 Specifications .5
5.2.1 Steel wire rope used as mooring line .5
5.2.2 Synthetic fibre rope as mooring line .5
5.2.3 Connection device .6
5.2.4 Tails .6
5.2.5 Combined line .6
5.3 Designation .6
6 Test methods . 7
6.1 General .7
6.2 Surface quality .7
6.3 Dimensions .8
6.4 Linear density.8
6.5 Breaking force .8
6.6 Proof load and ultimate load .8
6.7 Cyclic loading and axial compression resistance .8
6.8 Immediate strain .8
6.9 Angled endurance .8
Annex A (informative) Specifications of mooring rope . 10
Annex B (informative) Specifications of connection devices .12
Annex C (informative) Tails specifications . 14
Annex D (informative) Specifications of combined lines .15
Annex E (informative) Proof load and ultimate load test of the connection devices.18
Annex F (informative) Example test report of combined line . 19
Bibliography .21

iii
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 8, Ships and marine technology, Subcommittee
SC 4, Outfitting and deck machinery.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
International Standard ISO 18821:2025(en)
Ships and marine technology — Marine combined connecting
mooring line
1 Scope
This document specifies the classification, structure and code, design requirements and testing methods of
a marine combined connecting mooring line (hereinafter referred to as a combined line), which consists of a
mooring line, connection device and tail.
This document applies to the design, manufacture and inspection of combined lines for tankers.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 1140, Fibre ropes — Polyamide — 3-, 4-, 8- and 12-strand ropes
ISO 1141, Fibre ropes — Polyester — 3-, 4-, 8- and 12-strand ropes
ISO 2307:2019, Fibre ropes — Determination of certain physical and mechanical properties
ISO 2408:2017, Steel wire ropes — Requirements
ISO 9554, Fibre ropes — General specifications
ISO 16143-1:2014, Stainless steels for general purposes — Part 1: Corrosion-resistant flat products
ISO 10325, Fibre ropes — High modulus polyethylene — 8-strand braided ropes, 12-strand braided ropes and
covered ropes
ISO 10556, Fibre ropes of polyester/polyolefin dual fibres
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
fibre rope
rope made from synthetic fibre
3.2
tail
short length of rope attached to the end of a mooring line to provide increased elasticity and also ease of
handling
3.3
cow hitch
method of joining two fibre ropes (3.1) without connection device
3.4
ship design minimum breaking load
ship design MBL
minimum breaking load of new, dry mooring lines for which a ship's mooring system is designed
Note 1 to entry: This minimum breaking load is expressed in kN.
3.5
line design break force
LDBF
minimum force at which a new, dry, spliced mooring line will break when tested
Note 1 to entry: This minimum force is expressed in kN.
3.6
tail design break force
TDBF
minimum force at which a new, wet, spliced tail will break when tested
Note 1 to entry: This minimum force is expressed in kN.
3.7
working load limit
WLL
maximum allowable load the mooring line is able to sustain
Note 1 to entry: This maximum allowable load is expressed in t.
3.8
proof load
force applied as a test to a finished connection device
Note 1 to entry: This force is expressed in kN.
3.9
ultimate load
maximum force reached during a static tensile test before the assembly being tested fails to retain the load
Note 1 to entry: This maximum force is expressed in kN.
3.10
safe working load
SWL
rated capacity of the connection device to withstand tensile force
4 Classification, structure and code
4.1 Classification
The combined lines can be classified into three types according to the way it can be connected. The three
types include T type, M type and C type. The code, type and content of combined line are shown in Table 1.

Table 1 — Three types of combined lines
Code Type Content
T T type combined line link without roller type combined line, see Figure 1
M M type combined line link with roller type combined line, see Figure 2
C C type combined line cow hitch type combined line, see Figure 3
4.2 Structure
The T type combined line is shown in Figure 1.
Dimensions in millimetres
Key
1 mooring rope
2 link without roller
3 tail
L length of mooring rope
L length of tail
NOTE L and L can be selected according to users’ demands.
1 2
Figure 1 — T type combined line
The M type combined line is sho
...
