ISO/IEC 18013-2:2008

INTERNATIONAL ISO/IEC
STANDARD 18013-2
First edition
2008-05-15
Information technology — Personal
identification — ISO-compliant driving
licence
Part 2:
Machine-readable technologies
Technologies de l'information — Identification des personnes — Permis
de conduire conforme à l'ISO
Partie 2: Technologies lisibles par une machine

Reference number
©
ISO/IEC 2008

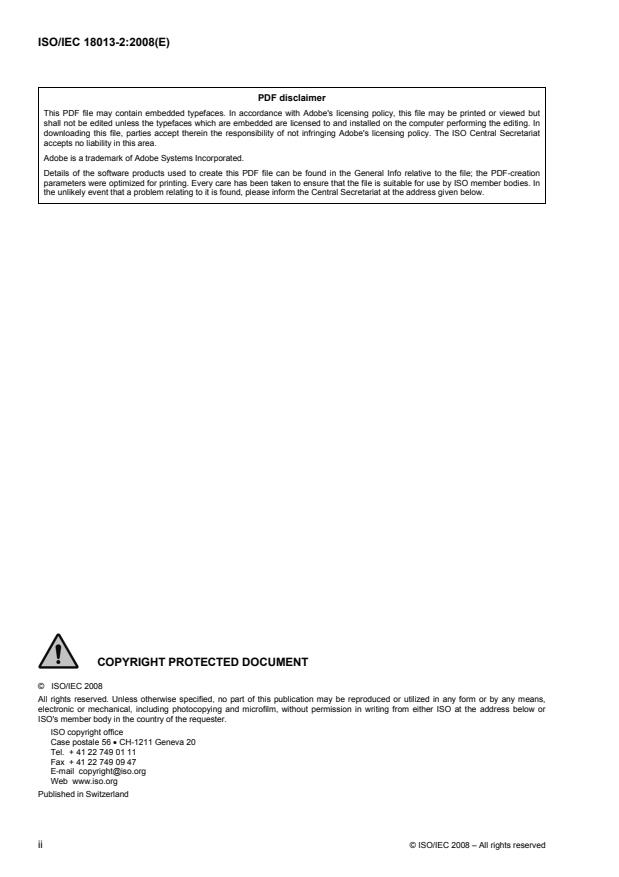

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2008 – All rights reserved

Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Conformance .1
3 Normative references.2
4 Terms, definitions and abbreviations.2
5 Machine-readable functionality of IDLs .5
5.1 General principles .5
5.2 Mandatory functions .6
5.3 Optional functions.6
6 Machine-readable technologies supported .6
7 Organization of data.7
7.1 Mandatory data .7
7.2 Optional data.7
8 Data structure .7
8.1 Data Group 1: Mandatory text data elements.8
8.2 Data Group 2: Optional licence holder details .9
8.3 Data Group 3: Optional issuing authority details .10
8.4 Data Group 4: Optional portrait image.10
8.5 Data Group 5: Optional signature / usual mark image .11
8.6 Data groups 6, 7, 8 and 9: Optional facial, fingerprint, iris and other biometric templates.11
8.7 Data Group 10: Reserved for future use .13
8.8 Data Group 11: Optional domestic data.13
9 Application identifiers.14
Annex A (normative) Assembly rules for categories of vehicles/restrictions/conditions field.15
Annex B (normative) Compact encoding .26
Annex C (normative) Standard encoding for ICCs with contacts and for PICCs.38
Annex D (normative) Standard Encoding for Optical Memory Cards .71
Annex E (normative) Images .80
Bibliography.88

© ISO/IEC 2008 – All rights reserved iii

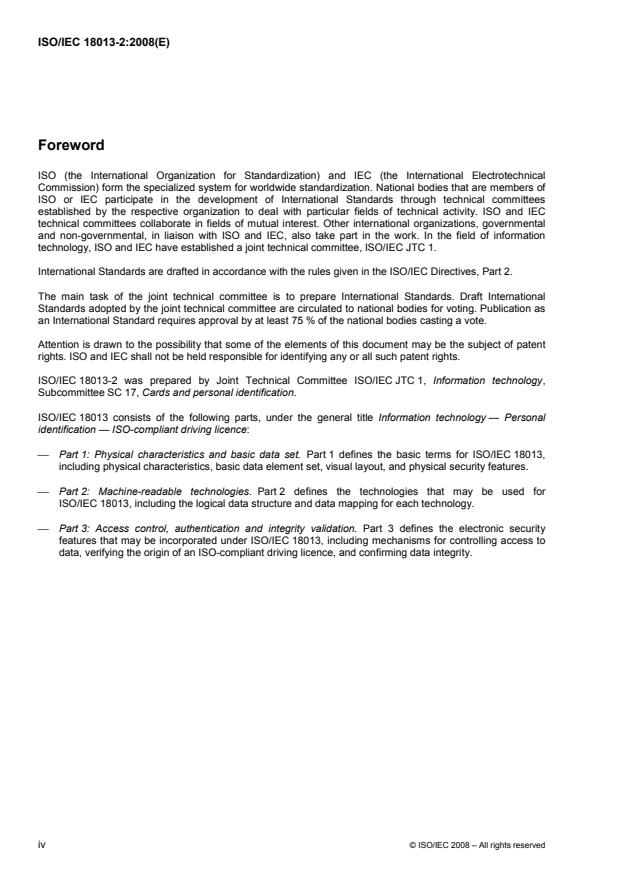

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 18013-2 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 17, Cards and personal identification.
ISO/IEC 18013 consists of the following parts, under the general title Information technology — Personal
identification — ISO-compliant driving licence:
⎯ Part 1: Physical characteristics and basic data set. Part 1 defines the basic terms for ISO/IEC 18013,
including physical characteristics, basic data element set, visual layout, and physical security features.
⎯ Part 2: Machine-readable technologies. Part 2 defines the technologies that may be used for
ISO/IEC 18013, including the logical data structure and data mapping for each technology.
⎯ Part 3: Access control, authentication and integrity validation. Part 3 defines the electronic security
features that may be incorporated under ISO/IEC 18013, including mechanisms for controlling access to
data, verifying the origin of an ISO-compliant driving licence, and confirming data integrity.
iv © ISO/IEC 2008 – All rights reserved

Introduction
This part of ISO/IEC 18013 prescribes requirements for the implementation of machine-readable technology
on an ISO-compliant driving licence (IDL).
One of the functions of an IDL is to facilitate international interchange. Storing IDL data in machine-readable
form supports this function by speeding up data input and eliminating transcription errors. Consequently, the
automation and productivity of traffic law enforcement and other traffic safety processes can be improved.
This part of ISO/IEC 18013 allows issuing authorities to customise machine-readable data for domestic use.
Apart from international interchange, the use of an IDL as a domestic driving licence thus provides for
domestic standardisation and creates a domestic infrastructure capable of processing IDLs issued by other
issuing authorities.
© ISO/IEC 2008 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 18013-2:2008(E)

Information technology — Personal identification —
ISO-compliant driving licence
Part 2:
Machine-readable technologies
1 Scope
ISO/IEC 18013 establishes guidelines for the design format and data content of an ISO-compliant driving
licence (IDL) with regard to human-readable features (ISO/IEC 18013-1), ISO machine-readable technologies
(ISO/IEC 18013-2), and access control, authentication and integrity validation (ISO/IEC 18013-3). It creates a
common basis for international use and mutual recognition of the IDL without impeding individual
countries/states in applying their privacy rules and national/community/regional motor vehicle authorities in
taking care of their specific needs.
The purpose of storing IDL data on machine-readable media on the IDL is to
• increase productivity (of data and IDL use),
• facilitate electronic data exchange, and
• assist in authenticity and integrity validation.
This part of ISO/IEC 18013 thus specifies the following:
• mandatory and optional machine-readable data;
• the logical data structure;
• encoding rules for the machine-readable technologies currently supported.
To prevent unauthorised access to the data contained on a contactless IC (e.g. by eavesdropping), provision
is made to protect the privacy of the licence holder via basic access protection [requiring a human-readable
and/or machine-readable key/password on the IDL to access the data on the PIC (via protected-channel
communication)]. The implementation details of this function however are defined in ISO/IEC 18013-3.
Provision is made for issuing authorities to validate the authenticity and integrity of the mandatory and optional
data. In addition, the option of protecting access to optional data (beyond basic access protection) is provided
for. The exact mechanism used to achieve such protection (e.g. encryption and/or additional access control) is
specified in ISO/IEC 18013-3.
2 Conformance
A driving licence is in conformance with this part of ISO/IEC 18013 if it meets all mandatory requirements
specified directly or by reference herein. Compliance with ISO/IEC 18013-1 is not required for compliance with
this part of ISO/IEC 18013, except for those parts of ISO/IEC 18013-1 directly referenced in this part of
ISO/IEC 18013 outside of Clause 3. Conversely, the incorporation of a machine-readable technology which is
© ISO/IEC 2008 – All rights reserved 1

not compliant with this part of ISO/IEC 18013 does not necessarily render the IDL non-compliant with
ISO/IEC 18013-1.
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 3166-1:2006, Codes for the representation of names of countries and their subdivisions — Part 1:
Country codes
ISO/IEC 5218:2004, Information technology — Codes for the representation of human sexes
ISO/IEC 7812-1:2006, Identification cards — Identification of issuers — Part 1: Numbering system
ISO/IEC 7816-5:2004, Identification cards — Integrated circuit cards — Part 5: Registration of application
providers
ISO/IEC 7816-11:2004, Identification cards — Integrated circuit cards — Part 11: Personal verification through
biometric methods
ISO/IEC 8859-1:1998, Information technology — 8-bit single-byte coded graphic character sets — Part 1:
Latin alphabet No. 1
ISO/IEC 18013-1, Information technology — Personal identification — ISO-compliant driving licence — Part 1:
Physical characteristics and basic data set
ISO/IEC 19785-1:2006, Information technology — Common Biometric Exchange Formats Framework —
Part 1: Data element specification
ISO/IEC 19785-3:2007, Information technology — Common Biometric Exchange Formats Framework —
Part 3: Patron format specifications
ISO/IEC 19794-2:2005, Information technology — Biometric data interchange formats — Part 2: Finger
minutiae data
ISO/IEC 19794-4:2005, Information technology — Biometric data interchange formats — Part 4: Finger image
data
ANSI D20-2003, Data Element Dictionary For Traffic Records Systems (April 2003)
IAFIS-IC-0110(V3), WSQ Gray-scale Fingerprint Image Compression Specification, Federal Bureau of
Investigation, Criminal Justice Information Services Division (1997)
4 Terms, definitions and abbreviations
For the purposes of this document, the terms and definitions given in ISO/IEC 18013-1 and the following apply.
4.1
basic access protection
BAP
requiring a human-readable and/or machine-readable key/password on the IDL to access the data on the
secure IC via protected-channel communication
2 © ISO/IEC 2008 – All rights reserved

4.2
binary coded decimal
BCD
binary coding of a sequence of integers using 4 bits for each integer (where the bit weights are 8421) and
encoding two integers per byte, and where a 0 digit is appended to the left of an integer sequence containing
an uneven number of digits before encoding
NOTE 1 Only unsigned BCD is used in this part of ISO/IEC 18013.
NOTE 2 For purposes of this part of ISO/IEC 18013, the definition of numeric characters in ISO/IEC 18013-1 in terms
of ISO/IEC 8859-1 is deemed to be for identification purposes of the numeric characters only, and does not pertain to the
manner in which numeric characters have to be encoded. Encoding rules are explicitly specified in this part of
ISO/IEC 18013.
EXAMPLE
Integer BCD
5 0000 0101
20 0010 0000
387 0000 0011 1000 0111
4.3
Biometric Data Block
BDB
block of data with a defined format that contains one or more biometric samples or biometric templates
4.4
Biometric Information Record
BIR
BioAPI Consortium Patron Format biometric record header
4.5
biometric template
biometric sample (i.e. information obtained from a biometric device, either directly or after further processing)
or combination of biometric samples that is suitable for storage as a reference for future comparison
NOTE This definition is an expansion of a definition in ISO/IEC 19785-1.
4.6
card holder
person using an IDL, who is not necessarily the legitimate licence holder
4.7
Common Biometric Exchange File Format
CBEFF
file format that promotes interoperability of biometric-based applications and systems by specifying a standard
structure for a BIR and a set of abstract data elements and values that can be used to create the header part
of a CBEFF-compliant BIR
NOTE This definition is based on descriptive language in ISO/IEC 19785-1.
4.8
compact encoding
encoding method when the memory capacity available for the IDL application does not exceed 5 kB, typically
applicable to 2D barcode symbologies, high-coercivity high-density magnetic stripe and limited memory-
capacity ICs (PICs and ICs with contacts)
© ISO/IEC 2008 – All rights reserved 3

NOTE 1 Compact encoding generates one constructed data object containing all data groups. Selective reading is not
possible and the read device reads all data at the same time, whereafter the data is parsed. Using this method for
machine-readable technologies with large memory capacity is not recommended as it can result in prolonged reading time.
NOTE 2 Compact encoding may also be used where the total memory capacity exceeds 5 kB (e.g. ICs with contacts
and PICs) but where the capacity available to the IDL application is limited due to capacity being reserved for other
applications.
4.9
Data Group
DG
collection of related data elements
4.10
dedicated file
DF
4.11
delimiter
D
character used to separate data elements in a machine-readable data stream
4.11.1
data group delimiter
multiplication sign "×" (character D7 of ISO/IEC 8859-1)
4.11.2
field delimiter
division sign "÷" (character F7 of ISO/IEC 8859-1)
4.11.3
sub-field delimiter
sub-delimiter
semicolon “;” (character 3B of ISO/IEC 8859-1)
4.11.4
end of file delimiter
pilcrow “¶” (character B6 of ISO/IEC 8859-1)
4.12
digital signature
data appended to, or cryptographic transformation of, a data string that proves the origin and the integrity of
the data string and protects against forgery, e.g. by the recipient of the data string
[ISO/IEC 7816-4]
4.13
elementary file
EF
4.14
integrated circuit
IC
4.15
integrated circuit card
ICC
4 © ISO/IEC 2008 – All rights reserved

4.16
logical data structure
LDS
4.17
master file
MF
4.18
proximity integrated circuit
PIC
4.19
proximity integrated circuit card
PICC
4.20
standard encoding
encoding method when the memory capacity available for the IDL application exceeds 5 kB, typically
applicable to ICs (PICs and ICs with contacts) and optical memory
5 Machine-readable functionality of IDLs
The sub-paragraphs that follow specify the functions (mandatory and optional) to be supported by any
machine-readable data elements used on an IDL. The optional domestic data elements incorporated at the
discretion of an issuing authority may support additional functions than those specified below.
5.1 General principles
The use of machine-readable functionality in IDLs is optional. If used, all the data elements identified in
ISO/IEC 18013-1 as mandatory for international interchange, except for the signature and portrait of the
licence holder, shall be included in the machine-readable data. The machine-readable data elements may
also include any other data / information that appears visually on the IDL (such as the identification of the
issuing country), as well as additional data elements not reflected visually on the IDL. No machine-readable
data / information shall conflict with the human-readable data / information. Machine-readable data elements
shall, except for optional domestic data (see clause 8.8), have the exact same meaning as the human-
readable data elements on the IDL.
NOTE A conflict between human-readable data elements and machine-readable data elements may cast suspicion
upon the licence holder.
Rewriting, updating, and appending functions may be supported to the extent allowed by the technology (or
technologies) used. If implemented, such functions shall comply with the principles set out herein. Security
options are established to support authenticity and integrity of machine-readable data.
It shall be possible to read mandatory data without restriction (with the exception of basic access protection in
the case of a PIC IDL). Optional data may be protected, in which case the protection mechanism (and
associated parameters) shall be noted or referenced. The various protection mechanisms are specified in
ISO/IEC 18013-3. The optional domestic data may be protected in any manner without restriction.
Changes to machine-readable data elements by the issuing authority are allowed only to data-elements that
do not appear in human-readable format on the IDL. Issuing authorities shall uniquely identify each new
version (see clause 8.3) of optional machine-readable data (typically after changing the originally recorded
optional data). Issuing authorities shall issue a new IDL when changes to machine-readable data elements will
lead to inconsistencies with human-readable data elements on the IDL.
© ISO/IEC 2008 – All rights reserved 5

5.2 Mandatory functions
Machine-readable data elements included on an IDL shall support/enable the functions described in the sub-
paragraphs that follow below.
5.2.1 Privilege to drive at time of licensing
Using the IDL to determine (from machine-readable data elements) the driving privileges (and associated
restrictions, conditions and validity period(s)) granted to the licence holder by the issuing authority identified
on the IDL. It is recognized that this information does not confirm that the issuing authority presently (i.e. at the
time when the machine-readable data on an IDL is read by an entity trying to establish a licence holder's
driving privileges) considers the licence holder's driving privileges to be valid.
5.2.2 Reference to driving privilege database
Using the machine-readable data elements (such as the licence number) on the IDL to reference records of
driving privileges maintained by the issuing authority.
5.2.3 Age verification
Using the machine-readable data elements on the IDL to assure that the licence holder meets various age
thresholds for certain products and services, including driving privileges (in the case where the age threshold
to drive a particular category of vehicle domestically in the issuing country is lower than the age permitted
internationally).
5.3 Optional functions
5.3.1 Identity verification
Using the machine-readable data elements on the IDL to confirm, by way of a visual comparison of the portrait
image, that the card holder is the licence holder.
5.3.2 Biographical data verification
Using the machine-readable data elements on the IDL to confirm, by way of visual inspection of the
biographical data printed on the portrait side of the card that such data have not been altered.
5.3.3 Evidence of residence
Ability to use the IDL as evidence that the licence holder resided at a specific location at the time the IDL was
issued. It is recognized that this information does not confirm that the issuing authority presently considers
the licence holder's residential information to be correct.
5.3.4 Biometric authentication
Ability to use a machine-readable biometric template or templates on the IDL to determine whether the card
holder is the licence holder by means of a machine-assisted biometric verification process (i.e. a one-to-one
match).
5.3.5 Reciprocity of driving privileges
Ability for a country other than the issuing country to use the machine-readable data elements on the IDL to
establish whether a mutual recognition agreement (or agreements) exists with the issuing authority.
5.3.6 Document authentication and validation
Ability to reference items on or qualities about the IDL to verify the document is authentic (i.e. produced by the
issuing authority reflected both in the human- and machine-readable data) and that no data has been altered
since issuing.
6 Machine-readable technologies supported
Technologies suitable for both compact encoding and standard encoding are supported.
For compact encoding, a typical minimum capacity of 300 usable bytes is required.
6 © ISO/IEC 2008 – All rights reserved

Given the minimum data capacity needed to support the mandatory data requirements, the IDL may contain
any or a combination of the following machine-readable technologies:
• High coercivity high density Magnetic Stripe – Compact encoding, see Annex B.
• Two-dimensional Barcode – Compact encoding, see Annex B.
• IC with contacts – Standard encoding, see Annex C (failing which, compact encoding only if limited
memory capacity is available for the IDL application, see Annex B).
• PIC – Standard encoding, see Annex C (failing which, compact encoding only if limited memory capacity
is available for the IDL application, see Annex B).
• Optical memory – Standard encoding, see Annex D.
7 Organization of data
Data is organized into eleven data groups, of which each contains data pertaining to a similar function. One
data group is mandatory and the others are optional. One data group is reserved for future use.
NOTE Whether or not each group (or individual data element) can be accessed individually depends on the machine-
readable technology used.
7.1 Mandatory data
Mandatory data is comprised of the minimum set of data elements required for international interchange (as
defined in ISO/IEC 18013-1), with the exception of the signature and portrait.
7.2 Optional data
Optional data is organized into the following groups – licence holder details (DG 2), issuing authority details
(DG 3), portrait image (DG 4), signature / usual mark image (DG 5), facial biometric template (DG 6),
fingerprint biometric template (DG 7), iris biometric template (DG 8), and domestic data (DG 11). Provision is
also made for another as yet undefined biometric template (DG 9), and an additional group reserved for future
use (DG 10).
8 Data structure
Details of the data structure will vary depending upon the storage technology(s) used. Conceptually the
structure can be visualized as depicted in Figure 1.
© ISO/IEC 2008 – All rights reserved 7

Structure level
data
Optional licence holder details – Data Group 2
Mandatory text data elements –

Data Group 1
Optional issuing authority details – Data Group 3

Optional portrait image of licence holder – Data Group 4

Optional signature / usual mark image – Data Group 5

Optional facial biometric template – Data Group 6

Optional finger biometric template – Data Group 7

Optional iris biometric template – Data Group 8

Optional other biometric template – Data Group 9

Reserved for future use – Data Group 10

Optional domestic data – Data Group 11
Figure 1 — Conceptual data structure
NOTE This is only a graphical representation. The actual data mapping for each of the machine-readable
technologies is specified in the Annexes.
Additional data groups and data elements that are applicable specifically to access control, authentication and
integrity validation are specified in ISO/IEC 18013-3.
8.1 Data Group 1: Mandatory text data elements
Data Group 1 consists of nine mandatory elements – demographic data and endorsement/restriction
information.
8 © ISO/IEC 2008 – All rights reserved

Table 1 — Data Group 1, mandatory text data elements
Fixed or Field
Name format/ Example
Variable
length/type
Family name V 36AS Smithe-Williams
a
Given names V 36AS Alexander George Thomas
Date of birth (yyyymmdd) F 8N 19700301
Date of issue (same format as Date of
F 8N 20020915
Birth)
Date of expiry (same format as Date of
F 8N 20070930
Birth)
Issuing country (per ISO 3166-1) F 3A JPN
HOKKAIDO PREFECTURAL POLICE
Issuing authority V 65ANS ASAHIKAWA AREA PUBLIC SAFETY
COMMISSION
Licence number V 25AN A290654395164273X
Categories of vehicles/restrictions/ ADNS (also
conditions (refer to Annex A for field V refer to C1;20000315;20100314;93;<=;8000
assembly rules) Annex A)
NOTE Note the difference between the issuing country code specified in ISO 3166-1, and the issuing country code
appearing in Zone 1 of an IDL as specified in Appendix F of ISO/IEC 18013-1.
a
No titles and/or suffixes shall be included.

The assembly of the categories of vehicles/restrictions/conditions field is defined in Annex A. Encoding
specifics vary slightly depending upon the technology mapping employed and is defined in Annexes B, C and
D in accordance with the machine-readable medium included on the card. The following general format
(repeated as necessary) is adhered to:
[category] ; [issue date] ; [expiry date] ; [restriction/condition code] ; [restriction/condition sign] ;
[restriction/condition value]
NOTE Spaces (periods) have been inserted before and after the sub-field delimiter above for ease of reading only.
8.2 Data Group 2: Optional licence holder details
Data Group 2 consists of seven optional data elements that provide supplemental descriptive information.
Any or all data elements may be present for a particular implementation.
© ISO/IEC 2008 – All rights reserved 9

Table 2 — Data Group 2, Optional licence holder details
Field
Fixed or
Name format/ Example
Variable
length/type
Gender (per ISO/IEC 5218) F 1N 1 (Male = 1, Female = 2)
Height (cm) F 3N 172
Weight (kg) F 3N 082
Eye colour ( per ANSI D20-2003) F 3A BLU

Hair colour (per ANSI D20-2003) F 3A BLD
a
Place of birth V 35ADNS Frozen Foot;Minnesota;USA
471 Monica Road;201 Delta
b
Normal place of residence V 113ADNS Building;Lynnwood;Gauteng;0186;South
Africa
NOTE ISO/IEC 18013-1 allows non-metric units to be used for the height and weight values that may appear in

Zone II of an IDL.
a
Three fields delimited by the sub-field delimiter - City; State/Province or District; Country. Addresses that cannot
be expressed in the defined character set shall be transliterated.
b
Six fields delimited by the sub-field delimiter - Street address line 1 (e.g. street name and number); Street
address line 2 (e.g. apartment number); City; State/Province or District; Postal Code; Country. Addresses that
cannot be expressed in the defined character set shall be transliterated.

8.3 Data Group 3: Optional issuing authority details
Data Group 3 consists of four optional data elements that can provide additional details about the IDL or
issuing authority. None or all data elements need to be present for a given implementation.
Table 3 — Data Group 3, Optional issuing authority details
Field
Fixed or
Name format/ Example
Variable
length/type
Administrative number V 25ANS 123456789B
a
Document discriminator F 2N 01
b
Data discriminator F 2N 01
c
ISO issuer ID number (per
F 6N 636000
ISO/IEC 7812-1)
a
Number assigned by the issuing authority to differentiate between additional licences (documents) or duplicate
documents issued bearing the same licence number as the original, that is 01 for the original licence, 02 for the first
duplicate, 03 for the second duplicate and nn for the (nn-1)th duplicate.
b
Number assigned by the issuing authority to differentiate between machine-readable data sets on the same
physical document where updates have been made to machine-readable data, that is 01 for the original data set, 02
for the first update, 03 for the second update and nn for the (nn-1)th update. The data discriminator is mandatory
when any change is made to the machine-readable data (see 5.1).
c
ISO number assigned to issuing country or licensing authority, as the case may be.

8.4 Data Group 4: Optional portrait image
Data Group 4 is comprised of one or more portrait images of the licence holder (see Annex E). An image
visually similar to the image printed on the portrait side of the IDL shall be included.
10 © ISO/IEC 2008 – All rights reserved

Table 4 — Data Group 4, Portrait image
Fixed or
Name Field format/length/type
Variable
Portrait image F 14N
a
timestamp
yyyymmddhhmmss where yyyy=year, mm=month, dd=day, hh=hour,
mm=minute, ss=second
If hour, minute, and second are not available, 00 shall be used for
each value.
Type of image F 1N
2 = WSQ; 3 = JPEG; 4 = JPEG2000 (as per ISO/IEC 19794-4)
Portrait image V JPEG per ISO/IEC 10918-1, JPEG-2000 per ISO/IEC 15444-1, WSQ
per IAFIS-IC-0110v3, as specified in Annex E.
NOTE 1 Issuing authorities may include a portrait image in a facial biometric data block in lieu of including such image in
DG4 (in standard encoding). Consequently, card-reading applications should test for the presence of a portrait
image in DG6.
NOTE 2 Image length may be specified by the encoding scheme.
a
Used to date the appearance of the licence holder (as reflected on the portrait image). The timestamp reflects the date
and time the picture was taken (which is not necessarily the same as the time and date that the physical image data file
was created). Mandatory if more than one portrait image is included.

8.5 Data Group 5: Optional signature / usual mark image
Data Group 5 specifies encoding of the licence holder’s signature or usual mark (see Annex E). Since it is an
image, signatures or usual marks using non-Latin characters are possible.
Table 5 — Data Group 5, Optional signature / usual mark image
Fixed or
Name Field format/ length/type
Variable
Type of image F 1N
2 = WSQ; 3 = JPEG; 4 = JPEG2000 (as per ISO/IEC 19794-4)
Image of signature or JPEG per ISO/IEC 10918-1, JPEG-2000 per ISO/IEC 15444-1,
V
mark WSQ per IAFIS-IC-0110v3, as specified in Annex E.
NOTE Image length may be specified by the encoding scheme.

8.6 Data groups 6, 7, 8 and 9: Optional facial, fingerprint, iris and other biometric
templates
Any biometric template is encoded based on the "ISO/IEC JTC 1/SC37 TLV-encoded patron format, for use
with smartcards or other tokens" patron format as specified in clause 11 of ISO/IEC 19785-3:2007, specifically
the off-card matching implementation specified in clause 11.11.2, as amended in Table 6 below. This format
uses the CBEFF structure.
Multiple biometric templates may be stored. If more than one is stored, the most recent biometric must be
identified as such by supplying the BDB creation date and time.
NOTE Although the use of the CBEFF format allows individual BDBs to be signed and/or encrypted, it falls outside
the scope of this Part of ISO/IEC 18013, and it is therefore recommended to refer to ISO/IEC 18013-3 and use the access
control and authentication features defined there as a preference.
© ISO/IEC 2008 – All rights reserved 11

Table 6 — Data Group 6 - 9, Optional biometric information
Fixed or
Type of
Name Presence Example
Encoding
Variable
Entry count V N Mandatory when 1 for the first entry, 2 for the
more than one second entry, the highest
BDB is present numbered entry being the most
recent.
For each entry
Field format /
Fixed or
Name length / type / Presence Example
Variable
encoding
Patron header version F 2 bytes, '01 01' Mandatory (if ’01 01’
absent, the default
value applies)
Biometric type V 1-3 bytes Optional Facial = ’02’
Refer to ISO/IEC Finger = ’08’
19785-3:2007,
Iris = ’10’
Table 11.5
Biometric subtype F 1 byte Mandatory when binary xx100101 for right hand
biometric subtype thumb (given a biometric type of
Refer to ISO/IEC
is applicable but '08')
19785-3:2007,
not specified in
Table 11.6 binary xx100010 for left eye
BDB
(given a biometric type of '10')
Biometric data creation date F 14N Mandatory when 20031215173530, representing
and time more than one December 15, 2003, 5:35:30
a
(yyyymmddhhmmss) BDB is present PM. Using BCD representation
this is coded using 7 bytes as
follows: '20 03 12 15 17 35 30'
BIR creator V ANS Optional Hokkaido Prefectural Police
Asahikawa Area Public Safety
Commission
BDB validity period F 16N Optional 2003121520081214,
b
(yyyymmddyyyymmdd) representing a validity period
from December 15, 2003 to
December 14, 2008. Using
BCD representation this is
coded using 8 bytes as follows:
'20 31 12 15 20 08 12 14'.
BDB product owner, product F 4 bytes (a Optional '00 01 00 82'
type concatenation of
two 16 bit positive
integers of value 1
to 65,535)
Refer to ISO/IEC
19785-1:2006,
Clauses 6.5.12
and 6.5.13, and
Table 11.4 in
ISO/IEC 19785-
3:2007
12 © ISO/IEC 2008 – All rights reserved

For each entry
Field format /
Fixed or
Name length / type / Presence Example
Variable
encoding
BDB format owner F 2 byte non- Mandatory '01 01' for ISO/IEC JTC1 SC37 -
negative integer Biometrics
of value 1 to
65,535
Refer to ISO/IEC
19785-1:2006,
Clause 6.5.1
BDB format type F 2 byte non- Mandatory '00 09' for ISO/IEC JTC1
negative integer SC37's iris image format
of value 1 to
65,535
Refer to ISO/IEC
19785-1:2006,
Clause 6.5.2
BIR index (unique identifier V Free format Optional RecId_1952686A67
used to reference the
biometric data set in an
application context outside
the IDL
Biometric data block V Format and Mandatory Finger minutia record as
encoding as specified in ISO/IEC 19794-
specified by BDB 2:2005, Clause 7
format owner and
type.
BIR payload V Refer to ISO/IEC Optional Arbitrary domestic data
19785-1:2006,
Clause 6.5.22
a
If hour, minute, second are not available, 00 shall be used for each value.
b
Two concatenated dates where the first date is the "from date" (not after), and the second date is the "to date" (not before).

8.7 Data Group 10: Reserved for future use
The contents of Data Group 10 have not been defined.
8.8 Data Group 11: Optional domestic data
Since Data Group 11 is dedicated for domestic (or regional) use, the contents shall be defined by the issuing
authority (or supranational entity) consistent with the structure, format and principles embodied in the
definition of the other data groups.
© ISO/IEC 2008 – All rights reserved 13

9 Application identifiers
All applications specified in this Part of ISO/IEC 18013 (including other parts of ISO/IEC 18013) are identified
by a seven byte Application Identifier (AID). The AID consists of a five byte Registered Application Identifier
(RID) and a two byte Proprietary Application Identifier Extension (PIX).
The RID for the International Interchange Driving Licence Application is ‘A0 00 00 02 48’.
NOTE 1 The RID was assigned by ISO/IEC JTC1/SC17/WG5 in accordance with ISO/IEC 7816-5.
NOTE 2 Pairs of single apostrophes are used to indicate hexadecimal notation, and are not encoded.
The PIX for each of the applications involved is shown in Table 7.
Table 7 — Proprietary Application Identifier Extensions
Application PIX
Application 1: Compact encoding (all technologies excluding '01 00'
ICs)
Application 2: Standard encoding for ICs '02 00'
Application 3: Compact encoding for ICs '03 00'

NOTE A PIX for optical memory is not defined since optical memory does not use version numbers.
Issuing authorities may add additional applications to the IDL. Issuing authorities may either use the range of
proprietary application identifier extensions allocated for this purpose ('05 00' to '05 FF') or obtain separate
RIDs from the Registration Management Group of SC17/WG5 according to the procedures defined in
ISO/IEC 7816-5 for such applications.
14 © ISO/IEC 2008 – All rights reserved

Annex A
(normative)
Assembly rules for categories of vehicles/restrictions/conditions field
A.1 Introduction
This Annex contains the assembly rules for the categories of vehicles/restrictions/conditions field as defined in
Table 1. The assembly rules include coding systems for vehicle categories (as defined in ISO/IEC 18013-1)
and vehicle and driver restrictions and conditions. The use of codes facilitates language-independent
implementation.
A.2 Scope
In addition to specifying the logical record format for the electronic storage of the categories of
vehicles/restrictions/conditions field, this Annex also defines the codes necessary for international interchange
(machine-readable data corresponds to human-readable data) in respect of the following:
• Any vehicle subcategory defined in accordance with B.4.2 of ISO/IEC 18013-1:2005.
• Supplementation of defined vehicle subcategories in accordance with B.4.3 of ISO/IEC 18013-1:2005.
• Vehicle restriction definitions in B.5 of ISO/IEC 18013-1:2005.
• Driver restriction definitions in B.5 of ISO/IEC 18013-1:2005.
The above-mentioned definitions may be expanded upon for domestic purposes by adding the following
optional restrictions in Data Group 11:
• Vehicle restrictions in addition to the mandatory definitions in B.5 of ISO/IEC 18013-1:2005.
• Driver restrictions in addition to the mandatory definitions in B.5 of ISO/IEC 18013-1:2005.
A.3 Normative references
The following International Standards contain provisions, which through reference herein, constitute provisions
of this Annex.
European Union Council Directive 91/439/EEC of 29 July 1991 O.J. EC No. L 237/1, as amended by:
European Union Council Directive 96/47/EC of 23 July 1996 O.J. EC No. L 235/1
European Union Council Directive 97/26/EC of 2 June 1997 O.J. EC No. L 150/41
European Commission Directive 2000/56/EC of 14 September 2000 O.J. EC No L 237/45
European Commission Directive 2006/126/EC of 20 December 2006 O.J. EC No L 403/18
UN Convention on Road Traffic, Geneva, 19 September 1949.
UN Convention on Road Traffic, Vienna, 8 November 1968.
© ISO/IEC 2008 – All rights reserved 15

A.4 Logical record format
The categories of vehicles/restrictions/conditions field consists of one or more instances of the category of
vehicle/restriction/condition data object. The category of vehicle/restriction/condition data object is assembled
as illustrated in Figure A.1.
Vehicle (sub)category code (for example A, A1, B, B1, C, D1, BE,
DE, D1E, or ALL)
Date of issue per (sub)category (YYYYMMDD)
Date of expiry per (sub)category (YYYYMMDD)

Vehicle Date of Date of Code Sign Value
category issue expiry
code
Subcategory supplementation / restriction
code on vehicles and/or driver
Figure A.1 — Structure of the category of vehicle/restriction/condition data object
Each data block in Figure A.1 is separated by a sub-field delimiter. Each instance of a vehicle category is
followed by 5 data fields.
NOTE The number of sub-fields in the categories of vehicles/restrictions/conditions field thus always will be a multiple
of 6.
The category of vehicle/restriction/condition data object is repeated as necessary to explain all the categories
of vehicles/restrictions/conditions applicable to the licence holder. The manner in which multiple instances of
the category of vehicle/restriction/condition data object is encoded is specified in the referring specification (i.e.
Annex B, C or D).
For encoding purposes, the formatting of the fields comprising the categories of
vehicles/restrictions/conditions field is as follows:
Table A.1 — Field formatting
Field format/length/type
Field Fixed or Variable
(before encoding)
Vehicle category code V 2AN
Date of issue F 8N
Date of expiry F 8N
Code V 5ANS
Sign V 2S
Value V N
16 © ISO/IEC 2008 – All rights reserved

When a category of vehicle/restriction/condition data object is encoded (e.g. in accordance with Annex C),
each field making up the data object shall be encoded individually as
...
