ISO/IEC 18013-4:2011

INTERNATIONAL ISO/IEC
STANDARD 18013-4
First edition
2011-11-01


Information technology — Personal
identification — ISO-compliant driving
licence —
Part 4:
Test methods
Technologies de l'information — Identification des personnes — Permis
de conduire conforme à l'ISO —
Partie 4: Méthodes d'essai




Reference number
ISO/IEC 18013-4:2011(E)
©
ISO/IEC 2011

---------------------- Page: 1 ----------------------
ISO/IEC 18013-4:2011(E)

COPYRIGHT PROTECTED DOCUMENT


©  ISO/IEC 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO/IEC 2011 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 18013-4:2011(E)
Contents Page
Foreword . v
Introduction . vi
1 Scope . 1
2 Conformance . 1
3 Normative references . 2
4 Terms and definitions . 2
5 Abbreviated terms . 2
6 Test design . 3
6.1 General . 3
6.2 Test hierarchy . 3
6.3 Test administration . 6
7 IDL Conformity test methods . 7
7.1 Overview . 7
7.2 Profiles. 7
7.3 IDL test case specifications . 7
7.4 Conformance . 8
Annex A (normative) Test case specification: LDS in SE on SIC . 9
A.1 Introduction . 9
A.2 General test requirements . 9
A.2.1 Preconditions for testing . 9
A.2.2 Test setup . 9
A.2.3 Implementation conformance statement . 9
A.3 Test Layer SE_LDS – Logical Data Structure Tests . 11
A.3.1 Test Unit SE_LDS_COM – Tests for EF.Com . 11
A.3.2 Test Unit SE_LDS_DG1 – Tests for EF.DG1 . 17
A.3.3 Test Unit SE_LDS_DG2 – Tests for EF.DG2 . 27
A.3.4 Test Unit SE_LDS_DG3 – Tests for EF.DG3 . 32
A.3.5 Test Unit SE_LDS_DG4 – Tests for EF.DG4 . 35
A.3.6 Test Unit SE_LDS_DG5 – Tests for EF.DG5 . 38
A.3.7 Test Unit SE_LDS_DG6 – Tests for EF.DG6 . 39
A.3.8 Test Unit SE_LDS_DG7 – Tests for EF.DG7 . 48
A.3.9 Test Unit SE_LDS_DG8 – Tests for EF.DG8 . 57
A.3.10 Test Unit SE_LDS_DG9 – Tests for EF.DG9 . 67
A.3.11 Test Unit SE_LDS_SOD – Tests for EF.SOD. 77
A.3.12 Test Unit SE_LDS_DG12 – Tests for EF.DG12 . 81
A.3.13 Test Unit SE_LDS_DG13 – Tests for EF.DG13 . 83
A.3.14 Test Unit SE_LDS_DG14 – Tests for EF.DG14 . 86
Annex B (normative) Test case specification: Commands for SE on SIC . 90
B.1 Introduction . 90
B.2 General test requirements . 90
B.2.1 Preconditions for testing . 90
B.2.2 Test setup . 90
B.2.3 Implementation conformance statement . 90
B.2.4 Verification of ISO/IEC 7816-4 status bytes . 92
B.2.5 Key pair definition . 93
B.2.6 Certificate specification . 94
B.3 Test Layer SE_ISO7816 - Security and Command Tests . 159
© ISO/IEC 2011 – All rights reserved iii

---------------------- Page: 3 ----------------------

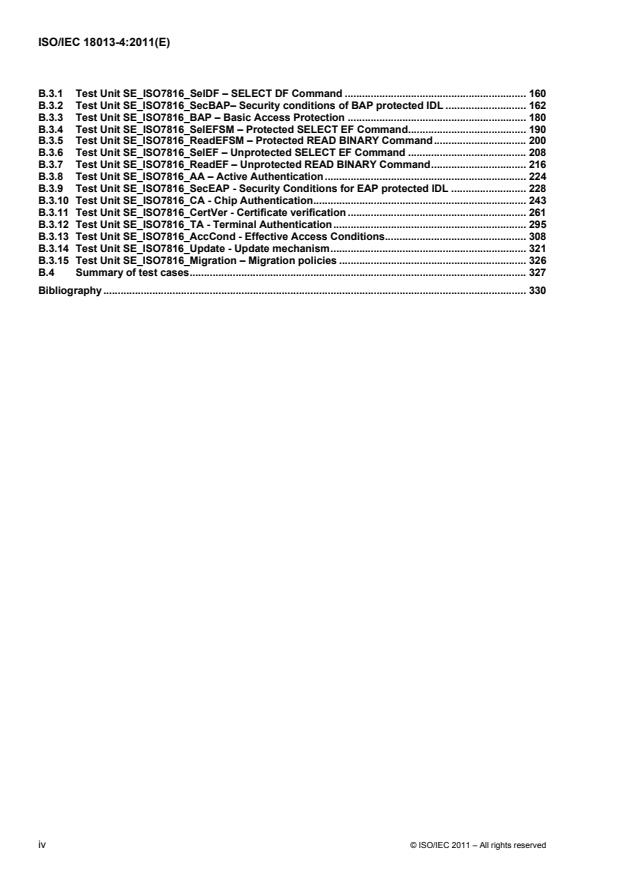

ISO/IEC 18013-4:2011(E)
B.3.1 Test Unit SE_ISO7816_SelDF – SELECT DF Command . 160
B.3.2 Test Unit SE_ISO7816_SecBAP– Security conditions of BAP protected IDL . 162
B.3.3 Test Unit SE_ISO7816_BAP – Basic Access Protection . 180
B.3.4 Test Unit SE_ISO7816_SelEFSM – Protected SELECT EF Command . 190
B.3.5 Test Unit SE_ISO7816_ReadEFSM – Protected READ BINARY Command . 200
B.3.6 Test Unit SE_ISO7816_SelEF – Unprotected SELECT EF Command . 208
B.3.7 Test Unit SE_ISO7816_ReadEF – Unprotected READ BINARY Command . 216
B.3.8 Test Unit SE_ISO7816_AA – Active Authentication . 224
B.3.9 Test Unit SE_ISO7816_SecEAP - Security Conditions for EAP protected IDL . 228
B.3.10 Test Unit SE_ISO7816_CA - Chip Authentication . 243
B.3.11 Test Unit SE_ISO7816_CertVer - Certificate verification . 261
B.3.12 Test Unit SE_ISO7816_TA - Terminal Authentication . 295
B.3.13 Test Unit SE_ISO7816_AccCond - Effective Access Conditions . 308
B.3.14 Test Unit SE_ISO7816_Update - Update mechanism . 321
B.3.15 Test Unit SE_ISO7816_Migration – Migration policies . 326
B.4 Summary of test cases . 327
Bibliography . 330

iv © ISO/IEC 2011 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 18013-4:2011(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 18013-4 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 17, Cards and personal identification.
ISO/IEC 18013 consists of the following parts, under the general title Information technology — Personal
identification — ISO-compliant driving licence:
 Part 1: Physical characteristics and basic data set
 Part 2: Machine-readable technologies
 Part 3: Access control, authentication and integrity validation
 Part 4: Test methods

© ISO/IEC 2011 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO/IEC 18013-4:2011(E)
Introduction
ISO/IEC 18013 establishes guidelines for the design format and data content of an ISO-compliant driving
licence (IDL) with regard to human-readable features (ISO/IEC 18013-1), machine-readable technologies
(ISO/IEC 18013-2), and access control, authentication and integrity validation (ISO/IEC 18013-3). It creates a
common basis for international use and mutual recognition of the IDL without impeding individual
countries/states to apply their privacy rules and national/community/regional motor vehicle authorities in taking
care of their specific needs.
ISO/IEC 18013-1 defines the basic terms for ISO/IEC 18013, including physical characteristics, basic data
element set, visual layout, and physical security features.
ISO/IEC 18013-2 specifies the technologies that may be used for ISO/IEC 18013, including the logical data
structure and data mapping for each technology.
ISO/IEC 18013-3 specifies the electronic security features that may be incorporated under ISO/IEC 18013,
including mechanisms for controlling access to data, verifying the origin of an IDL, and confirming data
integrity.
This part of ISO/IEC 18013 prescribes requirements for testing the compliance of the machine-readable data
content on an IDL and the mechanisms for controlling access to data recorded in the machine-readable
technology on an IDL with the requirements of ISO/IEC 18013-2 and ISO/IEC 18013-3, respectively.

vi © ISO/IEC 2011 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO/IEC 18013-4:2011(E)

Information technology — Personal identification —
ISO-compliant driving licence —
Part 4:
Test methods
1 Scope
This part of ISO/IEC 18013 specifies the test methods used for conformity testing, that is methods for
determining whether a driving licence can be considered to comply with the requirements of ISO/IEC 18013
for:
 machine-readable technologies (ISO/IEC 18013-2), and
 access control, authentication and integrity validation (ISO/IEC 18013-3).
The test methods specified in this part of ISO/IEC 18013 are based on specifications defined in
ISO/IEC 18013-2 and ISO/IEC 18013-3 and underlying normative specifications.
This part of ISO/IEC 18013 deals with test methods specific to ISO-compliant driving licence (IDL)
requirements. Test methods applicable to (smart) cards in general (e.g. those specified in the ISO/IEC 10373
series) are outside the scope of this part of ISO/IEC 18013.
Hence, this part of ISO/IEC 18013
 provides IDL implementers with requirements for conformity evaluation,
 provides IDL issuing authorities with requirements for quality assurance, and
 provides test laboratories and test tool providers with test suite requirements.
2 Conformance
Test case specifications described in this part of ISO/IEC 18013 are intended to be performed separately and
independently. A given driving licence document is not required to pass through all the tests sequentially. Also,
not all tests may be applicable to a given implementation.
An IDL is considered to conform to the applicable requirements of ISO/IEC 18013-2 and ISO/IEC 18013-3 if it
passes all associated tests in this part of ISO/IEC 18013. However, passing all applicable tests in this part of
ISO/IEC 18013 does not guarantee that no failures will occur under operational conditions.
© ISO/IEC 2011 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO/IEC 18013-4:2011(E)
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 3166-1:2006, Codes for the representation of names of countries and their subdivisions — Part 1:
Country codes
ISO/IEC 7816-4:2005, Identification cards — Integrated circuit cards — Part 4: Organization, security and
commands for interchange
ISO/IEC 18013-2:2008, Information technology — Personal identification — ISO-compliant driving licence —
Part 2: Machine-readable technologies
ISO/IEC 18013-3:2009, Information technology — Personal identification — ISO-compliant driving licence —
Part 3: Access control, authentication and integrity validation
ISO/IEC 19785-1:2006, Information technology — Common Biometric Exchange Formats Framework —
Part 1: Data element specification
ISO/IEC 19785-3:2007, Information technology — Common Biometric Exchange Formats Framework —
Part 3: Patron format specifications
4 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 18013-2, ISO/IEC 18013-3 and
the following apply.
4.1
test case
description of test purpose, unique test case identifier, test inputs, test execution conditions, test steps, and
the results required to pass the test
4.2
test case specification
collection of test cases, and general test data applicable to the test cases
5 Abbreviated terms
AA active authentication
AKID authority key identifier
AID application identifier
APDU application protocol data unit
BAP basic access protection
CA chip authentication
CE compact encoding
DF dedicated file
DG data group
DO data object
2 © ISO/IEC 2011 – All rights reserved

---------------------- Page: 8 ----------------------
ISO/IEC 18013-4:2011(E)
EAP extended access protection
EF elementary file
EF ID elementary file identifier
ICS implementation conformance statement
IUT implementation under test
LDS logical data structure
NMA non-match alert
OID object identifier
PA passive authentication
PKI public-key infrastructure
RF radio frequency
SAI scanning area identifier
SE standard encoding
SIC secure integrated circuit
SKID subject key identifier
SMI security mechanism indicator
SOD document security object
TA terminal authentication
6 Test design
6.1 General
This clause generally follows the concepts of the OSI Conformance Testing Methodology and Framework as
specified in the seven parts of ISO/IEC 9646. Several basic elements referred to in or by the individual test
case specifications are explained.
NOTE These elements facilitate the synchronization of additional specifications written by different organizations with
this part of ISO/IEC 18013.
6.2 Test hierarchy
6.2.1 Structure
Test concepts used to describe the test design consist of the following elements:
 Implementation under test (IUT)
 Test Layer
 Test Unit
 Test Case
These elements have a hierarchical relationship as shown in Figure 1.
© ISO/IEC 2011 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO/IEC 18013-4:2011(E)
implementation
under test
test layer
test layer
test unit test unit test unit test unit
test case test case test case test case test case test case test case test case

Figure 1 — Test element hierarchy
6.2.2 Implementation under test
6.2.2.1 Overview
Three IUTs are defined:
 IDL with standard encoding for SIC (see Annex C of ISO/IEC 18013-2:2008)
 IDL with compact encoding (see Annex B of ISO/IEC 18013-2:2008)
 IDL with standard encoding on Optical Memory (see Annex D of ISO/IEC 18013-2:2008)
6.2.2.2 Profile
Profiles are defined for identifying optional functionality in the IUT, which impacts the applicability of certain
test layers, test units or test cases.
Profiles determine whether certain tests are applicable in the Test Layer, Test Unit or Test Case definitions.
This enables the tester or test software to (automatically) select which tests should be executed to the IUT.
Such selection is based upon the ICS filled out by the applicant or tester (also see 6.3.1).
The Profile specification shall include:
 Profile-ID
 Profile description
6.2.3 Test layer
6.2.3.1 Overview
The following two of the seven layers in the OSI Basic Reference Model as defined in ISO/IEC 7498-1 are
addressed in this part of ISO/IEC 18013:
 Layer 7 refers to the Application Layer, and
 Layer 6 refers to the Presentation Layer.
4 © ISO/IEC 2011 – All rights reserved

---------------------- Page: 10 ----------------------
ISO/IEC 18013-4:2011(E)
The other layers are not applicable.
Each test layer comprises a number of test units.
6.2.3.2 Layer 7 – Logical data structure tests
Layer 7 tests cover LDS requirements. LDS requirements include:
 Presence and availability of DGs
 Presence and formatting of fields in each DG
 Access to DGs (security mechanisms)
6.2.3.3 Layer 6 – Command tests
Layer 6 tests are applicable only to IDL implementations on SIC. Layer 6 on a SIC consists of Commands.
Commands for an IDL are specified in ISO/IEC 18013-2 and ISO/IEC 18013-3 and are applicable to the
following IUTs:
 Compact encoding
 Standard encoding.
6.2.4 Test unit
A test unit covers an individual topic inside a layer. Each test unit contains test cases that are related to the
same type of functionality of the IUT. A test unit groups together test cases that address a common issue.
Each test unit is defined by the following information:
Test Unit-ID Uniquely identifies the test unit inside the test layer.
Purpose Specifies the common issue addressed by test cases contained in this test unit.
References Optionally identifies references applicable to all test cases in the test unit.

6.2.5 Test case
Each test case is defined by the following information:
Test Case-ID Uniquely identifies the test case within the test unit.
Purpose Specifies the requirement addressed in this test case.
Version Version number of this test case.
References Identifies specific reference to the requirement addressed by this test case.
Profile Defines the profiles for which the test case is applicable. If no profile is defined (empty
field), the test applies to all configurations. If the IUT does not match with each of the
defined profiles, the test is skipped, and marked "not applicable" in the test report.
© ISO/IEC 2011 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO/IEC 18013-4:2011(E)
Preconditions Define the state in which the IUT needs to be before the test case can be executed,
including test cases that shall have been successfully passed, if any. If these
preconditions are not fulfilled, the test is skipped and marked as such in the test report.
Test scenario Defines the test steps that shall be taken.
Each step covers a simple, exactly defined operation with a measurable result that can
be included in the test report. The steps shall be performed in the order listed.
Each test step is defined by the following information:
 Test Step-ID – a consecutive number, uniquely identifying each test step and the
execution order in the test case.
 Description – defining the operation that has to be executed for this step.
 Configuration Data – optionally specifying input data required to perform this test
step.
Expected result The expected result defines pass criteria for each test step in the test scenario. The
analysis of the observed result in comparison with the expected result leads to a "Pass"
or a "Fail". The results of the individual test steps and the overall result of the test case
are transferred to the overall test report.

6.3 Test administration
6.3.1 Preconditions for testing
IUT. The tests in this part require a fully personalized IDL. This means that all mandatory data groups shall be
present as a minimum. In addition, the IUT shall be personalised with all data required to test the optional
features declared in the ICS.
Test environment. Test execution takes place in indoor conditions and provides normal temperature. All test
equipment must be established properly.
Test apparatus. All equipment described in the annexes pertinent to the machine readable techonogy
supported by the IUT must be available.
6.3.2 Implementation conformance statement
For each IUT described, the applicant for conformity testing shall complete the ICS which is attached to the
Test Case Specification applicable to that specific IUT.
A completed ICS provides information about the Profile of the IUT (also see 6.2.2.2). Based on the completed
ICS, all tests that apply to this Profile (as indicated in the Profile element in each test case; see 6.2.5) can be
selected for test execution.
6.3.3 Test report
Detailed test results and ICS information shall be recorded for reference in a test report. The test report
contains the test result of each
 test layer
 test unit
6 © ISO/IEC 2011 – All rights reserved

---------------------- Page: 12 ----------------------
ISO/IEC 18013-4:2011(E)
 test case
 test step
If a test is not applicable, this is noted.
If a test is applicable and the preconditions are fulfilled, the test result for a test step/ case/ unit/ layer can be:
 Pass – if all actually obtained results from the IUT match the expected results declared for each test step/
case/ unit/ layer AND if all post conditions are fulfilled.
 Fail – if one or more of the actually obtained results from the IUT do NOT match the expected results
declared for each test step/ case/ unit/ layer OR if one or more of the post conditions are NOT fulfilled.
Optionally, additional information regarding the failure can be provided.
A fail in one of the test steps leads to a fail of the entire test case; a failed test case leads to a failed test unit;
etc.
The ICS and detailed test results shall be logged and retrievable. Optionally, the test execution details,
including detailed observed results for each test case may be included in the test report.
7 IDL Conformity test methods
7.1 Overview
Conformity testing of IDL implementations to ISO/IEC 18013-2 and ISO/IEC 18013-3 is organised through the
identification of a number of test cases.
Test requirements for Commands and LDS tests conformity are defined in individual annexes. These annexes
are attached to this part of ISO/IEC 18013.
7.2 Profiles
Profiles are defined to identify whether certain optional functionality is supported by the IUT. Support of these
optional functions and features depend on several factors:
 Machine Readable Technologies supported
 Access control, authentication and integrity validation mechanisms supported
 Optional Data Groups supported
 Optional Data Elements supported within Data Groups
Profiles for each IUT are defined in each annex.
7.3 IDL test case specifications
7.3.1 Scope
IDL test case specifications are attached in the annexes.
Test methods for driving licence interface devices are currently not included in this part of ISO/IEC 18013.
© ISO/IEC 2011 – All rights reserved 7

---------------------- Page: 13 ----------------------
ISO/IEC 18013-4:2011(E)
7.3.2 Standard encoding on SIC
Test case specifications for SE on SIC cover:
 LDS tests for SE on SIC
 Chip Application Protocol tests (applicable to SE on SIC)
7.3.3 Compact encoding
Test case specifications for CE cover:
 LDS tests for CE (applicable to all machine readable technologies)
 Chip Application Protocol tests (applicable to CE on SIC)
7.3.4 Standard encoding on optical memory
Test case specifications for SE on Optical Memory cover:
 LDS tests for SE on Optical Memory
7.4 Conformance
An IUT is in conformance with the requirements of a particular layer if the IUT passes all applicable tests. All
tests in a layer should be performed on the same IUT.
8 © ISO/IEC 2011 – All rights reserved

---------------------- Page: 14 ----------------------
ISO/IEC 18013-4:2011(E)
Annex A
(normative)

Test case specification: LDS in SE on SIC
A.1 Introduction
This annex specifies the test cases for the LDS in SE on SIC.
A.2 General test requirements
A.2.1 Preconditions for testing
The tests in this annex require a fully personalized IDL. This means that all mandatory data groups shall be
present. This annex tests all mandatory and optional data groups.
All tests are mandatory unless marked as optional or conditional.
A.2.2 Test setup
For setting up these tests, any reader for communicating with SIC compliant with ISO/IEC 7816 or
ISO/IEC 14443 can be used. The reader shall support extended length APDUs and command chaining.
If EAP is supported, a terminal authentication certificate chain and an IS private key are required as input for
testing.
A.2.3 Implementation conformance statement
In order to set up the tests properly, Tables A.1 and A.2 shall be completed.
The ISO/IEC 18013-2 specification defines several optional elements that an IDL can support. This includes
security mechanisms like BAP, EAP and AA as well as additional data groups (DG2 to DG14).
Since these elements are optional, it is not possible to define the corresponding tests as mandatory for each
IDL. Therefore, this part of ISO/IEC 18013 specifies a set of profiles. Each profile covers a specific optional
element. A tested IDL shall be assigned to the supported profiles in the ICS, and a test shall only be
performed if the IDL supports this profile.
NOTE No profile ID’s are explicitly defined for DG12 to DG14 because the EAP, AA and NMA profiles cover these
data groups implicitly.
© ISO/IEC 2011 – All rights reserved 9

---------------------- Page: 15 ----------------------
ISO/IEC 18013-4:2011(E)
Table A.1 — Implementation conformance statement
Protection
Applicable
level
Profile Information for test setup
(Plain, BAP
(YES or NO)
...
