ISO/IEC 19794-1:2011/Amd 2:2015

INTERNATIONAL ISO/IEC
STANDARD 19794-1
Second edition
2011-07-15
AMENDMENT 2
2015-04-15
Information technology — Biometric
data interchange formats —
Part 1:
Framework
AMENDMENT 2: Framework for XML
encoding
Technologies de l’information — Formats d’échange de données
biométriques —
Partie 1: Cadre
AMENDEMENT 2: Cadre pour le codage XML
Reference number
ISO/IEC 19794-1:2011/Amd.2:2015(E)
©
ISO/IEC 2015

---------------------- Page: 1 ----------------------

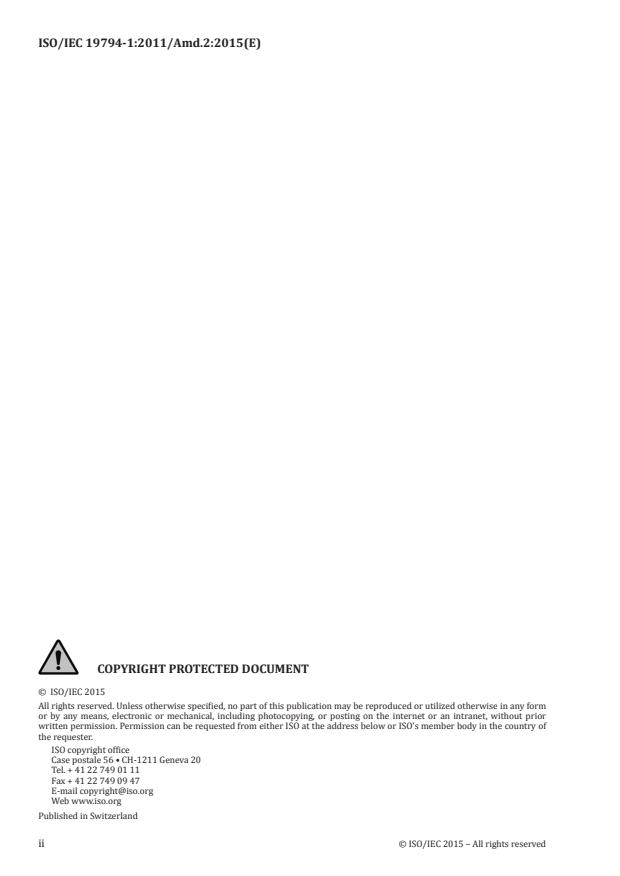

ISO/IEC 19794-1:2011/Amd.2:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 19794-1:2011/Amd.2:2015(E)

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Details of any patent rights identified during the development of the document will be in the Introduction
and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/IEC JTC 1, Information technology, SC 37, Biometrics.
© ISO/IEC 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 19794-1:2011/Amd.2:2015(E)
Information technology — Biometric data interchange
formats —
Part 1:
Framework
AMENDMENT 2: Framework for XML encoding
Add the following normative references to Clause 2.
RFC 5141, A Uniform Resource Name (URN) Namespace for the International Organization for
Standardization (ISO)
RFC 5234, Augmented BNF for Syntax Specifications: ABNF
XML Schema Part 0: Primer. W3C Recommendation, Second Edition, October 2004
Insert the following text in the appropriate alphabetical order to Clause 4.
ABNF Augmented BNF for Syntax Specifications
XML Extensible Markup Language
Replace the heading title of Clause 12 from “Coding scheme for format types” to “Binary encoding scheme
for format types”.
Insert the following text at the end of 12.1.
The record formats may have a binary encoding and an XML encoding. The binary encoding shall follow
the description in Clause 12 of this part of ISO/IEC 19794. The XML encoding shall follow the description
in Clause 13 of this part of ISO/IEC 19794.
Insert the following clause after Clause 12.
13 XML encoding scheme for format types
13.1 General
13.1.1 Structure of XML Data Record
Each of the parts 2 through N of ISO/IEC 19794 may specify an XML data type and element names. The
XML data type and element names shall be mapped to corresponding elements and data types in the
binary format specified in the same part of ISO/IEC 19794, if any. The methodology and terms used for
the XML encoding in the parts 2 through N of ISO/IEC 19794 shall conform to the description in this
Clause. The syntax and semantics of XML schema used to describe biometric data interchange formats
are defined in the XML Schema Part 0: Primer, W3C Recommendation, Second Edition, 28 October 2004.
All parts of ISO/IEC 19794 shall identify optional and mandatory elements — both for common and
part-specific elements. An element is optional if the value of the minOccurs attribute is 0. An element
© ISO 2015 – All rights reserved 1

---------------------- Page: 4 ----------------------
ISO/IEC 19794-1:2011/Amd.2:2015(E)

is required to appear if the value of the minOccurs attribute is 1 or more. The default value for the
minOccurs attribute is 1 (see XML Schema Part 0).
When a type and/or element has multiple child elements with mixed bounds, elements with the
possibility of multiple occurrences shall be encapsulated inside a wrapper element with maxOccurs=”1”
(which is the default value for the maxOccurs attribute).
EXAMPLE






                        maxOccurs=”unbounded”/>





All white space directives shall be omitted in XML Schema files through all parts.
13.1.2 XML Naming Conventions
Naming conventions for XML encoding of parts 2 through N of ISO/IEC 19794 are defined in this Clause.
XML rules specified in this part of ISO/IEC 19794 align with those of W3C and IETF as appropriate.
Harmonisation with XML representations for biometric elements defined in ANSI/NIST-ITL 2 or in
other XML schema definitions is seen as beneficial. Where possible, element and tag names should be
aligned to map or external reference to ANSI/NIST or other regional namespaces, such as EU biometric
data exchange XML schemas (e.g. “europa.eu/2008/pruem/dna/1.1”). If not possible, specific items and
objects from external namespaces can still be used by means of XML mechanism “import” and “include”.
The naming specification mechanism used in this document is in compliance with IETF/RFC 5141.
 ::=  “urn:” “:”
The definition of a URN is intended to serve as persistent, location-independent, resource identifier,
where is the Namespace Identifier, and is the Namespace Specific String. In accordance
with the standard development procedures within the framework of the ISO/IEC, the mechanism of an
ISO URN Schema (RFC 5141) has been specified to define the syntax for URNs that identify documents
developed by the ISO. In order to be in compliance with the most parts of a URN definition, only the
phrase in the definition of a URN has been further standardized in the RFC 5141.
NSS =  std-nss
std-nss =  “std:” docidentifier *supplement *docelement [addition]
An ISO/IEC JTC1/SC37 specific URN is derived from the object phrase “NSS” only. The mechanism used
in the SC37 XML namespace defines the additional resources related to all Working Groups of ISO/IEC
JTC1/SC37 by resolving identifiers for the object phrase .
The object has been defined in compliance with the ABNF specification [RFC 5234]:
addition =  techdefined/isodefined
techdefined =  “:tech” *techelement
techelement =  sc37defined/sc27defined/sc17defined/scxxdefined/jtcdefined
2 © ISO 2015 – All rights reserved

---------------------- Page: 5 ----------------------
ISO/IEC 19794-1:2011/Amd.2:2015(E)

isodefined =
sc27defined =
sc17defined =
scxxdefined =
jtcdefined =
sc37defined =  1*biomelement
biomelement =  1*partname “:” [filetype]
partname =  frw/fmr/fsp/fir/fac/iir/sdi/fsk/vir/hnd/spd/vdi/dna/
filetype =  [fileorigin “:”] fileext
fileorigin =  “NIST” / “EU-decision” /
fileext =  “xsd” / “xml” / “xsl” / “wsdl” / “soap” / [“:” fileversion]
fileversion =  “v” (versionno “.” releaseno)
versionno =  DIGITS
releaseno =  DIGITS
DIGITS =  DIGIT *DIGIT
DIGIT =  %x30-39
ALPHA =  %x41-5A / %x61-7A ; A-Z / a-z
The long form of the abbreviations used in the above specification is listed below:
frw :=  XML Framework
fmr :=  Finger minutiae data (ISO/IEC 19794-2)
fsp :=  Finger pattern spectral data (ISO/IEC 19794-3)
fir :=  Finger image data (ISO/IEC 19794-4)
fac :=  Face image data (ISO/IEC 19794-5)
iir :=  Iris image data (ISO/IEC 19794-6)
sdi :=  Signature/sign data (ISO/IEC 19794-7)
fsk :=  Finger pattern skeletal data (ISO/IEC 19794-8)
vir :=  Vascular image data (ISO/IEC 19794-9)
hnd :=  Hand geometry silhouette data (ISO/IEC 19794-10)
spd :=  Signature/sign processed dynamic data (ISO/IEC 19794-11)
vdi :=  Voice data (ISO/IEC 19794-13)
dna :=  DNA data (ISO/IEC 19794-14)
© ISO 2015 – All rights reserved 3

---------------------- Page: 6 ----------------------
ISO/IEC 19794-1:2011/Amd.2:2015(E)

A URN identifying an ISO document can be transformed to a valid http URI by replacing the “std:” prefix
with the domain name “standards.iso.org”, replacing all occurrences of “:” within the identifier with “/”,
and converting characters to lowercase (see RFC 5141).
EXAMPLE 1
19794 part 1; edition 2; amendment 2 on XML encoding (document name):
standards.iso.org/iso-iec/19794/-1/ed-1/amd/2
EXAMPLE 2
19794 part 1, edition 2; amendment 2; clause C, using to denote the file extension “soap” (document
and file name):
standards.iso.org/iso-iec/19794/-1/ed-2/amd/2/clause:C/tech/frw/soap
EXAMPLE 3
19794 part 1; corrigendum 3 (document name):
standards.iso.org/iso-iec/19794/-1/cor/3
EXAMPLE 4
19794 part 1; edition 2; amendment 2 on XML Encoding; Framework referring the XML file of version 1 and
release 01 (document and file name):
standards.iso.org/iso-iec/19794/-1/ed-2/amd/2/frw/xml/v1.01
EXAMPLE 5
19794 part 14; edition 1, corrigendum 1 on DNA concerning NIST specific objects by using to denote
the file extension “wsdl”, version 2 and release 01 (document and file name):
standards.iso.org/iso-iec/19794/-14/ed-1/cor/1/dna/NIST/wsdl/v2.01
EXAMPLE 6
19794 part 14; addendum 2 on DNA concerning EU specific objects by using to denote the file extension
“xsd” of version 1 and release 1 (document and file):
standards.iso.org/iso-iec/19794/-14/add/2/dna/EU/xsd/v1.1
EXAMPLE 7
19794 part 1; edition 3; addendum 3 on common elements concerning NIST specific objects by using
to denote the file extension “xml” of version 2x and release 01 (document and file name):
standards.iso.org/iso-iec/19794/-1/ed-3/add/3/NIST/xml/v2x.01
EXAMPLE 8
19794 part 1; edition 3; addendum 3 on common elements concerning NIST specific objects by using
to denote the file extension “xml” of version 2x and release 01 (document and file name):
standards.iso.org/iso-iec/19794/-1/ed-3/add/3/NIST/xml/v2x.01
13.2 Common elements
All data types and element names of XML implementations that are common among parts 2 through N
of ISO/IEC 19794 are listed in this Clause.
For XML encoding of a quality score the following mapping shall be used:
— If the quality score is not computed, then no quality information shall be encoded.
4 © ISO 2015 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/IEC 19794-1:2011/Amd.2:2015(E)

— If the quality score is 255, the element shall be encoded with the string element
“QualityCalculationFailed”. The content of the string is not defined by this standard. It may be empty
or implementation-specific.
— If the quality score is in the range of 0 to 100, the element “Quality Score” shall be used.
Even though some types are not common across all parts of this standard, this XML framework will
nevertheless define types that are common across multiple parts to promote harmonisation and
consistent usage.
The object “CaptureDateTime” shall be mandatory for the specific binary encoding parts of ISO/IEC 19794,
but optional for XML encoding parts, e.g. Voice and DNA.
The relationship between common binary and XML elements is reflected in Table 8.
Table 8 — Mapping of common XML elements to binary ones
Binary Element Name XML Element Name
Format Identifier N.A.
Version Number Version
Number of representations N.A.
Certification flag N.A.
Capture date and time CaptureDateAndTime
Capture device technology identifier CaptureDeviceTechnologyIdentifier
Capture device vendor identifier DeviceModelId.Organization
Capture device type identifier DeviceModelId.Id
Quality record Quality
Quality score Quality.Score
Quality algorithm vendor ID Algorithm.Organization
Quality algorithm ID Algorithm.Id
Certification record CertificationIDList
Certification authority identifier CertificationId.Organization
Certification scheme identifier CertificationId.Id
13.3 Prototypes
This Clause lists prototypes to be specialised in parts 2 through N of ISO/IEC 19794. The root element
should be named after the title of the part, e.g., “FingerImage”, “FingerMinutiae”, or “DNA”.






                        maxOccurs=”unbounded”/>










© ISO 2015 – All rights reserved 5

---------------------- Page: 8 ----------------------
ISO/IEC 19794-1:2011/Amd.2:2015(E)




                       maxOccurs=”unbounded”/>






Insert the following clause after A.3.2.2.
A.3.2.3   Conformance testing methodology for biometric data XML documents
Each part of ISO/IEC 19794 defining an XML schema shall require conformance testing in terms of strict
validation of the XML schema definition. Additionally, it shall contain a table specifying test assertions for
further requirements that are not explicitly covered by the schema validation process. Each part may contain
a normative annex that defines an XSLT (Extensible Stylesheet Language Transformations) stylesheet for
use in testing the level-2 confo
...
