ISO/TR 17950:2016

TECHNICAL ISO/TR
REPORT 17950
First edition
2016-11-15
Impact test procedures for road
vehicles — Rear seat positioning
procedures for Hybrid III 5th
percentile female dummy
Procédures de chocs pour les véhicules routiers - Procédures
d’installation et de positionnement en places arrières des mannequins
Hybrid III 5ème percentile femme
Reference number
ISO/TR 17950:2016(E)
©
ISO 2016

---------------------- Page: 1 ----------------------
ISO/TR 17950:2016(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TR 17950:2016(E)

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 1
5 Recommendations . 2
5.1 General . 2
5.2 Position of the rear seats . 2
5.2.1 Rear seats . 2
5.2.2 Rear seatbacks . 2
5.2.3 Rear head restraints . . 3
5.2.4 Seat supports . 3
5.2.5 Seatbelt upper torso adjustment . 3
5.2.6 Armrests . 3
5.2.7 Defining the seat centre reference line . 3
5.3 Design H-Point Determination . 3
5.3.1 Determining the H-point of SAE J826 device . 3
5.3.2 Method for deriving the Design H Points of Hybrid III 5th percentile
female Dummies for rear seat position . 4
5.4 Installation and positioning of Dummy . 5
5.4.1 Installation method for Hybrid III 5th percentile female Dummies. 5
5.4.2 Fastening of seatbelts . 8
Bibliography . 9
© ISO 2016 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/TR 17950:2016(E)

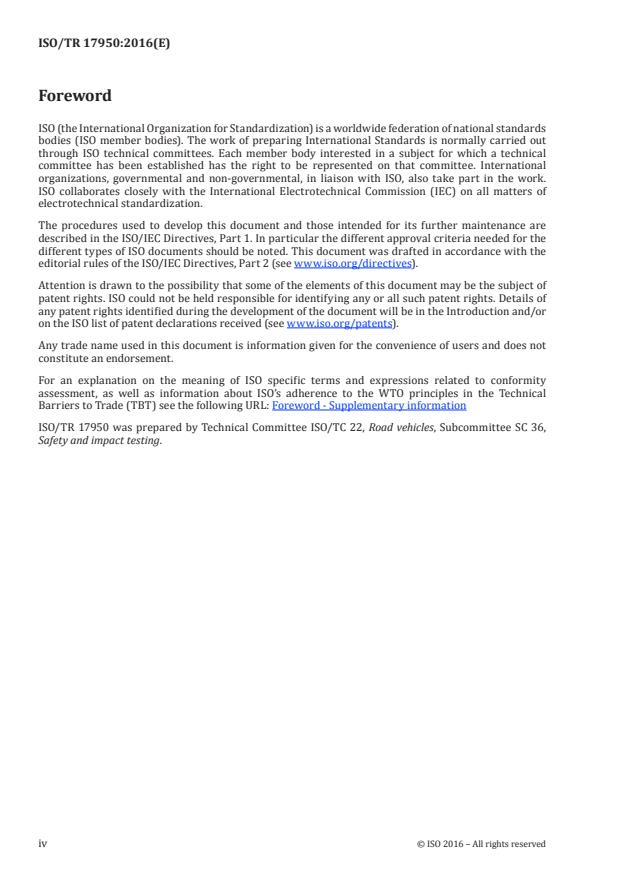

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO could not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
ISO/TR 17950 was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 36,
Safety and impact testing.
iv © ISO 2016 – All rights reserved

---------------------- Page: 4 ----------------------
TECHNICAL REPORT ISO/TR 17950:2016(E)
Impact test procedures for road vehicles — Rear seat
positioning procedures for Hybrid III 5th percentile
female dummy
1 Scope
This document specifies the conditions for the recommended placement of the Hybrid III 5th percentile
nd
female frontal impact dummy (HIII5F) when used in forward-facing outboard 2 row rear seating
positions of passenger cars (M Category) for frontal impact testing . For example:
— Frontal Impact 0° and Pole (ISO 3560)
— Frontal Impact Offset Deformable Barrier (ISO 15828)
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
—ISO Online browsing platform: available at http://www.iso.org/obp
2.1
H points of Hybrid III 5th percentile female dummies for rear seat position
design H point
locations of the Hybrid III 5th dummy H point on a seat adjusted to the manufacturer’s specification for
a 5% female
Note 1 to entry: The H point is the point of the H joint.
Note 2 to entry: The design H-point is defined as the H-point of SAE J826 device corrected in accordance with 6.2.2.
2.2
Seat Reference Point
marked point at the side of the seat near the H-point
4 Symbols and abbreviated terms
X forward direction of the vehicle
Z downward direction of the vehicle
SRP Seat Reference Point
© ISO 2016 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO/TR 17950:2016(E)

5 Recommendations
5.1 General
It is recommended to start with the positioning of the rear outboard dummies to facilitate the placement
of all dummies.
5.2 Position of the rear seats
5.2.1 Rear seats
Longitudinal seat adjustment should be positioned according to the design longitudinal position for
Hybrid III 5th percentile female dummy defined by car manufacturer. If no design position is available,
the seat should be adjusted as close as possible to the mid-track position.
Vertical seat adjustment should be positioned in the design position defined by car manufacturer. If no
design position is available, the seat should be adjusted as close as possible to the lowest position.
If pitch angle can be adjusted independently, it should be adjusted according to the design position
defined by car manufacturer. If no design position is available, it should be as close as possible to the
mid-angled position.
In absence of any manufacture specifications the default procedure should be:
1) The seat control that primarily moves the seat vertically should be used to adjust the seat reference
point to the upper most vertical location.
2) The seat control that primarily moves the seat fore-aft should be used to adjust the seat reference
point defined to the rear most location.
3) The range of angles of the seat cushion pitch referring to the line and using only the control(s) that
primarily adjust(s) the cushion pitch should be determined and recorded, and the set cushion pitch
should be as close as possible to the mid-angle.
4) The seat control that primarily moves the seat vertically should be used to adjust the seat reference
point to the lowest vertical location. A verification that you are still at the rearmost seat track
location should be conducted. The X position should be recorded.
5) The seat control that primarily moves the seat fore-aft to adjust the
...
