ISO 6182-11:2003

INTERNATIONAL ISO
STANDARD 6182-11
First edition
2003-12-01


Fire protection — Automatic sprinkler
systems —
Part 11:
Requirements and test methods for pipe
hangers
Protection contre l'incendie — Systèmes d'extinction automatiques du
type sprinkler —
Partie 11: Exigences et méthodes d'essai relatives aux dispositifs de
fixation des conduites




Reference number
ISO 6182-11:2003(E)
©
ISO 2003

---------------------- Page: 1 ----------------------
ISO 6182-11:2003(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2003
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2003 — All rights reserved

---------------------- Page: 2 ----------------------
ISO 6182-11:2003(E)
Contents Page
Foreword. iv
1 Scope. 1
2 Normative references. 1
3 Terms and definitions. 1
4 Product consistency. 4
5 Materials and rod sizes. 4
6 Material thicknesses. 4
7 Performance requirements. 5
8 Test methods. 7
9 Marking. 9
Bibliography . 13



© ISO 2003 — All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 6182-11:2003(E)

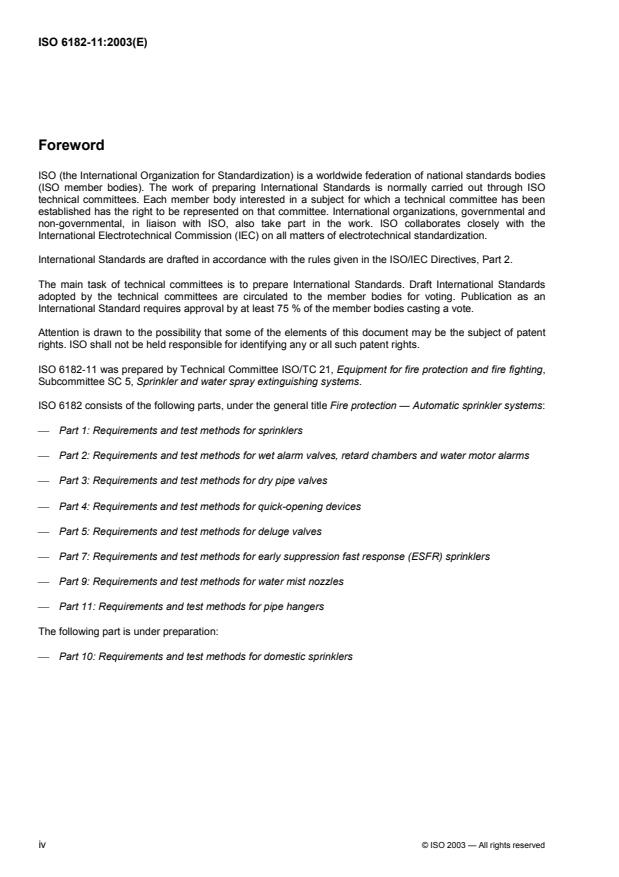

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 6182-11 was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and fire fighting,
Subcommittee SC 5, Sprinkler and water spray extinguishing systems.
ISO 6182 consists of the following parts, under the general title Fire protection — Automatic sprinkler systems:
 Part 1: Requirements and test methods for sprinklers
 Part 2: Requirements and test methods for wet alarm valves, retard chambers and water motor alarms
 Part 3: Requirements and test methods for dry pipe valves
 Part 4: Requirements and test methods for quick-opening devices
 Part 5: Requirements and test methods for deluge valves
 Part 7: Requirements and test methods for early suppression fast response (ESFR) sprinklers
 Part 9: Requirements and test methods for water mist nozzles
 Part 11: Requirements and test methods for pipe hangers
The following part is under preparation:
 Part 10: Requirements and test methods for domestic sprinklers

iv © ISO 2003 — All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 6182-11:2003(E)

Fire protection — Automatic sprinkler systems —
Part 11:
Requirements and test methods for pipe hangers
1 Scope
This part of ISO 6182 specifies performance requirements, test methods and marking requirements for pipe
hangers.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 1460, Metallic coatings — Hot dip galvanized coating on ferrous material — Gravimetric determination of
the mass per unit area
ISO 2064, Metallic and other inorganic coatings — Definitions and conventions concerning the measurements
of thickness
ISO 2178, Non-magnetic coatings on magnetic substrates — Measurement of coating thickness — Magnetic
method
ISO 3575:1996, Continuous hot-dip zinc-coated carbon steel sheet of commercial, lock-forming and drawing
qualities
ISO 4998:1996, Continuous hot-dip zinc-coated carbon steel sheet of structural quality
ASTM B568, Standard test method for measurement of coating thickness by X-ray spectrometry
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
band hanger
type of hanger that is adjustable and utilizes a band looped around the pipe
3.1.1
adjustable swivel band hanger
type of band hanger that is adjustable and swivels
3.2
bracket
cantilever-type hanger that is attached directly to a vertical surface of the building structure
© ISO 2003 — All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 6182-11:2003(E)
3.3
building attachment component
support fixing
hanger component set into the wall or ceiling to support the hanger
NOTE A building attachment component can be either a driven fastener, expansion anchor, undercut anchor,
or cast-in insert.
3.4
cast-in insert
type of building attachment component cast into the concrete at the time of poring
NOTE Cast-in inserts can be channels, which take special threaded bolts, or internally threaded sockets, which
accept conventional bolts.
3.5
ceiling flange
type of building attachment component hanger that is attached directly to an overhead surface of a building
structure
3.6
clamp
type of building attachment that is rigidly attached to the flange of a steel structural member
3.6.1
beam clamp
clamp that is rigidly attached to both edges of the bottom flange of a structural member
3.6.3
C-clamp
building attachment component that grips a flange by means of a jaw and setscrew combination
3.6.4
riser clamp
type of pipe clamp used to support risers at various levels
3.6.5
top/bottom clamp
clamp that is rigidly attached to one edge of the top or bottom flange of a structural member
3.7
clevis attachment
type of split-ring pipe-attachment component
3.8
clip
pipe-attachment component, usually one piece and nonadjustable, that only partially embraces a pipe and that
can be attached directly to a building structure
3.9
coupler
threaded element used to connect the building attachment component (support fixing) to the rod
NOTE Couplers can have male or female threads (usually female) and can be the same thread throughout or two
different thread diameters to link fixings and rods of different sizes.
2 © ISO 2003 — All rights reserved

---------------------- Page: 6 ----------------------
ISO 6182-11:2003(E)
3.10
driven fastener
type of building attachment component driven into solid concrete or structural steelwork by means of a special
tool, usually powder actuated, and can have female or, usually, male thread linked to the rod by means of a
coupler
3.11
expansion anchor
type of building attachment component set into the ceiling or wall of the building structure in self-drilled or pre-
drilled cylindrical holes; ceiling fixings usually “deformation-controlled” internally threaded socket anchors,
which are expanded by driving an expander plug to the base of the shell or by driving the shell over the
expander plug
NOTE Fixings for walls can be socket anchors or can be “torque-controlled” anchors, either through-bolts (where an
expander clip is expanded by the tightening of the bolt) or sleeve anchors (where the sleeve is expanded by the tightening
of the bolt).
3.13
hanger
assembly of components used singly or in combination with other assemblies for supporting pipework
NOTE A hanger can comprise a building attachment component (support fixing), coupler, rod or equivalent and pipe
attachment component as shown in Figure 2, or a simple bracket and building attachment component (support fixing) as
indicated in Figure 3.
3.14
non-heat sensitive material
material whose measured tensile strength at (540 ± 10) °C is at least 90 % of the value measured at
(20 ± 5) °C
3.15
pipe attachment component
hanger component that is attached directly to the pipe
See Figures 2 and 3.
3.16
retaining strap
building attachment component, usually made from steel strip, used in combination with a C-clamp to hold the
C-clamp in place
3.17
ring
pipe hanger that completely encircles a pipe without a positive gripping action
3.17.1
solid ring
ring that has to be slipped onto the end of the pipe and cannot be opened in any way for attachment to the
pipe after the pipe line is made up
3.17.2
split ring
ring that can be opened in some way to allow it to be put on the pipe after the pipeline is made up
3.17.3
swivel ring
solid or split ring that has a top swivel allowing the hanger to be connected to a rod after it has been installed
on the pipe
© ISO 2003 — All rights reserved 3

---------------------- Page: 7 ----------------------
ISO 6182-11:2003(E)
3.18
undercut anchor
type of building attachment component set into the ceiling or wall of the building structure in self-drilled or
pre-drilled undercut holes
NOTE The setting of the anchor, usually by hammering a sleeve over an outwardly tapered element, forces the
sleeve out into the undercut shape forming a mechanical interlock with the base material. These anchors are intended for
tension zones of concrete, i.e. cracked concrete.
4 Product consistency
It shall be the responsibility of the manufacturer to implement a quality control programme to ensure that
production continuously meets the requirements of this part of ISO 6182 in the same manner as the originally
tested samples.
5 Materials and rod sizes
5.1 Materials
Hangers and their components shall be made of ferrous or other non-heat-sensitive materials.
5.2 Rod sizes
5.2.1 Hangers and their components shall be provided with rod sizes in accordance with Table 1 unless
otherwise stated in 5.2.2 to 5.2.4.
5.2.2 8-mm hanger rod sizes may be used in countries where permitted by National Standards for use with
pipe sizes up to and including DN 50. 8-mm hanger rods shall meet the load requirements of Table 1 for a
pipe size of DN 50.
5.2.3 Hanger rod sizes designated in Table 1 are the nominal diameters associated with machined threads.
The diameter of a rod provided for with a rolled thread shall be not less than the root diameter of the thread.
5.2.4 Some hanger assemblies, such as powder-driven (pyrotechnic) fasteners and 6-mm and 8-mm size
expansion shells require the use of an increaser coupling to attach to nominal 10-mm size rod. The increaser
couplings provided by the manufacturer shall have sufficient strength to support the test loads applicable to
the maximum permitted pipe size.
5.3 Ceiling flanges
Ceiling flanges for pipe sizes up to DN 50 shall have at least two supporting screw holes. For pipe sizes of up
to DN 200 (NPS 8), no less than three supporting screw holes shall be provided.
6 Material thicknesses
6.1 Uncoated material thicknesses
6.1.1 Unprotected flat steel, no less than 3 mm thick, is acceptable for use as a clevis-type hanger, band
hanger, adjustable swivel loop hanger and for other flat iron hangers, if the hanger is at least 25 mm wide and
if the hanger exhibits strength values of at least 150 % of the required test load specified in Table 1.
6.1.2 A C-clamp formed of a double thickness, no less than 3 mm thick, unprotected steel so as to form a
6 mm thick section is acceptable if the clamp exhibits strength value of at least 150 % of the required test load
specified in Table 1.
4 © ISO 2003 — All rights reserved

---------------------- Page: 8 ----------------------
ISO 6182-11:2003(E)
6.1.3 A pressed-steel concrete insert
...
