ISO 8820-3:2015

INTERNATIONAL ISO
STANDARD 8820-3
Fourth edition
2015-09-15
Road vehicles — Fuse-links —
Part 3:
Fuse-links with tabs (blade type) Type
C (medium), Type E (high current) and
Type F (miniature)
Véhicules routiers — Liaisons fusibles —
Partie 3: Liaisons fusibles cavalier (Type à lame), Type C (moyen),
Type E (courant élevé) et Type F (miniature)
Reference number
©
ISO 2015
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Marking, labelling, and colour coding . 1
5 Tests and requirements . 2
5.1 General . 2
5.1.1 Test criteria . 2
5.1.2 Test sequence . . . 3
5.2 Voltage drop . 3
5.2.1 Tests . 3
5.2.2 Requirements . 4
5.3 Transient current cycling . 5
5.3.1 Test . 5
5.3.2 Requirements . 6
5.4 Environmental conditions . 6
5.5 Operating time-rating . 6
5.5.1 Test . 6
5.5.2 Requirement . 6
5.6 Current steps . 7
5.6.1 Test . 7
5.6.2 Requirement . 7
5.7 Breaking capacity . 7
5.7.1 Test . 7
5.7.2 Requirement . 9
5.8 Strength of terminals . 9
5.8.1 Test .10
5.8.2 Requirements .10
5.9 Test cable sizes .10
5.10 Temperature rise .11
6 Dimensions .12
6.1 Fuse-links Types C, E, and F .12
6.2 Designation example .15
Annex A (informative) Temperature rise test .16
Bibliography .17

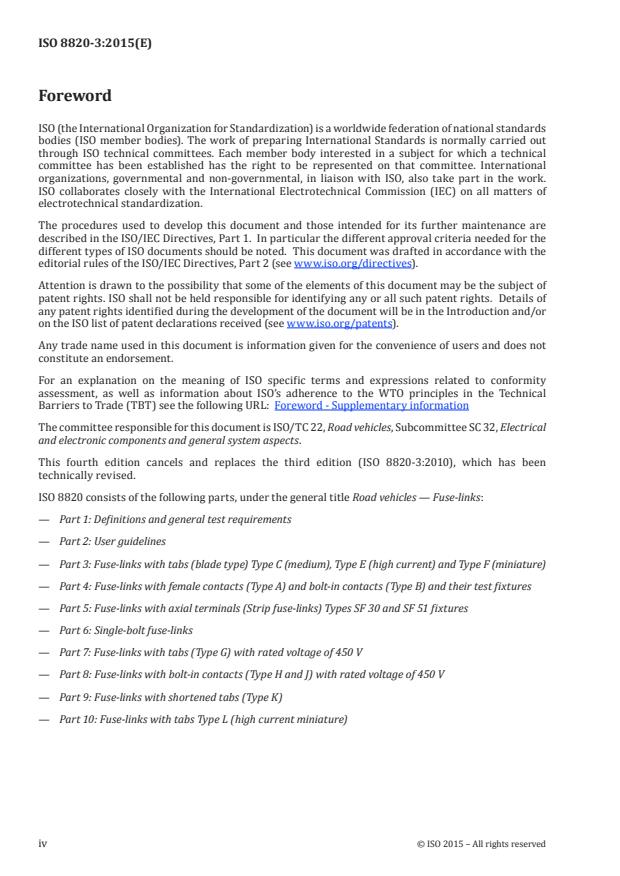

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 22, Road vehicles, Subcommittee SC 32, Electrical
and electronic components and general system aspects.
This fourth edition cancels and replaces the third edition (ISO 8820-3:2010), which has been
technically revised.
ISO 8820 consists of the following parts, under the general title Road vehicles — Fuse-links:
— Part 1: Definitions and general test requirements
— Part 2: User guidelines
— Part 3: Fuse-links with tabs (blade type) Type C (medium), Type E (high current) and Type F (miniature)
— Part 4: Fuse-links with female contacts (Type A) and bolt-in contacts (Type B) and their test fixtures
— Part 5: Fuse-links with axial terminals (Strip fuse-links) Types SF 30 and SF 51 fixtures
— Part 6: Single-bolt fuse-links
— Part 7: Fuse-links with tabs (Type G) with rated voltage of 450 V
— Part 8: Fuse-links with bolt-in contacts (Type H and J) with rated voltage of 450 V
— Part 9: Fuse-links with shortened tabs (Type K)
— Part 10: Fuse-links with tabs Type L (high current miniature)
iv © ISO 2015 – All rights reserved

INTERNATIONAL STANDARD ISO 8820-3:2015(E)
Road vehicles — Fuse-links —
Part 3:
Fuse-links with tabs (blade type) Type C (medium), Type E
(high current) and Type F (miniature)
1 Scope
This part of ISO 8820 specifies fuse-links with tabs (blade-type) Type C (medium), Type E (high
current), and Type F (miniature) for use in road vehicles. It establishes, for these fuse-link types, the
rated current, test procedures, performance requirements, and dimensions.
This part of ISO 8820 is applicable for fuse-links with a rated voltage of 32 V or 58 V, a current rating
of ≤100 A, and a breaking capacity of 1 000 A intended for use in road vehicles.
This part of ISO 8820 is intended to be used in conjunction with ISO 8820-1 and ISO 8820-2. The
numbering of its clauses corresponds to that of ISO 8820-1, whose requirements are applicable, except
where modified by requirements particular to this part of ISO 8820.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document an
...
