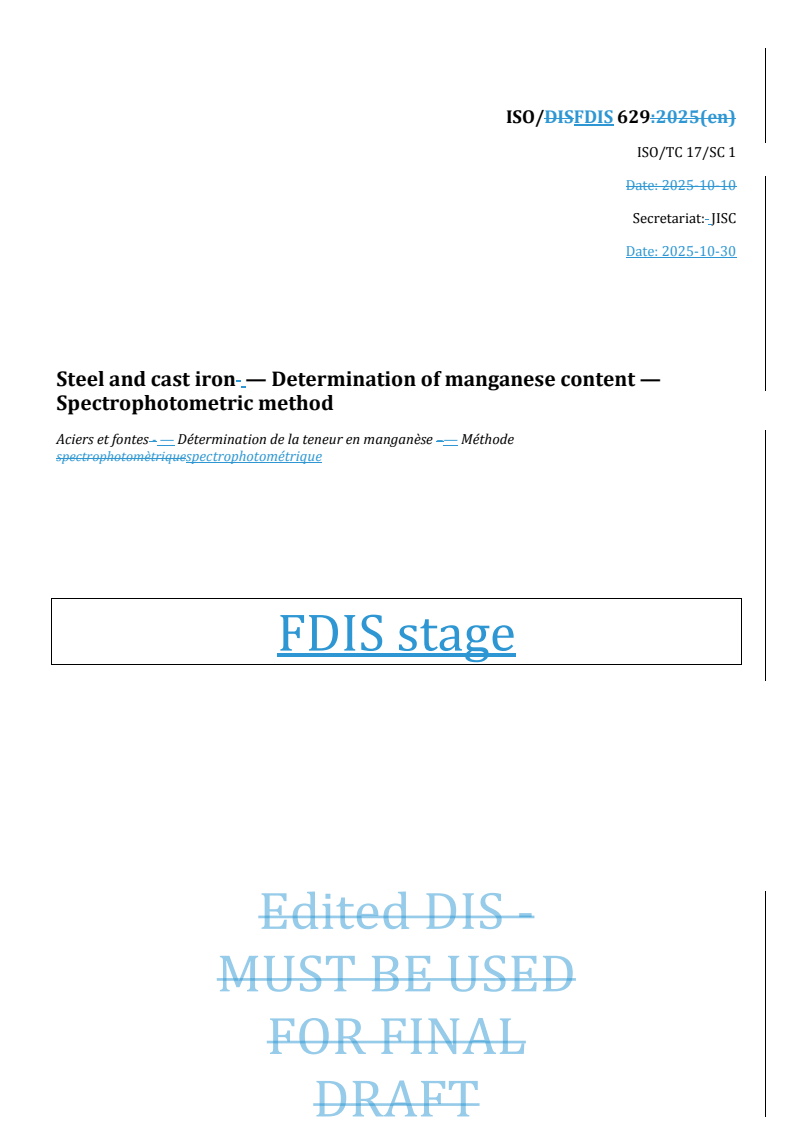

ISO/FDIS 629

FINAL DRAFT
International
Standard
ISO/TC 17/SC 1
Steel and cast iron — Determination
Secretariat: JISC
of manganese content —
Voting begins on:
Spectrophotometric method
2025-11-13
Aciers et fontes — Détermination de la teneur en manganèse —
Voting terminates on:
Méthode spectrophotométrique
2026-01-08
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
FINAL DRAFT
International
Standard
ISO/TC 17/SC 1
Steel and cast iron — Determination
Secretariat: JISC
of manganese content —
Voting begins on:
Spectrophotometric method
Aciers et fontes — Détermination de la teneur en manganèse —
Voting terminates on:
Méthode spectrophotométrique
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.

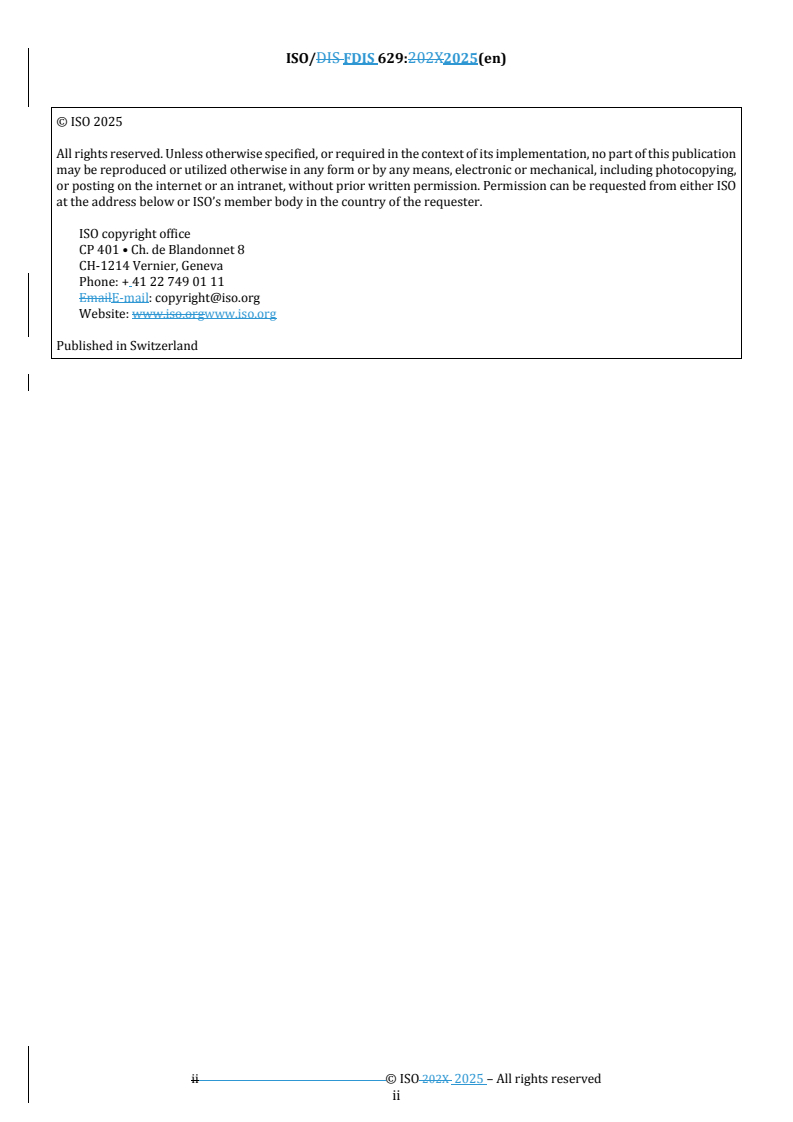

© ISO 2025
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ii

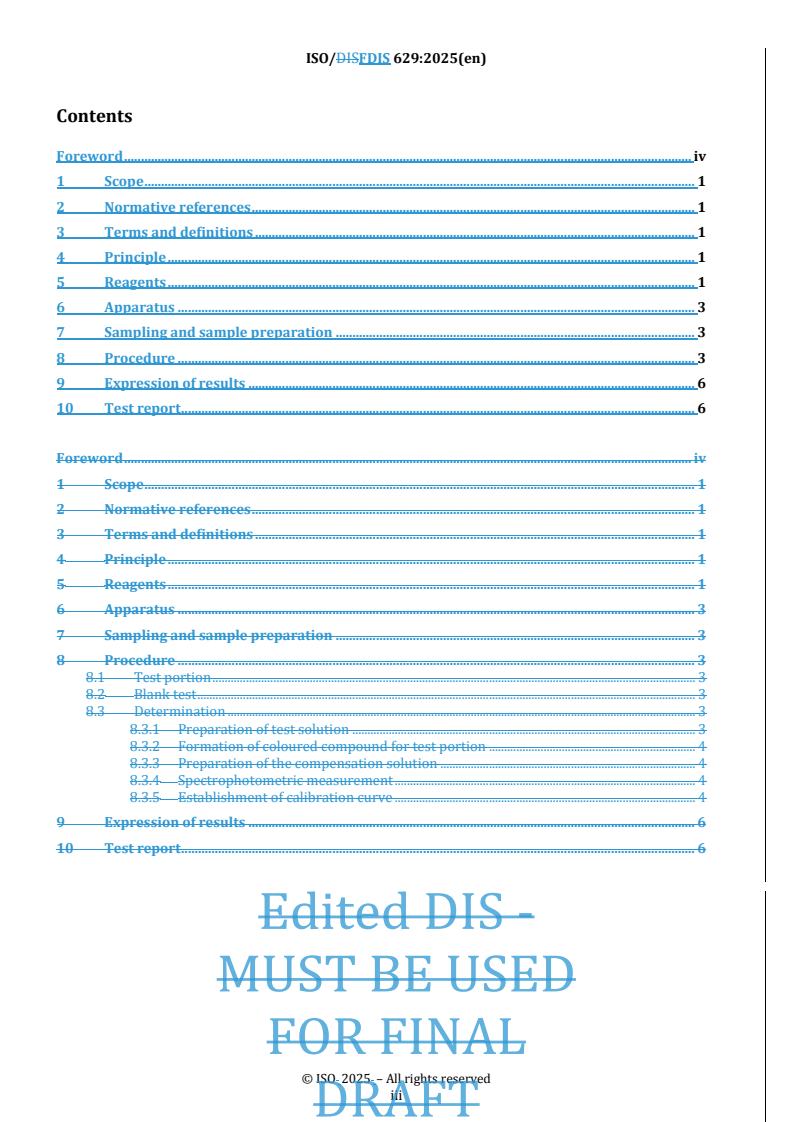

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 3
7 Sampling and sample preparation . 3
8 Procedure . 3
8.1 Test portion .3
8.2 Blank test .3
8.3 Determination .3
8.3.1 Preparation of test solution .3
8.3.2 Formation of coloured compound for test portion .3
8.3.3 Preparation of the compensation solution .4
8.3.4 Spectrophotometric measurement .4
8.3.5 Establishment of calibration curve .4
9 Expression of results . 6
10 Test report . 6

iii

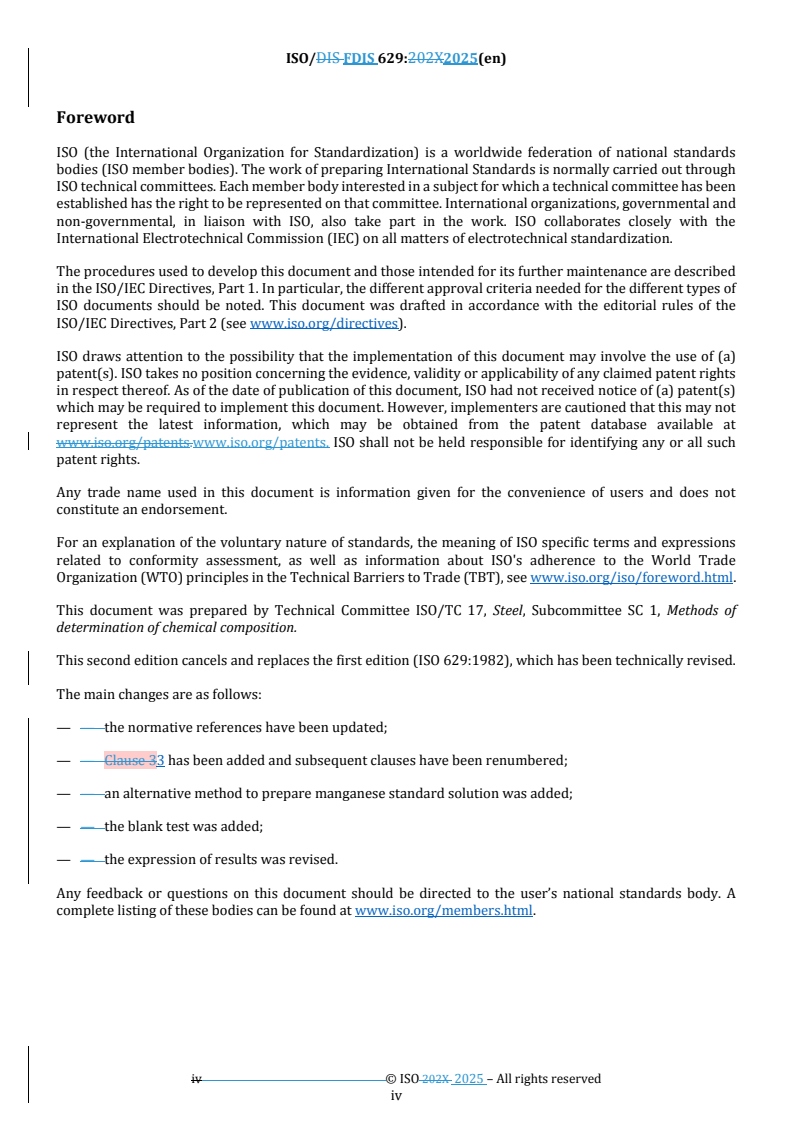

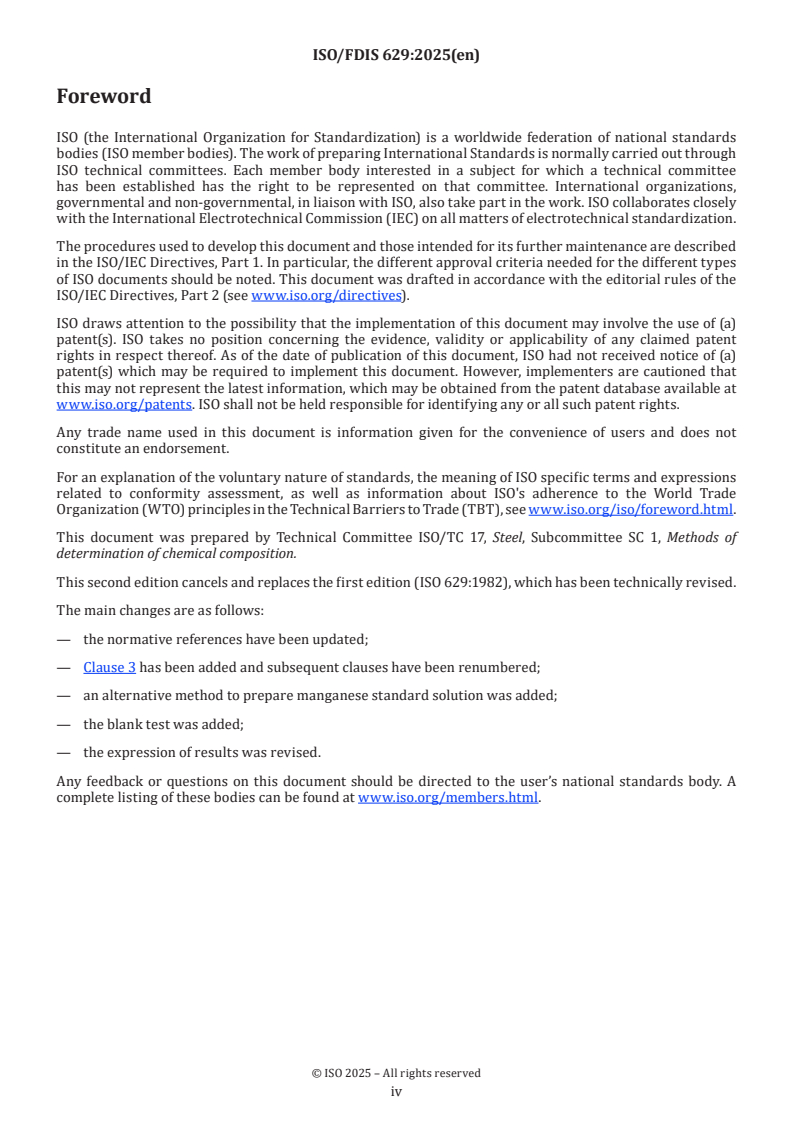

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 1, Methods of
determination of chemical composition.
This second edition cancels and replaces the first edition (ISO 629:1982), which has been technically revised.
The main changes are as follows:
— the normative references have been updated;
— Clause 3 has been added and subsequent clauses have been renumbered;
— an alternative method to prepare manganese standard solution was added;
— the blank test was added;
— the expression of results was revised.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
FINAL DRAFT International Standard ISO/FDIS 629:2025(en)
Steel and cast iron — Determination of manganese content —
Spectrophotometric method
1 Scope
This document specifies a spectrophotometric method for the determination of manganese in steel and cast iron.
The method is applicable to manganese contents between 0,001 % (mass fraction) and 4,0 % (mass fraction).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 648, Laboratory glassware — Single-volume pipettes
ISO 1042, Laboratory glassware — One-mark volumetric flasks
ISO 3696, Water for analytical laboratory use — Specification and test methods
ISO 14284, Steel and iron — Sampling and preparation of samples for the determination of chemical composition
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Principle
Dissolution of a test portion in sulphuric-phosphoric acid mixture and nitric acid. Treatment of the test
solution with perchloric acid. Formation of the permanganate ion by sodium periodate.
Spectrophotometric measurement of the test solution at wavelength of about 545 nm.
5 Reagents
During the analysis, unless otherwise stated, use only reagents of recognized analytical grade and only
grade 2 water as specified in ISO 3696 or water of equivalent purity.
Verify by blank tests that all the reagents used are free from manganese. Wherever necessary, the results
should be corrected accordingly.
5.1 Water, free from organic matter.
Bring to the boil water acidified with 10 ml/l of sulphuric acid (ρ about 1,83 g/ml), add several crystals of
sodium periodate (NaIO ) and maintain the boiling for 10 min.
5.2 Pure iron, of known low manganese less than 0,000 1 % (mass fraction).
5.3
...
