ISO/IEC 7816-8:2004

INTERNATIONAL ISO/IEC
STANDARD 7816-8
Second edition
2004-06-01


Identification cards — Integrated circuit
cards —
Part 8:
Commands for security operations
Cartes d’identification — Cartes à circuit intégré —
Partie 8: Commandes pour des operations de sécurité




Reference number
ISO/IEC 7816-8:2004(E)
©
ISO/IEC 2004

---------------------- Page: 1 ----------------------
ISO/IEC 7816-8:2004(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO/IEC 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO/IEC 2004 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 7816-8:2004(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope. 1
2 Normative references . 1
3 Terms and definitions. 1
4 Abbreviations and notation. 2
5 Interindustry commands for cryptographic operations. 2
5.1 GENERATE ASYMMETRIC KEY PAIR command . 2
5.2 PERFORM SECURITY OPERATION command . 5
5.3 COMPUTE CRYPTOGRAPHIC CHECKSUM operation. 6
5.4 COMPUTE DIGITAL SIGNATURE operation . 6
5.5 HASH operation. 7
5.6 VERIFY CRYPTOGRAPHIC CHECKSUM operation. 8
5.7 VERIFY DIGITAL SIGNATURE operation . 8
5.8 VERIFY CERTIFICATE operation . 9
5.9 ENCIPHER operation. 9
5.10 DECIPHER operation. 10
Annex A (informative) Examples of operations related to digital signature . 11
Annex B (informative) Examples of certificates interpreted by the card. 14
Annex C (informative) Examples of asymmetric key import/export. 16
Bibliography . 19

© ISO/IEC 2004 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 7816-8:2004(E)

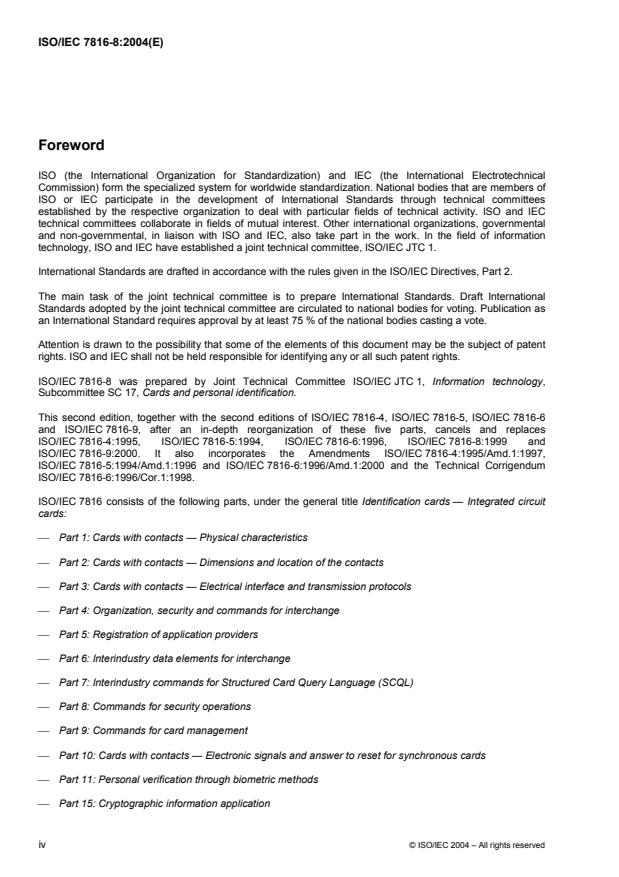

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 7816-8 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 17, Cards and personal identification.
This second edition, together with the second editions of ISO/IEC 7816-4, ISO/IEC 7816-5, ISO/IEC 7816-6
and ISO/IEC 7816-9, after an in-depth reorganization of these five parts, cancels and replaces
ISO/IEC 7816-4:1995, ISO/IEC 7816-5:1994, ISO/IEC 7816-6:1996, ISO/IEC 7816-8:1999 and
ISO/IEC 7816-9:2000. It also incorporates the Amendments ISO/IEC 7816-4:1995/Amd.1:1997,
ISO/IEC 7816-5:1994/Amd.1:1996 and ISO/IEC 7816-6:1996/Amd.1:2000 and the Technical Corrigendum
ISO/IEC 7816-6:1996/Cor.1:1998.
ISO/IEC 7816 consists of the following parts, under the general title Identification cards — Integrated circuit
cards:
 Part 1: Cards with contacts — Physical characteristics
 Part 2: Cards with contacts — Dimensions and location of the contacts
 Part 3: Cards with contacts — Electrical interface and transmission protocols
 Part 4: Organization, security and commands for interchange
 Part 5: Registration of application providers
 Part 6: Interindustry data elements for interchange
 Part 7: Interindustry commands for Structured Card Query Language (SCQL)
 Part 8: Commands for security operations
 Part 9: Commands for card management
 Part 10: Cards with contacts — Electronic signals and answer to reset for synchronous cards
 Part 11: Personal verification through biometric methods
 Part 15: Cryptographic information application
iv © ISO/IEC 2004 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 7816-8:2004(E)
Introduction
ISO/IEC 7816 is a series of International Standards specifying integrated circuit cards and the use of such
cards for interchange. These cards are identification cards intended for information exchange negotiated
between the outside world and the integrated circuit in the card. As a result of an information exchange, the
card delivers information (computation result, stored data), and/or modifies its content (data storage, event
memorization).
 Five parts are specific to cards with galvanic contacts and three of them specify electrical interfaces.
• ISO/IEC 7816-1 specifies physical characteristics for cards with contacts.
• ISO/IEC 7816-2 specifies dimensions and location of the contacts.
• ISO/IEC 7816-3 specifies electrical interface and transmission protocols for asynchronous cards.
• ISO/IEC 7816-10 specifies electrical interface and answer to reset for synchronous cards.
• ISO/IEC 7816-12 specifies electrical interface and operating procedures for USB cards.
 All the other parts are independent from the physical interface technology. They apply to cards accessed
by contacts and/or by radio frequency.
• ISO/IEC 7816-4 specifies organization, security and commands for interchange.
• ISO/IEC 7816-5 specifies registration of application providers.
• ISO/IEC 7816-6 specifies interindustry data elements for interchange.
• ISO/IEC 7816-7 specifies commands for structured card query language.
• ISO/IEC 7816-8 specifies commands for security operations.
• ISO/IEC 7816-9 specifies commands for card management.
• ISO/IEC 7816-11 specifies personal verification through biometric methods.
• ISO/IEC 7816-15 specifies cryptographic information application.
ISO/IEC 10536 specifies access by close coupling. ISO/IEC 14443 and 15693 specify access by radio
frequency. Such cards are also known as contactless cards.
© ISO/IEC 2004 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 7816-8:2004(E)

Identification cards — Integrated circuit cards with contacts —
Part 8:
Commands for security operations
1 Scope
This document specifies interindustry commands that may be used for cryptographic operations.
The choice and conditions of use of cryptographic mechanisms may affect card exportability. The evaluation
of the suitability of algorithms and protocols is outside the scope of this document. It does not cover the
internal implementation within the card and/or the outside world.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
1)
ISO/IEC 7816-4:— , Identification cards — Integrated circuit cards — Part 4: Organization, security and
commands for interchange
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
asymmetric cryptographic technique
cryptographic technique that uses two related operations: a public operation defined by public numbers or by
a public key and a private operation defined by private numbers or by a private key
NOTE The two operations have the property that, given the public operation, it is computationally infeasible to derive
the private operation.
[ISO/IEC 7816-4]
3.2
certificate
digital signature binding a particular person or object and its associated public key
NOTE The entity issuing the certificate also acts as tag allocation authority with respect to the data elements in the
certificate.
[ISO/IEC 7816-4]

1) To be published.
© ISO/IEC 2004 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/IEC 7816-8:2004(E)
3.3
digital signature
data appended to, or cryptographic transformation of, a data string that proves the origin and the integrity of
the data string and protect against forgery, e.g. by the recipient of the data string
[ISO/IEC 7816-4]
3.4
key
sequence of symbols controlling a cryptographic operation (e.g. encipherment, decipherment, a private or a
public operation in a dynamic authentication, signature production, signature verification)
[ISO/IEC 7816-4]
3.5
secure messaging
set of means for cryptographic protection of [parts of] command-response pairs
[ISO/IEC 7816-4]
4 Abbreviations and notation
For the purposes of this document, the following abbreviations apply.
CCT control reference template for cryptographic checksum
CRT control reference template
CT control reference template for confidentiality
DSA digital signature algorithm
DST control reference template for digital signature
ECDSA elliptic curve digital signature algorithm
HT control reference template for hash-code
MSE MANAGE SECURITY ENVIRONMENT command
PK public key
PSO PERFORM SECURITY OPERATION command
GQ Guillou and Quisquater
RFU reserved for future use
RSA Rivest, Shamir, Adleman
SE security environment
SEID security environment identifier
5 Interindustry commands for cryptographic operations
It shall not be mandatory for all cards complying with this document to support all those commands or all the
options of a supported command.
5.1 GENERATE ASYMMETRIC KEY PAIR command
The GENERATE ASYMMETRIC KEY PAIR command either initiates the generation and storing of an asymmetric key
pair, i.e., a public key and a private key, in the card, or accesses an asymmetric key pair previously generated
in the card.
2 © ISO/IEC 2004 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/IEC 7816-8:2004(E)
The command may be preceded by a MANAGE SECURITY ENVIRONMENT command in order to set key generation
related parameters (e.g. algorithm reference). The command may be performed in one or several steps,
possibly using command chaining (see ISO/IEC 7816-4).
Table 1 — GENERATE ASYMMETRIC KEY PAIR command-response pair
CLA As defined in ISO/IEC 7816-4
INS '46' or '47'
P1 Generation control according to Table 2
P2 '00' (no information provided) or reference of the key to be generated
L field
Absent for encoding Nc = 0, present for encoding Nc > 0
c
Data field Absent, or
Proprietary data if P1-P2 set to '0000', or
One or more CRTs associated to the key generation if P1-P2 different from '0000' (see note)
L field
Absent for encoding Ne = 0, present for encoding Ne > 0
e

Data field Absent, or
Public key as a sequence of data elements or data objects, or
Sequence of data objects according to an extended header list
SW1-SW2 See ISO/IEC 7816-4, Tables 5 and 6 where relevant, e.g. 6985
NOTE Several CRTs are present when the key pair is generated for several uses. In a data field, a CRT may have a
zero length.
Table 2 — Generation control in P1
b8 b7 b6 b5 b4 b3 b2 b1 Value
0 0 0 0 0 0 0 0 No information given
1 0 0 0 0 x x x Additional information given
1 0 0 0 0 - - x Key generation
- - - - - x x 0 - Generate asymmetric key pair
- - - - - x x 1 - Access to an existing public key
1 0 0 0 0 - x - Format of returned public key data
- - - - - x 0 x - Proprietary format of public key data
- - - - - x 1 x - Output format of public key data according to an extended headerlist
1 0 0 0 0 x - - Output indicator
- - - - - 0 x x - Public key data in response data field
- - - - - 1 x x - No response data if Le field absent or proprietary if Le field present
Any other value is reserved for future use by ISO/IEC JTC1/SC17
For generating a key pair, in the absence of L field, the key pair is stored in the card, possibly in an EF the
e
reference of which is known before issuing the command.
For accessing a key pair (no generation), the command data field may be empty.
Depending on the parity of the INS code (see ISO/IEC 7816-4), a public key in the response data field is either
a sequence of data elements ('46') or a sequence of data objects ('47').
© ISO/IEC 2004 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/IEC 7816-8:2004(E)
If an extended header list describes the response data field, it is implicitly known before issuing the command.
It covers public key data objects and other requested data objects.
When bit 1 is set to one in INS, i.e., INS set to '47', and when a public key is returned in the response data
field, an interindustry template is used for nesting one appropriate set of public key data objects according to
Table 3. If the algorithm is not indicated in the command, then the algorithm is known before issuing the
command. In the public key template, the context-specific class (first byte from '80' to 'BF') is reserved for
public key data objects.
Table 3 — Public key data objects
Tag Value
'7F49' Interindustry template for nesting one set of public key data objects with the following tags
'06' Object identifier of the algorithm, optional
'80' Algorithm reference as used in control reference data objects for secure messaging, optional
 Set of public key data objects for RSA
'81' Modulus (a number denoted as n coded on x bytes)
'82' Public exponent (a number denoted as v, e.g., 65537)
Set of public key data objects for DSA

'81' First prime (a number denoted as p coded on y bytes)
'82' Second prime (a number denoted as q dividing p-1, e.g., 20 bytes)
'83' Basis (a number denoted as g of order q coded on y bytes)
'84' Public key (a number denoted as y equal to g to the power x mod p where x is the private key coded on y
bytes)
Set of public key data objects for ECDSA

'81' Prime (a number denoted as p coded on z bytes)
'82' First coefficient (a number denoted as a coded on z bytes)
'83' Second coefficient (a number denoted as b coded on z bytes)
'84' Generator (a point denoted as PB on the curve, coded on 2z or z+1 bytes)
'85' Order (a prime number denoted as q, order of the generator PB, coded on z bytes)
'86' Public key (a point denoted as PP on the curve, equal to x times PB where x is the private key, coded on 2z
or z+1 bytes)
'87' Co-factor
 Set of public key data objects for GQ2
'81' Modulus (a number denoted as n coded on x bytes)
'83' Number of basic numbers (a number denoted as m coded on 1 byte. If tag '83' is present, then tag 'A3' shall
be absent and the m basic numbers denoted as g, g .g are the first m prime numbers 2, 3, 5, 7, 11…)
2 m
'84' Verification parameter (a number denoted as k coded on 1 byte)
'A3' Set of m basic numbers denoted as g, g .g each one coded on 1 byte with tag '80'. (If tag 'A3' is present,
2 m,
then tag '83' shall be absent).
 In this context, ISO/IEC JTC 1/SC 17 reserves any other data object of the context-specific class (first byte in the
range '80' to 'BF').

4 © ISO/IEC 2004 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/IEC 7816-8:2004(E)
5.2 PERFORM SECURITY OPERATION command
The PERFORM SECURITY OPERATION command initiates the following security operations, according to the data
objects specified in P1-P2.
 Computation of a cryptographic checksum;
 Computation of a digital signature;
 Calculation of a hash-code;
 Verification of a cryptographic checksum;
 Verification of a digital signature;
 Verification of a certificate;
 Encipherment;
 Decipherment.
If the security operation requires several commands to complete, then command chaining shall apply (see
ISO/IEC 7816-4).
The PERFORM SECURITY OPERATION command may be preceded by a MANAGE SECURITY ENVIRONMENT
command.
For example, the key reference as well as the algorithm reference shall be either implicitly known or specified
in a CRT in a MANAGE SECURITY ENVIRONMENT command.
Such a command can be performed only if the security status satisfies the security attributes for the operation.
The successful execution of the command may be subject to successful completion of prior commands (e.g.,
VERIFY before the computation of a digital signature).
If present, a header list or an extended header list defines the order and the data items that form the input for
the security operation.
Table 4 — PERFORM SECURITY OPERATION command-response pair
CLA As defined in ISO/IEC 7816-4
INS '2A'
Tag (the response data field is the data element, if present) or '00' (the response data field is always
P1
absent); 'FF' is RFU
Tag (the command data field is the data element, if present) or '00' (the command data field is always
P2
absent); 'FF' is RFU for ISO/IEC JTC1/SC17
L field
Absent for encoding Nc = 0, present for encoding Nc > 0
c
Data field Absent or value of the data object specified in P2
L field
Absent for encoding Ne = 0, present for encoding Ne > 0
e

Data field Absent or value of the data object specified in P1
SW1-SW2 See ISO/IEC 7816-4, Tables 5 and 6 where relevant, e.g. 6985

© ISO/IEC 2004 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/IEC 7816-8:2004(E)
The PERFORM SECURITY OPERATION command uses input templates listed in Table 5. These templates are
basic data objects for secure messaging (see ISO/IEC 7816-4).
Table 5 — Input templates
Tag Value
'A0' Input template for the computation of a hash-code (the template is hashed))
'A2' Input template for the verification of a cryptographic checksum (the template is integrated)
'A8' Input template for the verification of a digital signature (the template is signed)
'AC' Input template for the computation of a digital signature (the concatenated value fields are signed)
'AE' Input template for the verification of a certificate (the concatenated value fields are certified)
'BC' Input template for the computation of a digital signature (the template is signed)
'BE' Input template for the verification of a certificate (the template is certified)

In the input templates, the context-specific class (first byte in the range '80' to 'BF') is reserved for input data
objects. Table 6 lists data objects in the input templates.
Table 6 — Input data objects
Tag Value 'A0' 'A2' 'A8' 'AC', 'BC' 'AE', 'BE'
'80' Plain value x x x x x
'8E' Cryptographic checksum x  x
'90' Hash-code x x x x
'92' Certificate   x
'9C' Public key  x x
'9E' Digital signature  x x

5.3 COMPUTE CRYPTOGRAPHIC CHECKSUM operation
The COMPUTE CRYPTOGRAPHIC CHECKSUM operation initiates the computation of a cryptographic checksum.
Table 7 — Parameters and data fields for COMPUTE CRYPTOGRAPHIC CHECKSUM operation
P1 '8E'
P2 '80'
Command data field Data for which the cryptographic checksum shall be computed

Response data field Cryptographic checksum

5.4 COMPUTE DIGITAL SIGNATURE operation
The COMPUTE DIGITAL SIGNATURE operation initiates the computation of a digital signature. The algorithm may
be either a digital signature algorithm or a combination of a hash algorithm and a digital signature algorithm.
Annex A provides examples of digital signature operations.
6 © ISO/IEC 2004 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/IEC 7816-8:2004(E)
For the computation of a digital signature, the data to be signed or integrated in the signing process are
transmitted in the command data field or submitted in a previous command e.g. PSO: HASH. In P2, the digital
signature is specified with tags '9A', 'AC' or 'BC' according to the structure of the input (see ISO/IEC 7816-4).
If auxiliary data are to be included in the digital signature input, then a reference shall be present in the CRT
(see ISO/IEC 7816-4). If an empty reference data object for auxiliary data is present, then the card shall insert
the auxiliary data. Auxiliary data present or referenced in the command data field take precedence over any
header list.
The card shall return a digital signature (P1 = '9E').
Table 8 — Parameters and data fields for COMPUTE DIGITAL SIGNATURE operation
P1 '9E'
P2 '9A', 'AC' or 'BC'
Command data field Absent (data already in the card) or
If P2 = '9A', data to be signed or integrated in the signature process, or
If P2 = 'AC', data objects, the value fields of which are signed or integrated in the signature
process, or
If P2 = 'BC', data objects to be signed or integrated in the signature process

Response data field Digital signature

NOTE — The tags 'AC' and 'BC' are not integrated in the digital signature input.
5.5 HASH operation
The HASH operation initiates the computation of a hash-code by performing:
 either the complete computation inside the card or
 a partial computation inside the card (e.g. last round of hashing).
The HT ('AA', 'AB') indicates the algorithm reference for computing a hash-code (see ISO/IEC 7816-4).
The input data shall be presented to the card in successive input blocks (one or more at a time), the length of
which is algorithm dependent. Depending on the hash algorithm, the last input data have a length equal or
shorter than the block length. The padding mechanism, if appropriate, is part of the definition of the hash
algorithm.
For the resulting hash-code, the following two cases have to be distinguished:
 either the card stores the hash-code for a subsequent command; then the L field is not present or
e
 the card delivers the hash-code in the response; then the L field has to be set to the appropriate length.
e
Table 9 — Parameters and data fields for HASH operation
P1 '90'
P2 '80', or 'A0'
Command data field If P2 = '80', data to hash, or
If P2 = 'A0', data objects relevant for hashing (e.g., '90' for intermediate hash-code, '80' for last
block)

Response data field Hash-code or absent
© ISO/IEC 2004 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO/IEC 7816-8:2004(E)
5.6 VERIFY CRYPTOGRAPHIC CHECKSUM operation
The VERIFY CRYPTOGRAPHIC CHECKSUM operation initiates the verification of a cryptographic checksum.
Table 10 — Parameters and data fields for VERIFY CRYPTOGRAPHIC CHECKSUM operation
P1 '00'
P2 'A2'
Command data field Data objects relevant to the operation (e.g., '80', '8E')

Response data field Absent

NOTE The value field of the plain value data object (tag '80') contains the data (data elements or data objects)
covered by the cryptographic checksum.
5.7 VERIFY DIGITAL SIGNATURE operation
The VERIFY DIGITAL SIGNATURE operation initiates the verification of a digital signature delivered as a data
object in the command data field. Other verification relevant data are either transmitted in a command
chaining process or present in the card. The algorithm may be either a digital signature algorithm or a
combination of a hash algorithm and a digital signature algorithm. Annex A provides examples of digital
signature operations.
The public key as well as the algorithm may be
 either implicitly known or
 referenced in a DST ('B6') of a MANAGE SECURITY ENVIRONMENT command or
 available as a result from a previous VERIFY CERTIFICATE operation.
If the algorithm reference in the card declares a signature only algorithm then the data consists of a hash-code,
or the signature is of message recovery type (see ISO/IEC 9796). Otherwise the hash-code calculation is
performed in the card and the algorithm reference additionally contains a reference to a hash algorithm.
Table 11 — Parameters and data fields for VERIFY DIGITAL SIGNATURE operation
P1 '00'
P2 'A8'
Command data field Data objects relevant to the operation (e.g. either '9A', 'AC' or 'BC', and '9E')

Response data field Absent

If the command data field contains an empty data object, then the card is expected to know its value for use in
the verification.
8 © ISO/IEC 2004 – All rights reserved

---------------------- Page: 13 ----------------------
ISO/IEC 7816-8:2004(E)
5.8 VERIFY CERTIFICATE operation
For the verification of a certificate in a card (see Annex B), the digital signature of a certificate to be verified is
delivered as a data object in the command data field. The public key of the certification authority to be used in
the verification process shall be present in the card and is either implicitly selected or may be referenced in a
DST using the MANAGE SECURITY ENVIRONMENT command. The algorithm to apply is implicitly known or may be
referenced in a DST. If other data objects are to be used in the verification process (e.g. hash-code) then
these data objects shall be present in the card or shall be transmitted using the command chaining process.
The following two cases have to be distinguished.
 If the certificate is self-descriptive (P2 = 'BE'), then the card retrieves a public key identified by its tag in
the (recovered) certificate content.
 If the certificate is not self-descriptive (P2 = 'AE'), then the card retrieves a public key in the certificate
either implicitly or explicitly by using the public key tag in a header-list describing the content of the
certificate.
If the public key is stored, it will be the default key for subsequent VERIFY DIGITAL SIGNATURE operation.
Table 12 — Parameters and data fields for VERIFY CERTIFICATE operation
P1 '00'
P2 '92', 'AE' or 'BE'
Command data field Data elements or data objects relevant to the operation)

Response data field Absent

NOTE — If a partial message recovery scheme is used and part of the information is already stored in the card, then the
data object for auxiliary data shall be sent empty, with the data to be inserted later by the card.
5.9 ENCIPHER operation
The ENCIPHER operation enciphers data transmitted in the command data field. The usage of this operation
may be restricted.
NOTE — The operation may be used for generating diversified
...
