ISO 20053:2017
(Main)Ships and marine technology - Marine environment protection - Specifications on design and selection of sorbents
Ships and marine technology - Marine environment protection - Specifications on design and selection of sorbents
ISO 20053:2017 specifies materials, types, selection criteria and designation and marking of sorbents and data to be provided by manufacturer(s) for the sorbents. The purpose of ISO 20053:2017 is to assist manufacturers and facilitate users in selecting sorbents by technical criteria. It does not purport to address all aspects of sorbents or safety concerns associated with sorbent use, nor does it define sorbent operational procedures.
Navires et technologie maritime — Protection de l'environnement marin — Spécifications relatives à la conception et a la sélection des sorbants
General Information
- Status
- Published
- Publication Date
- 25-Sep-2017
- Technical Committee
- ISO/TC 8/SC 2 - Marine environment protection
- Drafting Committee
- ISO/TC 8/SC 2 - Marine environment protection
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 01-Jun-2023
- Completion Date
- 13-Dec-2025
Overview
ISO 20053:2017 - Ships and marine technology: Marine environment protection - Specifications on design and selection of sorbents - provides technical guidance for the design, selection, designation and marking of sorbents used in marine oil-spill response. The standard helps manufacturers and purchasers evaluate sorbent materials and products by defined technical criteria. It does not prescribe operational procedures or address every safety concern, nor does it cover loose/bulk sorbents for open-water use.
Key topics and technical requirements
ISO 20053:2017 defines material types, product forms and selection criteria for marine sorbents. Key technical topics include:
Sorbent materials and forms
- Synthetic organic (polypropylene, polyethylene, nylon, polyester, polyurethane foam)
- Natural organic (peat, cellulose, straw, wool, coconut husk, wood chips, etc.)
- Inorganic (expanded perlite, glass wool, vermiculite, volcanic ash)
- Forms: booms, pads/sheets, pillows, pom-poms, rolls/sweeps
Selection criteria
- Buoyancy: must float without oil for at least 3 days; when saturated with two oil types, must remain afloat for at least 6 days
- Oil retention: retain sorbed oil when removed from water
- Sorption capacity: expressed as g oil / g sorbent; viscosity of target oil is a primary factor (example test oils: 5 cSt for low viscosity, 3 000 cSt for high viscosity)
- Reusability: ability to be squeezed and reused (must avoid re-oiling)
- Biodegradability: guidance for biodegradable sorbents when recovery is difficult
- Disposal: prescribed final disposition options and material-specific disposal instructions
Manufacturer data and marking
- Required product information (dimensions, material, colour, form, buoyancy, oil retention, sorption capacity, reusability, biodegradability, disposal method, transport unit, weight/volume, safety instructions)
- Marking requirements (manufacturer name/address, form and dimensions, year of manufacture/expiry where applicable, transport unit weight)
Applications and users
ISO 20053 is practical for:
- Sorbent manufacturers designing and labeling marine sorbents
- Procurement officers and maritime purchasers selecting sorbent booms, pads, rolls
- Oil-spill response teams and environmental agencies specifying equipment for shoreline and surface recovery
- Ship operators and offshore facilities planning pollution-control kits
The standard improves product comparability and supports informed selection based on buoyancy, sorption capacity and disposal considerations.
Related standards
- ISO 16165 - Terminology relating to oil spill response (referenced for terms)
- Bibliography in ISO 20053 lists national standards (e.g., AFNOR NF T90 series) that may provide complementary test/labeling guidance
Keywords: ISO 20053:2017, sorbents, marine environment protection, oil spill response, sorbent selection, buoyancy, sorption capacity, oil retention, sorbent disposal.
Frequently Asked Questions
ISO 20053:2017 is a standard published by the International Organization for Standardization (ISO). Its full title is "Ships and marine technology - Marine environment protection - Specifications on design and selection of sorbents". This standard covers: ISO 20053:2017 specifies materials, types, selection criteria and designation and marking of sorbents and data to be provided by manufacturer(s) for the sorbents. The purpose of ISO 20053:2017 is to assist manufacturers and facilitate users in selecting sorbents by technical criteria. It does not purport to address all aspects of sorbents or safety concerns associated with sorbent use, nor does it define sorbent operational procedures.
ISO 20053:2017 specifies materials, types, selection criteria and designation and marking of sorbents and data to be provided by manufacturer(s) for the sorbents. The purpose of ISO 20053:2017 is to assist manufacturers and facilitate users in selecting sorbents by technical criteria. It does not purport to address all aspects of sorbents or safety concerns associated with sorbent use, nor does it define sorbent operational procedures.
ISO 20053:2017 is classified under the following ICS (International Classification for Standards) categories: 13.020.99 - Other standards related to environmental protection; 47.020.99 - Other standards related to shipbuilding and marine structures. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase ISO 20053:2017 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 20053
First edition
2017-09
Ships and marine technology —
Marine environment protection —
Specifications on design and selection
of sorbents
Navires et technologie maritime — Protection de l'environnement
marin — Spécifications relatives à la conception et a la sélection des
sorbants
Reference number
©
ISO 2017

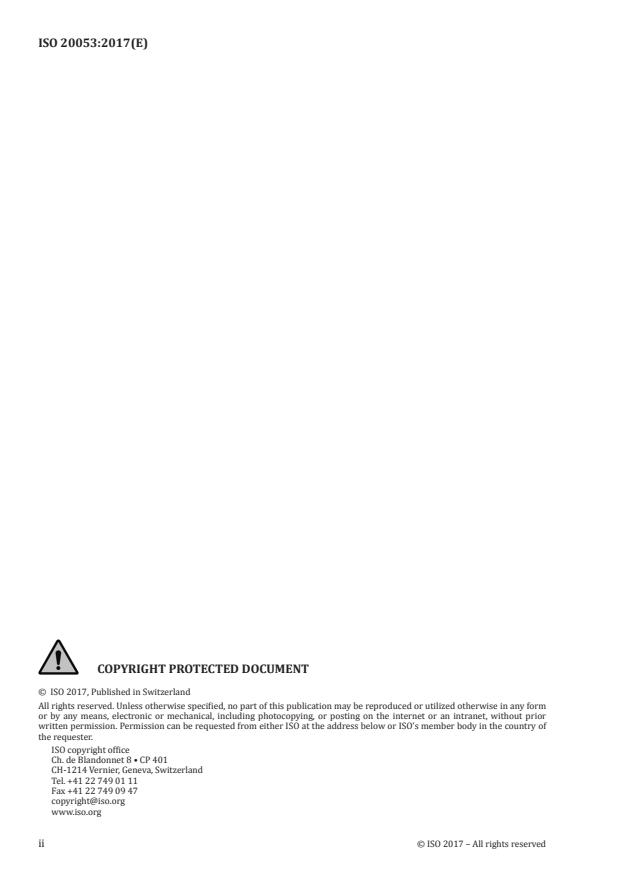

© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Sorbent materials and forms . 2
4.1 General . 2
4.2 Examples of sorbent materials . 2
4.2.1 Synthetic organic materials . 2
4.2.2 Natural organic materials . 2
4.2.3 Inorganic materials . 2
4.3 Forms of sorbents . 2
4.3.1 Sorbent booms . 2
4.3.2 Pads . 2
4.3.3 Pillows . 2
4.3.4 Pom-poms . 2
4.3.5 Rolls . . 3
5 Selection criteria . 3
5.1 General . 3
5.2 Buoyancy . 3
5.3 Oil retention . 3
5.4 Sorption capacity . 3
5.4.1 Viscosity . 3
5.4.2 Comparison test . . . 3
5.5 Reusability . 3
5.6 Biodegradability . 4
5.7 Disposal . 4
6 Data to be provided by manufacturers . 4
7 Designation and marking . 4
7.1 General . 4
7.2 Marking . 5
Bibliography . 6

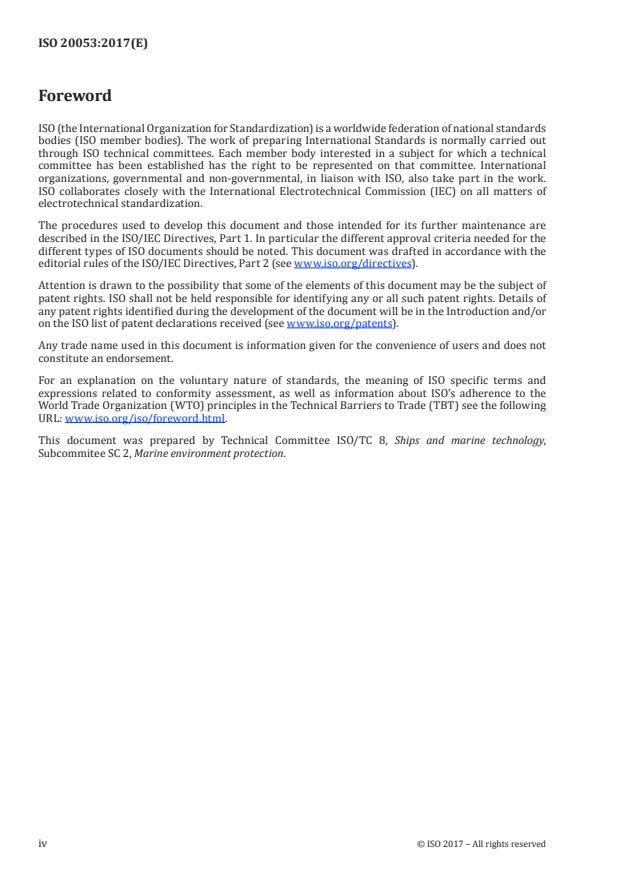

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 8, Ships and marine technology,
Subcommitee SC 2, Marine environment protection.
iv © ISO 2017 – All rights reserved
Introduction
Sorbents are used to recover oil by absorption and/or adsorption. To enhance recovery, most sorbents
are both oleophilic and hydrophobic. Additionally, there are sorbents which are either oleophilic or
hydrophobic only for use with industrial spills. This document addresses applications pertaining to
marine oil spills.
In general, the use of sorbents is only appropriate for the removal of thin oil layers. Sorbents can also
be used to protect and/or clean environmentally sensitive areas, where the use of other cleaning
equipment is restricted because of the possible damage it can produce.
This document does not refer to loose or bulk sorbents, which should not be used in open waters,
because their use, especially
...
