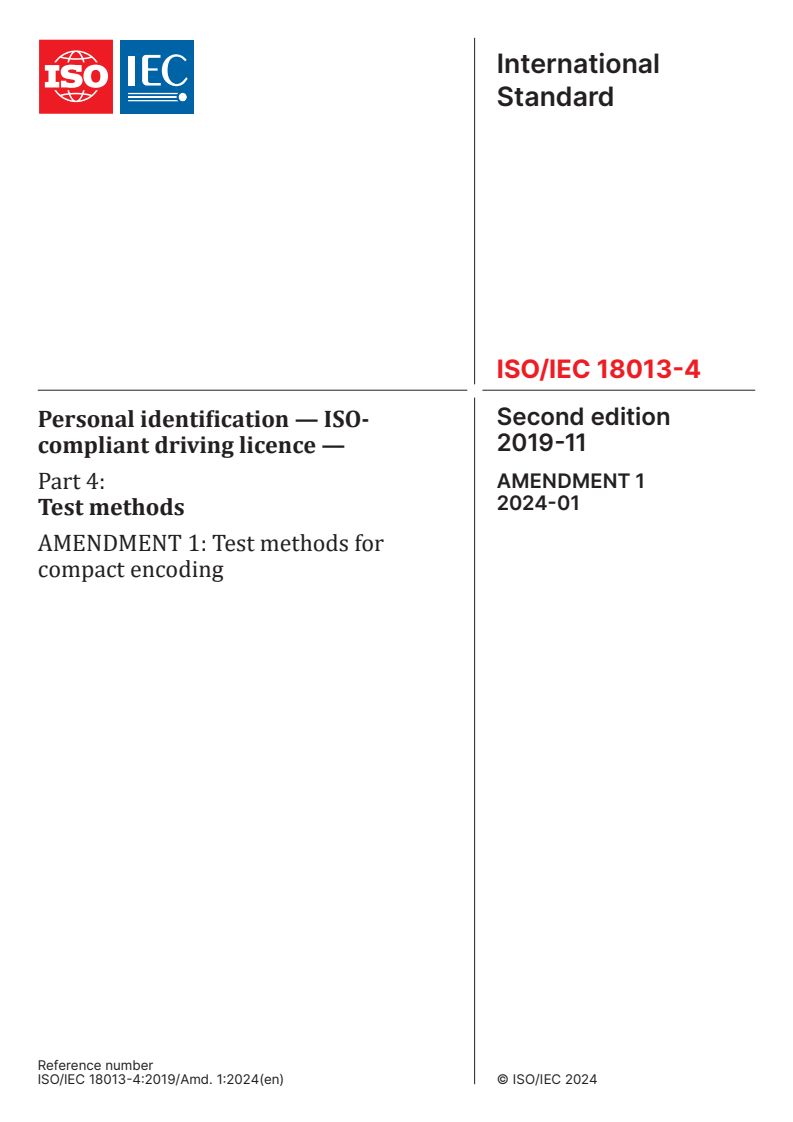

ISO/IEC 18013-4:2019/Amd 1:2024

International
Standard
ISO/IEC 18013-4
Second edition
Personal identification — ISO-
2019-11
compliant driving licence —
AMENDMENT 1
Part 4:
2024-01
Test methods
AMENDMENT 1: Test methods for
compact encoding
Reference number
ISO/IEC 18013-4:2019/Amd. 1:2024(en) © ISO/IEC 2024

ISO/IEC 18013-4:2019/Amd. 1:2024(en)

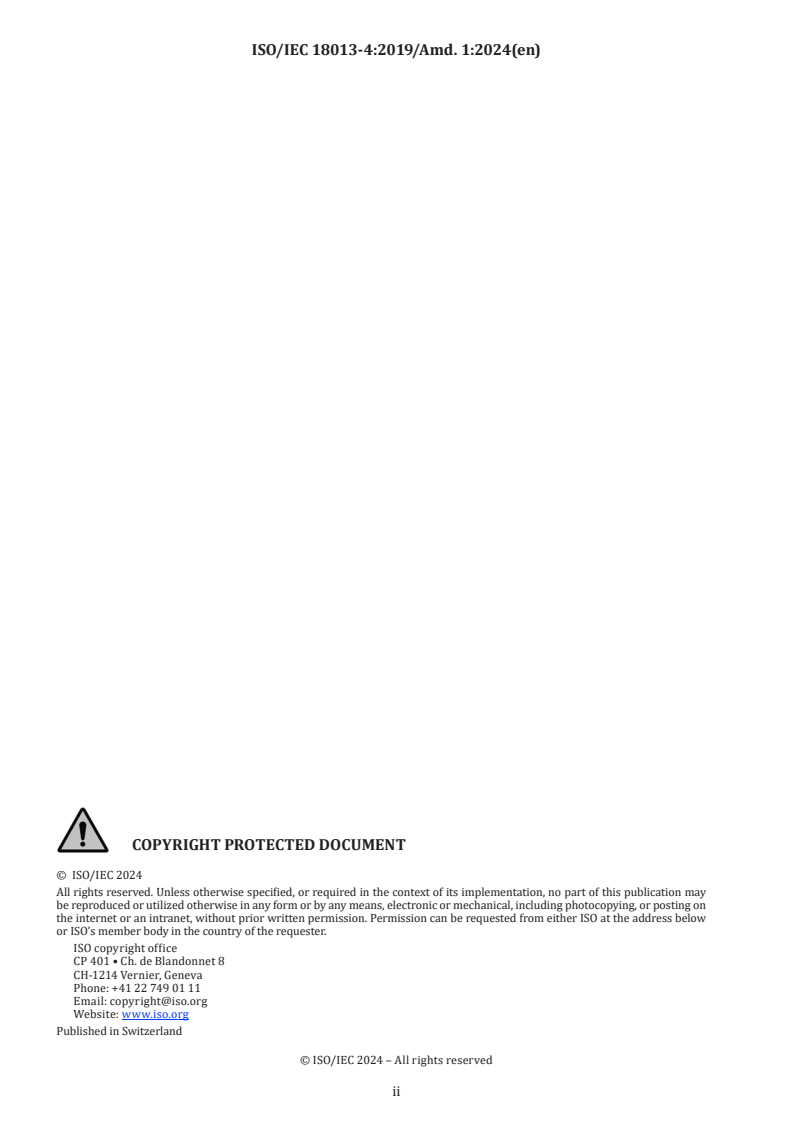

© ISO/IEC 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO/IEC 2024 – All rights reserved
ii
ISO/IEC 18013-4:2019/Amd. 1:2024(en)

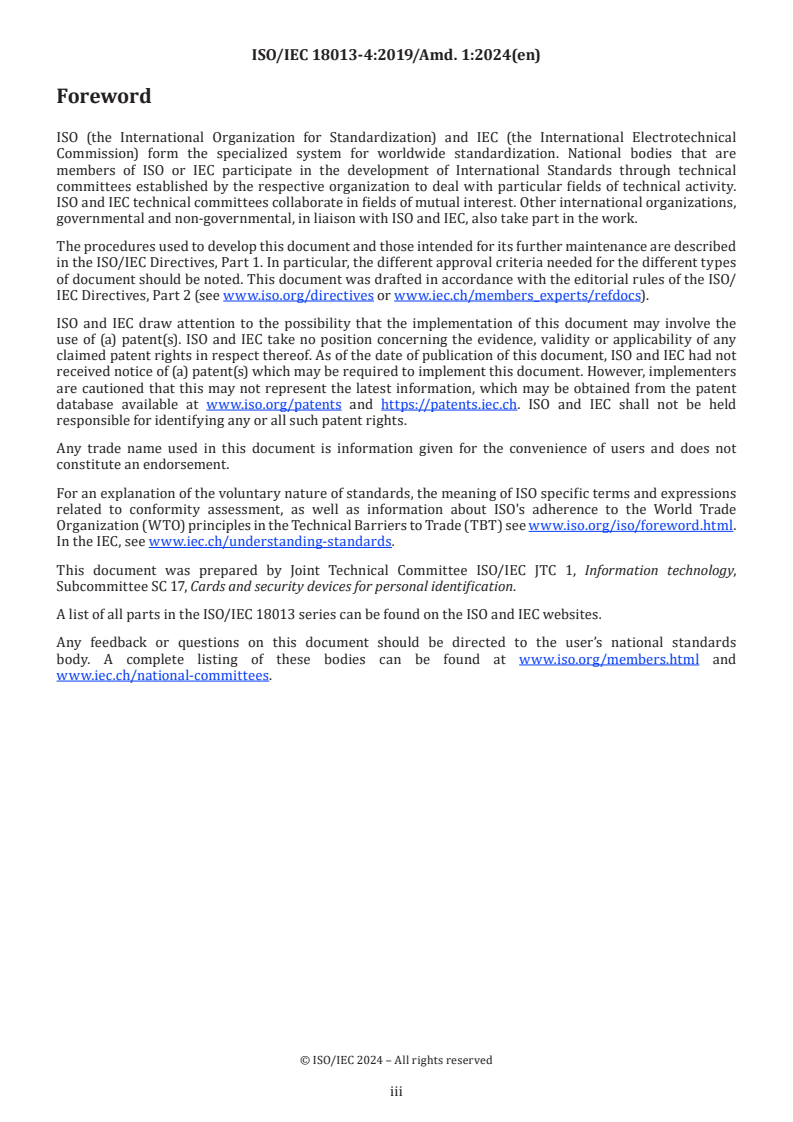

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international organizations,
governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of document should be noted. This document was drafted in accordance with the editorial rules of the ISO/
IEC Directives, Part 2 (see www.iso.org/directives or www.iec.ch/members_experts/refdocs).
ISO and IEC draw attention to the possibility that the implementation of this document may involve the
use of (a) patent(s). ISO and IEC take no position concerning the evidence, validity or applicability of any
claimed patent rights in respect thereof. As of the date of publication of this document, ISO and IEC had not
received notice of (a) patent(s) which may be required to implement this document. However, implementers
are cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents and https://patents.iec.ch. ISO and IEC shall not be held
responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www.iso.org/iso/foreword.html.
In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 17, Cards and security devices for personal identification.
A list of all parts in the ISO/IEC 18013 series can be found on the ISO and IEC websites.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.

© ISO/IEC 2024 – All rights reserved
iii
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
Personal identification — ISO-compliant driving licence —
Part 4:
Test methods
AMENDMENT 1: Test methods for compact encoding

Clause 2 Normative references
Add the date of publication to the reference to ISO/IEC 18013-2 as follows:
ISO/IEC 18013-2:2020
Replace all the occurrences of ISO/IEC 18013-2 in the document to the dated version.

Clause 4
Add the following abbreviated term after CA
CE compact encoding
Subclause 6.2.2.1
Replace
"One IUT is defined as an IDL with SE for SIC (see ISO/IEC 18013-2:—, Annex C)"
by
"One IUT is defined as an IDL with SE for SIC (see ISO/IEC 18013-2:2020, Annex C) or an IDL with CE (see
ISO/IEC 18013-2:2020, Annex B) "

Subclause 6.3.1.3
Replace the full text by
"All equipment described in Annexes A to D pertinent to the machine-readable technology supported by the
IUT shall be available."
Subclause 7.1
Replace the second sentence by
"Test requirements for Commands and LDS tests conformity are defined in Annexes A to D."

© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
Subclause 7.3
Add the following subclause:
"7.3.3 Compact encoding (CE)
Test case specifications for CE cover are as follows:
— Data structure tests for CE and commands tests (applicable to CE on SIC). The tests shall be carried out
as specified in Annex D."
Subclause A.3.2.19
In row "References", replace
"ISO/IEC 18013-2:—, A.5.1"
by "ISO/IEC 18013-2: 2020, A.4.1".

Subclause A.3.2.20
In row "References", replace
ISO/IEC 18013-2:—, A.5.1
by
ISO/IEC 18013-2: 2020, A.4.1
Subclause A.3.2.21
In row "References", replace " ISO/IEC 18013-2:—, A.5.1"
by
"ISO/IEC 18013-2: 2020, A.4.1
Add following new Annex D after Annex C.

© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
Annex D
(normative)
Test case specification for Compact Encoding (CE)
D.1 General
This annex specifies the test cases for CE.
D.2 General test requirements
D.2.1 Preconditions for testing
The tests in this annex require a fully personalized IDL. This means that all mandatory data groups shall be
present. This annex tests all mandatory and optional data groups.
All tests are mandatory unless marked as optional or conditional.
D.2.2 Test setup
For setting up these tests, any read device able to read all data at the same time can be used.
D.2.3 Implementation conformance statement
In order to set up the tests properly, Tables D.1 and D.2 shall be completed.
The ISO/IEC 18013-2 and ISO/IEC 18013-3 specifications define several optional elements that an IDL can
support.
Since these elements are optional, it is not possible to define the corresponding tests as mandatory for each
IDL. Therefore, this document specifies a set of profiles. Each profile covers a specific optional element. A
tested IDL shall be assigned to the supported profiles in the ICS, and a test shall only be performed if the IDL
supports this profile.
Table D.1 — Implementation conformance statement
Applicable
Profile Information for test setup
(YES or NO)
SIC Contact ICC or PICC storage media
BAP Basic Access Protection
PACE Password Authenticated Connection Establishment
NO-SIC All technologies excluding ICs
DG2 IDL contains Data Group 2
DG3 IDL contains Data Group 3
DG4 IDL contains Data Group 4
DG7 IDL contains Data Group 7
DG11 IDL contains Data Group 11
SOD IDL contains SOD
© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
TTaabblle De D.1 1 ((ccoonnttiinnueuedd))
Applicable
Profile Information for test setup
(YES or NO)
SOD2 IDL contains DG.SOD.2, but no DG.SOD.3
SOD23 IDL contains DG.SOD.2 and DG.SOD.3
NMA IDL contains Data Group 12
Table D.2 — Configuration information
Supported profile Configuration information
DG11 Indicate whether DG11 is a type 1 or type 2 data group.
If DG11 is a type 2 data group, indicate the length in bytes of the data-
group.
SOD, SOD2 not sup- Provide the public key value and the curve identifier for the verification
ported, SOD23 not of the signature in the SOD. For allowed values for the curve identifier,
supported see ISO/IEC 18013-3:2017, Table 3.

SOD, SOD2, SOD23 Provide the curve identifier for the verification of the signature in the
not supported SOD. For allowed values for the curve identifier, see ISO/IEC 18013-
3:2017, Table 3.
D.3 Test layer CE
D.3.1 Test unit CE_FILE — Compact encoding (CE) file structure tests
D.3.1.1 Test case CE_FILE_001
Test Case-ID CE_FILE_001
Purpose This test checks the template tag of the encoded LDS element.
Version 0.2
References ISO/IEC 18013-2:2020, Annex B
Profile SIC
Preconditions 1. Encoded EF.CE object in binary format (as read from the IDL)
Test scenario 1. Check the very first byte of the EF.CE element
Expected results 1. First byte shall be ‘53’
D.3.1.2 Test case CE_FILE_002
Test Case-ID CE_FILE_002
Purpose This test checks the absence of EF.COM for CE
Version 0.2
References ISO/IEC 18013-2:2020, Annex B
Profile SIC
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test scenario 1. Check the presence of EF.COM
Expected results 1. EF.COM shall not be present

© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
D.3.1.3 Test case CE_FILE_003
Test Case-ID CE_FILE_003
Purpose This test checks the file structure for CE
Version 0.2
References ISO/IEC 18013-2:2020, Annex B
Profile
Preconditions 1. Encoded CE Constructed Data Object in binary format (as read from
the IDL; without the SIC template tag, if applicable)
Test scenario 1. Check the first byte of the CE constructed data object
2. Check the last byte of the CE constructed data object
Expected results 1. The first byte shall be ‘A0’
2. The last byte shall be the End of File Delimiter ‘B6’
D.3.2 Test unit CE_HEADER — Compact encoding (CE) header tests
D.3.2.1 Test case CE_HEADER_001
Test Case-ID CE_HEADER_001
Purpose This test checks the Application Identifier referred by the header ele-
ment
Version 0.2
References ISO/IEC 18013-2:2020, Annex B
Profile NO-SIC
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test scenario 1. Check the AID bytes (first 7 bytes) of the Header element
Expected results 1. AID shall be ‘A0 00 00 02 48 01 00’
D.3.2.2 Test Case CE_HEADER_002
Test Case-ID CE_HEADER_002
Purpose This test checks the Application Identifier referred by the header ele-
ment
Version 0.2
References ISO/IEC 18013-2:2020, Annex B
Profile SIC
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Check the AID bytes (first 7 bytes) of the Header element
Expected Results 1. AID shall be ‘A0 00 00 02 48 03 00’
D.3.2.3 Test Case CE_HEADER_003
Test Case-ID CE_HEADER_003
Purpose This test checks the Version referred by the header element
Version 0.2
References ISO/IEC 18013-2:2020, Annex B
Profile
© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Check the number of bytes of the Version
2. Check the first byte of the Version of the Header element
3. Check the second byte of the Version of the Header element
Expected Results 1. The number of bytes is two
2. The first byte of the Version shall be ‘01’
3. The second byte of the Version shall contain a valid BCD encoded
number
D.3.2.4 Test Case CE_HEADER_004
Test Case-ID CE_HEADER_004
Purpose This test checks the Length encoded in the header element
Version 0.2
References ISO/IEC 18013-2:2020, Annex B
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Analyze the encoding of the Length bytes in the Header Element
2. Verify the length of the data file
Expected Results 1. The Length shall contain a valid length encoding according to ASN.1
encoding rules
2. The encoded length shall equal the total number of bytes from (and
including) the data group delimiter between the header and Data Group
1, up to and including the last character of the LDS (i.e. the end of file
delimiter)
D.3.3 Test Unit CE_DG1 – Compact encoding (CE) DG1 tests
D.3.3.1 Test Case CE_DG1_001
Test Case-ID CE_DG1_001
Purpose This test checks the encoded DG1 for CE according to Type 1 Data Group
encoding rules
Version 0.2
References ISO/IEC 18013-2:2020, Annex B
ISO/IEC 8859-1
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Check the byte following the length encoding in the header, i.e. the
byte preceding Data Group 1.
Expected Results 1. The byte shall be ‘D7’ (“×”)

© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
D.3.3.2 Test Case CE_DG1_002
Test Case-ID CE_DG1_002
Purpose This test checks the Field Delimiters of DG1 for CE according to Type 1
Data Group encoding rules
Version 0.2
References ISO/IEC 18013-2:2020, Annex B
ISO/IEC 8859-1
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Check the number of Field Delimiters in DG1
Expected Results 1. The number of Field Delimiters shall be 8
D.3.3.3 Test Case CE_DG1_003
Test Case-ID CE_DG1_003
Purpose This test checks the encoding of the Family Name referred by the DG1
element
Version 0.2
References ISO/IEC 18013-2:2020
ISO/IEC 8859-1
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Verify the Family Name field length
3. Verify the Family Name.
Expected Results 1. DG1 shall be present.
2. The number of bytes shall not exceed 36
3. Family Name shall not contain numeric characters
D.3.3.4 Test Case CE_DG1_004
Test Case-ID CE_DG1_004
Purpose This test checks the encoding of the Given Name referred by the DG1
element
Version 0.2
References ISO/IEC 18013-2:2020
ISO/IEC 8859-1
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Verify the Given Name field length
3. Verify the Given Name.
Expected Results 1. DG1 shall be present.
2. The number of bytes shall not exceed 36
3. Given Name shall not contain numeric characters

© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
D.3.3.5 Test Case CE_DG1_005
Test Case-ID CE_DG1_005
Purpose This test checks the encoding of the Date of Birth referred by the DG1
element
Version 0.2
References ISO/IEC 18013-2:2020
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Verify the Date of Birth field length
3. Check the Date of Birth encoding
4. Check that the Date of Birth element contains a valid date.
Expected Results 1. DG1 shall be present.
2. Date of Birth field length shall be 4 bytes long
3. Date of Birth shall be encoded in YYYYMMDD BCD format
4. The Date of Birth shall be reasonable. It shall specify an existing day
and it should be in the past.
D.3.3.6 Test Case CE_DG1_006
Test Case-ID CE_DG1_006
Purpose This test checks the encoding of the Date of Issue referred by the DG1
element
Version 0.2
References ISO/IEC 18013-2:2020
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Verify the Date of Issue field length
3. Check the Date of Issue encoding
4. Check that the Date of Issue element contains a valid date.
Expected Results 1. DG1 shall be present.
2. Date of Issue field length shall be 4 bytes long
3. Date of Issue shall be encoded in YYYYMMDD BCD format
4. The Date of Issue shall be reasonable. It shall specify an existing day
and it should be in the past.
D.3.3.7 Test Case CE_DG1_007
Test Case-ID CE_DG1_007
Purpose This test checks the encoding of the Date of Expiry referred by the DG1
element
Version 0.2
References ISO/IEC 18013-2:2020
Profile
© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Verify the Date of Expiry field length
3. Check the Date of Expiry encoding
4. Check that the Date of Expiry element contains a valid date.
Expected Results 1. DG1 shall be present.
2. Date of Expiry field length shall be 4 bytes long
3. Date of Expiry shall be encoded in YYYYMMDD BCD format
4. The Date of Expiry shall specify an existing day and shall be later than
the Date of Issue.
D.3.3.8 Test Case CE_DG1_008
Test Case-ID CE_DG1_008
Purpose This test checks the encoding of the Issuing Country referred by the DG1
element
Version 0.2
References ISO/IEC 18013-2:2020
ISO/IEC 8859-1
ISO 3166-1
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Verify the Issuing Country field length
3. Check the Issuing Country encoding
4. Check Issuing Country
Expected Results 1. DG1 shall be present.
2. Issuing Country field length shall be 3 bytes long
3. Issuing Country shall be encoded in Alpha characters only
4. Issuing Country shall be a valid value as defined in ISO 3166-1
D.3.3.9 Test Case CE_DG1_009
Test Case-ID CE_DG1_009
Purpose This test checks the encoding of the Issuing Authority referred by the
DG1 element
Version 0.2
References ISO/IEC 18013-2:2020
ISO/IEC 8859-1
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Verify the Issuing Authority field length
3. Check the Issuing Authority format
Expected Results 1. DG1 shall be present.
2. The number of bytes shall not exceed 65
3. The Issuing Authority shall be coded according to ISO/IEC 8859-1 and
contain only A, N, and S characters

© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
D.3.3.10 Test Case CE_DG1_010
Test Case-ID CE_DG1_010
Purpose This test checks the encoding of the Licence Number referred by the DG1
element
Version 0.2
References ISO/IEC 18013-2:2020
ISO/IEC 8859-1
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Verify the Licence Number field length
3. Check Licence Number encoding
Expected Results 1. DG1 shall be present.
2. The number of bytes shall not exceed 25
3. Licence Number shall not contain special characters
D.3.3.11 Test Case CE_DG1_011
Test Case-ID CE_DG1_011
Purpose This test checks the number of sub-fields in the Categories of Vehicles/
Restrictions/Conditions referred by the DG1 element.
Version 0.3
References ISO/IEC 18013-2:2020
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Check the number of sub fields in the value of the Categories of Vehi-
cles/Restrictions/Conditions field.
Expected Results 1. DG1 shall be present.
2. The value of the Categories of Vehicles/Restrictions/Conditions field
shall contain a multiple of 6 sub-fields (n*6 with n≥1) which may be
empty; the sub-fields are separated by a ";" ('3B' hex).
D.3.3.12 Test Case CE_DG1_012
Test Case-ID CE_DG1_012
Purpose This test checks the Vehicle Category Code of a single entry from the Cat-
egories of Vehicles/Restrictions/Conditions referred by the DG1 element
Version 0.2
References ISO/IEC 18013-2:2020
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Check the Vehicle Category Code value for all entries
Expected Results 1. DG1 shall be present.
2. The Vehicle Category Code contains Alpha-Numeric characters only

© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
D.3.3.13 Test Case CE_DG1_013
Test Case-ID CE_DG1_013
Purpose This test checks the Date of Issue (if present) of a single entry from the
Categories of Vehicles/Restrictions/Conditions referred by the DG1
element
Version 0.2
References ISO/IEC 18013-2:2020
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Check the encoding of the Date of Issue value for all entries
3. Check the Date of Issue value
Expected Results 1. DG1 shall be present.
2. Date of Issue shall be 4 bytes long and shall be encoded in YYYYMMDD
BCD format
3. The Date of Issue shall be reasonable. It shall specify an existing day
and it should be in the past.
D.3.3.14 Test Case CE_DG1_014
Test Case-ID CE_DG1_014
Purpose This test checks the Date of Expiry (if present) of a single entry from
the Categories of Vehicles/Restrictions/Conditions referred by the DG1
element
Version 0.2
References ISO/IEC 18013-2:2020
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Check the encoding of the Date of Expiry value for all entries
3. Check the Date of Expiry value
Expected Results 1. DG1 shall be present.
2. Date of Expiry shall be 4 bytes long and shall be encoded in YYYYM-
MDD BCD format
3. The Date of Expiry shall specify an existing day and shall be later than
the Date of Issue.
D.3.3.15 Test Case CE_DG1_015
Test Case-ID CE_DG1_015
Purpose This test checks the Code of a single entry from the Categories of Vehi-
cles/Restrictions/Conditions referred by the DG1 element
Version 0.2
References ISO/IEC 18013-2:2020
Profile
© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Check the encoding of the Code value for all entries
3. Check the Code value
Expected Results 1. DG1 shall be present.
2. The length of the Code shall not exceed 5 bytes length
3. The value of the Code is one of the values specified in ISO/IEC 18013-
2:2020, A.4.1 (i.e. "01", "03", "78", "S01", "S02", "S03", "S04" or "S05").
D.3.3.16 Test Case CE_DG1_016
Test Case-ID CE_DG1_016
Purpose This test checks the Sign (if present) of a single entry from the Catego-
ries of Vehicles/Restrictions/Conditions referred by the DG1 element
Version 0.2
References ISO/IEC 18013-2:2020
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Check the format of the Sign
3. Check the value of the Sign
4. Check the Sign only occurs in combination with an applicable Code
5. Check the Sign only occurs in combination with a Value field
Expected Results 1. DG1 shall be present
2. Sign shall be encoded in Special characters
3. The value of the Sign is one of the values specified in ISO/IEC 18013-
2:2020, A.4.1 (i.e. "<","=",">","<=","=<","<>","><",">=","=>","==")
4. The value of the Code is one of the following values specified in ISO/
IEC 18013-2:2020, A.4.1 (i.e. "S01", "S02", "S03" or "S04")
5. The Value field is not empty
D.3.3.17 Test Case CE_DG1_017
Test Case-ID CE_DG1_017
Purpose This test checks the Value (if present) of a single entry from the Catego-
ries of Vehicles/Restrictions/Conditions referred by the DG1 element
Version 0.2
References ISO/IEC 18013-2:2020
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for DG1
2. Check the format of the Value
3. Check the Value only occurs in combination with a Code
4. Check the Value only occurs in combination with a Sign
Expected Results 1. DG1 shall be present.
2. The Value field shall be encoded in ANS format
3. The Code field is not empty
4. The Sign field is not empty

© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
D.3.4 Test Unit CE_DG2 – Compact encoding (CE) DG2 tests
D.3.4.1 Test Case CE_DG2_001
Test Case-ID CE_DG2_001
Purpose This test checks that the Data Group Delimiter preceding DG2 is present
Version 0.2
References ISO/IEC 18013-2:2020, Annex B
ISO/IEC 8859-1
Profile
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Check the byte following the last byte of Data Group 1, i.e. the byte
preceding Data Group 2.
Expected Results 1. The byte shall be ‘D7’ (“×”)
D.3.4.2 Test Case CE_DG2_002
Test Case-ID CE_DG2_002
Purpose This test checks the Field Delimiters of DG2 for CE according to Type 1
Data Group encoding rules
Version 0.2
References ISO/IEC 18013-2:2020, Annex B
ISO/IEC 8859-1
Profile DG2
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Check the number of Field Delimiters in DG2
Expected Results 1. The number of Field Delimiters shall be 6
D.3.4.3 Test Case CE_DG2_003
Test Case-ID CE_DG2_003
Purpose This test checks the encoding of Gender referred by the DG2 element
Version 0.2
References ISO/IEC 18013-2:2020
Profile DG2
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for the Gender element data in DG2
2. Verify the length of the Gender
3. Check the value of Gender
Expected Results 1. The Gender element data may be present in DG2
2. If present, the length of Gender shall be 1 byte length
3. If present, the value of Gender shall be '00' (Unknown), '01' (Male), '02'
(Female), or '09' (Not applicable) encoded in BCD format (as per ISO/IEC
5218)
© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
D.3.4.4 Test Case CE_DG2_004
Test Case-ID CE_DG2_004
Purpose This test checks the encoding of Height referred by the DG2 element
Version 0.2
References ISO/IEC 18013-2:2020
Profile DG2
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for the Height element data in DG2
2. Verify the length of the Tag Height
3. Check the encoding of Height
Expected Results 1. The Height element data may be present in DG2
2. If present, the length of Height shall be 2 byte length
3. If present, the value of Height shall be encoded in BCD format
D.3.4.5 Test Case CE_DG2_005
Test Case-ID CE_DG2_005
Purpose This test checks the encoding of Weight referred by the DG2 element
Version 0.2
References ISO/IEC 18013-2:2020
Profile DG2
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for the Weight element data in DG2
2. Verify the length of the Weight
3. Check the encoding of Weight
Expected Results 1. The Weight element data may be present in DG2
2. If present, the length of Weight shall be 2 byte length
3. If present, the value of Weight shall be encoded in BCD format
D.3.4.6 Test Case CE_DG2_006
Test Case-ID CE_DG2_006
Purpose This test checks the encoding of Eye Colour referred by the DG2 element
Version 0.2
References ISO/IEC 18013-2:2020
Profile DG2
Preconditions 1. Encoded LDS Data in binary format (as read from the IDL)
Test Scenario 1. Search for the Eye Colour element data in DG2
2. Verify the length of the Eye Colour
3. Check the encoding of Eye Colour
Expected Results 1. The Eye Colour element data may be present in DG2
2. If present, the length of Eye Colour shall be 3 byte length
3. If present, the value of Eye Colour shall be defined per ISO/IEC 18013-
2:2020, 8.3 (i.e. "BLK", "BLU", "BRO", "GRY", "GRN", "HAZ", "MAR", "PNK",
"DIC", or "UNK").
© ISO/IEC 2024 – All rights reserved
ISO/IEC 18013-4:2019/Amd. 1:2024(en)
D.3.4.7 Test Case CE_DG2_007
Test Case-ID CE_DG2_007
Purpose This test checks the encoding of Hair Colour referred by the DG2 element
Version 0.2
References ISO/IEC 18013-2:2020
Pro
...
