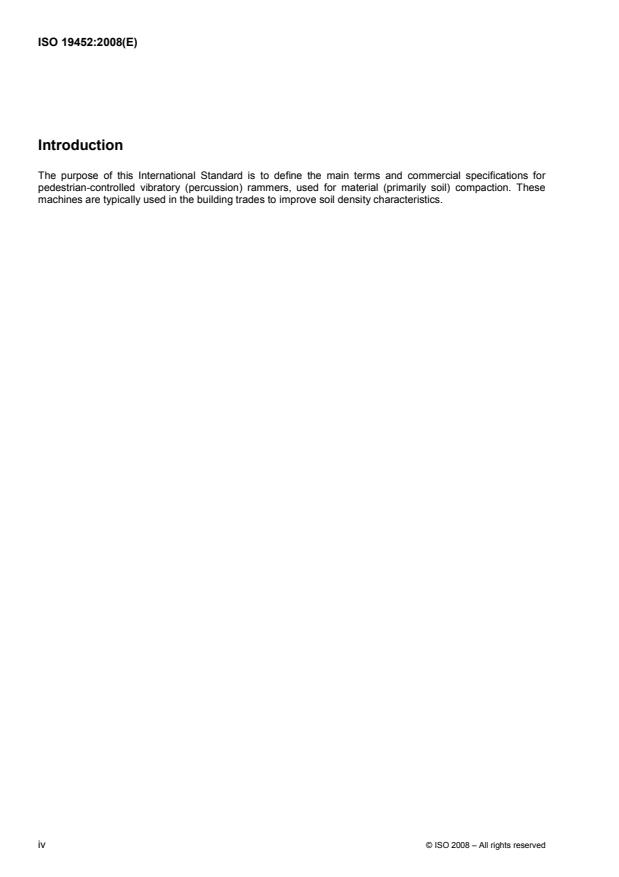

Introduction
The purpose of this International Standard is to define the main terms and commercial specifications for
pedestrian-controlled vibratory (percussion) rammers, used for material (primarily soil) compaction. These
machines are typically used in the building trades to improve soil density characteristics.

iv © ISO 2008 – All rights reserved

INTERNATIONAL STANDARD ISO 19452:2008(E)

Building construction machinery and equipment —
Pedestrian-controlled vibratory (percussion) rammers —
Terminology and commercial specifications
1 Scope
This International Standard provides a terminology and sets out commercial specifications for
pedestrian-controlled vibratory (percussion) rammers used in building construction.
It is not applicable to rammers that compact by use of a tamping action of the foot-plate (shoe), nor is it
applicable to explosion-type rammers.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
pedestrian-controlled vibratory rammer
pedestrian-controlled percussion rammer
machine designed for the purpose of improving material (primarily soil) density and stiffness through use of a
displacement-driven foot-plate for compaction
See Figure 1.
NOTE The machine compacts material through a vibrating action performed by the foot-plate.
2.2
prime mover
driving energy source for the percussion mechanism
See Figure 1.
NOTE The following prime mover types are used for vibratory rammers: combustion engine (see Figure 2); hydraulic
(see Figure 3).
2.3
vibratory mechanism
system of components that translates the prime mover energy to the foot-plate
2.4
foot-plate
shoe
machine element that contacts the material being compacted
See Figure 1.
NOTE Foot-plate materials i
...
