ISO 16402:2008

INTERNATIONAL ISO
STANDARD 16402
First edition
2008-05-15
Implants for surgery — Acrylic resin
cement — Flexural fatigue testing of
acrylic resin cements used in
orthopaedics
Implants chirurgicaux — Ciment à base de résine acrylique — Essais de
fatigue flexurale des ciments à base de résine acrylique utilisés en
orthopédie
Reference number
©
ISO 2008

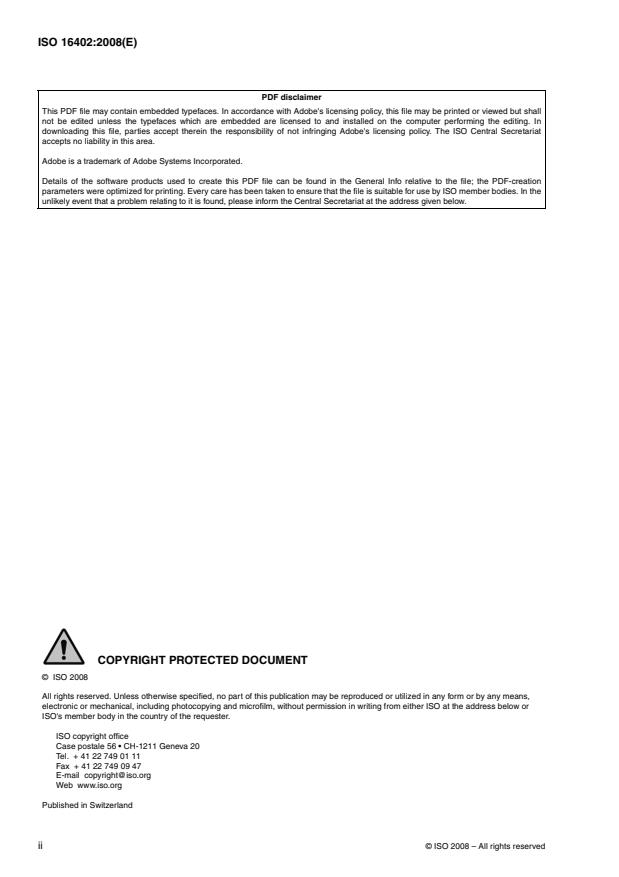

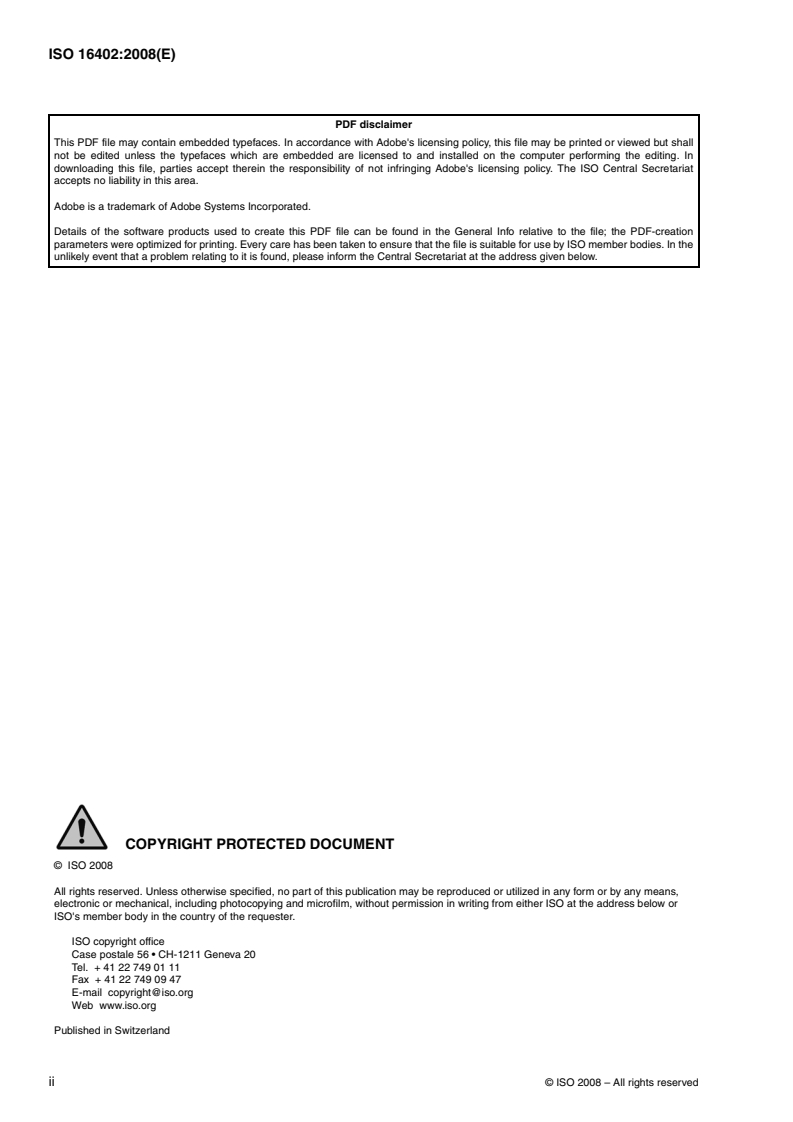

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
©
ii ISO 2008 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 16402 was prepared by Technical Committee ISO/TC 150, Implants for surgery, Subcommittee SC 1,
Materials.
©
ISO 2008 – All rights reserved iii

.
iv
INTERNATIONAL STANDARD ISO 16402:2008(E)
Implants for surgery — Acrylic resin cement — Flexural fatigue
testing of acrylic resin cements used in orthopaedics
1Scope
This International Standard applies to resin cements based on poly(methacrylic acid esters) and specifies the
procedure for determining the fatigue behaviour of the polymerized cement.
This International Standard does not cover the hazards associated with the use of the cement in respect of
either the patient or the user of the cement.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO 5833:2002, Implants for surgery — Acrylic resin cements
ISO 16428, Implants for surgery— Test solutions and environmental conditions for static and dynamic
corrosion tests on implantable materials and medical devices
3 Test method
The tests make use of rectangular bar-shaped test specimens. The method for preparing these specimens is
described in Clause 5.
The bending strength of the resulting test specimens is determined by means of a four-point bend test under
quasi static and cyclic loading conditions. Under cyclic loading conditions two test methods are described. The
first one follows the Wöhler method (S/N curve method) and determines the behaviour over the full range of
stress levels. The second one (low stress method) determines the behaviour at lower stress levels only. These
lower stress levels, which are specified, are thought to correspond to stress levels expected to be encountered
in clinical use.
4 Apparatus
4.1 Equipment for mixing cement, as recommended by the cement manufacturer.
4.2 Moulds, made of a suitable material to produce rectangular bar-shaped specimens directly in their final
75 mm 10 mm 3,3 mm
shape with the dimensions of length, width and depth. If preferred, one or more moulds
to produce plates of 3,3 mm thickness may be used and the specimens subsequently cut to size using a saw.
All surfaces of the moulds which come into contact with the cement shall be finely finished with 400 grade
emery paper.
NOTE Materials with sufficient stiffness, as for example aluminium alloys or stainless steel, have been found to be suitable.
4.3 Flat, smooth plates, (two for each mould) of a suitable material and size to cover the upper and lower
surfaces of the moulds (4.2).
©
ISO 2008 – All rights reserved 1

4.4 Mould release agent, to facilitate separation of the specimens from the moulds.
NOTE Teflon-spray, vacuum grease or beeswax have been found to be suitable.
4.5 Polyester film, to cover the plates of the mould.
4.6 C-clamp(s) or other device(s), for clamping the mould(s) between the top and bottom plates.
4.7 Bend test machine, capable of applying loads up to 200 N which optionally can increase linearly or can
cycle sinusoidally over a range of loads between 0N and the selected value at a frequency of 5Hz, and which
is equipped with a device for measuring, controlling and recording the load to an accuracy of ±2N.
4.8 Four-point bend test rig, having the dimensions shown in Figure 1 (corresponding to ISO 5833:2002,
Annex F) with means of preventing initial misalignment, changes of alignment and walking-off of the test
specimen on the supports during the test. The loading points should be of the rolling type and have a diameter
3mm
of . The test rig should be such that equal loads are applied to all loading points.
◦
4.9 Water bath, to maintain the test specimen and the loading fixtures at a temperature of (37± 1) C.
4.10 Saw.
4.11 Emery paper, 400 grade.
5 Preparation of test specimens
5.1 General conditions
The mould(s) (4.2), plates (4.3), mixing equipment (4.1) and the cement to be used (both powder and liquid
◦
components) shall be maintained at (23± 2) C for at least 2h before casting the test specimen(s). The
◦
specimen(s) shall be cast at (23± 2) C.
5.2 Preparation procedure
5.2.1 Cover the surfaces of the mould which come into contact with the cement, with a thin film of the mould
release agent (4.4).
5.2.2 Cover the bottom plate of the mould with polyester film (4.5). Place the mould on top of the film-covered
plate.
5.2.3 Mix the components of cement, following the manufacturer's instructions. Use a sufficient quantity of
cement to make the required number of specimens.
NOTE A good procedure is the following: obtain a large batch of cement powder and a large batch of cement liquid from
the manufacturer. Subdivide these batches into smaller units of powder and liquid, then store. Mix the number of these
smaller units which is needed to make the required number of specimens. If possible, make all the specimens to be tested
from a single batch of cement powder and a single batch of cement liquid. If this is not possible, use the minimum possible
number of cement batches. In both cases record the batch numbers.
5.2.4 Fill the mould(s) with the cement immediately after the mixing is completed, cover with a sheet of the
polyester film, add the top plate and clamp the top and bottom plates to the mould(s).
5.2.5 After approximately 1h remove the clamp(s) (4.6), the top plate and the top polyester film and apply a
mark to the top of the specimen near one end, to identify the top surface. Remove the specimen(s) from their
mould(s). Wet grind the edges and the faces of the specimens which were in contact with the mould or which
result from cutting with a saw (4.10), using 400 grade emery paper (4.11). The rectangular bar-shaped test
specimens shall have a length of (75± 0,2) mm, width of (10± 0,2) mm, and thickness of (3,3± 0,2) mm.
©
