ISO 3116:2026
(Main)Magnesium and magnesium alloys — Wrought magnesium and magnesium alloys
- Abstract
This document specifies the chemical composition and mechanical properties of magnesium and magnesium alloys for wrought products in the form of bars and solid sections, tubes and hollow sections, forgings and plate and sheet.
- Status
- Published
- Publication Date
- 15-Oct-2026
- Technical Committee
- ISO/TC 79/SC 5 - Magnesium and alloys of cast or wrought magnesium
- Drafting Committee
- ISO/TC 79/SC 5 - Magnesium and alloys of cast or wrought magnesium
- Current Stage
- 6060 - International Standard published
- Start Date
- 16-Oct-2026
- Completion Date
- 16-Oct-2026
ISO 3116:2026 is an International Standard published by ISO for wrought magnesium and magnesium alloys. It specifies the chemical composition and mechanical properties of magnesium and magnesium alloys for bars and solid sections, tubes and hollow sections, forgings, plate and sheet. In practice, it gives producers, purchasers and laboratories a common way to designate the material, order it, test it and accept it.
What does ISO 3116:2026 specify?
ISO 3116:2026 specifies a designation system and the material requirements for wrought magnesium alloys. Clause 4 defines how the alloys, tempers and product forms are identified, and Clauses 5 to 10 cover composition, mechanical properties, sampling, test pieces, test methods, retests and rounding.
The document is organized into 10 clauses and 3 informative annexes.
| Annex | What it covers |
|---|---|
| A | National designations corresponding to the ISO designation |
| B | Physical properties of wrought magnesium alloys |
| C | Heat-treatment schedules for wrought magnesium alloys |
What are the key requirements of ISO 3116:2026?
ISO 3116:2026 ties acceptance to both the alloy designation and the required condition of supply. The most important requirements are the designation rules, the composition limits, the mechanical property tables, and the agreed test and sampling arrangements.
Designation and ordering
Clause 4.1 says the material is designated by symbols given in Table 1 and Table 2 through Table 47. Alloy designations start with the prefix M for magnesium, then use capital letters for the main alloying elements, followed by rounded percentages and a lower-case serial letter when needed. This matters because buyers and suppliers need one unambiguous material name for ordering and traceability.
Clause 4.2 sets the temper symbols: O, F, H × 8, H × 4, H × 2, H112, T5 and T6. Clause 4.3 gives the product-form symbols B, T, F and P. Clause 4.4 says an order should state the symbol or designation, the temper and the product form, and it also requires weight and dimensions. In practice, this lets an order distinguish, for example, a bar in the as-fabricated condition from a plate in a heat-treated condition.
Chemical composition and mechanical properties
Clause 5.1 requires the chemical composition of wrought magnesium alloys, taken as cast analysis at the time the material is cast, to conform to Table 2. Clause 5.2 requires the minimum mechanical properties for the defined temper conditions to conform to Tables 3 through 49. That means acceptance depends on the alloy family, the product form, the temper and, in several tables, the thickness range.
The property tables are the core of the standard. They give the minimum values used to check whether a product meets the specified grade. For a purchaser, this is the part that matters when comparing suppliers or writing a procurement specification.
Testing, sampling and specimen orientation
Clause 5.3 says the frequency of testing is subject to agreement between manufacturer and purchaser. Clause 6 says sampling, batch formation and verification frequency are also subject to agreement. Clause 9 leaves retest conditions to agreement as well. In practice, the standard sets the property targets, while the commercial parties decide how often material is checked and what happens after a failed result.
Clause 7 requires test pieces to be taken in the longitudinal direction. For rolled flat products thicker than 0.6 mm, test pieces may be taken in the long transverse direction. This matters because direction affects measured properties in wrought products, so the test orientation has to match the way the product will be used or assessed.
Test methods and rounding
Clause 8.1 says chemical composition test methods are to be agreed between supplier and customer. Clause 8.2 requires tensile tests to be carried out in accordance with ISO 6892-1. Clause 10 requires reported values to use the same number of decimal places as the value in the standard and to follow the rounding rules of ISO 80000-1:2009, B.3, rule A or B. This keeps reported results consistent when products are compared against the tables.
What terms does ISO 3116:2026 define?
ISO 3116:2026 uses a compact set of symbols for temper, product form and property reporting.
- F - as fabricated.
- O - annealed.
- H112 - strain hardened from working at elevated temperature or from a limited amount of cold work, with mechanical property limits.
- T5 - cooled from an elevated-temperature shaping process and then artificially aged.
- T6 - solution heat treated and then artificially aged.
- B / T / F / P - bars and solid sections, tubes and hollow sections, forgings, and plate and sheet.
- Rm / Rp0,2 / A - tensile strength, 0.2% proof stress and elongation, which are the property headings used in the mechanical-property tables.
- RE - neodymium and other heavy rare earth metals.
Who uses ISO 3116:2026?
ISO 3116:2026 is used by manufacturers, suppliers, purchasers and laboratories dealing with wrought magnesium products. It is particularly relevant when specifying bars, tubes, forgings, plate and sheet in a defined alloy and temper.
Quality managers and buyers use it to write purchase orders, compare alloy designations and confirm acceptance criteria. Process engineers and test laboratories use it to select specimen orientation, testing methods and rounding rules. It is also useful for teams that need to map ISO designations to national designations through Annex A.
What changed in ISO 3116:2026 from the previous edition?
ISO 3116:2026 cancels and replaces ISO 3116:2019. The foreword states that this sixth edition is technically revised, and the main stated change is the addition of ISO-MgAl4Ca1 to the text.
Which standards are used with ISO 3116:2026?
ISO 3116:2026 cites three normative references.
- ISO 80000-1:2009 - gives the rounding rules used for reporting results in Clause 10.
- ISO 6892-1 - gives the tensile test method used in Clause 8.2.
- EN 515 - provides the temper designation system referenced in Clause 4.2.
What does the ISO 3116:2026 document contain?
ISO 3116:2026 contains the designation rules, composition tables and mechanical-property tables that define the wrought magnesium alloy grades covered by the standard. Clause 4 gives the material, temper, product-form and ordering designations, including an example order format.
The main technical content is in Table 1 for alloy-element letters, Table 2 for chemical composition, and Tables 3 through 49 for minimum mechanical properties across the listed alloys, tempers and thickness ranges. Annex A maps the ISO designations to national designations, Annex B lists physical properties, and Annex C gives heat-treatment schedules for selected alloys and tempers.
The document is therefore used for material specification, procurement, inspection and property verification, not just for naming the alloys.
Relations
- Effective Date
- 19-Oct-2024
Get Certified
Connect with accredited certification bodies for this standard
Element Materials Technology
Materials testing and product certification.
Inštitut za kovinske materiale in tehnologije
Institute of Metals and Technology. Materials testing, metallurgical analysis, NDT.
Sponsored listings
Frequently Asked Questions
ISO 3116:2026 is a standard published by the International Organization for Standardization (ISO). Its full title is "Magnesium and magnesium alloys — Wrought magnesium and magnesium alloys". This standard covers: This document specifies the chemical composition and mechanical properties of magnesium and magnesium alloys for wrought products in the form of bars and solid sections, tubes and hollow sections, forgings and plate and sheet.
This document specifies the chemical composition and mechanical properties of magnesium and magnesium alloys for wrought products in the form of bars and solid sections, tubes and hollow sections, forgings and plate and sheet.
ISO 3116:2026 is classified under the following ICS (International Classification for Standards) categories: 77.120.20 - Magnesium and magnesium alloys. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 3116:2026 has the following relationships with other standards: It is inter standard links to ISO 3116:2019. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 3116:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

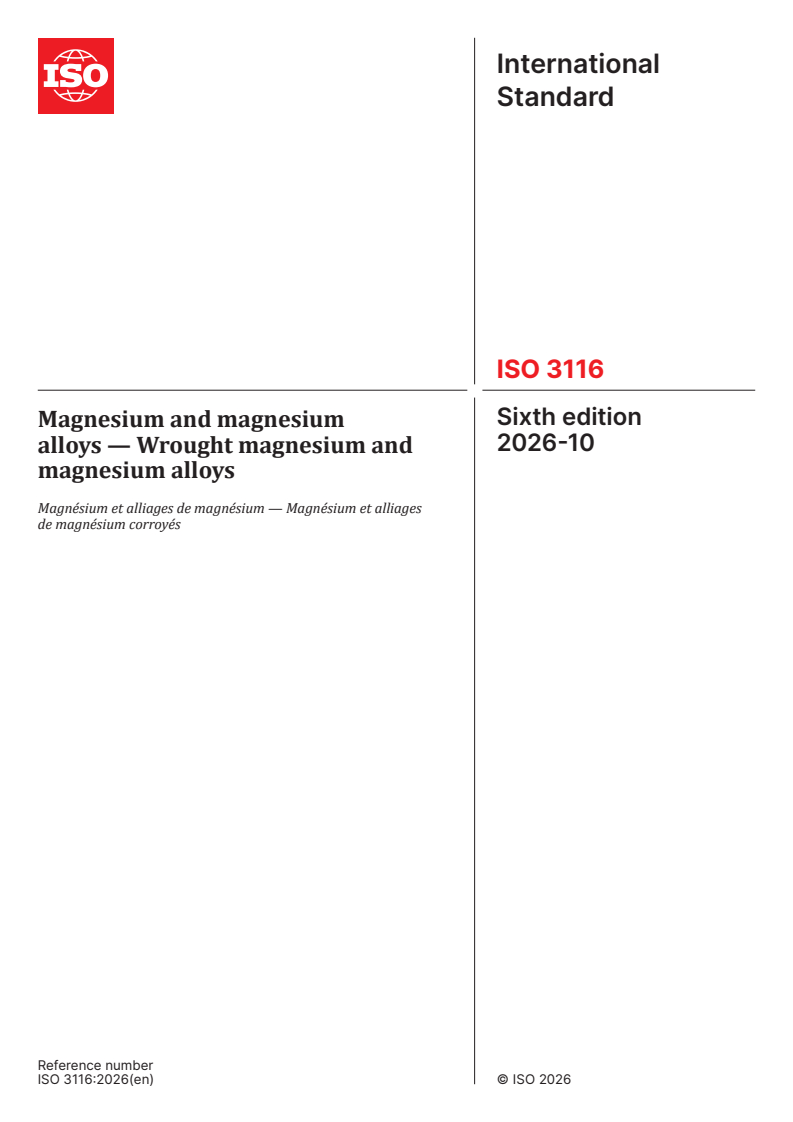

International
Standard
ISO 3116
Sixth edition
Magnesium and magnesium
2026-10
alloys — Wrought magnesium and
magnesium alloys
Magnésium et alliages de magnésium — Magnésium et alliages
de magnésium corroyés
Reference number

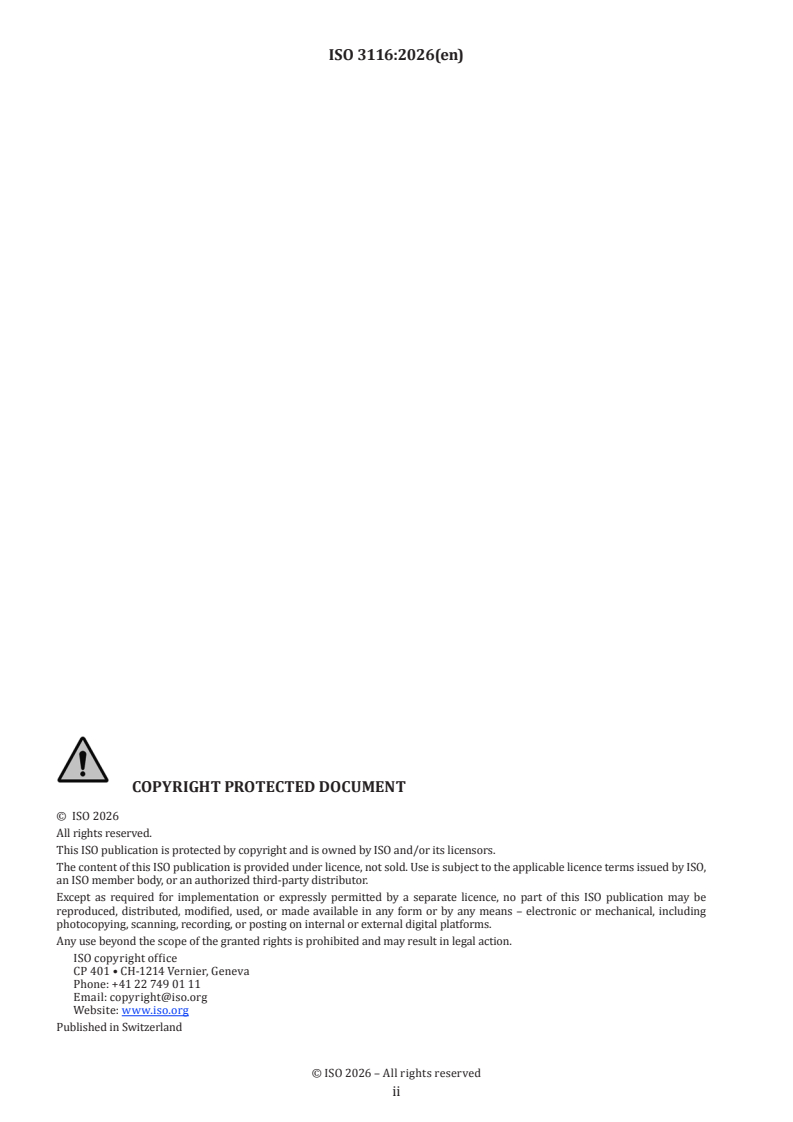

© ISO 2026
All rights reserved.
This ISO publication is protected by copyright and is owned by ISO and/or its licensors.
The content of this ISO publication is provided under licence, not sold. Use is subject to the applicable licence terms issued by ISO,
an ISO member body, or an authorized third-party distributor.
Except as required for implementation or expressly permitted by a separate licence, no part of this ISO publication may be
reproduced, distributed, modified, used, or made available in any form or by any means – electronic or mechanical, including
photocopying, scanning, recording, or posting on internal or external digital platforms.
Any use beyond the scope of the granted rights is prohibited and may result in legal action.
ISO copyright office
CP 401 • CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

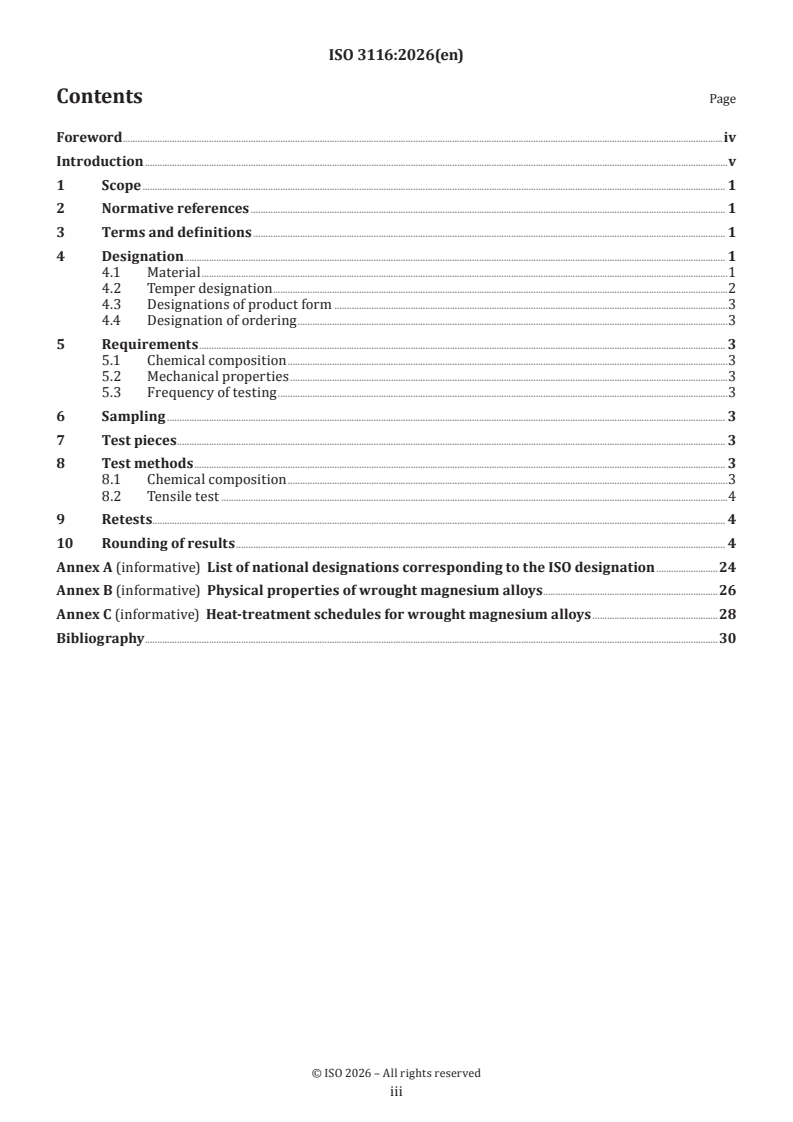

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Designation . 1
4.1 Material .1
4.2 Temper designation .2
4.3 Designations of product form .3
4.4 Designation of ordering .3
5 Requirements . 3
5.1 Chemical composition .3
5.2 Mechanical properties .3
5.3 Frequency of testing .3
6 Sampling . 3
7 Test pieces . 3
8 Test methods . 3
8.1 Chemical composition .3
8.2 Tensile test .4
9 Retests . 4
10 Rounding of results . 4
Annex A (informative) List of national designations corresponding to the ISO designation .24
Annex B (informative) Physical properties of wrought magnesium alloys .26
Annex C (informative) Heat-treatment schedules for wrought magnesium alloys .28
Bibliography .30
iii

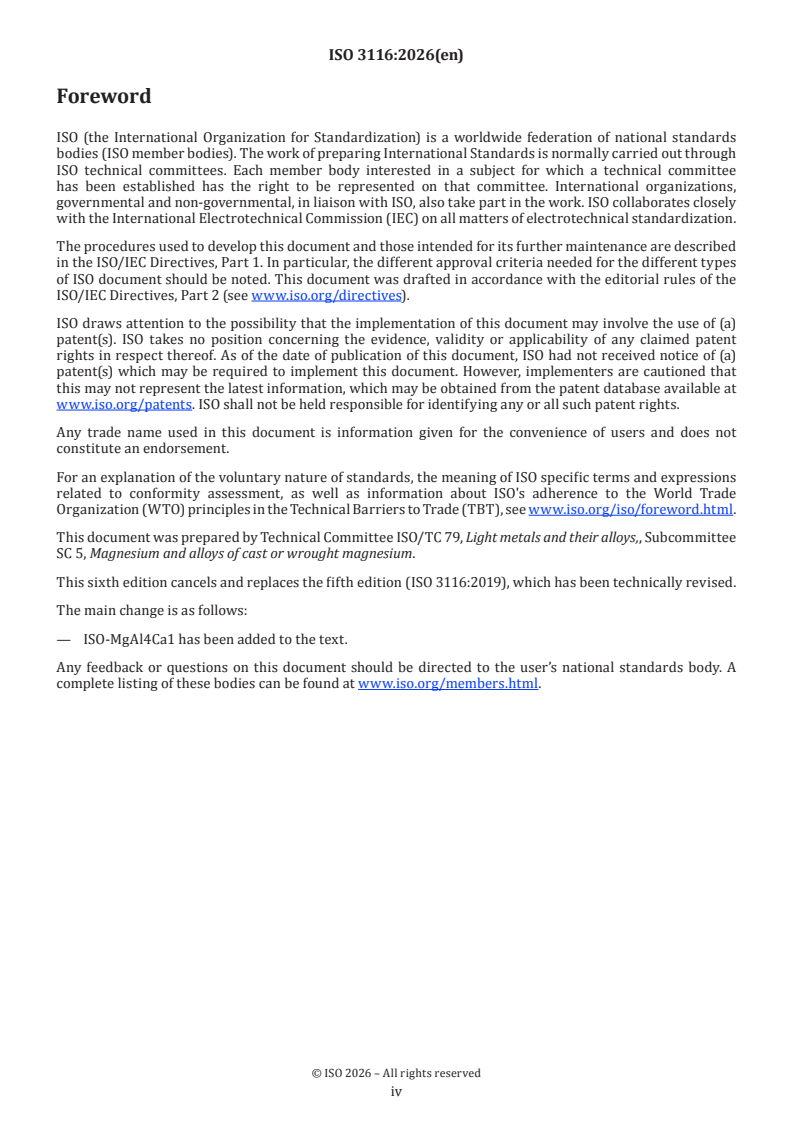

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 79, Light metals and their alloys,, Subcommittee
SC 5, Magnesium and alloys of cast or wrought magnesium.
This sixth edition cancels and replaces the fifth edition (ISO 3116:2019), which has been technically revised.
The main change is as follows:
— ISO-MgAl4Ca1 has been added to the text.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
This document classifies the commercially available magnesium alloys into a number of grades suitable for
the application to which they can be put.
v
International Standard ISO 3116:2026(en)
Magnesium and magnesium alloys — Wrought magnesium
and magnesium alloys
1 Scope
This document specifies the chemical composition and mechanical properties of magnesium and magnesium
alloys for wrought products in the form of bars and solid sections, tubes and hollow sections, forgings and
plate and sheet.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 80000-1:2009, Quantities and units — Part 1: General
ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
EN 515, Aluminium and aluminium alloys — Wrought products — Temper designations
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Designation
4.1 Material
The material shall be designated by symbols as given in Table 1 to Table 47.
The designation for alloys shall consist of a prefix character “M”, which represents magnesium, and not more
than three capital letters representing the alloying elements specified in the greatest amount. It shall be
arranged in order of decreasing percentages, or in alphabetical order if of equal percentages, followed by the
respective percentages rounded off to whole numbers and a serial letter in lower case.
The letters used to represent the alloying elements shall be those in Table 1. The third letter is used when
the third largest amount of element is above or equal to 1 wt.%. If the third and fourth largest amount of
elements are above or equal to 1 wt.%, the higher amount of elements is taken; if of equal percentage, the
third letter is decided by the producer who developed the alloy.
Table 1 — Letters representing alloying elements
Letters Element Name of element Letters Element Name of element
A Al Aluminium N Ni Nickel
B Bi Bismuth P Pb Lead
C Cu Copper Q Ag Silver
D Cd Cadmium R Cr Chromium
E RE Rare earth S Si Silicon
F Fe Iron T Sn Tin
H Th Thorium V Gd Gadolinium
J Sr Strontium W Y Yttrium
K Zr Zirconium X Ca Calcium
L Li Lithium Y Sb Antimony
M Mn Manganese Z Zn Zinc
In rounding percentages, the nearest whole number shall be used. If two choices are possible, for example
when the decimal is followed by a 5 only or a 5 followed only by zeros, the nearest even whole number
shall be used. When a range is specified for the alloying element, the rounded mean shall be used in the
designation. When only a minimum percentage is specified for the alloying element, the rounded minimum
percentage shall be used in the designation. For example:
— an aluminium content of 1,2 wt.% is written as A1;
— an aluminium content of 1,5 wt.% is written as A2;
— an aluminium content of 2,5 wt.% to 3,6 wt.% is written as A3;
— an aluminium content of 2,5 wt.% is written as A2.
The serial letter is defined as “a” or “b” when the two compositions have only minor difference.
For example, ISO-MgAl3Zn1(A) is designated as MAZ31a and ISO-MgAl9Ca1Zn1 is designated as MAXZ911.
A list of national designations corresponding to this document is given in Annex A. A table of physical
properties of the listed alloys is given in Annex B.
4.2 Temper designation
The following symbols shall be used for temper designation:
— O: annealed;
— F: as fabricated;
— H × 8: fully hardened (stain hardened to give maximum ultimate tensile strength);
— H × 4: half hardened (stain hardened to give an ultimate tensile strength approximately midway between
that of annealed and H × 8 temper);
— H × 2: quarter hardened (stain hardened to give an ultimate tensile strength approximately midway
between that of annealed and H × 4 temper);
— H112: strain hardened from working at elevated temperature or from a limited amount of cold work, and
for which there are mechanical properties limits;
— T5: cooled from an elevated temperature shaping process and then artificially aged;
— T6: solution heat treated and then artificially aged.
The temper designations shall be in accordance with EN 515.
Details of heat treatments are given in Annex C.
4.3 Designations of product form
The following symbols shall be used for product form:
— B: bars and solid sections;
— T: tubes and hollow sections;
— F: forgings;
— P: plate and sheet.
4.4 Designation of ordering
Designation of ordering shall be specified by symbol or designation, temper and product form. Example is as
follows. In addition, the weight and dimensions shall be specified.
EXAMPLE An order for magnesium bars, conforming to this document, of magnesium alloy MAZ31a, delivered in
the as-fabricated condition (F) is as follows:
ISO 3116 - ISO-MgAl3Zn1 (A) (or MAZ31a) - F - B
5 Requirements
5.1 Chemical composition
The chemical composition of wrought magnesium alloys, taken as cast analysis at the time the material is
cast, shall conform to the requirements for the appropriate material given in Table 2.
5.2 Mechanical properties
The minimum values of the mechanical properties of wrought products in magnesium alloys in the defined
temper conditions shall be as given in Table 3 to Table 48.
5.3 Frequency of testing
The frequency of testing shall be subject to an agreement between the manufacturer and the purchaser.
6 Sampling
Conditions for sampling, formation of batches and frequency of verification shall be subject to an agreement
between the manufacturer and the purchaser.
7 Test pieces
Test pieces shall be taken in the longitudinal direction. For rolled flat products of thickness > 0,6 mm, test
pieces may be taken in the long transverse direction.
8 Test methods
8.1 Chemical composition
Test methods for the determination of chemical composition given in Table 2 shall be performed as agreed
between the supplier and the customer.
8.2 Tensile test
Tensile tests shall be carried out in accordance with ISO 6892-1.
9 Retests
Conditions for retests shall be subject to an agreement between the manufacturer and the purchaser.
10 Rounding of results
The number representing the result for any value specified in this document shall be expressed to the same
number of decimal places as the corresponding number in this document. The rounding of numbers shall
meet the requirements of ISO 80000-1:2009, B.3, rule A or B. The choice shall be left to the discretion of the
manufacturer, unless the use of one of the rules is agreed by the time of acceptance of the order.
Table 2 — Chemical composition of wrought magnesium and magnesium alloys
Composition
Material designation
% (mass fraction)
Alloy Product
Oth-
group form
Others
Symbol Number Designation Element Mg Al Zn Mn Gd RE Li Zr Y Ca Si Fe Cu Ni ers
each
total
min.
ISO- 0,00 0,00
Mg ISO-Mg99.99 MG9999 B 99,99 0,002 0,003 0,002 — — — — — — — 0,002 0,002 0,002 0,01
WD11000 03 03
max.
min. 7,5 0,35 0,15 — 0,01 — — — 0,001 0,02 — — — — — —
a
MgAlAg ISO-MgAl8Ag ISO-WD25110 MAQ80 F,P Rem.
max. 8,5 0,55 0,35 — 0,10 — — — 0,02 0,8Ag 0,05 0,02 0,02 0,001 0,01 0,30
min. 3,5 ― 0,15 ― ― ― ― ― 0,7 ― ― ― ― ― ― ―
a
ISO-MgAl4Ca1 — MAX41 B,T Rem.
max. 4,4 0,30 0,7 ― ― ― ― ― 1,5 ― 0,10 0,005 0,05 0,005 0,05 0,30
min. 4,5 — 0,15 — — — — — 0,7 — — — — — — —
ISO-
a
ISO-MgAl5Ca1 MAX51 B,T Rem.
WD25120
max. 5,4 0,30 0,40 — — — — — 1,5 — 0,10 0,005 0,05 0,005 0,05 0,30
MgAlCa
min. 5,5 — 0,15 — — — — — 0,7 — — — — — — —
ISO-
a
ISO-MgAl6Ca1 MAX61 B,T,P Rem.
WD25130
max. 6,5 0,30 0,40 — — — — — 1,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. 5,5 — 0,15 — — — — — 1,6 — — — — — — —
a
ISO-MgAl6Ca2 ISO-WD25140 MAX62 B,T,P Rem.
max. 6,5 0,30 0,40 — — — — — 2,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. 2,5 0,50 0,20 — — 1,0 — — — — — — — — — —
a
MgAlLi ISO-MgAl3Li2 ISO-WD26110 MAL32 P Rem.
max. 3,5 0,8 0,40 — — 3,0 — — — — 0,01 0,005 0,001 5 0,000 5 0,02 0,15
min. 5,5 — 0,15 — — — — — — — — — — — — —
ISO-
a
MgAlMn ISO-MgAl6Mn MAM60 B,T,P Rem.
WD21240
max. 6,5 0,30 0,40 — — — — — — — 0,10 0,005 0,01 0,005 0,05 0,30
min. 0,50 — 0,10 — — — — — — 0,6 — — — — —
ISO-
a
ISO-MgAl1Sn1 MAT11 B,P Rem. 0,004
WD25150
max. 1,2 — 0,30 — — — — — — 1,2Sn 0,01 — — 0,01 0,15
MgAlSn
min. 6,0 — 0,2 — — — — — — 0,7 — — — — — —
ISO-
a
ISO-MgAl6Sn1 MAT61 B,P Rem.
WD25160
max. 6,8 — 0,4 — — — — — — 1,3Sn 0,025 0,005 — — 0,05 0,15
min. 2,5 0 0,6 — — — — — — 0,9 — — — — — —
a
MgAlSr ISO-MgAl3Sr1 ISO-WD21450 MAJ31 B Rem.
max. 3,5 0,25 0,8 — — — — — — 1,5Sr 0,10 0,02 0,05 0,005 0,05 0,15
Key
B = bars and solid sections
T = tubes and hollow sections
F = forgings
P = plates and sheets
RE = neodymium and other heavy rare earth metals
a
Remainder.
b
Zn+Ag.
Table 2 (continued)
Composition
Material designation
% (mass fraction)
Alloy Product
Oth-
group form
Others
Symbol Number Designation Element Mg Al Zn Mn Gd RE Li Zr Y Ca Si Fe Cu Ni ers
each
total
min. 2,4 0,50 0,15 — — — — — — — — — — — — —
ISO-
a
ISO-MgAl3Zn1(A) MAZ31a B,T,F,P Rem.
WD21150
max. 3,6 1,5 0,40 — — — — — — — 0,10 0,005 0,05 0,005 0,05 0,30
MgAlZn
min. 2,4 0,5 0,05 — — — — — — — — — — — — —
a
ISO-MgAl3Zn1(B) ISO-WD21151 MAZ31b B,T,F,P Rem.
max. 3,6 1,5 0,4 — — — — — — — 0,10 0,05 0,05 0,005 0,05 0,30
min. 2,5 0,50 0,20 — — — — — — — — — — — — —
ISO-
a
ISO-MgAl3Zn1(C) MAZ31c B, P Rem.
WD21153
max. 3,5 1,5 0,40 — — — — — — — 0,05 0,000 8 — — 0,02 0,15
min. 5,5 0,50 0,15 — — — — — — — — — — — — —
ISO-
a
ISO-MgAl6Zn1 MAZ61 B,T,F, P Rem.
WD21160
max. 6,5 1,5 0,40 — — — — — — — 0,10 0,005 0,05 0,005 0,05 0,30
MgAlZn
min. 7,8 0,20 0,12 — — — — — — — — — — — — —
a
ISO-MgAl8Zn ISO-WD21170 MAZ80 B,T,F Rem.
max. 9,2 0,8 0,40 — — — — — — — 0,10 0,005 0,05 0,005 0,05 0,30
min. 8,6 0,35 0,15 — — — — — — — — — — — — —
ISO-
a
ISO-MgAl9Zn1 MAZ91 B,T Rem.
WD21180
max. 9,5 1,0 0,50 — — — — — — — 0,10 0,005 0,05 0,005 0,05 0,30
min. 2,4 0,5 0,15 — — — — — 0,7 — — — — — — —
a
ISO-MgAl3Ca1Zn1 ISO-WD22110 MAXZ311 B,T Rem.
max. 3,6 1,0 0,40 — — — — — 1,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. 5,5 0,5 0,15 — — — — — 0,7 — — — — — — —
ISO-
a
ISO-MgAl6Ca1Zn1 MAXZ611 B,T,P Rem.
WD22120
max. 6,5 1,0 0,40 — — — — — 1,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. 5,5 0,5 0,15 — — — — — 1,6 — — — — — — —
ISO-
a
ISO-MgAl6Ca2Zn1 MAXZ621 B,T,P Rem.
WD22130
max. 6,5 1,0 0,40 — — — — — 2,5 — 0,10 0,005 0,05 0,005 0,05 0,30
MgAlCaZn
min. 7,5 0,5 0,15 — — — — — 0,7 — — — — — — —
ISO-
a
ISO-MgAl8Ca1Zn1 MAXZ811 B, P Rem.
WD22140
max. 8,5 1,5 0,40 — — — — — 1,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. 8,6 0,35 0,15 — — — — — 0,7 — — — — — — —
ISO-
a
ISO-MgAl9Ca1Zn1 MAXZ911 B,T Rem.
WD22150
max. 9,5 1,0 0,50 — — — — — 1,5 — 0,10 0,005 0,05 0,005 0,05 0,30
min. 8,6 0,35 0,15 — — — — — 1,6 — — — — — — —
ISO-
a
ISO-MgAl9Ca2Zn1 MAXZ921 B,T Rem.
WD22160
max. 9,5 1,0 0,50 — — — — — 2,5 — 0,10 0,005 0,05 0,005 0,05 0,30
Key
B = bars and solid sections
T = tubes and hollow sections
F = forgings
P = plates and sheets
RE = neodymium and other heavy rare earth metals
a
Remainder.
b
Zn+Ag.
Table 2 (continued)
Composition
Material designation
% (mass fraction)
Alloy Product
Oth-
group form
Others
Symbol Number Designation Element Mg Al Zn Mn Gd RE Li Zr Y Ca Si Fe Cu Ni ers
each
total
min. — 0,3 — 5,5 — — 0,3 3,0 0,002 0,2 — — — — — —
ISO-
a
ISO-MgGd6Y4Zn1 MVWZ641 F,P Rem.
WD69120
max. — 1,0 — 6,5 — — 0,7 4,5 0,020 1,0Ag 0,05 0,02 0,02 0,001 0,01 0,30
min. — — — 6,5 0,9 — 0,4 4,6 — — — — — — — —
ISO-
a
ISO-MgGd7Y5RE1 MVWE751 B Rem.
WD69130
max. — — — 7,5 1,5 — 1,0 5,7 — — 0,01 — 0,10 0,004 — 0,30
MgGdY
min. — — — 6,5 — — 0,2 5,5 — — — — — — — —
ISO-
a
ISO-MgGd7Y6 MVW76 B Rem.
WD69140
max. — — 0,03 7,5 — 0,2 0,5 6,5 — — 0,01 0,010 0,02 0,005 0,01 0,30
min. — — — 8,0 — — 0,4 2,8 — — — — — — — —
ISO-
a
ISO-MgGd8Y3 MVW83 B,F,P Rem.
WD69150
max. 0,02 0,10 0,05 9,0 — — 0,6 3,5 — — 0,05 0,01 0,02 0,005 0,01 0,15
min. — 1,0 0,6 7,5 — — — 3,5 — — — — — — — —
ISO-
a
MgGdY ISO-MgGd8Y4Zn2 MVWZ842 B,F,P Rem.
WD69160
max. — 2,0 1,0 9,0 — — — 5,0 — — 0,05 0,01 0,02 0,005 0,01 0,15
min. — — — 3,8 — — 0,8 — — — — — — — — —
ISO-
a
MgGdZr ISO-MgGd4Zr1 MVK41 B Rem.
WD69170
max. — — 0,01 4,2 — — 1,2 — — — 0,02 0,01 0,05 0,01 0,03 0,30
min. — 0,5 — — — 8,5 — — — — — — — — — —
ISO-
a
MgLiZn ISO-MgLi9Zn1 MLZ91 B,T,P Rem.
WD96110
max. 0,05 1,5 0,05 — — 9,5 — — 0,05 — 0,10 0,005 0,05 0,005 0,05 0,30
min. 2,5 2,5 — — — 3,5 — — — — — — — — — —
ISO-
a
ISO-MgLi4Al3Zn3 MLAZ433 P Rem.
WD96120
max. 3,5 3,5 — — — 4,5 — — — — 0,5 0,05 0,05 — 0,05 0,30
MgLiAl
Zn
min. 2,5 2,5 — — — 9,5 — — — — — — — — — —
ISO-
a
ISO-MgLi10Al3Zn3 MLAZ1033 P Rem.
WD96130
max. 3,5 3,5 — — — 10,5 — — — — 0,5 0,05 0,05 — 0,05 0,30
min. — — 1,2 — — — — — — — — — — — — —
ISO-
a
MgMn ISO-MgMn2 MM2 B,T Rem.
WD43150
max. — — 2,0 — — — — — — — 0,10 — 0,05 0,01 0,05 0,30
Key
B = bars and solid sections
T = tubes and hollow sections
F = forgings
P = plates and sheets
RE = neodymium and other heavy rare earth metals
a
Remainder.
b
Zn+Ag.
Table 2 (continued)
Composition
Material designation
% (mass fraction)
Alloy Product
Oth-
group form
Others
Symbol Number Designation Element Mg Al Zn Mn Gd RE Li Zr Y Ca Si Fe Cu Ni ers
each
total
min. — — — — 2,4 — 0,4 3,7 — — — — — — — —
ISO-
a
ISO-MgY4RE3Zr1(B) MWEK431b B,F Rem.
WD95360 b
max. — 0,20 0,03 — 4,4 0,2 1,0 4,3 — — 0,01 0,01 0,02 0,005 0,01 0,30
min. — — — — 2,4 — 0,4 3,7 — — — — — — — —
ISO-
a
ISO-MgY4RE3Zr(C) MWEK431c B,P Rem.
0,00
WD95370
max. — 0,06 0,03 — 4,4 — 1,0 4,3 — — — 0,005 0,02 0,01 0,30
MgYRE
min. — — — — 1,5 — 0,4 4,75 — — — — — — — —
ISO-
a
ISO-MgY5RE4Zr1 MWEK541 B,F Rem.
Zr
WD95350
a
max. — 0,20 0,03 — 4,0 0,2 1,0 5,5 — — 0,01 0,01 0,02 0,005 0,01 0,30
min. — — — — 0,7 — 0,4 6,7 — — — — — — — —
ISO-
a
ISO-MgY7RE1Zr1 MWEK711 B Rem.
WD95380
max. — — — — 2,0 — 1,0 8,5 — — 0,01 0,05 — 0,004 — 0,30
min. — — — — 0,7 — 0,4 8,2 — — — — — — — —
ISO-
a
ISO-MgY9RE1Zr1 MWEK911 B Rem.
WD95390
max. — — — — 1,9 — 1,0 9,5 — — 0,01 — — 0,004 — 0,30
min. — 2,0 — — — — — 6,2 — — — — — — — —
ISO-
a
ISO-MgY7Zn3 MWZ73 B,T,P Rem.
WD96110
max. — 3,0 — — — — — 7,4 — — 0,10 0,005 0,05 0,005 0,05 0,30
MgYZn
min. — 4,5 — — — — — 6,2 — — — — — — — —
ISO-
a
ISO-MgY7Zn5 MWZ75 B,T,P Rem.
WD96120
max. — 5,5 — — — — — 7,4 — — 0,10 0,005 0,05 0,005 0,05 0,30
min. 0,5 6,0 0,30 — — — — — — — — — 0,5 — — —
a
MgZnAl ISO-MgZn8Al1Cu1 ISO-WD32110 MZAC811 B Rem.
max. 1,5 8,0 0,70 — — — — — — — 0,01 0,01 1,0 0,01 — —
min. — 1,5 — — 0,2 — — — — — — 0,30 — — —
ISO-
a
MgZnCu ISO-MgZn2Cu MZC20 P Rem.
WD32120
max. — 2,5 — — 0,6Ce — — — — — 0,05 0,02 0,6 — 0,01 0,05
min. — 6,0 0,5 — — — — — — — — — 1,0 — — —
MgZn- ISO-
a
ISO-MgZn7Cu1Mn1 MZCM711 B Rem.
CuMn WD32150
max. 0,2 7,0 1,0 — — — — — — — 0,01 0,05 1,5 0,01 0,05 0,30
Key
B = bars and solid sections
T = tubes and hollow sections
F = forgings
P = plates and sheets
RE = neodymium and other heavy rare earth metals
a
Remainder.
b
Zn+Ag.
----------
...
