ISO 16273:2003

INTERNATIONAL ISO
STANDARD 16273
First edition
2003-12-15


Ships and marine technology — Night
vision equipment for high-speed craft —
Operational and performance
requirements, methods of testing and
required test results
Navires et technologie maritime — Équipement de vision nocturne pour
navires à grande vitesse — Exigences opérationnelles et de
performance, méthodes d'essai et résultats d'essai exigés




Reference number
ISO 16273:2003(E)
©
ISO 2003

---------------------- Page: 1 ----------------------
ISO 16273:2003(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2003
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2003 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 16273:2003(E)
Contents Page
Foreword. iv
1 Scope. 1
2 Normative references. 1
3 Terms and definitions. 1
4 General and operational requirements. 2
5 General test conditions . 7
6 Environmental tests. 7
7 Laboratory tests. 8
8 Sea trials. 11
Annex A (informative) Range prediction calculation . 14
Annex B (informative) Infrared illuminator, typical plots . 16
Annex C (informative) Sea trial record . 17
Bibliography . 20

© ISO 2003 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 16273:2003(E)

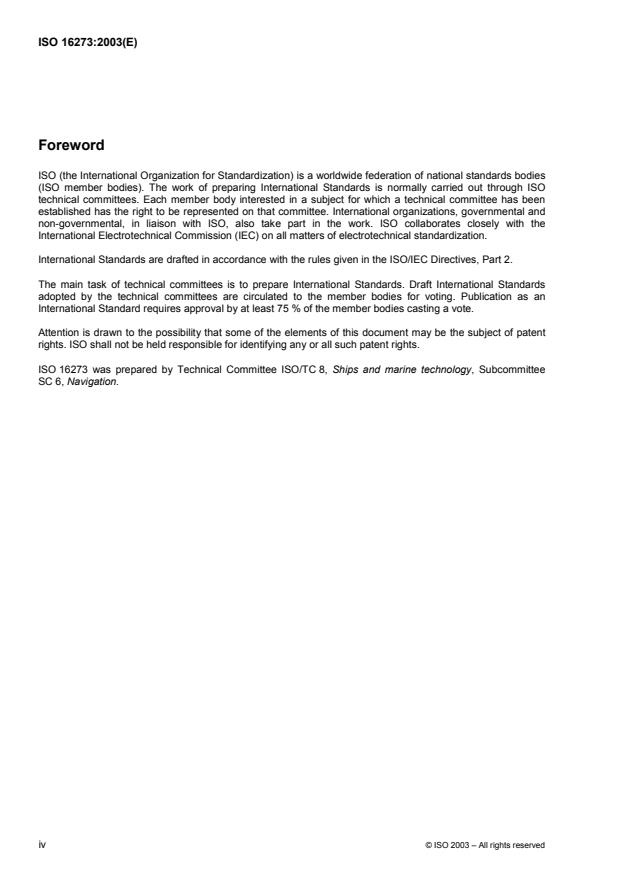

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 16273 was prepared by Technical Committee ISO/TC 8, Ships and marine technology, Subcommittee
SC 6, Navigation.

iv © ISO 2003 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 16273:2003(E)

Ships and marine technology — Night vision equipment for
high-speed craft — Operational and performance requirements,
methods of testing and required test results
1 Scope
This International Standard applies to operational and performance requirements and methods of testing for
night vision equipment fitted to high-speed craft in accordance with the International Code of Safety for
High-Speed Craft (HSC code), Chapter 13, of the International Maritime Organisation (IMO) and the IMO
performance standards MSC.94 (72) for night vision equipment for HSC.
All texts of this International Standard, whose wording is identical to that in IMO MSC.94 (72), are printed in
italics and the resolution and paragraph numbers are indicated in brackets.
It is expected that both performance requirements and test procedures will need to be reviewed in the near
future as data on candidate night vision systems are accumulated and correlated with performance.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
IEC 61162, Maritime navigation and radiocommunication equipment and systems — Digital Interfaces
IEC 60945, Maritime navigation and radiocommunication equipment and systems — General requirements —
Methods of testing and required test results
IMO Resolution A.694 (17), General requirements for shipborne radio equipment forming part of the global
maritime distress and safety system (GMDSS) and for electronic navigational aids
IMO Resolution MSC.94 (72), Performance standards for night vision equipment for high speed craft
International Code of Safety for High-Speed Craft (HSC Code)
STANAG 4349 (MAS/186-Land/4349, 19 June 1996)
3 Terms and definitions
For the purposes of this International Standard, the following terms and definitions apply.
3.1
night vision equipment
any technical fixed means enabling the position and aspect of objects above the water surface relative to
one's own craft to be detected at night
[IMO MSC.94 (72) 4]
© ISO 2003 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 16273:2003(E)
3.2
high-speed craft
any craft to which the definition in chapter 1 of the HSC Code applies
[IMO MSC.94 (72) 4]
3.3
test target for sea trials
a target that simulates the real hazard of a surface object that can be found at sea such as, small unlit boats,
floating logs, oil drums, containers, buoys, ice, hazardous waves and whales
[IMO MSC.94 (72) 4]
3.4
lit vessel
a vessel that, in addition to the standard navigation lights, has a row of five 21 W, 12 V unshielded lamps at
1 m horizontal spacing and 4 m above sea level
4 General and operational requirements
4.1 Introduction
Requirements contained in this clause are requirements not taken up in other clauses and which cannot be
verified by repeatable methods of measurement.
These requirements include the applicable general and operational requirements of IEC 60945.
The manufacturer shall declare compliance with these requirements and shall provide relevant documentation.
The declarations, documentation and, where necessary, the equipment under test (EUT) shall be checked.
The manufacturer shall also declare the composition of the EUT and the category for durability and resistance
to environmental conditions specified in IEC 60945 for each unit of the EUT.
4.2 Required functions and their availability (IMO MSC.94 (72) 5.1)
At night, night vision equipment shall be capable of detecting objects above the water’s surface within a
certain distance from one's own craft, and of displaying the information pictorially in real time, to assist in
collision avoidance and safe navigation.
4.3 Continuous operation (IMO MSC.94 (72) 5.2.1)
Night vision equipment on board HSC, while navigating at sea, shall be capable of continuous operation from
after sunset until before sunrise. After the equipment has been switched on it shall be operational in less than
15 minutes.
4.4 Standard test target (IMO MSC.94 (72) 5.2.2)
The standard test target shall be a black metal target of such a size that when at least 50 % is immersed,
1,5 m long and 0,5 m high remains above the water at right angles to the desired direction of detection.
Administration may use other smaller targets to reflect local conditions.
4.5 Detection range (IMO MSC.94 (72) 5.2.3)
With the required field of view, the equipment shall detect the standard test target at a distance of not less
than 600 m with a minimum probability of 90 %, when the target has been immersed in the sea for at least
24 hours under mean starlight conditions without clouds and without moon.
2 © ISO 2003 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 16273:2003(E)
4.6 Field of view (IMO MSC.94 (72) 5.2.4)
The required horizontal field of view shall be at least 20°, 10° on either side of the bow. The vertical field of
view shall be at least 12° and shall be sufficient to enable the equipment to fulfill the performance
requirements of this International Standard as well as being able to see the horizon.
Optionally other fields of view may be provided. Their selection shall be made with a non-locking switch, which
returns to the required field of view when released.
4.7 Pan and tilt ranges of the fields of view (IMO MSC.94 (72) 5.2.5)
The axis of the field of view of the equipment shall be capable of being moved at least 20° horizontally to
either side.
The elevation axis of the field of view shall be capable of being adjusted of at least 10° to compensate for the
trim of the craft.
4.8 Speeds of panning of the fields of view (IMO MSC.94 (72) 5.2.6)
By activation of a single control element, the axis of the field of view shall be capable of being returned
automatically to the ahead position at a minimum angular speed of 30°/s. The system shall be capable of
panning at a minimum angular speed of 30°/s.
4.9 Heading marker indication (IMO MSC.94 (72) 5.2.7)
When inside the field of view, the graphical ahead mark of the craft shall be indicated on the display with an
error not greater than ± 1°.
When outside the field of view, a visual indication of relative bearing with an error not greater than ± 1° shall
be provided.
4.10 Roll or pitch (IMO MSC.94 (72) 5.2.8)
The performance of the night vision equipment shall be such that when the craft is rolling and/or pitching up to
± 10°, the performance requirements in this International Standard shall be complied with.
4.11 Clear view (IMO MSC.94 (72) 5.2.9)
Arrangement shall be provided to ensure efficient cleaning of the sensor head/lens from the operating position.
Administration may require some additional facilities such as de-icing.
4.12 Optical interference (IMO MSC.94 (72) 5.2.10)
Measures shall be taken, to ensure that objects commonly encountered at sea and in ports shall not be
displayed less clearly on the monitor of the night vision equipment because of dazzle effects, reflection,
blooming, or any other effects due to the surroundings.
4.13 Malfunctions, warnings, alarms and indications (IMO MSC.94 (72) 5.3)
Night vision equipment shall include a visual indication of any failure.
4.14 Software requirements (IMO MSC.94 (72) 5.4)
The operational characteristics of the software shall meet the following requirements in particular:
(IMO MSC.94 (72) 5.4.1.1) self-description of the functions implemented by means of software;
© ISO 2003 – All rights reserved 3

---------------------- Page: 7 ----------------------
ISO 16273:2003(E)
(IMO MSC.94 (72) 5.4.1.2) display of user interface status; and
(IMO MSC.94 (72) 5.4.1.3) software protection against unauthorized changes.
If certain functions of night vision equipment are implemented using software, such software shall meet the
applicable requirements of IEC 60945.
If any software is used, the manufacturer shall provide a description of the functions implemented by means of
software and state how the requirements have been complied with.
“Self-description of the functions implemented by means of software” means that the functions available
through menus (or similar) rather than separate controls shall be clear from the menu description.
“User interface status” can be an indicator of which functions are operational.
“Software protection” can be a password or lockable cover.
4.15 Controls and ergonomics (IMO MSC.94 (72) 6)
The night vision equipment shall be designed in accordance with sound ergonomic principles.
The number of operational controls shall be limited to the minimum required for operation.
Whilst in operational mode, double functions of controls shall be avoided on such controls as for pan, vertical
trim, field of view and other essential functions.
The functions of the individual operational controls shall be clearly labelled.
The operational functions of night vision equipment shall be activated directly through the operational controls;
menu-driven controls shall be avoided.
The operational controls shall be clearly identifiable in the dark. If illumination is used, the brightness shall be
adjustable.
The operational controls of night vision equipment shall meet the requirements of IMO Resolution A.694 (17)
as well as applicable requirements of IEC 60945.
4.16 Presentation of information (IMO MSC.94 (72) 6.3)
The status of operation of the equipment shall be continuously displayed.
The display shall be non-dazzling and non-flickering. The display shall be capable of displaying a visible
image of at least 180 mm in diagonal.
The selected field of view, if more than one is provided, (see 4.6) shall be continuously indicated at the
operating position.
The image shall be presented on the display, with the same aspect ratio as the sensors, as default (natural
picture).
4.17 Durability and resistance to environmental conditions (IMO MSC.94 (72) 7.1)
Night vision equipment shall withstand the environmental conditions specified in IMO Resolution A.694 (17)
and in IEC 60945. Provisions shall be made, if necessary, to protect the night vision equipment against high
light conditions.
4 © ISO 2003 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 16273:2003(E)
4.18 Electrical and electromagnetic interference (IMO MSC.94 (72) 7.2)
With respect to electrical and electromagnetic interference, night vision equipment shall meet the
requirements of IMO Resolution A.694 (17) and IEC 60945.
4.19 Power supply (IMO MSC.94 (72) 7.3)
The power supply of night vision equipment shall meet the requirements of IMO Resolution A.694 (17) and
IEC 60945.
4.20 Installation (IMO MSC.94 (72) 7.4)
Full installation instructions to meet the following requirements of 4.20 shall be included in the documentation
(see 4.26).
The controls of night vision equipment shall be installed in the workstation for navigating and manoeuvring,
within easy reach of the navigator.
The observation distance from a dedicated display shall not exceed 2,3 times the image diagonal (i.e. a
dedicated night vision workstation).
For a general bridge display, the observation distance from the display shall not exceed 8 times the image
diagonal, but shall be situated such that observation from a distance of 2,3 times the image diagonal is also
possible.
The sensor of the night vision equipment shall be installed in such a way that:
a) the horizontal panning area required in 4.7 is free of blind sectors up to 30° on either side; and
b) in the required field of view, in the direction right ahead, visibility of the water surface for the vertically
tilted sensor is not reduced by more than two craft's lengths by the blind angle of own craft.
Night vision equipment shall be installed in such a way that its operation and detection functions are not
impaired by head wind and/or true wind up to 100 knots and roll and/or pitch angles up to ± 10°.
Its performance shall not be impaired by vibration occurring during normal craft's operation.
4.21 Maintenance (IMO MSC.94 (72) 7.5)
With respect to maintenance, night vision equipment shall meet the requirements of IMO Resolution
A.694 (17) and IEC 60945. Where the manufacturer requires maintenance at specific periods, an operating
hours meter shall be provided.
4.22 Interfacing (IMO MSC.94 (72) 8)
Interfaces with other radio and navigation equipment shall meet IEC 61162. A recognized international
standard video output for image recording shall be provided.
4.23 Back up and fall back arrangements (IMO MSC.94 (72) 9)
In the event of failure of the pan-tilt device, the sensor shall be capable of being fixed in the ahead position
while underway.
4.24 Safety precautions (IMO MSC.94 (72) 10)
The safety features of night vision equipment shall meet the requirements of IMO Resolution A.694 (17) and
IEC 60945.
© ISO 2003 – All rights reserved 5

---------------------- Page: 9 ----------------------
ISO 16273:2003(E)
4.25 Marking and identification (IMO MSC.94 (72) 11)
Night vision equipment and any ancillary equipment shall be marked clearly and durably with the following
data:
 identification of the manufacturer;
 equipment type number or model identification under which it was type tested;
 serial number of the unit; and
 magnetic compass safe distance.
Night vision equipment shall additionally be marked in accordance with the requirements of IMO Resolution
A.694 (17) and IEC 60945.
4.26 Documentation (IMO MSC.94 (72) 12)
Night vision equipment shall be delivered complete with its technical documentation. Such documentation
shall include the following information, if applicable:
General information:
 manufacturer;
 type designation;
 general description of equipment; and
 ancillary equipment and description.
Instructions for installation:
 general installation instructions;
 power supply (voltage, power consumption, frequency) and earthing information;
 identification of exposed or protected equipment.
Operation of equipment:
 description of functions, controls, display;
 description of start-up procedures;
 calibration of equipment and error messages;
 testing capabilities of equipment;
 description of software used and interfaces.
Troubleshooting; maintenance and service:
 special tools required, maintenance material and spare parts (e.g. fuses, spare bulbs);
 equipment care and maintenance on board HSC;
 available services.
Documentation for night vision equipment shall also meet the requirements of IMO Resolution A.694 (17) and
IEC 60945.
6 © ISO 2003 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 16273:2003(E)
4.27 Environmental requirements
Each item which appears in this clause is a requirement from IMO Resolution A.694 (17) as detailed in
IEC 60945 and for which a repeatable method of measurement has been defined in Clause 6.
5 General test conditions
5.1 General
Environmental and safety tests shall be carried out first, followed by laboratory tests and sea trials to verify
whether the same EUT meets all technical requirements. Where electrical tests are required, they shall be
carried out using the normal test voltage as specified in IEC 60945.
Requirements detailed in Clause 4 for which a specific test is not detailed, shall be confirmed by a visual
check of the equipment or documentation. The manufacturer shall provide a full technical specification for the
EUT.
5.2 Normal temperature, humidity and extreme test conditions
Test conditions shall comply with IEC 60945.
6 Environmental tests
6.1 General
Environmental tests are intended to assess the suitability of the construction of the equipment under test
(EUT) for its intended physical conditions of use. After each environmental test and, if specified, also during
the test, the EUT shall comply with the requirements of a performance check. No preconditioning of the
equipment shall be necessary.
6.2 Range of environmental tests
6.2.1 Test according to IEC 60945
Night vision equipment shall, as far as applicable, meet the requirements and pass the tests according to
IEC 60945.
6.2.2 Roll and pitch test
This test is intended to prove the ruggedness of the system under the ship motions
...
