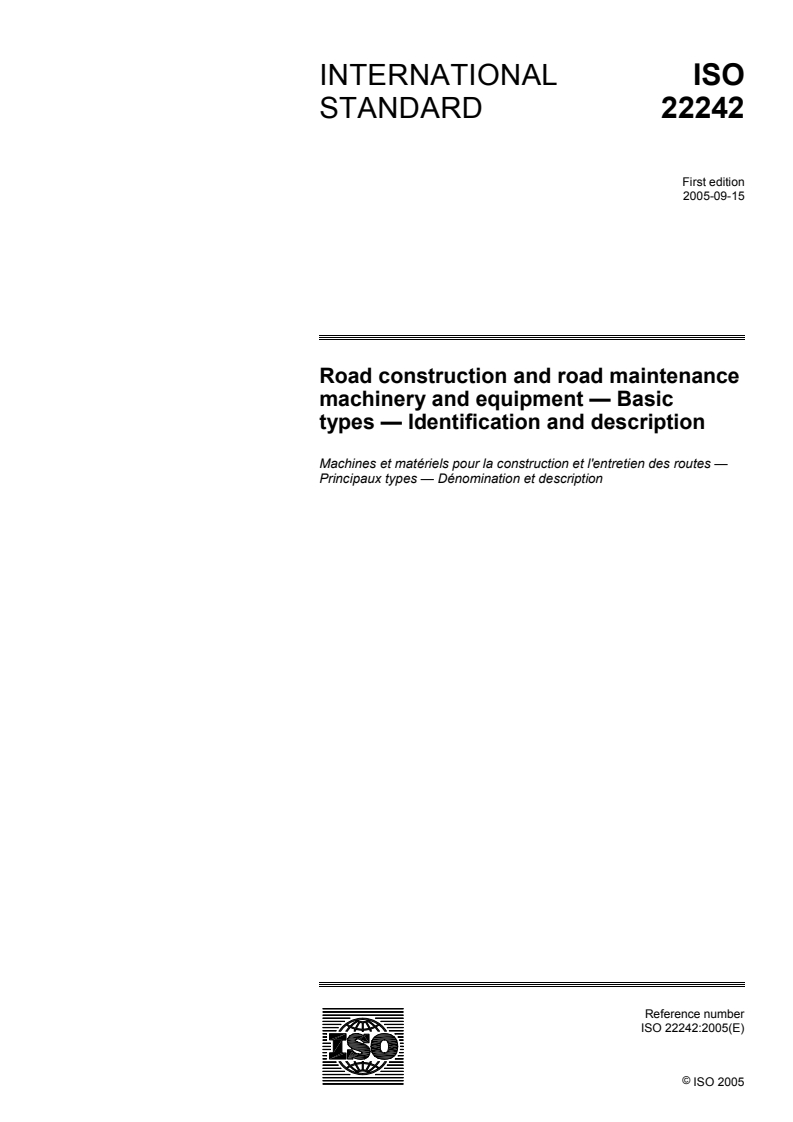

ISO 22242:2005

INTERNATIONAL ISO
STANDARD 22242
First edition
2005-09-15
Road construction and road maintenance
machinery and equipment — Basic
types — Identification and description
Machines et matériels pour la construction et l'entretien des routes —
Principaux types — Dénomination et description

Reference number
©
ISO 2005
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved

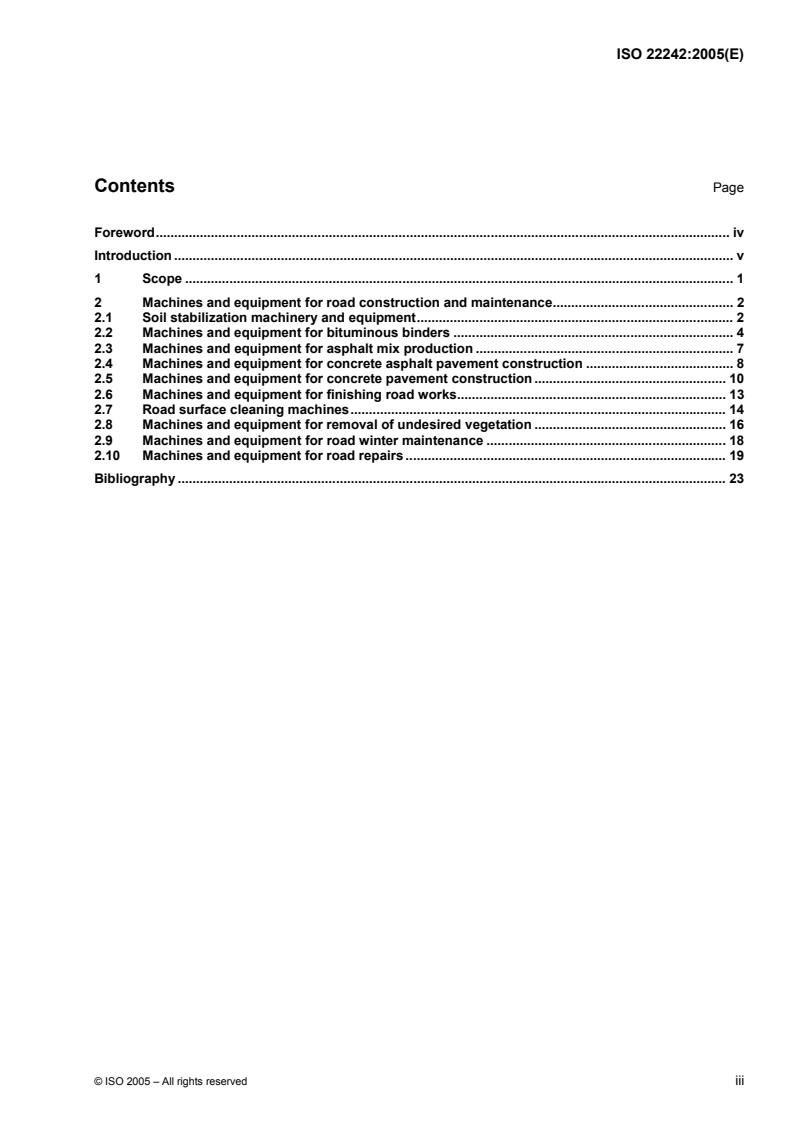

Contents Page
Foreword. iv
Introduction . v
1 Scope. 1
2 Machines and equipment for road construction and maintenance. 2
2.1 Soil stabilization machinery and equipment. 2
2.2 Machines and equipment for bituminous binders . 4
2.3 Machines and equipment for asphalt mix production . 7
2.4 Machines and equipment for concrete asphalt pavement construction . 8
2.5 Machines and equipment for concrete pavement construction . 10
2.6 Machines and equipment for finishing road works. 13
2.7 Road surface cleaning machines. 14
2.8 Machines and equipment for removal of undesired vegetation . 16
2.9 Machines and equipment for road winter maintenance . 18
2.10 Machines and equipment for road repairs . 19
Bibliography . 23

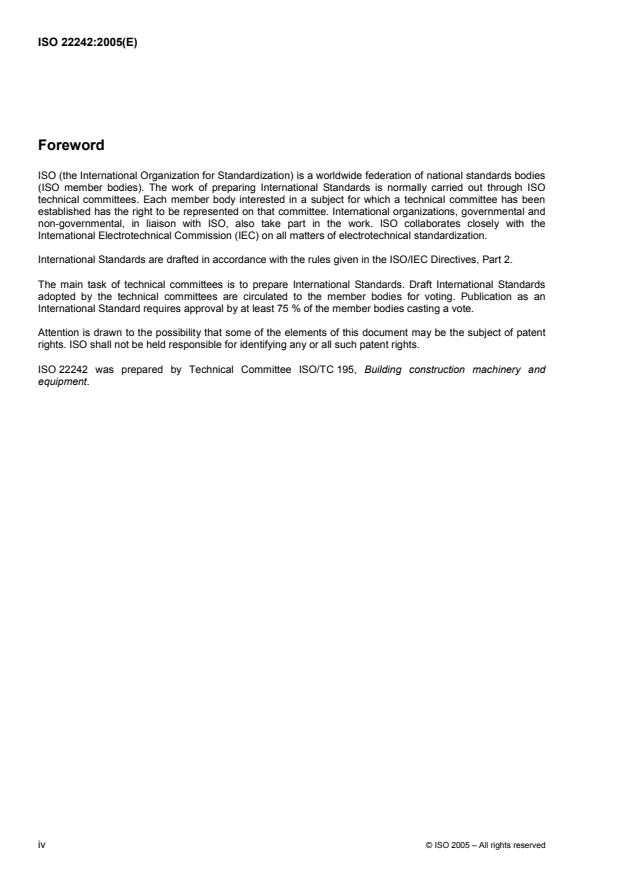

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 22242 was prepared by Technical Committee ISO/TC 195, Building construction machinery and
equipment.
iv © ISO 2005 – All rights reserved

Introduction
A whole range and many different types of machinery are needed for building and maintaining traffic routes,
roads, highways, runways, aprons, etc. These can be divided into the following main groups, falling within the
particular scopes of ISO Technical Committees.
⎯ Tractors and machinery for agriculture and forestry (ISO/TC 23)
EXAMPLE Brush-cutters and brush saws, log loaders, portable chain saws, branches-shredders, drainage pipe
layers, digger ploughs and other machines defined in ISO 3339.
⎯ Earth-moving machinery (ISO/TC 127)
EXAMPLE Excavators, tractor dozers, scrapers, loaders, dumpers, trenchers, graders, rollers, vibratory plates,
rammers and other machines defined in ISO 6165, ISO 6747, ISO 7131, ISO 7132, ISO 7133, ISO 7134 and
ISO 8811.
⎯ Building construction machinery and equipment (ISO/TC 195)
EXAMPLE Formworks, drum mixers, machines and equipment for concrete-mix production, truck concrete
mixers and concrete transport skips, concrete pumps, vibrating beams, floating machines, concrete vacuum
treatment units, core drilling units and other machines defined in ISO 11375.
⎯ General-use machinery and equipment
EXAMPLE Power tools such as hammers, industrial vacuum cleaners, blowers, water pumps, portable chain
saws, liquid gas heating units, infrared heaters.
⎯ Machines and equipment designed especially for road construction and maintenance (ISO/TC 195).
This International Standard identifies and describes elements of this last group.

INTERNATIONAL STANDARD ISO 22242:2005(E)

Road construction and road maintenance machinery and
equipment — Basic types — Identification and description
1 Scope
This International Standard identifies and describes machinery and equipment used in the construction and
maintenance of traffic routes, roads, highways, runways, aprons, etc. It is applicable to those specialized
machines/equipment intended for pavement construction and road maintenance. It does not define terms, and
its figures represent a general view or outline.

2 Machines and equipment for road construction and maintenance
Term Identification/Description
2.1 Soil stabilization machinery and equipment
These are used to improve the mechanical and physical properties of natural soils.
See Figures 1 to 7.
2.1.1 powder binder mobile machine intended for steadily
spreader spreading filler, cement, lime, etc., to
improve the mechanical and physical
properties of the soil material
NOTE 1 The spreaders are designed so
that the output is controlled by travel speed
and proportioning devices.
NOTE 2 See ISO 15689.
Figure 1 — Powder binder spreader
2.1.2 soil mix plant set of equipment intended for mixing fillers and/or binders, e.g. cement, lime,
foamed bitumen, asphalt emulsion, with natural soil in order to improve the
mechanical and physical properties of the soil material
NOTE See Figures 2 and 3.
2.1.3 stationary soil soil mix plant designed for stationary use
mix plant
Figure 2 — Stationary soil mix plant
2.1.4 portable soil soil mix plant capable for relocation on wheeled chassis
mix plant
Figure 3 — Portable soil mix plant
2 © ISO 2005 – All rights reserved

Term Identification/Description
2.1.5 soil stabilizer
self-propelled machine, towed or transported, with the function of pulverizing,
breaking up, aerating, homogenizing and/or loosening existing or imported
materials or pavement materials and mixing it/them with one or more added
materials (filler, cement, lime, etc.)
NOTE 1 A main purpose of the soil stabilizer's use is to improve the mechanical and
physical properties of the soil material by mixing it with binders (cement, lime, foamed
bitumen, emulsions, etc.) or fillers.
NOTE 2 See ISO 15688.
Figure 4 — Wheeled central soil Figure 5 — Crawler-based rear soil
stabilizer with horizontal rotor stabilizer with horizontal rotor
2.1.6 water water tank, mounted on truck, semi-
dispenser trailer or trailer, containing built-in
water-spraying unit equipped with
spraying bar
Figure 6 — Water dispenser
2.1.7 slurry mixer mobile machine used to mix and
proportion water and cement to a
suspension which is directly injected
into the mixing chamber of a soil
stabilizer
NOTE The slurry mixer is either
Figure 7 — Slurry mixer
pushed or towed by the soil stabilizer.
Term Identification/Description
2.2 Machines and equipment for bituminous binders
These are used for storing, keeping warm, melting, homogenizing, handling and/or spraying bituminous
binders.
See Figures 8 to 12.
2.2.1 bituminous stationary or mobile set of units
binders heater and intended for storing, melting,
smelter/asphalt homogenizing, keeping warm and
cooker discharge bituminous binders
NOTE The bituminous binders heater

and smelter is composed of the following
units:
Figure 8 — Bituminous binders heater
⎯ insulated tank;
and smelter (mobile)
⎯ oil or gas burner;
⎯ internal stirrer;
⎯ discharge unit in the form of gravity
valve;
⎯ pressure tank or transfer pump.
2.2.2 bituminous stationary or trailer-mounted insulated tank, with heating unit, intended for storage
binders storage tank of bituminous binders

Figure 9 — Bituminous binders storage tank
4 © ISO 2005 – All rights reserved

Term Identification/Description
2.2.3 bitumen system consisting of a boiler and insulated horizontal or vertical metal tanks or
storage and heating underground concrete tanks intended for hot bitumen storage
plant
Key
1 tank with oil heating piping
2 oil heating boiler
Figure 10 — Bitumen storage and heating plant
2.2.4 bituminous insulated and heated tank, mounted on
binders dispenser a truck, semi-trailer or trailer and
equipped with a discharge unit in the
form of a gravity valve or transfer pump

Figure 11 — Bituminous binders
dispenser
2.2.5 pump for hot gear or vane pump with seal selected
bituminous binders to the temperature of the bituminous
binder to be delivered
NOTE The pump can by used in a

variety of different pieces of road building
equipment, e.g. as a trailer-mounted pump
Figure 12 — Pump for hot bituminous
with an attachment for joining the pump with
binders
tanks and spraying units, asphalt mixing
plants and bituminous binder
spreaders/sprayers.
Term Identification/Description
2.2.6 bituminous assembly, either stationary or capable of relocation on a wheeled chassis,
emulsions plant composed of water and bitumen metering tanks and a homogenizing system for
bituminous emulsions production

Key
1 tank for water metering
2 tank for bitumen metering
3 homogenizing unit
4 thermal oil central heating unit
5 funnel for emulsion control
6 emulsion transfer unit
7 emulsion storage tank(s)
a
Water delivery.
b
Bitumen delivery.
Figure 13 — Bituminous emulsions plant
2.2.7 bituminous mobile machine used to apply a film of
binders binder on a pavement at a
spreader/sprayer predetermined application rate
NOTE 1 The particular types can be
defined by associating the operation

principle, the shape of the components, the
type of binder, and by specifying the
Figure 14 — Bituminous emulsions
spreading performances.
spreader/sprayer
NOTE 2 See ISO 15643.
6 © ISO 2005 – All rights reserved

Term Identification/Description
2.3 Machines and equipment for asphalt mix production
See Figures 15 to 16.
2.3.1 asphalt mixing set of equipment for asphalt mix production
plant
NOTE 1 According to it principle of production, there are two basic types of asphalt mixing
plant: those for continuous and those for batch production.
NOTE 2 See ISO 15642.
Figure 15 — Asphalt mixing plant
2.3.2 asphalt mixing asphalt mixing plant with the use of reclaimed asphalt pavement (RAP) by the
plant with recycling addition and/or modification of specialized equipment in the plant
capability
Figure 16 — Asphalt mixing plant with recycling capability
Term Identification/Description
2.3.3 concrete truck-mounted or towed machine
asphalt melter and composed of a melter for concrete
mixer asphalt pieces and a rotary horizontal
axis mixer, intended for execution of
small-sized concrete asphalt
pavements
Figure 17 — Concrete asphalt melter
and mixer
2.4 Machines and equipment for concrete asphalt pavement construction
These are used in the construction of concrete asphalt and mastic asphalt pavements.
See Figures 19 to 23.
2.4.1 blower for self-propelled machine for roadbed and
road bed cleaning pavement cleaning

Figure 18 — Blower for road bed
cleaning
2.4.2 chipping machine used to spread a layer of
spreader chippings on the pavement at a pre-
determined rate
NOTE 1 A chipping spreader can be
defined by its operating principle into one of
three types:
⎯ transported;
⎯ self-propelled;
Figure 19 — Chipping spreader
⎯ pushed by tipper truck.
NOTE 2 See ISO 15644.
8 © ISO 2005 – All rights reserved

Term Identification/Description
2.4.3 asphalt self-propelled, wheeled or crawler-
paver/finisher mounted machine designed for
receiving, conveying, distributing,
profiling and compacting pavement
asphalt mixes
Figure 20 — Asphalt paver/finisher
2.4.4 mastic asphalt mobile machine designed for receiving,
paver distributing and profiling flowable
asphalt mixes
Figure 21 — Mastic asphalt paver
2.4.5 mastic asphalt truck- or trailer-mounted machine
transporting mixer consisting of a tank with horizontal or
vertical mixer (agitating shaft and stirrer
arms) for mastic asphalt with direct or
indirect heating
Figure 22 — Mastic asphalt
transporting mixer
2.4.6 material machine intended for storing and conveying paving material to the asphalt paver
transfer
from the truck
machine/mobile
conveyor device
Figure 23 — material transfer machine/mobile conveyor device
Term Identification/Description
2.5 Machines and equipment for concrete pavement construction
These are used in concrete pavement and auxiliary road construction.
See Figures 25 to 35.
2.5.1 concrete mix mobile or pedestrian-operated machine
laying intended for distribution of the concrete
machine/concrete mix placed by the dump trucks into the
spreader formwork fixed to the ground

Figure 24 — Concrete mix laying
machine/concrete spreader
2.5.2 concrete mix mobile machine intended for compaction and fin
...
