ISO 29783-1:2008

INTERNATIONAL ISO
STANDARD 29783-1
First edition
2008-12-01
Prosthetics and orthotics —
Vocabulary —
Part 1:
Normal gait
Prothèses et orthèses — Vocabulaire —
Partie 1: Démarche normale
Reference number
©
ISO 2008
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2008 – All rights reserved

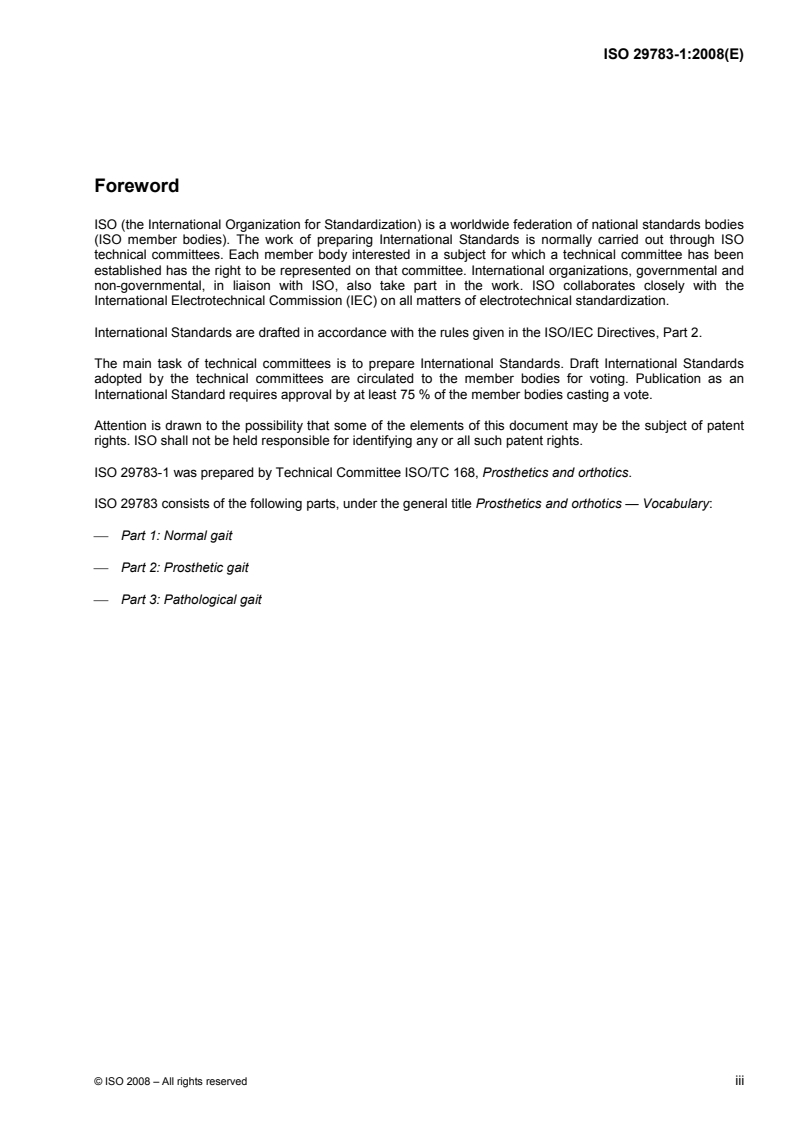

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 29783-1 was prepared by Technical Committee ISO/TC 168, Prosthetics and orthotics.
ISO 29783 consists of the following parts, under the general title Prosthetics and orthotics — Vocabulary:
⎯ Part 1: Normal gait
⎯ Part 2: Prosthetic gait
⎯ Part 3: Pathological gait
INTERNATIONAL STANDARD ISO 29783-1:2008(E)

Prosthetics and orthotics — Vocabulary —
Part 1:
Normal gait
1 Scope
This part of ISO 29783 establishes a vocabulary for the description of normal gait.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
body load
loading
force exerted by the foot upon the ground at any time during the stance phase due to gravity and the forward,
sideways and vertical accelerations of the body mass
2.2
cadence
number of steps taken per unit of time in steps per second
2.3
double support
those two parts of the gait cycle when both limbs are in contact with the ground
NOTE The first of these (approximately 0 % to 10 % of the gait cycle) commences after initial ground contact (and
ends as the contralateral limb commences initial swing) the second (approximately 50 % to 60 % of the gait cycle)
commences at the beginning of pre-swing (and ends as the limb commences initial swing).
2.4
gait cycle
the sequence of actions of a lower limb usually taken from initial contact of the foot until the next initial contact
of the same foot when walking or running
2.5
ground reaction force
reaction by the ground to the force exerted by the foot at any time during the stance phase
2.6
pelvic obliquity
alignment of the pelvis (moves upwards or downwards) in the coronal plane
2.7
pelvic rotation
alignment of the pelvis (moves forwards or backwards) in the transverse plane
2.8
pelvic tilt
alignment of the pelvis (anterior or posterior movement) in the sagittal plane
2.9
single support
that part of the gait cycle when only the limb under consideration is in contact with the ground
2.10
stance phase
that part of the gait cycle during which the limb is in contact with the ground
NOTE The stance phase is further described by reference to five sub-phases (see 2.10.1 to 2.10.5).
2.10.1
initial contact
sub-phase of the stance phase which commences at the instant of initial foot contact and ends when knee
flexion and ankle plantarflexion commence
2.10.2
loading response
sub-phase of the stance phase which commences after initial contact and continues until full foot contact
occurs
2.10.3
mid-stance
sub-phase of the stance phase which commences when the contralateral limb commences its swing phase
and ends when the heel leaves the ground
2.10.4
terminal stance
sub-phase of the stance phase which commences when the heel leaves the ground and ends at initial contact
of the contralateral limb
2.10.5
pre-swing
final sub-phase of the stance phase which commences with initial contact by the contralateral foot and ends
when the foot loses contact with the ground
2.11
step length
distance (measured in the line of progression) between the point of initial contact of a foot and the point of
initial contact of the opposite foot in successive steps in metres
2.12
stride length
distance between the point of initial contact of the same foot in successive gait cycles in metres
2.13
swing phase
that part of the gait cycle during which the limb is not in contact with the ground
NOTE The swing phase is further described by reference to three sub-phases (see 2.13.1 to 2.13.3).
2.13.1
initial swing
sub-phase of the swing phase which commences as the foot loses contact with the ground and ends when the
limb achieves maximum knee flexion
2 © ISO 2008 – All rights reserved

2.13.2
mid-swing
sub-phase of the swing phase which commences when the knee joint starts to extend and ends when the hip
joint reaches maximum flexion
2.13.3
terminal swing
sub-phase of the swing phase which commences when the hip joint reaches maximum flexion and ends when
initial foot contact occurs
2.14
the (three) foot rockers
method of describing the action of the ankle and foot during the stance phase
2.14.1
first rocker
〈from 0 % to 10 % of the gait
...
