ISO 282:1992
(Main)Conveyor belts — Sampling
Conveyor belts — Sampling
Specifies the number of samples to be taken for carrying out acceptance tests, depending on the overall length ordered by the same user. Applicable to a batch of conveyor belts having the same characteristics: quality, width, etc.
Courroies transporteuses — Échantillonnage
La présente Norme internationale prescrit le nombre d'échantillons à prélever pour l'exécution des essais de réception des courroies transporteuses, en fonction de la longueur totale commandée par un même utilisateur. Elle est applicable à un lot de courroies transporteuses ayant les mêmes caractéristiques : qualité, largeur, etc.
Naprave za kontinuirni transport - Trakovi tračnih transporterjev - Vzorčenje
General Information
- Status
- Published
- Publication Date
- 13-May-1992
- Technical Committee
- ISO/TC 41/SC 3 - Conveyor belts
- Drafting Committee
- ISO/TC 41/SC 3 - Conveyor belts
- Current Stage
- 9092 - International Standard to be revised
- Start Date
- 10-Jul-2025
- Completion Date
- 12-Feb-2026
Relations
- Effective Date
- 15-Apr-2008
Overview - ISO 282:1992 (Conveyor belts - Sampling)
ISO 282:1992 defines sampling requirements for conveyor belts used in acceptance testing. The standard specifies how many samples to take from an order (batch) of conveyor belts depending on the total length ordered by the same user. It applies to batches of belts that share the same characteristics (quality, width, etc.) and supports consistent quality control and contract verification between purchaser and producer.
Key topics and requirements
- Scope: Number of samples for acceptance tests is determined by the total ordered belt length (L). Applicable when belts in the batch have the same characteristics.
- Sampling table (number of samples based on total length L):
- L < 500 m: 1 sample
- 500 < L < 1 000 m: 2 samples
- 1 000 < L ≤ 2 000 m: 3 samples
- 2 000 < L < 3 500 m: 4 samples
- 3 500 < L < 5 000 m: 5 samples
- 5 000 < L ≤ 7 000 m: 6 samples
- 7 000 < L < 10 000 m: 7 samples
- Above 10 000 m: add one sample for every additional 5 000 m
- Acceptance test definition: Tests conducted at the producer’s laboratory, by or on behalf of the producer or the purchaser, to verify compliance with contract requirements.
- Sample form and length:
- Samples shall be of full-belt width and of sufficient length to perform all requested tests.
- Additional length required for test samples must be included in the total order length.
- The standard does not make a recommendation on the specific location on the belt from which samples should be taken.
Applications - who uses ISO 282:1992
- Manufacturers and producers of conveyor belts use the standard to plan and provide the correct number and size of test samples for acceptance testing.
- Purchasers and end users (mining, bulk materials handling, manufacturing, logistics) reference the standard when specifying contract requirements and verifying incoming belt quality.
- Quality assurance and testing laboratories rely on the sampling rules to ensure consistent, contract-compliant acceptance testing.
- Useful for procurement teams, contract managers, and engineers specifying belt orders and inspection routines.
Related standards
- ISO 282:1992 was prepared by ISO/TC 41 (Pulleys and belts), Sub-Committee SC 3 (Conveyor belts). For comprehensive belt specification and testing programs, consult other ISO standards on conveyor belts, testing methods and pulleys maintained by ISO/TC 41.
Keywords: ISO 282:1992, conveyor belts sampling, belt conveyors, sampling standard, acceptance tests, number of samples, quality control, conveyor belt testing.
Frequently Asked Questions
ISO 282:1992 is a standard published by the International Organization for Standardization (ISO). Its full title is "Conveyor belts — Sampling". This standard covers: Specifies the number of samples to be taken for carrying out acceptance tests, depending on the overall length ordered by the same user. Applicable to a batch of conveyor belts having the same characteristics: quality, width, etc.
Specifies the number of samples to be taken for carrying out acceptance tests, depending on the overall length ordered by the same user. Applicable to a batch of conveyor belts having the same characteristics: quality, width, etc.
ISO 282:1992 is classified under the following ICS (International Classification for Standards) categories: 53.040.20 - Components for conveyors. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 282:1992 has the following relationships with other standards: It is inter standard links to ISO 282:1975. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 282:1992 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-april-1997
1DSUDYH]DNRQWLQXLUQLWUDQVSRUW7UDNRYLWUDþQLKWUDQVSRUWHUMHY9]RUþHQMH
Conveyor belts -- Sampling
Courroies transporteuses -- Échantillonnage
Ta slovenski standard je istoveten z: ISO 282:1992
ICS:
53.040.20 Deli za transporterje Components for conveyors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
ISO
INTERNATIONAL
STANDARD
Second edition
1992-05-15
Conveyor belts - Sampling
Courroies transporteuses - ichantillonnage
Reference number
ISO 282: 1992(E)

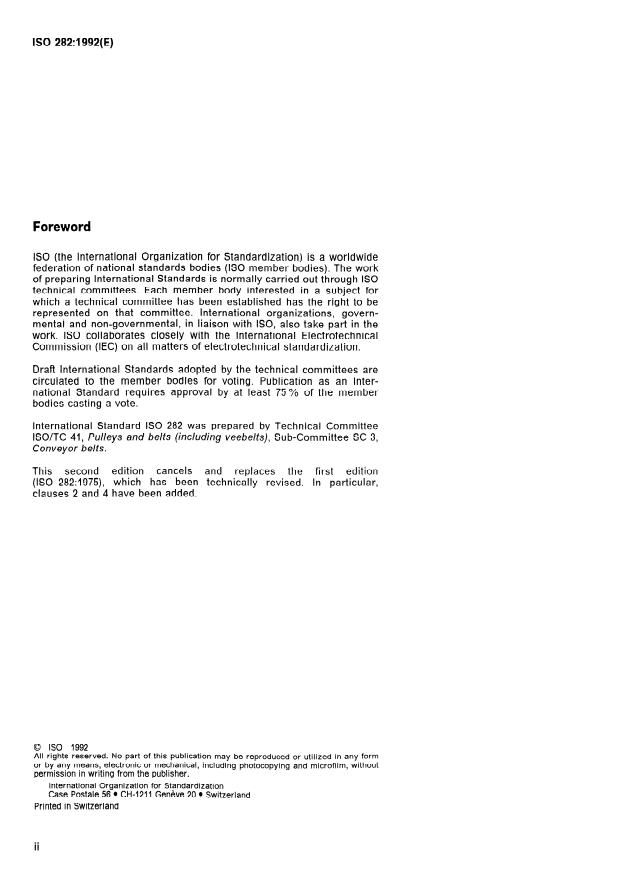

Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national Standards bodies (ISO member bodies). The work
of preparing International Standards is normally carried out through ISO
technical committees. Esch member body interested in a subject for
which a technical committee has been established has the right to be
represented on that committee. International organizations, govern-
mental and non-governmental, in liaison with ISO, also take part in the
work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical Standardkation.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an Inter-
national Standard requires approval by at least 75 % of the member
bodies casting a vote.
International Standard ISO 282 was prepared by Technical Committee
ISO/TC 41, Pulleys and helts (including veebelts), Sub-Committee SC 3,
Conveyor belfs.
This second edition cancels and replaces the first edition
(ISO 282:1975),
...
ISO
INTERNATIONAL
STANDARD
Second edition
1992-05-15
Conveyor belts - Sampling
Courroies transporteuses - ichantillonnage
Reference number
ISO 282: 1992(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national Standards bodies (ISO member bodies). The work
of preparing International Standards is normally carried out through ISO
technical committees. Esch member body interested in a subject for
which a technical committee has been established has the right to be
represented on that committee. International organizations, govern-
mental and non-governmental, in liaison with ISO, also take part in the
work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical Standardkation.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an Inter-
national Standard requires approval by at least 75 % of the member
bodies casting a vote.
International Standard ISO 282 was prepared by Technical Committee
ISO/TC 41, Pulleys and helts (including veebelts), Sub-Committee SC 3,
Conveyor belfs.
This second edition cancels and replaces the first edition
(ISO 282:1975), which has been technically revised. In particular,
clauses 2 and 4 have been added.
0 ISO 1992
All rights reserved. No part of this publication may be reproduced or utilized in any form
or by any means, electronie or mechanical, including photocopying and microfilm, without
Permission in writing from the publisher.
International Organization for Standardization
Case Postale 56 l CH-12
...
IS0
NORME
INTERNATIONALE
Deuxieme edition
1992-05-l 5
Courroies transporteuses - lkhantillonnage
Conveyor belts - Sampling
Numkro de reference
IS0 282: 1992(F)
IS0 282:1992(F)

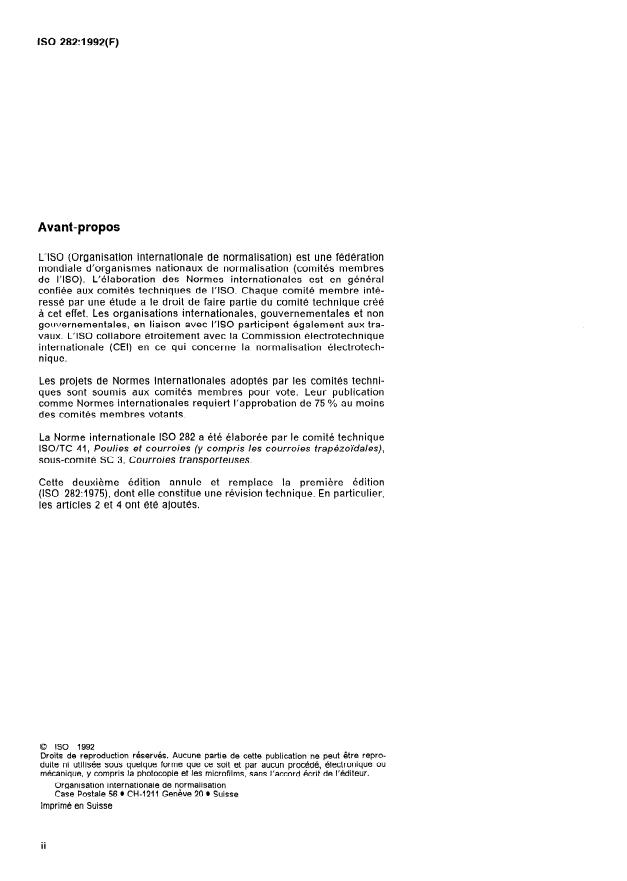

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fed&ration
mondiale d’organismes nationaux de normalisation (comites membres
de IWO). L’elaboration des Normes internationales est en g&&-al
confEe aux cornit& techniques de I’ISO. Chaque cornit membre int&
ressi! par une etude a le droit de faire partie du cornit technique crki!
a cet effet. Les organisations internationales, gouvernementales et non
gowernementales, en liaison avec I’ISO participent 6galement aux tra-
vaux. L’ISO collabore etroitement avec la Commission electrotechnique
internationale (CEI) en ce qui concerne la normalisation electrotech-
nique.
Les projets de Normes internationales adopt&s par les comites techni-
ques sont soumis aux comites membres pour vote. Leur publication
comme Normes internationales requiert I’approbation de 75 Q/o au moins
des cornit& membres votants.
La Norme internationale IS0 282 a 6te elaboree par le comite technique
ISO/TC 41, Poulies et courroies (y compris les courroies trapkoi’dales),
sous-comiti, SC 3, Courroies transporteuses.
Cette deuxieme edition annule et remplace la premiere edition
(IS0 282:1975), dont elle constitue une revision technique. En particulier,
les articles 2 et 4 ont ete ajoutes.
0 IS0 1992
Droits de reproduction reserves. Aucune partie de cette publication ne peut etre repro-
duite ni utiliske sous quelque forme que ce soit et par aucun pro&de, electronique ou
mecanique, y compris la photocopie et les microfilms, sans I’accord krit de 1’6diteur.
Organisation internationale de normalisation
Case Postale 56 l CH-1211 Geneve 20 l Suisse
lmprime en Suisse
ii
...
IS0
NORME
INTERNATIONALE
Deuxieme edition
1992-05-l 5
Courroies transporteuses - lkhantillonnage
Conveyor belts - Sampling
Numkro de reference
IS0 282: 1992(F)
IS0 282:1992(F)
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fed&ration
mondiale d’organismes nationaux de normalisation (comites membres
de IWO). L’elaboration des Normes internationales est en g&&-al
confEe aux cornit& techniques de I’ISO. Chaque cornit membre int&
ressi! par une etude a le droit de faire partie du cornit technique crki!
a cet effet. Les organisations internationales, gouvernementales et non
gowernementales, en liaison avec I’ISO participent 6galement aux tra-
vaux. L’ISO collabore etroitement avec la Commission electrotechnique
internationale (CEI) en ce qui concerne la normalisation electrotech-
nique.
Les projets de Normes internationales adopt&s par les comites techni-
ques sont soumis aux comites membres pour vote. Leur publication
comme Normes internationales requiert I’approbation de 75 Q/o au moins
des cornit& membres votants.
La Norme internationale IS0 282 a 6te elaboree par le comite technique
ISO/TC 41, Poulies et courroies (y compris les courroies trapkoi’dales),
sous-comiti, SC 3, Courroies transporteuses.
Cette deuxieme edition annule et remplace la premiere edition
(IS0 282:1975), dont elle constitue une revision technique. En particulier,
les articles 2 et 4 ont ete ajoutes.
0 IS0 1992
Droits de reproduction reserves. Aucune partie de cette publication ne peut etre repro-
duite ni utiliske sous quelque forme que ce soit et par aucun pro&de, electronique ou
mecanique, y compris la photocopie et les microfilms, sans I’accord krit de 1’6diteur.
Organisation internationale de normalisation
Case Postale 56 l CH-1211 Geneve 20 l Suisse
lmprime en Suisse
ii
...
