ISO 9564-1:2002

INTERNATIONAL ISO
STANDARD 9564-1
Second edition
2002-04-15
Banking — Personal Identification Number
(PIN) management and security —
Part 1:
Basic principles and requirements for
online PIN handling in ATM and POS
systems
Banque — Gestion et sécurité du numéro personnel d'identification
(PIN) —
Partie 1: Principes et exigences de base pour la gestion du PIN en ligne
dans les systèmes ATM et POS
Reference number
©
ISO 2002
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2002
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2002 – All rights reserved

Contents Page
Foreword.iv
Introduction.v
1 Scope .1
2 Normative references.1
3 Terms and definitions .2
4 Basic principles of PIN management .4
5 PIN entry devices.5
5.1 Character set.5
5.2 Character representation.5
5.3 PIN entry .5
5.4 Packaging considerations .5
6 PIN security issues.6
6.1 PIN control requirements.6
6.2 PIN encipherment .7
6.3 Physical security .7
7 Techniques for management/protection of account-related PIN functions .8
7.1 PIN length .8
7.2 PIN selection .8
7.3 PIN issuance and delivery .9
7.4 PIN change .10
7.5 Disposal of waste material and returned PIN mailers.11
7.6 PIN activation .11
7.7 PIN storage.11
7.8 PIN deactivation.12
8 Techniques for management/protection of transaction-related PIN functions.12
8.1 PIN entry .12
8.2 Protection of PIN during transmission.12
8.3 Standard PIN block formats .12
8.4 Other PIN block formats.16
8.5 PIN verification.16
8.6 Journalizing of transactions containing PIN data.16
9 Approval procedure for encipherment algorithms .16
Annex A (informative) General principles of key management.17
Annex B (informative) PIN verification techniques.20
Annex C (informative) PIN entry device for online PIN encipherment.22
Annex D (informative) Example of pseudo-random PIN generation.24
Annex E (informative) Additional guidelines for the design of a PIN entry device .25
Annex F (informative) Guidance on clearing and destruction procedures for sensitive data .28
Annex G (informative) Information for customers.30

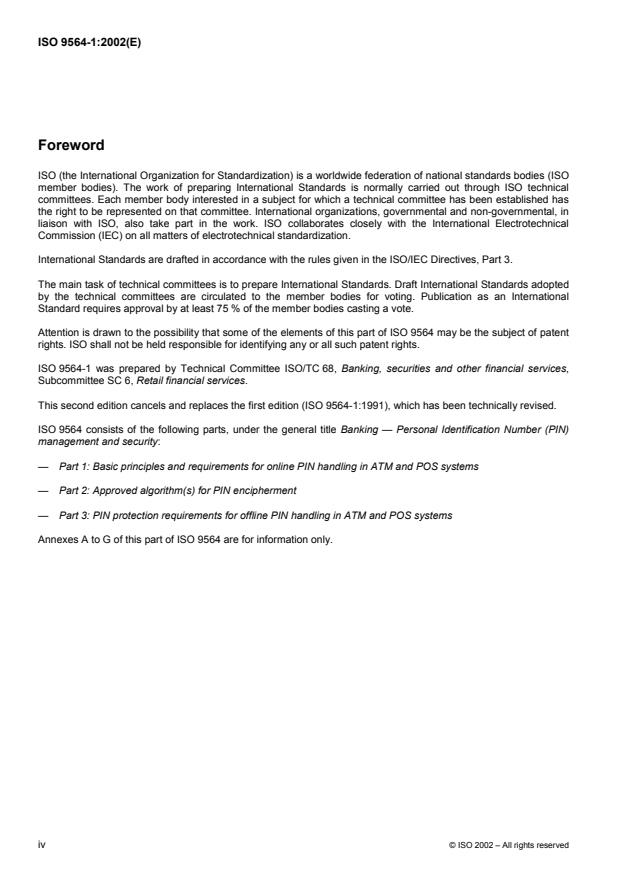

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
The main task of technical committees is to prepare International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 9564 may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 9564-1 was prepared by Technical Committee ISO/TC 68, Banking, securities and other financial services,
Subcommittee SC 6, Retail financial services.
This second edition cancels and replaces the first edition (ISO 9564-1:1991), which has been technically revised.
ISO 9564 consists of the following parts, under the general title Banking — Personal Identification Number (PIN)
management and security:
— Part 1: Basic principles and requirements for online PIN handling in ATM and POS systems
— Part 2: Approved algorithm(s) for PIN encipherment
— Part 3: PIN protection requirements for offline PIN handling in ATM and POS systems
Annexes A to G of this part of ISO 9564 are for information only.
iv © ISO 2002 – All rights reserved

Introduction
The Personal Identification Number (PIN) is a means of verifying the identity of a customer within an electronic
funds transfer (EFT) system.
The objective of PIN management is to protect the PIN against unauthorized disclosure, compromise and misuse
throughout its life cycle and, in so doing, to minimize the risk of fraud occurring within EFT systems. The secrecy of
the PIN needs to be assured at all times during its life cycle which consists of its selection, issuance, activation,
storage, entry, transmission, validation, deactivation and any other use made of it.
PIN security also depends upon sound key management. Maintaining the secrecy of cryptographic keys is of
the utmost importance because the compromise of any key allows the compromise of any PIN ever enciphered
under it.
Wherever possible, this part of ISO 9564 specifies requirements in absolute terms. In some instances, a level of
subjectivity cannot be practically avoided especially when discussing the degree or level of security desired or to be
achieved.
The level of security to be achieved needs to be related to a number of factors, including the sensitivity of the data
concerned and the likelihood that the data will be intercepted, the practicality of any envisaged encipherment
process and the cost of providing, and breaking, a particular means of security. It is, therefore, necessary for each
card acceptor, acquirer and issuer to agree on the extent and detail of security and PIN management procedures.
As absolute security is not practically achievable, PIN management procedures should implement preventive
measures to reduce the opportunity for a breach in security and aim for a “high” probability of detection of any illicit
access or change to PIN material should these preventive measures fail. This applies at all stages of the
generation, exchange and use of a PIN, including those processes that occur in cryptographic equipment and
those related to the communication of PINs.
This part of ISO 9564 is designed so that issuers can uniformly make certain, to whatever degree is practical, that a
PIN, while under the control of other institutions, is properly managed. Techniques are given for protecting the PIN-
based customer authentication process by safeguarding the PIN against unauthorized disclosure during the PIN's
life cycle. The publication of additional parts is planned and these will cover PIN protection principles and
techniques, electronic commerce and other environments identified at the time of writing.
In ISO 9564-2, approved encipherment algorithms to be used in the protection of the PIN are specified. Application
of the requirements of this part of ISO 9564 requires bilateral agreements to be made, including the choice of
algorithms specified in ISO 9564-2.
This part of ISO 9564 is one of a series that describes requirements for security in the retail banking environment,
as follows:
ISO 9564-2:1991, Banking — Personal Identification Number (PIN) management and security — Part 2: Approved
algorithm(s) for PIN encipherment
1)
ISO 9564-3:— , Banking — Personal Identification Number (PIN) management and security — Part 3: PIN
protection requirements for offline PIN handling in ATM and POS systems
ISO 10202 (all parts), Financial transaction cards — Security architecture of financial transaction systems using
integrated circuit cards
ISO 11568 (all parts), Banking — Key management (retail)

1) To be published.
ISO 13491 (all parts), Banking — Secure cryptographic devices (retail)
ISO 15668, Banking — Secure file transfer (retail)
vi © ISO 2002 – All rights reserved

INTERNATIONAL STANDARD ISO 9564-1:2002(E)

Banking — Personal Identification Number (PIN) management and
security —
Part 1:
Basic principles and requirements for online PIN handling in ATM
and POS systems
1 Scope
This part of ISO 9564 specifies the basic principles and techniques which provide the minimum security measures
required for effective international PIN management. These measures are applicable to those institutions
responsible for implementing techniques for the management and protection of PINs.
This part of ISO 9564 also specifies PIN protection techniques applicable to financial transaction-card-originated
transactions in an online environment and a standard means of interchanging PIN data. These techniques are
applicable to those institutions responsible for implementing techniques for the management and protection of the
PIN at Automated Teller Machines (ATM) and acquirer sponsored Point-of-Sale (POS) terminals.
The provisions of this part of ISO 9564 are not intended to cover:
a) PIN management and security in the offline PIN environment, which is covered in ISO 9564-3;
b) PIN management and security in the electronic commerce environments, which is to be covered in a
subsequent part of ISO 9564;
c) the protection of the PIN against loss or intentional misuse by the customer or authorized employees of the
issuer;
d) privacy of non-PIN transaction data;
e) protection of transaction messages against alteration or substitution, e.g. an authorization response to a PIN
verification;
f) protection against replay of the PIN or transaction;
g) specific key management techniques.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this part of ISO 9564. For dated references, subsequent amendments to, or revisions of, any of these publications
do not apply. However, parties to agreements based on this part of ISO 9564 are encouraged to investigate the
possibility of applying the most recent editions of the normative documents indicated below. For undated
references, the latest edition of the normative document referred to applies. Members of ISO and IEC maintain
registers of currently valid International Standards.
ISO 9564-2:1991, Banking — Personal Identification Number (PIN) management and security — Part 2: Approved
algorithm(s) for PIN encipherment
ISO 11568 (all parts), Banking — Key management (retail)
ISO 13491 (all parts), Banking — Secure cryptographic devices (retail)
ISO/IEC 7812 (all parts), Identification cards — Identification of issuers
ISO/IEC 7813:2001, Identification cards — Financial transaction cards
ISO/IEC 7816 (all parts), Identification cards — Integrated circuit(s) cards with contacts
3 Terms and definitions
For the purposes of this part of ISO 9564, the following terms and definitions apply.
3.1
acquirer
institution (or its agent) that acquires from the card acceptor the financial data relating to the transaction and
initiates such data into an interchange system
3.2
algorithm
clearly specified mathematical process for computation
3.3
card acceptor
party accepting the card and presenting transaction data to an acquirer
3.4
cipher text
data in its enciphered form
3.5
compromise
〈cryptography〉 breaching of secrecy and/or security
3.6
cryptographic key
mathematical value that is used in an algorithm to transform plain text into cipher text or vice versa
3.7
customer
individual associated with the primary account number (PAN) specified in the transaction
3.8
decipherment
reversal of a previous reversible encipherment rendering cipher text intelligible
3.9
dual control
process of utilizing two or more separate entities (usually persons) operating in concert to protect sensitive
functions or information whereby no single entity is able to access or utilize the materials
EXAMPLE A cryptographic key is an example of the type of material to be accessed or utilized.
3.10
encipherment
rendering of text unintelligible by means of an encoding mechanism
3.11
irreversible encipherment
transformation of plain text to cipher text in such a way that the original plain text cannot be recovered by other
than exhaustive procedures even if the cryptographic key is known
2 © ISO 2002 – All rights reserved

3.12
irreversible transformation of a key
generation of a new key from the previous key such that there is no feasible technique for determining the previous
key given a knowledge of the new key and of all details of the transformation
3.13
issuer
institution holding the account identified by the primary account number (PAN)
3.14
key component
one of at least two parameters having the format of a cryptographic key that is added modulo-2 with one or more
like parameters to form a cryptographic key
3.15
modulo-2 addition
exclusive OR-ing
binary addition with no carry
3.16
node
any message processing entity through which a transaction passes
3.17
notarization
method of modifying a key-enciphering key in order to authenticate the identities of the originator and the ultimate
recipient
3.18
Personal Identification Number
PIN
code or password the customer possesses for verification of identity
3.19
PIN entry device
PED
device into which the cardholder inputs the PIN
NOTE A PIN entry device may also be called a PIN pad.
3.20
plain text
data in its original unenciphered form
3.21
primary account number
PAN
assigned number, composed of an issuer identification number, an individual account identification and an
accompanying check digit, as specified in ISO/IEC 7812, that identifies the card issuer and card holder
3.22
pseudo-random number
number that is statistically random and essentially unpredictable although generated by an algorithmic process
3.23
reference PIN
value of the PIN used to verify the transaction PIN
3.24
reversible encipherment
transformation of plain text to cipher text in such a way that the original plain text can be recovered
3.25
split knowledge
condition under which two or more parties separately and confidentially have custody of components of a single
key that individually convey no knowledge of the resultant cryptographic key
3.26
terminal
acquirer-sponsored device that accepts ISO/IEC 7813 and/or ISO/IEC 7816 compliant cards and initiates
transactions into a payments system
NOTE It may also include other components and interfaces such as host communications.
3.27
transaction PIN
PIN as entered by the customer at the time of the transaction
3.28
true random number generator
device that utilizes an unpredictable and non-deterministic physical phenomenon to produce a stream of bits,
where the ability to predict any bit is no greater than 0,5 given knowledge of all preceding and following bits
3.29
variant of a key
new key formed by a non-secret process with the original key such that one or more of the non-parity bits of the
new key differ from the corresponding bits of the original key
4 Basic principles of PIN management
PIN management shall be governed by the following basic principles:
a) For all PIN management functions, controls shall be applied so that hardware and software used cannot be
fraudulently modified or accessed without recording, detection and/or disabling, as defined in 6.1.1.
b) After selection of the PIN (as defined in 7.2) and until PIN deactivation (as defined in 7.8), the PIN, if stored,
shall be enciphered when it cannot be physically secured, as defined in 6.2 and 7.7.
c) For different accounts, encipherment of the same PIN value under a given encipherment key shall not
predictably produce the same cipher text, as identified in 6.2.
d) Security of an enciphered PIN shall not rely on the secrecy of the encipherment design or algorithm but on a
secret key, as defined in 6.2.
e) The plain text PIN shall never exist in the facility of the acquirer except within a physically secure device, as
defined in 6.3.2.
f) A plain text PIN may exist in the general-purpose computer facility of the issuer, if the facility is a physically
secure environment at the time, as defined in 6.3.3.
g) Only the customer and/or personnel authorized by the issuer shall be involved with PIN selection (see 7.2),
PIN issuance or any PIN entry process in which the PIN can be related to account identity information. Such
personnel shall operate only under strictly enforced procedures (e.g. under dual control).
h) A stored enciphered PIN shall be protected from substitution, as defined in 7.7.
4 © ISO 2002 – All rights reserved

i) Compromise of the PIN (or suspected compromise) shall result in the ending of the PIN life cycle, as defined in
7.8.
j) Responsibility for PIN verification shall rest with the issuer, although the verification function may be delegated
to another institution, as defined in 8.5.
k) Different encipherment keys shall be used for protection of PIN storage and transmission, as defined in 6.2.
l) The customer shall be advised in writing of the importance of the PIN and PIN secrecy (see annex G).
5 PIN entry devices
5.1 Character set
All PIN entry devices shall provide for the entry of the decimal numeric characters zero to nine.
NOTE It is recognized that alphabetic characters, although not addressed in this part of ISO 9564, may be used as
synonyms for decimal numeric characters. Further guidance on the design of PIN entry devices, including alpha to numeric
mappings, is given in annex E.
5.2 Character representation
The relationship between the numeric value of a PIN character and the internal coding of that value prior to any
encipherment shall be as specified in Table 1.
Table 1 — Character representation
PIN character Internal binary
0 0000
1 0001
2 0010
3 0011
4 0100
5 0101
6 0110
7 0111
8 1000
9 1001
5.3 PIN entry
The values of the entered PIN shall not be displayed in plain text or be disclosed by audible feedback.
5.4 Packaging considerations
A PIN entry device may be packaged as an integral part of the terminal or may be remote from the terminal control
electronics. The terminal control electronics may or may not be physically secure (see 6.3.2 for definition);
however, the PIN entry device shall be secured as specified in 6.3.2 or 6.3.4.
The PIN entry device shall be designed or installed so that the customer can prevent others from observing the PIN
value as it is being entered.
When a remote PIN entry device is used, the communications link between it and its associated terminal shall be
protected (see 8.2).
Table 2 summarizes the security requirements for each of the four possible configurations of terminal and PIN entry
devices.
Table 2 — PIN entry device packaging consideration
Terminal physically secure Terminal physically non-secure
PIN entry device integral to Physical protection requirements as Physical protection requirements as
terminal specified in 6.3.2 apply to the whole specified in 6.3.2 or 6.3.4 apply to PIN entry
terminal. device.
Terminal shall encipher PIN as specified in PIN entry device shall encipher PIN as
6.2 for transmission. specified in 6.2 for transmission.
PIN entry device remote to The PIN entry device shall be secured as The PIN entry device shall be secured as
terminal specified in 6.3.2 or 6.3.4. specified in 6.3.2 or 6.3.4.
PIN entry device shall encipher PIN as PIN entry device shall encipher PIN as
specified in 6.2 for transmission. specified in 6.2 for transmission.

6 PIN security issues
6.1 PIN control requirements
6.1.1 Hardware and software
Hardware and software used in PIN management functions shall be implemented in such a way that the following
are assured.
a) The hardware and software is correctly performing its designed function and only its designed function.
b) The hardware and software cannot be modified or accessed without detection and/or disabling.
c) Information cannot be fraudulently accessed or modified without detection and rejection of the attempt.
d) The system shall not be capable of being used or misused to determine a PIN by exhaustive trial and error.
Printed or microfilm listings of programs or dumps used in the selection, calculation or encipherment of the PIN
should be controlled during use, delivery, storage and disposal.
6.1.2 Recording media
Any recording media (e.g. magnetic tape, disks) containing data from which a plain text PIN might be determined
shall be degaussed, overwritten or physically destroyed immediately after use. Only if all storage areas (including
temporary storage) used in the above process can be specifically identified and degaussed or overwritten, may a
computer system be used for these processes (see annex F).
6.1.3 Oral communications
No procedure shall require or permit oral communication of the plain text PIN, either by telephone or in person. An
institution shall never permit its employees to ask a customer to disclose the PIN or to recommend specific values.
6 © ISO 2002 – All rights reserved

6.1.4 Telephone keypads
Procedures of an institution shall not permit entry of the plain text PIN through a keypad of a telephone, unless the
telephone device is designed and constructed to meet the requirements specified in 5.4 for PIN entry devices and
8.2 for PIN transmission.
6.2 PIN encipherment
When it is necessary to encipher a PIN for storage or transmission (see 6.3 and 8.2), this shall be accomplished
using one of the approved algorithms specified in ISO 9564-2.
The adopted encipherment procedure shall ensure that the encipherment of a plain text PIN value using a
particular cryptographic key does not predictably produce the same enciphered value when the same PIN value is
associated with different accounts [see 7.8 b)].
Different encipherment keys shall be used to protect the reference PIN and the transaction PIN.
PIN encipherment keys shall not be used for any other cryptographic purpose.
PIN encipherment keys shall be at least 112 bits in length. A suitable technique is the use of a double-length DEA
key as specified in ISO 11568-2.
ISO 11568-1 specifies general principles of key management.
6.3 Physical security
6.3.1 Physical security for PIN entry devices
This sub-clause defines a “physically secure device” and a “physically secure environment” and specifies
requirements for a PIN entry device. Physical security requirements are specified in ISO 13491-1.
An unenciphered reference PIN shall exist only within a “physically secure environment” or “physically secure
device”. An unenciphered transaction PIN shall exist only within a “physically secure device”, a PIN entry device
meeting the requirements of 6.3.4 or the issuer's (or issuer's agent's) “physically secure environment”.
6.3.2 Physically secure device
In assessing the physical security of any device, the operating environment in which the device is working is an
important consideration. A physically secure device is a hardware device which, when operated in its intended
manner and environment, cannot be successfully penetrated or manipulated to disclose all or part of any
cryptographic key, PIN, or other secret value resident within the device.
Penetration of the device when operated in its intended manner and environment shall cause the automatic and
immediate erasure of all PINs, cryptographic keys and other secret values, and all useful residues of those
contained within the device.
A device shall only be operated as a physically secure device when it can be assured that the device's internal
operation has not been modified to allow penetration (e.g. the insertion within the device of an active or passive
“tapping” mechanism).
6.3.3 Physically secure environment
A physically secure environment is one which is equipped with access controls or other mechanisms designed to
prevent any penetration which would result in the disclosure of all or part of any cryptographic key or PIN stored
within the environment.
A physically secure environment shall remain such until all PINs, cryptographic keys and useful residue from PIN
and key have been erased from the environment.
6.3.4 PIN entry device requirements
A PIN entry device shall comply with the requirements of 6.3.2 or, at a minimum, meet the following requirements:
a) Encipherment of a transaction PIN shall be implemented within the device in a manner allowed by clause 8.
b) Successful penetration of the PIN entry device shall not permit disclosure of any previously entered transaction
PIN even with knowledge of additional relevant data which is, or has been, accessible external to the device
(e.g. enciphered PINs as previously transmitted from the device).
c) The unauthorized determination of the secret data (PINs and keys) stored within the PIN entry device, or the
placing within the device of a “tap” to record secret data, shall require that the device be taken to a specialized
facility, and either:
 is unavailable for a sufficiently long time such that there is a high probability that its absence from its
operational location is detected; and/or
 at this facility be subjected to physical damage such that the device cannot be placed back in service
without a high probability of the tampering being detected. Furthermore, the determination of secret data
or the placing of a “tap” within the device shall require specialized equipment and skills, which are not
generally available.
d) The data stored within a PIN entry device, even if determined, cannot be transferred into another such device.
NOTE See annex C for guidance on implementation of a PIN entry device.
7 Techniques for management/protection of account-related PIN functions
7.1 PIN length
A PIN shall be not less than four and not more than twelve characters in length.
While there is a security advantage to having a longer PIN, usefulness may be hindered. For usability reasons, an
assigned numeric PIN should not exceed six digits in length. It is recommended, for security reasons, that a
customer-selected alpha PIN should not be less than six characters in length. It should also be noted that many
international systems do not accept more than six digits and/or do not support alpha PIN entry.
7.2 PIN selection
7.2.1 PIN selection techniques
A PIN shall be selected using one or more of the following techniques:
a) assigned derived PIN;
b) assigned random PIN;
c) customer-selected PIN.
Compromise during PIN selection could prejudice the security of any issued PIN.
7.2.2 Assigned derived PIN
When the reference PIN is an “assigned derived PIN”, the issuer shall derive it cryptographically from:
a) the primary account number; and/or
b) some other value associated with the customer.
8 © ISO 2002 – All rights reserved

The PIN derivation process should not contain a bias towards specific sets or values.
If this technique is used, the issuer should not maintain any record of the PIN, as the PIN can be derived as
needed.
NOTE When the PIN is derived from card data, it may be used to validate that data.
7.2.3 Assigned random PIN
When the reference PIN is an “assigned random PIN”, the issuer shall obtain a value by means of either:
a) a true random number generator; or
b) a pseudo-random number generator (see annex D).
7.2.4 Customer-selected PIN
When a reference PIN is a “customer-selected PIN”, the value shall be selected by the customer. In this case, the
issuer shall provide the customer with the necessary selection instructions and warnings (see annex G for
guidance).
NOTE To the issuer, a customer-selected PIN is random in value.
7.3 PIN issuance and delivery
7.3.1 PIN issuance and delivery controls
All PIN issuance functions involving issuer personnel shall be under dual control.
The PIN shall never be retrieved and deciphered or regenerated for recording, processing, displaying, or printing
except in a secure PIN mailer (or its equivalent).
At no point in the delivery process shall the PIN appear in plain text where it can be associated with a customer's
account.
7.3.2 Delivery of an assigned PIN
A PIN assigned by an issuer shall be conveyed to the customer by means of a PIN mailer.
The PIN mailer shall be printed in such a way that the plain text PIN cannot be observed until the envelope is
opened. The envelope shall display the minimum data necessary to deliver the PIN mailer to the correct customer.
A PIN mailer shall be constructed such that it is highly likely that accidental or fraudulent opening will be obvious to
the customer. The issuer shall warn the customer not to use a PIN that is contained in an opened or tampered PIN
mailer and to notify the issuer of such an event.
The envelope or its contents may contain “residue of the PIN” (e.g. carbon paper), and the issuer should warn the
customer that, after memorizing the PIN, he should destroy the mailer completely or keep the mailer in a safe
place.
NOTE Multiple cards may be in issue on the same account each with a different PIN. If so, the outside of the PIN mailer
may have to display details of the customer's identification to facilitate correct delivery.
The PIN and card shall not be mailed in the same mailer nor at the same time.
7.3.3 Delivery of customer-selected PIN
7.3.3.1 PIN conveyance
A PIN selected by the customer shall be conveyed to the issuer using one of the following techniques:
a) initial PIN selection at an issuer's location (see 7.3.3.2);
b) PIN selection by mail (see 7.3.3.3).
7.3.3.2 PIN selection at an issuer's location
PIN selection shall be accomplished at an issuer's location via a PIN entry device complying with the requirements
of 5.4. Selection and entry of the PIN shall not involve the customer disclosing the PIN to any issuer's employee or
third party. The following procedure shall be applied.
a) An authorized employee shall obtain proper identification of the customer.
b) The system shall require identification and authorization of the issuer's employees.
c) The PIN selection process shall be enabled by an authorized employee. The process shall be terminated by
the completion of a PIN selection.
d) The authorized employee's identification, together with the date and the time, shall become a part of the
transaction record.
7.3.3.3 PIN selection by mail
PIN selection by mail shall only be accomplished by the use of a form containing a control number and space for a
selected PIN. The control number shall not disclose the account number. Any cryptographic key used to generate a
control number shall not be used for any other purpose and shall be managed in accordance with ISO 11568. The
completed form shall not contain any information which relates the PIN to the customer's name, address or account
number. The following procedures shall apply.
a) The mailer to the customer shall contain the PIN selection form and instructions.
b) The mailing shall be in accordance with the procedures defined in 7.3.2, treating the control number as the
PIN.
c) The customer shall be instructed to write the PIN on the form, not to write any other information on the form
unless specifically requested, not to enclose any other correspondence, and to return the form to the stated
address. A special pre-addressed envelope should be used.
d) The processing of received PIN selection forms shall only be by authorized employees of the issuer.
NOTE The control number may be the reversibly enciphered account number. Some issuers instruct the customer to enter
an enciphered PIN on to the form.
7.4 PIN change
7.4.1 PIN change in an interchange environment
PIN change shall be performed through the issuer's system in accordance with the requirements of 7.3; it shall not
be performed in an interchange environment.
7.4.2 PIN change at an attended terminal
The procedure for PIN change at an attended terminal shall be the same as specified for PIN selection in 7.3.3.2.
10 © ISO 2002 – All rights reserved

7.4.3 PIN change at an unattended terminal
The procedure for PIN change at an unattended terminal in the issuer's system shall require the current PIN to be
entered and verified before selection and activation of the replacement customer selected PIN.
The new PIN should be entered twice and both entries should be identical.
7.4.4 PIN change by mail
The procedure for PIN change by mail shall be the same as specified for PIN selection in 7.3.3.3.
7.4.5 Replacement of forgotten PIN
Replacement of a forgotten PIN shall be performed through the issuer's system; it shall not be performed in an
interchange environment. The procedures used to replace a forgotten PIN shall follow those covered in 7.3.
Where an assigned PIN has been forgotten and the effect is to generate a PIN mailer communicating the same or
a newly assigned PIN value, the requirements of 7.3.2 shall apply.
7.4.6 Replacement of compromised PIN
When a PIN is believed to have been compromised it shall be deactivated as soon as possible (see 7.8) and the
customer informed of a replacement value or given the opportunity to select one. A replacement PIN shall not be
intentionally the same as the compromised PIN. Activation of a replacement PIN may be implicit or explicit (see
7.6).
When an assigned derived PIN is believed to have been exposed, at least one data element used in deriving the
PIN shall be changed and a new PIN derived and issued. This may require that any corresponding card be re-
issued or re-encoded and that the old card be blocked from use.
7.5 Disposal of waste material and returned PIN mailers
Issuers shall ensure that adequate security measures are taken over the internal handling and disposal of returned
PIN mailers and any waste material associated with the initial printing of PIN mailers.
Consideration should be given to different return addresses in case of non-delivery for card and PIN mailers.
7.6 PIN activation
A PIN may be activated either implicitly or explicitly. Under a system of implicit PIN activation, the issuer assumes
successful PIN delivery, unless advised to the contrary.
When a PIN is to be explicitly activated, the issuer shall not activate the PIN until the customer has returned a
signed and subsequently verified receipt or used some other means that:
 confirms PIN receipt; and
 confirms that this response is from the legitimate cardholder.
The receipt or response shall not contain the PIN.
7.7 PIN storage
A PIN stored in the computer files of the issuer shall be enciphered as specified in 6.2.
PIN encipherment (reversible or irreversible) shall incorporate the account number (or other data) such that the
verification process would detect substitution of one value for another stored value.
When the PIN (assigned or customer selected) is stored on the magnetic stripe of a card, it shall never be stored as
plain text. If the PIN is to be stored on the magnetic stripe of a card, it shall be enciphered (e.g. PIN offset).
When the PIN (assigned or customer selected) is stored in the integrated circuit (IC) of a card, it should be stored
within the protected area of the IC or it should be enciphered.
7.8 PIN deactivation
Responsibility for PIN deactivation rests with the issuer. An issuer shall deactivate a PIN if any of the following
occurs.
a) The PIN is compromised (or suspected to be compromised).
b) All the customer's accounts associated with the PIN are closed.
c) The customer requests deactivation of the PIN.
d) The issuer otherwise determines that deactivation of the PIN is appropriate.
In the case of PIN compromise, or a deactivation request by the customer, the customer shall be advised of the
action taken.
The issuer shall take appropriate measures to ensure that the deactivated PIN cannot subsequently be used with
its associated account number.
NOTE Examples of such measures are erasure of the deactivated PIN from the issuer's records and blocking access to the
account.
8 Techniques for management/protection of transaction-related PIN functions
8.1 PIN entry
Responsibility for protecting the PIN during the entry process rests with the customer, the card acceptor and the
acquirer or its agent.
The first digit entered into the PIN entry device shall be the high-order digit (leftmost). The last digit to be entered
shall be the low-order digit (rightmost).
Equipment used for interchange shall support entry of a four to twelve character PIN.
8.2 Protection of PIN during transmission
A PIN shall be protected during transmission (including, for example, storage at network nodes) by one or both of
the following means:
a) provision of physical protection (see 6.3);
b) encipherment of the PIN (see 6.2).
Whenever it is necessary to decipher and encipher a PIN during transmission, for instance to translate from one
PIN format to another or to change the encipherment key used, the PIN shall be contained within a physically
secure device.
8.3 Standard PIN block formats
8.3.1 PIN block construction and format value assignment
This sub-clause specifies the construction of a 64-bit block of PIN data and includes the number, position and
function of the bits.
12 © ISO 2002 – All rights reserved

The most significant 4 bits of the block form the control field. The following values are assigned:
0000 : Format 0, as defined in 8.3.2
0001 : Format 1, as defined in 8.3.3
0010 : Format 2, as defined in ISO 9564-3
0011 : Format 3, as defined in 8.3.5
0100 through 0111 : For allocation by ISO/TC 68
1000 through 1011
...
