ISO/FDIS 11211-1

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 11211-1
ISO/TC 174
Grading polished diamonds —
Secretariat: DIN
Part 1:
Voting begins on:
2002-05-09
Terminology and classification
Voting terminates on:
Diamants taillés —
2002-07-09
Partie 1: Terminologie et classification



Please see the administrative notes on page iii

RECIPIENTS OF THIS DOCUMENT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS, NOTIFI-
CATION OF ANY RELEVANT PATENT RIGHTS OF
WHICH THEY ARE AWARE AND TO PROVIDE
SUPPORTING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 11211-1:2002(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS. ©
ISO 2002

---------------------- Page: 1 ----------------------
ISO/FDIS 11211-1:2002(E)

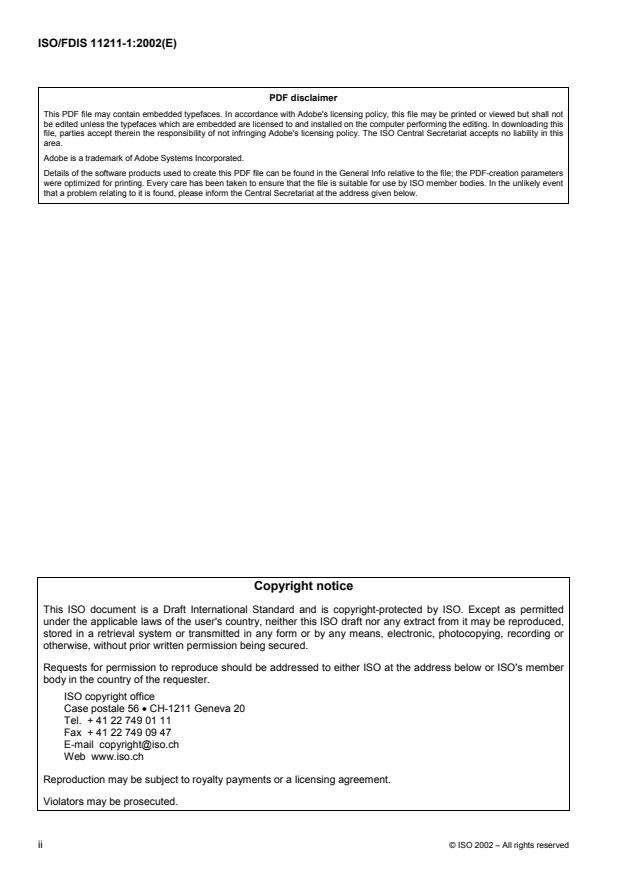

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.


Copyright notice
This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as permitted
under the applicable laws of the user's country, neither this ISO draft nor any extract from it may be reproduced,
stored in a retrieval system or transmitted in any form or by any means, electronic, photocopying, recording or
otherwise, without prior written permission being secured.
Requests for permission to reproduce should be addressed to either ISO at the address below or ISO's member
body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
ii © ISO 2002 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/FDIS 11211-1:2002(E)
In accordance with the provisions of Council Resolution 15/1993, this document is circulated in the English
language only.


© ISO 2002 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/FDIS 11211-1:2002(E)

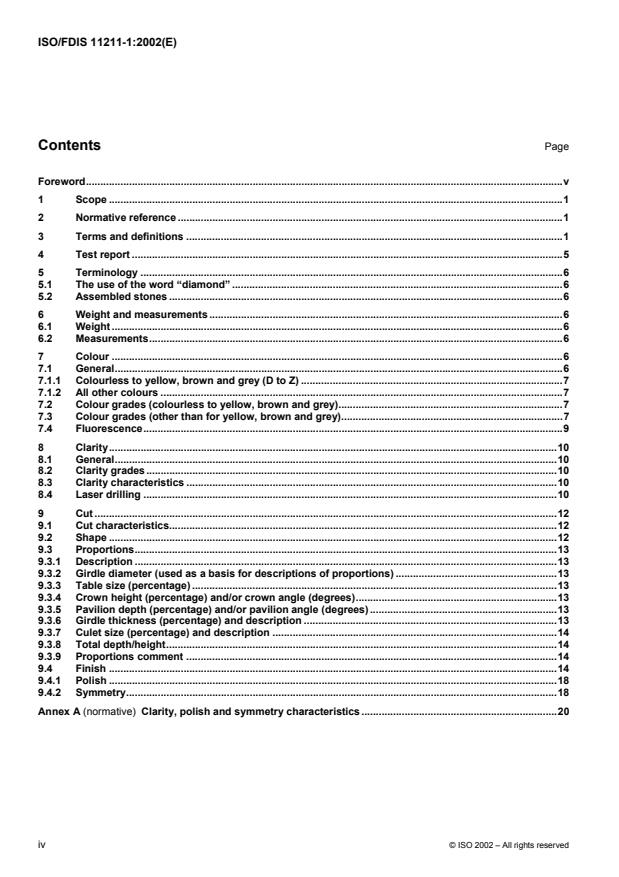

Contents Page
Foreword.v
1 Scope.1
2 Normative reference.1
3 Terms and definitions .1
4 Test report.5
5 Terminology.6
5.1 The use of the word “diamond” .6
5.2 Assembled stones.6
6 Weight and measurements .6
6.1 Weight.6
6.2 Measurements.6
7 Colour.6
7.1 General.6
7.1.1 Colourless to yellow, brown and grey (D to Z) .7
7.1.2 All other colours.7
7.2 Colour grades (colourless to yellow, brown and grey).7
7.3 Colour grades (other than for yellow, brown and grey).7
7.4 Fluorescence.9
8 Clarity.10
8.1 General.10
8.2 Clarity grades.10
8.3 Clarity characteristics.10
8.4 Laser drilling.10
9 Cut.12
9.1 Cut characteristics.12
9.2 Shape.12
9.3 Proportions.13
9.3.1 Description.13
9.3.2 Girdle diameter (used as a basis for descriptions of proportions) .13
9.3.3 Table size (percentage) .13
9.3.4 Crown height (percentage) and/or crown angle (degrees).13
9.3.5 Pavilion depth (percentage) and/or pavilion angle (degrees) .13
9.3.6 Girdle thickness (percentage) and description .13
9.3.7 Culet size (percentage) and description .14
9.3.8 Total depth/height.14
9.3.9 Proportions comment.14
9.4 Finish.14
9.4.1 Polish.18
9.4.2 Symmetry.18
Annex A (normative) Clarity, polish and symmetry characteristics .20

iv © ISO 2002 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/FDIS 11211-1:2002(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
The main task of technical committees is to prepare International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 11211 may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 11211-1 was prepared by Technical Committee ISO/TC 174, Jewellery.
ISO 11211 consists of the following parts, under the general title Grading polished diamonds:
— Part 1: Terminology and classification
— Part 2: Test methods
Part 3 of ISO 11211, dealing with the colour of naturally coloured diamonds, is in the course of preparation.
Annex A forms a normative part of this part of ISO 11211.

© ISO 2002 – All rights reserved v

---------------------- Page: 5 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 11211-1:2002(E)

Grading polished diamonds —
Part 1:
Terminology and classification
1 Scope
This International Standard specifies the terminology and classification that shall be used for the grading and
description of polished diamonds.
This International Standard shall only be used for natural, unmounted, polished diamonds. It shall not be used for
synthetic diamonds (see 3.2), treated diamonds (see 3.3) (other than is allowed for in 8.4), or assembled stones
(see 3.5).
2 Normative reference
The following normative document contains provisions which, through reference in this text, constitute provisions of
this part of ISO 11211. For dated references, subsequent amendments to, or revisions of, any of these publications
do not apply. However, parties to agreements based on this part of ISO 11211 are encouraged to investigate the
possibility of applying the most recent edition of the normative document indicated below. For undated references,
the latest edition of the normative document referred to applies. Members of ISO and IEC maintain registers of
currently valid International Standards.
ISO 11211-2:2002, Grading polished diamonds — Part 2: Test methods
3 Terms and definitions
For the purposes of this part of ISO 11211, the following terms and definitions apply.
3.1
diamond
natural mineral consisting essentially of carbon crystallized in the isometric (cubic) crystal system, with a Mohs'
scale hardness of 10, a specific gravity of approximately 3,52 and a refractive index, n , of 2,417
D
3.2
synthetic diamond
man-made reproduction of diamond (3.1) that has essentially the same chemical composition, crystal structure,
optical and physical properties as its natural counterpart
3.3
treated diamond
diamond (3.1) treated, other than by cutting, polishing and cleaning, to change its appearance by coating, filling,
heating, irradiation or any other physical or chemical treatment
3.4
polished diamond
diamond (3.1) with a defined cut (3.12)
© ISO 2002 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/FDIS 11211-1:2002(E)
3.5
assembled stone
stone constructed of two or more parts, of which at least one is diamond (3.1), synthetic diamond (3.2) or treated
diamond (3.3)
3.6
colour
relative absence (colourlessness) or presence of hue
3.7
fluorescence
degree of luminescence of a diamond (3.1) when viewed under a long-wave ultraviolet (UV) light source with a
wavelength of 365 nm
3.8
clarity
relative degree to which a diamond (3.1) is free from internal characteristics/inclusions (3.9) and external
characteristics/blemishes (3.10)
3.9 Internal characteristics/inclusions
3.9.1
bearding
tiny feathers extending in from the girdle
3.9.2
bruise
surface percussion mark, often accompanied by tiny, root-like feathers
3.9.3
cavity
large or deep opening
3.9.4
chip
relatively shallow indentation, usually occurring along the girdle or culet
NOTE An indentation could also be external.
3.9.5
cleavage
large feather occurring in a plane, parallel to a crystal face
3.9.6
cloud
hazy or milky area made up of a number of very small inclusions
3.9.7
crystal
mineral crystal included in a diamond
3.9.8
feather
fracture
separation or break due to either cleavage or fracture, often white and feathery in appearance
3.9.9
grain centre
small area of concentrated crystal structure distortion
2 © ISO 2002 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/FDIS 11211-1:2002(E)
3.9.10
graining
internal indications of irregular crystal growth
3.9.10.1
coloured graining
graining which appears as coloured streaks
3.9.10.2
reflective graining
graining which appears as a reflective plane
3.9.10.3
whitish graining
graining which may appear as whitish streaks or may give the stone a hazy (cloudy) appearance which decreases
transparency
3.9.11
indented natural
natural that penetrates the stone
NOTE It might be considered as an external characteristic, depending upon depth.
3.9.12
knot
included diamond crystal which reaches the surface
3.9.13
laser drill hole
tiny tube made by a laser
NOTE The surface opening may resemble a pit, while the tube usually looks needle-like.
3.9.14
needle
long, thin included crystal which looks like a tiny rod
3.9.15
nick
notch near the girdle or a facet edge
NOTE It may be considered as an internal characteristic, depending upon depth.
3.9.16
pinpoint
very small inclusion, less than ten times the size normally seen as a tiny dot, either singly or in groups or strings
3.9.17
reduced transparency
cloudy, milky, or hazy appearance of the whole or part of a diamond due to internal features that may or may not
be visible at 10 × magnification
3.9.18
twinning wisp
inclusions located in a plane, which occur as a result of the change in orientation of the diamond crystal structure
© ISO 2002 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/FDIS 11211-1:2002(E)
3.10 External characteristics/blemishes
3.10.1
abrasion
tiny nicks along the facet's junction or culet, producing white fuzzy lines instead of sharp facet edges
3.10.2
bruting lines
tiny lines on a girdle not displaying a feather-like appearance
3.10.3
burn mark
surface clouding caused by excessive heat or uneven polished surface
3.10.4
hip
relatively shallow indentation, usually occurring along the girdle or culet
NOTE This indentation could also be internal.
3.10.5
extra facet
facet placed without regard for symmetry and not required by the cutting style
3.10.6
natural
part of the original crystal surface remaining on the polished stone
3.10.7
nick
notch near the girdle or a facet edge
NOTE It may be considered as an internal characteristic, depending upon depth.
3.10.8
pit
tiny opening, often resembling a white dot
3.10.9
polish line
tiny parallel lines left by polishing, fine parallel ridges confined to single facet caused by crystal structure
irregularities, or tiny, parallel, polished grooves produced by irregularities in the scaife surface
3.10.10
pitted girdle
very rough bruted girdle surface
3.10.11
scratch
linear indentation normally seen as a fine white line, curved or straight
3.10.12
surface grain line
surface indication of structural irregularity which is not seen internally and which may resemble faint facet-junction
lines or cause a grooved or wavy surface
NOTE Often the lines cross facet junctions.
4 © ISO 2002 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/FDIS 11211-1:2002(E)
3.11
naked eye
unaided eye, or eye aided through glasses which adjust an anomalous eyesight to normal
3.12
cut
shape, proportions and finish of a diamond (3.1)
3.13
shape
form
outline of a diamond when viewed perpendicular to the table facet
3.14
weight
mass of a diamond (3.1)
3.15
diamond loupe
achromatic and aplanatic, triplet type, 10 × magnifying lens, the loupe of which is of a neutral tone
4 Test report
A description of a polished diamond (see 3.4) shall be established by grading its criteria in accordance with the
rules specified in clauses 5 to 9 inclusive. The test report shall contain at least the following information:
 a reference to this part of ISO 11211;
 the results of the tests specified in this part of ISO 11211;
 clarity;
 colour;
 comments (if applicable);
 long-wave ultraviolet fluorescence;
 measurements;
 plot of internal characteristics/inclusions and external characteristics/blemishes;
 proportions (table size, crown height and/or crown angle, pavilion depth and/or pavilion angle, girdle thickness,
culet size);
 reference code;
 shape and cut;
 symmetry;
 weight;
 the date of the test.
© ISO 2002 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/FDIS 11211-1:2002(E)
5 Terminology
5.1 The use of the word “diamond”
It is unnecessary to note the genesis of a diamond (3.1), as the use of the word “diamond” alone and without
qualification states that it is natural.
The word “diamond” (3.1) alone shall not be used to describe synthetic diamonds (3.2) irrespective of which basic
material or methods are used. A product made in this way shall be clearly referred to as “synthetic diamond” and
shall not be graded.
5.2 Assembled stones
Assembled stones (3.5) shall be clearly identified and shall not be graded.
6 Weight and measurements
6.1 Weight
The weight of a diamond (3.13) shall be expressed in metric carats (ct), one carat being equivalent to 200 mg
(1/5 g). The weight of a diamond shall be stated in carats to two decimal places.
NOTE It is acceptable verbally to express one-hundredth of a carat as a “point”.
Weight shall be rounded upwards if the third decimal is a 9, for example:
 0,996 → 0,99 ct
 0,998 → 0,99 ct
 0,999 → 1,00 ct
NOTE Weight may be stated to three decimal places if the accuracy of the weighing equipment is accurate to this degree.
6.2 Measurements
The measurements of a diamond s
...
