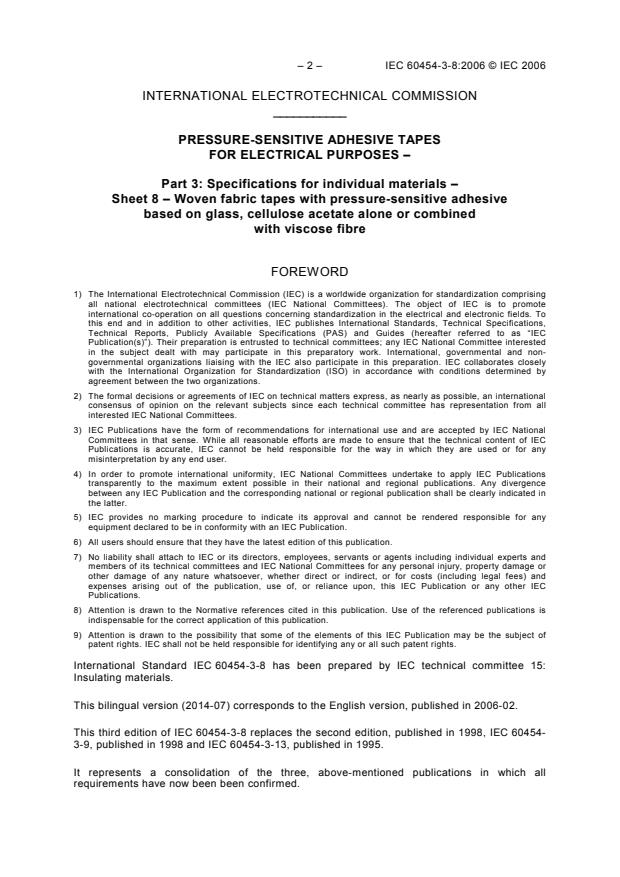

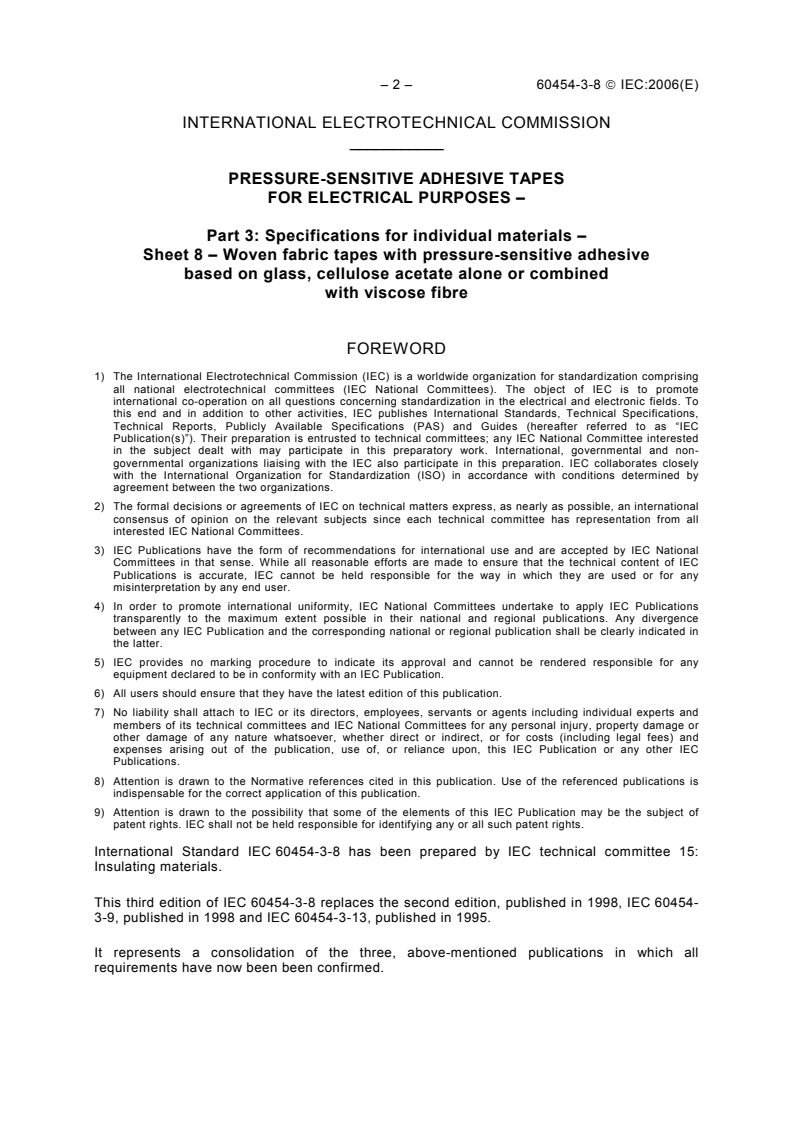

– 2 – IEC 60454-3-8:2006 © IEC 2006
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
PRESSURE-SENSITIVE ADHESIVE TAPES
FOR ELECTRICAL PURPOSES –
Part 3: Specifications for individual materials –
Sheet 8 – Woven fabric tapes with pressure-sensitive adhesive
based on glass, cellulose acetate alone or combined
with viscose fibre
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60454-3-8 has been prepared by IEC technical committee 15:
Insulating materials.
This bilingual version (2014-07) corresponds to the English version, published in 2006-02.
This third edition of IEC 60454-3-8 replaces the second edition, published in 1998, IEC 60454-
3-9, published in 1998 and IEC 60454-3-13, published in 1995.
It represents a consolidation of the three, above-mentioned publications in which all
requirements have now been been confirmed.

The text of this standard is based on the following documents:
FDIS Report on voting
15/264/FDIS 15/294/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
– 4 – IEC 60454-3-8:2006 © IEC 2006
INTRODUCTION
This International Standard is one of a series which deals with pressure-sensitive adhesive
tapes, intended primarily for electrical purposes.
The series consists of three parts:
Part 1: General requirements (IEC 60454-1)
Part 2: Methods of test (IEC 60454-2)
Part 3: Specifications for individual materials (IEC 60454-3)
This standard contains one of the sheets comprising part 3 as follows:
Sheet 8:
– Woven fabric tapes with pressure-sensitive adhesive based on glass; cellulose acetate alone
or combined with viscose fibre

PRESSURE-SENSITIVE ADHESIVE TAPES
FOR ELECTRICAL PURPOSES –
Part 3: Specifications for individual materials –
Sheet 8 – Woven fabric tapes with pressure-sensitive adhesive
based on glass, cellulose acetate alone or combined
with viscose fibre
1 Scope
This sheet of IEC 60454-3 contains the requirements for
– glass fabric tapes with pressure-sensitive adhesive,
– cellulose acetate woven fabric tapes with rubber thermosetting adhesive,
– combined cellulose-viscose woven fabric tapes, one side covered with a thermoplastic
material, the other side with thermosetting adhesive.
Materials which conform to this specification meet established levels of performance. However,
the selection of a material by a user for a specific application should be based on the actual
requirements necessary for adequate performance in that application, and not based on this
specification alone.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60426:1973, Test methods for determining electrolytic corrosion with insulating materials
IEC 60454-1:1992, Specifications for pressure-sensitive adhesive tapes for electrical purposes
– Part 1: General requirements
IEC 60454-2:1994, Specifications for pressure-sensitive adhesive tapes for electrical purposes
– Part 2: Methods of test
3 Terms and definitions
For the purposes of this document, the definitions of IEC 60454-1 apply.
4 Classification and designation
4.1 Glass fabric tapes with pressure-sensitive adhesive
The products supplied according to this specification shall be classified as follows:
Type 1: Products having a thermal index of 130 with a rubber thermosetting adhesive.
Type 2: Products having a thermal index of 155 with an acrylic crosslinked adhesive.
Type 3: Products having a thermal
...
