IEC 60286-3-1:2009

IEC 60286-3-1 ®
Edition 1.0 2009-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Packaging of components for automatic handling –
Part 3-1: Packaging of surface mount components on continuous tapes –
Type V – Pressed carrier tapes

Emballage de composants pour opérations automatisées –
Partie 3-1 : Emballage de composants pour montage en surface sur des bandes
continues – Type V – Bandes porteuses pressées

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60286-3-1 ®
Edition 1.0 2009-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Packaging of components for automatic handling –

Part 3-1: Packaging of surface mount components on continuous tapes –

Type V – Pressed carrier tapes

Emballage de composants pour opérations automatisées –

Partie 3-1 : Emballage de composants pour montage en surface sur des bandes

continues – Type V – Bandes porteuses pressées

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 31.020; 31.240 ISBN 978-2-8322-1600-2

– 2 – IEC 60286-3-1:2009 © IEC 2009

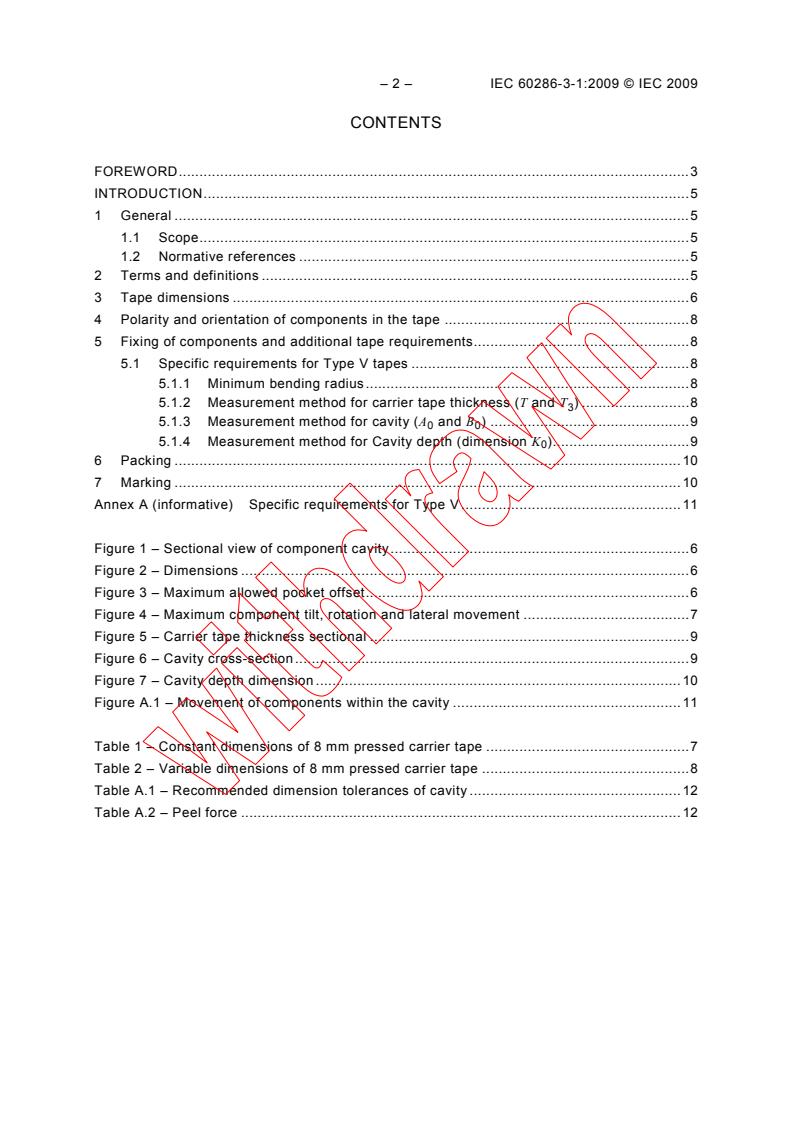

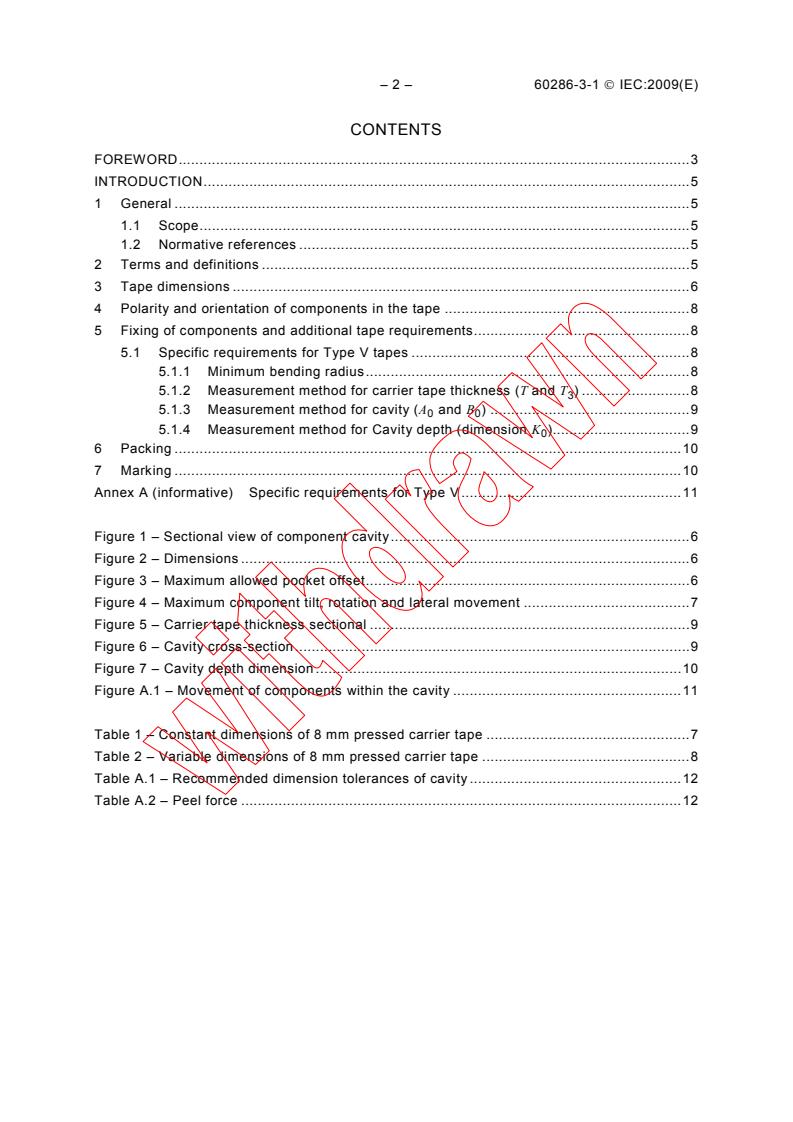

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 General . 5
1.1 Scope . 5
1.2 Normative references . 5
2 Terms and definitions . 5
3 Tape dimensions . 6
4 Polarity and orientation of components in the tape . 8
5 Fixing of components and additional tape requirements . 8
5.1 Specific requirements for Type V tapes . 8
5.1.1 Minimum bending radius . 8
5.1.2 Measurement method for carrier tape thickness (T and T ) . 8
5.1.3 Measurement method for cavity (A and B ) . 9
0 0
5.1.4 Measurement method for Cavity depth (dimension K ). 9
6 Packing . 10
7 Marking . 10
Annex A (informative) Specific requirements for Type V . 11

Figure 1 – Sectional view of component cavity . 6
Figure 2 – Dimensions . 6
Figure 3 – Maximum allowed pocket offset . 6
Figure 4 – Maximum component tilt, rotation and lateral movement . 7
Figure 5 – Carrier tape thickness sectional . 9
Figure 6 – Cavity cross-section . 9
Figure 7 – Cavity depth dimension . 10
Figure A.1 – Movement of components within the cavity . 11

Table 1 – Constant dimensions of 8 mm pressed carrier tape . 7
Table 2 – Variable dimensions of 8 mm pressed carrier tape . 8
Table A.1 – Recommended dimension tolerances of cavity . 12
Table A.2 – Peel force . 12

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –

Part 3-1: Packaging of surface mount components on continuous tapes –
Type V – Pressed carrier tapes

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and
non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates
closely with the International Organization for Standardization (ISO) in accordance with conditions determined
by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60286-3-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This bilingual versin (2014-05) corresponds to the English version, published in 2009-05.
The text of this standard is based on the following documents:
FDIS Report on voting
40/1972/FDIS 40/1981/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.

– 4 – IEC 60286-3-1:2009 © IEC 2009
IEC 60286-3-1 is to be used in conjunction with IEC 60286-3.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The list of all parts of the IEC 60286 series, under the general title Packaging of components
for automatic handling, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –

Part 3-1: Packaging of surface mount components on continuous tapes –
Type V – Pressed carrier tapes

INTRODUCTION
Tape packaging meets the requirements of automatic component placement machines and
also covers the use of tape packing for components for test purposes and other operations.
This International Standard describes a carrier tape comprising concave cavities formed by
compression of bulk carrier material. This specification is for size 1608 and smaller.
1 General
1.1 Scope
This part of IEC 60286 is applicable to the taping of surface mount components using carrier
tapes which have concave cavities ed by compression of the base material.
1.2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60286-3:2007, Packing of components for automatic handling – Part 3: Packing of
surface mount components on continuous tapes
2 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60286-3, as well as
the following, apply.
2.1
pressed carrier tape
carrier tape with concave cavities formed by compression of the base material
2.2
fluff
fibre from the base material attached inside the cavity
2.3
burr
surface projection of tape unintentially produced when cavity is formed
2.4
deformation
bulge on the inner wall of the cavity

– 6 – IEC 60286-3-1:2009 © IEC 2009
2.5
puff
bulge on the reverse side of the cavity

Burr
Fluff
Deformation
Puff
IEC  601/09
Figure 1 – Sectional view of component cavity
3 Tape dimensions
P
T
3 0
Origin
T
D P
0 2
Cover
tape E
F W
E
C
G
K
A P
0 1
T
Direction of unreeling
IEC  602/09
Figure 2 – Dimensions
Pocket off-set:
0,05 mm maximum on either side

IEC  603/09
Figure 3 – Maximum allowed pocket offset

20° maximum
See also Table 2, Note c)
See Table 2, Note d)
Typical
cavity
centre line
20° maximum
See also Table 2, Note c)
B
Typical
component
centre line
A
Component tilt Component planar Component lateral
rotation movements
Side or front
sectional view Top view
Top view
Sketch A Sketch B
Sketch C
IEC  604/09
Figure 4 – Maximum component tilt, rotation and lateral movement
Table 1 – Constant dimensions of 8 mm pressed carrier tape

Cumulative pitch
Tape size D E G P T T T -T
0 1 min 0 max 1 max 3 max
(over 10 pitches)
mm mm mm mm mm mm mm
mm
mm
+0,1
8 0,75 1,1 0,1 0,1
1,75 ± 0,1 4,0 ± 0,1 ±0,1
1,5
– 8 – IEC 60286-3-1:2009 © IEC 2009
Table 2 – Variable dimensions of 8 mm pressed carrier tape

Tape size C E F P P W A , B , K
.
max 2 min 1 2 0 0 0
mm mm mm mm mm mm mm mm
+0,3
8,0
2,0 ± 0,05
8 4,35 6,25 see NOTE
3,5 ± 0,05 2,0 ± 0,05 −0,1
NOTE The nominal dimensions of the component compartment should be derived from the relevant component
specification. The tolerances on the nominal sizes of the compartment should be selected so that the components
cannot change their orientation within the tape and can be easily removed from the tape, with the following
characteristics.
There should be sufficient clearance surrounding the component so that
a) the component does not protrude above the top surface of the carrier tape,
b) the component can be removed from the cavity in a vertical direction without mechanical restriction after the top
cover tape has been removed,
c) the rotation of the component is limited to a 20° maximum tilt (see Figure 2, sketch A) and a 20° maximum planar
rotation (see Figure 3, sketch B),
d) the maximum lateral movement allowed is 0,3 mm except for 1005M sized components where the maximum should
be 0,20 mm and for 0603M sized components the maximum should be 0,12 mm (see Annex A).
For defined component positioning, the pocket positions should be defined to an origin point. This origin is the centre of
the index hole, defined by the crosshair of the dimensions E and P . The centre of the component compartment is
1 0
defined by P and F, relative to the sprocket hole, as shown in Figure 2 with tolerances given in the table above.
Preferred dimensions for components should be taken from the relevant IEC specifications.
Dimensions A ≤ B , unless otherwise specified in the component detail specification.
0 0
For components with size designation of 1005M or smaller, the puff (T – T) should be limited to 0,05 mm maximum.
If positioning precision is required, for example when components ≤ size 1005M are mounted in narrow space, then the
tolerance on D should be (+0,05 / 0,00) mm.
4 Polarity and orientation of components in the tape
Requirements shall be in accordance with IEC 60286-3, 4.1, 4.2.1 and 4.2.3.
5 Fixing of components and additional tape requirements
Requirements shall be in accordance with IEC 60286-3, 5.1, 5.2, 5.4, 5.5, 5.6, 5.7 and 5.8
and the following.
5.1 Specific requirements for Type V tapes
5.1.1 Minimum bending radius
The minimum bending radius (R ) shall be 25 mm.
min
5.1.2 Measurement method for carrier tape thickness (T and T )
The equipment used to conduct these measurements shall be an external micrometer with a
measuring pressure of 1,5 N or smaller. The probe shall be made of super-hard material and
the diameter of the probe head shall be 2,0 mm.

The thickness of the carrier tape shall be measured with an accuracy of 0,001 mm. The
dimension of the thickness excluding the puff of the bottom of the cavity is T, when the flat
side is measured adjacent to the sprocket holes. The dimension of the thickness including the
puff on the bottom of the cavity is T .
Measurement shall be made at the points shown in Figure 5.

Sprocket holes
Carrier tape Carrier tape
thickness T thickness T
T measuring point
T measuring point
IEC  605/09
Figure 5 – Carrier tape thickness sectional
5.1.3 Measurement method for cavity (A and B )
0 0
A measuring viewing scope with 10x magnification or more shall be used.
For dimensions A and B the minimum value including deformation of material shall be

0 0
measured using an adequate light source to illuminate the surface of the tape and allow
measurement of the features as shown in Figure 6. Fluff should be excluded from the
dimension.
Minimum value Minimum value
Minimum value Minimum value
IEC  606/09
Figure 6 – Cavity cross-section
)
5.1.4 Measurement method for Cavity depth (dimension K
A non-contact measuring system should be used.
The cavity depth K is defined as the distance between the centre of the bottom of the cavity
and the carrier surface at the centre point between the sprocket hole and the cavity.
A measurement can be performed according to Figure 7.

– 10 – IEC 60286-3-1:2009 © IEC 2009

Centre point between
sprocket hole and cavity
Centre point
...
