IEC 60286-1:2017

IEC 60286-1 ®
Edition 3.0 2017-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Packaging of components for automatic handling –
Part 1: Tape packaging of components with axial leads on continuous tapes

Emballage des composants pour opérations automatisées –
Partie 1: Mise en bande des composants à sorties axiales en bandes continues

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60286-1 ®
Edition 3.0 2017-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Packaging of components for automatic handling –

Part 1: Tape packaging of components with axial leads on continuous tapes

Emballage des composants pour opérations automatisées –

Partie 1: Mise en bande des composants à sorties axiales en bandes continues

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.020 31.240 ISBN 978-2-8322-7259-6

– 2 – IEC 60286-1:2017 © IEC 2017

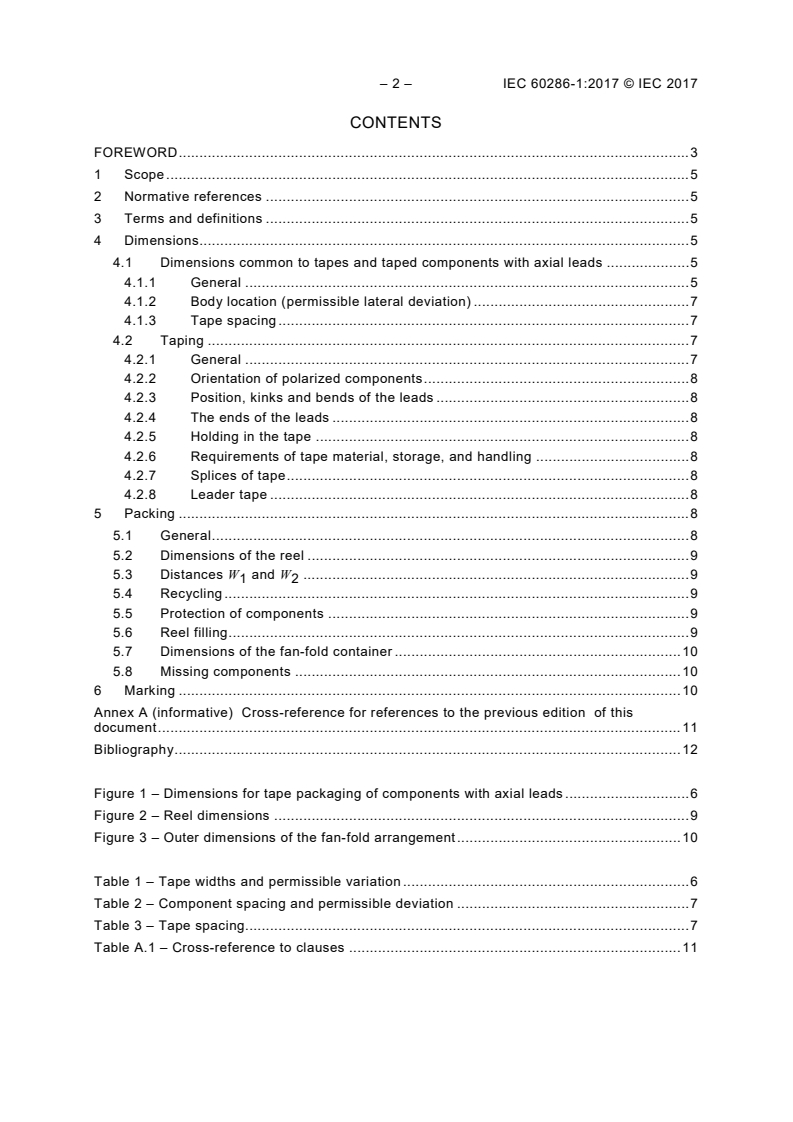

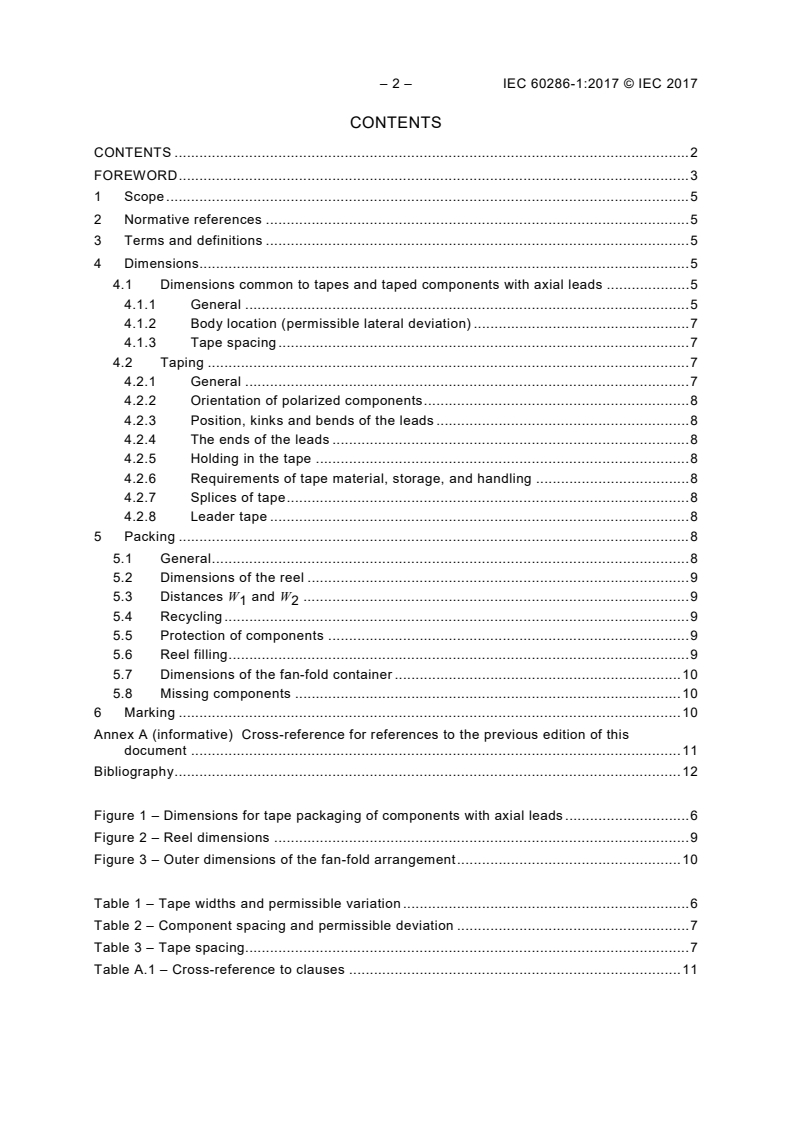

CONTENTS
CONTENTS . 2
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Dimensions. 5
4.1 Dimensions common to tapes and taped components with axial leads . 5
4.1.1 General . 5
4.1.2 Body location (permissible lateral deviation) . 7
4.1.3 Tape spacing . 7
4.2 Taping . 7
4.2.1 General . 7
4.2.2 Orientation of polarized components . 8
4.2.3 Position, kinks and bends of the leads . 8
4.2.4 The ends of the leads . 8
4.2.5 Holding in the tape . 8
4.2.6 Requirements of tape material, storage, and handling . 8
4.2.7 Splices of tape . 8
4.2.8 Leader tape . 8
5 Packing . 8
5.1 General . 8
5.2 Dimensions of the reel . 9
5.3 Distances W and W . 9
1 2
5.4 Recycling . 9
5.5 Protection of components . 9
5.6 Reel filling . 9
5.7 Dimensions of the fan-fold container . 10
5.8 Missing components . 10
6 Marking . 10
Annex A (informative) Cross-reference for references to the previous edition of this
document . 11
Bibliography . 12

Figure 1 – Dimensions for tape packaging of components with axial leads . 6
Figure 2 – Reel dimensions . 9
Figure 3 – Outer dimensions of the fan-fold arrangement . 10

Table 1 – Tape widths and permissible variation . 6
Table 2 – Component spacing and permissible deviation . 7
Table 3 – Tape spacing. 7
Table A.1 – Cross-reference to clauses . 11

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –

Part 1: Tape packaging of components
with axial leads on continuous tapes

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60286-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This bilingual version (2019-08) corresponds to the monolingual English version, published in
2017-07.
This third edition cancels and replaces the second edition published in 1997. This edition
constitutes a technical revision.
This edition includes the following significant changes with respect to the previous edition:
a) a complete revision of the structure (detailed in Annex A) and reworked layout.

– 4 – IEC 60286-1:2017 © IEC 2017
The text of this International Standard is based on the following documents:
FDIS Report on voting
40/2538/FDIS 40/2552/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
The French version of this standard has not been voted upon.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 60286 series, under the general title Packaging of components for
automatic handling, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –

Part 1: Tape packaging of components
with axial leads on continuous tapes

1 Scope
This part of IEC 60286 applies to the tape packaging of components with axial leads for use in
electronic equipment. In general, the tape is applied to the component leads.
It covers requirements for taping techniques used with equipment for the preforming of leads,
automatic handling, insertion and other operations, and includes only those dimensions which
are essential to the taping of components intended for the above-mentioned purposes.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60294, Measurement of the dimensions of a cylindrical component with axial terminations
ISO 11469, Plastics – Generic identification and marking of plastic products
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Dimensions
4.1 Dimensions common to tapes and taped components with axial leads
4.1.1 General
The general configuration is shown in Figure 1, Table 1 and Table 2.

– 6 – IEC 60286-1:2017 © IEC 2017

Key
A is the distance between adjacent components in tape.
B Is the Inner distance between two tapes.
K is the allowed displacement distance of component in tape.
L is lead length between component body and inner side of tape on left side.
L is lead length between component body and inner side of tape on right side.
L is the part of lead protruded outside the tape.
L is the body length of the component.
max
M is the max allowed distance of displacement.
T is the width of the tape.
W is the maximum allowed total distance of the component after protrusion of leads outside of the tape.
Figure 1 – Dimensions for tape packaging of components with axial leads
Table 1 – Tape widths and permissible variation
Nominal widths Permissible
of tape variation in width
T
mm mm
6 ±1
9 ±1
Table 2 – Component spacing and permissible deviation
Standard spacing Permissible
between components cumulative deviation
A over ten spacing
P
mm mm
5 ± 0,5 ±2
10 ± 0,5 ±2
15 ± 0,5 ±2
20 ± 0,5 ±2
4.1.2 Body location (permissible lateral deviation)
Dimension K, being the width of the window in which the component body shall be located,
shall be 1,0 mm (for B = 26 mm) or 1,4 mm (for B > 26 mm) wider than the maximum length
L of the component body. The latter is the body length measured in accordance with
max
IEC 60294.
Unless otherwise specified, the window shall be centrally located between the tapes.
When a gauge measurement to determine dimension K is impractical, it is possible to
measure the distances L and L of the leads. The difference between L and L shall not
1 2 1 2
exceed 1,0 mm (for B = 26 mm) or 1,4 mm (for B > 26 mm).
4.1.3 Tape spacing
The maximum overall width W, including any lead protrusion L , shall not exceed 140 mm. Its
value shall be chosen in relation to the component dimensions.
The tape spacing given in Table 3 is recommended.
Table 3 – Tape spacing
Inside tape spacing
B
mm
+1,5
+2
−1
63 ± 2
73 ± 2
83 ± 2
93 ± 2
Inside tape spacing B above 93 mm to be in 10 mm
increments with a tolerance ±2 mm as long as the
maximum overall width W of 140 mm is not exceeded.

4.2 Taping
4.2.1 General
The following requirements for axial components shall be met as appropriate (see Figure 1).

– 8 – IEC 60286-1:2017 © IEC 2017
4.2.2 Orientation of polarized components
All polarized components shall be oriented in one direction; the polarized components shall be
clearly identified by use of different colours or marked tapes, the anode being of a white or
neutral colour.
4.2.3 Position, kinks and bends of the leads
The position, kinks and bends of the leads are as follows.
a) The leads shall be free from kinks and bends.
b) The method used to position the component leads on the tape shall be such that the leads
are not nicked or otherwise damaged.
c) Leads shall not be bent beyond 1,0 mm (for B = 26 mm) or 1,2 mm (for B > 26 mm) from
their nominal position when measured from the leading edge of the component lead at the
inside tape edge and at the lead egress from the component (see dimension M in
Figure 1).
4.2.4 The ends of the leads
The ends of the leads shall not protrude beyond the tapes.
4.2.5 Holding in the tape
The components shall be held sufficiently in the tape(s) so that they cannot come free during
normal handling.
4.2.6 Requirements of tape material, storage, and handling
The tapes shall be suitable to withstand storage of the taped components. The tape material
shall not migrate along the leads or give off vapours that can affect solderability or deteriorate
the component properties or leads by chemical action (e.g. corrosion).
In addition, the tapes shall not become detached, thereby causing the components to lose
their relative position after storage, and the tape shall not age to such an extent that its
strength is reduced, causing it to break either when the components are unreeled manually or
by an assembly machine.
Tapes in adjacent layers shall not stick together in the packing, because of the exposed
adhesive for instance.
4.2.7 Splices of tape
Splices shall be at least as strong as the original tape and shall not be thicker than four times
the thickness of a single layer of the original tape. Splices shall not be misaligned by more
than 0,8 mm. When splicing is applied, component spacing A shall remain within the
tolerances as specified in Table 2.
4.2.8 Leader tape
A twin leader tape, free of components, having a minimum length of 200 mm shall be provided
at the beginning and at the end of the tape.
5 Packing
5.1 General
The tapes of components may either be wound on reels or fan-folded.

5.2 Dimensions of the reel
The preferred reel dimensions are shown in Figure 2.

Key
1 is the optional shape: circular or square.
2 is the optional shape: circular or polygonal.
A is the reel diameter: maximum 400 mm.
C is the arbor hole diameter: 14 mm to 38 mm.
N is the hub diameter: 34,9 mm to 102 mm.
Figure 2 – Reel dimensions
5.3 Distances W and W
1 2
The distances W and W shall be governed by the overall width of the taped components W
1 2
(see Figure 1) and shall allow proper reeling and unreeling.
5.4 Recycling
Reels as defined in Figure 2 should be made of recyclable material. When such material is
used, the reel shall be permanently marked with the recycling symbol.
ISO 11469 should be used for making the material.
5.5 Protection of components
In order to prevent component damage and lead distortion, protection between layers of
components and over the last layer may be necessary. In this case, protection materials shall
not cause deterioration of the component or of lead solderability.
5.6 Reel filling
The total number of components on the reel shall be such that the components and the final
cover shall not extend beyond the smallest dimension of the flange in the radial direction.

– 1
...

IEC 60286-1 ®
Edition 3.1 2021-04
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Packaging of components for automatic handling –
Part 1: Tape packaging of components with axial leads on continuous tapes

Emballage des composants pour opérations automatisées –
Partie 1: Mise en bande des composants à sorties axiales en bandes continues
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60286-1 ®
Edition 3.1 2021-04
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Packaging of components for automatic handling –

Part 1: Tape packaging of components with axial leads on continuous tapes

Emballage des composants pour opérations automatisées –

Partie 1: Mise en bande des composants à sorties axiales en bandes continues

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.020 31.240 ISBN 978-2-8322-9691-2

IEC 60286-1 ®
Edition 3.1 2021-04
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Packaging of components for automatic handling –
Part 1: Tape packaging of components with axial leads on continuous tapes

Emballage des composants pour opérations automatisées –
Partie 1: Mise en bande des composants à sorties axiales en bandes continues

– 2 – IEC 60286-1:2017+AMD1:2021 CSV
© IEC 2021
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Dimensions. 5
4.1 Dimensions common to tapes and taped components with axial leads . 5
4.1.1 General . 5
4.1.2 Body location (permissible lateral deviation) . 8
4.1.3 Tape spacing . 8
4.2 Taping . 9
4.2.1 General . 9
4.2.2 Orientation of polarized components . 9
4.2.3 Position, kinks and bends of the leads . 9
4.2.4 The ends of the leads Lead protrusion . 9
4.2.5 Holding in the tape . 9
4.2.6 Requirements of tape material, storage, and handling . 9
4.2.7 Splices of tape . 10
4.2.8 Leader tape . 10
5 Packing . 10
5.1 General . 10
5.2 Dimensions of the reel . 10
5.3 Distances W and W . 11
1 2
5.4 Recycling . 11
5.5 Protection of components . 11
5.6 Reel filling . 11
5.7 Dimensions of the fan-fold container . 11
5.8 Missing components . 12
6 Marking . 12
Annex A (informative) Cross-reference for references to the previous edition of this
document . 13
Bibliography . 14

Figure 1 – Dimensions for tape packaging of components with axial leads . 7
Figure 2 – Reel dimensions . 11
Figure 3 – Outer dimensions of the fan-fold arrangement . 12

Table 1 – Tape widths and permissible variation . 8
Table 2 – Component spacing and permissible deviation . 8
Table 3 – Tape spacing. 9
Table A.1 – Cross-reference to clauses . 13

© IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –

Part 1: Tape packaging of components
with axial leads on continuous tapes

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been
prepared for user convenience.
IEC 60286-1 edition 3.1 contains the third edition (2017-07) [documents 40/2538/FDIS
and 40/2552/RVD] and its amendment 1 (2021-04) [documents 40/2822/FDIS and
40/2831/RVD].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendment 1. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in this
publication.
– 4 – IEC 60286-1:2017+AMD1:2021 CSV
© IEC 2021
International Standard IEC 60286-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This third edition constitutes a technical revision.
This edition includes the following significant changes with respect to the previous edition:
a) a complete revision of the structure (detailed in Annex A) and reworked layout.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 60286 series, under the general title Packaging of components for
automatic handling, can be found on the IEC website.
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
© IEC 2021
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –

Part 1: Tape packaging of components
with axial leads on continuous tapes

1 Scope
This part of IEC 60286 applies to the tape packaging of components with axial leads for use in
electronic equipment. In general, the tape is applied to the component leads.
It covers requirements for taping techniques used with equipment for the preforming of leads,
automatic handling, insertion and other operations, and includes only those dimensions which
are essential to the taping of components intended for the above-mentioned purposes.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60294, Measurement of the dimensions of a cylindrical component with axial terminations
ISO 11469, Plastics – Generic identification and marking of plastic products
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Dimensions
4.1 Dimensions common to tapes and taped components with axial leads
4.1.1 General
The general configuration is shown in Figure 1, Table 1 and Table 2.

– 6 – IEC 60286-1:2017+AMD1:2021 CSV
© IEC 2021
Key
A is the distance between adjacent components in tape.
B Is the Inner distance between two tapes.
K is the allowed displacement distance of component in tape.
L is lead length between component body and inner side of tape on left side.
L is lead length between component body and inner side of tape on right side.
L is the part of lead protruded outside the tape.
L is the body length of the component.
max
M is the max allowed distance of displacement.
T is the width of the tape.
W is the maximum allowed total distance of the component after protrusion of leads outside of the tape.

© IEC 2021
Key
A is the distance between adjacent components in tape.
B is the inner distance between two tapes.
K is the allowed displacement distance of component in tape.
L is the lead length between component body and inner side of tape on left side.
L is the lead length between component body and inner side of tape on right side.
L is the body length of the component.
max
M is the maximum allowed distance of displacement.
T is the width of the tape.
W is the maximum outer distance allowed between the two tapes.
max
Figure 1 – Dimensions for tape packaging of components with axial leads

– 8 – IEC 60286-1:2017+AMD1:2021 CSV
© IEC 2021
Table 1 – Tape widths and permissible variation
Nominal widths Permissible
of tape
variation in width
T
mm mm
6 ±1
9 ±1
Table 2 – Component spacing and permissible deviation
Standard spacing Permissible
between components cumulative deviation
A over ten spacing
P
mm mm
5 ± 0,5 ±2
10 ± 0,5 ±2
15 ± 0,5 ±2
20 ± 0,5 ±2
4.1.2 Body location (permissible lateral deviation)
Dimension K, being the width of the window in which the component body shall be located,
shall be 1,0 mm (for B = 26 mm) or 1,4 mm (for B > 26 mm) wider than the maximum length
L of the component body. The latter is the body length measured in accordance with
max
IEC 60294.
Unless otherwise specified, the window shall be centrally located between the tapes.
When a gauge measurement to determine dimension K is impractical, it is possible to
measure the distances L and L of the leads. The difference between L and L shall not
1 2 1 2
exceed 1,0 mm (for B = 26 mm) or 1,4 mm (for B > 26 mm).
4.1.3 Tape spacing
The maximum overall width W, including any lead protrusion L , shall not exceed 140 mm. Its
value shall be chosen in relation to the component dimensions.
The maximum overall width W shall not exceed 140 mm. Its value shall be chosen in
max
relation to the component dimensions.
The tape spacing given in Table 3 is recommended.

© IEC 2021
Table 3 – Tape spacing
Inside tape spacing
B
mm
+1,5
+2
−1
63 ± 2
73 ± 2
83 ± 2
93 ± 2
Inside tape spacing B above 93 mm to be in 10 mm
increments with a tolerance ±2 mm as long as the
maximum overall width W W of 140 mm is not
max
exceeded.
4.2 Taping
4.2.1 General
The following requirements for axial components shall be met as appropriate (see Figure 1).
4.2.2 Orientation of polarized components
All polarized components shall be oriented in one direction; the polarized components shall be
clearly identified by use of different colours or marked tapes, the anode being of a white or
neutral colour.
4.2.3 Position, kinks and bends of the leads
The position, kinks and bends of the leads are as follows.
a) The leads shall be free from kinks and bends.
b) The method used to position the component leads on the tape shall be such that the leads
are not nicked or otherwise damaged.
c) Leads shall not be bent beyond 1,0 mm (for B = 26 mm) or 1,2 mm (for B > 26 mm) from
their nominal position when measured from the leading edge of the component lead at the
inside tape edge and at the lead egress from the component (see dimension M in
Figure 1).
4.2.4 The ends of the leads Lead protrusion
The ends of the leads shall not protrude beyond the tapes.
4.2.5 Holding in the tape
The components shall be held sufficiently in the tape(s) so that they cannot come free during
normal handling.
4.2.6 Requirements of tape material, storage, and handling
The tapes shall be suitable to withstand storage of the taped components. The tape material
shall not migrate along the leads or give off vapours that can affect solderability or deteriorate
the component properties or leads by chemical action (e.g. corrosion).

– 10 – IEC 60286-1:2017+AMD1:2021 CSV
© IEC 2021
In addition, the tapes shall not become detached, thereby causing the components to lose
their relative position after storage, and the tape shall not age to such an extent that its
strength is reduced, causing it to break either when the components are unreeled manually or
by an assembly machine.
Tapes in adjacent layers shall not stick together in the packing, because of the exposed
adhesive for instance.
4.2.7 Splices of tape
Splices shall be at least as strong as the original tape and shall not be thicker than four times
the thickness of a single layer of the original tape. Splices shall not be misaligned by more
than 0,8 mm. When splicing is applied, component spacing A shall remain within the
tolerances as specified in Table 2.
4.2.8 Leader tape
A twin leader tape, free of components, having a minimum length of 200 mm shall be provided
at the beginning and at the end of the tape.
Unless otherwise specified by agreement between the manufacturer and the customer, reel
package should have leader tapes without components for at least 200 mm at leader part and
trailer part. The leader tapes shall not be required for fan-fold package. Depending on the
customer’s request, fan-fold package may have leader tapes without components for at least
200 mm at leader part and trailer part.
5 Packing
5.1 General
The tapes of components may either be wound on reels or fan-folded.
5.2 Dimensions of the reel
The preferred reel dimensions are shown in Figure 2.

© IEC 2021
Key
1 is the optional shape: circular or square.
2 is the optional shape: circular or polygonal.
A is the reel diameter: maximum 400 mm.
C is the arbor hole diameter: 14 mm to 38 mm.
N is the hub diameter: 34,9 mm to 102 mm.
Figure 2 – Reel dimensions
5.3 Distances W and W
1 2
The distances W and W shall be governed by the overall width of the taped components W
1 2
W (see Figure 1) and shall allow proper reeling and unreeling.
max
5.4 Recycling
Reels as defined in Figure 2 should be made of recyclable material. When such material is
used, the reel shall be permanently marked with the recycling symbol.
ISO 11469 should be used for making the material.
5.5 Protection of components
In order to prevent component damage and lead distortion, protection between layers of
components and over the last layer may be necessary. In this case, protection materials shall
not cause deterioration of the component or of lead solderability.
5.6 Reel filling
The total number of components on the reel shall be such that the components and the final
cover shall not extend beyond the smallest dimension of the flange in the radial direction.
5.7 Dimensions of the fan-fold container
The preferred outer dimensions of a fan-fold arrangement are shown in Figure 3.

– 12 – IEC 60286-1:2017+AMD1:2021 CSV
© IEC 2021
Key
X is the width of the fan-folded arrangement: controlled by W W .
max
Y is the length of the fan-folded arrangement: maximum 610 mm.
Z is the height of the fan-folded arrangement: maximum 150 mm.
Figure 3 – Outer dimensions of the fan-fold arrangement
5.8 Missing components
For automatic insertion, it is required that the number of empty places in the tape, per reel or
fan-fold arrangement, shall not exceed 0,1 % or one position, whichever is greater, without
consecutive empty places, unless agreed otherwise between the customer and the
manufacturer.
6 Marking
th th
When required, the tape shall be marked at every 50 or 100 component place.

© IEC 2021
Annex A
(informative)
Cross-reference for references to the previous edition
of this document
The revision of this document has resulted in new numbering for some clauses. Table A.1
provides cross-references for the clause numbering of this document compared to its previous
