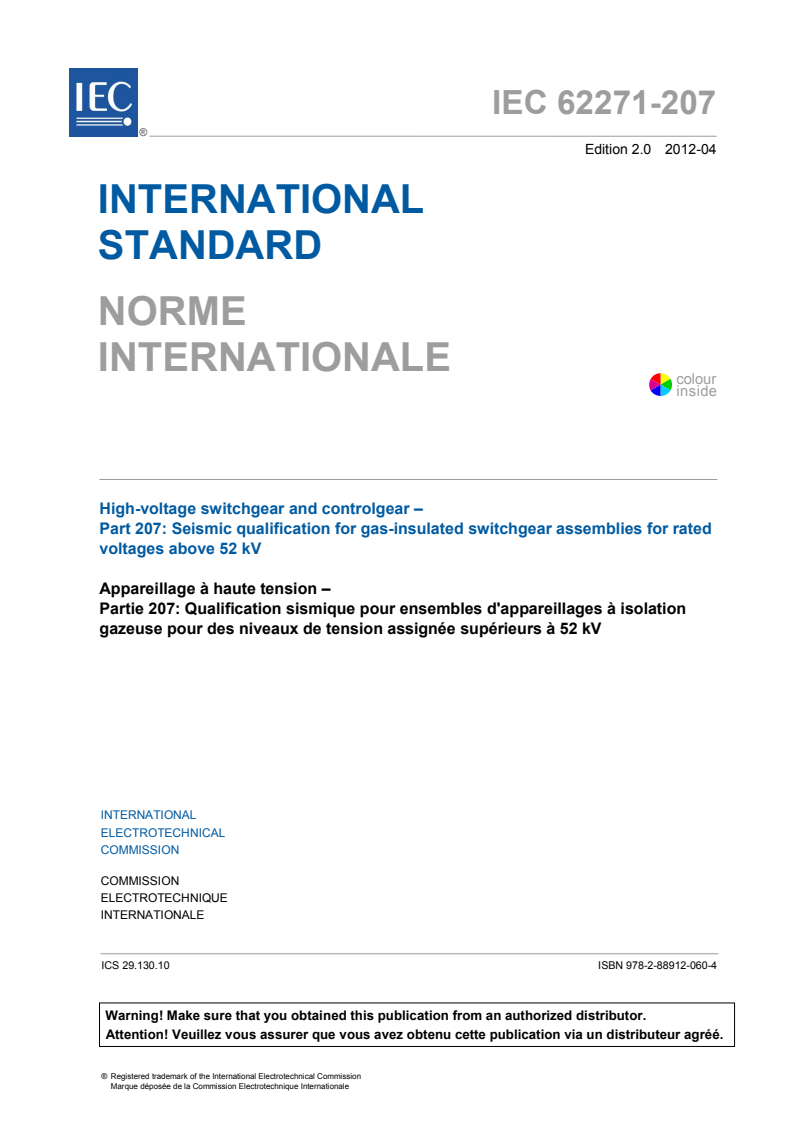

IEC 62271-207:2012

IEC 62271-207 ®
Edition 2.0 2012-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
High-voltage switchgear and controlgear –
Part 207: Seismic qualification for gas-insulated switchgear assemblies for rated
voltages above 52 kV
Appareillage à haute tension –
Partie 207: Qualification sismique pour ensembles d'appareillages à isolation
gazeuse pour des niveaux de tension assignée supérieurs à 52 kV
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 62271-207 ®
Edition 2.0 2012-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
High-voltage switchgear and controlgear –

Part 207: Seismic qualification for gas-insulated switchgear assemblies for rated

voltages above 52 kV
Appareillage à haute tension –

Partie 207: Qualification sismique pour ensembles d'appareillages à isolation

gazeuse pour des niveaux de tension assignée supérieurs à 52 kV

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX R
ICS 29.130.10 ISBN 978-2-88912-060-4

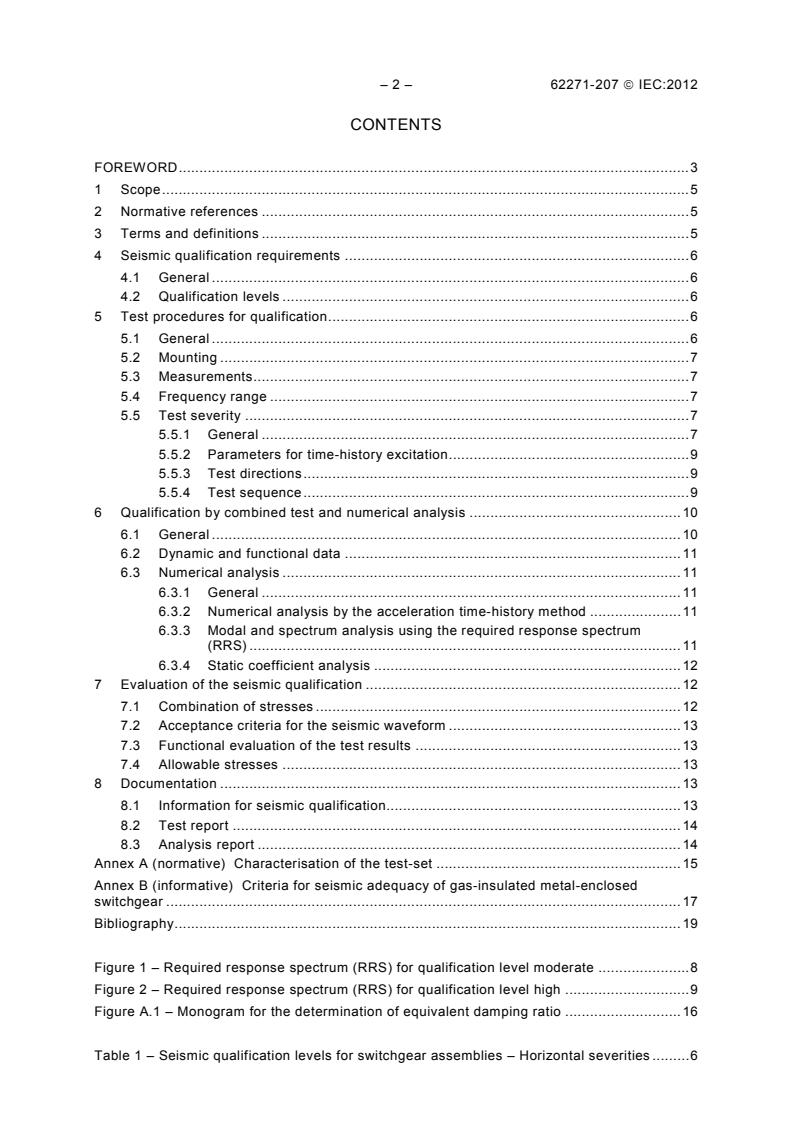

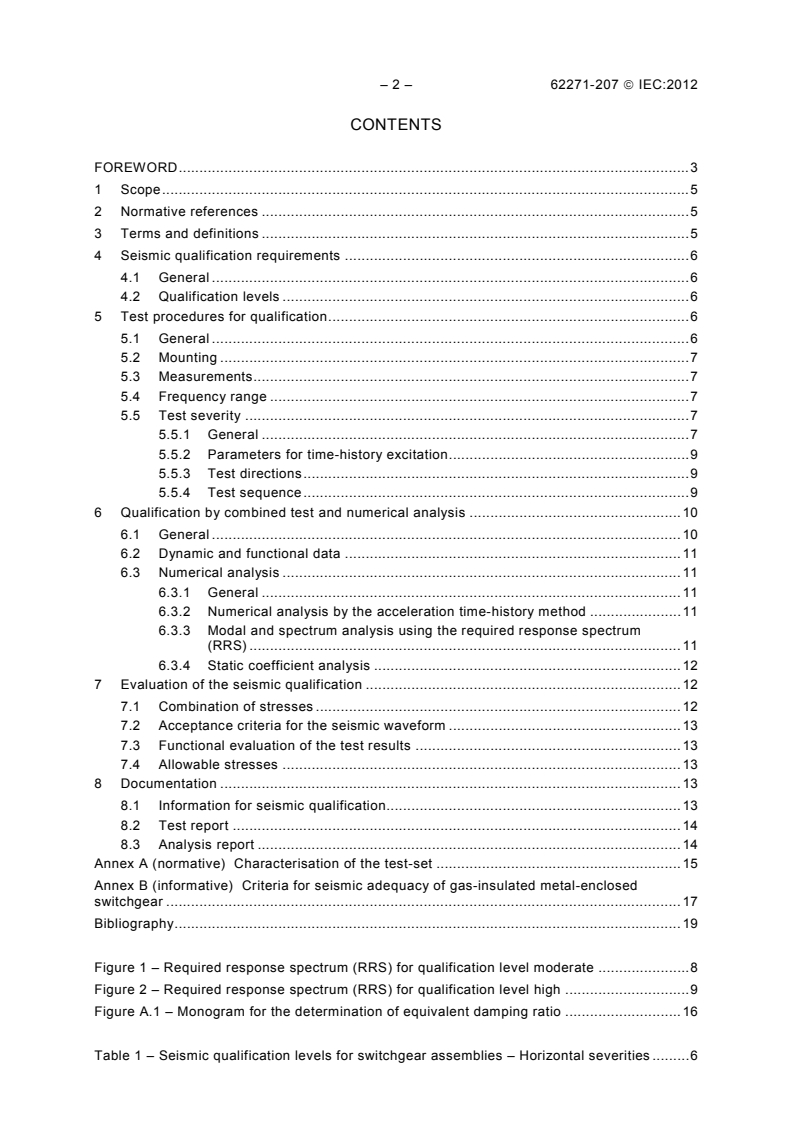

– 2 – 62271-207  IEC:2012
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Seismic qualification requirements . 6
4.1 General . 6
4.2 Qualification levels . 6
5 Test procedures for qualification . 6
5.1 General . 6
5.2 Mounting . 7
5.3 Measurements . 7
5.4 Frequency range . 7
5.5 Test severity . 7
5.5.1 General . 7
5.5.2 Parameters for time-history excitation . 9
5.5.3 Test directions . 9
5.5.4 Test sequence . 9
6 Qualification by combined test and numerical analysis . 10
6.1 General . 10
6.2 Dynamic and functional data . 11
6.3 Numerical analysis . 11
6.3.1 General . 11
6.3.2 Numerical analysis by the acceleration time-history method . 11
6.3.3 Modal and spectrum analysis using the required response spectrum
(RRS) . 11
6.3.4 Static coefficient analysis . 12
7 Evaluation of the seismic qualification . 12
7.1 Combination of stresses . 12
7.2 Acceptance criteria for the seismic waveform . 13
7.3 Functional evaluation of the test results . 13
7.4 Allowable stresses . 13
8 Documentation . 13
8.1 Information for seismic qualification. 13
8.2 Test report . 14
8.3 Analysis report . 14
Annex A (normative) Characterisation of the test-set . 15
Annex B (informative) Criteria for seismic adequacy of gas-insulated metal-enclosed
switchgear . 17
Bibliography . 19

Figure 1 – Required response spectrum (RRS) for qualification level moderate . 8
Figure 2 – Required response spectrum (RRS) for qualification level high . 9
Figure A.1 – Monogram for the determination of equivalent damping ratio . 16

Table 1 – Seismic qualification levels for switchgear assemblies – Horizontal severities . 6

62271-207  IEC:2012 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
______________
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –

Part 207: Seismic qualification for gas-insulated
switchgear assemblies for rated voltages above 52 kV

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62271-207 has been prepared by subcommittee 17C: High-voltage
switchgear and controlgear assemblies, of IEC technical committee 17: Switchgear and
controlgear.
This second edition of IEC 62271-207 cancels and replaces the first edition published in 2007.
It constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
– modification of the minimum voltage rating from 72,5 kV to above 52 kV;
– harmonisation of qualification procedures for GIS with IEEE 693:2005 Annex A and P by
modifying the response spectra;
– modification of the test procedures;
– addition of criteria of allowed stresses;

– 4 – 62271-207  IEC:2012
– addition of dynamic analysis CQC.
The text of this standard is based on the following documents:
FDIS Report on voting
17C/542/FDIS 17C/549/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 62271 series, under the general title High-voltage switchgear
and controlgear, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
The contents of the corrigendum of January 2013 have been included in this copy.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
62271-207  IEC:2012 – 5 –
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –

Part 207: Seismic qualification for gas-insulated
switchgear assemblies for rated voltages above 52 kV

1 Scope
This part of IEC 62271 applies to gas-insulated switchgear assemblies for alternating current
of rated voltages above 52 kV for indoor and outdoor installations, including their supporting
structure.
For switchgear devices, e.g. live tank circuit breakers, IEC/TR 62271-300 is applicable.
Guidance on interactions between the supporting structure and the soil / foundations is
provided in Annex B.
The seismic qualification of the switchgear assemblies takes into account testing of typical
switchgear assemblies combined with methods of analysis. Mutual interaction between
directly mounted auxiliary and control equipment and switchgear assemblies are covered.
The seismic qualification of switchgear assemblies is only performed upon request.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60068-2-47, Environmental testing – Part 2-47: Tests – Mounting of specimens for
vibration, impact and similar dynamic tests
IEC 60068-2-57, Environmental testing – Part 2-57: Tests – Test Ff: Vibration – Time-history
method
IEC 60068-3-3:1991, Environmental testing – Part 3: Guidance – Seismic test methods for
equipments
IEC 62271-1, High-voltage switchgear and controlgear – Part 1: Common specifications
IEC 62271-203, High-voltage switchgear and controlgear – Part 203: Gas-insulated metal-
enclosed switchgear for rated voltages above 52 kV
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60068-3-3,
IEC 62271-203 and IEC 62271-1 apply.

– 6 – 62271-207  IEC:2012
4 Seismic qualification requirements
4.1 General
The seismic qualification shall demonstrate the ability of the switchgear assemblies to
withstand seismic stress. It may be proofed by test or by a combination of test and analysis.
No failure on the enclosure and the main circuits as well as on the control and auxiliary
circuit, including the relevant supporting structures, shall occur.
For ductile material, minor permanent deformations are acceptable provided that they do not
impair the functionality of the equipment. The equipment shall properly operate after the
seismic event as defined in 7.2 and 7.3.
4.2 Qualification levels
The qualification has to be done on one of the recommended levels of Table 1. For vertical
severities the direction factor is 0,5.
No qualification is required for low seismic level as far as construction practice and seismic
construction practice comply with the state of the art.
Other qualification levels which consist in requirements from the customer that can be based
on specific investigation at site or regulations in national standard, taking into account for
example the type of soil, soil structure interaction, building response, and elevation may be
used.
Table 1 – Seismic qualification levels for switchgear assemblies –
Horizontal severities
Qualification Required response Zero period acceleration
level spectrum (RRS) (ZPA)
m/s
High Figure 2 5
Moderate Figure 1 2,5
Low --- 1
5 Test procedures for qualification
5.1 General
The test procedure for qualification of a test-set shall be in accordance with IEC 60068-3-3.
The qualification shall be carried out on a representative test-set.
NOTE 1 For GIS it is not possible to test a complete substation on a shake table, because of the size and weight.
Numerical analysis is always needed to give information about the seismic qualification.
The seismic test needs to be carried out under the rated filling pressure of the GIS.
The rated filling pressure in the GIS is required to test under realistic situations. Nevertheless
test laboratories for seismic testing need adequate safety measures. Test laboratories are
available in USA, Europe and Japan.
During the seismic testing no operation of the circuit breaker is necessary.

62271-207  IEC:2012 – 7 –
NOTE 2 The circuit breaker operates much faster than any earthquake excitation and therefore a switching
operation has no practical impact on the test result.
If the auxiliary and control equipment or other parts of the equipment are dynamically
uncoupled, they may be qualified independently.
If a test-set cannot be tested with its supporting structure (e.g., due to its size), the dynamic
contribution of the structure shall be determined by analysis and taken into account in the
test.
The time-history test method is to be preferred, since it more closely simulates actual
conditions, particularly if the behaviour of the test-set is not linear. The test method shall be in
accordance with IEC 60068-2-57.
5.2 Mounting
The test-set shall be mounted as in service including dampers (if any).
The horizontal orientation of the test-set shall be in the direction of excitation acting along its
two main orthogonal axes.
Any fixations or connections that are required only the convenience of testing must not affect
the dynamic behaviour of the test-set.
The method of mounting of the test-set shall be documented and shall include a description of
any interposing fixtures and connections. IEC 60068-2-47 provides guidance.
5.3 Measurements
Measurements shall be performed in accordance with IEC 60068-3-3 and shall include
– vibration motion of components where maximum deflections and significant relative
displacements are expected;
– strains of critical elements (e.g. bushings, flanges, enclosures and support structures).
5.4 Frequency range
Frequency range shall be 0,5 Hz to 33 Hz. The frequency range is applied to the resonant
frequency search test and the generation of artificial earthquake wave.
5.5 Test severity
5.5.1 General
The test severity shall be chosen in accordance with Clause 4.
The recommended required response spectra are given in Figures 1 and 2 for the different
seismic qualification levels. The curves relate to 2 %, 5 %, 10 % of the switchgear
assemblies. If damping factor is unknown, 2 % damping is applied.
Spectra for different damping values may be obtained by linear interpolation.

– 8 – 62271-207  IEC:2012
0,9
d = 2
0,8
0,7
d = 5
0,6
d = 10
0,5
0,4
0,3
0,2
0,1
0,2        0,4   0,6 1          2         4     6 10        20        40      100
f  (Hz)
IEC  694/12
Spectral Accelerations, S (g), for Frequencies, f (Hz):
a
S = 0,572 β f for 0,0 ≤ f ≤ 1,1
a
S = 0,625 β  for 1,1 ≤ f ≤ 8,0
a
S = (6,6 β – 2,64) / f – 0,2 β + 0,33 for 8,0 ≤ f ≤ 33
a
S = 0,25  for f > 33
a
β = (3,21 – 0,68 ln(d)) / 2,115 6, where d is the percent damping (2, 5, 10, etc.) and d ≤ 20 %
Figure 1 – Required response spectrum (RRS) for qualification level moderate

S  (g)
a
62271-207  IEC:2012 – 9 –
1,8
d = 2
1,6
1,4
d = 5
1,2
d = 10
1,0
0,8
0,6
0,4
0,2
0,1        0,2        0,4   0,6 1          2         4     6
10        20        40      100
f  (Hz)
IEC  695/12
Spectral Accelerations, S (g), for Frequencies, f (Hz):
a
S = 1,144 β f for 0,0 ≤ f ≤ 1,1
a
S = 1,25 β  for 1,1 ≤ f ≤ 8,0
a
S = (13,2 β – 5,28) / f – 0,4 β + 0,66 for 8,0 ≤ f ≤ 33
a
S = 0,5  for f > 33
a
β = (3,21 – 0,68 ln(d)) / 2,1156, where d is the percent damping (2, 5, 10, etc.) and d ≤ 20%
Figure 2 – Required response spectrum (RRS) for qualification level high
5.5.2 Parameters for time-history excitation
The total duration of the time-history shall be about 30 s, of which the strong part shall not be
less than 20 s. The duration of strong part shall start when the time-history excitation first
reaches 25 % of its maximum acceleration. It shall end when the time-history excitation drops
below 25 % of its maximum acceleration for the last time.
5.5.3 Test directions
The test directions shall be chosen according to IEC 60068-3-3.
In some cases, the effect of the vertical acceleration results in negligible stresses and the
vertical excitation may be omitted. In such cases justification for the omission of the vertical
component shall be provided.
5.5.4 Test sequence
5.5.4.1 General
The test sequence shall be as follows:
S  (g)
a
– 10 – 62271-207  IEC:2012
– functional checks before testing;
– vibration response investigation (required to determine natural frequencies and damping
ratios and/or for analysis);
– seismic qualification test;
– functional checks after testing.
5.5.4.2 Functional checks
Before and after the tests, the following operating characteristics or settings shall be recorded
or evaluated (when applicable) at the rated supply voltage and at rated filling pressure for
operation p :
rm
a) closing time;
b) opening time;
c) time spread between units of one pole;
d) time spread between poles (if multipole tested);
e) gas and/or liquid tightness;
f) resistance measurement of the main current path.
5.5.4.3 Vibration response investigation
The resonant frequency search test and the damping measurement test shall be carried out
according to IEC 60068-3-3 over the frequency range stated in 5.4.
5.5.4.4 Seismic qualification test
The test shall be performed by applying one of the procedures stated in the flow charts of
Annex A of IEC 60068-3-3:1991, depending on the test facilities.
The test shall be performed once at the level chosen in 4.2.
During the seismic test the following parameters shall be recorded:
– strains of critical elements (e.g. bushings, flanges, enclosures and support structures);
– deflection of components where significant displacements are expected;
– electrical continuity of the main circuit (if applicable);
– electrical continuity of the auxiliary and control circuit at the rated voltage;
– acceleration.
6 Qualification by combined test and numerical analysis
6.1 General
The method may be used
– to qualify switchgear assemblies already tested under different seismic conditions;
– to qualify switchgear assemblies similar to assemblies already tested but which include
modifications influencing the dynamic behaviour (e.g. change or extension of the
arrangement or in the mass of components);
– to qualify switchgear assemblies if their dynamic and functional data are known;
– to qualify switchgear assemblies which cannot be qualified by testing (e.g. because of
their size, their weight or their complexity).

62271-207  IEC:2012 – 11 –
6.2 Dynamic and functional data
Dynamic data (damping ratios, natural frequencies, stresses of critical elements as a function
of input acceleration) for analysis shall be obtained by one of the following:
a) a dynamic test of a similar test-set;
b) a dynamic test at reduced test levels;
c) determination of natural frequencies and damping ratios by other tests such as free
oscillation tests or low level excitation (see Annex A).
Functional data may be obtained from a previous test performed on a similar test-set.
6.3 Numerical analysis
6.3.1 General
The general procedure is as follows:
a) Mathematical model:
On the basis of technical information concerning the design characteristics of the
substation, a three-dimensional model of the test-set shall be created. Such a model shall
take into consideration the presence of actual compartments and of their supporting
structures, and shall have sufficient sensitivity to describe the dynamic behaviour of the
test-set in the frequency range being studied.
b) Calibration of the model:
Using experimental data stated in 6.2, the mathematical model shall be calibrated in order
to assess its dynamic characteristics. Considering the modularity of switchgear
assemblies, the mathematical model implemented and calibrated for the test-set may be
extented to a complete substation, provided that the right adaptations, related to the
structural differences existing for the different modules, are considered;
c) Response of the analysis:
The response, in the frequency range stated in 5.4, using either of the methods described
in the following subclauses has to be determined. Other methods may be used if they are
properly justified.
6.3.2 Numerical analysis by the acceleration time-history method
When the seismic analysis is carried out by the time-history method, the ground motion
acceleration time-histories shall comply with the RRS (see Table 1). Two types of
superimposition may generally be applied depending on the complexity of the analysis:
a) separate calculation of the maximum responses due to each of the three components
(x and y in the horizontal, and z in the vertical direction) of the earthquake motion. The
effects of each single horizontal direction and the vertical direction shall be combined by
2 2 1/2 2 2 1/2
taking the square root of the sum of the squares, i.e. (x + z ) and (y + z ) . The
greater of these two values is used for dimensioning the switchgear assemblies;
b) simultaneous calculation of the maximum responses assuming one of the seismic
horizontal directions and the vertical direction (x with z) and thereafter calculation with the
other horizontal direction and the vertical direction (y with z). This means that after each
time step of the calculation all values (forces, stresses) are superimposed algebraically.
The greater of these two values is used for dimensioning the switchgear assemblies.
6.3.3 Modal and spectrum analysis using the required response spectrum (RRS)
When the dynamic analysis is carried out by the response spectrum method, the following
shall apply:
– 12 – 62271-207  IEC:2012
The total response of all modes in any direction shall be determined by combining all modal
response components acting in that direction using the SRSS technique, except if the mode
frequencies differ by less than 10 % of the lower mode. Then these closely spaced modes are
added directly and these added modes and the remaining modes are added using the SRSS
method. Alternatively, the total response in any direction may be determined by applying the
technique to all modal response components acting in that direction. Sufficient modes
CQC
shall be included to ensure an adequate representation of the equipment’s dynamic response.
The acceptance criteria for establishing sufficiency in a particular direction shall be that the
cumulative participating mass of the modes considered shall be at least 90 % of the sum of
effective masses of all modes. Should the mathematical model have several resonant
frequencies above 33 Hz such that the attainment of the acceptance criteria in an orthogonal
excitation direction is impractical (as may be the case with vertical ground acceleration of
vertically stiff equipment), then the effects of the orthogonal inputs can be simulated as
follows:
a) determine the remaining effective mass in a given direction;
b) for each component, apply a static force equal to the mass of the component multiplied by
the percentage of mass missing, times the ZPA;
c) calculate stresses, reactions, and so on using these forces;
d) for each direction, combine stresses, reactions, and so on from the dynamic analysis with
those from the analysis above using the SRSS.
The maximum values in the x and z direction, and in the y and z direction, are combined by
taking the square root of the sum of the squares. The greater value of these two cases (x, z)
or (y, z) is the dimensioning factor for the switchgear assemblies.
6.3.4 Static coefficient analysis
The static coefficient analysis allows a simpler technique in return for added conservatism. No
determination of natural frequencies is made but, rather, the response spectrum of the
switchgear assemblies is assumed to be the peak of the required response spectrum at a
conservative and justifiable value of damping. The coefficient 1,5 shall be applied to static
coefficient analysis.
The seismic forces on each part of the switchgear assemblies are obtained by multiplying the
values of the mass, concentrated at its centre of gravity, and the acceleration.
The resulting force shall be distributed proportionally to the mass distribution.
The stress analysis may then be completed as stated in 7.1.
If the lowest resonant frequency of equipment is greater than 33 Hz, the equipment may be
called rigid. A static analysis may be applied using the ZPA of the response spectrum and a
static coefficient of 1,0.
7 Evaluation of the seismic qualification
7.1 Combination of stresses
The seismic stresses determined by test or analysis shall be combined algebraically with
other service loads to determine the total withstand capability of the switchgear assemblies.
The probability of an earthquake of the recommended seismic qualification level occurring
during the life-time of the switchgear assemblies is low, whilst the maximum seismic load in a
———————
Square Root of the Sum of Squares
Complete Quadratic Combination

62271-207  IEC:2012 – 13 –
natural earthquake would only occur if the switchgear assemblies were excited at their natural
frequencies with maximum acceleration. Since any excitation at natural frequencies will last
for a few seconds at most, a combination of the utmost electrical and environmental service
loads leads to unrealistic conservatism.
The following loads may be considered to occur additionally, if not otherwise specified:
– rated filling pressure for operation p ;
rm
– permanent loads (dead loads);
– thermal effects.
The combination of loads shall be effected by static analysis, applying the forces in the
direction they occur.
7.2 Acceptance criteria for the seismic waveform
The seismic simulation waveform shall produce a test response spectrum which envelopes
the required response spectrum (calculated at the same damping ratio). The peak
acceleration shall be equal to or greater than the zero period acceleration. Also, the
limitations of the test facility shall be considered to the extent permitted by 5.4. Further
acceptance criteria for the seismic waveform are given in IEC 60068-2-57.
7.3 Functional evaluation of the test results
Functional results are normally obtained only by dynamic tests. These results may be
extrapolated to obtain qualification by combination of tests and analysis. In particular,
a) the main contacts shall remain in open or closed position during the seismic test;
b) chatter of relays shall not cause the switching devices to operate;
c) chatter of relays shall not provide wrong information of the status of the switchgear
assemblies (position, alarm signals);
NOTE Normally, chatter of relays lasting less than 5 ms is considered to be acceptable.
d) resetting of monitoring equipment is considered to be acceptable if the overall
performance of the switchgear assemblies is not affected;
e) no significant change shall occur in functional check recordings at the end of the test
sequence compared with the initial ones (see 5.5.4.2);
f) no cracking or buckling shall be found on the equipment and equipment supports.
7.4 Allowable stresses
The allowable stress of enclosures shall not exceed 100 % of the materials yield stress. For
supporting structures made from ductile material, stresses greater 100 % yield stress and
plastic deformation are acceptable if it does not impact the functionality of the equipment. For
other material the allowable stress must remain within the limits for the exceptional load case
given by established standards.
NOTE For instance components made of cast epoxy resins, ceramic material or glass may be stressed up to
100 % of their type test withstand bending moment, see IEC 62155; components made of composite material may
be stressed up to their specified cantilever load (SCL) or specified mechanical load (SML), see IEC 62231 and
IEC 61462 respectively.
8 Documentation
8.1 Information for seismic qualification
The following information is required for either analysis or testing of the switchgear
assemblies:
– 14 – 62271-207  IEC:2012
a) qualification level (see 4.2);
b) details of structure and mounting (see 5.1 and 5.2);
c) number and relative position of testing axes (see 5.2);
8.2 Test report
The test report shall contain the following items:
a) switchgear assemblies identification file including structure and mounting details;
b) test dates, recordings and videos;
c) applicable standards;
d) wave form of the time history;
e) test facility
1) location,
2) test equipment description and calibration,
3) accreditation of the test laboratory;
f) test method and procedures;
g) placement of strain gauge/acceleration sensors;
h) pressure gauges;
i) test data including functional data (see 5.5.4.2 and 6.2);
j) results and conclusions;
k) approved signature and date.
8.3 Analysis report
Analysis, which is included as a proof of performance, shall have a step-by-step presentation.
The analysis report shall contain the following items:
a) general and global assumptions;
b) software package used including version number;
c) employed method (see Clause 6);
d) switchgear assemblies identification file including structure and mounting details;
e) information about required response spectra and qualification levels;
f) natural frequencies and damping ratio;
g) load combinations;
h) results and conclusions;
i) applicable standards.
62271-207  IEC:2012 – 15 –
Annex A
(normative)
Characterisation of the test-set

A.1 Low-level excitation
A.1.1 General
The method exploits the application of a low-level excitation of the test-set for the
determination of its natural response.
A.1.2 Test method
When portable exciter is used, experimenters must pay attention to the influence of the weight
of portable exciters. With the test-set mounted to simulate the recommended service
mounting conditions, a number of portable exciters are attached at the points on the test-set
which will best excite its various modes of vibration.
The data obtained from the monitoring instruments placed on the test-set may be used to
analyse its dynamic performance.
A.1.3 Analysis
The frequency responses obtained from the test are used to determine the modal frequencies
and damping ratios which shall be used in the dynamic analysis of the test-set stated in
Clause 6. This method provides a greater degree of certainty in analysis since the analytical
model is refined to reflect the measured natural frequencies and experimental damping ratios.
A.2 Free oscillation test
A.2.1 General
Free oscillation tests may be used for the identification of the dynamic behaviour of a test-set
that can be modelled as a single degree of freedom system (e.g. the bushings).
A.2.2 Natural frequency determination
To determine the natural frequency (first vibration mode) the test-set, fully arranged for
service, shall be fixed to a rigid foundation by the recommended means.
The arbitrary force magnitude shall be used when sufficient measuring deformation is
obtained.
The arbitrary force shall be applied at the vicinity of gravity centre or at any place where the
sufficient measuring deformation is obtained (such as free end of equipment).
A.2.3 Determination of the damping ratio by the logarithmic decrement method
To determine the damping ratio of the test-set, the same test may be used. A number of
oscillations shall be recorded with suitable sensitivity and accuracy. Those oscillations are
then used to determine the logarithmic decrement of the oscillations as a function of time. The
equivalent damping ratio is determined using the monogram of Figure A.1, taken from the
sequence of peaks in the recorded wave in that range of the record in which the logarithmic
decrement appears most clear.
– 16 – 62271-207  IEC:2012
Alternatively, the following equation can be used to determine the damping ratio ς:
ς=
 
 
 
2π⋅ n
1+
 
 
Y
 
ln 
 
 
Y
 n
 
where
n is the number of oscillations;
Y /Y is the peak ratio.
n 0
A.2.4 Special cases regarding the determination of natural frequencies and damping
ratios
The test-set may consist of different elements and each of these elements may be susceptible
to vibration. In this case, the tests described in A.2.2 and A.2.3 shall be carried out by
applying tensile forces to each centre of gravity. The vibrations of each of these centres of
gravity shall then be recorded together with the oscillation modes of the entire arrangement.
Especially when elements of the arrangement show similar natural frequencies, resonances
and beats in the oscillogram may further complicate the determination of damping ratios.
When that happens, a centre line may be used in order to determine the damping ratio. The
use of a centre line has been indicated in the sketch shown at the top of Figure A.1.

Y Centre line
Y centre line
Y Y
00 n
n
n = 0,5
n =n = 0. 0.55
n = 1
nn = 1 = 1
n = 2
nn = 2 = 2
n = 5
nn = 5 = 5
n = 10
n =n = 10 10
Y Y
0 n
00 nn
n = 20
n =n = 20 20
n = 5
0,1
1 0,8 0,6 0,4 0,2 0
Peak ratio Y /Y
n 0
IEC  696/12
Figure A.1 – Monogram for the determination of equivalent damping ratio
Damping  (%)
62271-207  IEC:2012 – 17 –
Annex B
(informative)
Criteria for seismic adequacy of gas-insulated
metal-enclosed switchgear
B.1 General
By the regulations of this standard the seismic qualification of gas-insulated switchgear
assemblies can be proved. Generally those assemblies are an integrated part of an
environment to which they have effect and, in reverse, from which they are affected. The
following clauses therefore are indicating how influences from soil, foundations and buildings
should be regarded. Recommendations are made how to treat anchorage and bracings on
switchgear structures and how to deal with the interconnection of adjacent equipment.
B.2 Soil-structure interaction
Soil-structure interaction occurs when the soil deforms due to the loading to the soil from the
equipment-foundation system responding to an earthquake. The soil-foundation system may
become a significant component in the dynamic properties of the equipment-foundations-soil
system, which may increase or decrease the motion the equipment experiences during an
earthquake. Soil-structure interaction occurs with certain combinations of equipment mass
and size, foundation type and configuration, and soil properties. Transformers and liquid-filled
reactors are especially susceptible to soil-structure interaction. The rocking motion of
transformers can cause increased acceleration and displacement of components high in the
equipment, such as bushings and lightning arresters. Soil-structure interaction is generally not
considered in the design of substation equipment, unless specifically requested by the user. It
increases where there are high accelerations, heavy equipment, high centres of gravity, or
soft sites.
B.3 Elevation factor
The amplification of the ground acceleration resulting from the behaviour of buildings and
structures shall be regarded. Where no infor
...
