IEC 61196-1-110:2016
(Main)Coaxial communication cables - Part 1-110: Electrical test methods - Test for continuity
Coaxial communication cables - Part 1-110: Electrical test methods - Test for continuity
IEC 61196-1-110:2016 specifies the test for electrical continuity of coaxial cables used in analogue and digital communication systems.
This publication is to be read in conjunction with IEC 61196-1:2005.
General Information
- Status
- Published
- Publication Date
- 04-Jan-2016
- Technical Committee
- SC 46A - Coaxial cables
- Drafting Committee
- WG 3 - TC 46/SC 46A/WG 3
- Current Stage
- PPUB - Publication issued
- Start Date
- 05-Jan-2016
- Completion Date
- 31-Jan-2016
Relations
- Effective Date
- 10-Feb-2026
- Effective Date
- 10-Feb-2026
Overview
IEC 61196-1-110:2016 is an international standard developed by the International Electrotechnical Commission (IEC) that specifies electrical continuity test methods for coaxial communication cables. Specifically, this standard addresses the procedures to verify the continuity of both the inner and outer conductors of coaxial cables used in analogue and digital communication systems. It is part of the broader IEC 61196 series on coaxial communication cables and should be used in conjunction with IEC 61196-1:2005, which provides the generic specifications, definitions, and requirements.
This standard ensures the reliability and performance of coaxial cables by detecting any breaks or discontinuities in the conductors, thereby guaranteeing cable integrity for seamless communication.
Key Topics
Scope and Application
IEC 61196-1-110 applies to coaxial cables utilized in various communication technologies. The standard sets forth a test for electrical continuity, ensuring both the inner conductor and the outer shield conductor are intact.Test Procedure
- The continuity test is performed using an appropriate DC voltage source without exceeding the cable’s voltage rating.
- The inner and outer conductors are tested sequentially. One end of the conductor is connected to a DC source, while the other end is connected to an indicator device such as a buzzer, lamp, or ohmmeter.
- Continuity is confirmed when an indicator activates (e.g., buzzer sounds or light illuminates).
- Each length of the completed cable must be tested to ensure comprehensive verification.
Test Reporting
The standard requires documentation of:- Method used for continuity testing
- Applied test voltage
- Pass/fail results confirming conductor integrity
Requirements
No conductor discontinuities are permitted. Any breaks or faults must be identified and addressed to meet quality standards.
Applications
IEC 61196-1-110:2016 is essential for manufacturers, quality assurance professionals, and testing laboratories involved with coaxial communication cables. Its practical implementation helps ensure:
Reliable Signal Transmission
By confirming the electrical continuity of coaxial cable conductors, this test minimizes signal loss and potential communication failures.Production Quality Control
Cable manufacturers apply this standard test during and after production to detect faults early and maintain consistent product quality.Maintenance and Troubleshooting
Service providers and technicians use continuity tests in the field to quickly identify cable failures and reduce downtime in communication infrastructures.Compliance and Certification
Adhering to IEC 61196-1-110 supports compliance with international quality standards, facilitating market acceptance and certification of coaxial cables.
Related Standards
IEC 61196-1:2005
This generic specification standard outlines definitions, general requirements, and construction guidelines for coaxial communication cables. IEC 61196-1-110 is designed to be used alongside this specification.Other Parts of IEC 61196 Series
The IEC 61196 series covers various aspects of coaxial cables, including mechanical tests, environmental tests, and performance criteria, providing comprehensive regulatory guidance.IEEE and ISO Standards on Cable Testing
In contexts involving broader electrical and telecommunication standards, IEC 61196-1-110 complements other tests focusing on impedance, attenuation, and shielding effectiveness.
Keywords: IEC 61196-1-110, coaxial communication cables, electrical continuity test, coax cable testing, communication cable standards, continuity test procedure, IEC standards coaxial cables, quality control for coaxial cables, electrical test methods, digital and analogue communication cables.
Get Certified
Connect with accredited certification bodies for this standard
TL 9000 QuEST Forum
Telecommunications quality management system.
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
Sponsored listings
Frequently Asked Questions
IEC 61196-1-110:2016 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Coaxial communication cables - Part 1-110: Electrical test methods - Test for continuity". This standard covers: IEC 61196-1-110:2016 specifies the test for electrical continuity of coaxial cables used in analogue and digital communication systems. This publication is to be read in conjunction with IEC 61196-1:2005.
IEC 61196-1-110:2016 specifies the test for electrical continuity of coaxial cables used in analogue and digital communication systems. This publication is to be read in conjunction with IEC 61196-1:2005.
IEC 61196-1-110:2016 is classified under the following ICS (International Classification for Standards) categories: 33.120.10 - Coaxial cables. Waveguides. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 61196-1-110:2016 has the following relationships with other standards: It is inter standard links to EN 60966-2-5:2017, EN 60966-2-6:2017. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 61196-1-110:2016 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
IEC 61196-1-110 ®
Edition 1.0 2016-01
INTERNATIONAL
STANDARD
Coaxial communication cables –
Part 1-110: Electrical test methods – Test for continuity
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC 61196-1-110 ®
Edition 1.0 2016-01
INTERNATIONAL
STANDARD
Coaxial communication cables –
Part 1-110: Electrical test methods – Test for continuity
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.120.10 ISBN 978-2-8322-3089-3
– 2 – IEC 61196-1-110:2016 © IEC 2016

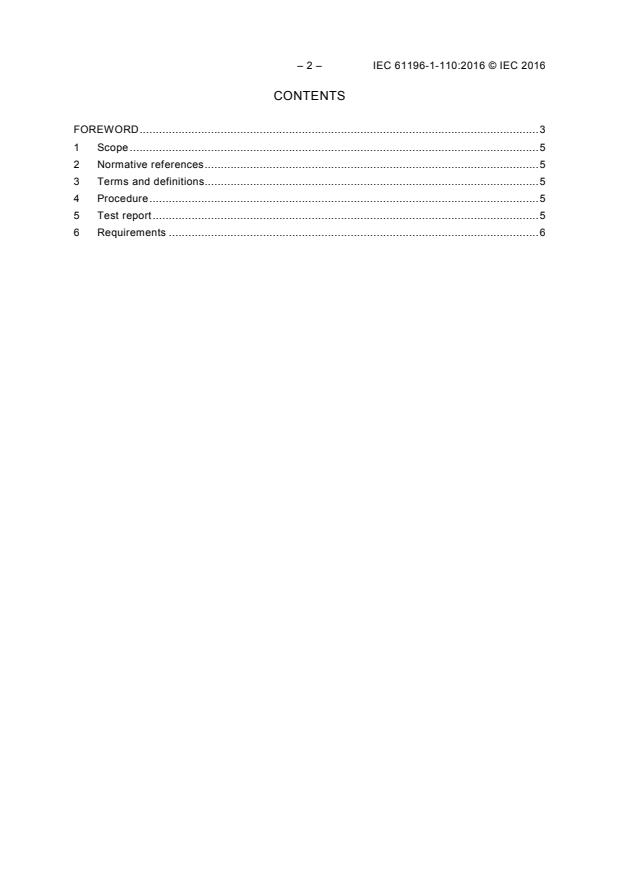

CONTENTS
