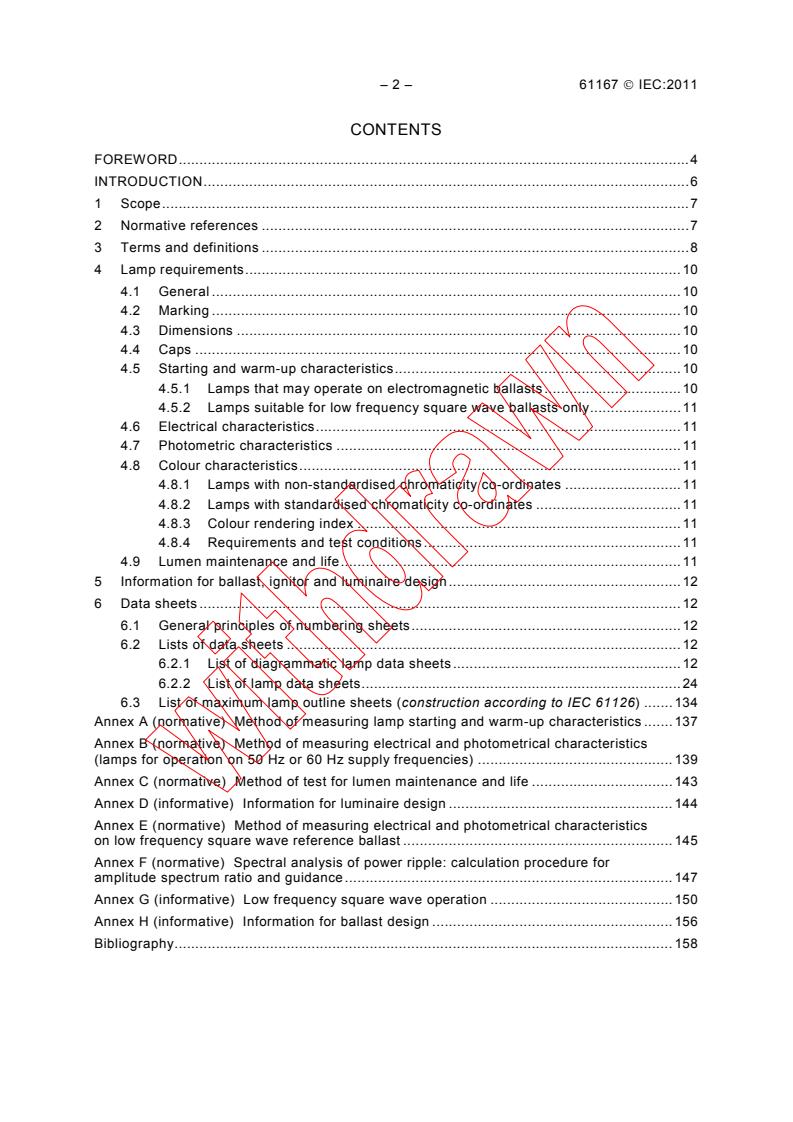

– 2 – 61167  IEC:2011
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Lamp requirements . 10
4.1 General . 10
4.2 Marking . 10
4.3 Dimensions . 10
4.4 Caps . 10
4.5 Starting and warm-up characteristics . 10
4.5.1 Lamps that may operate on electromagnetic ballasts . 10
4.5.2 Lamps suitable for low frequency square wave ballasts only . 11
4.6 Electrical characteristics . 11
4.7 Photometric characteristics . 11
4.8 Colour characteristics . 11
4.8.1 Lamps with non-standardised chromaticity co-ordinates . 11
4.8.2 Lamps with standardised chromaticity co-ordinates . 11
4.8.3 Colour rendering index . 11
4.8.4 Requirements and test conditions . 11
4.9 Lumen maintenance and life . 11
5 Information for ballast, ignitor and luminaire design . 12
6 Data sheets . 12
6.1 General principles of numbering sheets . 12
6.2 Lists of data sheets . 12
6.2.1 List of diagrammatic lamp data sheets . 12
6.2.2 List of lamp data sheets . 24
6.3 List of maximum lamp outline sheets (construction according to IEC 61126) . 134
Annex A (normative) Method of measuring lamp starting and warm-up characteristics . 137
Annex B (normative) Method of measuring electrical and photometrical characteristics
(lamps for operation on 50 Hz or 60 Hz supply frequencies) . 139
Annex C (normative) Method of test for lumen maintenance and life . 143
Annex D (informative) Information for luminaire design . 144
Annex E (normative) Method of measuring electrical and photometrical characteristics
on low frequency square wave reference ballast . 145
Annex F (normative) Spectral analysis of power ripple: calculation procedure for
amplitude spectrum ratio and guidance . 147
Annex G (informative) Low frequency square wave operation . 150
Annex H (informative) Information for ballast design . 156
Bibliography . 158

61167  IEC:2011 – 3 –
Figure A.1 – Circuit diagram for measurement of lamp starting and warm-up
characteristics . 138
Figure B.1 – Circuit diagram for measurement of lamp characteristics . 141
Figure B.2 – Luminaire simulator for use with double-capped lamps . 142
Figure E.1 – Circuit for lamp measurement under reference conditions . 146
Figure G.1 – DC current component . 153
Figure G.2 – HF ripple and fast Fourier transformation (power curve) . 154
Figure G.3 – Measurement of PCR during run-up and steady state . 154
Figure G.4 – Example of a measurement circuit of lamp potential against earth . 155
Figure G.5 – Commutation time, deviating waveform . 155
Figure H.1 – Example 1 to ignition scheme according to option (1) (see Annex G and
lamp data sheets) . 156
Figure H.2 – Example 2 to ignition scheme according to option (1) (see Annex G and
lamp data sheets) . 156
Figure H.3 – Example to ignition scheme according to option (2) (see Annex G and
lamp data sheets) . 157

Table 1 – List of diagrammatic lamp data sheets. 12
Table 2 – List of lamp data sheets . 24
Table 3 – List of maximum lamp outline sheets . 134
Table B.1 – Correlated colour temperature and chromaticity co-ordinates x and y . 140
Table E.1 – Characteristics of the reference ballast . 145
Table F.1 – Settings of the analysing scope . 148
Table G.1 – Requirements for square wave operation . 150

– 4 – 61167  IEC:2011
INTERNATIONAL ELECTROTECHNICAL COMMISSION
______________
METAL HALIDE LAMPS –
PERFORMANCE SPECIFICATION
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
International Standard IEC 61167 has been prepared by subcommittee 34A: Lamps, of IEC
technical committee 34: Lamps and related equipment.
This second edition replaces the first edition published in 1992 and its Amendments 1 (1995),
2 (1997) and 3 (1998). This second edition constitutes a technical revision.
st
Compared to the 1 edition, measurement methods for electrical and photometric parameters
are included and safety related requirements are deleted as far as they are now covered by
IEC 62035. Modern kind of ignition (e.g. aggregated pulse widths) and operation (low
frequency square wave) is added with extensive description of methods of calculation for
peak current ratio. At the same time, a review was made on lamps in the market which are fit
for standardising, leading to a big number of new lamp data sheets in the range of 20 W up to
250 W lamp power.
61167  IEC:2011 – 5 –
The text of this standard is based on the following documents:
FDIS Report on voting
34A/1442/FDIS 34A/1458/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
NOTE In this standard, the following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type.
– Explanatory matter: in smaller roman type.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – 61167  IEC:2011
INTRODUCTION
Since IEC 62035 Discharge lamps (excluding fluorescent lamps) – Safety specifications was
published in 1999, the related lamp specific performance standards like IEC 61167 needed to
be reviewed in an editorial action, splitting performance and safety requirements, but also to
include all items in abeyance, stored for this occasion. The separation has already been
carried out with other HID lamps. So, in some instances, the “pilot” text of IEC 60188 has
been used. Moreover, the measurement part has been introduced with the assistance of
IEC 60188 and IEC 60081.
It may also be noted that the colour coordinates for CCT 3000 K and 4200 K were adjusted to
a point two units below Planck in order to take account of the life time shift to higher y-values.
Apart from these basic changes which were needed for long time, the new technique of low
frequency square wave (LFSW) operation was implemented. This has led to additional pages
to the existing lamp data sheets and several annexes describing and specifying the
requirements. Further, detailed requirements and measurement methods for the ignition
(break down/take-over/run-up) were introduced. Intense discussions took place on
measurement and specification of the peak-current ratio during ignition and steady state.
Workshops were held in order to come to a broad worldwide acceptance of the concepts. The
Workshops were open for experts from lamp and control gear side in order to accommodate
the interface between control gear and lamp to these requirements.
IEC SC34A MT PRESCO took the opportunity to add further lamp types which were
considered of having market relevance and needing normative support.
The International Electrotechnical Commission (IEC) draws attention to the fact that it is
claimed that compliance with this document may involve the use of patents concerning the
lamp given in standard sheets 1039-1, 1041-1, 1080-1 and 1082-1.
IEC takes no position concerning the evidence, validity and scope of this patent right.
The holder of this patent has assured the IEC that he is willing to negotiate licences under
reasonable and non-discriminatory terms and conditions with applicants throughout the world.
In this respect, the statement of the holder of these patents is registered with the IEC.
Information may be obtained from:
Panasonic Corporation
1-1 Saiwai-cho,
Takatsuki City,
Osaka 569-1193,
Japan
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights other than those identified above. IEC shall not be held responsible for
identifying any or all such patent rights.
ISO (www.iso.org/patents) and IEC (http://www.iec.ch/tctools/patent_decl.htm) maintain on-
line data bases of patents relevant to their standards. Users are encouraged to consult the
data bases for the most up to date information concerning patents.

61167  IEC:2011 – 7 –
METAL HALIDE LAMPS –
PERFORMANCE SPECIFICATION
1 Scope
This International Standard specifies the performance requirements for metal halide lamps for
general lighting purposes.
For some of the requirements given in this standard, reference is made to “the relevant lamp
data sheet”. For some lamps, these data sheets are contained in this standard. For other
lamps, falling under the scope of this standard, the relevant data are supplied by the lamp
manufacturer or responsible vendor.
The requirements of this standard relate only to type testing.
NOTE The requirements and tolerances permitted by this standard correspond to testing of a type test sample
submitted by the manufacturer for that purpose. In principle this type test sample should consist of units having
characteristics typical of the manufacturer’s production and being as close to the production centre point values as
possible.
It may be expected with the tolerances given in the standard that product manufactured in accordance with the type
test sample will comply with the standard for the majority of production. Due to the production spread however, it is
inevitable that there will sometimes be products outside the specified tolerances. For guidance on sampling plans
and procedures for inspection by attributes, see IEC 60410.
2 Normative references
The following reference documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the reference document (including any amendments) applies.
IEC 60050-845:1987, International Electrotechnical Vocabulary – Chapter 845: Lighting
IEC 60061-1, Lamp caps and holders together with gauges for the control of
interchangeability and safety – Part 1: Lamp caps
IEC 60598-1, Luminaires – General requirements and tests
IEC 60923, Auxiliaries for lamps – Ballasts for discharge lamps (excluding tubular fluorescent
lamps) – Performance requirements
IEC 60927, Auxiliaries for lamps – Starting devices (other than glow starters) – Performance
requirements
IEC/TR 61341, Method of measurement of centre beam intensity and beam angle(s) of
reflector lamps
IEC 62035, Discharge lamps (excluding fluorescent lamps) – Safety specifications
IEC 62471, Photobiological safety of lamp and lamp systems
CIE 84, The measurement of luminous flux

– 8 – 61167  IEC:2011
3 Terms and definitions
For the purposes of this document, the terms and definitions in IEC 60050-845 and the
following apply.
3.1
metal halide lamp
high-intensity discharge lamp in which the major portion of the light is produced by the
radiation of a mixture of metallic vapour, metal halides and the products issued from the
dissociation of metal halides
NOTE The definition covers clear and coated lamps.
[IEC 60050-845:1987, 845-07-25, modified]
3.2
nominal value
approximate quantity value used to designate or identify a lamp
[IEC 60081:1997, Definition 1.4.3, Amendment 2:2003]
3.3
rated value
quantity value for a characteristic of a lamp for specified operating conditions
The value and the conditions are specified in this standard, or assigned by the manufacturer
or responsible vendor.
[IEC 60081:1997, Definition 1.4.4, Amendment 2:2003]
3.4
lumen maintenance
ratio of the luminous flux of a lamp at a given time in its life to the initial reading of its
luminous flux, the lamp being operated under specific conditions
NOTE The ratio is generally expressed as a percentage.
3.5
initial readings
starting characteristics of a lamp, measured before ageing, and the electrical and photometric
characteristics, measured at the end of the 100 h ageing period
3.6
reference ballast
special ballast complying with the requirements of IEC 60923, designed for the purpose of
providing comparison standards for use in testing ballasts, for the selection of reference
lamps and for testing regular production lamps under standardised conditions
NOTE It is essentially characterised by the fact that, at its rated frequency, it has a stable voltage/current ratio
which is relatively uninfluenced by variations in current, temperature and electromagnetic surroundings, as outlined
in the relevant ballast standard.
3.7
calibration current
value of the current on which the calibration and control of the reference ballast are based

61167  IEC:2011 – 9 –
3.8
type test
test or a series of tests made on a type test sample for the purpose of checking compliance of
the design of a given product with the requirements of the relevant standard
[IEC 60081:1997, Definition 1.4.10, Amendment 1:2000]
3.9
specific effective radiant UV power
effective power of the UV radiation of a lamp related to its luminous flux (Unit: mW/klm)
NOTE The effective power of the UV radiation is obtained by weighting the spectral power distribution of the lamp
with the UV hazard function S (Λ). Information about the relevant UV hazard function is given in IEC 62471. It
UV
only relates to possible hazards regarding UV exposure of human beings. It does not deal with the possible
influence of optical radiation on materials, like mechanical damage or discoloration.
3.10
type test sample
sample consisting of one or more similar units submitted by the manufacturer or the
responsible vendor for the purpose of a type test
3.11
inrush current
short term high lamp current, totally or partially rectified, by the asymmetrical electrode
heating for some seconds during lamp ignition
3.12
warm-up current
increased lamp current after inrush phase which is due to the low initial lamp voltage
NOTE It is in the limits of double rated lamp current down to a value corresponding to highest allowed lamp
voltage.
3.13
run-up time
after switching on a 100 h aged lamp at rated supply voltage, maximum time allowed to reach
90 % of the declared luminous flux
3.14
take-over
time between lamp being able to conduct current until electrodes are at thermionic emission
NOTE At the end of the take-over phase, the lamp power factor is above 0,9 and the lamp voltage stabilises and
ramps up from about 20 V rms.
3.15
peak current ratio
PCR
ratio between the peak currents and the r.m.s. currents
NOTE For measurement procedure, see Annex G.
3.16
typical lamp voltage, typical lamp current
steady state lamp voltage and current expected for a lamp operating on low frequency square
wave ballast.
NOTE Typical lamp current is derived from the lamp rated wattage and typical lamp voltage. In practice, lamps for
use on low frequency square wave ballasts may be targeted to a different voltage within the allowed range for best
performance, and the lamp current will be different accordingly. Typical lamp voltages and currents have been
used as a basis for assigning currents at take-over and run-up.

– 10 – 61167  IEC:2011
3.17
commutation time
(also referred to as fall and rise time) transition time of lamp current at half cycle polarity
reversals
It is measured using lamp current waveforms between 90 % of the r.m.s. value of one half
cycle to 90 % of the r.m.s. value of the opposite half cycle.
4 Lamp requirements
4.1 General
A lamp, on which compliance with this standard is claimed shall comply with the requirements
of IEC 62035.
Some lamps are specified on the data sheet or declared by the manufacturer as suitable for
operation on low frequency square wave ballasts only. For these lamps, separate
requirements are indicated where appropriate.
A lamp shall be so designed that its performance is reliable in normal and accepted use. In
general, this can be achieved by satisfying the requirements of the following subclauses.
The requirements given apply to 95 % of production.
4.2 Marking
A suitable advice on the colour appearance is required. It may preferably take the form of
ILCOS (see IEC 61231). Other options are the manufacturer’s code or the correlated colour
temperature. The information may be given either on the lamp or in the supplier’s catalogue.
4.3 Dimensions
The dimensions of a lamp shall comply with the values specified on the relevant lamp data
sheet.
4.4 Caps
The cap on a finished lamp shall comply with IEC 60061-1.
4.5 Starting and warm-up characteristics
4.5.1 Lamps that may operate on electromagnetic ballasts
A lamp shall start fully within the maximum run-up time specified on the relevant lamp data
sheet and remain alight. Conditions and method of test are given in Annex A.
The maximum inrush current as given on the lamp data sheet shall not be exceeded. For the
test circuit and procedure, see IEC 60923.
The lamp warm-up current shall be between the minimum and maximum values as given on
the lamp data sheet. Conditions and method of test are given in Annex A.
NOTE The maximum inrush current (peak) restricts the value of the current during rectification in the starting
phase in order to prevent performance damages of ballast and lamp (overheating and melting of the electrodes).
The minimum warm-up current is required in order to safeguard the transition from the glow phase to the arc
phase.
61167  IEC:2011 – 11 –
4.5.2 Lamps suitable for low frequency square wave ballasts only
A lamp shall start and run up fully within the time specified on the lamp data sheet, applying
the method of test given in E.3.1.
4.6 Electrical characteristics
The lamp electrical characteristics shall comply with the values given in the relevant lamp
data sheet. Conditions and method of test are given in Annex B.
For lamps suitable for operation on low frequency square wave ballasts only, conditions and
method of test are given in Annex E. Unless otherwise specified on the lamp data sheet the
lamp voltage shall comply with the limits of 75…110 V.
NOTE For these lamps the power control of the ballast allows more freedom in the choice of lamp voltage to
optimise the light technical properties of the lamp.
4.7 Photometric characteristics
The photometric requirements are as follows.
a) The initial reading of the luminous flux shall be not less than 90 % of the rated value.
b) The initial reading of the centre beam intensity of a reflector lamp shall be not less than
75 % of the rated value.
c) The initial beam angle of a reflector lamp shall be within ±25 % of the rated value for all
beam angles.
d) Conditions and method of test are given in Annex B.
For lamps suitable for operation on low frequency square wave ballasts only, conditions and
method of test are given in Annex E.
4.8 Colour characteristics
4.8.1 Lamps with non-standardised chromaticity co-ordinates
The rated values and tolerance areas shall be assigned by the manufacturer or responsible
vendor.
4.8.2 Lamps with standardised chromaticity co-ordinates
The correlated colour temperature and chromaticity co-ordinates applicable to a certain lamp
are given on the relevant lamp data sheet. A collation is given in Table B.1.
4.8.3 Colour rendering index
The initial reading of the general colour rendering index (Ra) of a lamp shall not be less than
the nominal value decreased by 3.
4.8.4 Requirements and test conditions
Under consideration.
4.9 Lumen maintenance and life
Lumen maintenance and life shall comply with the data provided by the lamp manufacturer.
For methods of test, see Annex C.

– 12 – 61167  IEC:2011
5 Information for ballast, ignitor and luminaire design
In order to ensure reliable starting and operating conditions, ballasts, ignitors and luminaires
should meet the requirements specified on the relevant lamp data sheet. Additional
information for luminaire design, see Annex D.
IEC 60682 provides information for the measurement of the pinch temperature. Advice
regarding the measurement of the bulb temperature can be taken from IEC 60357, Annex D.
These measurements should be taken account of for performance criteria of the lamps.
For lamps with nominal wattage 35 W/70 W/150 W, rated wattage for electronic ballast design
is 39 W/73 W/147 W.
6 Data sheets
6.1 General principles of numbering sheets
The first number represents the number of this standard: 61167, followed by the letters “IEC”.
The second number represents the data sheet number.
The third number represents the edition of the page of the data sheet. In cases where a data
sheet has more than one page, it is possible for the pages to have different edition numbers,
with the data sheet number remaining the same.
6.2 Lists of data sheets
6.2.1 List of diagrammatic lamp data sheets
Table 1 represents the listing of diagrammatic data sheets, corresponding to lamp data
sheets.
Table 1 – List of diagrammatic lamp data sheets
Sheet number 61167-IEC- Description Cap
0010 Single-capped E27 and E40, tubular
0015 Single-capped E27 and E40, elliptical
0020 Single-capped GU6.5
0025 Single-capped G8.5
0030 Single-capped GU8.5
0035 Single-capped G12
0210 Reflector E27
0215 Reflector GX8.5
0220 Reflector GX10
0110 Double-capped RX7s
0120 Double-capped Fc2
61167  IEC:2011 – 13 –
DIAGRAMMATIC DATA SHEET
FOR LOCATION OF SINGLE-CAPPED
Page 1
METAL HALIDE LAMP DIMENSIONS
E27/E40 cap*, tubular bulb
Reference plane is the bottom of the lamp.

A
D
B
C
IEC  540/11
Key
A Diameter
B Distance from reference plane to bulb top = total lamp length
C Light centre length
D Arc length
* See sheet 7004-21 (E27) or 7004-24 (E40) of IEC 60061-1
Publication CEI 61167
Texte français au
verso 61167-IEC-0010-1
IEC Publication 61167
French text overleaf
– 14 – 61167  IEC:2011
DIAGRAMMATIC DATA SHEET
FOR LOCATION OF SINGLE-CAPPED
Page 1
METAL HALIDE LAMP DIMENSIONS
E27/E40 cap*, elliptical bulb
Reference plane is the bottom of the lamp.

A
D
B
C
IEC  541/11
Key
A Diameter
B Distance from reference plane to bulb top = total lamp length
C Light centre length
D Arc length
* See sheet 7004-21-9 (E27) or 7004-24-6 (E40) of IEC 60061-1
Publication CEI 61167
Texte français au
verso
61167-IEC-0015-1
IEC Publication 61167
French text overleaf
61167  IEC:2011 – 15 –
DIAGRAMMATIC DATA SHEET
FOR LOCATION OF SINGLE-CAPPED
Page 1
METAL HALIDE LAMP DIMENSIONS
GU6.5 cap*
Reference plane is the lower cap rim.

A
B
D
C
IEC  542/11
Key
A Diameter
B Distance from reference plane to bulb top
C Light centre length
D Arc length
* See sheet 7004-152 of IEC 60061-1
Publication CEI 61167
Texte français au
verso
61167-IEC-0020-1
IEC Publication 61167
French text overleaf
– 16 – 61167  IEC:2011
DIAGRAMMATIC DATA SHEET
FOR LOCATION OF SINGLE-CAPPED
Page 1
METAL HALIDE LAMP DIMENSIONS
G8.5 cap*
Reference plane is defined by the pin ends.

AA
D
B
C
IEC  543/11
Key
A Diameter
B Distance from reference plane to bulb top
C Light centre length
D Arc length
* See sheet 7004-122 of IEC 60061-1
Publication CEI 61167
Texte français au
verso 61167-IEC-0025-1
IEC Publication 61167
French text overleaf
B
D
C
61167  IEC:2011 – 17 –
DIAGRAMMATIC DATA SHEET
FOR LOCATION OF SINGLE-CAPPED
Page 1
METAL HALIDE LAMP DIMENSIONS
GU8.5 cap*
Reference plane is the lower cap rim.

A
A
D
D
B
B
C
C
IEC  544/11
Key
A Diameter
B Distance from reference plane to bulb top
C Light centre length
D Arc length
* See sheet 7004-xxx of IEC 60061-1
Publication CEI 61167
Texte français au
verso 61167-IEC-0030-1
IEC Publication 61167
French text overleaf
– 18 – 61167  IEC:2011
DIAGRAMMATIC DATA SHEET
FOR LOCATION OF SINGLE-CAPPED
Page 1
METAL HALIDE LAMP DIMENSIONS
G12 cap*
Reference plane is the lower cap rim.

A
A
D
D
B
B
C
C
IEC  546/11
IEC  545/11
(a) quartz arc tube, transversal arc (b) ceramic arc tube, axial arc

Key
A Diameter
B Distance from reference plane to bulb top
C Light centre length
D Arc length**
* See sheet 7004-63 of IEC 60061-1
** The arc is transversal (left hand drawing), except for the lamps referred to in a footnote in the data sheets where it is axial
(right hand drawing).
Publication CEI 61167
Texte français au
verso 61167-IEC-0035-1
IEC Publication 61167
French text overleaf
61167  IEC:2011 – 19 –
DIAGRAMMATIC DATA SHEET
FOR LOCATION OF DOUBLE-CAPPED
Page 1
METAL HALIDE LAMP DIMENSIONS
RX7s and RX7s-24 cap*
≤ 4
C
A
D
Z
B
IEC  547/11
Key
A Diameter
B Insertion length
C Light centre length
D Arc length
Z Contact-to-contact length
NOTE For the place of the exhaust tip, see B.1.1.
* See sheet 7004-92A of IEC 60061-1
Publication CEI 61167
Texte français au
verso 61167-IEC-0110-1
IEC Publication 61167
French text overleaf
– 20 – 61167  IEC:2011
DIAGRAMMATIC DATA SHEET
FOR LOCATION OF DOUBLE-CAPPED
Page 1
METAL HALIDE LAMP DIMENSIONS
Fc2 cap*
≤ 4
C
A
D
Z
IEC  548/11
Key
A Diameter
C Light centre length
D Arc length
Z Distance between the two cap reference planes of the lamp

NOTE For the place of the exhaust tip see B.1.1.
* See sheet 7004-114 of IEC 60061-1
Publication CEI 61167
Texte français au
verso 61167-IEC-0120-1
IEC Publication 61167
French text overleaf
61167  IEC:2011 – 21 –
DIAGRAMMATIC DATA SHEET
FOR LOCATION OF REFLECTOR
Page 1
METAL HALIDE LAMP DIMENSIONS
E27 cap*
D
L
IEC  549/11
The dot (arrow) marks the measuring point for cap contact temperature.

Key
D Diameter
L Overall length
* See sheet 7004-21 of IEC 60061-1
Publication CEI 61167
Texte français au
verso
61167-IEC-0210-1
IEC Publication 61167
French text overleaf
– 22 – 61167  IEC:2011
DIAGRAMMATIC DATA SHEET
FOR LOCATION OF REFLECTOR
Page 1
METAL HALIDE LAMP DIMENSIONS
GX8.5 cap*, 20 W, 35 W and 70 W
IEC  550/11
Key
(1) Metal reflector
(2) Anti-glare screen
(3) Cap GX8.5
Tp1, Tp2 and Tp3: temperature measurement points refer to the information for
luminaire design on the relevant lamp data sheet

* See sheet 7004-143 of IEC 60061-1
Publication CEI 61167
Texte français au
verso
61167-IEC-0215-1
IEC Publication 61167
French text overleaf
61167  IEC:2011 – 23 –
DIAGRAMMATIC DATA SHEET
FOR LOCATION OF REFLECTOR
Page 1
METAL HALIDE LAMP DIMENSIONS
GX10 cap*, 20 W and 35 W
NOTE 4
B
GX10 Base Mirror
Integral front cover
DB D
N
DA
D
A
Surface Y
α
V
Enlarged view of rim
IEC  551/11
Key
D Lamp diameter
N Length from cap reference plane (cap without pins) to reflector rim
V is measured at D
A
(4) This surface is to be defined by the annulus formed by the difference
between diameters D and DB. It can be used to position the lamp and when so
used should mate firmly with any rim-centring device to obtain proper optical
alignment.
* See sheet 7004-144 of IEC 60061-1
Publication CEI 61167
Texte français au
verso
61167-IEC-0220-1
IEC Publication 61167
French text overleaf
– 24 – 61167  IEC:2011
6.2.2 List of lamp data sheets
Table 2 represents the listing of lamp data sheets in the order of
– type (single-capped, reflector, double-capped);
– lamp power;
– details of cap.
Table 2 – List of lamp data sheets
Correlated
Nominal
Sheet number colour
wattage
Description Cap Operation
temperature
61167-IEC-
(W)
(K)
1020 Single-capped 20 GU6.5 3000 LFSW
1025 Single-capped 20 G8.5 3000 LFSW
1035 Single-capped 35 G8.5 3000 50/60 Hz/LFSW
1037 Single-capped 35 G8.5 4200 50/60 Hz/LFSW
1039 Single-capped 35 GU8.5 (protected) 3000 LFSW
1041 Single-capped 35 GU8.5 (protected) 4200 LFSW
1043 Single-capped 35 G12 3000 50/60 Hz/LFSW
1045 Single-capped 35 G12 4200 50/60 Hz/LFSW
1070 Single-capped, tubular 70 E27 3000 50/60 Hz/LFSW
1072 Single-capped, elliptical 70 E27 3000 50/60 Hz/LFSW
1074 Single-capped, elliptical 70 E27 4200 50/60 Hz/LFSW
1076 Single-capped 70 G8.5 3000 50/60 Hz/LFSW
1078 Single-capped 70 G8.5 4200 50/60 Hz/LFSW
1080 Single-capped 70 GU8.5 (protected) 3000 LFSW
1082 Single-capped 70 GU8.5 (protected) 4200 LFSW
1084 Single-capped 70 G12 3000 50/60 Hz/LFSW
1086 Single-capped 70 G12 4200 50/60 Hz/LFSW
1150 Single-capped, elliptical 150 E27 3000 50/60 Hz/LFSW
1152 Single-capped, elliptical 150 E27 4200 50/60 Hz/LFSW
1154 Single-capped, tubular 150 E40 3000 50/60 Hz/LFSW
1156 Single-capped 150 G12 3000 50/60 Hz/LFSW
1158 Single-capped 150 G12 4200 50/60 Hz/LFSW
2020 Reflector PAR30 20 E27 3000 LFSW
2022 Reflector R111 20 GX8.5 3000 LFSW
2024 Reflector MR16 20 GX10 3000 LFSW
2035 Reflector PAR20 35 E27 3000 50/60 Hz/LFSW
2037 Reflector PAR30 35 E27 3000 50/60 Hz/LFSW
2039 Reflector PAR20 35 E27 4200 50/60 Hz/LFSW
2041 Reflector R111 35 GX8.5 3000 50/60 Hz/LFSW
2043 Reflector R111 35 GX8.5 4200 50/60 Hz/LFSW
2045 Reflector MR16 35 GX10 3000 LFSW
2070 Reflector PAR30 70 E27 3000 50/60 Hz/LFSW
2072 Reflector PAR30 70 E27 4200 50/60 Hz/LFSW
2074 Reflector R111 70 GX8.5 3000 50/60 Hz/LFSW
2076 Reflector R111 70 GX8.5 4200 50/60 Hz/LFSW
3070 Double-capped 70 RX7s 3000 50/60 Hz/LFSW
3075 Double-capped 70 RX7s 4200 50/60 Hz/LFSW
3150 Double-capped 150 RX7s-24 3000 50/60 Hz/LFSW
3155 Double-capped 150 RX7s-24 4200 50/60 Hz/LFSW
3250 Double-capped 250 Fc2 4200 50/60 Hz

61167  IEC:2011 – 25 –
METAL HALIDE LAMP
DATA SHEET
Page 1
ILCOS: MT/UB-20/30/1B-H-GU6.5-13/30
Correlated colour
Nominal wattage Version Cap
temperature (nominal)
20 W 3 000 K Single-capped GU6.5

Dimensions (mm)
A (max.) B (max.) C D (nominal)
13,3 52 30±2 3,5
See sheet 61167-IEC-0020.
1)
Run-up characteristics at rated supply voltage
Max. time to 90% lumens min 3
1)
Electrical characteristics under square wave conditions in steady state operation
Rated wattage for ballast design Typical lamp voltage Typical lamp current
W V A
20 95 0,211
For lamps declared by manufacturers as suitable for use on LFSW ballasts only, initial lamp voltages shall
be in the range of 75 V to 110 V. Manufacturers may have different target values for lamp voltage and the
current will vary accordingly.

1)
Colour characteristics (nominal)
Correlated colour temperature K 3 000
Chromaticity co-ordinate x 0,434
Chromaticity co-ordinate y 0,398
Colour rendering index Ra 80
Information for reference ballast (see Annex E)
Series resistor of the low frequency square wave reference ballast Ω 680

1)
Values after 100 h ageing. Test position: vertical cap-up ±5°.
Publication CEI 61167
Texte français au
61167-IEC-1020-1
verso
IEC Publication 61167
French text overleaf
– 26 – 61167  IEC:2011
METAL HALIDE LAMP
DATA SHEET
Page 2
ILCOS: MT/UB-20/30/1B-H-GU6.5-13/30
Information for square wave ballast design (see Annex G)
Superimposed ignition
Min. Max.
1)
Pulse height kV 3,0 5
peak
Pulse width at 90 % peak, option (1) 100
µs/s
Pulse width at 90 % p
...
