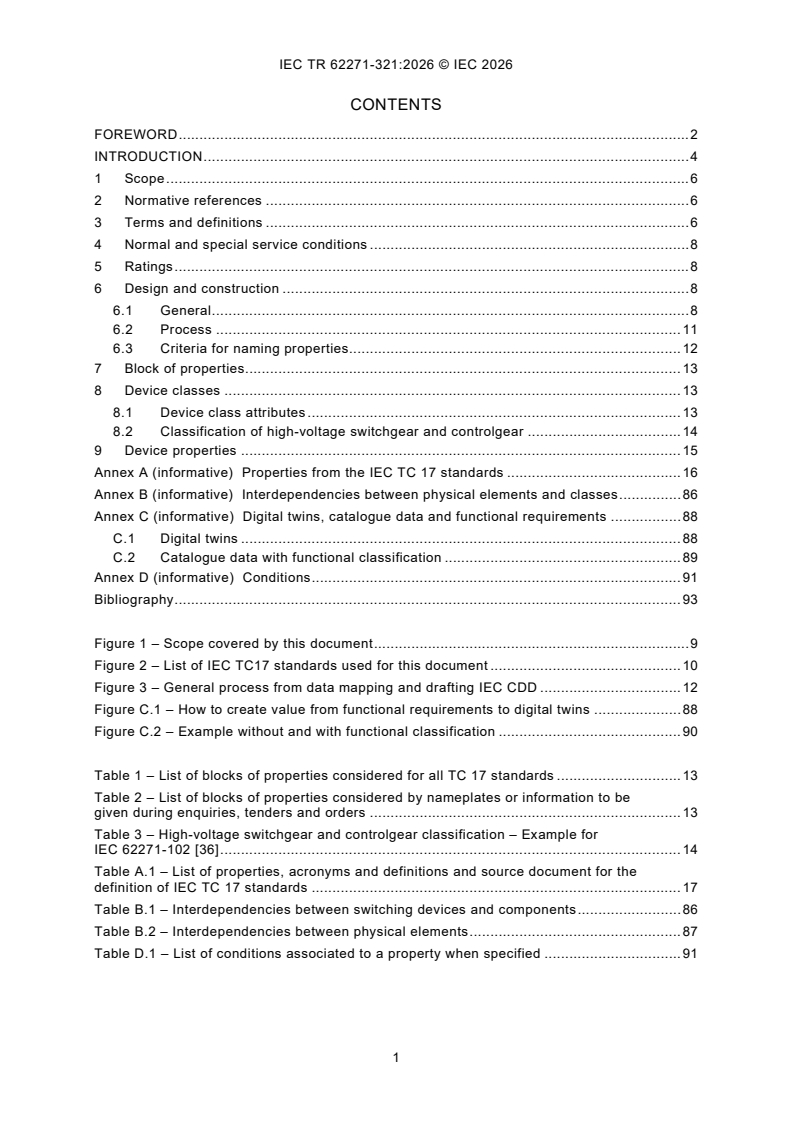

CONTENTS
FOREWORD . 2
INTRODUCTION . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Normal and special service conditions . 8
5 Ratings . 8
6 Design and construction . 8
6.1 General . 8
6.2 Process . 11
6.3 Criteria for naming properties. 12
7 Block of properties. 13
8 Device classes . 13
8.1 Device class attributes . 13
8.2 Classification of high-voltage switchgear and controlgear . 14
9 Device properties . 15
Annex A (informative) Properties from the IEC TC 17 standards . 16
Annex B (informative) Interdependencies between physical elements and classes . 86
Annex C (informative) Digital twins, catalogue data and functional requirements . 88
C.1 Digital twins . 88
C.2 Catalogue data with functional classification . 89
Annex D (informative) Conditions . 91
Bibliography . 93

Figure 1 – Scope covered by this document . 9
Figure 2 – List of IEC TC17 standards used for this document . 10
Figure 3 – General process from data mapping and drafting IEC CDD . 12
Figure C.1 – How to create value from functional requirements to digital twins . 88
Figure C.2 – Example without and with functional classification . 90

Table 1 – List of blocks of properties considered for all TC 17 standards . 13
Table 2 – List of blocks of properties considered by nameplates or information to be
given during enquiries, tenders and orders . 13
Table 3 – High-voltage switchgear and controlgear classification – Example for
IEC 62271-102 [36] . 14
Table A.1 – List of properties, acronyms and definitions and source document for the
definition of IEC TC 17 standards . 17
Table B.1 – Interdependencies between switching devices and components . 86
Table B.2 – Interdependencies between physical elements . 87
Table D.1 – List of conditions associated to a property when specified . 91

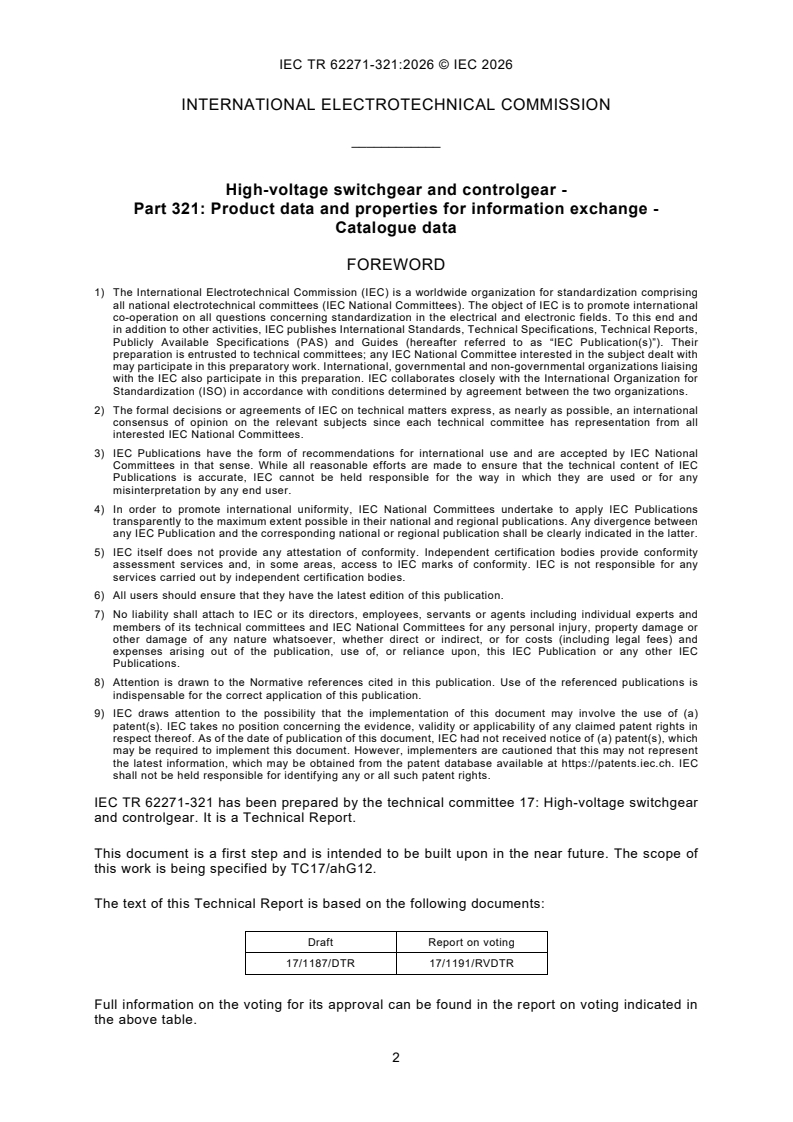

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
High-voltage switchgear and controlgear -
Part 321: Product data and properties for information exchange -
Catalogue data
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC TR 62271-321 has been prepared by the technical committee 17: High-voltage switchgear
and controlgear. It is a Technical Report.
This document is a first step and is intended to be built upon in the near future. The scope of
this work is being specified by TC17/ahG12.
The text of this Technical Report is based on the following documents:
Draft Report on voting
17/1187/DTR 17/1191/RVDTR
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Technical Report is English.
A list of all parts in the IEC 62271 series, published under the general title High-voltage
switchgear and controlgear, can be found on the IEC website.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
INTRODUCTION
It is mainly large customers and regulations which confirm the need for data availability over
the life cycle of the high-voltage switchgear and controlgear. For that digital standardized high-
voltage switchgear and controlgear product descriptions and product properties are increasingly
required to minimize data transfer, migration and re-formatting. This applies to all domains such
as generation, transmission, distribution, consumption, and all life cycle phases such as design,
planning, procurement, operation, maintenance, dismantling, etc.
Multiple associations or groups of actors have launched different initiatives, external to
standardization bodies, to try to respond to this demand but, due to the lack of standardisation
of device classes and properties, the situation is not satisfactory neither for customers, nor for
manufacturers nor for recyclers and waste managers.
The works and associated documents aim to solve interoperability issues met during data
migration as expected by IEC TC 17 standards and along a whole life cycle of a high-voltage
switchgear and controlgear. They even influence the future lives of their used materials, by
different stakeholders.
IEC TC 17, which deals with high-voltage switchgear and controlgear, decided to extend initial
work to take into account consideration of required properties during enquiries, tenders and
orders as shown in Figure 1.
Initial work by TC 17 highlighted inconsistencies between high-voltage switchgear and
controlgear standards such as different names for the same property, different definitions for
the same property, different units for the same property, and even several properties within
summarized in one.
In subsequent work, the mapping was extended to the properties from all IEC TC 17 standards
and any other useful standards dealing with high-voltage components implemented inside
switching devices and assemblies. This mapping is no longer limited to the properties defined
by the nameplates and considers properties for information exchanges during enquiries,
tenders, and orders.
To harmonize product description, IEC TC 17 proposes a new consistent solution within this
document.
The purpose of this document is to describe the process of the catalogue data from the mapping
of IEC TC 17 standards to the data intended to be implemented in IEC Common Data Dictionary
(IEC CDD) using ParcelMaker™ tool, as follows:
– Create a spreadsheet database.
• Review of properties of TC 17 standards and when possible associated standards.
– Define source database (IEV, glossary, ISO OBP, etc).
– Define device classes and properties for each high-voltage switchgear and
controlgear standard.
– Follow relevant attributes of properties for users as defined by IEC 61360.
– Create potential other digital representation supporting database verification and bringing
awareness of available digital material awaiting the final stage IEC CDD for its maintenance.
___________
ParcelMaker is the trademark of a product supplied by Toshiba Corporation. This information is given for the convenience
of users of this document and does not constitute an endorsement by IEC of the product named. Equivalent products may
be used if they can be shown to lead to the same results.
– Feed ParcelMaker™ spreadsheet tool with the support of the IEC SC 3D to provide a basis
for introduction of the high-voltage switchgear and controlgear classes and properties into
the IEC 61360 database maintained by IEC/SC 3D (see http://std.iec.ch/iec61360).
– Raise awareness on value created by such catalogue data assuming to feed many digital
twins along the whole life cycle of high-voltage switchgear and controlgear (see Annex C).
This document is not intended to establish a hierarchy of classes called classification.
The intended benefits of this document are to:
– solve interoperability issues;
– reuse digital properties defined by IEC TC 17 standards;
– reduce the costs, time and efforts of mapping data for each customer request;
– optimize the workflow of industrial stakeholders’ exchanges;
– minimize duplication of articles in customer inventories and in databases;
– minimize losses and misinterpretation of data during exchanges;
– facilitate the selection of a product, especially regarding reliability and safety;
– give access to product data everywhere regardless of country, language and culture;
– provide product data related to environmental aspects such as material declaration;
– contribute to the fast growth of the e-business by simplifying the development of
e-Catalogue allowing the differentiation of products performances, certificates, etc.;
– e-Commerce: use of electronic networks to exchange information, products, services and
payments for commercial and communication purposes between individuals (consumers)
and businesses, between businesses themselves.

1 Scope
This part of IEC 62271 relates to high-voltage switchgear and controlgear for all rated voltage
levels above 1 kV AC and 1,5 kV DC and assemblies thereof and provides materials for the
reference dictionary for all products covered by the IEC 62271 series.
This dictionary is a preliminary work which can be used to facilitate exchanges in digital format
of data related to high-voltage switchgear and controlgear components, devices, equipment,
and assemblies of the power systems.
Such a dictionary improves the interoperability of the power systems required for these data
exchanges along the power system lifetime and over its life cycle.
Each property has an unambiguously defined meaning and name, and where relevant, a defined
value list, a defined format, and a defined unit.
This document defines, digitalizes and then summarizes the properties related to high-voltage
switchgear and controlgear nameplates and information usually exchanged during the
enquiries, tenders, and orders life phases defined by IEC TC 17 standards of physical elements.
The intention is not to cover manufacturer specific features.
The intention is not to cover IEC TC 17 standards dealing only with assessment methodology
(calculation, tests, rules, etc.).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61360-1:2017, Standard data element types with associated classification scheme - Part 1:
Definitions - Principles and methods
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org/
– ISO Online browsing platform: available at https://www.iso.org/obp
3.1
attribute
data element for description of a property, a relation or a device class
EXAMPLE The name of a property, the code of a class, the measure unit of a property.
3.2
block (of properties)
collection of properties describing one common aspect of the device class
Note 1 to entry: A block is a feature class in the sense of IEC 61360-1 and ISO 13584-42 [67].
EXAMPLE Diagnostic functions, control circuit.
[SOURCE: IEC 62683:2017, 3.2]
3.3
cardinality
pattern defining the number of times a concept reoccurs within a description
Note 1 to entry: Cardinality allows a block of properties contained in a list of properties to be used more than once
for a particular transaction in order to describe, for example, a device with several different outputs or more than one
process cases.
Note 2 to entry: Cardinality is defined by IEC 61987-10 [32].
3.4
classification
systematic division of a set of items into subsets according to their difference in some
predetermined characteristics
3.5
class
abstraction of a set of similar products
Note 1 to entry: A product that complies with the abstraction defined by a class is called a class member.
Note 2 to entry: A class is an intentional concept that can take different extensional meanings in different contexts.
EXAMPLE The set of products used by a particular enterprise and the set of all ISO-standardized products are two
examples of contexts. In these two contexts (the particular enterprise and ISO), the set of products that are
considered as members of the single ball bearing class can be different, in particular because employees of each
enterprise ignore a number of existing single ball bearing products.
Note 3 to entry: Classes are structured by class inclusion relationships.
Note 4 to entry: A class of products is a general concept as defined in ISO 1087-1. Thus, it is advisable that the
rules defined in ISO 704 be used for defining the designation and definition attributes of classes of products.
Note 5 to entry: In the context of the ISO 13584 series, a class is either a characterization class, associated with
properties and usable for characterizing products, or a categorization class, not associated with properties and not
usable for characterizing products.
[SOURCE: IEC 61360-2:2012, 3.6]
3.6
device
material element or assembly of such elements intended to perform a required function
Note 1 to entry: In this document, a device corresponds to a high-voltage switchgear and controlgear.
[SOURCE: IEC 60050-151:2001 [3], 151-11-20, modified – Note replaced with a new note.]
3.7
device class
set of properties which gives a description of a device
Note 1 to entry: For this document device classes are represented by the devices covered by the TC 17 standards
such as switching devices, assemblies, if any operating devices. A property can characterize functional aspect or
physical aspect.
3.8
polymorphism
pattern that allows substitution of a single concept in the same context by a different more
specific (specialized) concept
Note 1 to entry: A specialized polymorphic block of properties can replace a more generic one in the same context.
A polymorphic operator (control property) can act in selecting between of various specializations.
Note 2 to entry: Polymorphism is defined by IEC 61987-10 [32].
3.9
property
defined parameter suitable for the description and differentiation of a specific characteristic
describing an aspect of class
4 Normal and special service conditions
IEC 62271-1 [34] and its related product standards have been used to identify the properties of
respective service conditions.
5 Ratings
IEC 62271-1 [34] and its related product standard have been used to identify the properties of
ratings. The property name of a rating starts by “rated….”.
6 Design and construction
6.1 General
The attributes are in accordance with IEC 61360-1.
Based on the IEC 61360-1 data model, the structured data called cardinality and polymorphism
can be used.
The IEC Common Data Dictionary (IEC CDD) comprises seven dictionaries (status as at
05/2025) over all IEC technical committees. Usually, those databases include the properties
related to the design and the nameplate but not the full life cycle stage of the covered electrical
equipment. Figure 1 mentions the clause numbers from the IEC 62271 series of standards [34]
to [57], [63] and [64] for each life cycle stage.
Figure 1 – Scope covered by this document
This Clause 6 deals with the actions carried out to identify and structure data for this document
before, in a second step, looking at how the non-covered life phases would be addressed
(Annex A).
The identified and structured properties from IEC TC 17, SC 32A, SC 36A, and TC 38 standards
have been summarized in accordance with a structure shown in Figure 2 for better readability.
Each condition when applicable has been considered.
Figure 2 – List of IEC TC17, SC32A, SC36A, and TC38 standards used for this document
Figure 2 identifies several device classes such as:
– a device class of properties from the system;
– a device class for high-voltage equipment nameplate;
– a device class for information exchanges during procurement phases (Enquiries (E),
Tenders (T), Orders (O));
– a device class if required differentiating the switching and operating devices.
The equipment of electrical power systems requires a lot of information for which the information
from the switching device must be recalled for the assemblies. All IEC TC17 standards do not
address this topic identically. Some of them clearly mentioned a list of properties from other
standard(s) while others are mentioned if applicable.
The list of properties cannot refer to a specific list varying according to application and
according to the bill of materials of the high-voltage equipment.
The delivered database aims to consider what is mentioned inside the IEC TC 17 standards of
the switchgear and controlgear, and a few associated components used within switching
devices and assemblies such as high-voltage fuses, measurements transformers and bushings.
A spreadsheet maps all TC17 properties with associated attributes as follows:
– Property name
– Identifier (ISO/IEC 6523-1 [71] IRDI starts with 0112/2///62271# and allocated codes by
IEC SC 3D are from KKA000 to KKZ000)
– Acronym (IEC 61360-1)
– Digital interface (name identified within IEC 61850 [27], [28] and CIM series of standards)
– Preferedname (IEC 61360-1)
– Synonymous (IEC 61360-1)
– DefinitionEN (IEC 61360-1)
– DefinitionFR (IEC 61360-1)
– DefinitionDE (IEC 61360-1)
– DefinitionCN (IEC 61360-1)
– Source document (of the definition) (IEC 61360-1)
– Data_type (IEC 61360-1)
– Value_format (IEC 61360-1)
– Multiplier_of_unit
– Unit_of_measure (IEC 61360-1)
– Value_list (IEC 61360-1)
6.2 Process
Figure 3 details the general process mapping and structuring digital properties of the TC 17
®2
standards, needing several digital formats up to “ParcelMaker™”, a Microsoft Excel plug-in
for IEC Common Data Dictionary (CDD).
ParcelMaker™ feeding the IEC Common Data Dictionary (IEC CDD) is covered by IEC SC 3D. ®
ParcelMaker™ is a plug-in software for Microsoft Excel , structuring properties in a rigorous
manner to upload the database automatically into the IEC CDD. At the time of writing of this
document all properties from IEC TC 17 standards are within ParcelMaker™ (properties and
respective definitions in four languages (EN, FR, DE, CN)), with, when identified and existing,
their value list, acronym, unit, IEC 61850 [27] [28] logical node, ecl@ss IRDI. It is encouraged
that terms and definitions in DE and CN be verified by native speakers. The data can be
accessed through the following link: IEC CDD Test database.
(https://cdd.iec.ch/cdd/iec62271/cdddev.nsf/TreeFrameset)
___________
Microsoft Excel is the trademark of a product supplied by Microsoft Corporation. This information is given for the
convenience of users of this document and does not constitute an endorsement by IEC of the product named. Equivalent
products may be used if they can be shown to lead to the same results.
Figure 3 – General process from data mapping and drafting IEC CDD
6.3 Criteria for naming properties
To maintain consistency and clarity in the naming of properties, terms from product standards
have been studied. When evidence of a similar meaning has been identified, the naming of
properties has been harmonized otherwise both have been kept.
Very often Clause 10 of the IEC 62271 series specifies a property without an existing definition.
This required the checking in other standards or databases as listed in the bibliography.
Synonymous names can be associated with the property name when well established terms are
used on the market.
7 Block of properties
A property within a block describes one common aspect covered by the definition of this block.
The list of blocks of properties will be defined automatically when ParcelMaker™ is filled,
considering specific block of properties defined for TC 17 as shown Table 1 and Table 2.
Table 1 – List of blocks of properties considered for all TC 17 standards
Blocks specialized
KKB001##1###1
Nameplate specialized blocks
KKB002##1###1
Enquiry and order specialized
blocks
KKB003##1###1
Tender specialized block
Table 2 – List of blocks of properties considered by nameplates or information to be
given during enquiries, tenders and orders
KKA001##1###1 High-voltage switchgear and controlgear domain
KKB010##1###1 High-voltage equipment blocks of properties
KKB011##1###1 electric power system
KKB012##1###1 service conditions
KKB013##1###1 installation
KKB014##1###1 operation
KKB015##1###1 switching device or assembly
KKB016##1###1 operating device
KKB017##1###1 earthing switch and system

8 Device classes
8.1 Device class attributes
The attributes of the device classes are in accordance with IEC 61360-1.
All device classes in this document have the following attributes:
– identifier,
– preferred name,
– definition,
– synonymous name,
– source document.
The list of device classes for all properties will be defined automatically when ParcelMaker™ is
filled.
NOTE The synonymous names are limited to those necessary to avoid confusion when selecting a device class.
8.2 Classification of high-voltage switchgear and controlgear
Figure 1 gives the classification of the high-voltage switchgear and controlgear domain based
on the corresponding product standards. Table 3 shows detailed classification considered for
all standards, while the block for the classification KAA102 is applicable for IEC 62271-102 [36].
The downstream classification for each standard deals with the nameplate of the switchgear, if
any to the nameplate of the operating device and with the information to be given during
enquiries, tenders, and orders. All properties can be subjected to conditions which have been
considered for the mapping of properties but not in IEC CDD test database.
Table 3 – High-voltage switchgear and controlgear classification –
Example for IEC 62271-102 [36]
KKA100##1###1 High-voltage equipment
KKA101##1###1 alternating-current circuit-breaker
KKA102##1###1 alternating-current disconnectors and earthing switch
KKA103##1###1 alternating current switch for rated voltages above
1 kV up to and including 52 kV
KKA104##1###1 alternating current switch for rated voltages higher
than 52 kV
KKA105##1###1 alternating current switch-fuse combination for rated
voltages above 1 kV up to and including 52 kV
alternating current contactor, contactor-based
KKA106##1###1
controller and motor starter
KKA107##1###1 alternating current fused circuit-switcher for rated
voltages above 1 kV up to and including 52 kV
KKA108##1###1 alternating current disconnecting circuit-breaker for
rated voltages above 52 kV
KKA109##1###1 alternating-current series capacitor by-pass switch
KKA111##1###1 automatic circuit recloser for alternating current
systems up to and including 38 kV
KKA112##1###1 alternating current high-speed earthing switch for
secondary arc extinction on transmission lines
KKA200##1###1 AC metal-enclosed switchgear and controlgear for
rated voltages above 1 kV and up to and including
52 kV
KKA201##1###1 alternating current solid-insulation enclosed
switchgear and controlgear for rated voltages above
1 kV and up to and including 52 kV
KKA202##1###1 alternating current prefabricated substation for rated
voltages above 1 kV and up to and including 52 kV
KKA203##1###1 alternating current gas-insulated metal-enclosed
switchgear for rated voltages above 52 kV
KKA204##1###1 rigid gas-insulated transmission line for rated voltage
above 52 kV
KKA205##1###1 compact switchgear assembly for rated voltages
above 52 kV
KKA209##1###1 cable connections for gas-insulated metal-enclosed
switchgear for rated voltages above 52 kV - Fluid-
filled and extruded insulation cables - Fluid filled and
dry-type cable terminations
KKA211##1###1 direct connection between power transformer and
gas-insulated metal-enclosed switchgear for rated
voltages above 52 kV
KKA212##1###1 compact equipment assembly for distribution
substation (CEADS) for AC voltages up to 52 kV
KKA213##1###1 voltage detecting and indicating system
KKA215##1###1 phase comparator used with VDIS
KKA113##1###1 alternating current generator circuit-breaker
KKA114##1###1 current-limiting fuse
KKA115##1###1 instrument transformers general requirements
KKA116##1###1 instrument transformers - Part 2: additional
requirements for current transformer
KKA117##1###1 instrument transformers - Part 3: additional
requirements for inductive voltage transformer
KKA118##1###1 insulated bushing for alternating voltages above
1 000 V
KKA300##1###1 engineering data
KKA301##1###1 documentation
0112/2///62683#ACC071##1###1 instructions for use
0112/2///62683#ACC072##1###1 conformity attestation
alternating current disconnectors and earthing switch
KKA102##1###1
– IEC 62271-102
KKB120##1###1 nameplate
KKB121##1###1 earthing switch
KKB122##1###1 switching device or assembly
KKB123##1###1 operating device
KKB124##1###1 enquiry and order
KKB125##1###1 electric power system
KKB126##1###1 switching device or assembly
KKB127##1###1 operating device
KKB128##1###1 tender
KKB129##1###1 electric power system
KKB130##1###1 switching device or assembly
KKB131##1###1 operating device

IEC TC 17 standards cover switching devices and assemblies, which require information for
components that do not yet have their own catalogue data. Some standards also specify the
properties required when integrating sub-assemblies, but others do not. Where this is not
specified and the properties of other sub-assemblies are required, Table B.1 shows possible
relationships between the parts, the switching devices and the assemblies.
9 Device properties
The properties from the IEC TC 17 standards defined in 6.1 are listed in Annex A. These
properties are the standardized properties of physical elements and do not correspond to
properties related to functional requirements or description of user expectations as explained
in Annex B.
Annex A
(informative)
Properties from the IEC TC 17 standards
The listed properties in Table A.1 correspond to the properties from TC 17 standards
respectively from the clauses “nameplate” and information to be given during enquiries, tenders
and orders.
Table A.1 lists all considered properties and some attributes as examples of the database
enabling the creation the IEC CDD test database:
https://cdd.iec.ch/cdd/iec62271/cdddev.nsf/TreeFrameset
NOTE As the data in Table A.1 comes from the database no references to the bibliography are made.

Table A.1 – List of properties, acronyms and definitions and source document for the definition of IEC TC 17 standards
Primary
Property IEC CDD Acronym Definition EN Source document Data type
Unit
ENUM_STRING_TYPE
(0112/2///62271#KKG0
41(RESTRICTEDAREA
characteristic related to the level of accessibility to FORSKILLEDOPERAT
accessibility type KKD001 IEC_62271-204:2022
electrical equipment OR,RESTRICTEDARE
AFORNONSKILLEDOP
ERATOR,GENERALP
UBLIC))
designation assigned to a current transformer, the ratio
accuracy class of
KKD003 error and phase displacement of which remain within IEC_61869-1:2023
current transformer(s)
specified limits under prescribed conditions of use
ENUM_STRING_TYPE
designation assigned to a voltage transformer, the ratio
accuracy class of (0112/2///62271#KKG0
KKD004 error and phase displacement of which remain within IEC_61869-1:2023
voltage transformer(s) 03(0,1,0,2,0,2S,0,5,0,5
specified limits under prescribed conditions of use
S,1,3,5))
ENUM_INT_TYPE(011
accuracy limit factor of ratio of the rated accuracy limit primary current to the
KKD005 ALF IEC_61869-2:2019 2/2///62271#KKG004
current transformer(s) rated primary current
(5,10,15,20,30))
threshold of relative pressure over which the insulation
alarm level for insulation REAL_MEASURE_TY
p
KKD006 and/or switching (abs) requires actions as defined within IEC_62271-1:2017/A1:2021 MPa
ae
and/or switching (abs) PE
the manufacturer instruction for use
threshold of absolute pressure over which the insulation
alarm level for insulation REAL_MEASURE_TY
p
KKD007 and/or switching (abs) requires actions as defined within IEC_62271-1:2017/A1:2021 MPa
ae
and/or switching (rel) PE
the manufacturer instruction for use
threshold of relative pressure over which the operation
alarm level for operation REAL_MEASURE_TY
p
(abs) requires actions as defined within the manufacturer
KKD008 IEC_62271-200:2021 MPa
am
(abs) PE
instruction for use
threshold of relative pressure over which the operation
alarm level for operation REAL_MEASURE_TY
p
KKD009 (rel) requires actions as defined within the manufacturer IEC_62271-200:2021 MPa
am
(rel) PE
instruction for use
absolute pressure (in Pa), for insulation, referred to the
standard atmospheric air conditions of 20 °C and
101,3 kPa (or density), at which a monitoring signal may IEC_62271-
alarm pressure for REAL_MEASURE_TY
p
KKD010 be provided such as audible, visual, electronic or other 1:2017_and_IEC_61850-7- MPa
ae_a
insulation (abs) PE
signal initiated when a measured absolute pressure of 4:2010
fluid exceeds a threshold, a setting value or a setting
range to provide information about insulation

Primary
Property IEC CDD Acronym Definition EN Source document Data type
Unit
relative pressure (in Pa), for insulation, referred to the
standard atmospheric air conditions of 20 °C and
101,3 kPa (or density), at which a monitoring signal may IEC_62271-
alarm pressure for REAL_MEASURE_TY
p
KKD011 be provided such as audible, visual, electronic or other 1:2017_and_IEC_61850-7- MPa
ae_r
insulation (rel) PE
signal initiated when a measured relative pressure of 4:2010
fluid exceeds a threshold, a setting value or a setting
range to provide information about insulation
absolute pressure (in Pa), for operation, referred to the
standard atmospheric air conditions of 20 °C and
101,3 kPa (or density), at which a monitoring signal from
IEC_62271-
alarm pressure for the energy storage device may be provided such as REAL_MEASURE_TY
p
KKD012 1:2017_and_IEC_61850-7- MPa
am_a
operation (abs) audible, visual, electronic or other signal initiated when a PE
4:2010
measured absolute pressure of fluid exceeds a
threshold, a setting value or a setting range to provide
information about operation
relative pressure (in Pa), for operation, referred to the
standard atmospheric air conditions of 20 °C and
101,3 kPa (or density), at which a monitoring signal from
IEC_62271-
alarm pressure for the energy storage device may be provided such as REAL_MEASURE_TY
p
KKD013 1:2017_and_IEC_61850-7- MPa
am_r
operation (rel) audible, visual, electronic or other signal initiated when a PE
4:2010
measured relative pressure of fluid exceeds a threshold,
a setting value or a setting range to provide information
about operation
geographical position of device in W GS84 coordinates –
altitude on site KKD014 Alt IEC_61850-7-3:2020 INT_MEASURE_TYPE m
altitude
temperature, determined under prescribed conditions, of
the air surrounding the complete switching device or
fuse
IEC_60050-441:1984_441- REAL_MEASURE_TY
ambient air temperature KKD015 °C
11-13 PE
Note 1 to entry: For switching devices or fuses installed
inside an enclosure, it is the temperature of the air
outside the enclosure.
ambient air water vapor water vapour pressure of air in the vicinity of the REAL_MEASURE_TY
KKD016 IEC_62271-1:2017/A1:2021 kPa
pressure equipment PE
amplitude corresponding to the highest value of the
amplitude of power
KKD017 oscillatory portion of the current during the transient IEC_62271-109:2019 REAL_TYPE
swing
period following faults and power system contingencies
angle from vertical angle of inclination from vertical for which the bushing is REAL_MEASURE_TY
KKD018 IEC_60137:2017 °
mounting of the bushing designed for mounting PE

Primary
Property IEC CDD Acronym Definition EN Source document Data type
Unit
any test exceeding the
standardised type,
KKD019 list of test(s) beyond those defined by the standard IEC_62271-100:2021 STRING_TYPE
routine and
commissioning tests
ENUM_STRING_TYPE
(0112/2///62271#KKG0
08(IEC62271-
1:2017,IEC62271-
100:2021,IEC62271-
102:2018,IEC62271-
103:2021,IEC62271-
104:2020,IEC62271-
105:2021,IEC62271-
106:2021,IEC62271-
107:2019,IEC62271-
reference to one or more norms and guidelines instead
108:2020,IEC62271-
of repeating detailed specs COMMENT: An application
109:2019,IEC62271-
norm is a specification of a pattern of use which must be
110:2017,IEC62271-
application standard and 0173-1#02- followed during use, or of a quality which must be
111:2019,IEC62271-
date of issue (iec xxxxx- KKD020 AAP798#0 maintained during use It serves to cause artifacts which eclass_basic
112:2021,IEC62271-
yyy:year) 01 arise independently of one another to be manufactured
200:2021,IEC62271-
with uniform properties or qualities. National and
201:2014,IEC62271-
international standards are established by so-called
202:2022,IEC62271-
standards committees
203:2022,IEC62271-
204:2022,IEC62271-
205:2008,IEC62271-
209:2019,IEC62271-
211:2014,IEC62271-
212:2022,IEC62271-
213:2021,IEC62271-
215:2021,IEC/IEEE622
71-37-
013:2021,IEC/TR6227
1-302:2010))
application standard for
product standard of the high-voltage switchgear and IEC_62271-
high-voltage switchgear KKD021 STRING_TYPE
controlgear 202:2022_Table_5
and controlgear
application standard for IEC_62271-
KKD022 product standard of the low-voltage switchgear STRING_TYPE
low-voltage assembly 202:2022_Table_5
application standard of
reference of the loading guide of the power transformer IEC_62271-
the power transformer KKD023 STRING_TYPE
when used in indoor and outdoor conditions 202:2022_Table_5
loading guide
Primary
Property IEC CDD Acronym Definition EN Source document Data type
Unit
of a pole, interval of time between the instant of the
initiation of the arc in a pole and the instant of final arc
extinction (of that pole) SEE: Figure 1 k. [SOURCE:
arcing time of generator IEC/IEEE_62271-37- REAL_MEASURE_TY
K
...
