IEC/TR 62051
Electricity metering - Glossary of terms
Electricity metering - Glossary of terms
This technical report provides definitions of terms used in present and future standards on electrical energy measurement, prepared by IEC TC 13. These terms cover electrical energy measurement, tariff and load control, and customer/utility information exchange systems. The report includes terms on Distribution Automation Systems not covered by IEC 60050(371). The report also covers terms on customer/utility information exchange, electricity prepayment systems, and dependablility of electricity metering equipment.
This publication is of high relevance for Smart Grid.
Electricity metering - Glossary of terms
General Information

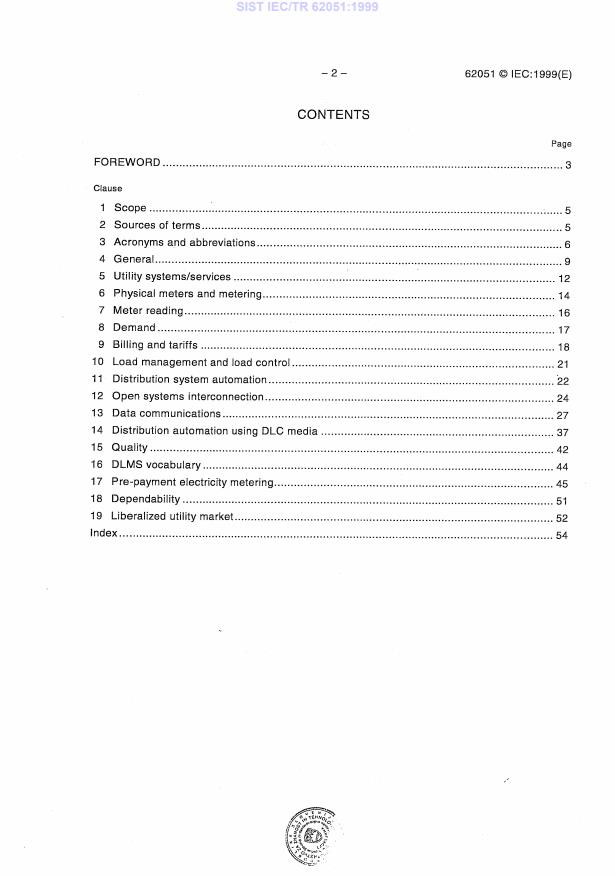

Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-2001
Electricity metering - Glossary of terms
Electricity metering - Glossary of terms
Ta slovenski standard je istoveten z: IEC/TR 62051
ICS:
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
...
