IEC 60086-2:2015

IEC 60086-2 ®
Edition 13.0 2015-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Primary batteries –
Part 2: Physical and electrical specifications

Piles électriques –
Partie 2: Spécifications physiques et électriques

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

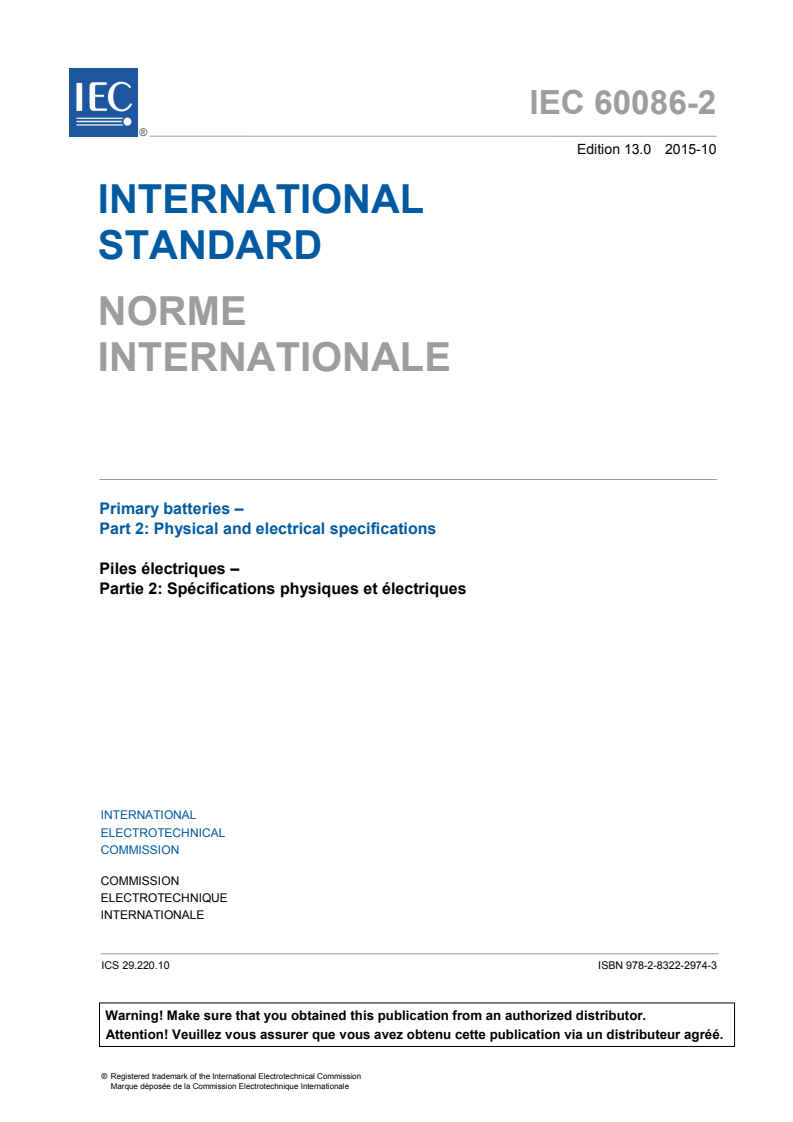

IEC 60086-2 ®
Edition 13.0 2015-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Primary batteries –
Part 2: Physical and electrical specifications

Piles électriques –
Partie 2: Spécifications physiques et électriques

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.220.10 ISBN 978-2-8322-2974-3

– 2 – IEC 60086-2:2015 © IEC 2015

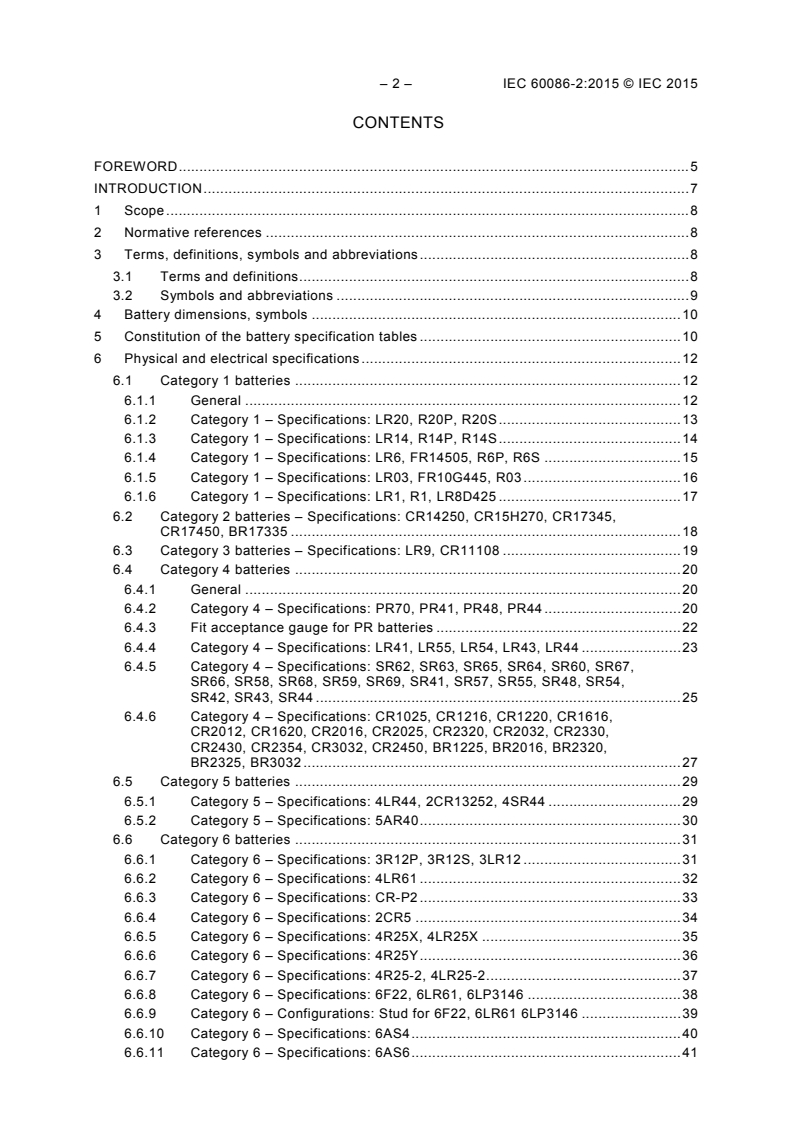

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms, definitions, symbols and abbreviations . 8
3.1 Terms and definitions . 8
3.2 Symbols and abbreviations . 9
4 Battery dimensions, symbols . 10
5 Constitution of the battery specification tables . 10
6 Physical and electrical specifications . 12
6.1 Category 1 batteries . 12
6.1.1 General . 12
6.1.2 Category 1 – Specifications: LR20, R20P, R20S . 13
6.1.3 Category 1 – Specifications: LR14, R14P, R14S . 14
6.1.4 Category 1 – Specifications: LR6, FR14505, R6P, R6S . 15
6.1.5 Category 1 – Specifications: LR03, FR10G445, R03 . 16
6.1.6 Category 1 – Specifications: LR1, R1, LR8D425 . 17
6.2 Category 2 batteries – Specifications: CR14250, CR15H270, CR17345,
CR17450, BR17335 . 18
6.3 Category 3 batteries – Specifications: LR9, CR11108 . 19
6.4 Category 4 batteries . 20
6.4.1 General . 20
6.4.2 Category 4 – Specifications: PR70, PR41, PR48, PR44 . 20
6.4.3 Fit acceptance gauge for PR batteries . 22
6.4.4 Category 4 – Specifications: LR41, LR55, LR54, LR43, LR44 . 23
6.4.5 Category 4 – Specifications: SR62, SR63, SR65, SR64, SR60, SR67,
SR66, SR58, SR68, SR59, SR69, SR41, SR57, SR55, SR48, SR54,
SR42, SR43, SR44 . 25
6.4.6 Category 4 – Specifications: CR1025, CR1216, CR1220, CR1616,
CR2012, CR1620, CR2016, CR2025, CR2320, CR2032, CR2330,
CR2430, CR2354, CR3032, CR2450, BR1225, BR2016, BR2320,
BR2325, BR3032 . 27
6.5 Category 5 batteries . 29
6.5.1 Category 5 – Specifications: 4LR44, 2CR13252, 4SR44 . 29
6.5.2 Category 5 – Specifications: 5AR40 . 30
6.6 Category 6 batteries . 31
6.6.1 Category 6 – Specifications: 3R12P, 3R12S, 3LR12 . 31
6.6.2 Category 6 – Specifications: 4LR61 . 32
6.6.3 Category 6 – Specifications: CR-P2 . 33
6.6.4 Category 6 – Specifications: 2CR5 . 34
6.6.5 Category 6 – Specifications: 4R25X, 4LR25X . 35
6.6.6 Category 6 – Specifications: 4R25Y . 36
6.6.7 Category 6 – Specifications: 4R25-2, 4LR25-2 . 37
6.6.8 Category 6 – Specifications: 6F22, 6LR61, 6LP3146 . 38
6.6.9 Category 6 – Configurations: Stud for 6F22, 6LR61 6LP3146 . 39
6.6.10 Category 6 – Specifications: 6AS4 . 40
6.6.11 Category 6 – Specifications: 6AS6 . 41

Annex A (informative) Tabulation of batteries by application . 42
Annex B (informative) Cross-reference index . 48
Annex C (informative) Index . 51
Annex D (informative) Common designation. 52
Bibliography . 53

Figure 1 – Dimensional drawing: Category 1 . 12
Figure 2 – Dimensional drawing: LR20, R20P, R20S . 13
Figure 3 – Dimensional drawing: LR14, R14P, R14S . 14
Figure 4 – Dimensional drawing: LR6, FR14505, R6P, R6S . 15
Figure 5 – Dimensional drawing: LR03, FR10G445, R03 . 16
Figure 6 – Dimensional drawing: LR1, R1, LR8D425 . 17
Figure 7 – Dimensional drawing: CR14250, CR15H270, CR17345, CR17450, BR17335 . 18
Figure 8 – Dimensional drawing: LR9, CR11108 . 19
Figure 9 – Dimensional drawing: Category 4 . 20
Figure 10 – Dimensional drawing: PR70, PR41, PR48, PR44 . 20
Figure 11 – Gauge opening for P system batteries . 22
Figure 12 – Suggested gauge layout . 22
Figure 13 – Air hole placement diagram for P system batteries . 23
Figure 14 – Dimensional drawing: LR41, LR55, LR54, LR43, LR44 . 23
Figure 15 – Dimensional drawing: SR62, SR63, SR65, SR64, SR60, SR67, SR66,
SR58, SR68, SR59, SR69, SR41, SR57, SR55, SR48, SR54, SR42, SR43, SR44 . 25
Figure 16 – Dimensional drawing: CR1025, CR1216, CR1220, CR1616, CR2012,
CR1620, CR2016, CR2025, CR2320, CR2032, CR2330, CR2430, CR2354, CR3032,
CR2450, BR1225, BR2016, BR2320, BR2325, BR3032 . 27
Figure 17 – Dimensional drawing: 4LR44, 2CR13252, 4SR44 . 29
Figure 18 – Dimensional drawing: 5AR40. 30
Figure 19 – Dimensional drawing: 3R12P, 3R12S, 3LR12 . 31
Figure 20 – Dimensional drawing: 4LR61 . 32
Figure 21 – Dimensional drawing: CR-P2 . 33
Figure 22 – Dimensional drawing: 2CR5 . 34
Figure 23 – Dimensional drawing: 4R25X, 4LR25X . 35
Figure 24 – Dimensional drawing: 4R25Y. 36
Figure 25 – Dimensional drawing: 4R25-2, 4LR25-2 . 37
Figure 26 – Dimensional drawing: 6F22, 6LR61, 6LP3146 . 38
Figure 27 – Dimensional drawing: Stud . 39
Figure 28 – Dimensional drawing: 6AS4 . 40
Figure 29 – Dimensional drawing: 6AS6 . 41

Table 1 – Gauge opening dimension (mm) . 22
Table A.1 – Automatic camera . 42
Table A.2 – CD, digital audio, wireless gaming and accessories . 42
Table A.3 – Digital audio . 42
Table A.4 – Digital still camera . 42

– 4 – IEC 60086-2:2015 © IEC 2015
Table A.5 – Electric equipment . 42
Table A.6 – Electric fence controller . 43
Table A.7 – Electronic key . 43
Table A.8 – Hearing aid . 43
Table A.9 – Hearing aid high drain . 43
Table A.10 – Hearing aid standard . 43
Table A.11 – High intensity lighting . 43
Table A.12 – Laser pointer . 44
Table A.13 – Pager . 44
Table A.14 – Photo . 44
Table A.15 – Portable lighting (LED) . 44
Table A.16 – Portable stereo . 45
Table A.17 – Radio . 45
Table A.18 – Radio / Clock . 45
Table A.19 – Radio / Clock / Remote control . 45
Table A.20 – Remote control . 45
Table A.21 – Road warning lamp . 46
Table A.22 – Smoke detector . 46
Table A.23 – Toy (motor) . 46
Table A.24 – Toy (non-motorized) . 46
Table A.25 – Wireless streaming . 47
Table B.1 – Category 1 batteries . 48
Table B.2 – Category 2 batteries . 48
Table B.3 – Category 3 batteries . 48
Table B.4 – Category 4 batteries . 49
Table B.5 – Category 5 batteries . 50
Table B.6 – Category 6 batteries . 50
Table C.1 – Index . 51
Table D.1 – Index . 52

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PRIMARY BATTERIES –
Part 2: Physical and electrical specifications

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60086-2 has been prepared by IEC technical committee 35:
Primary cells and batteries.
This thirteenth edition cancels and replaces the twelfth edition (2011) and constitutes a
technical revision.
Significant changes from the previous edition are test changes to battery types R03, LR03, R6,
LR6, PR70, PR41, PR48, 6F22, 6LR61, 6LP3146 4LR25-2, R14, LR14, R20, LR20, CR2025,
and CR2032, adding the 5AR40 back into the standard, addition of common designations,
addition of two new battery types FR14505 and FR10G445, deletion of battery types LR53,
R40, 2EP3863, 6F100, and general editorial changes.

– 6 – IEC 60086-2:2015 © IEC 2015
The text of this standard is based on the following documents:
FDIS Report on voting
35/1350/FDIS 35/1352/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60086 series, under the general title Primary batteries, can be
found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
The technical content of this part of IEC 60086 provides physical dimensions, discharge test
conditions and discharge performance requirements. IEC 60086-2 complements the general
information and requirements of IEC 60086-1.
This part was prepared to benefit primary battery users, device designers and battery
manufacturers by furnishing the specifics of form, fit and function for individual standardized
primary cells and batteries. Over the years, this part has been changed to improve its
contents and may again be revised in due course in the light of comments made by national
committees and experts on the basis of practical experience and changing technology.
This current revision is the result of a reformatting initiative, as well as some content changes,
aimed at making this part more user-friendly, less ambiguous, and, from a cross reference
basis, fully harmonized with other parts of IEC 60086.
NOTE Safety information is available in IEC 60086-4, IEC 60086-5 and IEC 62281.

– 8 – IEC 60086-2:2015 © IEC 2015
PRIMARY BATTERIES –
Part 2: Physical and electrical specifications

1 Scope
This part of IEC 60086 is applicable to primary batteries based on standardized electro-
chemical systems.
It specifies
– the physical dimensions,
– the discharge test conditions and discharge performance requirements.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60086-1:2015, Primary batteries – Part 1: General
ISO 1101, Geometrical product specifications (GPS) – Geometrical tolerancing – Tolerances
of form, orientation, location and run-out
3 Terms, definitions, symbols and abbreviations
For the purposes of this document, the terms, definitions, symbols and abbreviations given in
IEC 60086-1 and the following apply.
3.1 Terms and definitions
3.1.1
application test
simulation of the actual use of a battery in a specific application
3.1.2
closed-circuit voltage
CCV
voltage across the terminals of a battery when it is on discharge
3.1.3
end-point voltage
EV
specified voltage of a battery at which the battery discharge is terminated
[SOURCE: IEC 60050-482:2004, 482-03-30]
3.1.4
minimum average duration
MAD
minimum average time on discharge which is met by a sample of batteries

Note 1 to entry: The discharge test is carried out according to the specified methods or standards and designed
to show conformity with the standard applicable to the battery types.
3.1.5
nominal voltage (of a primary battery )
V
n
suitable approximate value of the voltage used to designate or identify a cell, a battery or an
electrochemical system
[SOURCE: IEC 60050-482:2004, 482-03-31, modified ("(of a primary battery)" added)]
3.1.6
open-circuit voltage
OCV
voltage across the terminals of a cell or battery when it is off discharge
3.1.7
primary (cell or battery)
cell or battery that is not designed to be electrically recharged
3.1.8
round (cell or battery)
cell or battery with circular cross section
3.1.9
service output (of a primary battery)
service life, or capacity, or energy output of a battery under specified conditions of discharge
3.1.10
service output test
test designed to measure the service output of a battery
Note 1 to entry: A service output test may be prescribed, for example, when
a) an application test is too complex to replicate;
b) the duration of an application test would make it impractical for routine testing purposes.
3.1.11
storage life
duration under specified conditions at the end of which a battery retains its ability to perform a
specified service output
[SOURCE: IEC 60050-482:2004, 482-03-47, modified ("specified function" replaced by
"specified service output”)]
3.1.12
terminals (of a primary battery)
conductive parts of a battery that provide connection to an external circuit
3.2 Symbols and abbreviations
EV end-point voltage
MAD minimum average duration
OCV open-circuit voltage (off-load voltage)
R load resistance
V nominal voltage of a primary battery
n
– 10 – IEC 60086-2:2015 © IEC 2015
4 Battery dimensions, symbols
The symbols used to denote the various dimensions are as follows:
h maximum overall height of the battery;
h minimum distance between the flats of the positive and negative contacts;
h minimum projection of the flat positive contact;
h maximum recess of the negative flat contact surface;
h minimum projection of the flat negative contact;
d maximum and minimum diameters of the battery;
d minimum diameter of the flat positive contact;
d maximum diameter of the positive contact within the specified projection height;
d minimum diameter of the flat negative contact;
d maximum diameter of the negative contact within the specified projection height;
d minimum outer diameter of the negative flat contact surface;
d maximum inner diameter of the negative flat contact surface;
⌀P concentricity of the positive contact.
Recesses are permitted in the negative flat contact surface defined by dimensions d6 and d7
for batteries having the shape shown in Figure 1a, provided that batteries placed end to end
in series make electrical contact with each other and that the contact separation is an integral
multiple of the contact separation for one battery. The following conditions shall be satisfied:
d > d
6 3
d > d
2 7
h > h
3 4
5 Constitution of the battery specification tables
5.1 Batteries are categorized into several groups according to their shapes.
5.2 In each category, batteries having the same shape but belonging to a different
electrochemical system are grouped together and shown in succession.
5.3 Batteries are always listed in ascending order of nominal voltage and, within each
nominal voltage, in ascending order of volume.
5.4 One common shape drawing of these batteries which fall in the same group is exhibited.
5.5 Designation, nominal voltage, dimensions, discharge conditions, minimum average
duration and application for these batteries which fall into the same group are summarized in
one table.
5.6 When a drawing represents only one type of battery, the dimensions of the relevant
battery may be directly shown on the drawing.
5.7 Batteries are categorized into the following groups:
a) Category 1 batteries
R1, R03, R6P, R6S, R14P, R14S, R20P, R20S
LR8D425, LR1, LR03, LR6, LR14, LR20
FR10G445, FR14505
b) Category 2 batteries
CR14250, CR15H270, CR17345, CR17450, BR17335
c) Category 3 batteries
LR9, CR11108
d) Category 4 batteries
PR70, PR41, PR48, PR44
LR41, LR55, LR54, LR43, LR44
SR62, SR63, SR65, SR64, SR60, SR67, SR66, SR58, SR68, SR59, SR69, SR41, SR57,
SR55, SR48, SR54, SR42, SR43, SR44
CR1025, CR1216, CR1220, CR1616, CR2012, CR1620, CR2016, CR2025, CR2320,
CR2032,CR2330, CR2430, CR2354, CR3032, CR2450
BR1225, BR2016, BR2320, BR2325, BR3032
e) Category 5: Other round batteries – Miscellaneous
4LR44
2CR13252
4SR44
5AR40
f) Category 6: Non-round batteries – Miscellaneous
3R12P, 3R12S, 3LR12
4LR61
CR-P2
2CR5
4R25X, 4LR25X
4R25Y
4R25-2, 4LR25-2
6F22, 6LR61, 6LP3146
6AS4
6AS6
5.8 The specification drawings show the shape of the relevant batteries. Dimensions for
each battery are shown in the tables of Clause 6.
NOTE See Annexes A, B and C for ease of locating battery sizes.

– 12 – IEC 60086-2:2015 © IEC 2015
6 Physical and electrical specifications
6.1 Category 1 batteries
6.1.1 General
For the definition of the dimensions, see Clause 4.

d
The cylindrical surface is insulated from the contacts.
d
Terminals: flat/cap and base.
For general information, see IEC 60086-1.
Figure 1a: negative contact surface may not be flat
over the whole area.
d 2
Figure 1b: negative contact surface shall be
essentially flat over the whole surface area.
For batteries complying with Figures 1a and 1b, flat
negative contact is not necessarily recessed.
When the flat negative contact surface forms the
lower part of the battery, dimensions "h1" and "h2"
are both measured from the surface and dimension
"h4" is zero.
Dimensions "⌀P" to be measured in accordance with
ISO 1101.
The profile over the dotted lines is not specified.
d
1: Positive contact
2: Optional pip (Dimension "h6" for batteries having
d
the pip is 0,4 mm max.)
d
3: Negative contact area
IEC
Figure 1a
d
1 2
d
d
d
IEC
Figure 1b
Figure 1 – Dimensional drawing:
Category 1
⌀ P ⌀ P
h h
2 2
h h
h
4 4 h
h h
h
6 h 6
h
h
h h
1 1
6.1.2 Category 1 – Specifications: LR20, R20P, R20S
Dimensions in millimetres
Dimensions LR20 R20P R20S
d
h max. 61,5 61,5 61,5
h min. 59,5 59,5 59,5
h min. 1,5 1,5 1,5
h max. 1,0 1,0 1,0
max. 34,2 34,2 34,2
d
min. 32,3 32,3 32,3
d max. 9,5 9,5 9,5
d min. 18,0 18,0 18,0
max. 1,0 1,0 1,0
⌀P
d
d
IEC
Figure 2 – Dimensional drawing:
LR20, R20P, R20S
Electrochemical system letter L No letter No letter
R20P R20S
IEC designation LR20
High power Standard
Common designation D D D
V (V) 1,5 1,5 1,5
n
OCV max. (V) 1,68 1,73 1,73
Delayed discharge performance after 12 months (% of MAD) 90 80 80
a
Applications Load Daily Period EV (V) MAD (Initial)
4 min on, 11 min off
Portable Lighting 2,2 Ω 0,9 750 min 220 min 85 min
for 8 h per day
Toy 2,2 Ω 1 h 0,8 16 h 5,5 h 2 h
Radio 10 Ω 4 h 0,9 No test 33 h 18 h
Current
Portable stereo drain 2 h 0,9 11 h No test No test
600 mA
a
Standard conditions (see IEC 60086-1:2015, Table 3, Initial discharge test).

⌀ P
h
h
h
h
– 14 – IEC 60086-2:2015 © IEC 2015
6.1.3 Category 1 – Specifications: LR14, R14P, R14S
Dimensions in millimetres
Dimensions LR14 R14P R14S
d
h max. 50,0 50,0 50,0
h min. 48,6 48,6 48,6
h min. 1,5 1,5 1,5
h max. 0,9 0,9 0,9
max. 26,2 26,2 26,2
d
min. 24,9 24,9 24,9
d max. 7,5 7,5 7,5
d min. 13,0 13,0 13,0
⌀P max. 1,0 1,0 1,0
d
d
IEC
Figure 3 – Dimensional drawing:
LR14, R14P, R14S
Electrochemical system letter L No letter No letter
R14P R14S
IEC designation LR14
High power Standard
Common designation C C C
V (V) 1,5 1,5 1,5
n
OCV max. (V) 1,68 1,73 1,73
Delayed discharge performance after 12 months (% of MAD)
90 80 80
EV
a
Applications Load Daily Period MAD (Initial)
(V)
Toy 3,9 Ω 1 h 0,8 14 h 4 h 1,5 h
4 min on, 11 min off
Portable Lighting 3,9 Ω 0,9 790 min 200 min 90 min
for 8 h per day
Current
Portable stereo drain 2 h 0,9 8 h No Test No Test
400 mA
a
Standard conditions (see IEC 60086-1:2015, Table 3, Initial discharge test).

⌀ P
h
h h
4 3
h
6.1.4 Category 1 – Specifications: LR6, FR14505, R6P, R6S
Dimensions in millimetres
Dimensions LR6, FR14505 R6P, R6S

d
h max. 50,5 50,5
h min. 49,5 49,5
h min. 1,0 1,0
h max. 0,5 0,5
max. 14,5 14,5
d
min. 13,7 13,7
d max. 5,5 5,5
d min. 7,0 7,0
⌀P max. 0,25 0,5
d
d
IEC
Figure 4 – Dimensional drawing: LR6,
FR14505, R6P, R6S
Electrochemical system letter
L F No letter No letter
R6P R6S
IEC designation LR6 FR14505
High power Standard
Common designation
AA AA, FR6 AA AA
V (V) 1,5 1,5 1,5 1,5
n
OCV max. (V)
1,68 1,83 1,73 1,73
Delayed discharge performance after 12 months
90 95 80 80
(% of MAD)
a
Applications Load Daily Period EV (V) MAD (Initial)
1 500 mW b
Digital still camera 1,05 40 pulses 370 pulses No Test No Test
650 mW
Portable lighting 4 min on, 56 min
0,9 230 min No Test 60 min No Test
3,9 Ω
(LED) off for 8h per day
Motor/toy 1 h 0,8 5 h No Test 65 min 45 min
3,9 Ω
Toy, non-motorized 250 mA 1 h 0.9 5 h No Test No Test No Test
CD, digital audio,
wireless gaming 100 mA 1 h 0,9 15 h No Test 4.5 h No Test
and accessories
Radio/Clock 43 Ω 4 h 0,9 No Test No Test No Test 22 h
Radio / Clock / 1 h on, 7 h off for
50 mA 1,0 30 h No Test 10 h No Test
Remote Control 24 h per day
High intensity 4 min on, 11 min
1000 mW 1,0 No Test 120 min No Test No Test
lighting off for 8 h per day
a
Standard conditions (see IEC 60086-1:2015, Table 3, Initial discharge test).
b
Repeat 10 times per hour: 1 500 mW for 2 s, then 650 mW for 28 s, then 0 mW for 55 min.

⌀ P
h
h
h
h
– 16 – IEC 60086-2:2015 © IEC 2015
6.1.5 Category 1 – Specifications: LR03, FR10G445, R03
Dimensions in millimetres
LR03,
Dimensions R03
d
FR10G445
h max. 44,5 44,5
h min. 43,5 43,5
h min. 0,8 0,8
h max. 0,5 0,5
max. 10,5 10,5
d
min. 9,8 9,8
d max. 3,8 3,8
d min. 4,3 4,3
d max. 0,4
⌀P 0,25
d
IEC
Figure 5 – Dimensional drawing: LR03,
FR10G445, R03
Electrochemical system letter L F No letter
IEC designation LR03 FR10G445 R03
Common designation AAA AAA, FR03 AAA
V (V) 1,5 1,5 1,5
n
OCV max. (V) 1,68 1,83 1,73
Delayed discharge performance after 12 months (% of MAD) 90 95 80
a
Applications Load Daily Period EV (V) MAD (Initial)
1 200 mW
b
Digital still camera 1,05 No Test 100 pulses No Test
650 mW
4 min on, 56 min off
Portable lighting 5,1 Ω 0,9 130 min No Test 50 min

for 8 h per day
Toy 5,1 Ω 1 h 0,8 120 min No Test 30 min
1 h on, 11 hr off for
Digital audio 50 mA 0,9 12 h 16 h 3 h
24 h
15 s per min 8 h per
Remote control 1,0 14,5 h
24 Ω No Test 4 h
day
Radio 75 Ω 4 h 0,9 No Test No Test 20 h
High intensity 4 min on, 11 min off
400 mW 1,0 No Test 140 min No Test
lighting for 8 h per day
a
Standard conditions (see IEC 60086-1:2015, Table 3, Initial discharge test).
b
Repeat 10 times per hour: 1 200 mW for 2 s, then 650 mW for 28 s, then 0 mW for 55 min.

⌀ P
h
h h
4 3
h
6.1.6 Category 1 – Specifications: LR1, R1, LR8D425
Dimensions in millimetres
Dimensions LR1 R1 LR8D425
d
h max. 30,2 30,2 42,5
h min. 29,1 29,1 41,5
h min. 0,5 0,5 0,7
h max. 0,2 0,2 0,1
max. 12,0 12,0 8,3
d
min. 10,9 10,9 7,7
d max. 4,0 4,0 3,8
d
a
d min. 5,0 5,0 2,3
d
max. 0,5 0,5 0,1
⌀P
IEC
a
This battery does not fulfill the requirement d > d due
6 3
to constructional constraints.
Figure 6 – Dimensional drawing: LR1,
R1, LR8D425
Electrochemical system letter
L No letter L
IEC designation
LR1 R1 LR8D425
Common designation
N N AAAA
V (V) 1,5 1,5 1,5
n
OCV max. (V) 1,68 1,73 1,68
Delayed discharge performance after 12 months (% of MAD) 90 80 90
EV
a
Applications Load Daily Period MAD (Initial)
(V)
Portable lighting 5,1 Ω 5 min 0,9 94 min 30 min 90 min
Pulse: 10 Ω
5 s on, 59 min 55 s off
Pager 0,9 888 h No Test No Test
b
Background:
for 24 h per day
3 000 Ω
Laser pointer 75 Ω 1 h 1,1 No Test No Test 22 h
Service output
75 Ω 1 h 0,9 No Test No Test 27 h
test
Hearing aid 300 Ω 12 h 0,9 130 h 76 h No Test
a
Standard conditions (see IEC 60086-1:2015, Table 3, Initial discharge test).
b
The pulse load alone shall be applied across the battery. It is the effective load. It is not added in series or
parallel to the background load. See diagram below.

Background load Background load Background load
Pulse load Pulse load Pulse load
Background discharge Pulse discharge No discharge
IEC
⌀ P
h
h
h
h
– 18 – IEC 60086-2:2015 © IEC 2015
6.2 Category 2 batteries – Specifications: CR14250, CR15H270, CR17345, CR17450,
BR17335
Dimensions in millimetres
Dimensions
CR14250 CR15H270 CR17345 CR17450 BR17335

d
b
max. 25,0 27,0 34,5 45,0 33,5

h / h
1 2
b
(+)
min. 23,5 26,0 33,5 43,5 32,0
h min. 0,4 0,6 1,0 0,4 0,1
max. - 0,4 0,9 - -
h
min. - 0,05 0,5 - -
max. 14,5 15,6 17,0 17,0 17,0
d
min. 13,5 15,0 16,0 16,0 16,0
(–)
d max. 8,0 7,0 9,6 8,0 8,0
d
d min. 5,0 8,5 11,0 5,0 5,0
d 6
IEC
For the definition of the dimensions, see Clause 4.
The cylindrical surface is insulated from the contacts.
Figure 7 – Dimensional
Terminals: flat/cap and base.
drawing: CR14250,
For general information, see IEC 60086-1.
CR15H270, CR17345,
CR17450, BR17335
Electrochemical system letter C B
IEC designation CR14250 CR15H270 CR17345 CR17450 BR17335
123,
Common designation CR-1/2AA CR2 CR-A BR-2/3A
CR123A
V (V) 3,0 3,0 3,0 3,0 3,0
n
OCV max. (V) 3,7 3,7 3,7 3,7 3,7
Delayed discharge performance after 12 months
98 98 98 98 98
(% of MAD)
EV
a
Applications Load Daily Period MAD (Initial)
(V)
Current drain 3 s on, 27 s off 1 400
Photo 1,55 No Test 840 pulses No Test No Test
900 mA for 24 h per day pulses
Service output test 24 h 2,0 No Test No Test 40 h No Test No Test
0,1 kΩ
Service output test 0,2 kΩ 24 h 2,0 No Test 48 h No Test No Test No Test
Service output test 1 kΩ 24 h 1,8 No Test No Test No Test No Test 380 h
Service output test 24 h 2,0 No Test No Test No Test 710 h No Test
1 kΩ
Service output test 3 kΩ 24 h 2,0 750 h No Test No Test No Test No Test
a
Standard conditions (see IEC 60086-1:2015, Table 3, Initial discharge test).
b
The h /h dimensions shall be measured on the label overlap.
1 2
h
h
h / h
1 2
6.3 Category 3 batteries – Specifications: LR9, CR11108
Dimensions in millimetres
Dimensions LR9 CR11108
d
h max. 6,2 10,8
d
h min. 5,6 10,4
(–)
h min. 2,0 -
h min. 0,2 0,2
(+)
max. 16,0 11,6
d d
2 1
min. 15,2 11,4
d
d min. 10,0 9,0
d
d max. 13,5 -
d
d min. 10,0 3,0
d
1 d max. 12,5 9,0
(–)
For the definition of the dimensions, see Clause 4.
The cylindrical surface is connected to the positive
terminal.
Terminals: flat/cap and case.
For general information, see IEC 60086-1.
(+)
d
No part of the battery shall project beyond the positive
contact area.
d
IEC
Marking: 4.1.6.2 of IEC 60086-1:2015 is applicable.
1: Optional pip
Figure 8 – Dimensional drawing:
LR9, CR11108
Electrochemical system letter L C
IEC designation LR9 CR11108
Common designation - 1/3N
V (V) 1,5 3,0
n
OCV max. (V)
1,68 3,7
Delayed discharge performance after 12 months (% of MAD)
90 98
a
Applications Load Daily Period EV (V) MAD (Initial)
Service output test 0,39 kΩ 24 h 0,9 48 h No test
Service output test 24 h 2,0 No test 620 h
15 kΩ
a
Standard conditions (see IEC 60086-1:2015, Table 3, Initial discharge test).

h
h
h
h
h
h
h
– 20 – IEC 60086-2:2015 © IEC 2015
6.4 Category 4 batteries
6.4.1 General
