IEC TR 61439-0:2013

IEC/TR 61439-0 ®
Edition 2.0 2013-04
TECHNICAL
REPORT
Low-voltage switchgear and controlgear assemblies –
Part 0: Guidance to specifying assemblies

IEC/TR 61439-0:2013(E)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

IEC/TR 61439-0 ®
Edition 2.0 2013-04
TECHNICAL
REPORT
Low-voltage switchgear and controlgear assemblies –

Part 0: Guidance to specifying assemblies

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XB
ICS 29.130.20 ISBN 978-2-83220-787-1

– 2 – TR 61439-0 © IEC:2013(E)

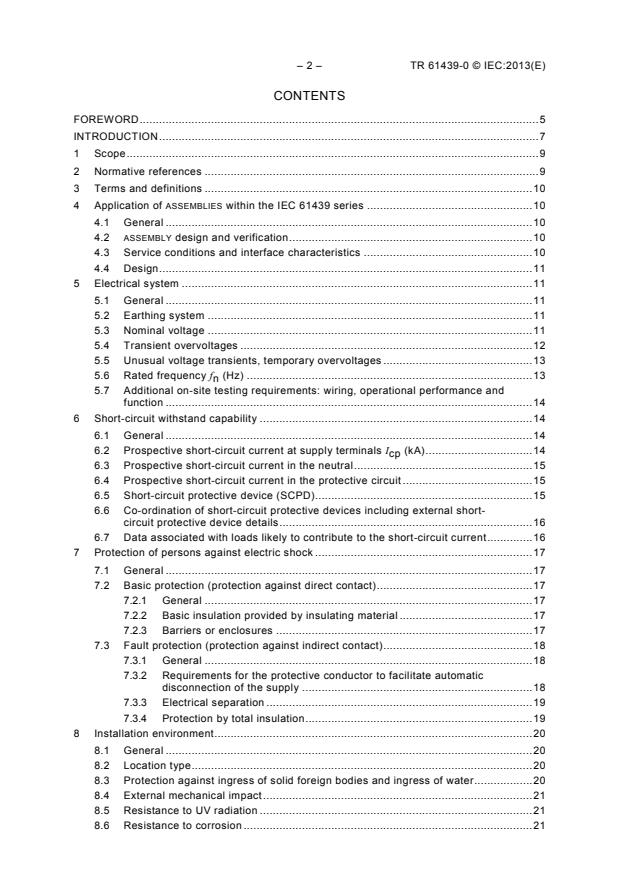

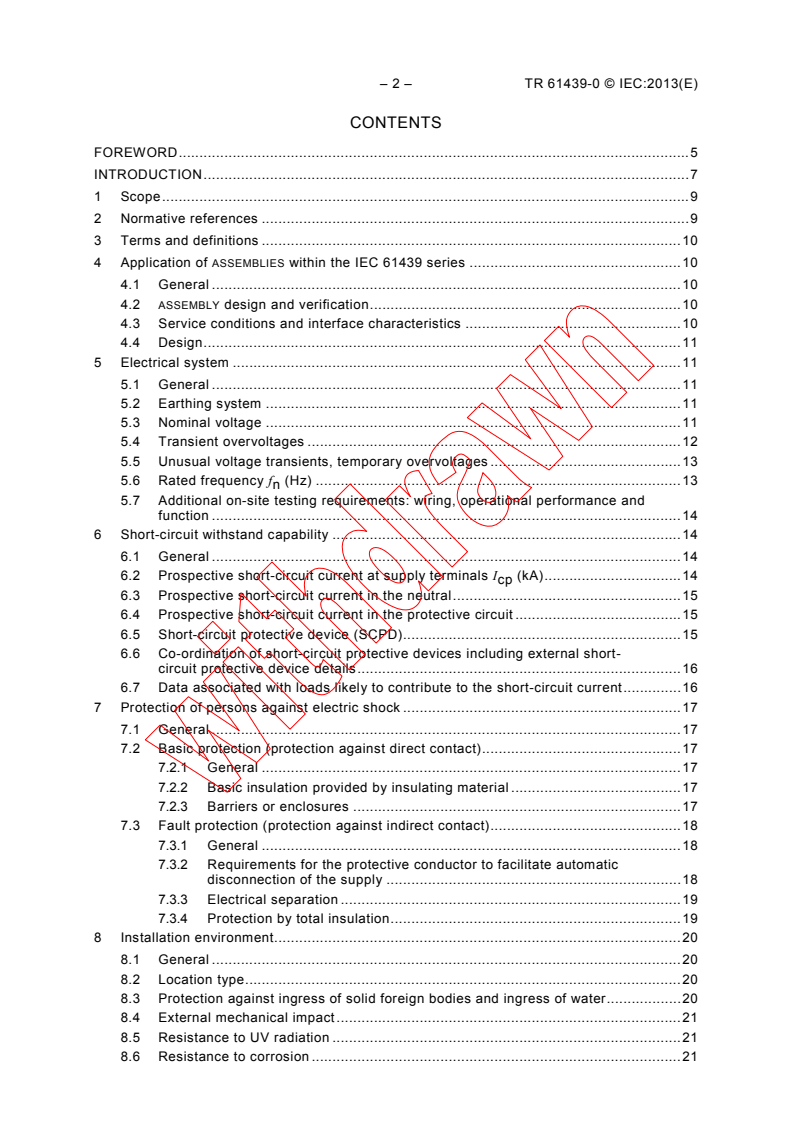

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 10
4 Application of ASSEMBLIES within the IEC 61439 series . 10
4.1 General . 10
4.2 ASSEMBLY design and verification . 10
4.3 Service conditions and interface characteristics . 10
4.4 Design . 11
5 Electrical system . 11
5.1 General . 11
5.2 Earthing system . 11
5.3 Nominal voltage . 11
5.4 Transient overvoltages . 12
5.5 Unusual voltage transients, temporary overvoltages . 13
5.6 Rated frequency f (Hz) . 13
n
5.7 Additional on-site testing requirements: wiring, operational performance and
function . 14
6 Short-circuit withstand capability . 14
6.1 General . 14
6.2 Prospective short-circuit current at supply terminals I (kA) . 14
cp
6.3 Prospective short-circuit current in the neutral . 15
6.4 Prospective short-circuit current in the protective circuit . 15
6.5 Short-circuit protective device (SCPD). 15
6.6 Co-ordination of short-circuit protective devices including external short-
circuit protective device details . 16
6.7 Data associated with loads likely to contribute to the short-circuit current . 16
7 Protection of persons against electric shock . 17
7.1 General . 17
7.2 Basic protection (protection against direct contact) . 17
7.2.1 General . 17
7.2.2 Basic insulation provided by insulating material . 17
7.2.3 Barriers or enclosures . 17
7.3 Fault protection (protection against indirect contact) . 18
7.3.1 General . 18
7.3.2 Requirements for the protective conductor to facilitate automatic
disconnection of the supply . 18
7.3.3 Electrical separation . 19
7.3.4 Protection by total insulation . 19
8 Installation environment . 20
8.1 General . 20
8.2 Location type . 20
8.3 Protection against ingress of solid foreign bodies and ingress of water . 20
8.4 External mechanical impact . 21
8.5 Resistance to UV radiation . 21
8.6 Resistance to corrosion . 21

TR 61439-0 © IEC:2013(E) – 3 –
8.7 Ambient air temperature . 21
8.8 Maximum relative humidity . 21
8.9 Pollution degree . 22
8.10 Altitude . 22
8.11 EMC environment . 22
8.12 Special service conditions . 23
8.12.1 General . 23
8.12.2 Climatic conditions . 24
8.12.3 Protection against ingress of solid foreign bodies and ingress of
water . 24
8.12.4 Shock, vibration, seismic occurrence and external mechanical impact
(IK) . 24
8.12.5 Fire and explosion hazards . 24
8.12.6 Exceptional overvoltages . 25
8.12.7 EMC environment . 25
9 Installation method . 25
9.1 General . 25
9.2 Assembly type . 25
9.3 Portability . 26
9.4 Maximum overall dimensions and weight . 26
9.5 External conductor type(s) . 26
9.6 Direction(s) of external conductors . 26
9.7 External conductor material . 26
9.8 External phase conductor, cross-sections, and terminations . 27
9.9 External PE, N, PEN conductors cross-sections, and terminations . 27
9.10 Special terminal identification requirements . 27
10 Storage and handling . 28
10.1 General . 28
10.2 Maximum dimensions and weight of transport units . 28
10.3 Methods of transport (e.g. forklift, crane) . 28
10.4 Environmental conditions different from the service conditions . 28
10.5 Packing details . 28
11 Operating arrangements . 28
11.1 General . 28
11.2 Access to manually operated devices . 29
11.3 Isolation of load installation equipment items . 29
12 Maintenance and upgrade capabilities . 30
12.1 General . 30
12.2 Requirements related to accessibility for inspection and similar operations . 30
12.3 Requirements related to accessibility for maintenance in service by
authorized persons . 30
12.4 Requirements related to extension under voltage . 31
12.5 Protection against direct contact with hazardous live internal parts during
maintenance or upgrade . 31
12.6 Method of functional units connection . 31
12.7 Operating and maintenance gangways within an ASSEMBLY . 32
12.8 Internal separation . 32
13 Current carrying capability . 32
13.1 General . 32

– 4 – TR 61439-0 © IEC:2013(E)
13.2 Rated current I (A) (maximum current allowable) . 32
nA
13.3 Rated current of circuits I (A) . 33
nc
13.4 Rated diversity factor (RDF) . 33
13.5 Ratio of cross-section of the neutral conductor to phase conductors . 33
13.5.1 General . 33
13.5.2 Phase conductors up to and including 16 mm . 33
13.5.3 Phase conductors above 16 mm . 33
14 ASSEMBLY design and routine verification processes . 34
14.1 Design verification . 34
14.1.1 Object. 34
14.1.2 Methods . 34
14.1.3 Records . 34
14.2 Routine verification . 34
14.2.1 General . 34
14.2.2 Records . 35
Annex A (informative) Cross-section of copper conductors suitable for connection to
terminals for external conductors . 36
Annex B (informative) Forms of internal separation (see 12.8) . 37
Annex C (informative) Specification guidance for IEC 61439-2 . 41
Annex D (informative) Specification guidance for IEC 61439-3 . 47
Annex E (informative) Specification guidance for IEC 61439-4 . 51
Annex F (informative) Specification guidance for future IEC 61439-5 . 55
Annex G (informative) Specification guidance for IEC 61439-6 . 56
Annex H (informative) Specification guidance for IEC 61439-7 . 60
Annex I (informative) List of notes concerning certain countries . 61
Bibliography . 62

Figure 1 – Required rated impulse withstand voltage . 13
Figure B.1 – Symbols used in Figures B.2 and B.3 . 38
Figure B.2 – Forms 1 and 2 . 39
Figure B.3 – Forms 3 and 4 . 40

Table A.1 – Cross-section of copper conductors suitable for connection to terminals
for external conductors . 36
Table B.1 – Forms of internal separation. 37
Table C.1 – Items subject to agreement between the ASSEMBLY manufacturer and the
user . 41
Table C.2 – Examples of optional items subject to agreement between the ASSEMBLY
manufacturer and the user . 45
Table D.1 – Items subject to agreement between the ASSEMBLY manufacturer and the
user . 47
Table E.1 – Items subject to agreement between the ASSEMBLY manufacturer and the
user . 51
Table G.1 – Items subject to agreement between the ASSEMBLY manufacturer and the
user . 56

TR 61439-0 © IEC:2013(E) – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES –

Part 0: Guidance to specifying assemblies

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC 61439-0, which is a technical report, has been prepared by subcommittee 17D: Low-
voltage switchgear and controlgear assemblies, of IEC technical committee 17: Switchgear
and controlgear.
This second edition cancels and replaces the first edition published in 2010. It constitutes a
technical revision.
This second edition includes the following significant technical changes with respect to the
previous edition:
– alignment with IEC 61439-1:2011;
– alignment of Annex B with Annex AA of IEC 61439-2:2011;
– alignment of Table C.1 with Table BB.1 of IEC 61439-2:2011;

– 6 – TR 61439-0 © IEC:2013(E)
– addition of a new Annex D regarding IEC 61439-3;
– addition of a new Annex E regarding IEC 61439-4;
– addition of a new Annex G regarding IEC 61439-6;
– general editorial review.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
17D/458/DTR 17D/467A/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The reader’s attention is drawn to the fact that Annex I lists all of the “in-some-country”
clauses on differing practices of a less permanent nature relating to the subject of this
Technical Report.
A list of all parts of the IEC 61439 series, under the general title Low-voltage switchgear and
controlgear assemblies, can be found on the IEC web site.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

TR 61439-0 © IEC:2013(E) – 7 –
INTRODUCTION
For the purposes of this technical report, the user is the party who specifies or selects the
ASSEMBLY characteristics. The user may be the same party as the one who will use and
operate the ASSEMBLY, or someone acting on their behalf. The aim of this technical report is to
provide the user with guidance on the specification that should be provided in order to
achieve the desired design of an assembly. Throughout this technical report, the term
ASSEMBLY is used for a low-voltage switchgear and controlgear assembly. The term
“manufacturer” refers to the ASSEMBLY manufacturer unless specifically noted otherwise.
The purpose of the IEC 61439 series of standards is to harmonize as far as practicable, all
the general rules and requirements that apply to ASSEMBLIES. The series further seeks, in
order to obtain uniformity of requirements for ASSEMBLIES, consistency in the verification of
ASSEMBLIES and to avoid the need for verification to other standards.
All those requirements for the various ASSEMBLIES that can be considered as general, together
with specific subjects of wide interest and application, e.g. temperature rise, dielectric
properties, have therefore been gathered in IEC 61439-1 as general rules. For each type of
ASSEMBLY only two main standards are necessary to determine all requirements and the
corresponding methods of verification:
1) the standard giving the general rules and designated “Part 1”, and
2) the specific ASSEMBLY standard, hereinafter referred to as the relevant ASSEMBLY
standard.
The IEC 61439 series of standards encompasses ASSEMBLIES for a wide variety of uses, some
of which have specific needs as dictated by their particular application. In order to define
clearly these specific needs, relevant ASSEMBLY standards focussed on a particular type of
application have been (or are being) developed. These are identified as IEC 61439-2 to
IEC 61439-7, inclusive (see list below). Each relevant ASSEMBLY standard with reference to
IEC 61439-1, the general rules, as appropriate, specifies the characteristics and performance
required by an ASSEMBLY within its defined scope of application. Each relevant ASSEMBLY
standard includes, as an annex, a template for “items subject to agreement between the
ASSEMBLY manufacturer and the user” to facilitate the specifying of an ASSEMBLY. These are
reproduced and explained in this technical report.
General characteristics of all types of assemblies are considered in this Technical Report.
Details of which are applicable to each type of assembly can be determined by reference to
the Specification Template in Annex ‘C’ onwards.
Within this technical report, reference to IEC 61439 means the series of ASSEMBLY standards,
including:
• IEC 61439-1:2011, Low-voltage switchgear and controlgear assemblies – Part 1: General
rules
• IEC 61439-2:2011, Low-voltage switchgear and controlgear assemblies – Part 2: Power
switchgear and controlgear assemblies
• IEC 61439-3:2012, Low-voltage switchgear and controlgear assemblies – Part 3:
Distribution boards intended to be operated by ordinary persons (DBO)
• IEC 61439-4:2012, Low-voltage switchgear and controlgear assemblies – Part 4:
Particular requirements for assemblies for construction sites (ACS)
• IEC 61439-5:2010, Low-voltage switchgear and controlgear assemblies – Part 5:
Assemblies for power distribution in public networks
• IEC 61439-6:2012, Low-voltage switchgear and controlgear assemblies – Part 6: Busbar
trunking systems (busways)
– 8 – TR 61439-0 © IEC:2013(E)
• IEC 61439-7:2013, Low-voltage switchgear and controlgear assemblies – Part 7:
Assemblies for specific applications such as marinas, camping sites, market squares,
electrical vehicles charging stations
A reference to “general rules” means a reference to IEC 61439-1:2011.
A reference to “ASSEMBLY standard” means the relevant part of the IEC 61439 series (e.g.
Part 2, 3, etc.).
A reference to “product standard” means the relevant part or parts of the IEC standard for the
components used in the ASSEMBLY (e.g. IEC 60947-2 for circuit breakers).

___________
To be published.
TR 61439-0 © IEC:2013(E) – 9 –
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES –

Part 0: Guidance to specifying assemblies

1 Scope
Within the IEC 61439 series of standards for low-voltage switchgear and controlgear
assemblies (ASSEMBLIES), there are system and application details that are specified by the
user to enable the manufacturer to produce an ASSEMBLY that meets the needs and
expectations of the user.
This Part of IEC 61439, which is a technical report identifies, from the user’s perspective,
those functions and characteristics that should be defined when specifying ASSEMBLIES. It
provides:
– an explanation of the ASSEMBLY characteristics and options within the IEC 61439 series;
– a guidance on how to select the appropriate option and to define characteristics so as to
meet specific application needs, using a functional approach; and
– an assistance in the specification of ASSEMBLIES.
References within this technical report to the interface characteristics of an ASSEMBLY and the
requirements with which they will comply assume that the ASSEMBLY is designed,
manufactured, and verified in accordance with the relevant IEC 61439 part.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
CISPR 11, Industrial, scientific and medical equipment – Radio-frequency disturbance
characteristics – Limits and methods of measurement
IEC 60364-4-41, Low-voltage electrical installations – Part 4-41: Protection for safety –
Protection against electric shock
IEC 60364-6, Low-voltage electrical installations – Part 6: Verification
IEC 60445, Basic and safety principles for man-machine interface, marking and
identification – Identification of equipment terminals, conductor terminations and conductors
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 61439-1:2011, Low-voltage switchgear and controlgear assemblies – Part 1: General
rules
IEC 62262, Degrees of protection provided by enclosures for electrical equipment against
external mechanical impacts (IK code)

– 10 – TR 61439-0 © IEC:2013(E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in the relevant ASSEMBLY
standard apply (e.g. IEC 61439-2).
4 Application of ASSEMBLIES within the IEC 61439 series
4.1 General
ASSEMBLIES manufactured in accordance with the relevant ASSEMBLY standard of the
IEC 61439 series of standards are suitable for installation in the majority of operating
environments. Many of the characteristics of ASSEMBLIES are fully defined within the standard
and do not require further consideration by the user. In some instances there may be a default
condition specified within the standard and a range of other identified alternative options, from
which the user may choose to suit the application. For other characteristics, the user may be
required to choose from a list of options within the standard.
Where special and exceptionally onerous conditions exist, the user should identify these in
their specification. Examples of these onerous conditions include: high UV radiation
applications, conditions of high particulates/pollutants, more stringent short circuit conditions,
special fault protection, special protection due to risk of fire, explosions, burns, etc.
In some instances, the user may wish to seek the advice of experts in order to identify their
requirements correctly, e.g. with regard to system harmonics.
The annexes from Annex C onward provide specification templates that the user should
complete when defining the interface characteristics and application requirements for an
ASSEMBLY in accordance with the relevant ASSEMBLY standard. An explanation of each
interface characteristic is given in the subsequent clauses.
4.2 ASSEMBLY design and verification
An ASSEMBLY is intended to be used within an electrical installation of defined characteristics.
The ASSEMBLY may be designed and verified with a specific set of application criteria, to suit a
particular use, or more usually, it may be designed and verified to meet typical application
criteria that make it usable in a range of common applications.
The configuration for a particular user application of an ASSEMBLY usually requires four main
steps:
a) definition or selection of service conditions and interface characteristics. The user should
specify these characteristics;
b) design of the ASSEMBLY by the manufacturer to meet the arrangements, characteristics,
and functions particular to the application. The design will generally be based on
previously developed standard ASSEMBLY arrangements, characteristics, and functions;
c) for ASSEMBLIES or parts of ASSEMBLIES where the design is not previously proven, design
verification carried out by the manufacturer;
d) routine verification, carried out on each ASSEMBLY by the manufacturer.
For further information on the design and routine verification carried out by the manufacturer,
see Clause 14.
4.3 Service conditions and interface characteristics
The characteristics of the ASSEMBLY should be compatible with the ratings of the circuits to
which it is connected and the installation conditions.

TR 61439-0 © IEC:2013(E) – 11 –
Where no user specification is provided, information given in the manufacturer's
documentation may take the place of an agreement between the manufacturer and the user.
It is assumed that the user will provide an electrical single line diagram, or equivalent, to
define the incoming and outgoing circuit arrangements, loads, external conductors, and
selected interface characteristics that are required for the application of a specific ASSEMBLY.
4.4 Design
Once the user has specified any arrangements, characteristics, or functions particular to the
application, the manufacturer is responsible for the design of the ASSEMBLY and ensuring it
complies with the relevant ASSEMBLY standard in the IEC 61439 series. From the information
provided by the user, the manufacturer will derive additional ASSEMBLY characteristics in order
to provide an ASSEMBLY that fulfils the user’s stated application requirements.
5 Electrical system
5.1 General
The electrical system determines the characteristics (capabilities) an ASSEMBLY should
possess in order to perform its required duty safely. The characteristics of the ASSEMBLY
should at all times be at least equal to the needs of the application and, where essential, they
may exceed those offered in the standard options detailed in the IEC 61439 series.
The user should provide an electrical single line diagram and/or any other information
necessary to define their requirements for the ASSEMBLY, as detailed in 5.2 to 5.6 below.
5.2 Earthing system
The means of earthing a low-voltage network, when, how and where, differs from application
to application. For a particular network, the earthing system used may be dictated by local
regulation, the supply authority, legacy requirements, or the benefits of one system relative to
others.
The standard configurations of earthing system are TT, TN-C, TN-C-S, IT, TN-S. Specific
systems require and/or permit different solutions. For example, during the isolation of a supply
for maintenance:
• in TN-C systems, the PEN conductor is not permitted to be isolated or switched, but,
• in TN-S systems and TN-C-S systems the neutral conductors may or may not be isolated
or switched (see IEC 60364-5-53:2001, 536.1.2).
The design of the auxiliary circuits should take into account the supply earthing system to
ensure that an earth-fault does not cause unintentional operation.
It is therefore essential that users specify the earthing system.
5.3 Nominal voltage
The nominal voltage of the electrical system determines a number of the ASSEMBLY
characteristics.
The user should specify the nominal voltage of the system.
When provided with the nominal voltage, the manufacturer will determine the appropriate
values for other rated voltages including:
• the rated operational voltage U (of a circuit of an ASSEMBLY)
e
– 12 – TR 61439-0 © IEC:2013(E)
This is the voltage at which all the devices in a circuit, or a group of circuits, are capable
of performing a specified function, for example switching a particular load a given number
of times. In all cases, the rated operational voltage of a main circuit of an ASSEMBLY will be
at least equal to the rated voltage of the ASSEMBLY.
• the rated insulation voltage U
i
Like U , the rated insulation voltage also applies to a circuit or group of circuits of the
e
ASSEMBLY. It is the long-term voltage withstand capability of the insulation and is never
less than the rated operational voltage. Generally an insulation voltage equal to the
operational voltage is sufficient, but where particularly arduous conditions apply, a higher
insulation voltage may be appropriate.
5.4 Transient overvoltages
All networks experience occasional transient overvoltages caused by switching, lightning, etc.
Generally, within a low-voltage network, the magnitude of the overvoltages is reduced as the
distance from the source of supply is increased. It is therefore possible to have ASSEMBLIES
suitable for different levels of overvoltage as determined by their location in the electrical
network.
Various levels of overvoltage category are defined using a series of roman numbers.
The overvoltage category options are:
• Category I: Specially protected level (internal to equipment, not normally applicable to an
ASSEMBLY)
• Category II: Load level (appliance, equipment, not normally applicable to an ASSEMBLY)
• Category III: Distribution circuit level (typical industrial applications)
Examples: Equipment which is part of the fixed electrical installation and other equipment where a high degree
of availability is expected, e.g. distribution boards, motor control centres.
• Category IV: Origin of installation level (service entrance)
Examples: Equipment to be used at or in the proximity of the origin of the electrical installation upstream of the
main distribution board, e.g. electricity meter, primary overcurrent protective device.
The manufacturer will determine the likely overvoltage category from the electrical system,
single line diagram. Where exceptional overvoltage conditions apply, the user should specify
the required overvoltage category option for their application.
From the overvoltage category, the nominal voltage and the type of electrical supply system
the manufacturer will determine the appropriate values for the rated impulse withstand voltage
(U ). This relationship is illustrated for information in Figure 1.
imp
TR 61439-0 © IEC:2013(E) – 13 –

OVC IV
OVC III
OVC II
2,5
2,5
1,5
2,5
1,5
0,8
1,5
0,8
0,5
100 200 300 400 500 600 700 800 900 1 000
Maximum operational voltage to earth  (V)
= phase-to-phase voltage for IT systems
= phase-to earth voltage for TN and TT systems
IEC  2361/10
Figure 1 – Required rated impulse withstand voltage
The rated impulse withstand voltage U is a measure of the ASSEMBLY’s tolerance to
imp
transient overvoltages. In normal networks, it will be equal to or higher than the transient
overvoltages occurring in the system(s) to which the circuit is designed to be connected.
5.5 Unusual voltage transients, temporary overvoltages
The ASSEMBLY will be capable of withstanding:
• transient overvoltage – short duration overvoltage of a few milliseconds or less, oscillatory
or non-oscillatory, usually highly damped, and
• temporary overvoltage – overvoltage at power frequency of relatively long duration
(several seconds).
The rated impulse withstand voltage (U ) defines the transient overvoltage to be withstood,
imp
ranging from 0,33 kV to 12 kV.
The rated insulation voltage (U ) defines the level of temporary overvoltage to be withstood.
i
If unusual voltage transients or temporary overvoltages are anticipated, the user should
specify the conditions to be met. Where such unusual conditions apply, it is important that
they are identified in order that the appropriate ASSEMBLY can be provided (guidance is
provided e.g. in IEC 61643-12 for transient overvoltages).
5.6 Rated frequency f (Hz)
n
ASSEMBLIES are designed to operate at a particular (rated) frequency or over a range of
frequencies or with direct current. Connecting a circuit of an ASSEMBLY to a supply with a
frequency outside its intended range can result in devices not operating correctly, altered
Rated impulse withstand voltage  (kV)

– 14 – TR 61439-0 © IEC:2013(E)
interrupting capacity and in the case of higher current, the current carrying ability may be
affected. Standard frequencies are 50 Hz, and 60 Hz.
Unless otherwise stated, the manufacturer of the ASSEMBLY will assume it is suitable for a
frequency within the limits of 98 % to 102 % of the rated frequency.
The user should specify the nominal frequency of the system as the required rated frequency
of the ASSEMBLY. If any of the circuits within the ASSEMBLY are required to operate at different
frequencies, this should be identified accordingly by the user in the specification.
5.7 Additional on-site testing requirements: wiring, operational performance and
function
The routine verification is intended to detect faults in materials and workmanship, to confirm
an ASSEMBLY has been manufactured in accordance with the design specification and to
ascertain proper functioning of the complete ASSEMBLY. It is made on each ASSEMBLY normally
at the manufacturer’s premises.
ASSEMBLIES do not require any on-site testing to re-confirm the integrity of the ASSEMBLY. In
cases where the ASSEMBLIES are delivered in sections, the manufacturer may recommend
tests to confirm the ASSEMBLY has been correctly coupled on site.
IEC 60364-6 defines on-site verification to check the correct integration of the ASSEMBLY into
the electrical system. Where additional on-site testing by the manufacturer is required, the
user should specify these tests.
6 Short-circuit withstand capability
6.1 General
Short-circuits within correctly designed and managed networks are a very rare occurrence,
but when they occur, they place abnormal demands on ASSEMBLIES. Short-circuit currents and
short-circuit current breaking may cause different kinds of stresses:
• extremely high forces between conductors,
• very high temperature rise in a very short time,
• air ionisation due to arc breaking, resulting in lower air insulation,
• overpressure due to arc breaking, resulting in high forces applied to the enclosure.
ASSEMBLIES should be capable of withstanding the thermal and dynamic stresses resulting
from short-circuit currents emanating from the supplies to wh
...
