IEC

IEC 61223-3-8:2024

(Main)

Evaluation and routine testing in medical imaging departments - Part 3-8: Acceptance and constancy tests - Imaging performance of X-ray equipment for radiography and radioscopy

Evaluation and routine testing in medical imaging departments - Part 3-8: Acceptance and constancy tests - Imaging performance of X-ray equipment for radiography and radioscopy

IEC 61223-3-8:2024 applies to evaluation of the imaging performance and related quality control parameters of X‑ray equipment for radiography and radioscopy that conform to IEC 60601-2-54:2022 or IEC 60601-2-43:2022.
This document applies to the evaluation of the imaging performance of the entire imaging chain from image acquisition, image processing and image display.
This document applies to acceptance tests and constancy tests, which are part of the quality assurance program in medical imaging departments and are intended to be performed by or under the responsibility of the responsible organization. A detailed discussion of the position of these tests within the medical radiological equipment lifecycle is provided in Clause A.2. The methods included rely mainly on non-invasive measurements that use appropriate test equipment and are performed after the installation is completed in accordance with the manufacturer’s installation instructions.
IEC 60601-2-54:2022 and IEC 60601-2-43:2022 require information to be provided to the responsible organization with respect to quality control. This document provides guidance to manufacturers regarding the acceptance and constancy tests for the X‑ray equipment in a manufacturer supplied quality control manual. Annex G provides guidance for such a manual.

Essais d'évaluation et de routine dans les services d'imagerie médicale - Partie 3-8: Essais d'acceptation et de constance - Performance d'imagerie des appareils à rayonnement X pour la radiographie et la radioscopie

L'IEC 61223-3-8:2024 s’applique à l’évaluation des performances et des paramètres de contrôle de la qualité associés d’imagerie des appareils à rayonnement X pour la radiographie et la radioscopie conformes à l’IEC 60601‑2‑54:2022 ou l’IEC 60601-2-43:2022.
Le présent document s’applique à l’évaluation des performances d’imagerie de l’ensemble de la chaîne d’imagerie qui va de l’acquisition de l’image à son affichage, en passant par son traitement.
Le présent document s’applique aux essais d’acceptation et aux essais de constance, qui font partie du programme d’assurance de la qualité dans les services d’imagerie médicale et qui sont destinés à être réalisés par ou sous la responsabilité de l’organisme responsable. L’Article A.2 de l’Annexe A présente une discussion détaillée de la place de ces essais dans le cycle de vie des appareils radiologiques médicaux. Les méthodes incluses reposent principalement sur des mesurages non invasifs, exécutés à l’issue de l’installation, en utilisant des équipements d’essai appropriés conformément aux instructions d’installation du fabricant.
L’IEC 60601-2-54:2022 et l’IEC 60601-2-43:2022 exigent que des informations soient fournies à l’organisme responsable en ce qui concerne le contrôle de la qualité. Le présent document fournit des recommandations aux fabricants en ce qui concerne les essais d’acceptation et de constance pour les appareils à rayonnement X pris en considération dans le manuel de contrôle de la qualité d’un fabricant. L’Annexe G fournit des recommandations pour un tel manuel.

General Information

Status
Published
Publication Date
25-Mar-2024
ICS
11.040.50 - Radiographic equipment
Technical Committee
SC 62B - Medical imaging equipment, software, and systems
Drafting Committee
WG 37 - TC 62/SC 62B/WG 37
Current Stage
PPUB - Publication issued
Start Date
12-Apr-2024
Completion Date
26-Mar-2024
Ref Project

Buy Standard

IEC 61223-3-8:2024 - Evaluation and routine testing in medical imaging departments - Part 3-8: Acceptance and constancy tests - Imaging performance of X-ray equipment for radiography and radioscopy Released:3/26/2024 Isbn:9782832285657IEC 61223-3-8:2024 - Evaluation and routine testing in medical imaging departments - Part 3-8: Acceptance and constancy tests - Imaging performance of X-ray equipment for radiography and radioscopy Released:3/26/2024 Isbn:9782832285657
PreviousNext
Standard
IEC 61223-3-8:2024 - Evaluation and routine testing in medical imaging departments - Part 3-8: Acceptance and constancy tests - Imaging performance of X-ray equipment for radiography and radioscopy Released:3/26/2024 Isbn:9782832285657
English and French language
199 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

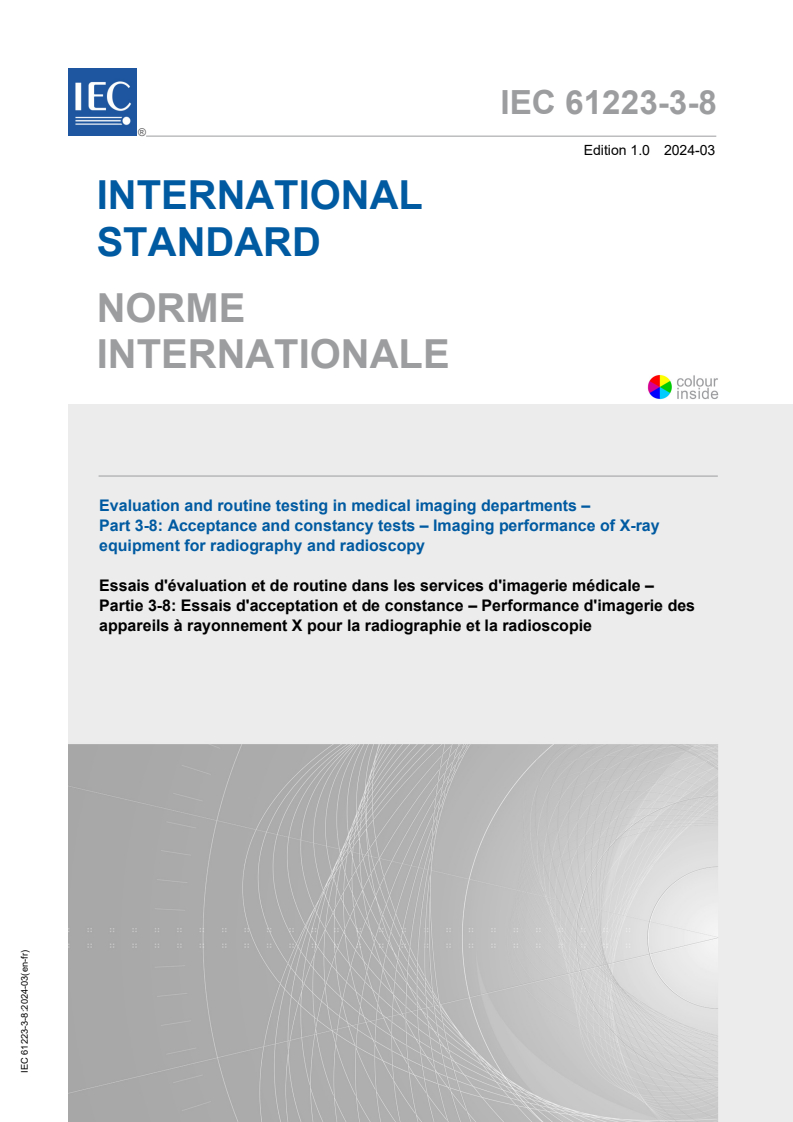

IEC 61223-3-8 ®
Edition 1.0 2024-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Evaluation and routine testing in medical imaging departments –
Part 3-8: Acceptance and constancy tests – Imaging performance of X-ray
equipment for radiography and radioscopy

Essais d'évaluation et de routine dans les services d'imagerie médicale –
Partie 3-8: Essais d'acceptation et de constance – Performance d'imagerie des
appareils à rayonnement X pour la radiographie et la radioscopie
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

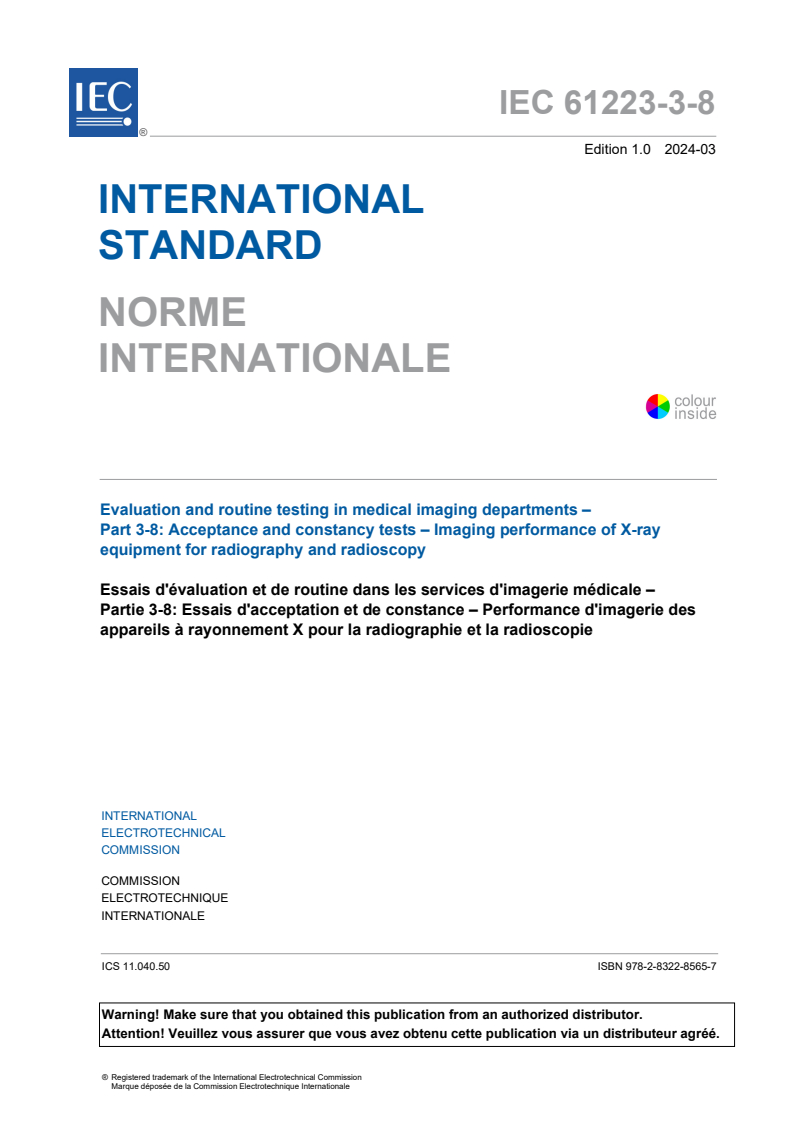

IEC 61223-3-8 ®
Edition 1.0 2024-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Evaluation and routine testing in medical imaging departments –

Part 3-8: Acceptance and constancy tests – Imaging performance of X-ray

equipment for radiography and radioscopy

Essais d'évaluation et de routine dans les services d'imagerie médicale –

Partie 3-8: Essais d'acceptation et de constance – Performance d'imagerie des

appareils à rayonnement X pour la radiographie et la radioscopie

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 11.040.50  ISBN 978-2-8322-8565-7

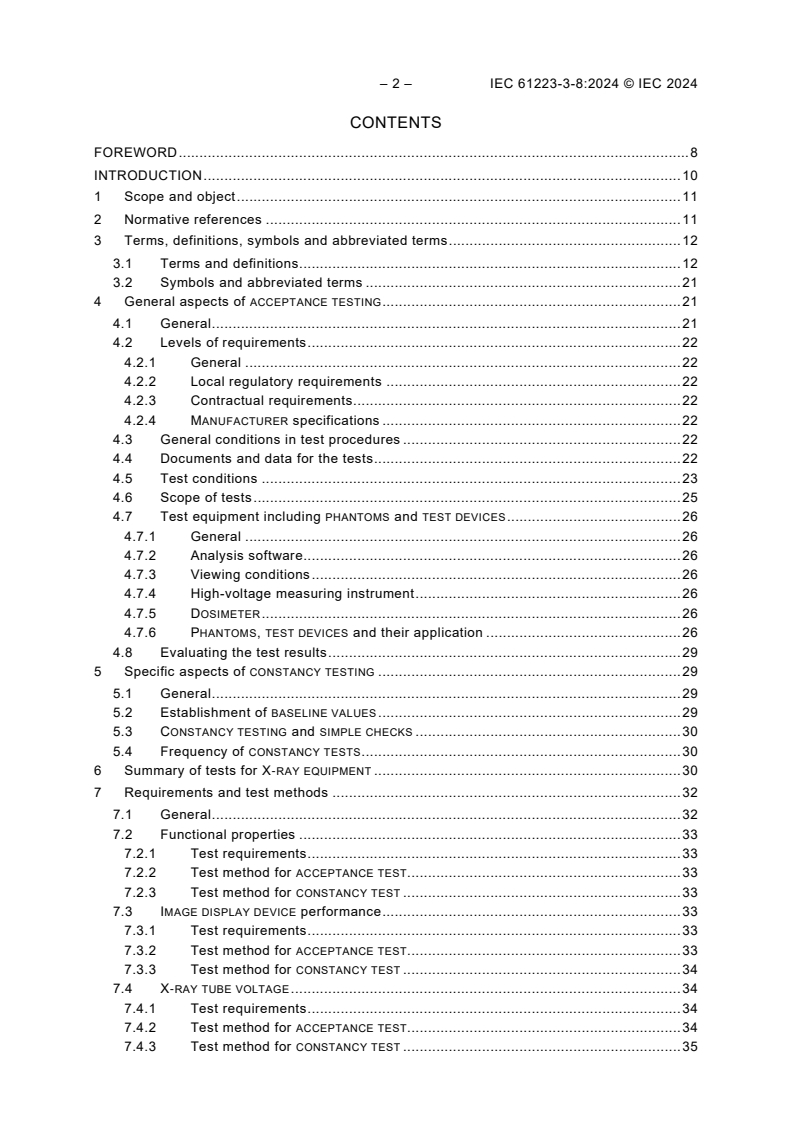

– 2 – IEC 61223-3-8:2024 © IEC 2024
CONTENTS
FOREWORD . 8
INTRODUCTION . 10
1 Scope and object . 11
2 Normative references . 11
3 Terms, definitions, symbols and abbreviated terms . 12
3.1 Terms and definitions . 12
3.2 Symbols and abbreviated terms . 21
4 General aspects of ACCEPTANCE TESTING . 21
4.1 General . 21
4.2 Levels of requirements . 22
4.2.1 General . 22
4.2.2 Local regulatory requirements . 22
4.2.3 Contractual requirements . 22
4.2.4 MANUFACTURER specifications . 22
4.3 General conditions in test procedures . 22
4.4 Documents and data for the tests . 22
4.5 Test conditions . 23
4.6 Scope of tests . 25
4.7 Test equipment including PHANTOMS and TEST DEVICES . 26
4.7.1 General . 26
4.7.2 Analysis software. 26
4.7.3 Viewing conditions . 26
4.7.4 High-voltage measuring instrument . 26
4.7.5 DOSIMETER . 26
4.7.6 PHANTOMS, TEST DEVICES and their application . 26
4.8 Evaluating the test results . 29
5 Specific aspects of CONSTANCY TESTING . 29
5.1 General . 29
5.2 Establishment of BASELINE VALUES . 29
5.3 CONSTANCY TESTING and SIMPLE CHECKS . 30
5.4 Frequency of CONSTANCY TESTS . 30
6 Summary of tests for X‑RAY EQUIPMENT . 30
7 Requirements and test methods . 32
7.1 General . 32
7.2 Functional properties . 33
7.2.1 Test requirements . 33
7.2.2 Test method for ACCEPTANCE TEST . 33
7.2.3 Test method for CONSTANCY TEST . 33
7.3 IMAGE DISPLAY DEVICE performance . 33
7.3.1 Test requirements . 33
7.3.2 Test method for ACCEPTANCE TEST . 33
7.3.3 Test method for CONSTANCY TEST . 34
7.4 X‑RAY TUBE VOLTAGE . 34
7.4.1 Test requirements . 34
7.4.2 Test method for ACCEPTANCE TEST . 34
7.4.3 Test method for CONSTANCY TEST . 35

7.5 X‑RAY TUBE CURRENT or CURRENT TIME PRODUCT . 35
7.5.1 Test requirements . 35
7.5.2 Test method for ACCEPTANCE TEST . 35
7.5.3 Test method for CONSTANCY TEST . 35
7.6 HALF-VALUE LAYER of the X‑RAY SOURCE ASSEMBLY . 35
7.6.1 Test requirements . 35
7.6.2 Test method for ACCEPTANCE TEST . 36
7.6.3 Test method for CONSTANCY TEST . 36
7.7 * QUALITY EQUIVALENT FILTRATION of ADDED FILTERS . 36
7.7.1 Test requirements . 36
7.7.2 * Test method for ACCEPTANCE TEST . 36
7.7.3 Test method for CONSTANCY TEST . 36
7.8 * ATTENUATION EQUIVALENT of materials between the PATIENT and the X‑RAY
IMAGE RECEPTOR . 36
7.8.1 Test requirements . 36
7.8.2 * Test method for ACCEPTANCE TEST . 37
7.8.3 Test method for CONSTANCY TEST . 37
7.9 FOCAL SPOT of the X‑RAY TUBE . 37
7.9.1 Test requirements . 37
7.9.2 Test method for ACCEPTANCE TEST . 37
7.9.3 Test method for CONSTANCY TEST . 37
7.10 Assessing geometrical properties of the X-RAY EQUIPMENT . 37
7.10.1 Test requirements . 37
7.10.2 Test method for ACCEPTANCE TEST . 37
7.10.3 Test method for CONSTANCY TEST . 37
7.11 AUTOMATIC CONTROL SYSTEM ─ Performance . 38
7.11.1 Tes
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

IEC
IEC 62220-2-1:2023(Main)
Medical electrical equipment - Characteristics of digital X-ray imaging devices - Part 2-1: Determination of dual-energy subtraction efficiency - Detectors used for dual-energy radiographic imaging

IEC 62220-2-1:2023 describes the performance metrics associated with DUAL-ENERGY IMAGING capable DIGITAL X-RAY IMAGING DEVICES meant for medical applications and specifies the methods for their determination. These metrics can be used to analyse TISSUE-SUBTRACTED IMAGES and to evaluate dose performance, noise characteristics, and tissue-subtraction efficacy of DIGITAL X-RAY IMAGING DEVICES. The described methods indicate the procedures to obtain MULTI-SPECTRAL PRIMARY DATA and to compute their derived TISSUE-SUBTRACTED IMAGES.
The intended users of this document are MANUFACTURERS and well-equipped test laboratories. This document is restricted to DIGITAL X-RAY IMAGING DEVICES that are used for single or multiple exposure dual-energy radiographic imaging based on, for example, CR systems, direct and indirect flat panel-detector based systems.
This document excludes and is not applicable to:
– DIGITAL X-RAY IMAGING DEVICES intended to be used in mammography or in dental RADIOGRAPHY;
– slot scanning DIGITAL X-RAY IMAGING DEVICES;
– COMPUTED TOMOGRAPHY or CONE-BEAM COMPUTED TOMOGRAPHY;
– photon-energy discriminating devices such as photon counting X-RAY IMAGING DEVICES;
– devices for dynamic imaging (where series of images are acquired, as in fluoroscopy or cardiac imaging).
– DIGITAL X-RAY IMAGING DEVICES intended to be used with RADIOTHERAPY beams.

  • Standard
    43 pages
    English and French language
    sale 15% off
IEC
IEC 60601-2-43:2022(Main)
Medical electrical equipment - Part 2-43: Particular requirements for the basic safety and essential performance of X-ray equipment for interventional procedures

IEC 60601-2-43:2022 is available as IEC 60601-2-43:2022 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 60601-2-43:2022 applies to the BASIC SAFETY and ESSENTIAL PERFORMANCE of both FIXED and MOBILE X RAY EQUIPMENT declared by the MANUFACTURER to be suitable for RADIOSCOPICALLY GUIDED INTERVENTIONAL PROCEDURES, hereafter referred to as INTERVENTIONAL X-RAY EQUIPMENT. Its scope excludes, in particular:
- equipment for RADIOTHERAPY;
- equipment for COMPUTED TOMOGRAPHY;
- ACCESSORIES intended to be introduced into the PATIENT;
- mammographic X RAY EQUIPMENT;
- dental X RAY EQUIPMENT.
INTERVENTIONAL X-RAY EQUIPMENT declared by the MANUFACTURER to be suitable for RADIOSCOPICALLY GUIDED INTERVENTIONAL PROCEDURES, which does not include a PATIENT SUPPORT as part of the system, is exempt from the PATIENT SUPPORT provisions of this document.
If a clause or subclause is specifically intended to be applicable to INTERVENTIONAL X-RAY EQUIPMENT only, or to ME SYSTEMS only, the title and content of that clause or subclause will say so. If that is not the case, the clause or subclause applies both to INTERVENTIONAL X-RAY EQUIPMENT and to ME SYSTEMS, as relevant.
IEC 60601-2-54 applies only with regards to the cited subclauses; non-cited subclauses of IEC 60601-2-54 do not apply.
IEC 60601-2-43:2022 cancels and replaces the second edition published in 2010, Amendment 1:2017 and Amendment 2:2019. This edition constitutes a technical revision.
This edition includes editorial and technical changes to reflect the IEC 60601-1:2005/AMD2:2020 and IEC 60601-2-54:2022. It also contains corrections and technical improvements. Significant technical changes with respect to the previous edition are as follows:
a) a new specific term DOSIMETER is introduced to replace the general term DOSEMETER as in IEC 60601-2-54:2022;
b) several terms and definitions that are moved from IEC TR 60788:2004 to 201.3 of IEC 60601-2-54:2022 are also referenced from IEC 60601-2-54:2022.
c) the collateral standards IEC 60601-1-11:2015, IEC 60601-1-11:2015/AMD1:2020, IEC 60601-1-12:2014 and IEC 60601-1-12:2014/AMD1:2020 are applicable if MANUFACTURER so declares;
d) the former subclause 201.11.101 “Protection against excessive temperature of X-RAY TUBE ASSEMBLIES” is removed since covered by IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 and IEC 60601-2-28:2017, and the former subclause 201.11.102 is renumbered as 201.11.101, as in IEC 60601-2-54:2022;
e) to adopt changes in subclause 7.8.1 “Colours of indicator lights” in IEC 60601 1:2005/AMD2:2020, clarification of requirements is provided in 201.7.8.1 to avoid conflicts with requirements of indicator lights stipulated for X-RAY EQUIPMENT, as in IEC 60601-2-54:2022;
f) explanation of the term ESSENTIAL PERFORMANCE is provided in Annex AA to emphasize the performance of the clinical function under NORMAL CONDITIONS and SINGLE FAULT CONDITIONS.

  • Standard
    192 pages
    English language
    sale 15% off
  • Standard
    126 pages
    English and French language
    sale 15% off
IEC
IEC 60806:2022(Main)
Determination of the maximum symmetrical radiation field of X-ray tube assemblies and X-ray source assemblies for medical diagnosis

IEC 60806:2022 is applicable to X-RAY SOURCE ASSEMBLIES and X-RAY TUBE ASSEMBLIES.
This document specifies a method for the determination of the greatest geometrically symmetrical RADIATION FIELD at a specified distance from the FOCAL SPOT for which the percentage AIR KERMA RATE along the major axes of the RADIATION FIELD does not fall below a permitted value.
In case multiple FOCAL SPOTS are not super-imposed, each FOCAL SPOT has its own REFERENCE AXIS. Then the maximum RADIATION FIELD can be given for each FOCAL SPOT separately.
IEC 60806:2022 cancels and replaces the first edition published in 1984. This edition constitutes a technical revision.
This edition includes the following significant technical change with respect to the previous edition:
a) addition of solid state detectors as they have become more common since the first edition of 1984.

  • Standard
    21 pages
    English and French language
    sale 15% off
IEC
IEC 60601-2-54:2022(Main)
Medical electrical equipment - Part 2-54: Particular requirements for the basic safety and essential performance of X-ray equipment for radiography and radioscopy

IEC 60601-2-54:2022 is available as IEC 60601-2-54:2022 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 60601-2-54:2022 applies to the BASIC SAFETY and ESSENTIAL PERFORMANCE of ME EQUIPMENT and ME SYSTEMS intended to be used for projection RADIOGRAPHY and INDIRECT RADIOSCOPY. IEC 60601-2-43 applies to ME EQUIPMENT and ME SYSTEMS intended to be used for interventional applications and refers to applicable requirements in this document. ME EQUIPMENT and ME SYSTEMS intended to be used for bone or tissue absorption densitometry, computed tomography, mammography or dental or radiotherapy applications are excluded from the scope of this document. The scope of this document also excludes radiotherapy simulators. If a clause or subclause is specifically intended to be applicable to ME EQUIPMENT only, or to ME SYSTEMS only, the title and content of that clause or subclause will say so. If that is not the case, the clause or subclause applies both to ME EQUIPMENT and to ME SYSTEMS, as relevant. IEC 60601-2-54:2022 edition cancels and replaces the first edition published in 2009, Amendment 1:2015 and Amendment 2:2018. This edition constitutes a technical revision. This edition includes editorial and technical changes to reflect the IEC 60601 1:2005/AMD2:2020. It also contains corrections and technical improvements. Significant technical changes with respect to the previous edition are as follows:
a) a new specific term DOSIMETER is introduced to replace the general term DOSEMETER;
b) terms and definitions taken exclusively from IEC TR 60788:2004 and which are specifically applicable in this document have been moved to 201.3;
c) the collateral standards IEC 60601-1-11:2015, IEC 60601-1-11:2015/AMD1:2020, IEC 60601-1-12:2014 and IEC 60601-1-12:2014/AMD1:2020 are applicable if MANUFACTURER so declares;
d) the subclause 201.11.101 “Protection against excessive temperatures of X-ray tube assemblies” has been removed from this document as its requirements are sufficiently and clearly covered by IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 and IEC 60601-2-28:2017;
e) to adopt changes which are introduced with respect to indicator lights in 7.8.1 of the IEC 60601-1:2005/AMD2:2020 clarification of requirements is provided to avoid conflicts with requirements of indicator lights stipulated for X-RAY EQUIPMENT;
f) explanation of the term ESSENTIAL PERFORMANCE is provided in Annex AA to emphasize the performance of the clinical function under NORMAL and SINGLE FAULT CONDITIONS. CONDITIONS.

  • Standard
    243 pages
    English language
    sale 15% off
  • Standard
    161 pages
    English and French language
    sale 15% off
IEC
IEC 60601-2-45:2011/AMD2:2022(Amendment)
Amendment 2 - Medical electrical equipment - Part 2-45: Particular requirements for the basic safety and essential performance of mammographic X-ray equipment and mammographic stereotactic devices
  • Standard
    17 pages
    English and French language
    sale 15% off
IEC
IEC 60601-2-45:2011(Main)
Medical electrical equipment - Part 2-45: Particular requirements for the basic safety and essential performance of mammographic X-ray equipment and mammographic stereotactic devices

IEC 60601-2-45:2011 applies to the basic safety and essential performance of mammographic X-ray equipment and mammographic stereotactic devices. IEC 60601-2-45:2011 addresses the system level of mammographic X-ray equipment, which consists of a combination of an X-ray generator, associated equipment and accessories. Components functions are addressed as far as necessary. The minimum safety requirements specified in this particular standard are considered to provide for a practical degree of safety in the operation of mammographic X-ray equipment. Like the previous edition of this Part 2-45, the present third edition includes requirements on high-voltage generators for mammography. This third edition cancels and replaces the second edition published in 2001. This edition constitutes a technical revision. The document has been aligned to the 3rd edition of IEC 60601-1 (2005) and to IEC 60601-1-3 (2010). Further modifications have been made with respect to the current technology of mammographic X-ray equipment.

  • Standard
    105 pages
    English language
    sale 15% off
  • Standard
    103 pages
    English and French language
    sale 15% off
  • Standard
    206 pages
    English and French language
    sale 15% off
  • Standard
    228 pages
    English and French language
    sale 15% off
IEC
IEC 60336:2020/COR1:2022(Corrigendum)
Corrigendum 1 - Medical electrical equipment - X-ray tube assemblies for medical diagnosis - Focal spot dimensions and related characteristics
  • Standard
    2 pages
    English and French language
    sale 15% off
IEC
IEC 62985:2019/COR1:2022(Corrigendum)
Corrigendum 1 - Methods for calculating size specific dose estimates (SSDE) for computed tomography
  • Standard
    1 page
    English and French language
    sale 15% off
IEC
IEC 61223-3-5:2019/COR1:2022(Corrigendum)
Corrigendum 1 - Evaluation and routine testing in medical imaging departments - Part 3-5: Acceptance and constancy tests - Imaging performance of computed tomography X-ray equipment
  • Standard
    1 page
    English and French language
    sale 15% off
IEC
IEC 61223-3-7:2021(Main)
Evaluation and routine testing in medical imaging departments - Part 3-7: Acceptance and constancy tests - Imaging performance of X-ray equipment for dental cone beam computed tomography

IEC 61223-3-7:2021 applies to DENTAL CONE-BEAM COMPUTED TOMOGRAPHY X-RAY EQUIPMENT, hereafter also called DENTAL CBCT EQUIPMENT, that conforms to IEC 60601-2-63:2012 and IEC 60601-2-63:2012/AMD1:2017.
This document applies to ACCEPTANCE TESTS and CONSTANCY TESTS on DENTAL CONE-BEAM COMPUTED TOMOGRAPHY X-RAY EQUIPMENT.
The aim of ACCEPTANCE TESTS is to verify compliance of the installation or MAJOR SERVICE ACTION with specifications affecting the image quality, RADIATION OUTPUT and PATIENT positioning.
The requirements specified in this document are minimal requirements. The MANUFACTURER can establish criteria for the tests described here that exceed the levels contained in this document.
CONSTANCY TESTS are performed to ensure that the functional performance of ME EQUIPMENT meets established criteria and to enable the early recognition of changes in the properties of components of the ME EQUIPMENT, and to verify compliance with specifications affecting the image quality, RADIATION OUTPUT and PATIENT positioning.
This document also contains requirements for the ACCOMPANYING DOCUMENTS associated with ACCEPTANCE AND CONSTANCY TESTING of the DENTAL CBCT EQUIPMENT.
This document does not apply to:
- aspects of thermal, EMD (electromagnetic disturbances), mechanical and electrical safety;
- aspects of mechanical, electrical and software performance, unless they are essential for performing the ACCEPTANCE TESTS and CONSTANCY TESTS, and directly affect image quality, RADIATION OUTPUT and PATIENT positioning.
Equipment in the scope of IEC 61223-3-5 is excluded from the scope of this document.
DENTAL EXTRA-ORAL X-RAY EQUIPMENT can provide modalities which are in the scope of IEC 61223-3-4. In this case, the respective clauses of the IEC 61223-3-4 apply.
The object of this document is to establish:
- the essential parameters which describe the performance of DENTAL CBCT EQUIPMENT with regard to the image quality, RADIATION OUTPUT and PATIENT positioning;
- methods of testing and whether measured quantities related to those parameters comply with the specified requirements.
These methods rely on non-invasive measurements performed once the installation or a MAJOR SERVICE ACTION is completed.

  • Standard
    83 pages
    English and French language
    sale 15% off
