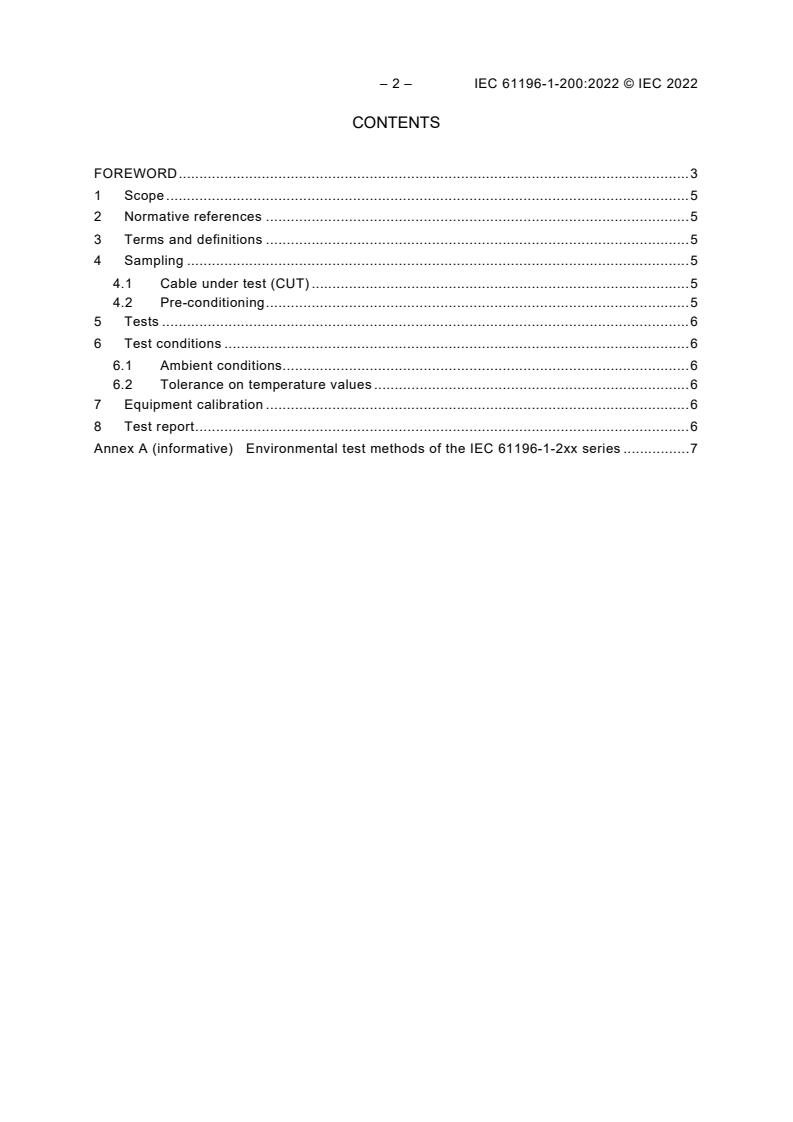

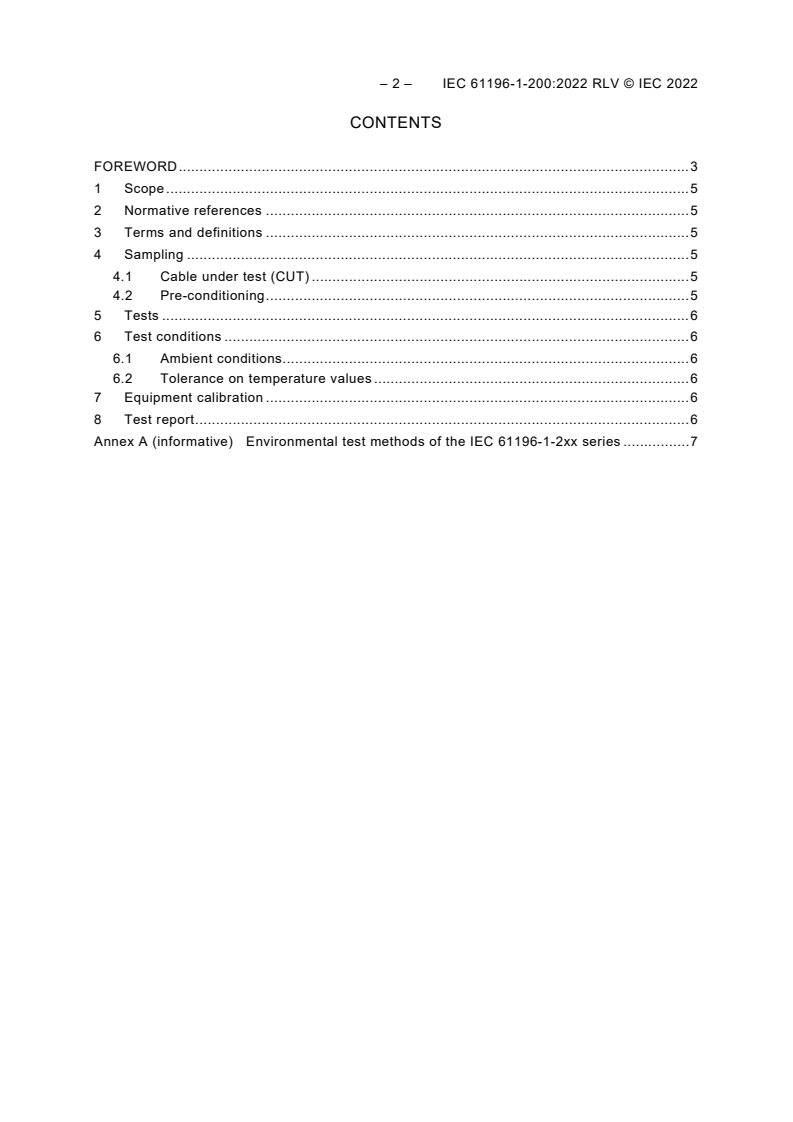

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Sampling . 5
4.1 Cable under test (CUT) . 5
4.2 Pre-conditioning . 5
5 Tests . 6
6 Test conditions . 6
6.1 Ambient conditions. 6
6.2 Tolerance on temperature values . 6
7 Equipment calibration . 6
8 Test report . 6
Annex A (informative)  Environmental test methods of the IEC 61196-1-2xx series . 7

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COAXIAL COMMUNICATION CABLES –

Part 1-200: Environmental test methods –
General requirements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes made to
the previous edition IEC 61196-1-200:2014. A vertical bar appears in the margin wherever a
change has been made. Additions are in green text, deletions are in strikethrough red text.

– 4 – IEC 61196-1-200:2022 RLV © IEC 2022
IEC 61196-1-200 has been prepared by subcommittee 46A: Coaxial cables, of IEC technical
committee 46: Cables, wires, waveguides, RF connectors, RF and microwave passive
components and accessories. It is an International Standard.
This third edition cancels and replaces the second edition published in 2014. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Update of Annex A.
The text of this International Standard is based on the following documents:
Draft Report on voting
46A/1544/FDIS 46A/1555/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
This International Standard is to be used in conjunction with IEC 61196-1. It is based on the
second edition (2005) of that document.
A list of all parts of the IEC 61196 series, under the general title: Coaxial communication cables,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.

COAXIAL COMMUNICATION CABLES –

Part 1-200: Environmental test methods –
General requirements
1 Scope
This part of IEC 61196 gives the general requirements and conditions for environmental tests
to be performed on coaxial communication cables and applies to the IEC 61196-1-2xx series,
which specifies environmental test methods for coaxial communication cables.
Further test details (e.g. temperature, duration) and/or test requirements may can be given in
the relevant test procedure and/or the relevant sectional or detail specification.
A table with environmental test methods of the IEC 61196-1-2xx series is given in Annex A.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61196-1, Coaxial communication cables – Part 1: Generic specification – General,
definitions and requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61196-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Sampling
4.1 Cable under test (CUT)
Unless otherwise specified in the relevant test method, the length of the CUT shall be selected
to take into account the dynamic range of the measuring equipment to yield the required level
of accuracy. The length should be measured with an accuracy better than 1 % unless otherwise
stated in the relevant cable specification.
4.2 Pre-conditioning
The CUT shall be pre-conditioned at a constant ambient temperature for such time as to allow
the specimen temperature to stabilize according to 6.1.

– 6 – IEC 61196-1-200:2022 RLV © IEC 2022
5 Tests
The tests required and performance characteristics applicable to each type of cable are given
in the relevant cable standard.
6 Test conditions
6.1 Ambient conditions
Tests shall be made at:
– temperature: 15 °C to 35 °C,
– relative humidity: 25 % to 75 % (no condensation),
– air pressure: 86 kPa to 106 kPa,
unless otherwise specified.
6.2 Tolerance on temperature values
Unless otherwise specified in the relevant specification, the tolerance on temperature shall be
±2 °C.
7 Equipment calibration
Equipment calibration shall be considered as part of the quality system.
8 Test report
The test report shall include the measurement results and the actual measuring conditions with
their maximum deviations.
Annex A
(informative)
Environmental test methods of the IEC 61196-1-2xx series
IEC 61196-1-2xx, Coaxial communication cables – Part 1-2xx: Environmental test methods,
consists of the following documents:
IEC 61196-1-200 General requirements
IEC 61196-1-201 Test for cold bend performance of cable
IEC 61196-1-202
Resistance to environmental stress cracking
IEC 61196-1-203 Test for water penetration of cable
IEC 61196-1-205 Resistance to solvents and contaminating fluids
IEC 61196-1-206 Climatic sequence
IEC 61196-1-208 Longitudinal pneumatic resistance
IEC 61196-1-209
Thermal cycling
IEC 61196-1-212 UV stability
IEC 61196-1-215 High temperature cable ageing

Publication dates, stability dates and further information can be found on the IEC web site
www.iec.ch.
___________
___________
Under consideration.
Under consideration.
