IEC 61280-1-1:2013

IEC 61280-1-1 ®
Edition 2.0 2013-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fibre optic communication subsystem basic test procedures –
Part 1-1: Test procedures for general communication subsystems – Transmitter
output optical power measurement for single-mode optical fibre cable

Procédures d'essai de base des sous-systèmes de télécommunication à fibres
optiques –
Partie 1-1: Procédures d'essai des sous-systèmes généraux de
télécommunication – Mesure de la puissance optique des émetteurs couplés à
des câbles à fibres optiques unimodales

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC Plus de 55 000 entrées terminologiques électrotechniques, en
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 61280-1-1 ®
Edition 2.0 2013-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fibre optic communication subsystem basic test procedures –

Part 1-1: Test procedures for general communication subsystems – Transmitter

output optical power measurement for single-mode optical fibre cable

Procédures d'essai de base des sous-systèmes de télécommunication à fibres

optiques –
Partie 1-1: Procédures d'essai des sous-systèmes généraux de

télécommunication – Mesure de la puissance optique des émetteurs couplés à

des câbles à fibres optiques unimodales

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX J
ICS 33.180.01 ISBN 978-2-8322-1461-9

– 2 – IEC 61280-1-1:2013 © IEC 2013

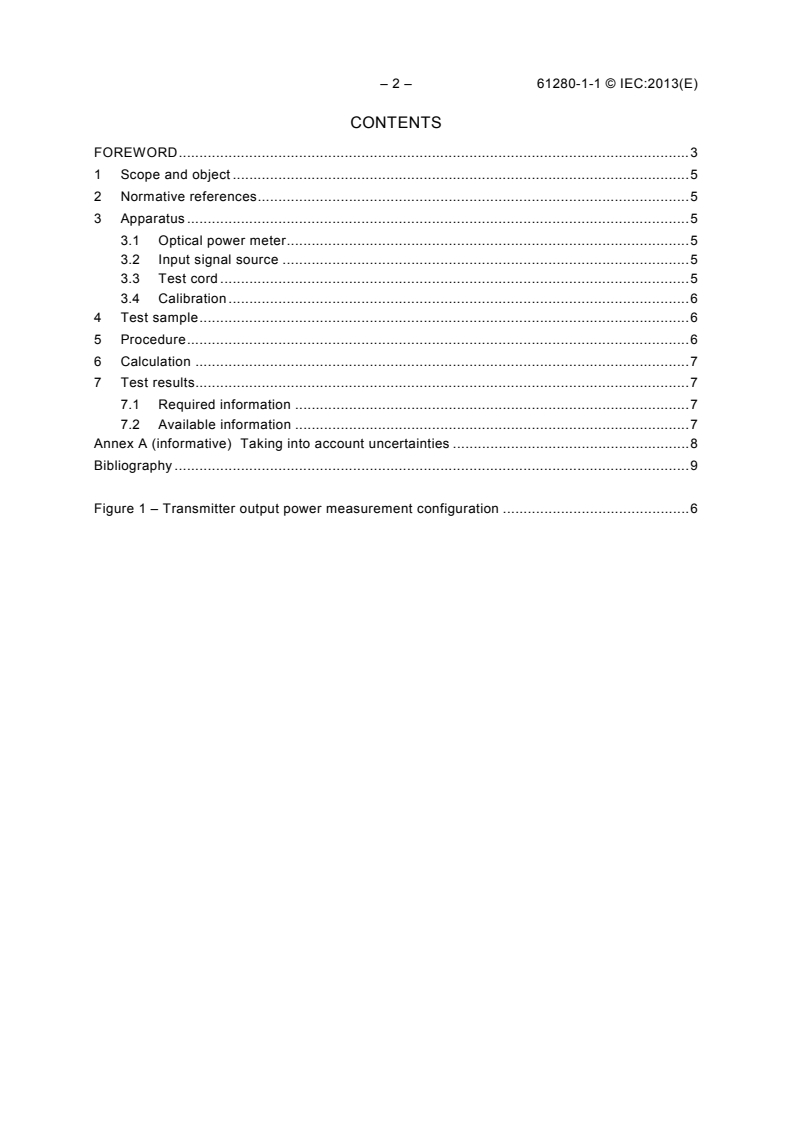

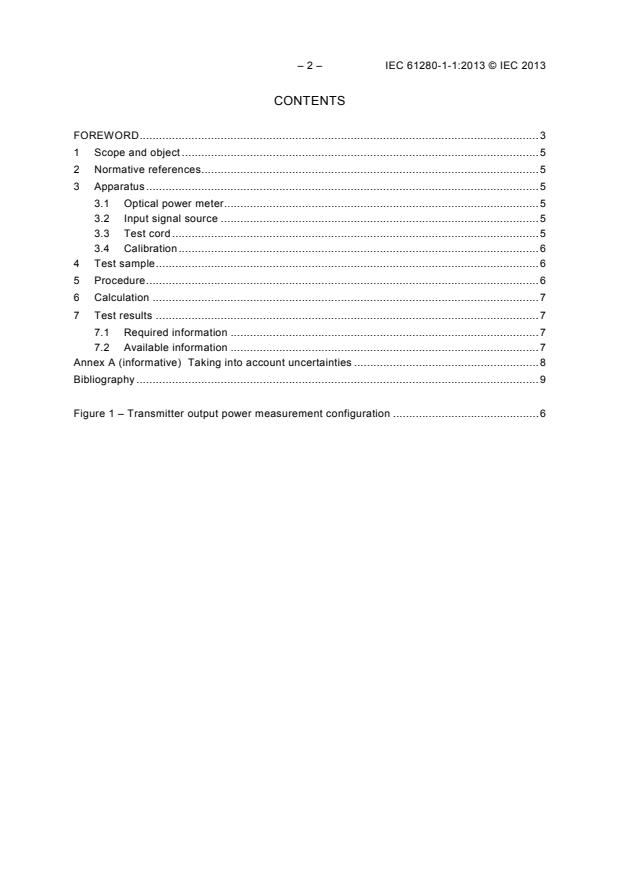

CONTENTS
FOREWORD . 3
1 Scope and object . 5
2 Normative references. 5
3 Apparatus . 5
3.1 Optical power meter . 5
3.2 Input signal source . 5
3.3 Test cord . 5
3.4 Calibration . 6
4 Test sample . 6
5 Procedure . 6
6 Calculation . 7
7 Test results . 7
7.1 Required information . 7
7.2 Available information . 7
Annex A (informative) Taking into account uncertainties . 8
Bibliography . 9

Figure 1 – Transmitter output power measurement configuration . 6

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC COMMUNICATION SUBSYSTEM
BASIC TEST PROCEDURES –
Part 1-1: Test procedures for general communication subsystems –
Transmitter output optical power measurement
for single-mode optical fibre cable

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61280-1-1 has been prepared by subcommittee 86C: Fibre optic
systems and active devices, of IEC technical committee 86: Fibre optics.
This second edition cancels and replaces the first edition published in 1998. This second
edition constitutes a technical revision. The significant technical change with respect to the
previous edition is the inclusion of Annex A on how to account for uncertainties. There are
editorial corrections throughout the document and updates to references.
This bilingual version (2014-03) corresponds to the monolingual English version, published in
2013-05.
– 4 – IEC 61280-1-1:2013 © IEC 2013
The text of this standard is based on the following documents:
CDV Report on voting
86C/1065/CDV 86C/1098/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61280 series, published under the general title Fibre optic
communication subsystem basic test procedures, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
FIBRE OPTIC COMMUNICATION SUBSYSTEM
BASIC TEST PROCEDURES –
Part 1-1: Test procedures for general communication subsystems –
Transmitter output optical power measurement
for single-mode optical fibre cable

1 Scope and object
This part of IEC 61280 applies to fibre optic general communication subsystems. The object of
this part is to measure the optical power coupled from the output of a transmitter under test
into single-mode optical fibre cable containing dispersion-unshifted fibre or dispersion-shifted
fibre.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
IEC 61300-3-35, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-35: Examinations and measurements – Fibre optic
connector endface visual and automated inspection
IEC 61315, Calibration of fibre-optic power meters
3 Apparatus
3.1 Optical power meter
The optical power meter shall be capable of measuring the range of power at wavelengths
provided by the transmitter. The optical power meter shall have a resolution of at least 0,1 dB.
The meter shall have a detecting surface of sufficient size to capture all the power coming from
the fibre that is put into it.
3.2 Input signal source
The input signal source is a signal generator at the appropriate signal rate of the system
interface.
3.3 Test cord
A length of single-mode optical fibre cable, which is known to remove cladding modes, shall be
used. The optical fibre (cable) shall be terminated at both ends with appropriate connectors.
The ends for connection to the fibre optic transmitter and to the optical power meter shall be
terminated with appropriate connector plugs. These plugs and any adapters necessary to
produce the connections shall be such that the performance can be specified by the
manufacturer of the equipment or the connectors. Values for the insertion loss repeatability
shall be known.
– 6 – IEC 61280-1-1:2013 © IEC 2013
3.4 Calibration
The optical power meter shall be configured and calibrated for the test wavelength. The optical
power meters shall be calibrated in accordance with IEC 61315.
The equipment used shall have a valid calibration certificate in accordance with the applicable
quality system for the period over which the testing is done.

Terminal
under test
80 mm
diameter loop
Optical
Signal
power
Tx
source
meter
2 m-10 m
Test cord
Sensor
head
IEC  1090/13
Figure 1 – Transmitter output power measurement configuration
4 Test sample
The test sample shall be a specified single-mode fibre optic transmitter, including all signal
conditioning and multiplexing equipment used in the system in normal operation. The electrical
inputs and outputs shall be those normally available to the user for interfacing with other
transmission equipment.
5 Procedure
5.1 Unless otherwise specified, standard operating conditions apply. The ambient or
reference point temperature shall be specified.
5.2 Apply appropriate terminal input voltage to the system under test. Apply standard (or
extended) operating conditions. Allow sufficient time (30 min, unless otherwise specified in the
detail specification) for the system under test to reach a steady-state temperature and
performance condition.
5.3 Turn the optical power meter on, and allow the manufacturer’s recommended warm-up
and settling time to achieve the rated measurement performance level.
5.4 All connector end faces shall be inspected to verify that they are clean and essentially
free of defects in accordance with IEC 61300-3-35. If necessary, connectors should be cleaned
in accordance with IEC/TR 62627-01 and re-inspected to verify that the cleaning has been
effective. The appropriate performance selection must be selected.
5.5 Remove higher order modes. For example, use a test cord between 2 m and 10 m long
and with an 80 mm diameter loop, as shown in Figure 1.

5.6 Connect one end of the test cord to the transmitter connector and the other end to the
sensor head of the optical power meter, as shown in Figure 1.
5.7 Observe the optical power reading.
If the meter reading fluctuates more than 0,4 dB, the transmitter power output power is not
stable, and the reading should be disregarded. When the meter reading indication is stable,
record the reading.
5.8 Disconnect the fibre test cord from the transmitter connector, clean the test cord
connector again, and reconnect to the transmitter.
5.9 Repeat steps 5.7 and 5.8 until five stable readings are obtained. If it is impossible to
obtain five stable readings, or five readings with a maximum deviation less than the stated
repeatability for the transmitter connector, from 10 attempted measurements, then the fibre
optic transmitter and the test cord shall be rejected.
6 Calculation
Calculate the average of the five readings, and record as the average effective transmitter
output power.
7 Test results
7.1 Required information
– Date and title of the test
– Transmitter identifications
– Identification of test methods, specific operating conditions (standard or extended) and
proce
...
