– 2 – IEC 61169-64:2019  IEC 2019

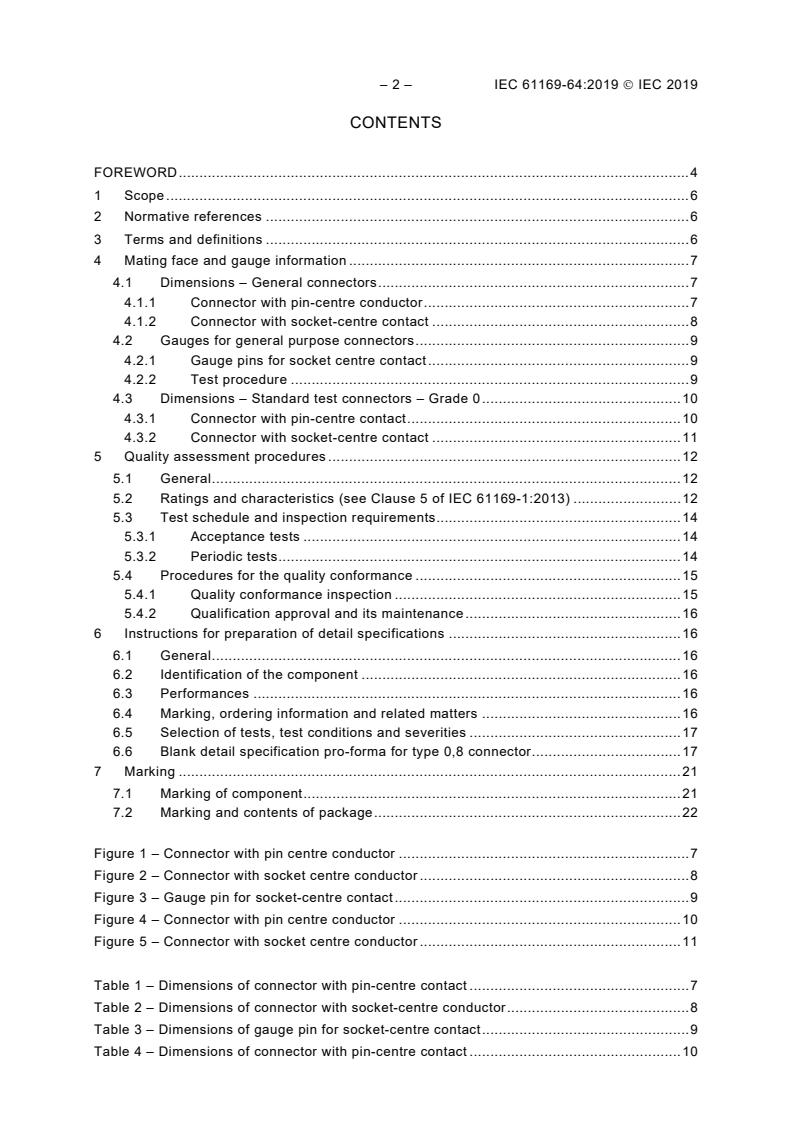

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Mating face and gauge information . 7
4.1 Dimensions – General connectors . 7
4.1.1 Connector with pin-centre conductor . 7
4.1.2 Connector with socket-centre contact . 8
4.2 Gauges for general purpose connectors . 9
4.2.1 Gauge pins for socket centre contact . 9
4.2.2 Test procedure . 9
4.3 Dimensions – Standard test connectors – Grade 0 . 10
4.3.1 Connector with pin-centre contact . 10
4.3.2 Connector with socket-centre contact . 11
5 Quality assessment procedures . 12
5.1 General . 12
5.2 Ratings and characteristics (see Clause 5 of IEC 61169-1:2013) . 12
5.3 Test schedule and inspection requirements. 14
5.3.1 Acceptance tests . 14
5.3.2 Periodic tests . 14
5.4 Procedures for the quality conformance . 15
5.4.1 Quality conformance inspection . 15
5.4.2 Qualification approval and its maintenance . 16
6 Instructions for preparation of detail specifications . 16
6.1 General . 16
6.2 Identification of the component . 16
6.3 Performances . 16
6.4 Marking, ordering information and related matters . 16
6.5 Selection of tests, test conditions and severities . 17
6.6 Blank detail specification pro-forma for type 0,8 connector . 17
7 Marking . 21
7.1 Marking of component . 21
7.2 Marking and contents of package . 22

Figure 1 – Connector with pin centre conductor . 7
Figure 2 – Connector with socket centre conductor . 8
Figure 3 – Gauge pin for socket-centre contact . 9
Figure 4 – Connector with pin centre conductor . 10
Figure 5 – Connector with socket centre conductor . 11

Table 1 – Dimensions of connector with pin-centre contact . 7
Table 2 – Dimensions of connector with socket-centre conductor . 8
Table 3 – Dimensions of gauge pin for socket-centre contact . 9
Table 4 – Dimensions of connector with pin-centre contact . 10

Table 5 – Dimensions of connector with socket-centre contact . 11
Table 6 – Rating and characteristics . 12
Table 7 – Acceptance tests . 14
Table 8 – Periodic tests . 15

– 4 – IEC 61169-64:2019  IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 64: Sectional specification – RF coaxial connectors with 0,8 mm inner
diameter of outer conductor – Characteristic impedance 50 Ω (type 0,8)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61169-64 has been prepared by subcommittee 46F: RF and
microwave passive components, of IEC technical committee 46: Cables, wires, waveguides,
RF connectors, RF and microwave passive components and accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
46F/469/FDIS 46F/485/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 61169-64:2019  IEC 2019
RADIO-FREQUENCY CONNECTORS –
Part 64: Sectional specification – RF coaxial connectors with 0,8 mm inner
diameter of outer conductor – Characteristic impedance 50 Ω (type 0,8)

1 Scope
This part of IEC 61169, which is a sectional specification (SS), provides information and rules
for the preparation of detail specifications (DS) for IEC 61169 (all parts) coaxial connectors
with 0,8 mm coupling.
The connectors are used with cables with characteristic impedance 50 Ω in an operating
frequency range up to 145 GHz. The connectors are widely used in communications and
measurements.
It describes the interface dimensions for general purpose connectors with gauging information
and the mandatory tests selected from IEC 61169-1, applicable to all detail specifications
relative to type 0,8 connectors.
This specification indicates the recommended performance characteristics to be considered
when writing a DS and covers all tests schedules and inspection requirements.
NOTE Dimension are in mm, however original dimensions were in inches.
All un-dimensioned pictorial configurations are for reference purpose only.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 61169-1:2013, Radio-frequency connectors – Part 1: Generic specification – General
requirements and measuring methods
IEC 62037-3, Passive RF and microwave devices, intermodulation level measurement –
Part 3: Measurement of passive intermodulation in coaxial connectors
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp

4 Mating face and gauge information
4.1 Dimensions – General connectors
4.1.1 Connector with pin-centre conductor
The mating face of connector with pin centre contact is shown in Figure 1 and its dimensions
are shown in Table 1.
a) Cross sectional view of connector b) Cross sectional view of centre conductor
Figure 1 – Connector with pin centre conductor
Table 1 – Dimensions of connector with pin-centre contact
mm
Ref.
Min. Max.
a 1,010 0 1,490 0
b 2,430 0 2,450 0
a
c 0,003 0 0,050 0
d 1,490 0 1,570 0
e 0,120 0 0,200 0
f - 0,020 0
g 37° 42°
h 0,345 0 0,351 0
j 0,364 0 0,416 0
k 0,060 0 0,100 0
l 3,320 0 3,400 0
m 1,890 0 1,898 0
n 0,797 0 0,803 0
p 0,197 0 0,203 0
q 0,360 0 0,440 0
Applicable for inner and outer contact for a 50 Ω nominal impedance
a
Measurement uncertainty of inner conductor recession should be considered in the measurement.

– 8 – IEC 61169-64:2019  IEC 2019
4.1.2 Connector with socket-centre contact
Interface of connector with socket-centre contact is shown in Figure 2, dimensions are shown
in Table 2.
a) Cross sectional view of connector b) Cross sectional view of centre conductor
Figure 2 – Connector with socket centre conductor
Table 2 – Dimensions of connector with socket-centre conductor
mm
Ref.
Min. Max.
a 2,220 0 2,380 0
b 0,360 0 0,440 0
c 0,800 0
a
d 0,003 0 0,050 0
e 1,904 0 1,912 0
f 0,797 0 0,803 0
g - 0,011 0
h 0,020 0 0,060 8
j 0,056 0 0,120 0
k 0,345 0 0,351 0
l 3,000 0
m 2,360 0 2,400 0
n 1,280 0 1,360 0
Applicable for inner and outer contact for a 50 Ω nominal impedance resilient to meet the requirements with
gauge pins for socket centre contact expand to meet the requirements with gauge rings for socket outer contact.
a
Measurement uncertainty of inner conductor recession should be considered in the measurement.

4.2 Gauges for general purpose connectors
4.2.1 Gauge pins for socket centre contact
Gauge pins for socket-centre contact is shown in Figure 3, dimensions are shown in Table 3.

Figure 3 – Gauge pin for socket-centre contact
Table 3 – Dimensions of gauge pin for socket-centre contact
Ref. Gauge A Gauge B Gauge C
(For sizing purpose) (For insertion purpose) (For retention purpose)
+2
Mass of gauge: 14 g
mm mm mm
Min. Max. Min. Max. Min. Max.
a 0,197 0 0,203 0 0,197 0 0,203 0 0,197 0 0,203 0
b 0,364 0,416 0,364 0,416 0,364 0,416
Material: steel, polished.
4.2.2 Test procedure
a) Sizing test
The gauge A shall be completely inserted three times into the socket centre contact. This
is a sizing operation.
After sizing, gauge A shall be inserted into socket centre contact. The insertion force shall
not exceed 0,56 N.
b) Withdrawal test
After this, separation force is measured with gauge B and shall require a minimum force of
0,14 N. The contact shall retain the mass of the gauge B in a vertical downward position.
c) Additional test – Insertion test
Following the sizing operation, and if prescribed in the detail specification, the force
necessary to insert gauge A fully into the female centre contact shall be measured. When
this test is required, the maximum permitted insertion force shall then be specified and
shall not exceed 0,28 N.
– 10 – IEC 61169-64:2019  IEC 2019
4.3 Dimensions – Standard test connectors – Grade 0
4.3.1 Connector with pin-centre contact
Interface of connector with pin-centre contact is shown in Figure 4, dimensions are shown in
Table 4.
a) Cross sectional view of connector b) Cross sectional view of centre conductor
Figure 4 – Connector with pin centre conductor
Table 4 – Dimensions of connector with pin-centre contact
mm
Ref.
Min. Max.
a 1,010 0 1,490 0
b 2,430 0 2,450 0
a
c 0,003 0 0,050 0
d 1,490 0 1,570 0
e 0,120 0 0,200 0
f - 0,020 0
g 37° 42°
h 0,346 5 0,349 5
j 0,364 0 0,416 0
k 0,060 0 0,100 0
l 3,320 0 3,400 0
m 1,890 0 1,898 0
n 0,798 5 0,801 5
p 0,198 5 0,204 5
q 0,360 0 0,440 0
4.3.2 Connector with socket-centre contact
Interface of connector with socket-centre contact is shown in Figure 5, dimensions are shown
in Table 5.
a) Cross sectional view of connector b) Cross sectional view of centre conductor
NOTE 1 The outer hoop is optional for some applications.
NOTE 2 Spring finger is bottomed.
Figure 5 – Connector with socket centre conductor
Table 5 – Dimensions of connector with socket-centre contact
mm
Ref.
Min. Max.
a 2,220 0 2,380 0
b 0,360 0 0,440 0
c 0,800 0
a
d 0,003 0 0,050 0
e 1,904 0 1,912 0
f 0,798 5 0,804 5
g - 0,011 0
h 0,020 0 0,060 8
j 0,056 0 0,120 0
k 0,346 5 0,352 5
l 3,000 0
m 2,360 0 2,400 0
n 1,280 0 1,360 0
– 12 – IEC 61169-64:2019  IEC 2019
5 Quality assessment procedures
5.1 General
Subclauses 5.2 to 5.4 provide recommended ratings, performance and test conditions to be
considered when writing a detail specification. They also provide an appropriate schedule of
tests with minimum levels of conformance inspection sampling, together with the pro forma
blank detail specification (BDS) and instructions for the preparation of a detail specification.
5.2 Ratings and characteristics (see Clause 5 of IEC 61169-1:2013)
The values indicated below are recommended for IEC 61169 (all parts) RF connectors and
are given for the writer of the detail specification. They are applicable for the condition when
the connectors are fully mated.
Certain tests will usually not be required. When these tests are required, appropriate values
shall be entered in the detail specification at the discretion of the specification writer.
Rating and characteristics are given in Table 6.
Table 6 – Rating and characteristics
Ratings and IEC 61169-1:2013 Value Remarks, deviation from
characteristics Subclause standard test method
Electrical
Nominal impedance
50 Ω
Frequency range DC to 145 GHz Or upper frequency limit of
cable
a
Return loss 9.2.1 For interface only
Straight styles Grade 1
≤ 0,120 from DC to 50 GHz
≤ 0,150 from 50 GHz to 75 GHz
≤ 0,158 from 75 GHz to 145 GHz
Grade 0
≤ 0,063 from DC to 50 GHz
≤ 0,080 from 50 GHz to 145 GHz
Right angle styles See DS
For flexible cable See DS
Component mounting style See DS
Solder bucket and PCB See DS
mounting style
Insertion loss ≤ 0,6 dB from DC to 145 GHz
b
Centre contact resistance 9.2.3

initial < 5,0 mΩ
after tests
< 13,0 mΩ
b
Outer conductor continuity 9.2.3
initial
≤ 2 mΩ
after tests ≤ 3 mΩ
Insulation resistance 9.2.5
Initial
≥ 4 GΩ
c, d
Proof voltage
sea level 9.2.6
> 217 V RMS
Working voltage at sea
> 80 V RMS
level
Ratings and IEC 61169-1:2013 Value Remarks, deviation from
characteristics Subclause standard test method
e
Screening effectiveness 9.2.7
1 GHz to 3 GHz na
Intermodulation level IEC 62037-3 na
Mechanical
Insertion force (resilient 9.3.4
contacts)
centre contact
≥ 0,16 N
outer contact
≥ 0,56 N
f
Centre contact captivation 9.3.5 Only applicable to centre
contact with captivation
structure; after test, the
dimensions of centre
contact comply with
interface dimension
Axial force
≥ 8,0 N
Torque See DS
Engagement and separation
axial force
Engagement Typical (± 0,1 Nm)
< 0,45 N
Separation ≥ 0,55 N Typical
Effectiveness of cable fixing
against
– cable rotation 9.3.7
– cable pulling 9.3.8
– cable bending 9.3.9
– cable torsion 9.3.10
Strength of coupling 9.3.11 ≥    N
mechanism
m/s
Vibration 9.3.3    acceleration
(10 Hz to 2 000 Hz)
Endurance
Mechanical endurance 9.3.15   operations

High temperature 9.4.5    at    °C
g
endurance
Environmental
Climatic category    A
B
C
Salt mist 9.4.10    h spray
a
Characteristics indicated are those that can be applied to basic connector. Intrinsic limitations of the cable may
diminish the performance of the assembly and reference should always be made to the actual values given in
the detail specification.
b
Values for a single pair of connectors.
c
Voltages are RMS values of AC at 40 Hz to 65 Hz, unless otherwise specified.
d
Values are depending also of the cable type.
e
Applicable in fully mated position. Depending of cable type values for a single pair of connector.
f
Maximum displacement of 0,25 mm in each direction.
g
Upper temperature limit can be restricted by the cable characteristics. Reference should be made to the
relevant cable specification.
– 14 – IEC 61169-64:2019  IEC 2019
5.3 Test schedule and inspection requirements
5.3.1 Acceptance tests
There are no group C tests for levels H and M.
Table 7 describes the acceptance tests to be performed.
Table 7 – Acceptance tests
– IEC 61169-1:2013 Assessment level M (higher) Assessment level H (lower)
Subclause
Test IL AQL Period Test IL AQL Period
required required
% %
Group A1
Visual inspection 9.1.1 a II 1 a S3 1,5
Group B1
Outline 9.1.2 a S4 0,4 a S3 4,0
dimensions
Mechanical 9.1.2.2 a II 1 a S3 1,5
compatibility
Engagement and 9.3.6 a S4 0,4 a S3 1,5
separation
Insertion force 9.3.4 ia II 1 ia S3 1,5
(resilient contacts)
Sealing
non hermetic 9.4.7 ia II 0,65 ia S3 1
hermetic 9.4.8 ia II 0,015 ia S3 0,025
Voltage proof 9.2.6 a II 0,4 a II 4,0
Solderability (d) 9.3.2.2 ia S4 0,4 ia S3 4,0
Insulation 9.2.5 a S4 0,4 a S3 4,0
resistance
For the symbols, abbreviations and procedures, see the end of Table 8.

5.3.2 Periodic tests
Table 8 describes the periodic tests to be performed.
Lot by lot
Lot by lot
Table 8 – Periodic tests
IEC 61169-1:2013 Assessment level M (higher) Assessment level H
Subclause (lower)
Group D1 (d)  6 1 3 years 3 1 3 years
Solderability connector 9.3.2.2 ia  ia
assemblies
Resistance to soldering heat 9.3.2.3 ia  ia
Mechanical tests on cable
fixing
cable rotation (nutation) 9.3.7 na  na
cable pulling 9.3.8 ia  ia
cable bending 9.3.9 ia  ia
cable torsion 9.3.10 ia  ia
Group D2 (d)  6 1 3 years 3 1 3 years
Contact resistance, outer 9.2.3 a  a
conductor and centre
conductor continuity
Vibration 9.3.3 a
Damp heat, steady state 9.4.3 a  a
Group D3 (d)  1 1 3 years 1* 1 3 years
Dimensions piece-parts and
9.1.2 a  a
materials
Group D4 (d)  6 1 3 years 3 1 3 years
Mechanical endurance 9.3.15 a  a
High temperature endurance 9.4.5 a  a
Discharge test 9.2.8
Climatic conditioning 9.4 na  na
Group D5 (d)  6 1 3 years 3 1 3 years
Return loss 9.2.1 a  a
Screening effectiveness 9.2.7 a  a
Water immersion 9.4.9 ia  ia
Group D6 (d)  6 1 3 years 3 1 3 years
Contact captivation 9.3.5 a  a
Change of temperature 9.4.4 na  na
Climatic sequence 9.4.2 a  a
Group D7 (d)  1§ 3 years 1§ 3 years
Salt mist 9.4.10 a
a suggested as applicable
ia test suggested (if technically applicable)
na not applicable
IL inspection level
AQL acceptable quality level
* one set of piece-parts each style and variant, unless using common piece parts
# for quality conformance, a total of two failures only permitted for level H and 1 failure only for level M from
groups D1 to D7
§ Group D7 – number of pairs for each solvent
(d) destructive tests – specimens shall not be returned to stock

5.4 Procedures for the quality conformance
5.4.1 Quality conformance inspection
This shall consist of test group A1 and B1 on a lot-by-lot basis.

– 16 – IEC 61169-64:2019  IEC 2019
5.4.2 Qualification approval and its maintenance
This still consists of three consecutive lots passing test groups A1 and B1 followed by
selection of specimens from the lots as appropriate. These specimens shall successfully pass
the specified periodic D tests.
6 Instructions for preparation of detail specifications
6.1 General
Detail specifications (DS) writers shall use the appropriate BDS pro-forma. The following
pages comprise the pro-forma BDS dedicated for use with type 50 Ω type 0,8 connectors. As
such, it will already have entered on it information relating to
a) the basic specification number applicable to all the detail specification covering connector
styles of the type covered by the sectional specification,
b) the connector series designation.
The specification writer should enter the details relating to the connector style/variant(s) to be
covered as indicated. The numbers in brackets on the BDS correspond to the following
indications which shall be given.
6.2 Identification of the component
1) Enter the following details:
– style: the style designation of the connector including type of fixing and sealing if
applicable;
– attachment: by deletion of the inapplicable options of cable/wire: given for centre and
outer conductors;
– special features and markings: as applicable;
– series designation: in bold characters/digits approximately 15 mm high;
2) Enter details of assessment level and the climatic category.
3) A reproduction of the outline drawing and details of the panel piercing (if applicable). It
shall provide the maximum envelope dimensions, also the position of the reference plane
and, in the case of a fixed connector, the position of the mounting plane(s) relative to the
front face of the connector.
4) Any maximum panel thickness limitations for fixed connectors shall be stated.
5) Particulars of all variants covered by the DS. As appropriate, the information shall include:
– cable types (or sizes) applicable to each variant;
– alternative plated or protective finishes;
– details of alternative mounting flanges having either tapped or plain mounting holes;
– details of alternative solder spills or solder buckets including, when applicable, those
for use with microwave integrated circuit (MIC) components.
6.3 Performances
6) Performance data listing the most important characteristics of the connectors in
accordance with the requirements of the relevant sectional specification. Deviation from
the minimum requirements shall be clearly indicated. Non-applicable parameters shall
marked "na".
6.4 Marking, ordering information and related matters
7) Insert marking and ordering information as appropriate, together with details or related
documents and any invoked structural similarity.

6.5 Selection of tests, test conditions and severities
8) "na" shall be used to indicated non-applicable tests. All tests marked "a" by the detail
specification writer shall be mandatory.
When using the normal procedure with a dedicated BDS, the letter "a" − for applicable − shall
be entered in the 'test required' column against each of the tests indicated as being
mandatory in the test schedule of the relevant sectional specification. Any additional tests
required at the discretion of the specification writer shall also be indicated by an "a".
The specification writer shall also indicate, when necessary, details of deviations from the
standard test method and test conditions, including any relevant deviations given in the test
schedule of the sectional specification.
6.6 Blank detail specification pro-forma for type 0,8 connector
The following pages contain the complete BDS pro-forma.
(1) Page 1 of
(2)
ELECTRONIC COMPONENT OF ASSESSED (3)   .
QUALITY IN ACCORDANCE WITH GENERIC
(4)   .
SPECIFICATION IEC 61169-1 NATIONAL
REFERENCE
(5) Detail specification for radio frequency coaxial connector of Type
assessed quality
Style    Special features and markings
Method of cable/wire+ attachment centre conductor – solder/crimp+
outer conductor – solder/clamp/crimp +
+ delete as appropriate
(6) Assessment level    Characteristic impedance Climatic category.40/85./21./
50 Ω
(7) Outline and maximum dimensions Panel piercing and mounting details
(8) Variants
Variant No. Description IEC 61196
of variant
Information about manufacturers who have components qualified under the IECQ Conformity Assessment
System is available through the IECQ on-line certificate system.

– 18 – IEC 61169-64:2019  IEC 2019
9) Performance (including limiting conditions of use)
Ratings and Variant No. IEC 61169-1:2013 Value Remarks,
characteristics Designation Subclause including any
deviations from
standard test
methods
Electrical
Nominal impedance
50 Ω
Frequency range    9.2.1 0,05 GHz to Measurement
28 GHz frequency range
Reflection factor
(Expressed as return
GHz
loss)
GHz
GHz
Centre contact 9.2.3 Initial
≤    mΩ
resistance
After conditioning
≤    mΩ
Centre conductor    9.2.3 ≤    mΩ Resistance change
continuity due to conditioning

≤    mΩ
≤    mΩ
≤    mΩ
Outer contact 9.2.3 ≤    mΩ Initial
continuity
After conditioning
≤    mΩ
Insulation resistance 9.2.5 ≥    GΩ Initial
≥    GΩ After conditioning
9.2.6    kV 86 kPa to 106 kPa
+ Proof voltage at
sea level
kV
kV
kV
+ Proof voltage at    9.2.6    kV    kPa (if not
4,4 kPa)
4,4 kPa
kV
kV
kV
Screening    9.2.7    dB at    Z ≤.   mΩ
t
effectiveness    GHz
Discharge test    9.2.8 Extinction voltage
≥    V
(corona) at sea level
≥    V
≥    V
≥    V
ADDITIONAL
ELECTRICAL
CHARACTERISTICS
Intermodulation level    IEC 62037-3    dB at    Under 2 carries of
GHz
+43 dBm
+ Voltage values are RMS values at 50 Hz to 60 Hz, unless otherwise specified.

Ratings and characteristics IEC 61169-1:2013 Value Remarks, including
Subclause any deviations from
standard test
methods
Mechanical
Soldering 9.3.2
– bit size
Insertion force 9.3.4
(resilient contacts)
– inner contact     N
See Figure 3 and
Table 3
– outer contact     N
See Figure 4 and
Table 4
Centre contact
9.3.5
captivation
– axial force     N
– permitted     mm
displacement in
each direction
– torque     Nm
Engagement and 9.3.6 Achievable by hand
separation
– axial force
Strength of coupling
9.3.11    N
mechanism
Effectiveness of  Rotations
cable fixing against
– cable rotation    9.3.7
– cable pulling 9.3.8 Point of application
and duration
N    mm    s
N    mm    s
N    mm    s
N    mm    s
– cable bending 9.3.9 Length of cable and
mass
cycles    mm
cycles    mm
cycles    mm
cycles    mm
– cable torsion 9.3.10 Duration of applied
torque
Nm    s
Nm    s
Nm    s
Nm    s
Bending moment 9.3.12    Nm Relative to reference
plane
Bumps total 9.3.13    m/s (   g
n
to    Hz acceleration)
Vibration 9.3.3    m/s (   g
n
to    Hz acceleration)
Shock 9.3.14    m/s (   g
n
Shape acceleration)
ms
ADDITIONAL
MECHANICAL
CHARACTERISTICS
– 20 – IEC 61169-64:2019  IEC 2019
Ratings and IEC 61169-1:2013 Value Remarks including
characteristics Subclause any deviations
from standard test
methods
Environmental
Climatic category
Sealing non- 100 kPa to 110 kPa
hermetically sealed 9.4.7    cm /h pressure differential
connectors
Sealing hermetically 100 kPa to 110 kPa
–5 3
9.4.8 10 bar/cm /h
sealed connectors pressure differential
Water immersion 9.4.9
Salt mist 9.4.10    h Duration of spraying
ADDITIONAL ENVIRONMENTAL CHARACTERISTICS
ENDURANCE
Mechanical 9.3.15    operations
High temperature    h
9.4.5
at    °C
ADDITIONAL
ENDURANCE
CHARACTERISTICS
CHEMICAL CONTAMINATION
Resistance to
solvents and
contaminating fluids
9.4.11
to be used
Applicable fluids
Sulphur dioxide 9.4.12    days

10) Supplementary information
– Marking of the component: in accordance with 11.1 of IEC 61169-1:2013 in the following order of
procedure:
1) Identity of manufacture
2) Manufacturing date code    year /week
3)   Component identification variant No./designation Identification

‒ Marking and contents of package: in accordance with 11.2 of IEC 61169-1:2013
1) Information prescribed in 11.1 of IEC 61169-1:2013 detailed above
2) Nominal characteristic impedance
Ω
3) Assessment level code letter
4) Any additional marking required

‒ Ordering information:
1) Number of the detail specification/variant code
2) Assessment level code letter
3) Body finish (if more than one listed)
4) Any additional information or special requirements
– Related documents (if not included in IEC 61169-1:2013 or sectional specification):
.
.
‒ Structural similarity in accordance with 10.2.2 of IEC 61169-1:2013

Relevant information on a basic style should be entered as variant 01.

7 Marking
7.1 Marking of component
Each component shall be legibly and durably marked, where space permits and in the
following order of precedence, with:
a) identity code of the manufacturer;
b) manufacturer’s connector identification code or IEC connector designation.

– 22 – IEC 61169-64:2019  IEC 2019
7.2 Marking and contents of package
The package shall be marked with the information prescribed in 7.1 and, in addition, the
following information shall be given:
a) nominal characteristic impedance;
b) manufacturing date code;
c) any additional marking required by the relevant specification.
When required by the relevant specification, the package shall also include instructions for
assembling the connector(s) and instructions for the use of any special tools or materials, as
necessary.
___________
– 24 – IEC 61169-64:2019  IEC 2019
SOMMAIRE
AVANT-PROPOS . 26
1 Domaine d'application . 28
2 Références normatives . 28
3 Termes et définitions . 28
4 Informations relatives aux éléments d’accouplement et aux calibres . 29
4.1 Dimensions – Connecteurs généraux . 29
4.1.1 Connecteur avec conducteur central mâle . 29
4.1.2 Connecteur avec contact central femelle . 30
4.2 Calibres pour connecteurs à usage général . 31
4.2.1 Broches calibrées pour contact central femelle . 31
4.2.2 Mode opératoire d’essai . 31
4.3 Dimensions – Connecteurs d'essai normalisés – Grade 0 . 32
4.3.1 Connecteur avec contact central mâle . 32
4.3.2 Connecteur avec contact central femelle . 33
5 Procédures d'assurance de la qualité . 34
5.1 Généralités . 34
5.2 Valeurs assignées et caractéristiques (voir l’Article 5 de l'IEC 61169-1:2013) . 34
5.3 Programme d'essais et exigences de contrôle . 36
5.3.1 Essais d'acceptation .
...
