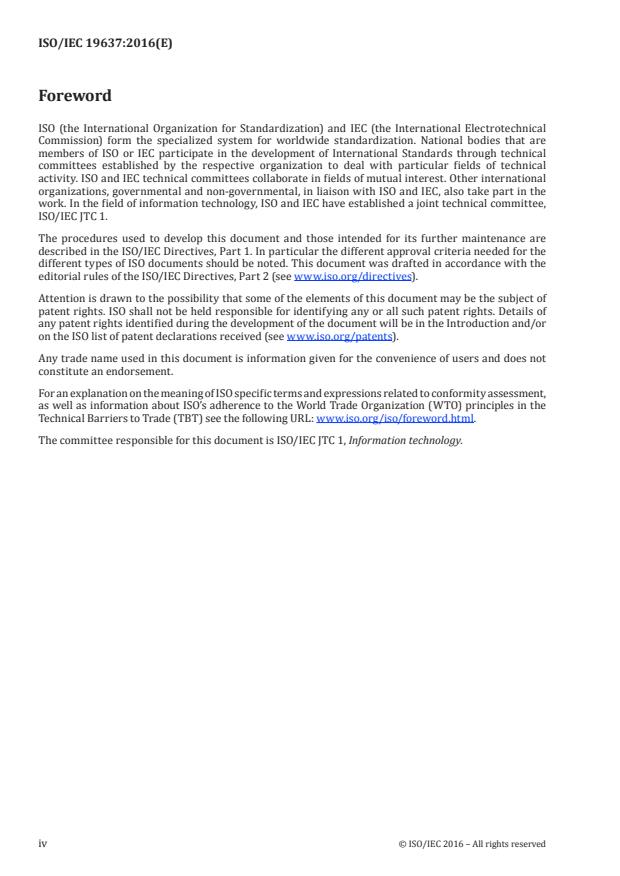

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/IEC JTC 1, Information technology.
iv © ISO/IEC 2016 – All rights reserved

Introduction
Sensor network is widely used around the world in multiple fields such as industrial automation,
environment monitoring, smart home, intelligent health-care and smart grid. The applications can
involve different devices supplied by different manufacturers, e.g. sensors, actuators, controllers,
routers and gateways, etc. Data can be collected and processed by use of different wired/wireless
communication technologies. Thus, various test systems should be employed to satisfy some specific
requirements. The operations of test systems is a challenge to users, if without a uniform test platform.
When designing and developing a sensor network test system, the characteristics regarding the
following aspects should be considered:
a) Sensor network heterogeneity. It is necessary to verify the interoperability of sensor networks
based on different protocols prior to system application;
b) Diversity of sensor network applications.
However, an international test standard for sensor networks which can provide guidance to design and
develop a uniform platform integrating different tests for sensor networks is still unavailable.
© ISO/IEC 2016 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 19637:2016(E)
Information technology — Sensor network testing
framework
1 Scope
This document specifies:
— testing framework for conformance test for heterogeneous sensor networks,
— generic services between test manager (TMR) and test agent (TA) in the testing framework, and
— guidance for creating testing platform and enabling the test of different sensor network protocols.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
analysis module
logical unit within a testing application process which is used to analyse the information from test
agent and module-based test depending on a particular strategy
3.2
test agent
device designed for different sensor network protocols or various kinds of hardware that can
communicate directly with the test manager and the systems under test
3.3
testing application process
software functional entity that performs the processing by combining test modules, analysis modules
and report modules to fulfil test purposes
Note 1 to entry: It is an application platform that supervises various operational aspects of testing activities and
entities, usually through interaction with test agents.
3.4
test module
logical unit within a testing application process that performs operations depending on a specified
testing requirements
3.5
testing platform
testing entity that could integrate different test systems for different protocols and technologies
EXAMPLE A platform can provide IPv4 and IPv6 conformance testing systems.
© ISO/IEC 2016 – All rights reserved 1

3.6
test report
logical unit of software within a testing application process that produces documents at the end of test
assessment
3.7
view object
logical element provided to support efficient access to data within a testing or analysis module
Note 1 to entry: It is visible on graphic user interfaces.
4 Abbreviated terms
TE auxiliary testing equipment
DUT device under test
ICS implementation conformance statement
IUT implementation under test
MIB management information base
OD object dictionary
SAPs service access points
SNTF sensor network testing framework
SUT system under test
TA test agent
TAP testing application process
TDSs testing data services
TM test module
TMR test manager
TMSs testing management services
TP test purpose
VO view object
5 Overview of a sensor network testing framework (SNTF)
5.1 Testing requirements of sensor networks
Varied with applications, sensor networks are likely employ different communication technologies and
protocols. To ensure their interconnection and operation, it is required to deploy a great number of
test systems, which are designed to test individual technologies and protocols with regard to protocol
conformance. Therefore, it is a challenging task to integrate the variety of the test systems for sensor
networks.
It is difficult to manage different test systems, make them work together and execute test cross various
technologies and protocols for specific user r
...
